Mixcder E9 User manual

User Manual • Uživatelský manuál • Užívateľský manuál •
Használati utasítás • Benutzerhandbuch
Model: E9

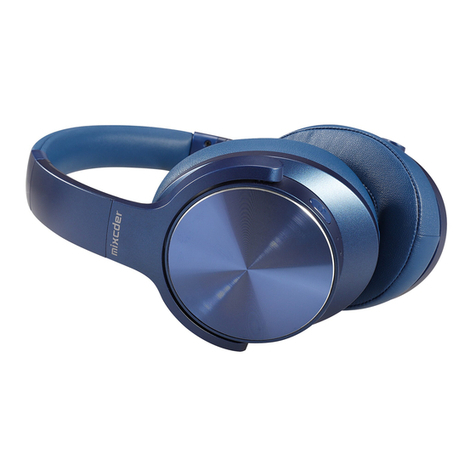

Wireless Headphones

2
Content • Obsah • Tartalom • Inhalt
English
3 – 21
Čeština
22 – 40
Slovenčina
41 – 59
Magyar
60 – 78
Deutsch
79 – 97
Importer • Dovozce • Dovozca • Importőr • Importeur
Alza.cz a.s.
Jankovcova 1522/53
Prague 7
www.alza.cz

3
Dear customer,
Thank you for purchasing our product. Please read the following
instructions carefully before first use and keep this user manual for future
reference. Pay particular attention to the safety instructions. If you have
any questions or comments about the device, please contact the customer
line.
✉www.alza.co.uk/kontakt
✆[phone]

4
Introduction
Thank you for purchasing the Mixcder E9 Wireless Active Noise Cancelling
Headphones. Mixcder E9 active noise cancelling technology detects the
noise around you and cancels it out while traveling, working or going
anywhere, helping you focus on what you want to hear. The look of E9 is
fashionable and its package is eco-friendly. Built-in rechargeable battery
provides sufficient music playtime and standby time (Fast Charging: 5-
minute charging for 2-hour playtime). It’s designed to sound better, filter
out noise, be more comfortable and easier to carry.
E9 can be used in both wired and wireless modes via 3.5mm audio cable
and Wireless V5.0 to communicate with your Wireless-enabled device
within 33 ft/10 m. Its powerful and rich bass speaker brings you amazing
and unprecedented audio enjoyment.
Note: Please read the user manual carefully before using, and keep it
properly for future reference.

5
Package Contents
1× Wireless Headphones
1× Micro USB Charging Cable
1× 3.5mm Audio Cable
1× User Manual
1× Compact Carrying Case
1× Airplane Adapter

6
Product Overview
1
Microphone
5
Next track /Vol+
9
ANC Switch
2 3.5mm Line-in Port 6
LED Indicator /
Charging LED
10
Micro USB
Charging Cable
3 Power Button 7
Micro USB Interface
for charging
11
3.5mm Audio
Cable
4 Previous Track /Vol- 8 ANC LED Indicator 12
Airplane
Adapter

7
Charging
Use the supplied micro USB charging cable to recharge the battery. It takes
about 1.5 hours for the first charge and after charging for as long as 1
hours. The headphone LED turns to solid red during charging. When the
battery is fully charged, the LED turns off.
In order not to affect the charging time, please turn off the wireless
function during charging, but you still can use the audio cable.
When the battery is low, the LED indicator light blinks red. At the same time
the headphones also provide a low battery warning tone.
Note: It is strongly recommended fully charging for the first use. Playtime
varies according to volume level and audio content.

8
Pairing with Wireless Devices
1. Make sure the headphones are off.
2. Do not place both devices more than one meter away from
each other.
3. Turn on the wireless function of your devices.
4. Press and hold the power button on the headphones until it
powers on but don’t let go just yet. Continue holding down on
the power button until you see the LED indicator flash blue
and red alternately, which means your headphones are in
pairing mode waiting to be paired with your device. You will
hear a prompt.
5. Select the “Mixcder E9” to pair. Once successfully paired, the
LED turns to solid blue. You will hear a prompt.
Note: Before pairing the headphones with computer, please make sure
your computer or laptop has the built-in Wireless feature. If not, you must
purchase a Wireless dongle, preferably version 2.1 or above. Mixcder E9 will
pair with the last paired device automatically when turning on. Because of
different systems, some computers or laptops may need to be manually
paired every time.

9
Active Noise Cancelling
Mixcder E9 contains a noise cancelling circuit. Noise mainly from airplanes,
buses or trains is effectively reduced.
1. The noise cancelling effect may not be pronounced in a very
quiet environment as some noise may be heard.
2. The noise cancelling effect may vary depending on how you
wear the headphones.
3. The noise cancelling function works for noise in the low
frequency band primarily. Although noise is reduced, it is not
cancelled out completely.

10
Making and Answering a Call
7.1 Making a Call
1. Make sure the headphones are paired with the mobile phone.
Dial through the mobile phone and press the call button on
the phone.
2. To end the call, press the power button once again or also end
the call directly by the phone.
7.2 Answering a Call
Make sure the headphones are paired with your phone. Refer to chapter 5:
“Pairing with Wireless Devices”.
1. Press the power button on your headphones to answer the
call through headphones. If there is the music playback, it will
pause.
2. To end the call, press the power button once again or also end
the call directly by the phone.
3. As soon as the call is ended, the music will continue to play
automatically.

11
Used as a Wired Headphones
There is a 3.5mm audio port on the left side of ear cup in which you can
plug the included audio cable. It enables you to connect E9 to other devices
via 3.5mm audio cable. When the headphones battery is low, you can still
enjoy the music without worrying about the battery.
Note: The microphone can’t work when used as wired headphones.

12
Taking Care of Your Headphones
•Store the headphones in the carrying case and in a dry place when it
powers off.
•If you don’t use the headphones for a long period, charge the battery
every two months for one to two hours.
•Use a dry cloth for cleaning if needed.
•Avoid dropping the headphones from high places or on hard
surfaces.
•Avoid exposing the headphones to extreme temperatures
(recommended storage temperature is from -40 °C to 80 °C).
•The headphones are NOT waterproof. Avoid exposing the
headphones to rain or getting liquids into any button port or other
opening.
•Please don’t twist or bend the earphones. This may cause permanent
deformation.
•The built-in battery can’t be disposed into fire to avoid explosion.

13
Protecting Your Hearing
The headphones are held close to your ears, so loud sounds pose a
potential hearing risk. It is highly recommended that setting low volume
level before putting on the headphones are and avoiding exposing yourself
continuously to high volumes. If you need to use the headphones for a long
period, rest ten minutes for a half hour using.

14
Controls
Function
Operation
Power on
Press and hold the power button for 3 seconds, and you will
see the blue light flash and hear “power on”.
Power off
Press and hold the power button for 3 seconds, and you will
hear “power off”.
Pairing
Press and hold the power button for about 5 seconds till the
red and blue light flash alternatively, and you will hear
“pairing”.
Increase volume
Press the volume up v+ button.
Decrease volume
Press the volume down v- button.
Play media
Press the power button.
Pause/restart media
playback Press the power button.
Skip to next track
Press and hold the V+ button for 1-2 seconds.
Skip to previous
track
Press and hold the V- button for 1-2 seconds.
Answer a call
When a call rings, press the power button.
End a call
Press the power button.
ANC On
Push the ANC switch to ON, blue lights on.
ANC Off
Push the ANC switch to OFF, blue lights off.
Note: There will be an alert tone when the volume reaches the maximum
level.

15
Troubleshooting
Q: The headphones cannot be turned on.
A: The battery may be flat. Please recharge the battery and try again. Refer
to chapter 4: “Charging”.
Q: Why don’t the headphones pair with the mobile phone?
A: Please check the following:
•Check that the headphones are fully charged.
•Make sure that the mobile phones wireless function is on. You can
clear all connection history on your phone.
•Make sure other paired devices’ wireless function is turned off.
•Make sure the two devices are in the effective pairing range (10m).
•Make sure that there is no obstacle between the headphones and
the mobile phone, such as electronic equipment and a wall.
•Furthermore, make sure that the headphones are in pairing mode
and pair it with phone again.
Q: There is some noise.
A: Wireless is a radio technology, so it is sensitive to obstacles between the
headphones and the pairing device. Make sure that there is no obstacle
between the two devices within 10 meters.

16
Q: I can’t hear sound.
A: Please check the following:
•Try increasing the volume.
•Make sure that the wireless function is on and whether the two
devices are connected and within 33 feet/10 meters.
Q: My mobile phone or computer cannot find the headphones.
A: Please check that the headphones are in pairing mode. Refer the chapter
5: “Pairing with Wireless Devices”. Sometimes when the headphones are
connected to too many wireless devices, it cannot search and pair
effectively. Or your mobile phone and computer are already connected to
many other devices. Try removing some connections before searching the
headphones.

17
Specifications
Microphone
Spec.
Microphone Unit
4×1.5mm
Directivity
Omni-directional
S.P.L
-42dB
Impedance ≤2.2KΩ
Operating
Voltage 2V
Speaker
Spec.
Speaker
Diameter
Φ40mm
S.P.L
94dB
Impedance
32Ω
THD
< 3%
Frequency
Response
20HZ-20KHZ
Wireless
Tech.
Wireless Version
Bluetooth v5.0
Wireless Distance
10m (indoor)
Transmission
Frequency
2.402GHz-2.480GHz
Support Profile
HSP/HFP/A2DP/AVRCP
Pairing Name
Mixdcer E9

18
Battery
Spec.
Battery Type
Built-in 500 mAh rechargeable
lithium battery (support fast
charging)
Playtime
About 35-hour talk/music time
(ANC OFF)
About 30-hour task/music time
(ANC ON)
Charging Port
Micro USB 5V/1A
Charging Time
About 1 hour
Operating
temperature
-10 °C to 45 °C
Note: Features and technical specifications are subject to change without
notice, we apologize for any inconvenience.
Warranty Conditions
A new product purchased in the Alza.cz sales network is guaranteed for 2
years. If you need repair or other services during the warranty period,
contact the product seller directly, you must provide the original proof of
purchase with the date of purchase.

19
The following are considered to be a conflict with the warranty
conditions, for which the claimed claim may not be recognized:
•Using the product for any purpose other than that for which the
product is intended or failing to follow the instructions for
maintenance, operation and service of the product.
•Damage to the product by a natural disaster, the intervention of an
unauthorized person or mechanically through the fault of the buyer
(e.g. during transport, cleaning by inappropriate means, etc.).
•Natural wear and aging of consumables or components during use
(such as batteries, etc.).
•Exposure to adverse external influences, such as sunlight and other
radiation or electromagnetic fields, fluid intrusion, object intrusion,
mains overvoltage, electrostatic discharge voltage (including
lightning), faulty supply or input voltage and inappropriate polarity of
this voltage, chemical processes such as used power supplies, etc.
•If anyone has made modifications, modifications, alterations to the
design or adaptation to change or extend the functions of the
product compared to the purchased design or use of non-original
components.

20
EU Declaration of Conformity
Identification data of the manufacturer's / importer's authorized
representative:
Importer: Alza.cz a.s.
Registered office: Jankovcova 1522/53, Holešovice, 170 00 Prague 7
IČO: 27082440
Subject of the declaration:

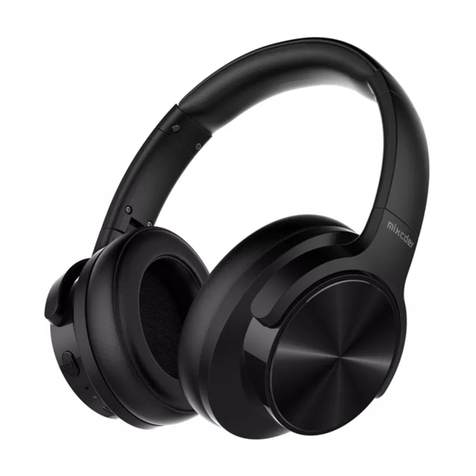

Title: Wireless headphones
Model / Type: Mixcder E9
The above product has been tested in accordance with the standard
(s) used to demonstrate compliance with the essential requirements
laid down in the Directive (s):
Directive No. (EU) 2014/53/EU
Directive No. 2011/65/EU as amended 2015/863/EU
Prague, 23.9.2020
