Mizuno MOT-VS600 User manual

20
Operating Table MOT-VS600
Operator’s Manual
The operating table is designed to support a patient during surgical procedures.
Using it for other purposes may result in damage or injury.
The operator and the person in charge of the maintenance of this operating table
MUST read this Operating Table Operator’s Manual carefully and understand the
contents before operating, inspecting, adjusting, or servicing the table.
Keep this Manual where it is readily accessible for reference by those concerned
in case of need.
Sa le Age nt
Mizuho MedicalCo., Ltd.
Hongo Iwashita building 5F 2-27-17, Hongo, Bunkyo-ku,
Tokyo. 113-0033 Jap an.
Phone No.03-381 5-7101 Fa x No.03-3818-1705
Manufa cture r
MIZUHO IKAKOGYO CO., LTD.
Tokyo, Japa n
MES-CK18-600-20EN-2 Ver.1 2021-11-09

1
Introduction
2
Before use
3
Component
identification
4
Operation
5
Maintenance
and inspection
6
Specifications
7
Troubleshooting
8
Before contacting
for repairs
Contents
1. Introduction ............................................................ 1
2. Before use............................................................... 7
3. Component identication ..................................... 15
4. Operation .............................................................. 21
Installation and battery charging..............................................22
Switch On/Off power ..................................................................31
In the case of emergency ..........................................................33
Lock and unlock the operating table........................................34
Brake Release.............................................................................35
Lateral tilt ....................................................................................36
Trendelenburg ............................................................................38
Tilt the back plate .......................................................................40
Change height of the tabletop...................................................41
Slide the tabletop .......................................................................43
Flexing.........................................................................................45
Change height of the lift-up unit ...............................................47
(MOT-VS600DK/MOT-VS600DHK only) .....................................47
Return to level ............................................................................48
Adjustment of head plate ..........................................................49
Adjustment of back plate...........................................................51
Adjustment of leg plate..............................................................54
5. Maintenance and inspection ................................ 57
Periodic replacement parts .......................................................59
Version information of the software .........................................59
6. Specications ....................................................... 61
7. Troubleshooting .................................................... 65
8. Before contacting for repairs ............................... 67
Appendix 1. Electromagnetic Compatibility ............ 70
Appendix 2. Glossary................................................ 73

1. Introduction
1
Introduction

2
1
Introduction

3
1
Introduction
This Manual is intended to support safe and effective operation of the operating table.
Read this Manual carefully and familiarize yourself thoroughly with its contents (operation,
inspection, adjustment, servicing) before operating the table.
Using the table without following the instructions contained in this Manual may cause a serious
accident.
Safety information in this Manual and on the labels attached to the table is given in the following
forms for easy and full understanding:
Introduction
WARNING
CAUTION
NOTE
A WARNING notice indicates a situation which can result
in death or serious injury to a person if the notice is
ignored and the table is handled improperly.
A CAUTION notice indicates a situation which can result
in injury to a person and/or damage to property if the
notice is ignored and the table is handled improperly.
Description under this heading gives supplementary
explanation of the functions of the table.
The WARNING and CAUTION notices in this Manual relating to the operation, inspection,
adjustment, or servicing of the table apply in using the table for surgical procedures.
The user is solely responsible for safety if the table is operated, inspected, adjusted, or serviced in
a way not specied in this Manual.
This product is designed to support patients during surgical procedures.
This product has functions to adjust the height of the tabletop and to change a patient's body
position.
Both a medical grade AC power and a battery are available as a power source.
This product is to be used by health care professionals, including but not limited to surgeons,
nurses and biomedical technicians.
About this product

4
1
Introduction

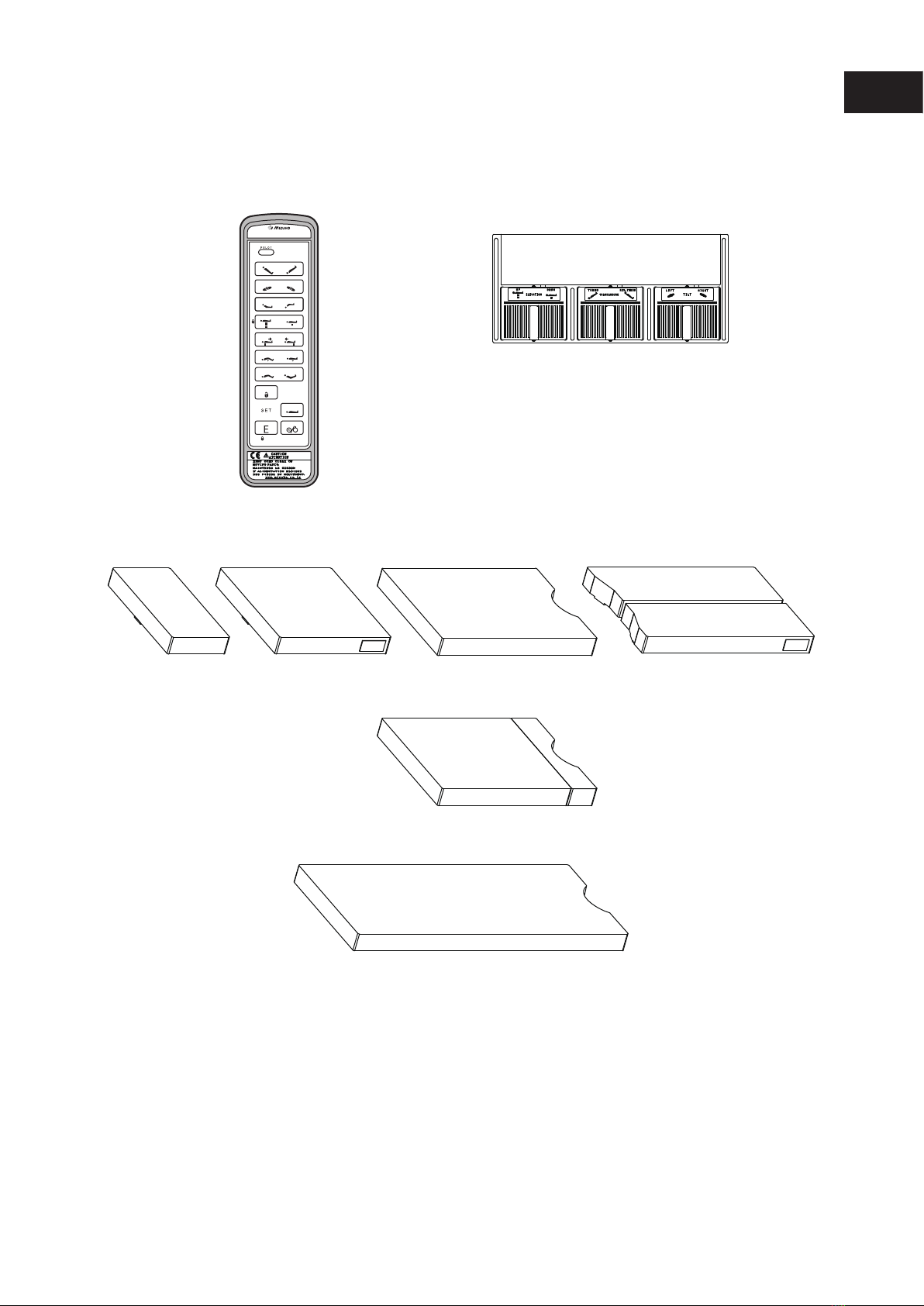

Accessories
Standard compornents and accessories
Mattresses (for head, back, seat and leg)
Main unit
Power cord
Control unit
Operator's manual

5
1
Introduction
Optional parts
zCordless control unit
zMizuho Original Pad
zFoot switch
ENERGIZE
REV. TREND. TREND.
TILT LEFT TILT RIGHT
BACK UP BACK DOWN
TABLE UP TABLE DOWN
BRAKE UNLOCK
LEVEL
ON/OFF
MOT-VS600DK
KIDNEY DOWN
KIDNEY UP
REFLEX
FLEX
ＰＲＥＳＳ ＴＯ
ＬＯＣＫ ＢＲＡＫＥＳ
SLIDE FOOT SLIDE HEAD
for Head Section
Type A
for Back Section
Type A
for Seat Section
Type A
for Seat Section
Type B
for Back and Seat Section
Type A
for Double Leg Section
Type A

6
1
Introduction

2. Before use
2
Before use

8
2
Before use

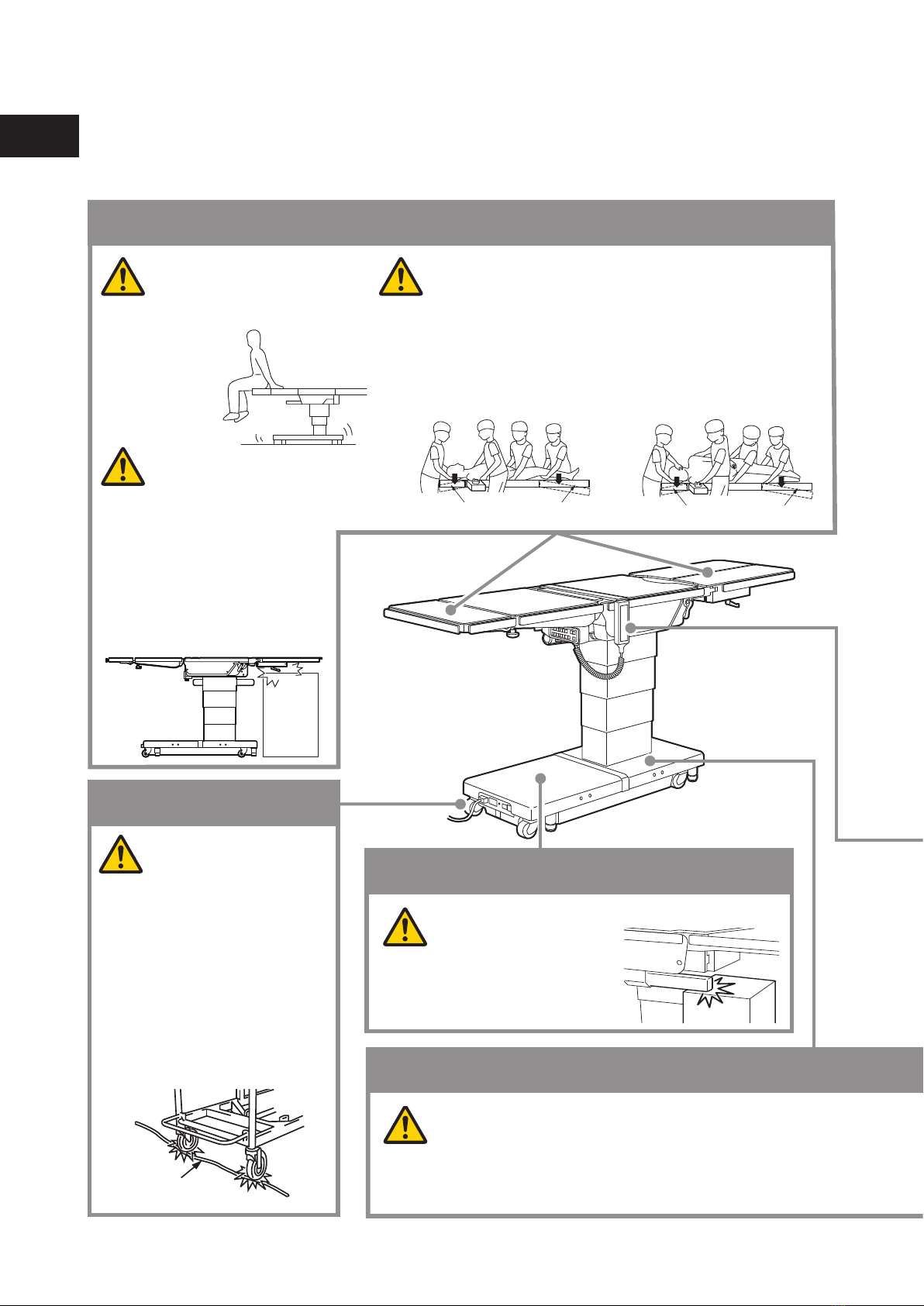

Head plate or leg plate
Misuse of the operating table could cause damage, electric shock or re.
Any serious incident that has occurred in relation to the device should be reported to the
manufacturer and the competent authority in which the user and / or patient is established.
Please read carefully before use
- Do not sit on the head plate or
the leg plate(s).
It could cause a
person to tumble
down and get
injured.
WARNING
- When transferring a patient from the bed (Fig a) or changing
a patient’s body position (Fig b), do not apply excessive
force on the head plate or leg plate.
The operating table may get deformed or damaged.
- Before lowering the tabletop
or placing it in a reverse
Trendelenburg position, check if
there are any devices under the
leg plates. If the leg plates come
in contact with such devices and
excessive force is applied to the
leg plates, the leg plate inserting
shaft may be damaged.
Fig a when transferring a patient from
the bed
Fig b when changing a
patient’s body position
CAUTION
CAUTION
head plate head plate leg plate leg plate
power cord
- Do not place any heavy object
on the power cord.
- Do not ride over the power
cord with a castered device.
- Do not pull the power cord
forcefully.
- Do not place any objects in the
place where the power cord is to
be unplugged from the medical
grade outlet, which would
obstruct it from being unplugged.
WARNING
- Do not install the operating table on an uneven oor.
- Do not put a pad under the column base for raising the table.
It may cause the table falling down and injury.
WARNING
Installation of the operating table
- Do not place any objects on the
base. The object(s) may get
caught in the slide cylinder and
damage the operating table.
CAUTION
Base
Power cord

9
2
Before use
- Do not pull the control unit cord
forcefully.
- Do not apply strong shock to the
control unit.
It may get damaged.
CAUTION
- Make sure to attach the provided mattress securely. Improper attachment may cause a patient to get injured.
- Position a patient's body at least 10 mm (0.39 in) away from the side rails. When using the electric
scalpel, they may become hot and if the body touches the rails, it may cause the patient to get burned.
Positioning the patient
- Follow the steps below to position the patient.
1. Attach the accessory mattress onto the tabletop with their Velcro fastenings aligned with each other.
2. Put the patient on the mattresses.
3. Position the patient according to the purpose of the surgical operation.
Prohibition of disassembling and modication
- Do not attempt to disassemble or modify the table. It
may cause a malfunction.
Patient’s body position
- When using accessories to secure a patient's body position,
make sure to monitor the condition of the patient. Improper
body position can lead to paralysis or pressure injuries.
When uses together with other medical electrical equipment
- When using a high-frequency surgical equipment and/or
a cardiac debrillator etc. with the operating table, refer
to their operator's manual provided by the manufacturers
and observe the precautions and usage. Improper
precautions and usage may cause the operator or the
patient to get burned and/or devices to malfunction.
- Before using together with other equipment, make
sure to check that it is not affected by electromagnetic
interference.
An electromagnetic interference from other medical
electrical equipment may cause malfunction.
Allowable patient body weight
- Do not apply loads which exceed the allowable patient
body weight (total of the patient and accessories)*. The
table may become inoperable and cause malfunction.
*Lift: 450kg (992lbs)/ Trendelenburg, Lateral tilt: 360kg (794lbs)
Preventive maintenance and inspection
- Make sure to perform inspection before and after use,
and appropriate preventive maintenance inspection.
The operating table may require replacement of
the parts due to signicant wear, deterioration, and/
or breakage depending on the length of service and
frequency of use.
- For preventive maintenance inspection, please contact
your distributor or us directly.
Antistatic measure
- Do not use the operating table on oors and/or with
accessories that do not possess static electricity
countermeasures. This may impede surgical operations.
WARNING
uneven oor surface
pad
Installation of the operating table
Patient's position during surgical operation
Others
- Have the person who operates
the operating table at the position
where the emergency stop switch
can be immediately pressed, and
the patient’s condition can be
constantly observed.
CAUTION
Operator's position
Back plate
Head plate
Operator's position
180°
19-11/16” (500 mm)
Head of the patient
WARNING
Control unit

10
2
Before use
Others
CAUTION
When used together with other medical equipment or accessories
- Before using another devices or accessories, read carefully the instruction manual of the device and
make sure that the operating table will not be affected adversely. Before tting an accessory of third
party company, make sure to contact your distributor or us. Some accessories cannot be tted.
- When using the operating table, make sure to check the positions of other equipment.
They may come in contact with each other during the operation, and may get damaged.
- For hygiene, be sure to use sterile drapes on the areas on this product where the patient comes
into contact with it.
Disinfection
- The following procedure should be followed when disinfecting an operating table.
1. Power off and remove the power cord from medical grade wall outlet.
2. Remove all table pads from the operating table.
3. Apply a proper quantity of disinfectant on a clean and lint-free cloth, and wipe the top and
sides and bottom of the pads with the cloth. A proper quantity of disinfectant means a quantity
such that the cloth with disinfectant does not dry when wiping.
4. Disinfect the table board of the table top and the surface of the side rail in the same way.
5. Wipe all disinfected parts with dry, clean and lint-free cloth within 15 minutes after disinfecting.
Usable disinfectant solutions which we have already conrmed as compatible:
1 Sodium hypochlorite 0.1% (halogen containing compound)
2 Sodium thiosulfate
3 Chlorhexidine (chlorhexidine gluconate 0.5%)
4 Benzalkonium chloride (invert soap 10%)
5 Povidone iodine
6 Ethanol 80%
7 Hydrogen peroxide
8 Saline (0.9%)
9 Isopropyl alcohol (IPA)
Move and transportation
- Do not move the table while a patient is on it.
- Follow the procedure below for moving the table.
* When moving the operating table, disinfect the whole operating table in order to prevent infection.
1. Power off and remove the power cord from medical grade wall outlet.
2. Check if handles and levers are in the xed position, and each section is xed rmly.
3. Unlock brake to transfer the table.
* Do not move the operating table by pulling on the head plate or the leg plate.
- Transportation should be carried out with the following conditions met.
1. Disinfect the whole operating table before transportation.
2. Take measures against falling down, like moving down the table to the lowest position.
3. Actuate a brake.
4. Use cushioning materials to prevent damage during transportation.
5. Protect against dust, wind and rain.
Disposal
- In accordance with the European Union Waste Electrical and Electronic Equipment (WEEE)
Directive, all electrical components and batteries must be disposed of in accordance with local
regulations. Please contact your local distributor for proper disposal.

11
2
Before use
Warning label is attached on the following area of the operating table.
Before using it, make sure to check the contents of the warning label.

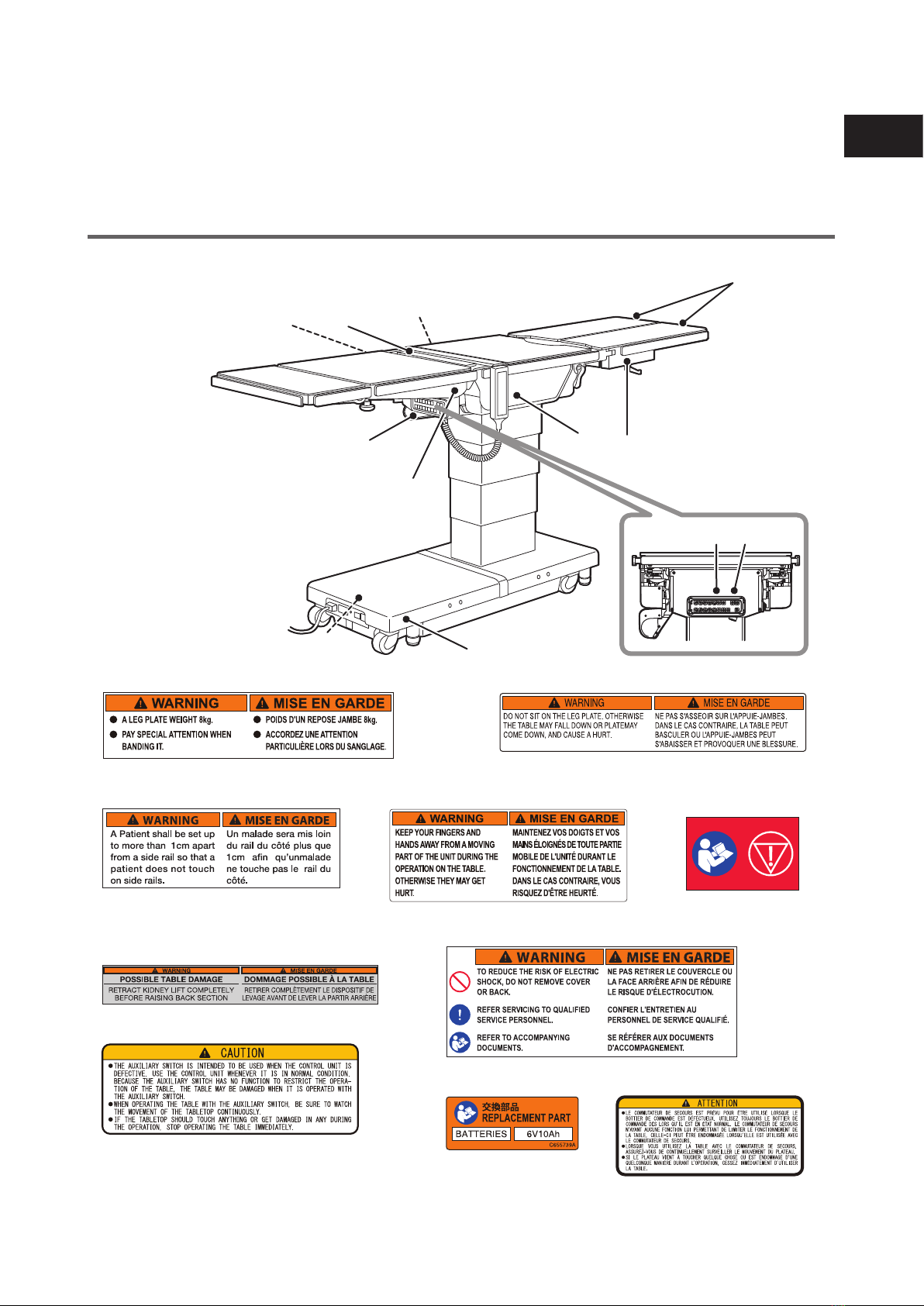

Warning label: details and position
WARNING, CAUTION labels
(3) C653624
(9) C655739(10) C657333
(2) C655752
(5) C653614 (4) C655732
(1) C655740
(7) C656740
(6) C656310
(MOT-VS600DK/MOT-VS600DHK only)
(8) C655803
(2)
(1)
(6)
(7)
(3)
(5)
(4)
(9)
(8) (10)
(3)
(4)

12
2
Before use

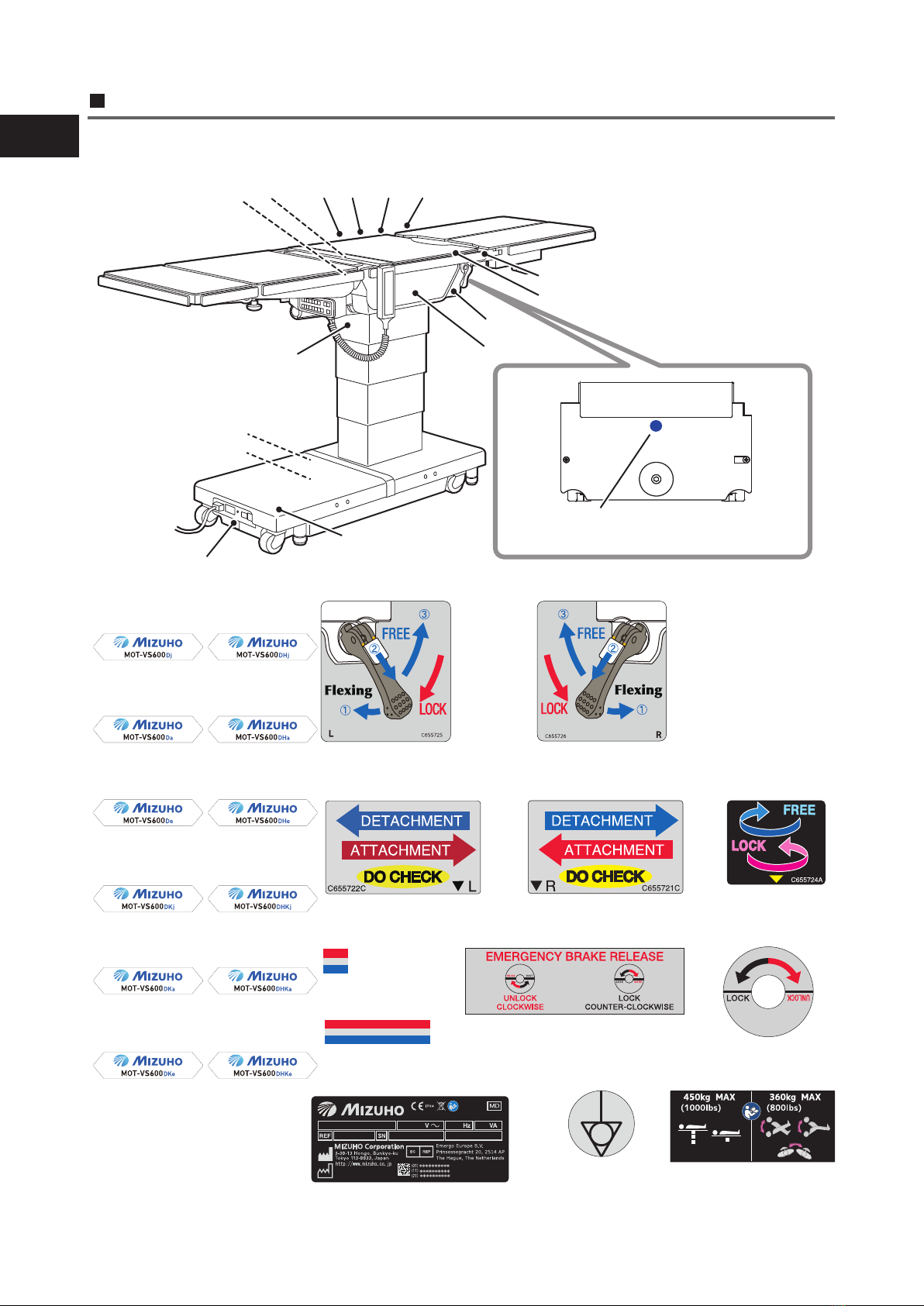

Other labels (1/2)
(12) C655725
(16) C655724
(13) C655726
(14) C655722(15) C655721
(21) C642002
(17) C655717(19) C653515
(18) C600020
(20) C653516
(22) C653513(23) C653612
(16)
(22)
(15)
(13)
(12) (14)
(19)
(20)
(21)
(22)
(11)
(11)(17)
(18) (16)
(11)
C655758
C655762
C655760
C655764
C655768
C655766
C655759
C655763
C655761
C655765
C655769
C655767
YYYY-MM-DD
Made in ＊＊＊
Product identification label
C645003□
*
*Only the operating table with specifications that remove the restriction of movable range
by tabletop position

13
2
Before use

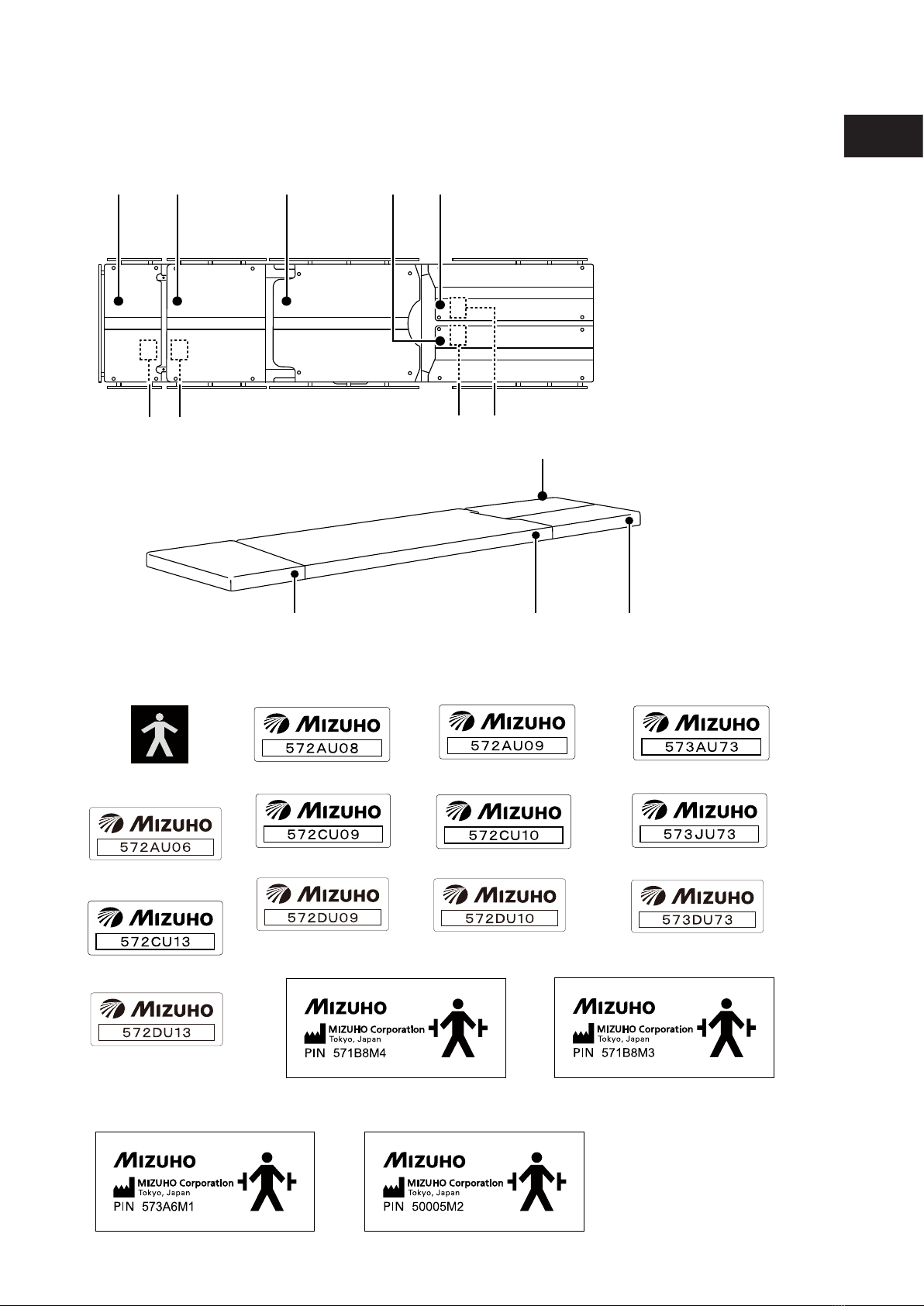

Other labels (2/2)
(24) C653620(26) C655737 (25) C655736(27) C655755
(28) C655734
(31) PIN 573A6M1 (32) PIN 50005M2
(29) PIN 571B8M4 (30) PIN 571B8M3
)62( )52()82( )72(
(24) (24) (24) (24) (24)
(29)
(32) (31) (30)
or C655751
or C655750or C655756
or C655748
or C655747
or C655746or C655757
or C655744

14
2
Before use
Symbol mark for labeling
Symbol Description Label no.
Indicates a possibility of injury or even death if operates the
table without following the warning.
(1) (2) (3) (4) (6) (7)
(8) (10)
General prohibition sign (7)
General mandatory action sign. (7)
Emergency stop (5)
Refer to the operators manual (5) (9)
Indicates AC power supply. (21)
Enclosure Class (Splash-proof) (21)
Serial number (21)
Catalogue Number (21)
Indicates waste disposal information. (21)
European authorized representative (21)
Medical Device (21)
Date of manufacture (21)
Manufacturer (21)(29)(30)(31)(32)
Equalization terminal (22)
Type B (24)
Debrillation - proof Type B applied part (29) (30) (31) (32)

3. Component
identification
3
Component
identification

POWER CORD POWER SWITCH FOOT SWITCH
Head plate(*2)
Back plate(*2)
Back plate attaching/
removing levers Seat plate Leg plate(*2)
Leg plate attaching/
removing lever
Leg plate xing lever
Leg plate exing lever
Light receiving section of the cordless
control unit(*1)
Head plate exing lever Head plate
xing handle
Side rail
Column Base
Power lamp
*Foot switch connector (*1)
*1: The cordless control unit and the foot switch are optional.
*2: The head plate, back plate, and the leg plate are detachable.
*3: Only the MOT-VS600DK and MOT-VS600DHK
Light receiving section of the cordless control unit (*1)
Control unit connector
Brake
Auxiliary switch
Caster
Slide cylinder
Battery indicator
Equipotential terminal
Power connector
Lift-up unit(*3)
Control unit
Power switch
Emergency stop switch
Slide cylinder
Power cord
Emergency brake release
handle
16
3
Component
identification
Main unit
