MK Diamond Products MK-1280 User manual

www.mkdiamond.com
Caution: Read all safety and operating instructions
before using this equipment. This owners manual
MUST accompany the equipment at all times.
MK-1280 ELECTRIC SAW
BRICK/PAVER SAW
OWNER’S MANUAL
& PARTS LIST
04.2019
Revision 105
Manual Part No. 168786
MODEL PART #
MK-1280 167492

2
We at MK Diamond want to congratulate you on selecting the MK-1280 Electric Saw. We are certain
that you will be pleased with your purchase. MK Diamond takes pride in producing the nest prod-
ucts in the industry.
Operated correctly, your MK-1280 Electric Saw should provide you with years of quality service. In
order to help you, we have included this manual. This owners manual contains information necessary
to operate and maintain your MK-1280 Electric Saw safely and correctly. Please take a few minutes
to familiarize yourself with the MK-1280 Electric Saw by reading and reviewing this manual.
If you should have questions concerning your MK-1280 Electric Saw, please feel free to call our
friendly customer service department at: 800 421-5830
Regards,
MK Diamond
MK-1280 ELECTRIC SAW INTRODUCTION
NOTE THIS INFORMATION FOR FUTURE USE:
MODEL NUMBER:
SERIAL NUMBER:
PURCHASE PLACE:
PURCHASE DATE:
WARRANTY: For your (1) one year warranty to be effective, complete the online Product
Registration as soon as possible. Visit www.mkdiamond.com/registration/

3
SAFETY Page
Safety Message/Alert Symbols, Warnings 4-5
General, Maintenance, Saw Safety 6-7
California Proposition 65 Message 8
Electrical Requirements and Ground Instructions 9-12
Safety Labels & Location 14-15
Product Specications 16
PRODUCT SPECIFICATIONS
Unpacking 17
Contents 17
Transport 18
SETUP, ADJUSTMENT AND OPERATION
Assembly 19-20
Pre-start Inspection 22-21
Operation 22
MAINTENANCE
Cleanup 22
Maintenance 23-26
Troubleshooting 26-27
EXPLODED VIEW AND PARTS LIST
Exploded Views & Parts List 28-33
ORDERING AND RETURNING INSTRUCTIONS
Ordering Information 34
Return Material Policy 34
Packaging Instructions 34
Authorized Service Centers 35
Contact & Limited Warranty 35
MK-1280 ELECTRIC SAW TABLE OF CONTENT

4
MK-1280 ELECTRIC SAW SAFETY
Read and follow all safety, operating and maintenance instructions. Failure to read and follow
these instructions could result in injury or death to you or others. Failure to read and follow these
instructions could also result in damage and/or reduced equipment life. Safety warnings and
guidelines do not by themselves eliminate danger. They are not substitutes for proper accident
prevention procedures and good judgement.
SAFETY MESSAGES
A Damage Prevention Message is to inform the user of important information and/or instructions that
could lead to equipment or other property damage if not followed. Information Messages convey
information that pertains to the equipment being used. Each message will be preceded by the word
NOTE, as in the example below.
DAMAGE PREVENTION AND INFORMATION MESSAGES
NOTE: Equipment and/or property damage may result if these instructions are not followed.
GENERAL SAFETY PRECAUTIONS AND HAZARD SYMBOLS
A safety message alerts you to potential hazards that could hurt you or others. Each safety message is
preceded by a safety alert symbol ( ) and one of three words: DANGER, WARNING, or CAUTION.
DANGER You WILL be KILLED or SERIOUSLY INJURED if you DO NOT follow directions.
WARNING You CAN be KILLED or SERIOUSLY INJURED if you DO NOT follow directions.
CAUTION You CAN be INJURED if you DO NOT follow directions. It may also be used to
alert against unsafe practices.
ALWAYS read this Owner’s Manual before operating the machine. DO NOT operate or
service this equipment before reading this entire manual. Read and understand all warn-
ings, instructions and controls on the machine. Know how to stop the equipment quickly in
case of emergency. It is the operators responsibility to use this machine under safe work-
ing conditions and conform with federal, state and local codes or regulations pertaining to
safety, air, pollution, noise etc...
ALWAYS keep the Blade and Belt Guards in place. DO NOT operate this machine with any
guard or safety device removed. A Guard, or any damaged part should be repaired or
replaced immediately.
NEVER operate this equipment without proper protective clothing, shatterproof
glasses, steel-toed boots and other protective devices required by the job. Non-slip
foot wear is recommended.
ON
(
(
))
ON
(
(
))
ON
(
(
))
ON
(
(
))
ON
(
(
)
)
ON
(
(
)
)
ON
(
(
)
)
ON
(
(
)
)
In order to prevent injury, the following safety precautions and symbols should be followed at all times!

5
MK-1280 ELECTRIC SAW SAFETY
ON
(
(
)
)
ON
(
(
)
)
ON
(
(
)
)
All visitors and children should be kept a safe distance from work area. Maintain a safe
operating distance to other personnel.
KEEP CHILDREN AWAY
MAKE THE WORKSHOP KID PROOF
Make the workshops kid proof by using padlocks, master switches or by removing starter keys.
ROTATING PARTS
Keep hands, feet, hair, and clothing away from all moving parts to prevent injury. Never oper-
ate the motor with covers, shrouds, or guards, removed.
OVER SPEED
NEVER tamper with the governor components or settings to increase the maximum speed.
Severe personal injury and damage to the engine or equipment can result if operated at
speeds above maximum.
ELECTRICAL SHOCK
NEVER touch electrical wires or components while the engine is running. Exposed, frayed or
worn electrical wiring and plugs can be sources of electrical shock which could cause severe
injury or burns. Do not touch the plug with wet hands.
ALWAYS avoid inhalation of and skin contact with silica dust and/or mist. Provide proper
dust removal. Use dust-collection system when applicable.
NEVER operate the machine in an explosive atmosphere or near combustible materials.
Sparks from the cutting-action of this machine can ignite flammable materials, liquids, gases
or dust.
This equipment should not be operated by persons under 18 years of age.
ALWAYS wear approved respiratory, head, ear and eye protection
when operating this machine.
Before starting the engine/motor, be sure the ON/OFF switch is in the OFF position to pre-
vent accidental starting. Place the ON/OFF switch in the OFF position before performing any
service operation. ALWAYS place the power ON/OFF switch in the OFF position when the
machine is not in use.
ACCIDENTAL STARTS!
PERSONAL PROTECTIVE EQUIPMENT
Engine components can become extremely hot from operation. To prevent severe burns,
do not touch these areas while the engine is running, or immediately after it is turned off.
Never operate the engine with heat shields removed.
HOT PARTS!
ON
(
(
))
ON
(
(
))
ON
(
(
))
ON
(
(
)
)
ON
(
(
)
)
ON
(
(
)
)
ON
(
(
)
)
DO NOT FORCE THE TOOL
A power tool will do a job better and safer operating at the rate for which it was designed.
DO NOT force a tool or an attachment to do a job that it was not designed to do.
ON
(
(
))

6
MK-1280 ELECTRIC SAW SAFETY
Consult the owner’s manual for recommended accessories. Using improper accessories
may increase the risk of personal or by-stander injury. Unauthorized equipment
modifications will void all warranties. Manufacturer does not assume responsibility for any
accident due to equipment modifications.
ALWAYS ensure that the machine is on level ground before using.
Serious injury could occur if a power tool is tipped, or if a cutting tool is unintentionally
contacted.
When loading or unloading the machine, use caution. Remove the blade prior to hoisting,
loading and transporting the machine.
USE RECOMMENDED ACCESSORIES
NEVER STAND ON THE TOOL
TRANSPORT
Form a habit of checking to see that keys and adjusting wrenches are removed from
the power tool before it is turned on.
Cluttered work areas and benches invite accidents. Keep area around machine clear of
obstructions which could cause persons to fall.
DO NOT operate equipment in dangerous or hazardous environments. DO NOT use power
tools in damp or wet locations nor expose them to rain. Always keep the work area well
lighted.
REMOVE ADJUSTING KEYS AND WRENCHES
KEEP WORK AREA CLEAN
DO NOT USE IN DANGEROUS PLACES
MAINTAIN TOOLS WITH CARE
Keep tools clean and maintained for the best and safest performance. Always follow
maintenance instructions and examine the machine before use. If any abnormal vibrations
or noises occurs, turn off machine immediately and have the problem corrected before
further use.
DISCONNECT TOOLS
Power tools should always be disconnected before servicing, adjusting or when changing
accessories, such as blades, bits, cutters, and the like.
DO NOT OVERREACH
Keep proper footing and balance at all times by not overreaching.
ON
(
(
))
ON
(
(
))
ON
(
(
))
ON
(
(
))
ON
(
(
))
ON
(
(
))
ON
(
(
))
ON
(
(
))
ON
(
(
))
ON
(
(
))
SECURE WORK
Clamps or a vise should be used to hold work whenever practical. Keeping your hands free
to operate a power tool is safer.
ON
(
(
))
USE PROPER APPAREL
DO NOT wear loose clothing, gloves, neckties, rings, bracelets, or other jewelry that may
be caught in moving parts. Non-slip footwear is recommended. Wear protective hair cover-
ing to contain long hair.
ON
(
(
))

7
MK-1280 ELECTRIC SAW SAFETY
Before using a power tool, check for damaged parts. A guard or any other part that is
damaged should be carefully checked to determine if it would operate properly and
perform its intended function. Always check moving parts for proper alignment or binding.
Check for broken parts and mountings and all other conditions that may affect the
operation of the power tool. A guard, or any damaged part, should be properly repaired or
replaced. Always check the machine for loose bolts before starting.
A blade or cutter should always be installed so that rotation is in the direction of the
arrow imprinted on the side of the blade or cutter. It should correspond with the rotational
direction of the motor. Always feed work into a blade against the direction of rotation.
TURN POWER OFF - Do not leave a tool until it comes to a complete stop. ALWAYS
turn a power tool OFF when leaving the work area, or, when a cut is finished.
NEVER LEAVE A TOOL UNATTENDED
CHECK FOR DAMAGED PARTS
DIRECTION OF ROTATION
NEVER disconnect any "emergency or safety devices". These devices are intended for
operator safety. Disconnection of these devices can cause severe injury, bodily harm, or
even death! Disconnection of any of these devices will void all warranties. Unauthorized
equipment modifications will void all warranties. Manufacturer does not assume
responsibility for any accident due to equipment modifications.
NEVER operate this equipment under the influence of drugs or alcohol.
NEVER operate this equipment when not feeling well due to fatigue, illness or taking medicine.
NEVER use this machine with any cutter designed for woodworking.
ON
(
(
))
ON
(
(
))
ON
(
(
))
ON
(
(
))
ON
(
(
))
ON
(
(
))
ON
(
(
))
ON
(
(
))
ON
(
(
))
ON
(
(
))
ON
(
(
))
ON
(
(
))
On belt driven equipment, overtensioning of belts will result in premature crank and/or bearing
failure.
Whenever necessary, replace nameplate, operation and safety decals when they become
difcult to read.
ALWAYS store equipment properly when it is not being used. Equipment should be stored in
a clean, dry location out of the reach of children
DO NOT lend or rent this equipment without including the Owner's Manual and the Engine/
Motor Manufacturer's Manual.
Check the chemical properties of the material to be cut/grinded and follow all EPA/OSHA
Regulations. (cut/ground)

8
MK-1280 ELECTRIC SAW SAFETY
CALIFORNIA PROPOSITION 65 MESSAGE
SILICA DUST WARNING
Grinding/cutting/drilling of masonry, concrete, metal and other materials with silica in their composition
may give off dust or mists containing crystalline silica. Silica is a basic component of sand, quartz,
brick clay, granite and numerous other minerals and rocks. Repeated and/or substantial inhalation of
airborne crystalline silica can cause serious or fatal respiratory diseases, including silicosis. In ad-
dition, California and some other authorities have listed respirable crystalline silica as a substance
known to cause cancer. When cutting such materials, always follow respiratory precautions.
Use appropriate NIOSH-approved respiratory protection where dust hazard may occur. Paper masks
or surgical masks without a NIOSH approval number are not recommended because they do little to
protect the worker. For more information about respirator programs, including what respirators have
received NIOSH approval as safe and effective, please visit the NIOSH website at:
http://www.cdc.gov/niosh/topics/respirators
Observe OSHA regulations for respirator use (29 C.F.R.§1910.134).
Visit http://www.osha.gov for more information.
Some dust created by power sanding, sawing, grinding, drilling, and other construction activities con-
tain chemicals known (to the State of California) to cause cancer, birth defects or other reproductive
harm. Some examples of these chemicals are:
• Lead, from lead-based paints
•Crystalline silica, from bricks and cement and other masonry products
•Arsenic and chromium, from chemically treated lumber
For further information, consult the following sources:
http://www.osha.gov/dsg/topics/silicacrystalline/index.html
http://www.cdc.gov/niosh/docs/96-112/
http://oehha.ca.gov/prop65/law/P65law72003.html
http://www.dir.ca.gov/Title8/sub4.html
http://www.P65warnings.ca.gov
Your risk from these exposures varies depending on how often you do this type of work. To reduce
your exposure to these chemicals, work in a well-ventilated area, and work with approved safety
equipment, such as dust masks that are specially designed to lter out microscopic particles. Where
use of a dust extraction device is possible, it should be used. To achieve a high level of dust collec-
tion, use an industrial HEPA vacuum cleaner. Observe OSHA 29 CFR part 1926.57 and 1926.103.

9
ELECTRICAL REQUIREMENTS AND GROUNDING INSTRUCTIONS
In order to prevent potential electrical shock and injury, the following electrical safety precautions and
symbols should be followed at all times!
In case of a malfunction or breakdown, grounding provides a path of least resistance for electric cur-
rent to reduce the risk of electric shock. This tool is equipped with an electric cord having an equip-
ment-grounding conductor and a grounding plug. The plug must be plugged into a matching outlet
that is properly installed and grounded in accordance with all local codes and ordinances.
WARNING
• Do not modify the plug provided – if it will not t the outlet; have the proper outlet installed by a
qualied electrician
• Improper connections of the equipment-grounding conductor can result in a risk of electric
shock. The equipment-grounding conductor is the insulated conductor that has an outer
surface that is green, with or without yellow stripes. If repair or replacement of the electric cord
or plug is necessary, do not connect the equipment-grounding conductor to a live terminal
• Check with a qualied electrician or service personnel if the grounding instructions are not
completely understood, or if in doubt as to whether the tool is properly grounded
• Use only 3-wire extension cords that have 3-prong grounding plugs and 3-pole receptacles that
accept the tool’s plug
• Repair or replace a damaged or worn cord immediately
WARNING
This tool is intended for use on a circuit that has an outlet that looks like the one shown in Sketch A.
The tool has a grounding plug that looks like the plug illustrated in Sketch A. A temporary adapter,
which looks like the adapter illustrated in sketches B and C, may be used to connect this plug to a
2-pole receptacle as shown in Sketch B, if a properly grounded outlet is not available. The temporary
adapter should be used only until a properly grounded outlet can be installed by a qualied electri-
cian. The green-colored rigid ear, lug, and the like, extending from the adapter, must be connected to
a permanent ground such as a properly grounded outlet box.
NOTE: Use of a temporary adapter is not permitted in Canada.
Grounding
Means
(A)
Metal Screw
Cover of
Grounded
Outlet Box
(D)
ADAPTER
(C) Grounding
Pin
Grounding
Pin (B)
Circuit and Adapter Information
MK-1280 ELECTRIC SAW SAFETY

10
Supporting
Surface
Power
Tool
Drip Loop
Power
Cord
Drip Loop Information
To avoid the possibility of the appliance plug or receptacle getting wet, position the machine to one
side of a wall mounted receptacle. This will prevent water from dripping onto the receptacle or plug. A
“drip loop,” shown in the picture below, should be arranged by the user to properly position the power cord
relative to the power source.
The “drip loop” is that part of the cord below the level of the receptacle, or the connector, if an exten-
sion cord is used. This method of positioning the cord prevents the travel of water along the power
cord and coming in contact with the receptacle.
If the plug or receptacle gets wet, DO NOT unplug the cord. Disconnect the fuse or circuit breaker
that supplies power to the tool. Then unplug and examine for presence of water in the receptacle.
WARNING
Use only extension cords that are intended for outdoor use. These extension cords
are identified by a marking “Acceptable for use with outdoor appliances; store
indoors while not in use." Use only extension cords having an electrical rating not
less than the rating of the product. Do not use damaged extension cords. Examine
extension cords before using and replace if damaged. Do not abuse extension
cords and do not yank on any cord to disconnect. Keep cords away from heat and
sharp edges. Always disconnect the extension cord from the receptacle before
disconnecting the product from the extension cord.
WARNING
ALWAYS make certain that the power source required for the electric motor is correct and always
use the correct NEMA conguration plug. Motors can burn out when the line voltage falls 10% below
the voltage rating of the motor. Failure to use proper voltage will cause the motor to overheat. Make
certain that the correct size grounded (3-wires) extension cord is used.
MK-1280 ELECTRIC SAW SAFETY

11
WARNING
WARNING
To reduce the risk of electrocution, keep all connections dry and off the ground. A Ground Fault
Circuit Interrupter (GFCI) should be provided on the circuit(s) or outlet(s) to be used for this
machine. Receptacles are available having built-in GFCI protections and may be used for this
measure of safety. When using an extension cord, GFCI should be installed closest to the power
source, followed by the extension cord and lastly, the machine.
The water pump requires a GFCI. To reduce risk of electrical shock when operating the machine
with the pump plugged into the 3-pole receptacle on the motor, connect the machine to a GFCI
outlet. See the pump manual and informational tags enclosed separately for all pump information.
ON
(
(
))
ON
(
(
))
CAUTION
DO NOT EXPOSE TO RAIN
For maintenance care and operation of the electric motor, refer to your electric motor instruction book-
let furnished with the electric motor. Protect the electric motor from dust as much as possible and keep
ventilating openings clean. Before plugging in the machine, make sure that the outlet voltage is within
the voltage marked on the machines's data plate.
DO NOT spray water on the electric motor. DO NOT touch the plug with wet hands. To reduce
the risk of electrocution, keep all connections dry and off the ground.
ELECTRIC MOTOR SAFETY
DO NOT operate electric motor in an explosive environment.
DO NOT expose to rain or use in damp locations.
ON
(
(
))
ON
(
(
)
)
ON
(
(
)
)
WARNING
If operating the equipment in damp locations is unavoidable, ALWAYS use a Ground Fault
Circuit Interrupter, ALWAYS wear rubber gloves and footwear in damp conditions.
DO NOT abuse the cord. Never use the cord to carry the equipment or to pull the plug from
the outlet. Keep the cord away from heat, sharp edges, and moving parts. Replace dam-
aged cords immediately. Damaged cords increase the risk of electric shock.
ON
(
(
))
ON
(
(
))
ON
(
(
)
)
MK-1280 ELECTRIC SAW SAFETY

12
MK-1280 ELECTRIC SAW SAFETY
Use of under sized extension cords result in low voltage to the motor that can
result in motor burnout and premature failure. MK Diamond warns that equipment
returned to us showing signs of being run in a low voltage condition, through the use
of undersized extension cords will be repaired or replaced totally at the customer's
expense. There will be no warranty claim.
To choose the proper extension cord,
• Locate the length of extension cord needed in the table below.
• Once the proper length is found, move down the column to obtain the correct
AWG size required for that length of extension cord.
To reduce the risk of electrocution, keep all connections dry and off the ground. Do
not touch the plug with wet hands.
WARNING
WARNING
MOTOR SPECS EXTENSION CORD LENGTH
Motor Voltage Amps 25' 50' 100' 200'
172728 230V 1 Ph 8.8 14 ga 14 ga 12 ga 10 ga

13
NOTES

14
MK-1280 ELECTRIC SAW SAFETY
The MK-1280 Saw is equipped with a number of safety decals provided for operator safety and main-
tenance information. Should any of these decals become unreadable, replacements can be obtained
by calling [phone].
OPERATION & SAFETY DECALS
Part # 164202
A
D
C
B
F
E
J
I
Part # 154398
Part # 155587 (2)
Part # 155038
SERVICE OR
WARRANTY
FOR INFORMATION ON
PLEASE CALL
1-800-474-5594
Part # 155672
Part # 155588
Part # 172641
NOTICE
Most motor problems are caused by
low voltage from improper extension
cords. See owner’s manual for
extension cord selection.
!
Part # 170480
Scan for manuals
CAUTION
DO NOT
operate without
guards in place.
!
DO NOT operate
this equipment
before reading the
owner’s manual.
WARNING
!
WARNING
• Use of this equipment can expose you to chemicals
including nickel and crystalline silica which are known to
the State of California to cause cancer.
• For more information go to www.P65Warnings.ca.gov.
• Repeated and/or substantial inhalation can cause
serious or fatal respiratory diseases including silicosis.
• Employ dust controls and protection per
OSHA/NIOSH/MSHA.
!
Label Part #164202
WARNING
In the event of blade
failure, replace
blade guard
immediately.
!
H
G
Part # 154822
Receptacle is for water
pump only.
125V .6 amps max.
!CAUTION
Part # 155678
!CAUTION
This saw is to be used
with a Ground Fault
Circuit Interrupter.
WARNING: This equipment contains chemicals known to
the State of California to cause cancer and birth defects or other
reproductive harm. These chemicals are contained in various
components, fluids and paint, including but not limited to, fuel, oil,
electric motors and batteries. In addition, gasoline/diesel powered
equipment emits engine exhaust and fumes, and when serviced,
cleaned or maintained generate used oil, waste fluids, fumes,
grease, grime and particulates from component wear and silica dust
which contain chemicals known to the State of California to cause
cancer and birth defects or other reproductive harm.
For more information go to www.P65Warnings.ca.gov.
!
Decal Location Description
A Motor - Front Warning - Silica
B Frame Service or Warranty Information
C Belt Guard/Blade Guard Caution - Guards in Place
D Motor -Front Warning - Read Manual
E Blade Guard Warning - Replace Blade Guard
F Motor - Front Notice - Extension Cords
G Motor - Top Caution - Ground Fault Circuit
H Motor - Side Caution - Water Pump
I Motor - Top QR Code - Manuals
J Motor - Side Prop 65

15
MK-1280 ELECTRIC SAW SAFETY
SAFETY DECAL LOCATIONS
F
I
AC
E
D
H
J
G
B
C

16
The MK-1280 Electric Saw is designed for use with a 16-inch diameter segmented wet or dry MK Dia-
mond blade with a .110 to .375 inch cutting width.
The MK-1280 Electric Saw can cut a variety of masonry types including, cinder block, slump stone
block, wall brick, paver brick, concrete block and cylinders, roong tile, marble, granite, decorative
rock or almost any other non-ferrous material.
NOTE: The MK-1280 Electric Saw is not designed to cut plastic or metals.
Engine power ratings are calculated by the individual engine manufacturer and the rating method may
vary among engine manufacturers. Users are advised to consult the engine manufacturer’s owners
manual and website for specic information regarding engine power rating and maintenance.
PRODUCT SPECIFICATIONS
Operated and used according to this manual, the MK-1280 Electric Saw will provide years of
dependable service.
The MK-1280 Electric Saw is engineered as portable brick saw powered by a Baldor 2 Hp motor. The
saw is capable of cutting masonry up to ve (5.75) inches (127 mm) in height, and twenty-eight (28)
inches (711 mm) in length in a single pass.
Motor specications for the MK-1280 Electric Saw are listed below.
GENERAL DESCRIPTION
SPECIFICATIONS
BLADE CAPACITY
MASONRY TYPES
MK-1280 ELECTRIC SAW PRODUCT SPECIFICATIONS
MOTOR SPECIFICATIONS
Motor ABB Baldor
Power 2 Hp 230V
Blade Capacity 16” (406mm)
Depth of Cut 5.75” (146mm)
Length of Cut 13.5” (2” Thick Brick)
L x W x H (inches)
L x W x H (mm)
48.5” x 20.5” x 28”
1,232 x 521 x 711
Weight 185 lbs (84 kg)

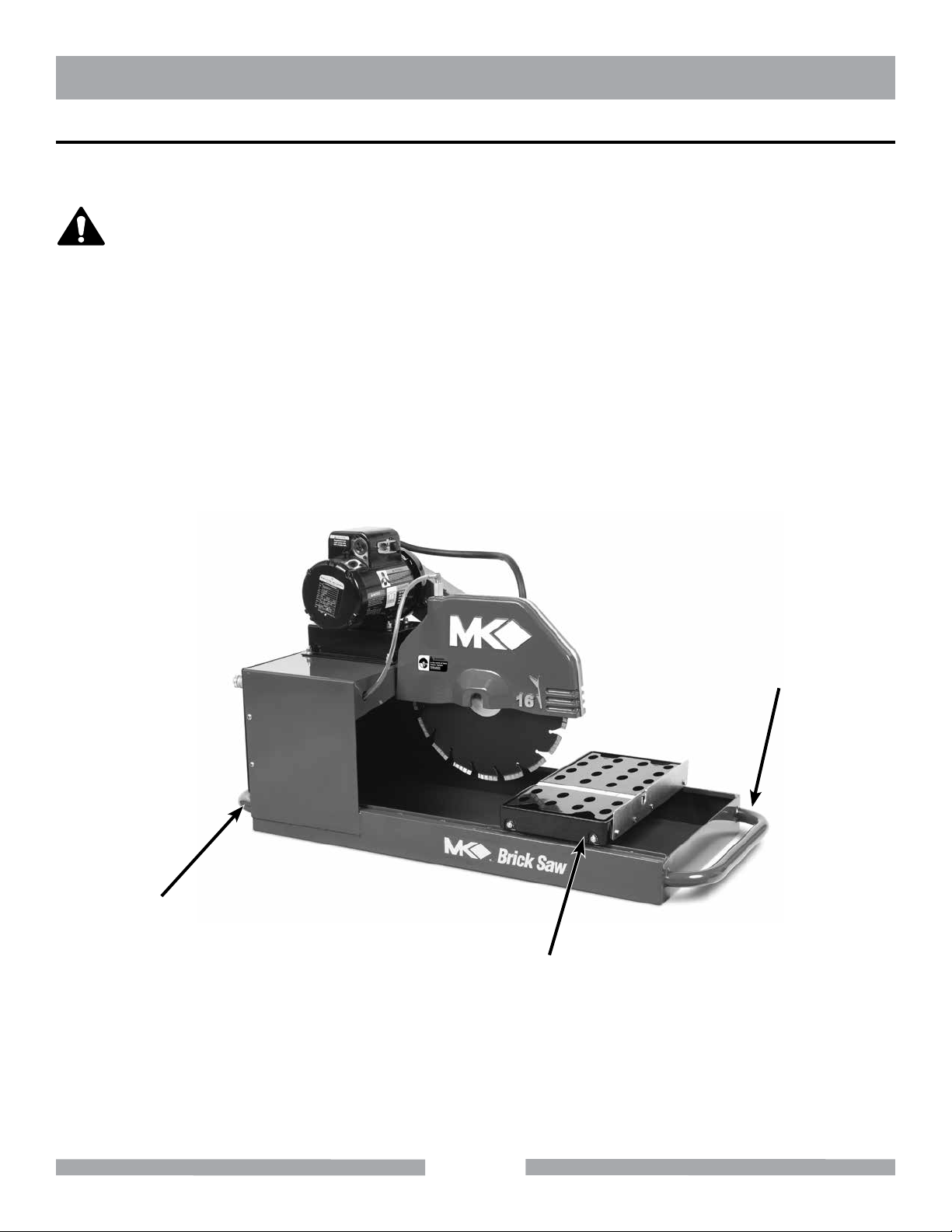

Part # 167492

17
MK-1280 ELECTRIC SAW UNPACKING
Name
address
City
state zip Code
phoNe Fax
e-mail
produCt model
part NumBer
maChiNe serial#
MK DiaMonD Warranty CarD
q tile distriButor q home CeNter q equipmeNt supply house
q tool supply q Bldg material supply q reNtal equipmeNt house
are you a do-it-yourselFer
q or CoNtraCtor q IF so, what type? tile q masoNry q other
what Criteria was importaNt iN ChoosiNg this saw? (rate From 1 to 5, 5 BeiNg the most importaNt)
power preCisioN portaBility availaBility other
If within one (1) Year from the date of purchase, this MK Diamond saw fails due to defect in material or workmanship, MK will repair it, free of charge when the unit is re-
turned to the dealer where it was purchased. This warranty DOES NOT cover normal wear or damage resulting from operator abuse. In no event shall MK Diamond Products,
Inc. be liable for consequential damages arising out of the failure of any product if operated improperly. MK Diamond Products may act as a warranty station for motor/en-
gine repairs based on an individual agreement with the manufacturer. This warranty is in lieu of all other warranties express or implied.
©2010 All Rights reserved. MK Diamond Products, Inc. • P/N 155037 MK Warranty Card (02/10)
mK diamoNd warraNty
1315 Storm Parkway, Torrance, CA 90509 USA | www.mkdiamond.com | 1.800.421.5830 | 1 .310.539.5158
where did you purChase this saw Fro m ? N a me
CommeNts or suggestioNs:
priCe
date purChased
www.mkdiamond.com
Caution: Read all safety and operating instructions
before using this equipment. This owners manual
MUST accompany the equipment at all times.
MK-1280 ELECTRIC SERIES
BRICK/PAVER SAW
OWNERS MANUAL &
PART LIST
09.2010
Revision 100
ManualPart No.xxxxxxx
Your MK-1280 Electric Saw has been shipped from the factory thoroughly inspected. Only minimal
assembly is required.
CAUTION
UNPACKING
Movable
Cutting Table
MK-1280 Electric
Saw Adjustable Cutting Guide Blade Wrench
Baldor Motor
Manual
Owner’s Manual Warranty Card
In your container, you will nd one (1) MK-1280 Electric Saw, one (1) MK-1280 Electric Saw movable
cutting table, one (1) adjustable cutting guide, one (1) blade wrench, one (1) owners manual, one (1)
Motor Manual and one (1) warranty card.
CONTENTS
Use proper lifting techniques when lifting the MK-1280 Electric Saw.

18
MK-1280 ELECTRIC SAW TRANSPORT
The MK-1280 Electric Saw weighs approximately 185 pounds; two people should be used when trans-
porting the saw.
1. Never transport the MK-1280 Electric Saw with water in the Water Basin.
2. The MK-1280 Electric Saw weighs approximately 185 pounds; two people are
required when lifting or moving.
The MK-1280 Electric Saw is designed with handles on the front & rear of the saw for ease of
transport.
CAUTION
TRANSPORT
NOTE: Remove the Movable Cutting Table when transporting the MK-1280 Electric Saw.
Handle
Remove Movable
Cutting Table
• Verify the Movable Cutting Table is removed
• Grasp the saw by the handles in the front & rear of the saw
• Lift and transport the saw to the desired work location
To transport –
Handle

19
MK-1280 ELECTRIC SAW ASSEMBLY
MOVABLE CUTTING TABLE INSTALLATION
(A)
While holding the front, posi-
tion movable Cutting Table roller
wheels above Guide Rails.
(B)
Seat movable Cutting Table roller
wheels on saw Guide Rails.
(C)
Verify movable Cutting Table is
seated correctly by moving table
back and forth.
ADJUSTABLE CUTTING GUIDE INSTALLATION
(A)
Loosen adjustable Cutting Guide
retaining thumbscrews by turning
counter-clockwise.
(B)
Seat and tighten the adjustable
Cutting Guide retaining
thumbscrew.
The adjustable Cutting Guide can be used on either side of the Diamond Blade.NOTE:
DIAMOND BLADE INSTALLATION
(A)
Loosen Blade Guard Bolts.
(B)
Remove the Blade Guard. Re-
move Retaining Screw, (left-hand
threads) and Outer Flange.
(C)
Install Diamond Blade onto
Blade Shaft.
When installing the diamond blade retaining-bolt, ensure the threads of the bolt are aligned
with the threads of the blade shaft so as not to “cross-thread” the bolt.
NOTE:

20
MK-1280 ELECTRIC SAW ASSEMBLY
(D)
Install Retaining Screw and
Outer Flange.
(F)
Install Blade Guard and tighten
bolts.
(E)
Tighten retaining screw and
Outer Flange. Reverse process
to install.
Diamond Blades improperly used are dangerous. Comply with American National Standards Institute
Safety Code, B7.1 and, Occupational Safety and Health Act covering Speed, Safety Guards, Flanges,
Mounting Procedures, General Operating Rules, Handling, Storage and General Machine Conditions.
CAUTION
The pre-start inspection should be performed before beginning any job.
If the Diamond Blade shows signs of fatigue cracking, replace the blade before
starting work.
(C)
Verify Movable Cutting Table
moves freely and inspect engine.
(B)
Inspect Wooden Strip for
excessive grooves.
(A)
Inspect Blade for damage –
Verify Blade correct for material
being cut.
PRE-START INSPECTION
CAUTION
(D)
Inspect MK-1280 Electric Saw for
general damage, loose connec-
tions and hardware.
