MK Diamond Products CX-3E1 System manual

05.2015
CX-3E1
OWNER’S MANUAL &
OPERATING INSTRUCTIONS
www.mkdiamond.com
Caution: Read all safety and operating instructions
before using this equipment. This owner’s manual
MUST accompany the equipment at all times.
Revision 100
Manual Part# 171180-OM
Electric
Concrete Saw

2
INTRODUCTION
Congratulations on your purchase of a CX-3E1 Concrete Saw. We are certain that you will be
pleased with your purchase. MK Diamond takes pride in producing the nest construction power
tools and diamond blades in the industry.
Operated correctly, your CX-3E1 Concrete Saw should provide you with years of service. In order
to help you, we have included this manual. This owners manual contains information necessary to
operate and maintain your CX-3E1 Concrete Saw safely and correctly. Please take the time to famil-
iarize yourself with the CX-3E1 Concrete Saw by reading and reviewing this manual.
Read and follow all safety, operating and maintenance instructions.
If you should have questions concerning your CX-3E1 Concrete Saw, please feel free to call our
friendly customer service department at: 800 421-5830
Regards,
MK Diamond
NOTE THIS INFORMATION FOR FUTURE USE:
MODEL NUMBER:
SERIAL NUMBER:
PURCHASE PLACE:
PURCHASE DATE:
NOTE: For your (1) one year warranty to be effective, complete the warranty card
(including the Serial Number) and mail it in as soon as possible.

3
TABLE OF CONTENTS
SAFETY
Safety Messages 4
Damage Prevention Message 4
General Safety Precautions and Hazard Symbols 4-7
California Proposition 65 Message 8
Electrical Requirements 9-11
Safety Label Locations 12
Product Specications 13
UNPACKING, TRANSPORT and ASSEMBLY
Unpacking 14
Contents 14
Transport 15
Assembly 16-17
STARTUP, OPERATION and SHUTDOWN
Startup 18
Operation 19
Shutdown 20
Cleanup 21
MAINTENANCE AND TROUBLESHOOTING
Maintenance 22-29
ACCESSORIES ORDERING and RETURN INSTRUCTIONS
Accessories 30
Ordering Information 32
Return Material Policy 32
Packaging Instructions 32
Authorized Service Centers 33
Warranty 33

4
CX-3E1 SAFETY
Read and follow all safety, operating and maintenance instructions. Failure to read and follow
these instructions could result in injury or death to you or others. Failure to read and follow these
instructions could also result in damage and/or reduced equipment life. Safety warnings and
guidelines do not by themselves eliminate danger. They are not substitutes for proper accident
prevention procedures and good judgement.
SAFETY MESSAGES
A Damage Prevention Message is to inform the user of important information and/or instructions that
could lead to equipment or other property damage if not followed. Information Messages convey
information that pertains to the equipment being used. Each message will be preceded by the word
NOTE, as in the example below.
DAMAGE PREVENTION AND INFORMATION MESSAGES
NOTE: Equipment and/or property damage may result if these instructions are not followed.
GENERAL SAFETY PRECAUTIONS AND HAzARD SYMBOLS
A safety message alerts you to potential hazards that could hurt you or others. Each safety message is
preceded by a safety alert symbol ( ) and one of three words: DANGER, WARNING, or CAUTION.
DANGER You WILL be KILLED or SERIOUSLY INJURED if you DO NOT follow directions.
WARNING You CAN be KILLED or SERIOUSLY INJURED if you DO NOT follow directions.
CAUTION You CAN be INJURED if you DO NOT follow directions. It may also be used to
alert against unsafe practices.
ALWAYS read this Owner’s Manual before operating the machine. DO NOT operate or
service this equipment before reading this entire manual. Read and understand all warn-
ings, instructions and controls on the machine. Know how to stop the equipment quickly in
case of emergency. It is the operators responsibility to use this machine under safe work-
ing conditions and conform with federal, state and local codes or regulations pertaining to
safety, air, pollution, noise etc...
ALWAYS keep the Blade and Belt Guards in place. DO NOT operate this machine with any
guard or safety device removed. A Guard, or any damaged part should be repaired or
replaced immediately.
NEVER operate this equipment without proper protective clothing, shatterproof
glasses, steel-toed boots and other protective devices required by the job. Non-slip
foot wear is recommended.
ON
(
(
))
ON
(
(
))
ON
(
(
))
ON
((
))
ON
(
(
))
ON
(
(
))
ON
(
(
))
ON
(
(
))
In order to prevent injury, the following safety precautions and symbols should be followed at all times!

5
CX-3E1 SAFETY
ON
(
(
))
ON
(
(
))
ON
(
(
))
All visitors and children should be kept a safe distance from work area. Maintain a safe
operating distance to other personnel.
KEEP CHILDREN AWAY
MAKE THE WORKSHOP KID PROOF
Make the workshops kid proof by using padlocks, master switches or by removing starter keys.
ROTATING PARTS
Keep hands, feet, hair, and clothing away from all moving parts to prevent injury. Never oper-
ate the motor with covers, shrouds, or guards, removed.
OVER SPEED
NEVER tamper with the governor components or settings to increase the maximum speed.
Severe personal injury and damage to the engine or equipment can result if operated at
speeds above maximum.
ELECTRICAL SHOCK
NEVER touch electrical wires or components while the engine is running. Exposed, frayed or
worn electrical wiring and plugs can be sources of electrical shock which could cause severe
injury or burns. Do not touch the plug with wet hands.
ALWAYS avoid inhalation of and skin contact with silica dust and/or mist. Provide proper
dust removal. Use dust-collection system when applicable.
NEVER operate the machine in an explosive atmosphere or near combustible materials.
Sparks from the cutting-action of this machine can ignite flammable materials, liquids, gases
or dust.
This equipment should not be operated by persons under 18 years of age.
ALWAYS wear approved respiratory, head, ear and eye protection
when operating this machine.
Before starting the engine/motor, be sure the ON/OFF switch is in the OFF position to pre-
vent accidental starting. Place the ON/OFF switch in the OFF position before performing any
service operation. ALWAYS place the power ON/OFF switch in the OFF position when the
machine is not in use.
ACCIDENTAL STARTS!
PERSONAL PROTECTIVE EQUIPMENT
Engine components can become extremely hot from operation. To prevent severe burns,
do not touch these areas while the engine is running, or immediately after it is turned off.
Never operate the engine with heat shields removed.
HOT PARTS!
ON
(
(
))
ON
(
(
))
ON
(
(
))
ON
(
(
))
ON
(
(
))
ON
(
(
))
ON
(
(
))
ON
(
(
))
ON
(
(
))
ON
(
(
))
ON
(
(
))
DO NOT FORCE THE TOOL
A power tool will do a job better and safer operating at the rate for which it was designed.
DO NOT force a tool or an attachment to do a job that it was not designed to do.
ON
(
(
))

6
CX-3E1 SAFETY
Consult the owner’s manual for recommended accessories. Using improper accessories
may increase the risk of personal or by-stander injury. Unauthorized equipment
modifications will void all warranties. Manufacturer does not assume responsibility for any
accident due to equipment modifications.
ALWAYS ensure that the machine is on level ground before using.
Serious injury could occur if a power tool is tipped, or if a cutting tool is unintentionally
contacted.
When loading or unloading the machine, use caution. Remove the blade prior to hoisting,
loading and transporting the machine.
USE RECOMMENDED ACCESSORIES
NEVER STAND ON THE TOOL
TRANSPORT
Form a habit of checking to see that keys and adjusting wrenches are removed from
the power tool before it is turned on.
Cluttered work areas and benches invite accidents. Keep area around machine clear of
obstructions which could cause persons to fall.
DO NOT operate equipment in dangerous or hazardous environments. DO NOT use power
tools in damp or wet locations nor expose them to rain. Always keep the work area well
lighted.
REMOVE ADJUSTING KEYS AND WRENCHES
KEEP WORK AREA CLEAN
DO NOT USE IN DANGEROUS PLACES
MAINTAIN TOOLS WITH CARE
Keep tools clean and maintained for the best and safest performance. Always follow
maintenance instructions and examine the machine before use. If any abnormal vibrations
or noises occurs, turn off machine immediately and have the problem corrected before
further use.
DISCONNECT TOOLS
Power tools should always be disconnected before servicing, adjusting or when changing
accessories, such as blades, bits, cutters, and the like.
DO NOT OVERREACH
Keep proper footing and balance at all times by not overreaching.
ON
(
(
))
ON
(
(
))
ON
(
(
))
ON
(
(
))
ON
(
(
))
ON
(
(
))
ON
(
(
))
ON
(
(
))
ON
(
(
))
ON
(
(
))
SECURE WORK
Clamps or a vise should be used to hold work whenever practical. Keeping your hands free
to operate a power tool is safer.
ON
(
(
))
USE PROPER APPAREL
DO NOT wear loose clothing, gloves, neckties, rings, bracelets, or other jewelry that may
be caught in moving parts. Non-slip footwear is recommended. Wear protective hair cover-
ing to contain long hair.
ON
(
(
))

7
CX-3E1 SAFETY
Before using a power tool, check for damaged parts. A guard or any other part that is
damaged should be carefully checked to determine if it would operate properly and
perform its intended function. Always check moving parts for proper alignment or binding.
Check for broken parts and mountings and all other conditions that may affect the
operation of the power tool. A guard, or any damaged part, should be properly repaired or
replaced. Always check the machine for loose bolts before starting.
A blade or cutter should always be installed so that rotation is in the direction of the
arrow imprinted on the side of the blade or cutter. It should correspond with the rotational
direction of the motor.
TURN POWER OFF - Do not leave a tool until it comes to a complete stop. ALWAYS
turn a power tool OFF when leaving the work area, or, when a cut is finished.
NEVER LEAVE A TOOL UNATTENDED
CHECK FOR DAMAGED PARTS
DIRECTION OF ROTATION
NEVER disconnect any "emergency or safety devices". These devices are intended for
operator safety. Disconnection of these devices can cause severe injury, bodily harm, or
even death! Disconnection of any of these devices will void all warranties. Unauthorized
equipment modifications will void all warranties. Manufacturer does not assume
responsibility for any accident due to equipment modifications.
NEVER operate this equipment under the influence of drugs or alcohol.
NEVER operate this equipment when not feeling well due to fatigue, illness or taking medicine.
NEVER use this machine with any cutter designed for woodworking.
ON
(
(
))
ON
(
(
))
ON
(
(
))
ON
(
(
))
ON
(
(
))
ON
(
(
))
ON
(
(
))
ON
(
(
))
ON
(
(
))
ON
(
(
))
ON
(
(
))
ON
(
(
))
On belt driven equipment, overtensioning of belts will result in premature crank and/or bearing
failure.
Whenever necessary, replace nameplate, operation and safety decals when they become
difcult to read.
ALWAYS store equipment properly when it is not being used. Equipment should be stored in
a clean, dry location out of the reach of children
DO NOT lend or rent this equipment without including the Owner's Manual and the Engine/
Motor Manufacturer's Manual.
Check the chemical properties of the material to be cut/grinded and follow all EPA/OSHA
Regulations.

8
CX-3E1 SAFETY
Sawing, grinding and drilling generate dust. Excessive airborne particles may cause irritation to eyes,
skin and respiratory tract. To avoid breathing impairment, always employ dust controls and protection
suitable to the material being sawed or drilled; See OSHA (29 CFR Part 1910.1200).
WARNING
CALIFORNIA PROPOSITION 65 MESSAGE
Some dust created by power sanding, sawing, grinding, drilling, and other construction activities con-
tain chemicals known (to the State of California) to cause cancer, birth defects or other reproductive
harm. Some examples of these chemicals are:
• Lead, from lead-based paints
• Crystalline silica from bricks, cement and other masonry products
• Arsenic and chromium, from chemically treated lumber
For further information, consult the following sources:
http://www.osha.gov/dsg/topics/silicacrystalline/index.html
http://www.cdc.gov/niosh/docs/96-112/
http://oehha.ca.gov/prop65/law/P65law72003.html
http://www.dir.ca.gov/Title8/sub4.html
Your risk from these exposures varies depending on how often you do this type of work. To reduce
your exposure to these chemicals, work in a well-ventilated area, and work with approved safety
equipment, such as dust masks that are specially designed to lter out microscopic particles. Where
use of a dust extraction device is possible, it should be used. To achieve a high level of dust collec-
tion, use an industrial HEPA vacuum cleaner. Observe OSHA 29 CFR part 1926.57 and 1926.103.
SILICA DUST WARNING
Grinding/cutting/drilling of masonry, concrete, metal and other materials with silica in their composition
may give off dust or mists containing crystalline silica. Silica is a basic component of sand, quartz,
brick clay, granite and numerous other minerals and rocks. Repeated and/or substantial inhalation of
airborne crystalline silica can cause serious or fatal respiratory diseases, including silicosis. In ad-
dition, California and some other authorities have listed respirable crystalline silica as a substance
known to cause cancer. When cutting such materials, always follow respiratory precautions.
Use appropriate NIOSH-approved respiratory protection where dust hazard may occur. Paper masks
or surgical masks without a NIOSH approval number are not recommended because they do little to
protect the worker. For more information about respirator programs, including what respirators have
received NIOSH approval as safe and effective, please visit the NIOSH website at:
http://www.cdc.gov/niosh/topics/respirators
Observe OSHA regulations for respirator use (29 C.F.R.§1910.134).
Visit http://www.osha.gov for more information.
ON
(
(
))

9
CX-3E1 SAFETY
WARNING
In order to prevent electrical shock and injury, the following electrical safety precautions and symbols
should be followed at all times!
In case of a malfunction or breakdown, grounding provides a path of least resistance for electrical
current to reduce the risk of electric shock. This tool is equipped with an electric cord which has an
equipment-grounding conductor and a grounding plug. The plug must be plugged into a matching
outlet that is properly installed and grounded in accordance with all local codes and ordinances.
• DO NOT modify the plug provided - if it will not t the outlet, have the proper outlet
installed by a qualied electrician.
• Improper connections of the equipment-grounding conductor can result in a risk of electric
shock. The equipment-grounding conductor is the insulated conductor that has an outer
surface that is green, with or without yellow stripes. If repair or replacement of the electric
cord or plug is necessary, DO NOT connect the equipment-grounding conductor to a live
terminal.
• Check with a qualied electrician or service personnel if the grounding instructions are not
completely understood, or if in doubt as to whether the tool is properly grounded.
• Use only 3-wire extension cords that have 3-prong grounding plugs and 3-pole receptacles
that accept the tool’s plug.
• Repair or replace a damaged or worn cord immediately.
ELECTRICAL REQUIREMENTS AND GROUNDING INSTRUCTIONS
ON
(
(
))
CAUTION
DO NOT EXPOSE TO RAIN
For maintenance care and operation of the electric motor, refer to your electric motor instruction book-
let furnished with the electric motor. Protect the electric motor from dust as much as possible and keep
ventilating openings clean. Before plugging in the machine, make sure that the outlet voltage is within
the voltage marked on the machines's data plate.
DO NOT spray water on the electric motor. DO NOT touch the plug with wet hands. To reduce
the risk of electrocution, keep all connections dry and off the ground.
ELECTRIC MOTOR SAFETY
DO NOT operate electric motor in an explosive environment.
DO NOT expose to rain or use in damp locations.
ON
(
(
))
ON
(
(
))
ON
(
(
))

10
WARNING
To reduce the risk of electrocution, keep all connections dry and off the ground. A Ground Fault
Circuit Interrupter (GFCI) should be provided on the circuit(s) or outlet(s) to be used for this
machine. Receptacles are available having built-in GFCI protections and may be used for this
measure of safety. When using an extension cord, GFCI should be installed closest to the power
source, followed by the extension cord and lastly, the machine.
ON
(
(
))
WARNING
If operating the equipment in damp locations is unavoidable, ALWAYS use a Ground Fault
Circuit Interrupter, ALWAYS wear rubber gloves and footwear in damp conditions.
DO NOT abuse the cord. Never use the cord to carry the equipment or to pull the plug from
the outlet. Keep the cord away from heat, sharp edges, and moving parts. Replace dam-
aged cords immediately. Damaged cords increase the risk of electric shock.
ON
(
(
))
ON
(
(
))
ON
(
(
))
WARNING
Use only extension cords that are intended for outdoor use. These extension cords are
identied by a marking "Acceptable for use with outdoor appliances; store indoors while not
in use." Use only extension cords having an electrical rating not less than the rating of the
product. DO NOT use damaged extension cords. Examine extension cords before using and
replace if damaged. DO NOT abuse extension cords and DO NOT yank on any cord to dis-
connect. Keep cords away from heat and sharp edges. Always disconnect the extension cord
from the receptacle before disconnecting the product from the extension cord.
ALWAYS make certain that the power source required for the electric motor is correct and always
use the correct NEMA conguration plug. Motors can burn out when the line voltage falls 10% below
the voltage rating of the motor. Failure to use proper voltage will cause the motor to overheat. Make
certain that the correct size grounded (3-wires) extension cord is used.
ON
(
(
))
ON
(
(
))
CX-3E1 SAFETY
If the plug or receptacle gets wet, DO NOT unplug the cord. Disconnect the fuse or circuit breaker
that supplies power to the tool. Then unplug and examine for presence of water in the receptacle.

11
CX-3E1 SAFETY
EXTENSION CORD LENGTH
Voltage Amps 50' 100' 200'
115V 1Ph 17.2 12 ga 10 ga 6 ga
230V 3Ph 8.8 16 ga 14 ga 12 ga
WARNING
Use of undersized extension cords result in low voltage to the motor that can result in motor burnout
and premature failure. MK Diamond warns that equipment returned to us showing signs of being run
in a low voltage condition, through the use of undersized extension cords,will be repaired or replaced
totally at the customer’s expense. There will be no warranty claim.
To choose the proper extension cord,
• Locate the length of extension cord needed in the table below.
• Once the proper length is found, move down the column to obtain the correct
AWG size required for that length of extension cord.
ON
(
(
))

12
Concrete Saw Warning Label Sheet Part# 166009
Location Description
AFrame/Back Read Manual
BArm Proposition 65, Dust Warning
CBlade Guard & Belt Guard Guards in Place
DBlade Guard Replace Blade Guard
EFrame/Front Hand & Feet Clear
FHandle Lifting Point
GBelt Guard Overtensioning Belt
HFrame/Back Service
IMotor/Front QR Code
JConsole Machinery Hazard
B
I
J
E
C
D
F
A
CX-3E1 SAFETY
OPERATION & SAFETY DECALS
NOTICE
Overtensioning of belts
will result in premature
crank and/or bearing failure.
!
WARNING
In the event of
blade failure,
replace blade
guard
immediately.
!
WARNING
Handle bar NOT a lifting point.
!
SERVICE OR
WARRANTY
FOR INFORMATION ON
PLEASE CALL
1-800-474-5594
CAUTION
Keep
hands and
feet clear.
!
For manuals and parts
lists scan the QR code
with your smart phone
A
B
C (2 of them)
DE
F
G
J
I
H
DO NOT operate
this equipment
before reading
the owners’
manual!
WARNING
!
WARNING
Grinding/cutting/drilling of masonry, concrete, metal and other materials with silica in
their composition may give off dust or mists containing crystalline silica. Silica is a basic
component of sand, quartz, brick clay, granite and numerous other minerals and rocks.
Repeated and/or substantial inhalation of airborne crystalline silica can cause serious
or fatal respiratory diseases, including silicosis. In addition, California and some other
authorities have listed respirable crystalline silica as a substance known to cause cancer.
!
CAUTION
DO NOT
operate without
guards in place.
!
Read entire operatorʼs manual before operating this
machine. Understand all warnings, instructions and
controls. IF YOU DO NOT HAVE AN OPERATORʼS
MANUAL, CALL TOLL FREE 1-800-474-5594
Machinery Hazard - Always keep all guards in place
and in good condition. Always keep all parts of your
body away from blade and all other moving parts.
Never allow blade exposure to exceed 180°.
Always use blades with a rated speed above the
blade shaft speed. Excessive speed can cause blade
breakage. Verify speed by checking blade shaft RPM,
pulley diameters and blade flange diameter.
Never use damaged
blades or equipment.
Never operate this machine
in areas of combustible material.
Some dust created by power sanding, sawing,
grinding, drilling, and other construction activities
contains chemicals known (to the State of California)
to cause cancer, birth defects or other reproductive
harm. Some examples of these chemicals are:
• Lead from lead-based paints
• Crystalline silica from bricks and
cement and other masonry products
• Arsenic and chromium
from chemically-treated lumber
Always wear safety approved hearing,
eye, head and respiratory protection
WARNING
The CX-3E1 Concrete Saw is equipped with a number of safety decals. These decals are provided for
operator safety and maintenance information. Should any of these operation or safety decals become
unreadable, replacements can be obtained by calling [phone].
E
C
G

13
Blade
The CX-3E1 uses a 12 to 14 inch diameter diamond blade.
Concrete Saw Usage
The CX-3E1 is designed to cut various grades of concrete surfaces.
Features
• Compact, lightweight, engineered for maneuverability and reliability
• Can be used for wet or dry cutting
• Corrosion resistant cast-aluminum blade guard
• Built-in water distribution system supplies water to both sides of blade
• Blade guard mounts on either left- or right-hand side of saw and cuts within 1” of wall or curb
• Sturdy single piece steel motor mount weldment to minimize vibration
• 1” diameter blade shaft with self aligning bearings
• Hinged blade guard provides easy access for blade changes and inspection
• Folding handle bar for compact transport
• Poly V-belt for positive power transmission
PRODUCT SPECIFICATIONS
The CX-3E1 is a versatile electric Concrete Saw. Operated and used according to this manual, the
CX-3E1 will provide years of dependable service.
General Description
The CX-3E1 is engineered as a portable concrete saw powered by a Leeson electric motor. The saw
is capable of cutting up to ve and half (5-1/2) inches in depth.
Motor and Weight Specications
Motor and Weight specications for the CX-3E1 are listed below.
Motor Type 120V 17.2 Amp Single Phase
Power 1.5Hp
Weight Approximately 112 lbs.
CX-3E1 SAFETY

14

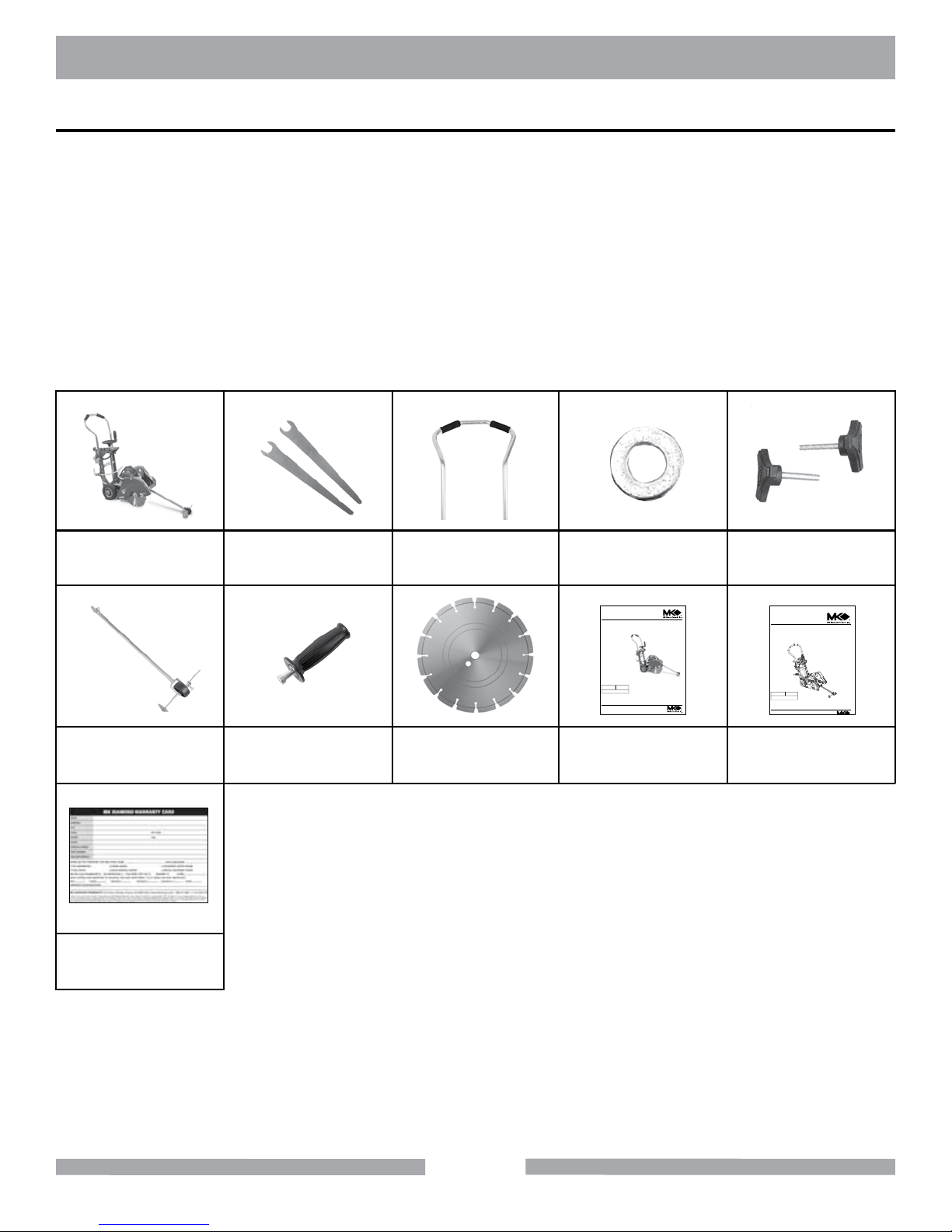

UNPACKING
CX-3E1 2 Blade Shaft
Wrenches
CX-3E1
Owner’s Manual
CX-3E1
Parts Manual
Warranty
Card
Handle Diamond Blade
Tri-Knob
Washers Tri-Knobs
Pointer
Handlebar
CX-3E1 UNPACKING
05.2015
CX-3E1
OWNER’S MANUAL &
OPERATING INSTRUCTIONS
www.mkdiamond.com
Caution: Read all safety and operating instructions
before using this equipment. This owner’s manual
MUST accompany the equipment at all times.
Revision 100
Manual Part# 1xxxxx
Electric
Concrete Saw
05.2015
MK DIAMOND CX-3E1, WITH
LEESON 1.5HP MOTOR
WALK-BEHIND CONCRETE SAW
PARTS LIST & EXPLODED VIEWS
www.mkdiamond.com
Caution: Read all safety and operating instructions
before using this equipment. This parts list MUST
accompany the equipment at all times.
Revision 100
Manual 171180-PM
Your CX-3E1 has been shipped from the factory thoroughly inspected. Only minimal assembly is
required.
Remove the CX-3E1 from the pallet and place it on a at surface.
CONTENTS
In the containers, you will nd one (1) CX-3E1, two (2) Blade Shaft Wrenches, one (1) Handlebar, two
(2) Tri-Knob Washers, (1) Tri-Knob, one (1) Handle, and one (1) Pointer, (1) one Diamond Blade, one
(1) CX-3E1 Owner’s Manual, (1) CX-3E1 Parts Manual, one (1) Warranty Card,.

15
TRANSPORT
CX-3E1 TRANSPORT
CAUTION 1. The CX-3E1 weighs approximately one hundred and twelve (112 pounds),
use care when transporting.
2. Two people are required to lift and transport the CX-3E1.
To lift the CX-3E1, one person will lift by grasping the back of the frame, near console, and one
person will lift by grasping the front of the CX-3E1.
(C)
Install one Tri-Knob Washer onto
each Tri-Knob. Install Tri-Knobs
through the Handlebar and into the
threaded holes on the CX-3E1
console frame.
Follow the assembly instructions to prepare your CX-3E1 for operation.
(A)
Locate the threaded holes on
both sides of CX-3E1 console
frame.
(B)
Align the handlebar with the
threaded holes on the sides of
the CX-3E1 console frame.
Handlebar Assembly

16
CX-3E1 ASSEMBLY
When installing the diamond blade retaining-bolt, ensure the threads of the bolt are aligned
with the threads of the drive shaft so as not to “cross-thread” the bolt.
(B)
Locate the Blade Retaining Bolt
and the Outer Flange.
(C)
Loosen the Blade Retaining Bolt
while holding the Shaft Wrench
steady. Remove the Blade Retaining
Screw and Outer Flange.
NOTE:
Diamond Blade Installation
(A)
Locate Blade Guard lock.
Push Lock Button. Open the
Blade Guard cover.
(D)
Install the Diamond Blade onto
the Blade Shaft. Ensure arrow is
pointed in direction of rotation.
(E)
Install the Outer Flange. Verify it
is seated against the blade.
(F)
Install the Blade Retaining Bolt.
(G)
Tighten Blade Retaining
Bolt while holding the Blade
Shaft steady.
WARNING
Diamond Blades improperly used are dangerous. Comply with American National Standards Institute
Safety Code, B7.1 and, Occupational Safety and Health Act covering Speed, Safety Guards, Flanges,
Mounting Procedures, General Operating Rules, Handling, Storage and General Machine Conditions.

17
CX-3E1 ASSEMBLY
Crank Wheel Handle Installation
Pointer Installation
(A)
Insert Crank Wheel Handle
mounting bolt up through hole in
crank wheel.
(A)
Insert bolt on Pointer into mount-
ing ange next to Blade Guard.
(B)
Thread Crank Wheel Handle
onto bolt.
(B)
Install limiting bracket onto bolt
as shown.
(C)
Hold crank wheel handle and
tighten bolt with Allen wrench.
(C)
Thread locking nut on to bolt
and tighten.
Limiting bracket properly installed will prevent pointer from contacting engine when
in the up position
NOTE:

18
CX-3E1 START UP
The pre-start inspection should be performed before beginning any job. If Diamond Blade is worn,
replace the blade before starting work.
Pre-Start Inspection
(A)
Inspect Blade for damage for
cracks Verify the Blade is correct
for the material being cut.
(B)
Inspect the CX-3E1 for general
damage and/or loose hardware.
Motor Start
(A)
Use the Depth Control Wheel to
raise the Blade clear of the oor.

19
CX-3E1 OPERATION
Standard Operation
The following is a brief overview of operating the CX-3E1.
(A)
Use the depth control wheel to
raise the blade clear of the oor.
(B)
Attach the cooling supply
hose to the Cooling Inlet.
(C)
Lower the Pointer. Align a straight-
edge with a blade. Loosen thumb-
screw on front of Pointer to adjust
guide wheel, align with straightedge.
(E)
Layout and mark the area to
be cut using a chalk-line. Align
Pointer and Blade to chalk-line.
(D)
Tighten thumbscrew.
(F)
Plug saw into electrical supply.
Start the CX-3E1
(G)
Open Cooling Supply Valve. Ver-
ify proper cooling ow and adjust
the water ow on the Blade to a
desired amount.
(H)
Slowly lower the Blade until the
desired level is reached and
begin the cut.
(J)
When the cut is complete, raise the
Blade. Close Cooling Supply Valve
and shut down saw.

20
CX-3E1 SHUTDOWN
Normal Motor Shutdown
(A)
Raise the Blade off the ground.
(B)
Place Motor Switch in the OFF
position.
(C)
Raise the Pointer.
NOTE: Perform the cut using only enough pressure to follow the original marked line. The saw
has a natural tendency to pull towards the side on which the blade is mounted. To assure
straight line cutting, apply pressure to the appropriate handle. If excessive pressure is
required back off the on the forward speed of the saw. Driving the saw too fast while cutting
may cause the front wheels to lift causing the blade to cut at uneven depths. Do not at-
tempt to steer the saw. Sudden and severe corrections can cause the blade to be damaged
or broken.
