MKN FlexiChef User manual

Operating instructions
FlexiChef General information
Unit Energy type Design Model
FlexiChef Electric Deep-frying
High-speed cooking
Automatic cleaning
FCEKMP1XXXX-----G2...
FCEKMP3XXXX-----G2...
FlexiChef Team FCEKMP2XXXX-XXXXG2...
Translation from the original document • 10000008612ABEDEA • 08/04/2020
10000008612ABEBEA en-GB
Read the operating instructions prior to
commissioning

Operating and display elements
a
Image: Control unit
a
c
d
b
Image: Control unit front panel
a Touchscreen c Emergency off switch (optional)
b Contact for "Reset safety
temperature limiter"
d
On Off switch ("I O")
10000008612ABEBEA
2 Operating instructions

Manufacturer
MKN Maschinenfabrik Kurt Neubauer GmbH & Co. KG
Halberstädter Straße 2a
38300 Wolfenbüttel
Germany
Phone [phone]
Fax [phone]
Internet www.mkn.com
Copyright
All rights to text, graphics and pictures in this documentation are held by MKN Maschinenfabrik Kurt
Neubauer GmbH & Co. KG. Distribution or duplication is only permitted with the prior written consent
of MKN.
Copyright by MKN Maschinenfabrik Kurt Neubauer GmbH & Co. KG.
3Operating instructions

Directory of contents
4 Operating instructions
1Introduction......................................................................... 7
1.1About this manual ............................................................................ 7
1.1.1Explanation of signs ..................................................................................  8
1.2Intended use ..................................................................................... 9
1.3Warranty............................................................................................ 9
2Safety information............................................................ 10
3Description of the unit ..................................................... 14
3.1Overview of the unit ....................................................................... 14
3.2Features .......................................................................................... 15
3.2.1Operating modes.....................................................................................  15
3.2.2Types of cooking .....................................................................................  15
3.2.3Core temperature measurement .............................................................  17
3.2.4USB port..................................................................................................  17
3.2.5HACCP logging .......................................................................................  18
3.2.6SpaceClean automatic cleaning (optional)..............................................  18
3.3Application...................................................................................... 18
3.3.1Fill quantities ...........................................................................................  18
3.4MagicPilot equipment controls ..................................................... 19
3.4.1Main menu...............................................................................................  19
4Operating the unit............................................................. 20
4.1Switching the unit on and off ........................................................ 20
4.1.1Switching on ............................................................................................  20
4.1.2Switching off ............................................................................................  20
4.2Performing the basic control setting............................................ 21
4.2.1Opening the equipment settings menu....................................................  21
4.2.2Retrieving equipment information............................................................  21
4.2.3Setting the date and time ........................................................................  22
4.2.4Select languages.....................................................................................  23
4.2.5Setting cookbook authorisation ...............................................................  24
4.2.6Selecting a cookbook ..............................................................................  25
4.3Basic functions............................................................................... 26
4.3.1Setting the cooking temperature .............................................................  26
4.3.2Setting the cooking time ..........................................................................  28
4.3.3Setting the level.......................................................................................  31
4.3.4Inserting and removing a USB flash drive ...............................................  32
4.3.5Exporting the HACCP log........................................................................  32
4.3.6Using the core temperature sensor .........................................................  33
4.3.7Using QuickStart function........................................................................  36
4.4Emptying the pan ........................................................................... 38
4.5Pausing and finishing use............................................................. 38
4.5.1Brief pauses ............................................................................................  38
10000008612ABEBEA

Directory of contents
5Operating instructions
4.5.2Longer pauses and end of use................................................................  39
5Cleaning and caring for the unit ..................................... 40
5.1Preventing corrosion ..................................................................... 40
5.2Remove rust spots ......................................................................... 41
5.3Cleaning the housing..................................................................... 41
5.4Cleaning the operating elements.................................................. 41
5.5Cleaning the touchscreen ............................................................. 42
5.6Cleaning the seal............................................................................ 42
5.7Cleaning the pan manually............................................................ 42
5.8Inserting and removing the cleaning lance (optional) ................ 43
5.8.1Inserting the cleaning lance.....................................................................  43
5.8.2Removing the cleaning lance ..................................................................  44
5.9Cleaning the pan automatically with SpaceClean (optional)...... 44
5.9.1Starting automatic cleaning .....................................................................  45
5.9.2Ending automatic cleaning ......................................................................  46
5.10Decalcifying the cleaning system (optional) ............................. 46
5.10.1Starting decalcification ..........................................................................  47
5.10.2Cancelling decalcification ......................................................................  48
5.10.3Ending decalcification............................................................................  48
6Troubleshooting ............................................................... 49
6.1Causes of errors and remedies..................................................... 49
6.1.1Deactivating emergency off.....................................................................  51
6.2Nameplate ....................................................................................... 51
7Carrying out maintenance ............................................... 52
7.1Carrying out required maintenance.............................................. 52
7.1.1Performing a visual inspection ................................................................  52
7.1.2Checking the safety valve .......................................................................  54
7.1.3Filling out the maintenance certificate .....................................................  55
8Dispose of unit in an environmentally responsible
manner ................................................................................. 57
9Manufacturer's declaration.............................................. 58
Keyword index.................................................................... 59
10000008612ABEBEA

Directory of contents
6 Operating instructions
10000008612ABEBEA

Introduction
7Operating instructions
1 Introduction
1.1 About this manual
The operating instructions are part of the unit and contain information:
•On safe operation,
•On cleaning and care,
•On remedies in case of faults.
Be aware of the following notes and adhere to them:
•Read the operating instructions completely before operating the
unit for the first time.
•Make the operating instructions available to the operator at all
times at the operating site of the unit.
•Insert any supplements from the manufacturer.
•Keep the operating instructions throughout the service life of the
unit.
•Pass on the operating instructions to any subsequent operator of
the unit.
Target group The target group of the instruction manual is the operator, who is
entrusted with the operation, cleaning and care of the unit.
Figures All figures in this manual are intended as examples. Discrepancies
between these and the actual unit can arise.
10000008612ABEBEA

Introduction
8 Operating instructions
1.1.1 Explanation of signs
DANGER
Imminent threat of danger
Failure to comply will lead to death or very severe injuries.
WARNING
Possible threat of danger
Failure to comply can lead to death or very severe injuries.
CAUTION
Dangerous situation
Failure to comply can lead to slight or moderately severe
injuries.
ATTENTION
Physical damage
Failure to comply can cause physical damage.
Notes for better understanding and operation of the unit.
Symbol / sign Meaning
•Listing of information.
Action steps, which can be performed
in any sequence.
1.
2.
Action steps, which must be performed
in the specified sequence.
Result of an action performed or
additional information about it.
10000008612ABEBEA

Introduction
9Operating instructions
1.2 Intended use
This unit is intended to be used solely for commercial purposes,
particularly in commercial kitchens.
This unit may only be used with suitable accessories and for the
cooking of food.
It is forbidden to use the unit for purposes, which include the
following:
•Storing supplies
•Drying cloths, paper or dishes
•Heating acids, alkaline solutions or other chemicals
•Heating rooms
•For smoking fish or meat
•For heating cooking utensils on the frying surface
•For cleaning dishes
•As set-down area or working surface
•As seat
•As a basin for keeping things warm
The use of the unit is prohibited in the following countries:
•USA
•Canada
1.3 Warranty
The warranty is void and safety is no longer assured in the event of:
•Improper conversion or technical modifications of the unit,
•Improper use,
•Incorrect startup, operation or maintenance of the unit,
•Problems resulting from failure to observe these instructions.
10000008612ABEBEA

Safety information
10 Operating instructions
2 Safety information
The unit complies with applicable safety standards. Residual risks
associated with operation or risks resulting from incorrect operation
cannot be ruled out and are mentioned specifically in the safety
instructions and warnings.
The operator must be familiar with regional regulations and observe
them.
Operation Individual below 16 years of age are not allowed to operate the unit.
During operation, the following group of individuals must be
supervised by an individual who is responsible for safety:
•Individuals with physical, sensory, or mental handicaps, or who
lack the knowledge and experience to operate the unit properly.
The supervising individual must be familiar with the unit and the risks
associated with it.
Children are not allowed to operate the unit or play with it.
Hot surfaces Risk of burns from hot surfaces
•Protect arms and hands by wearing suitable protective gloves.
•Do not touch heating elements, hot surfaces or accessories
immediately after use.
•Allow surfaces to cool prior to cleaning.
•Remove containers only with suitable protective gloves or
potholders.
Hot liquids Risk of burns from hot liquids
•Protect arms and hands by wearing suitable protective gloves.
•Remove, transport and empty containers carefully.
•Remove, transport and empty baskets carefully.
•Use heat-resistant containers with handles and locking lids to
transport cooked foods.
•Observe the maximum filling quantity.
Risk of scalding from hot oil
•Protect arms and hands by wearing suitable protective gloves.
•Prior to deep frying, remove excess ice from frozen foods to be
cooked.
•Prior to deep frying, dry wet foods to be cooked.
•To transport deep-frying oil, use only containers that are suitable
for transporting deep-frying oil and can accommodate the entire
amount of deep-frying oil.
•Observe the maximum filling quantity.
10000008612ABEBEA

Safety information
11Operating instructions
Risk of chemical burns from evaporating cleaners
•Follow the instructions of the cleaning agent manufacturer.
Risk of burns from steam
•Protect arms and hands by wearing protective gloves.
•Do not hold your hand under the outlet connection of the air vent
and safety valve.
•Maintain a safe distance from the unit. Hot steam escapes when
the lid is opened.
Defective unit Risk of injury from a defective unit
•Disconnect a defective unit from the electric mains.
•Do not operate a defective unit.
•Allow only an authorized technician to repair the unit.
Fire prevention Risk of fire from dirt and grease deposits
•Clean the unit when finished using it.
•When the oil starts to become rancid, replace the deep-frying oil
completely; do not add oil.
Risk of fire from overheating
•Do not store any combustible objects or plastic containers in the
cooking zone.
•Observe the maximum filling quantity.
•Observe the minimum filling quantity.
•Use only deep-frying oil for deep frying.
•Use only the
Deep-frying cooking mode with a filling level of 5 mm
deep-frying oil or more.
Firefighting
•In the event of a fire, disconnect the unit from the electric mains.
•Use a Fire Class F fire extinguisher, never water, to extinguish
grease fires. Other fires, for instance, can be extinguished with fire
extinguishers suitable for Fire Classes A, B, C, CO2 fire
extinguishers or extinguishing media suitable for the fire class
confronted.
Improper cleaning Risk of chemical burns from cleaning agent
•Follow the instructions of the cleaning agent manufacturer.
•Take appropriate protective measures when handling aggressive
cleaning agents.
Risk of falling on smooth or slippery floor
•Keep the floor in front of the unit clean and dry.
10000008612ABEBEA

Safety information
12 Operating instructions
Risk of physical damage from improper cleaning
•Clean the unit after using it.
•Do not clean the unit with a high-pressure cleaner or water jet.
•Do not clean the housing with highly abrasive or chemically
aggressive cleaning agents.
•Do not clean the housing with highly abrasive sponges.
•Follow the instructions of the cleaning agent manufacturer.
•Do not cool shock the unit by cooling it abruptly.
•Do not use any bleaching or chlorine-containing cleaners or
disinfectants.
•Keep the unit free of calcium deposits.
•Clean the unit regularly.
•Only clean the unit with the socket covers closed.
Hygiene Hygiene risk from rancid oil
•When the oil starts to become rancid, replace the deep-frying oil
completely; do not add oil.
Health risk from insufficient hygiene
•Observe applicable regional hygiene regulations.
•Follow the cleaning instructions.
•Observe food processing regulations when keeping food warm.
Danger to health from using the hand shower incorrectly
•Only use the hand shower for cleaning.
•Only use the hand shower if the hose winder is functioning
properly.
Core temperature
measurement
Risk of injury from overheated core temperature sensor
•Do not heat the core temperature sensor over an open flame.
10000008612ABEBEA

Safety information
13Operating instructions
Improper use Risk of physical damage from improper use
•Do not operate the unit outdoors.
•Use only original accessories.
•Train operators regularly.
•Do not heat food warmer plates or tins of preserved food.
•Do not melt solid deep-frying oil in the deep-frying pan.
•Do not use or cook any aggressive or caustic substances.
•Use only commercially available deep-frying oils when operating
the unit.
•Only fill the unit to the maximum fill mark.
•Operate the unit only by hand.
•Do not operate the unit continuously at high temperatures.
•Do not empty large amounts of oil via the drain.
•Do not operate the unit at temperatures below 4° C.
•Remove the core temperature sensor before the cooked food is
removed.
•Insert the core temperature sensor back into the holder after use.
•Do not connect any mobile phones or USB devices such as USB
printers, external hard drives, WLAN adapters, UMTS adapters or
Bluetooth adapters. Exempted from this are approved MKN
genuine accessories for the unit.
•Do not connect PCs or notebooks.
•Do not use force to insert USB memory sticks.
•Always insert USB memory sticks before copying or saving data
and do not remove until the data has been transferred completely.
•Leave the USB port closed while operating the unit.
10000008612ABEBEA

Description of the unit
14 Operating instructions
3 Description of the unit
The multi-function unit is intended for universal use in commercial
kitchens for cooking food.
Possible uses include cooking, intensive simmering, frying, braising,
boiling, high-speed cooking, deep-frying.
3.1 Overview of the unit
abefgd
h
i
op
q
r
t
sn
j
m
c d
l k
k
Image: Unit with high-speed cooking and automatic cleaning
a Water supply k Steam outlet safety valve
(optional)
b Lid l Hand shower (optional)
c Core temperature sensor m Control unit front panel
d Filling nozzle (optional) n Control arm
e Control unit o Nameplate
f Fill level mark p Pan
g "OIL" fill level mark q Side arm
h Socket (optional) r Equipment leg
i Spout s Drain
j Storage container (optional) t Cleaning lance (optional)
10000008612ABEBEA

Description of the unit
15Operating instructions
3.2 Features
3.2.1 Operating modes
Overview of the operating modes
•Manual cooking: myCooking
•Automatic cooking: autoChef
Manual cooking (myCooking)
In the Manual cooking mode, individual cooking processes and
equipment functions can be actuated directly. The various cooking
modes can be adapted individually. All cooking modes, equipment
functions and information can be compiled and stored as cooking
processes.
Automatic cooking (autoChef)
In the Automatic cooking mode, saved cooking processes can be
performed and adjusted if necessary.

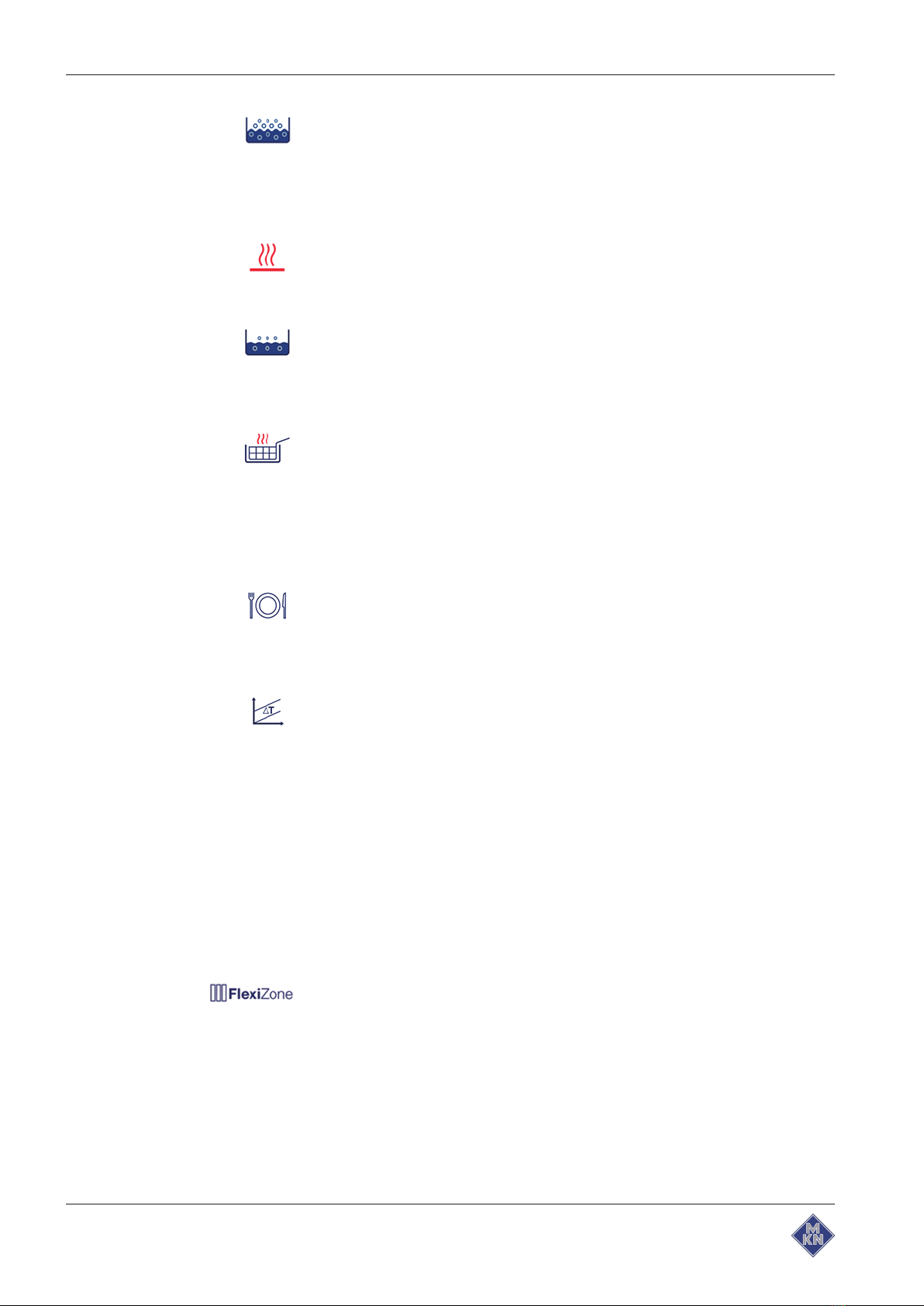

3.2.2 Types of cooking
Overview of the cooking modes
•ReadyXpress high-speed cooking (optional)
•Cooking
•Frying
•Soft Cooking
•Deep frying (optional)
•Regenerate
•Delta-T Cooking
•FlexiZone frying
•FlexiZone cooking
•SmartBoiling
•Sous-vide cooking (optional)
High-speed cooking ReadyXpress
In the High-speed cooking mode, water is poured into the pan whilst
taking into account the minimum fill quantity. This water evaporates
and creates positive pressure in the pan.
The higher temperatures shorten the cooking time and reduce the
amount of energy required.
The cooking level and pressure release can be set according to the
robustness of the food being cooked.
10000008612ABEBEA

Description of the unit
16 Operating instructions
Cooking
Cooking mode enables food to be cooked at various boiling strengths
in a temperature range of 90 °C to 100 °C. The food is heated to
boiling temperature at maximum output, and it then continues to be
cooked with the selected boiling strength.
Frying
Frying mode enables food to be fried at various output levels in a
temperature range of 100 °C to 275 °C.
Soft cooking
Soft cooking mode enables food to be heated and brought to the boil
slowly in a temperature range of 30 °C to 100 °C. The heating output
is limited depending on the output level.
Deep-frying
Deep-frying mode enables food to be deep-fried in hot fat in a
temperature range of 140 °C to 180 °C.
The pan is divided into four different zones. Each zone can be
operated with its own cooking time. The cooking temperature is the
same for all zones.
Regenerating
Regenerating mode enables food with different levels of robustness
to be kept warm and prepared in a temperature range of 50 °C to 100
°C.
Delta-T cooking
The cooking and frying preparation styles are both available in the
Delta-T cooking mode.
Delta-T cooking is a cooking mode where the cooking temperature
depends on the core temperature of the food being cooked.
The cooking temperature is always higher than the current core
temperature by the set value (Delta-T value, cooking temperature
difference). The resulting cooking time is longer than with other
cooking modes.
Delta-T cooking is especially well-suited for gentle cooking. The food
being cooked remains tender and juicy with little weight loss.
FlexiZone frying
The FlexiZone frying mode enables food to be fried in several zones.
The frying surface is divided into up to three different zones.
Each zone can be operated with its own output and cooking time in a
temperature range of 60 °C to 250 °C.
10000008612ABEBEA

Description of the unit
17Operating instructions
FlexiZone cooking
FlexiZone cooking mode enables food to be cooked in a temperature
range of 90 °C to 100 °C. The pan is divided into four different zones.
Each zone can be operated with its own cooking time. The output and
cooking temperature are the same for all zones.
SmartBoiling
SmartBoiling cooking mode enables water to be brought to the boil
with energy saving. The set amount of water is introduced
automatically, brought to the boil with the lid closed and then held at
temperature with low energy consumption. When the lid is opened,
water is available with the set boiling strength for further use.
Sous-vide cooking
Sous-vide cooking mode enables food to be cooked with a special
vacuum cooking process. This requires an external sous-vide core
temperature sensor as special equipment.
3.2.3 Core temperature measurement
When using core temperature measurement, the temperature inside
the food being cooked is measured by means of a core temperature
sensor.
As soon as the target core temperature is reached, the cooking
process is ended automatically or, in the case of a multi-step cooking
process, the next cooking step starts.
The use of core temperature measurement offers the following
benefits:
•Reduced energy and water consumption
•No overcooking
•Less weight lost by the food being cooked
•High HACCP safety
The following core temperature sensors are available:
•4-point core temperature sensor
and
•external sous-vide core temperature sensor (optional)
3.2.4 USB port
The unit is equipped with a USB port (USB 2.0).
A USB flash drive can be used to export and import cooking
processes and images.
HACCP logs can be exported to a USB flash drive and archived on
an external computer as necessary.
10000008612ABEBEA

Description of the unit
18 Operating instructions
3.2.5 HACCP logging
All cooking processes performed are recorded in the HACCP log.
The data are exported via the USB port.
3.2.6 SpaceClean automatic cleaning (optional)
With automatic cleaning, the pan cleaning process is fully automated.
The entire pan is sprayed down with high-pressure water. There is no
need to use an additional cleaning agent.
3.3 Application
3.3.1 Fill quantities
The maximum fill quantity with the High-speed cooking mode
and Cooking mode is always the filled liquid plus the food to be
cooked.
FlexiChef Size 1,
flat
Size 2,
flat
Size 2,
deep
Size 3,
flat
Size 3,
deep
Minimum fill quantity of
deep-frying oil (l)
19 26 26 38 38
Maximum fill quantity of
deep-frying oil (l)
25 35 35 49 49
Maximum fill quantity (l)
•With the High-speed
cooking mode
50
35
75
60
100
85
100
85
150
130
Minimum fill quantity (l)
•With the Cooking mode
•With the High-speed
cooking mode
15
15
20
20
20
20
30
30
30
30
Maximum weight load (kg) 60 85 110 110 160
10000008612ABEBEA

Description of the unit
19Operating instructions
3.4 MagicPilot equipment controls

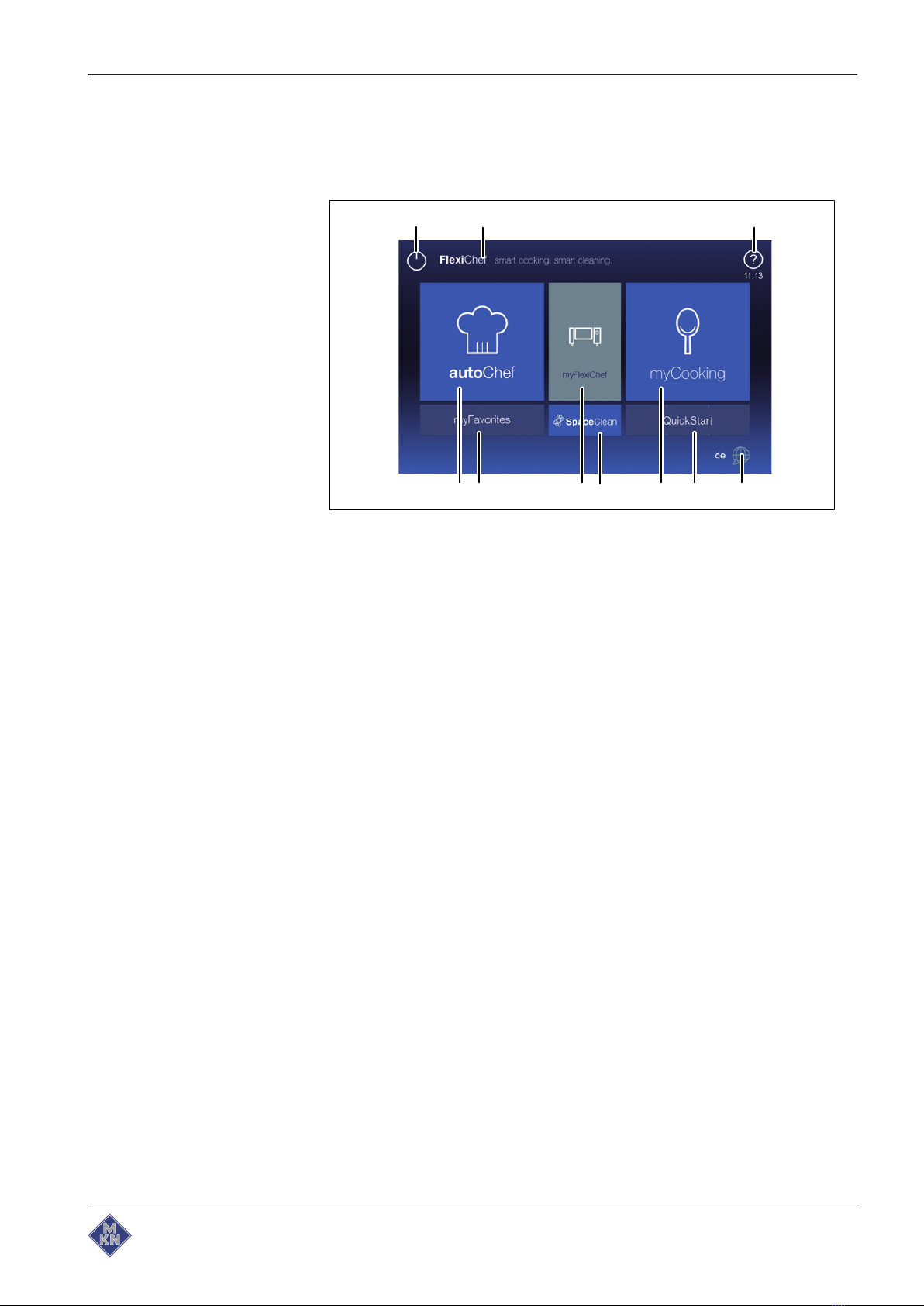

3.4.1 Main menu
h
a
j
ef b
i
g c
d
Image: Main menu
a Language selection button f "myFavourites" button
b "QuickStart" button g "autoChef" button
c "myCooking" button h
Standby button
d "SpaceClean" button i Information bar
e "myFlexiChef" button j
FlexiHelp button
10000008612ABEBEA

Operating the unit
20 Operating instructions
4 Operating the unit
ATTENTION
Risk of physical damage from fouling
• Keep the touchscreen free of unusually heavy fouling.
• Mop up any drips immediately.
ATTENTION
Risk of physical damage from excessively high load
Excessively high load can damage the lid mechanism.
• Do not place anything on the lid.
4.1 Switching the unit on and off
4.1.1 Switching on
The power-on process for the touchscreen is around 45
seconds.
Requirement Emergency off deactivated
Unit switched off
Press the On Off ("I O") switch to "I".
The unit is switched on.
The control system starts the power-on process automatically.
The progress bar at the lower edge of the touchscreen displays
the status of the process.
The main menu appears and the unit is ready for use.
4.1.2 Switching off
Requirement Unit switched on
Processes ended
Press the On Off ("I O") switch to "O".
The unit is off.
10000008612ABEBEA
