Mobility Research LiteGait 4Home User manual

Operator & Service Manual
LiteGait® 4Home
LiteGait® is a Registered Trademark of Mobility Research, Inc.

www.LiteGait.com
1-800-332-9255
SERIAL
NUMBER
Serial Number of Your Device:
Note: Please keep your serial number in a safe and secure location. The serial number must be
provided when seeking service for your LiteGait® device. The serial number provides us access to
technical information regarding your device.

www.LiteGait.com
1-800-332-9255
IMPORTANT SAFETY INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE USING LiteGait®
***WARNING***
This device is designed to be used for an individual user. This device
should not be used in a facility setting with multiple patients.
Use only under the direct supervision of a health care professional or
caregiver
Brakes should remain in the locked position at all times until transfer
from one location to another is initiated.
Operate on smooth and level surfaces ONLY.
Maximum Patient Weight
LiteGait® 4 Home 110 110 lbs
LiteGait® 4 Home 220 220 lbs
LiteGait® 4 Home 330 330 lbs
LiteGait® 4 Home 440 440 lbs
Maximum Height of the unit is User Specific and is customized to meet
the needs of each individual user.

6
www.LiteGait.com
1-800-332-9255

7
www.LiteGait.com
1-800-332-9255

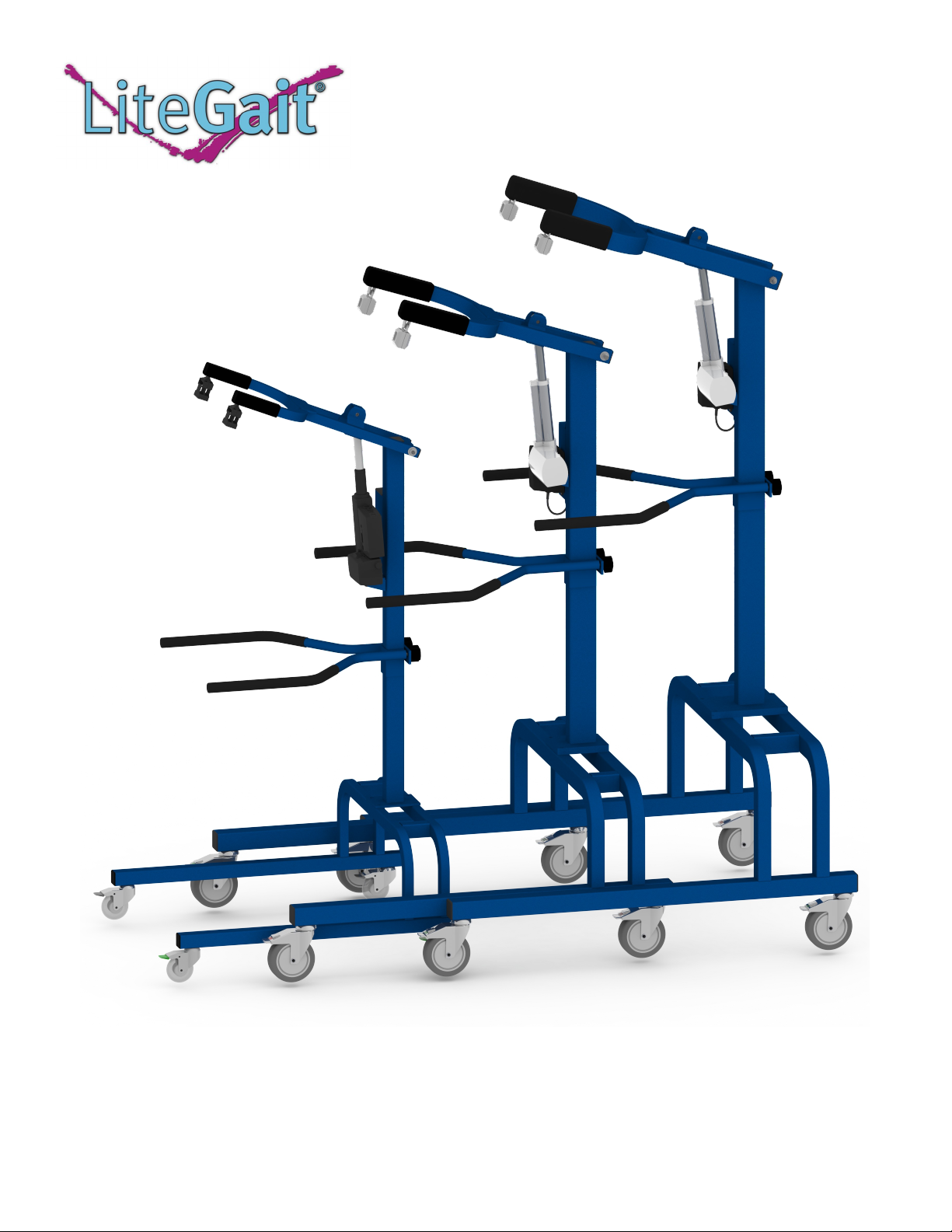

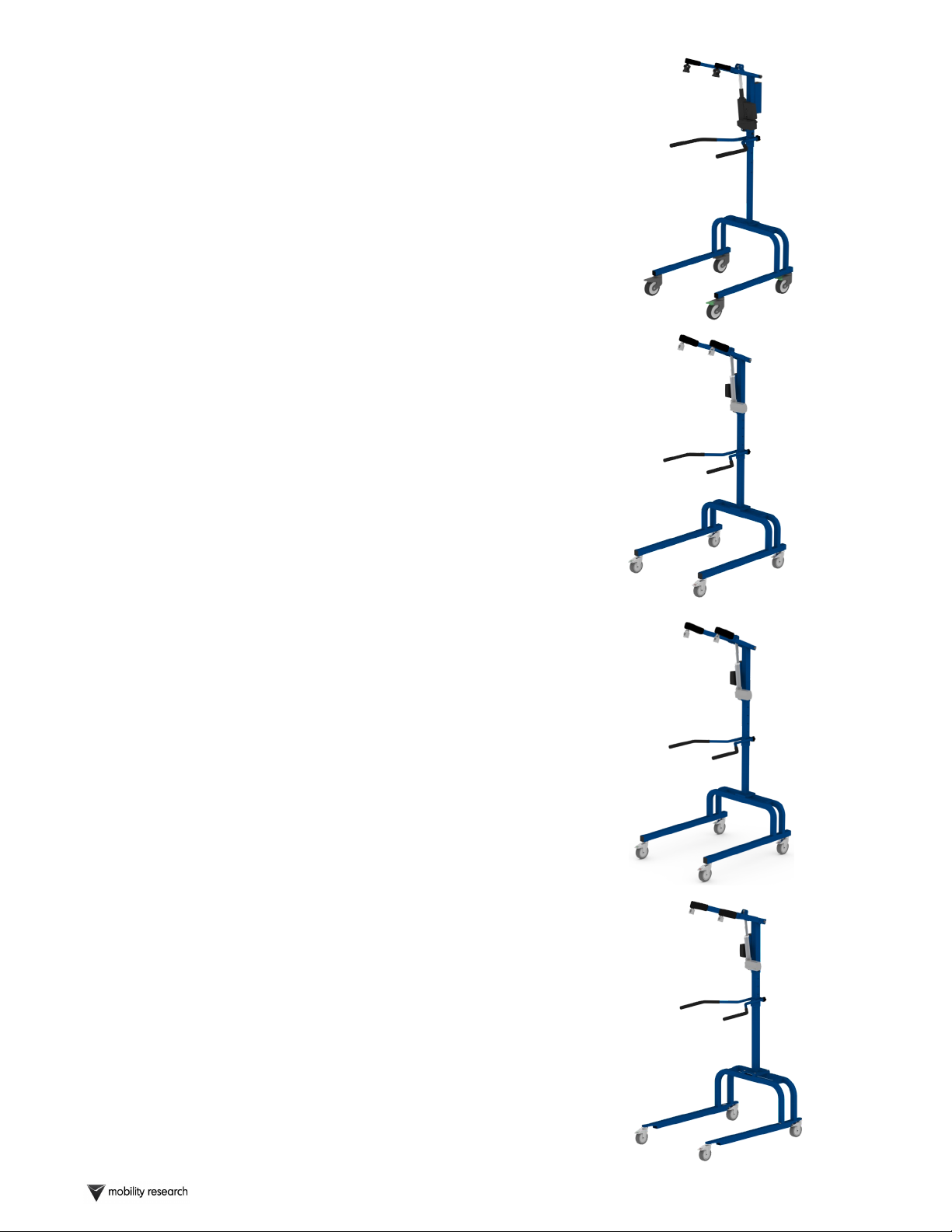

LiteGait® 4 Home 110
LiteGait® 4 Home 220
LiteGait® 4 Home 330
LiteGait® 4 Home 440
NOTE: Your LiteGait® may look different than images above

Dear LiteGait® User,
CONGRATULATIONS on your recent purchase of LiteGait®, the most innovative gait and balance
therapy training system available today. As you know, LiteGait® can be used with a wide variety of
patient impairment levels and conditions. If you have questions about the possible uses of LiteGait®
with particular patients, or are in need of some ideas for ways to use LiteGait® more effectively,
please do not hesitate to contact us for information relating to your individual situation. Our
website also offers valuable information.
Like all quality therapy equipment, LiteGait® requires regular inspections. Enclosed is a check list for
your convenience. Please complete the checklist every 6 months to ensure the efficient, safe, and
effective operation of the LiteGait® unit. If you should find a problem with a LiteGait® part, please
contact the Technical Support Department immediately. Here are some resources, which will be of
help to you:
CLINICAL SUPPORT: [email protected]
SERVICE & PARTS DEPARTMENT: [email protected]
WEBSITE: www.LiteGait.com
USER FORUM : www.LiteGait.org
Sincerely,
Customer Service Department
Mobility Research

11
www.LiteGait.com
1-800-332-9255
Table of Contents
Unpacking and Assembly ...................................................................................12
Unit Diagram ......................................................................................................14
About Your Unit..................................................................................................14
USING Your LiteGait® ..........................................................................................15
I. Raising and Lowering ...................................................................................15
II. Charging.......................................................................................................15
III. Adjusting Handle Bars.................................................................................16
IV. Base and Casters .........................................................................................17
V. BiSym Scale Optional...................................................................................18
VI. Harness Application....................................................................................18
Training with LiteGait®........................................................................................21
Unit Care and Maintenance ...............................................................................24
Troubleshooting .................................................................................................26
Parts List ............................................................................................................29
Resource Directory .............................................................................................30
Limited Warranty Certificate...............................................................................31

12
www.LiteGait.com
1-800-332-9255
LiteGait® Assembly
Tools Required:
Scissors
1/2 inch socket or open-end wrench
5/16 inch Allen wrench (provided)
LiteGait®Assembly Instructions:
Read below & follow pictures.
NOTE: Two people are required for safe assembly.
NOTE: Your LiteGait® may look different than the follow-
ing images, but assembly Steps are the same.

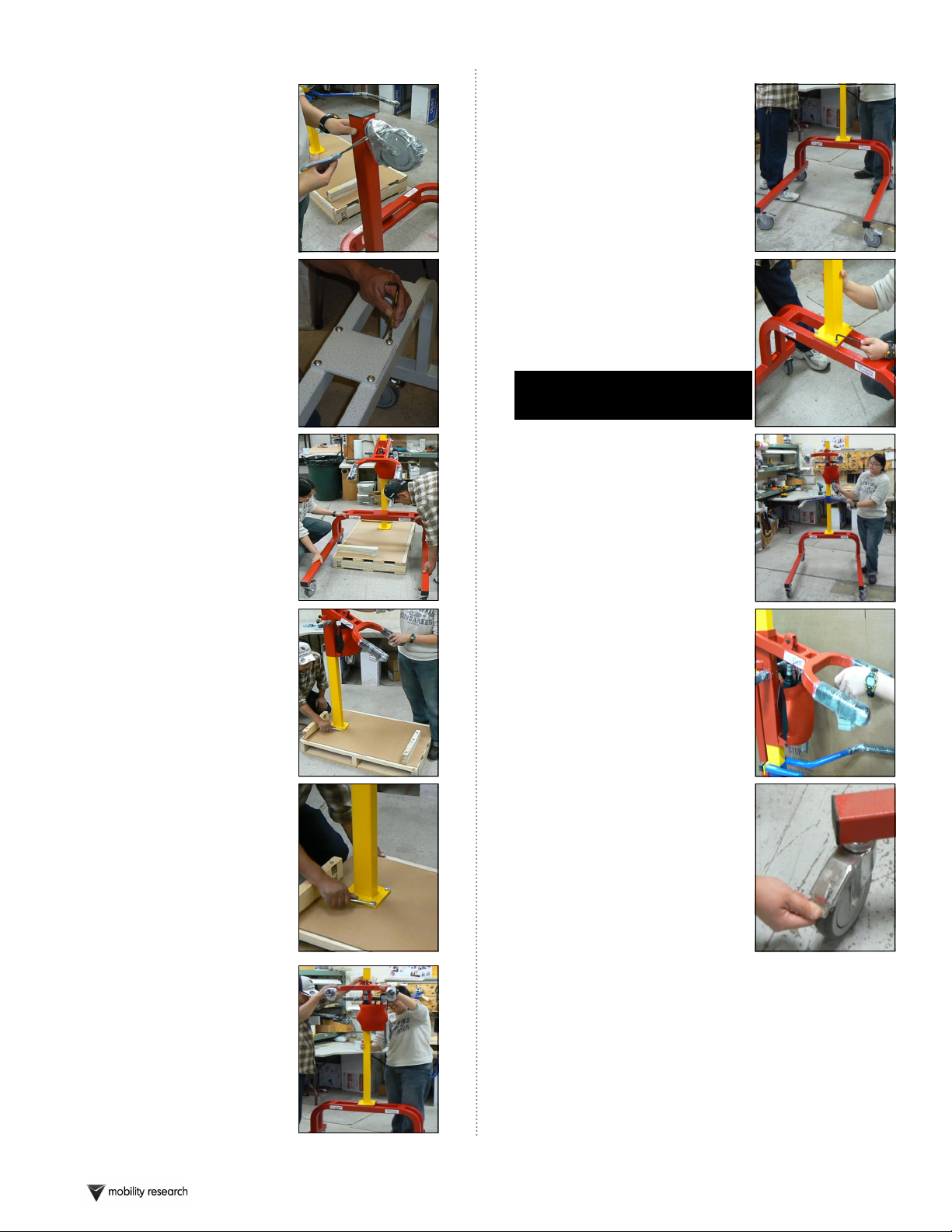

1.) Inspect shipment and note any
visual damage to box and/or crate
2.) Remove screw located at the
bottom of crate
3.) Lift off exterior box in order to
expose equipment
4.) Examine contents. Report any
damage to equipment immediately
to Mobility Research Technical Sup-
port
6.) Remove cardboard harness and
accessories box.
7.) Open cardboard harness and
accessories box.
8.) Inspect contents of harness and
accessories box for damage.
9.) Carefully cut all black plastic
straps securing base to pallet.
5.) Loosen handle bar knobs and
raise handle bars.
10.) Using both people, remove
base from pallet.
NOTE: If you have any questions during installation,
please contact Mobility Research Technical Support for
assistance.
CAUTION: DO NOT USE UTILITY
KNIFE TO OPEN BOX
NOTE: Your LiteGait® may look different than images above

13
www.LiteGait.com
1-800-332-9255
14.) To remove post from pallet use
one person to hold the post and
yoke.
13.) Set base over pallet as pictured
with actuator near base.
12.) Prepare base for installation of
actuator. Remove four black steel
bolts from base using allen wrench
in small box.
15.) Locate bolts holding actuator
to pallet. Undo bolts with ½ inch
socket or wrench, loosen actuator
from pallet with one person holding
the actuator steady while loose.
11.) Position base over pallet with
actuator near base as pictured.
16.) Using two people lift the post
onto base.
18.) Insert bolts, hand tighten bolts
(ensure one person holds actuator
steady until secure). Tighten bolts
using 5/16 inch Allen wrench until
snug (do not to over tighten).
19.) Verify operation by moving
actuator up/down by pressing the
arrows on the hand switch. If hand
switch fails to operate the actuator,
check connections at top of the
actuator.
20.) Carefully remove all shrink-
wrap from handle bars yoke and
base
21.) Verify performance of each
locking and directional casters.
17.) Orient the actuator on the base
(the yoke arms and handlebars
point in the same direction as the
base legs). Line up the holes for
bolts to be inserted.
Feel free to call 1-800-332-9255 Extension 7104 for Mobil-
ity Research Support during this assembly.
CAUTION: DO NOT over tighten the
bolts.
NOTE: Your LiteGait® may look different than images above

14
www.LiteGait.com
1-800-332-9255

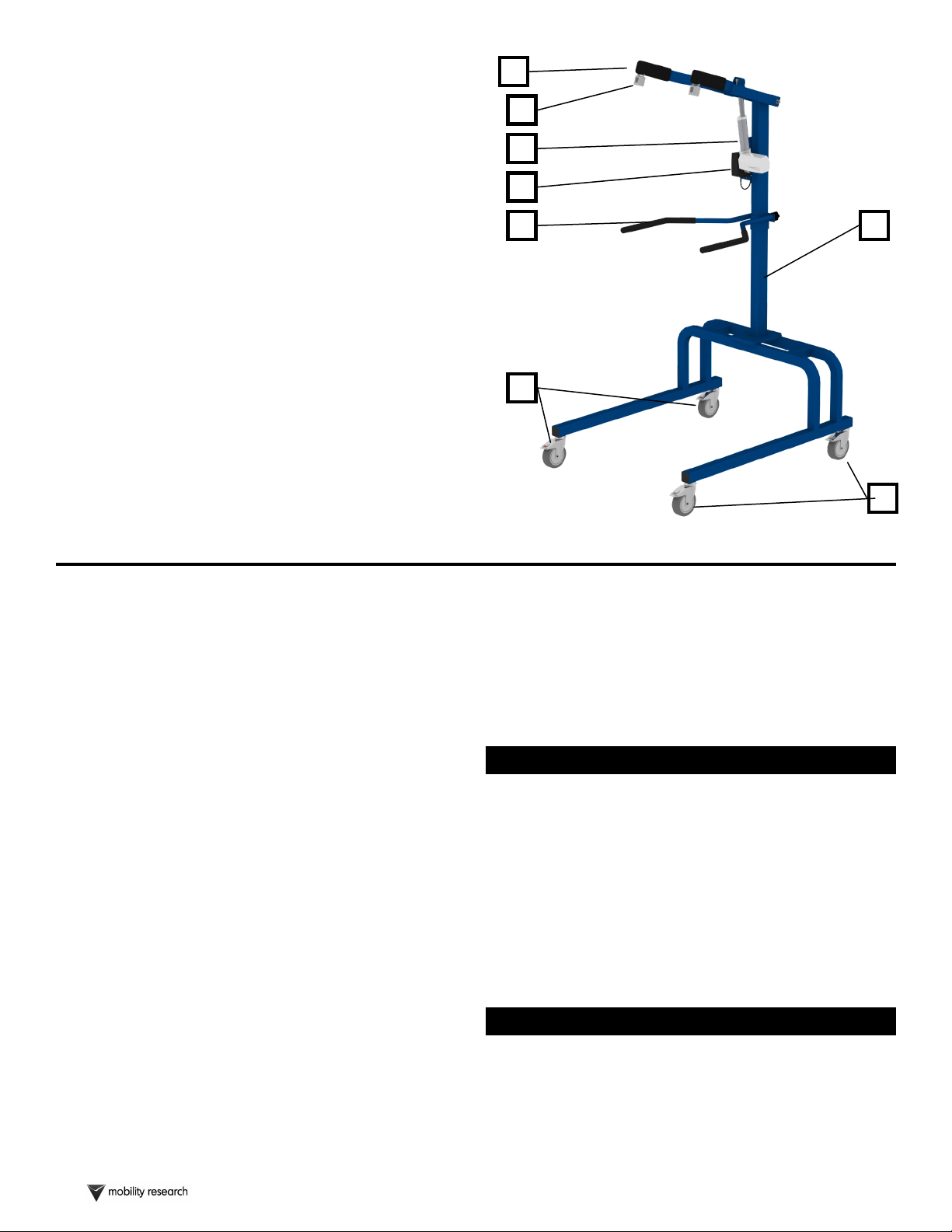

LiteGait® Diagram
1. Yoke Assembly
2. Buckle Assembly
3. Actuator
4. Control Box / Battery Box
5. Handle Bar Assembly
6. Total Locking Casters
7. Directional Locking Casters
8. Post Assembly
1
6
2
5 8
7
About Your LiteGait®
NOTE: Your LiteGait® may look different than image above
LiteGait® is comprised of several parts.
YOKE: Y-shaped support that has four female
buckles at the ends and is attached to the post. The
height of the yoke assembly is adjustable using the
hand switch.
OVERHEAD STRAPS: Four adjustable straps with
male connectors at one end and padded female
buckles at the opposite end. The male connectors
attach to the yoke buckles and the female buckles
attach to the harness providing postural support for
the patient.
HARNESS/GROIN PIECE: Adjustable wrap with a
buckle closure in the front and three adjustable
straps on each side. The four male connectors at the
top of the harness that attach into the female
buckles of the overhead straps. The four female
buckles at the bottom of the harness allow for the
connection of the groin piece. The H-shaped
stitching on the groin piece denotes the top (or body
side) of the piece.
ACTUATOR: The mechanism that raises and lowers
the yoke. The actuator consists of a linear adjusted
screw mechanism that is adjusted by a DC motor.
CONTROL UNIT: Junction box mounted on the actuator
for the battery power, handheld switch and contains
electrical safety protection circuitry. The battery pack
connects to this unit and is also located on the side of the
yoke assembly.
HANDLEBARS: Unit has two fixed position parallel
handlebars. The handle bars are attached to the unit
using two knobs.
BASE: Two horizontal bars connected by two U-shaped
tubes. The base moves freely over ground or can be
locked into place during use over a treadmill. However,
your unit must be locked into place at all other times.
CASTERS: Four casters are attached to the base. The
two casters on the left side are total locking and the two
casters on the right are directional locking. Be certain to
lock both caster brakes when using the unit over a
treadmill or when connecting the patient to the unit.
NOTE: Over tightening the knobs may cause damage.
WARNING: NEVER leave patient unattended in the unit.
3
4

15
www.LiteGait.com
1-800-332-9255
Using Your LiteGait®

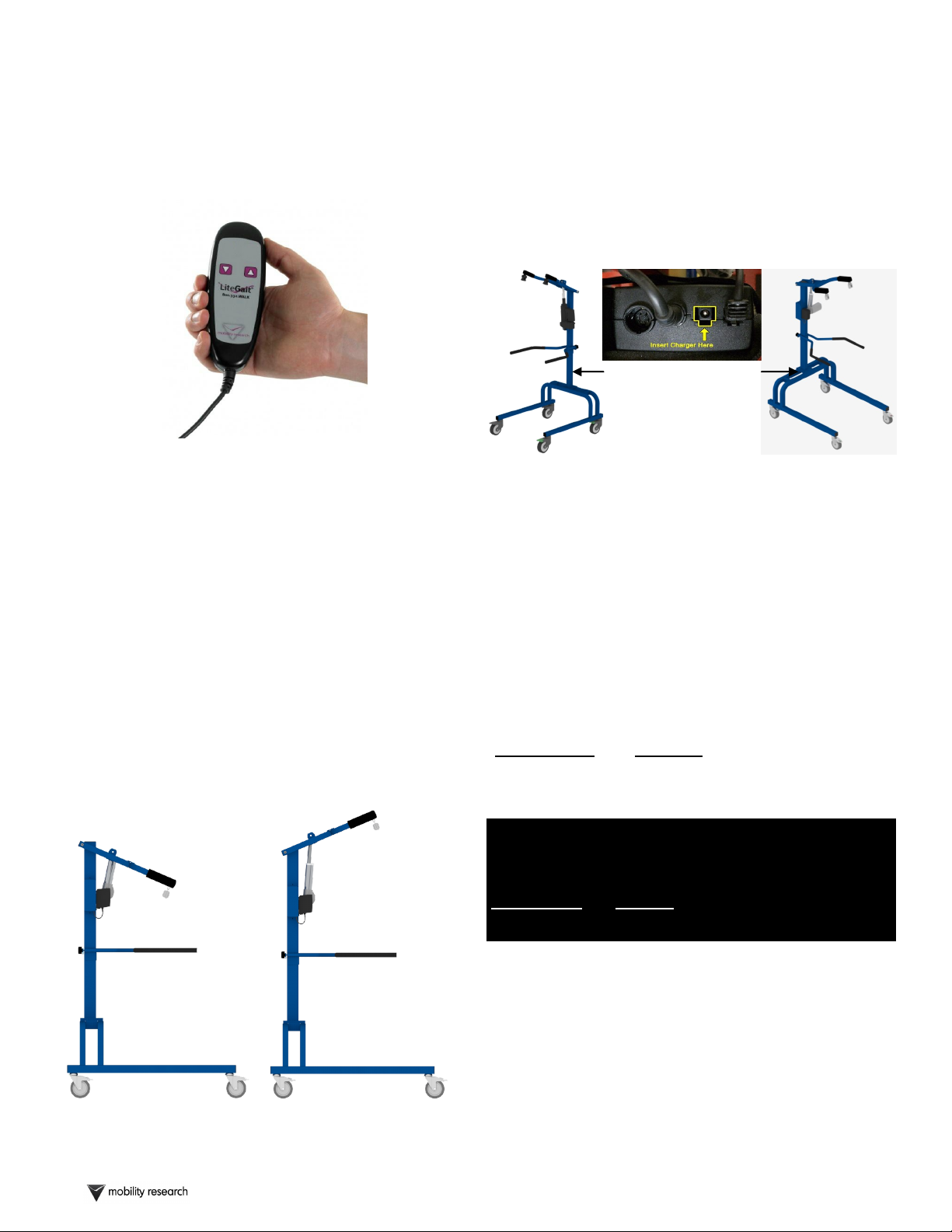

I. Raising and Lowering Yoke
The LiteGait® MX actuator is raised and lowered by a
hand switch with one up and one down arrow.
Raising the Yoke
Verify that LiteGait® has clearance above the yoke.
Depress the button with the up arrow on the hand
switch. Release the button when the yoke is at the de-
sired height.
Lowering the Yoke
Verify that LiteGait® has clearance below the yoke.
Depress the button with the down arrow on the hand
switch. Release the button when the yoke lowers to
the desired height.
Lowered Yoke Raised Yoke
IV. Charging the Yoke
The LiteGait® 100MX and 200MX are equipped with a
24 volt battery pack that needs to be charged on a
weekly schedule. To recharge your battery follow the
steps below:
Step 1:
Insert the end of the charger into the charging port on
the control box.
Step 2:
Plug the charger into the appropriate 110-volt.
Step 3:
Leave LiteGait® on charger for 6-8 hours or overnight
once per week. The time it takes to recharge the battery
pack depends upon the health of the battery pack and
how low the battery pack was before charging began.
Step 4:
After charging the LiteGait® unplug the charger from the
WALL OUTLET AND LiteGait® .
Note: Leaving a charger connected to the LiteGait® while dis-
connected to the wall outlet device decreases the battery life
of the LiteGait® battery. Disconnect the charger from the
WALL OUTLET and LiteGait® to reduce frequency of replacing
the LiteGait® Battery.
Low Battery Indicator Alarm
The LiteGait® unit emits an audible noise when the
charge of the battery is critically low and needs to be
recharged. If you experience audible noise, make sure to
charge promptly after use of the LiteGait®. The LiteGait®
will ONLY lift and lower approximately 2 to 3 more times
before shutting off. The LiteGait® should be charged
before running down to a point where you are unable to
lower a patient.
NOTE: Your LiteGait® may look different than images above

16
www.LiteGait.com
1-800-332-9255

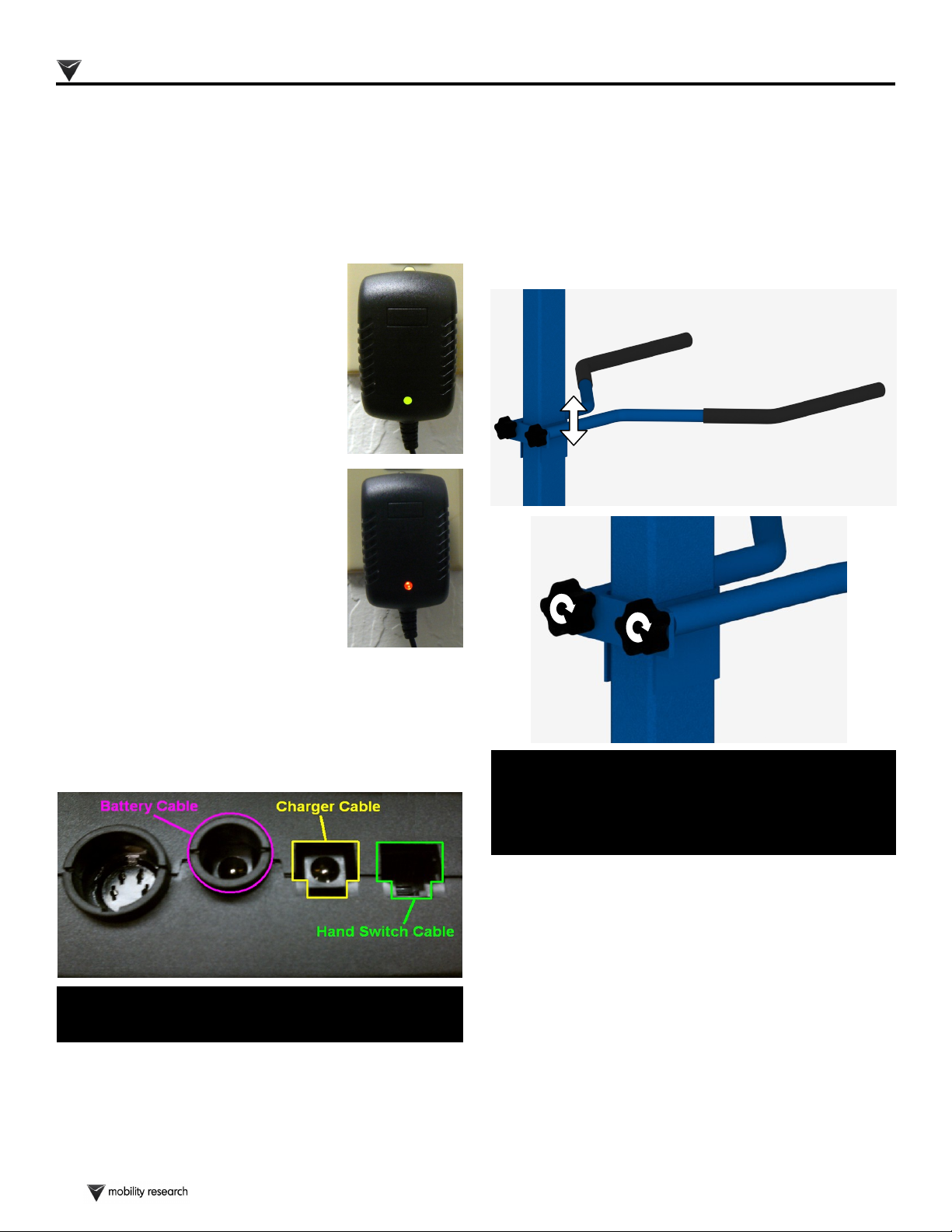

Charger
The LiteGait® battery is charged using a low current, hos-
pital guideline approved charger. The charger has an in-
dicator LED light that turns green when the charger is
plugged in and not connected to the LiteGait®. When the
battery is charging the LED turns red and then back to
green after the battery is fully charged.
Green Light
The charger is plugged into the socket (if
the battery is disconnected).
The battery is fully charged (If the
battery is connected and the charger is
plugged into the socket
Red Light
The battery is being charged by the
charger.
Below is a graphic showing the location of all cable that
plug into the control box for the LiteGait®. During use
the battery cable and hand switch cable should be
connected. When charging, the charger cable should be
plugged in and the LiteGait® should not be used.
Note: Ensure that all plugs are inserted completely and se-
curely.
V. Adjusting Handle Bars
Raising and Lowering the Handle Bar
Loosen each knob in equal portions. The knobs should
only need to be turned once to free the handle bars.
Once the knobs are loosened slide the handle bars to
the desired height. Hand tighten both knobs equally.
Again, the knobs should only need to be tightened one
rotation.
WARNING: LiteGait® Handle Bars are designed to be used as
a balance aid while using the LiteGait. Excess loading of the
handle bars may damage handle bars. Avoid Having patients
lift their weigh using the handle bars.
Using Your LiteGait®

17
www.LiteGait.com
1-800-332-9255
Using Your LiteGait®
VI. Base and Casters
LiteGait® is equipped with four casters. There are two
total locking casters and two directional lock casters.
Each leg has one type of casters, the total locking are
mounted on the Left Leg the Total Locking are mounted
on the right.
Directional Lock
Total Lock
Locking and Unlocking Casters
Directional Locking Casters
Directional lock casters are indicated by a green
sticker in the locking lever. To lock the directional
locking casters, press the tab and align the caster with
the frame. Once Aligned this locks the swivel of the
casters and is beneficial for walking in a straight path or
placing LiteGait® over a treadmill. Once the unit is
positioned over a treadmill, all four caster brakes need to
be locked
Directional Locking Casters with Treadmill
Position LiteGait® near the treadmill (or where you
wish the patient to begin walking).
Roll LiteGait® towards the front of the treadmill, until
the casters line up parallel to the treadmill (or
parallel to the path the patient will follow—a
hallway for example).
Press the directional locks to lock swivel of casters
LiteGait® can now be easily rolled back and forth over
the treadmill or on a straight path in the therapy room or
hallway.
NOTE: While locking the caster prevents rolling of the
unit, it DOES NOT prevent the unit from sliding on a
sloped, slippery floor. The unit should only be used on a
flat floor away from stairs or ramps. NEVER leave a
patient unattended in the unit.
STEER
Total Locking Casters
Total locking casters are indicated by a red
sticker on the locking lever. To lock the total locking
casters, press the tab until the brake snaps into
place. The caster will lock the swivel of the caster
and rotation of the wheel. Locking all four casters
will make the device stationary.
BRAKE
NOTE: Your LiteGait® may look different than images above
NOTE: Your LiteGait® may look different than images above
Press tab to lock Locked Caster

18
www.LiteGait.com
1-800-332-9255
Harness Application
The harness was designed to support a patient in an upright position, allowing for full hip extension. This
upright posture plays a critical role in the effectiveness of the gait therapy performed with partial weight
bearing.
Using Your LiteGait®
Harness Components
The front of the harness wrap refers to the point at which the two ends of the harness meet. The harness can
be worn with the closure either in the front or in the back. There are four buckles on the top and bottom of
the harness wrap. The four top buckles extend beyond the harness from the top seam and attach to the
LiteGait® overhead straps. The bottom four buckles attach to the groin piece and do not extend past the
bottom seam of the harness.

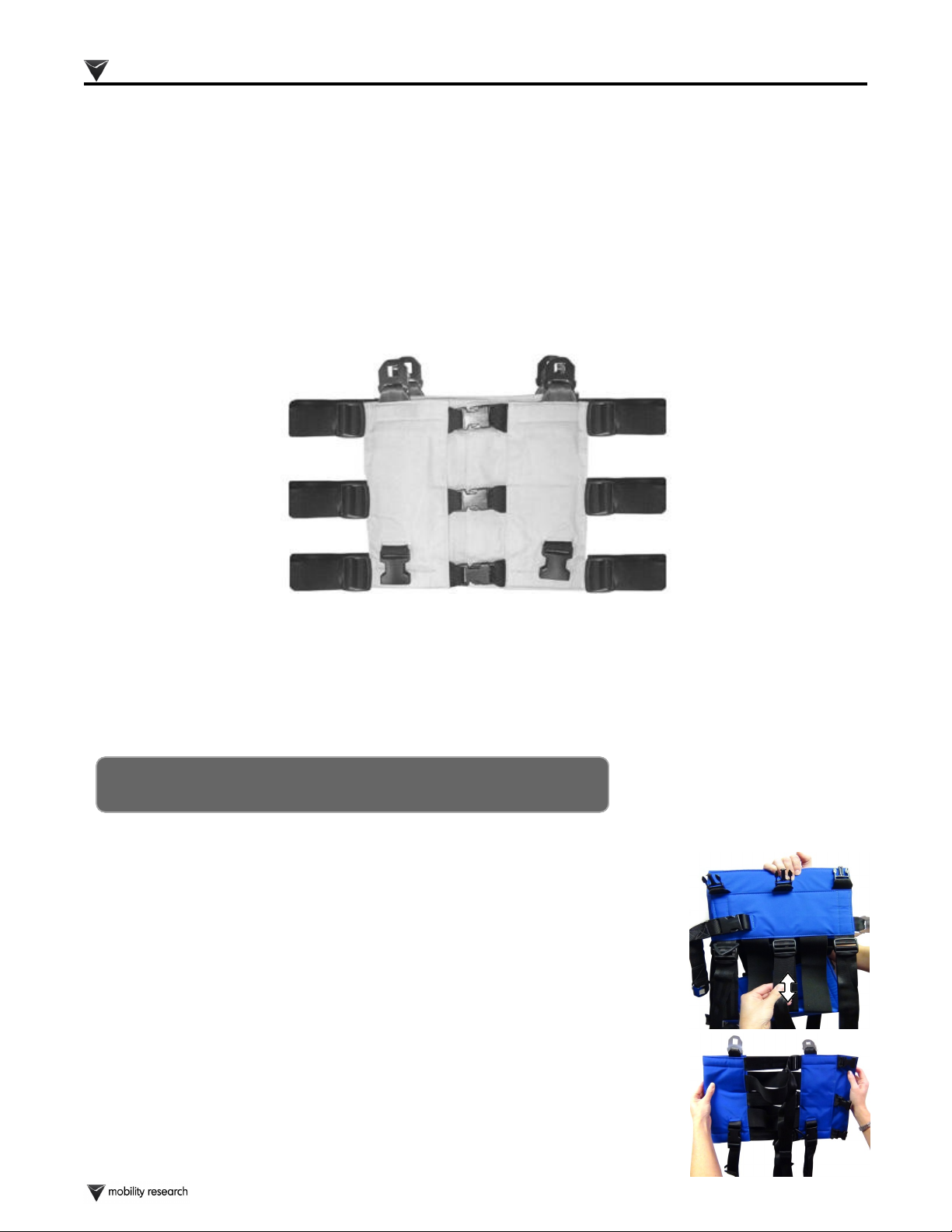

Preparing Harness for Application
1. Pick the appropriate harness (based on patient’s girth) and groin piece (based on patient’s anterior-
posterior diameter) for the patient.
2. Adjust the groin strap buckles so there is symmetry in the straps-- equal strap length available on both
ends of the padded groin piece and equal from side to side.
3. Attach the groin piece to the back of the harness.
NOTE: The side of the groin piece with the H‐outline stitching (most
padded) will go against the patient’s body.
Front
Overhead Straps
Groin Pieces
Girth Adjustment
Estimating the Starting Size
Half the Girth Test
1. Estimate the harness girth before placing on the patient by folding the
unbuckled harness in half so that the ends meet.
2. Hold the folded harness in front of the patients torso to estimate the width
from one side of the body to the other.
3. Tighten or loosen the three rows of side straps on each side of the harness to
estimated girth.
Symmetry Test
1. With the unbuckled harness folded in half, check the alignment of the top
buckles (the ones that attach to the overhead straps of LiteGait). The buckles
should line up / be adjacent to each other . If not adjacent , make small
adjustment to side straps as needed to regain symmetry. Each side strap should
be similarly lengthened to achieve symmetry.

19
www.LiteGait.com
1-800-332-9255
Using Your LiteGait®
2
3
1

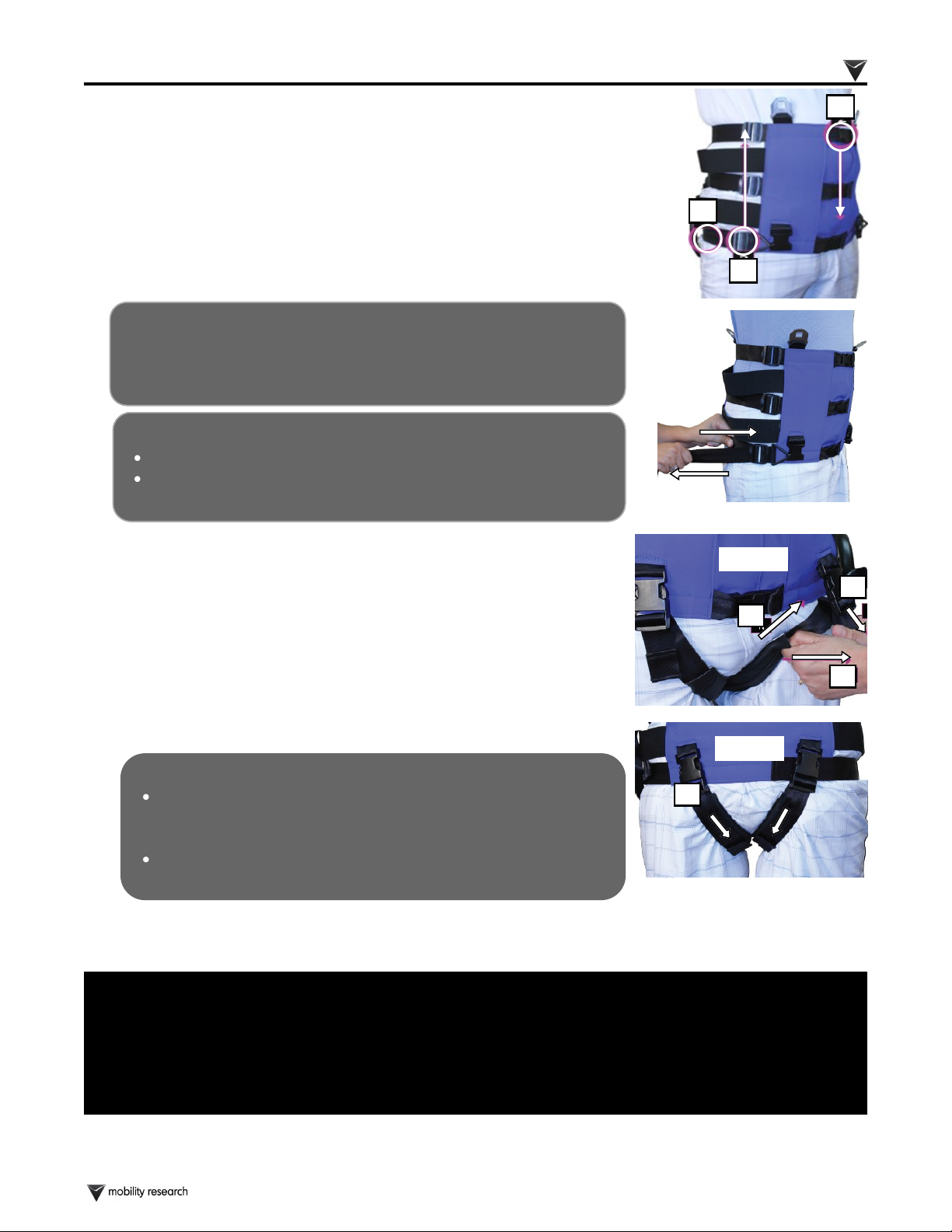

Harness Application - While Standing
1. Wrap harness around patient with lowest side straps even with GREATER
TROCHANTER.
2. Connect buckles top to bottom.
3. Adjust side straps* to the patient from bottom to top, alternate sides and
tighten evenly. Be sure to maintain harness position at Greater
Trochanter.
* To Tighten, push slack of strap towards buckle, while pulling free end as
shown. Do not tighten top buckles over rib cage.
Quick Check
2 fingers should NOT fit between strap and body.
Bulges of tissue may be present between girth adjustment straps if
adjusted appropriately.
NOTE: A loose harness will ride up when overhead support is applied. This will
cause discomfort in the groin region. A snug harness with no slack will grab the
pelvic girdle and hold in place distributing weight evenly throughout harness
wrap.
Attaching Groin Pieces
1. Route the groin piece between legs to front.
2. Connect both buckles - one on each side.
3. Tighten the groin strap snugly so there is NO slack.
To tighten, grab the groin strap or strap cover and:
i. Pull out toward adductor surface of leg.
ii. Pull up toward groin piece buckle.
iii. Use other hand to pull down on excess strap on free end, then
repeat on other leg.
iv. Tighten back straps in the same fashion to remove all slack.
Quick Check
Groin Piece should have NO Slack. Padding should be equal front
and back. Padding should cover most of the inner leg with little or
no exposed strap.
Pull on top buckles, if harness moves up torso, straps require
additional adjustment.
BACK
FRONT
ii
iii
i
iv
NOTE: A LOOSE GROIN PIECE DOES NOT IMPART GREATER COMFORT TO THE PATIENT, BUT AL-
LOWS THE HARNESS TO SLIDE UP THE TRUNK, PUTTING UNWANTED LOAD/FORCE ON THE GROIN
AREA. TIGHTEN THE GROIN STRAP SO THAT NO SLACK REMAINS IN THE STRAPS. THIS ASSURES
THAT THE HARNESS WILL NOT RIDE UP ON THE PATIENT.

20
www.LiteGait.com
1-800-332-9255
CAUTION: SITTING WHILE IN THE LEG STRAPS WILL DISPLACE THE HIP AXIS OF
LOCATION AWAY FROM AND OUT OF THE LEG STRAPS; REPOSITIONING OF THE
LEG STRAPS WILL BE NECESSARY.
Leg Strap Application
1. Wrap Velcro thigh cuff portion below bulk of thigh and above knee so strap
does not interfere with knee function.
2. Strap should be perpendicular to ground and pointing up toward the hip on
the outside of leg.
3. Connect male buckles on leg straps into plastic groin piece female buckles.
4. Tighten all three straps keeping center strap perpendicular to the ground
and on the lateral surface of the leg. The bifurcation point on the strap
(where the strap splits into two) needs to be at the hip joint axis of rotation
to maintain symmetry.
5. Straps must be tightened completely, using a two-handed technique and
getting rid of all slack, to properly anchor the harness in place and properly
transfer the support to the thighs.

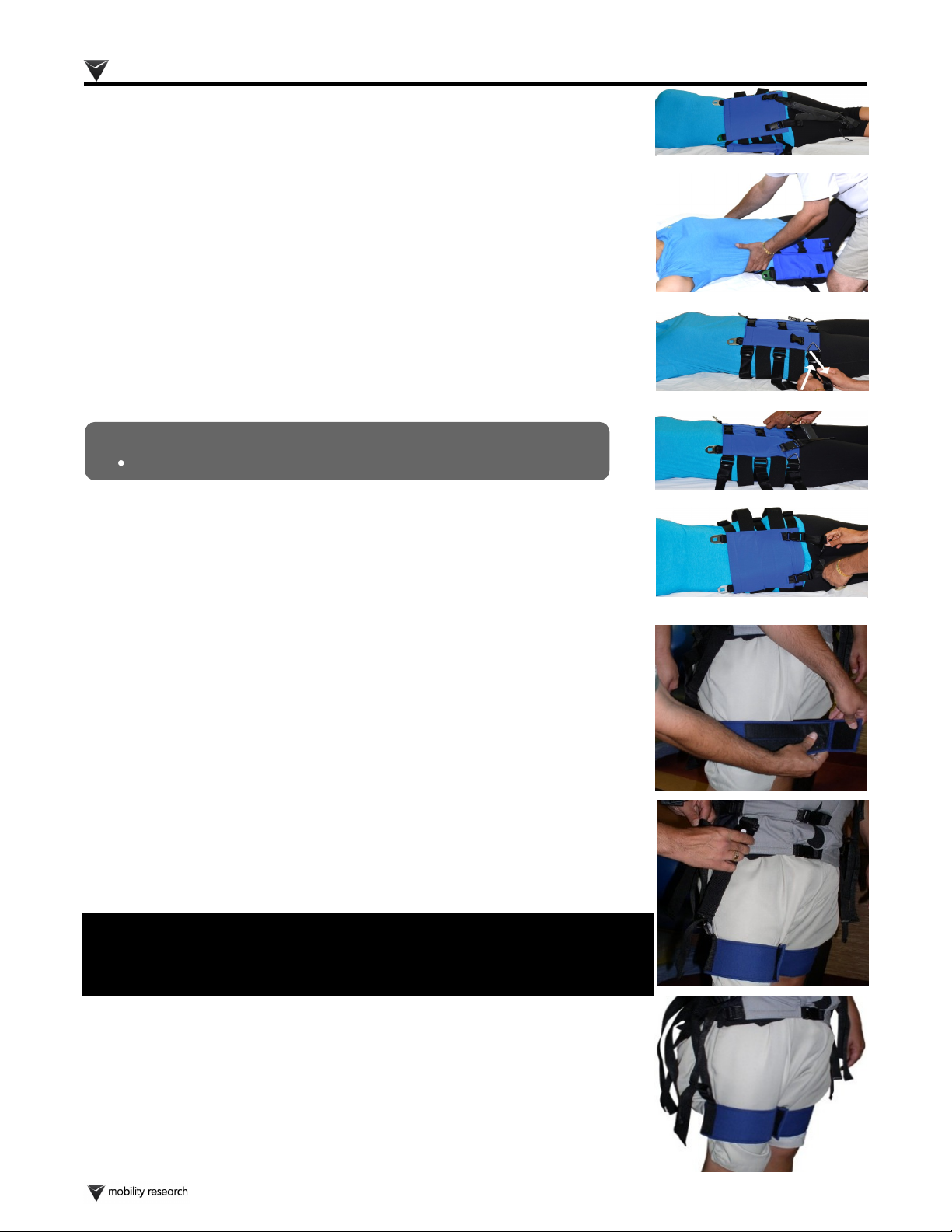

Harness Application –In Supine
1. Roll patient away from you.
2. Attach groin piece and place harness on patient with half of the harness
rolled and under patient. (Figure 1)
3. Hold harness in place with lowest strap at greater trochanter
4. Roll patient into supine.
5. Pull harness around.
6. Straighten harness. Reach behind patient to feel back buckle position. Check
for symmetry. (Figure 2)
7. Connect front buckles
8. Tighten all 6 side straps with leg straight. (Figure 3)
9. Connect the groin piece to the front buckles and tighten as in previous
section. (Figure 4)
10. Roll patient away from you
11. Tighten back straps of groin piece, removing all slack. (Figure 5)
Quick Check
Harness should be equally spaced from side to side
Figure 2
Figure 4
Figure 5
Figure 1
Using Your LiteGait®
Figure 3
