Storz C-MAC 8403 ZX Guide

KARL STORZ GmbH & Co KG, Mittelstr. 8, 78532 Tuttlingen, Germany V 2.0.0_01-2015

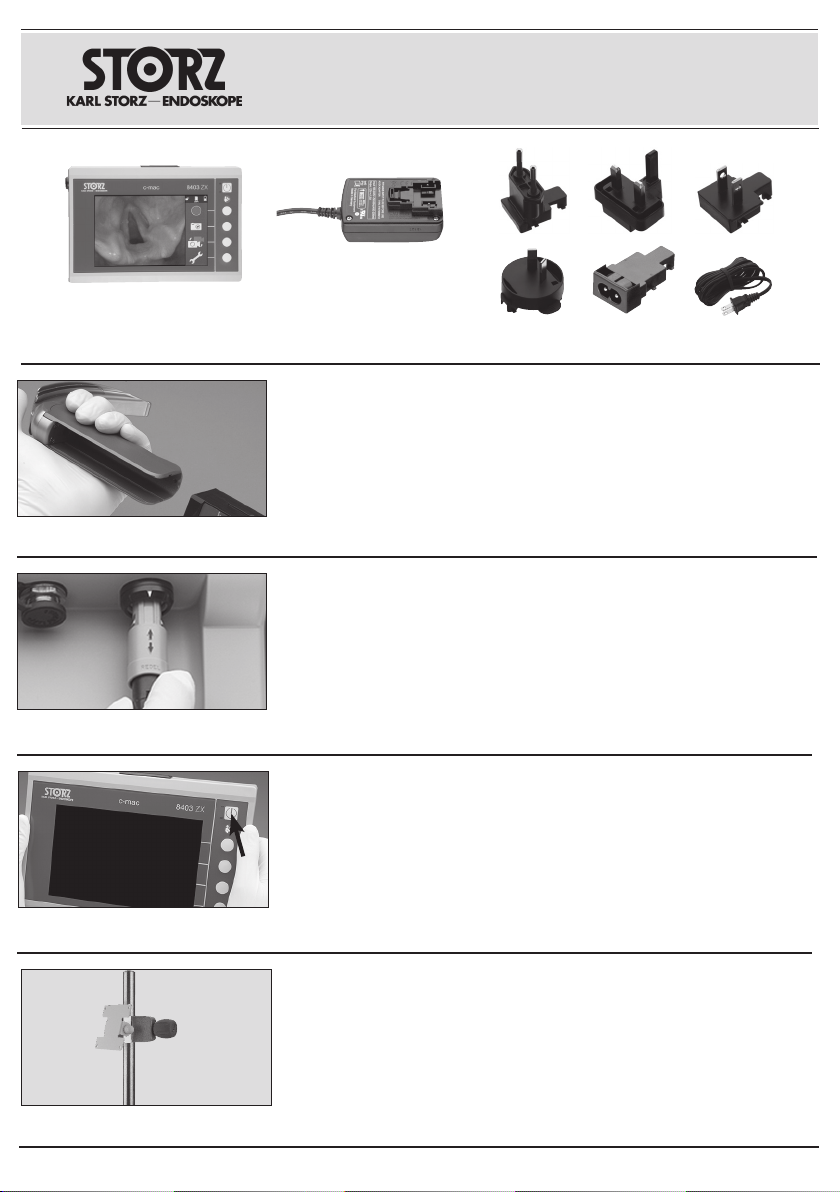

Step 1: System Assembly and Activation
Insert the electronic module into the handle on the video laryngoscope.
Step 2:
Insert the electronic module plug that matches the
connection socket on the monitor (color coded).
Step 3:
Turn the monitor on using the power button
(Indicator light lights up).
C-MAC
®
: Easy connect start guide
2CAUTION: After cleaning/sterilization make sure that all connections
are dry by using oil-free, filtered compressed air or equivalent.
1NOTE: The blade can be changed during operation while the monitor
is turned on.
Monitor Charger
96076701E
a
Country-specific adaptors and adaptor cables
Clamp
The optionally available clamp 8401 YB (US: 9700-CLP) can similarly be
mounted to the VESA 75 holder and used to attach the C-MAC
®
monitor to
poles and pole stands.

KARL STORZ GmbH & Co KG, Mittelstr. 8, 78532 Tuttlingen, Germany V 2.0.0_01-2015
Image Capture and Recording
If single images or video streams need to be saved, then an SD memory card
is required to be inserted into the card holder.
1NOTE: We recommend class 10 SDHC memory cards to ensure a
quick and easy documentation.
1NOTE: Make certain the SD Card is inserted with the label facing
toward the back of the monitor and gold strips facing toward the front
of the monitor.
Charging
Insert the plug from the power supply into the connection socket of the
monitor. Connect the power supply to the main socket.
1NOTE: The C-MAC®video laryngoscope can be powered either using
main electricity or the integrated battery. Connect the power cord if the
battery symbol on the front of the monitor turns red.
The battery charges automatically as soon as the monitor is
connected to the power supply. This will be displayed by the lighting up
of the orange colored LED.
The C-MAC®can be used during charging.
If a system error occurs (unit no longer reacts, although connections and
power supply attached), a system reset has to be implemented. This means
rebooting the system.
A reset of the system may be accomplished in two ways 1) Depress and hold
the power button for 20 seconds or 2) Insert the straight end of a paper clip
into the round opening next to the SD card holder and carefully press down-
ward to activate the reset button. Once either reset is completed the monitor
must be switched on.
C-MAC®: Short instructions b
2CAUTION: Damage to the power cable: Only remove the plug from
the plug socket by holding the plug housing. Do not pull the cable!
Use of the HDMI output
The device features a port for an external monitor. A HDMI cable can
be used to send the video signal to an external monitor.
2NOTE: The C-MAC®Monitor must be powered off before con-
necting to an external monitor. Once the monitors are
connected, power on the C-MAC®monitor to display image.
1NOTE: The connected monitor must support a resolution of
1024 × 768 or 1280 × 720.

KARL STORZ GmbH & Co KG, Mittelstr. 8, 78532 Tuttlingen, Germany V 2.0.0_01-2015

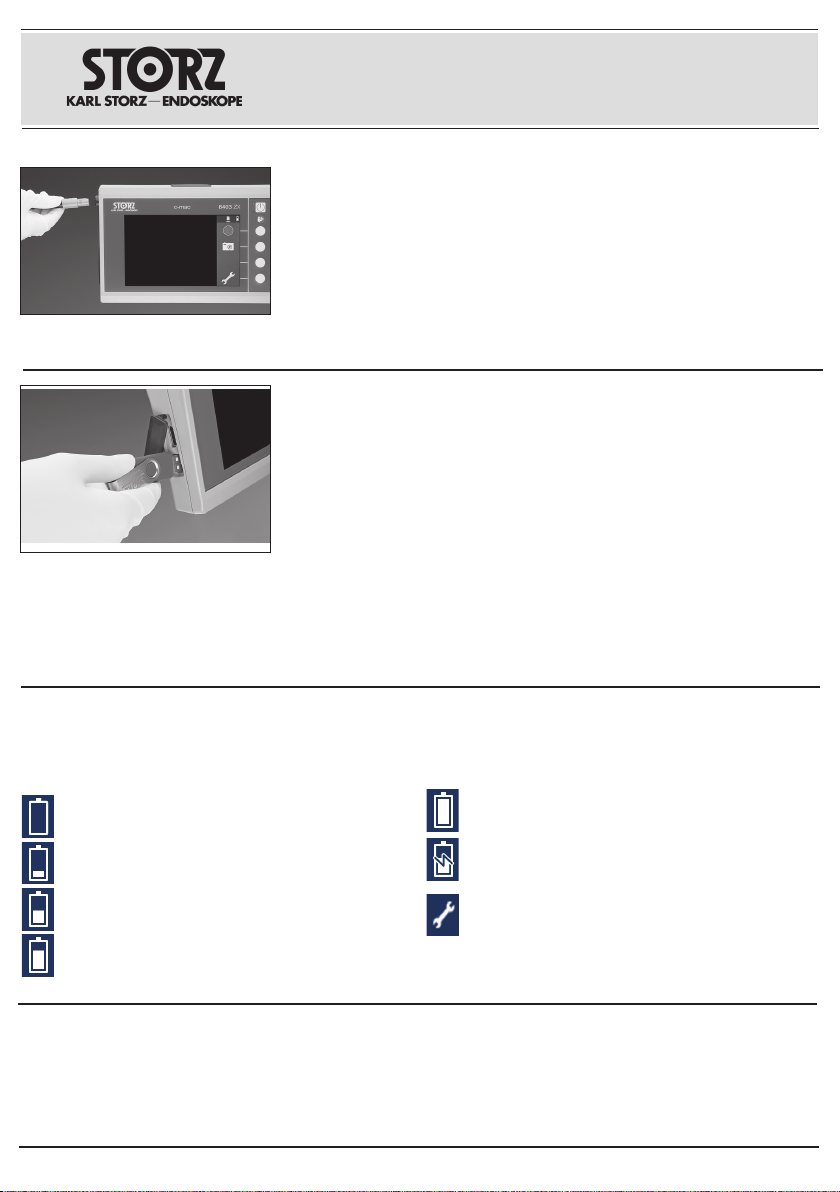

bC-MAC®: Short instructions c
Secondary camera
The connection 8for the second CMOS video unit is located on the top left-
hand side of the housing.
1NOTE: All CMOS videoscopes from KARLSTORZ can be connected
to both connections (see overview table on page3 of the instruction
manual 96076008D). Video units from other manufacturers cannot be
connected.
1NOTE: If two cameras are connected, the user must select in the menu
the camera for which the images are to be displayed.
Use of the USB port
The USB port serves exclusively to transfer data from the SD memory card
to the USB stick. Only USB-compatible storage media may be connected.
1NOTE: Before use with the Monitor 8403ZX, USB sticks must be for-
matted on the PC with FAT (standard) and may only have one partition.
1NOTE: In the case of large video files or with multiple recordings, a lot
of time may be required for the data transfer.
1NOTE: A USB stick with a large storage capacity can delay the storage
of images.
1NOTE: The video stream can only be viewed on a PC if an MPEG-4
codec is installed on the PC.
For further detailed references on the setup, maintenance and reprocessing of the C-MAC®monitor and the
CMOS video unit please refer to the instruction manual which is available for download at www.karlstorz.com.
For Technical Support please contact our service department ([email protected])
For KARL STORZ Technical Services in North America, call 1-800-421-0837
Energy management
The charge state of the battery is displayed on the monitor by the charge indicator in the menu bar.
The symbols mean:
Battery empty
25%: Approx. 30 minutes of operating time
50%: Approx. 1 hour of operating time
75%: Approx. 1.5 hours of operating time
100%: Approx. 2 hours of operating time
Battery is being charged
Battery must be replaced
(Maximum battery capacity is less than 50%
of the original maximum capacity)

KARL STORZ GmbH & Co KG, Mittelstr. 8, 78532 Tuttlingen, Germany V 2.0.0_01-2015

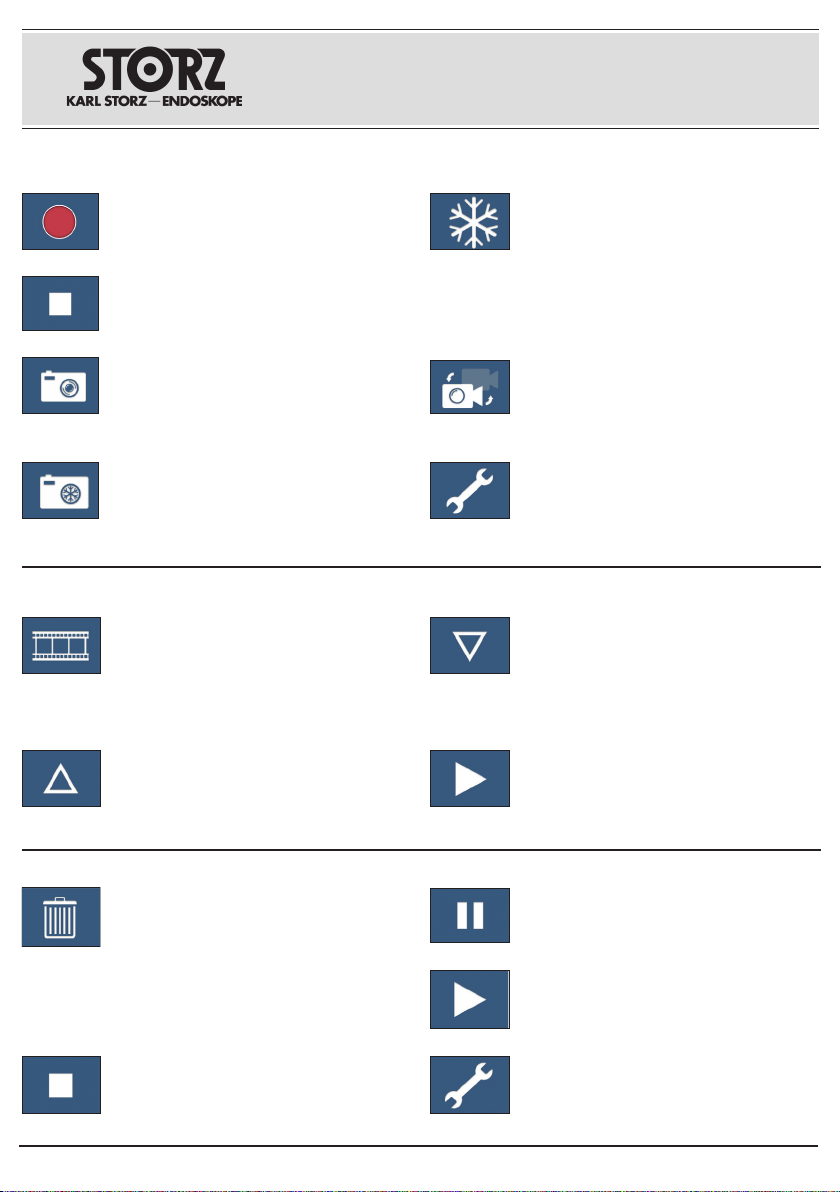

Video recording:
Starts the recording of a video stream if a
SD memory card has been inserted into
the slot.
Stop video recording:
Stops the recording of a video stream.
Single image capture:
Saves the current image on the screen to
the SD memory card. The value displayed
in brackets indicates how many images can
still be stored (15.9k = 15900 images).
Freeze with single image capture:
The screen is frozen and, at the same time,
the current image on the screen is saved to
the SD memory card.
Freeze without single image capture:
The screen is frozen.
1NOTE: The freeze function is ended
by pressing a control key.
Next level:
Activates the second level function keys.
Level 1
Level 2 - Video
Video selection menu:
Plays back and/or deletes recorded video
streams on the SD memory card which has
been inserted into the slot.
Level 2A is activated by pressing the
softkey.
Scroll down through list
Scroll up through list
Play:
Plays back the selected video stream.
Level 2b
Delete:
Pressing the button for an extended period
deletes the video. After deletion, the list of
video recordings is shown.
Pause:
The video is paused on pressing the
softkey. The pause symbol changes into
the play symbol.
Stop:
Stops playback and activates the list of
recordings (Video selection menu).
.
Play:
Continues to play back the selected
video stream. Level 2B is activated at the
same time by pressing the softkey.
Level 1:
Back to Level 1
C-MAC®Menu navigation d
Change the camera unit:
Press the softkey to change between two
connected camera units.

KARL STORZ GmbH & Co KG, Mittelstr. 8, 78532 Tuttlingen, Germany V 2.0.0_01-2015
e
Image selection menu
Viewing recorded images:
Allows viewing and deletion of recorded
single images on the SD memory card
which has been inserted into the slot.
Level 2A is activated at the same time by
pressing the softkey.
Scroll down through list
Level 2 - Images
Scroll up through list
Delete:
Pressing the key for an extended period
deletes the image.
Level 1:
Back to Level 1.
d
Menu wheel:
Activates the function keys for the next
level. You can move through several levels
by repeatedly pressing the menu wheel.
Level 1:
Back to Level 1.
Menu navigation (all levels)
C-MAC®Menu navigation
White balance:
Enables the user to carry out a manual
white balance.
Level 3
Data transfer:
Enables the user to carry out a manual data
transfer from the SD memory card to the
USB stick.
The button is deactivated during this
time.
Level 4
Reset:
Allows all settings to be reset to the
factory settings.
Delete content of the SD memory
card
All the contents of the SD memory
card are deleted by pressing the
softkey for an extended period (approx.
2 seconds). Deletion may take a few
seconds and is indicated by the non-
active symbols.

KARL STORZ GmbH & Co KG, Mittelstr. 8, 78532 Tuttlingen, Germany V 2.0.0_01-2015

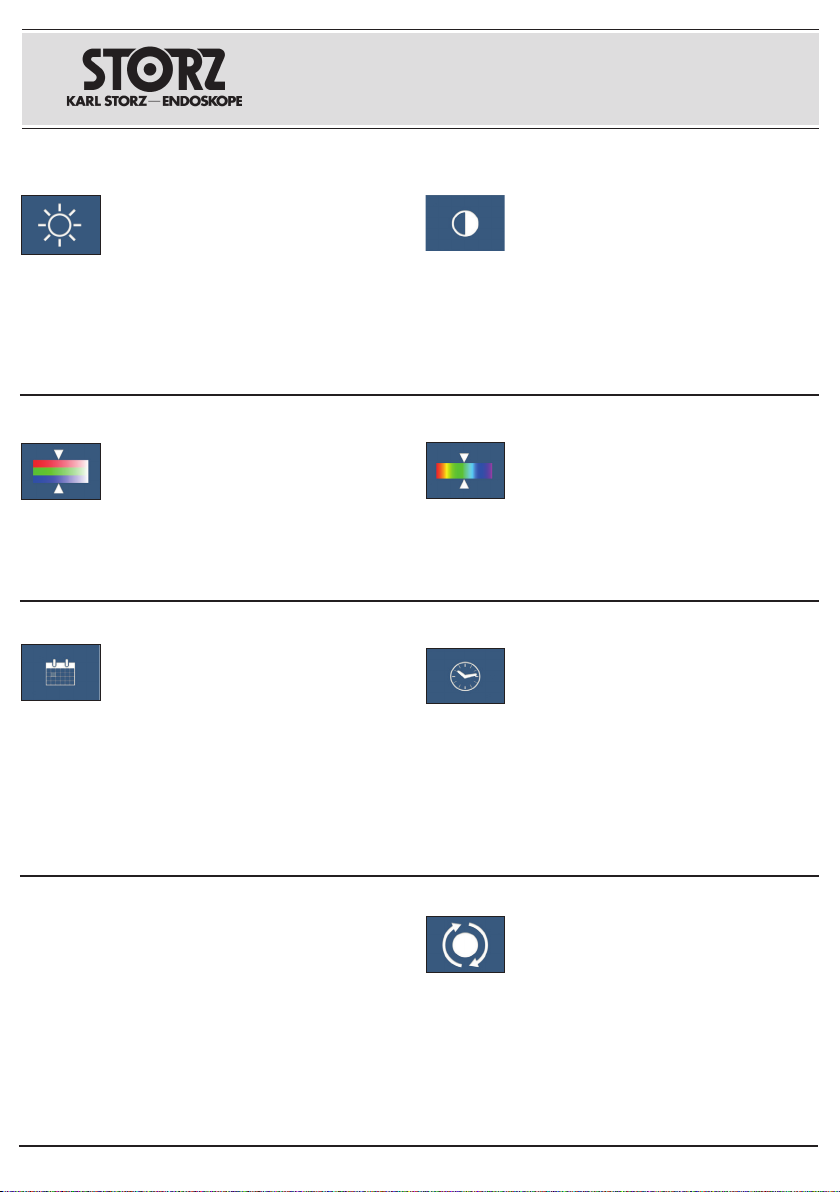

C-MAC®: Menu navigation f
Brightness control:
After pressing the softkey, the +/– keys
appear on the monitor, with which the
image brightness can be adjusted. The
brightness value is shown as a percentage
and is saved for this camera.
Level 5
Contrast control:
After pressing the softkey, the +/– keys
appear on the monitor, with which the
contrast can be adjusted. The contrast
value is shown as a percentage and is
saved for this camera.
Level 6
Color saturation:
After pressing the softkey, the +/– keys
appear on the monitor, with which the
color saturation of the monitor screen can
be adjusted. The color saturation value is
shown as a percentage and is saved for
this camera.
Hue:
After pressing the softkey, the +/– keys
appear on the monitor, with which the hue
can be adjusted. The hue value is shown
as a percentage and is saved for this
camera.
Level 7
Entry of date:
Allows the date to be entered and corrected
(format: DD/MM/YYYY) After pressing the
softkey, enter the day using the +/– keys
and confirm by pressing the arrow key.
Following this, the month and year are
entered in the same way. After confirming
the year, press the arrow key again in order
to exit the +/– key level.
Time:
Allows the time to be entered and
corrected. After pressing the softkey,
enter the hours using the +/– keys and
confirm by pressing the arrow key.
Following this, the minutes are entered in
the same way.
After confirming the minutes, press the
arrow key again in order to exit the +/–
key level.
Level 8
About the C-MAC®videoscope:
Displays the version number of the
installed firmware version and the version
number of the connected videoscope.
If no videoscope is connected, N.C (not
connected) appears.
Software update:
If an SD memory card with new software
is inserted, the software update can be
initiated using this function. If no software
is available on the SD memory card, the
symbol is shown in gray.

KARL STORZ GmbH & Co KG, Mittelstr. 8, 78532 Tuttlingen, Germany V 2.0.0_01-2015
f g

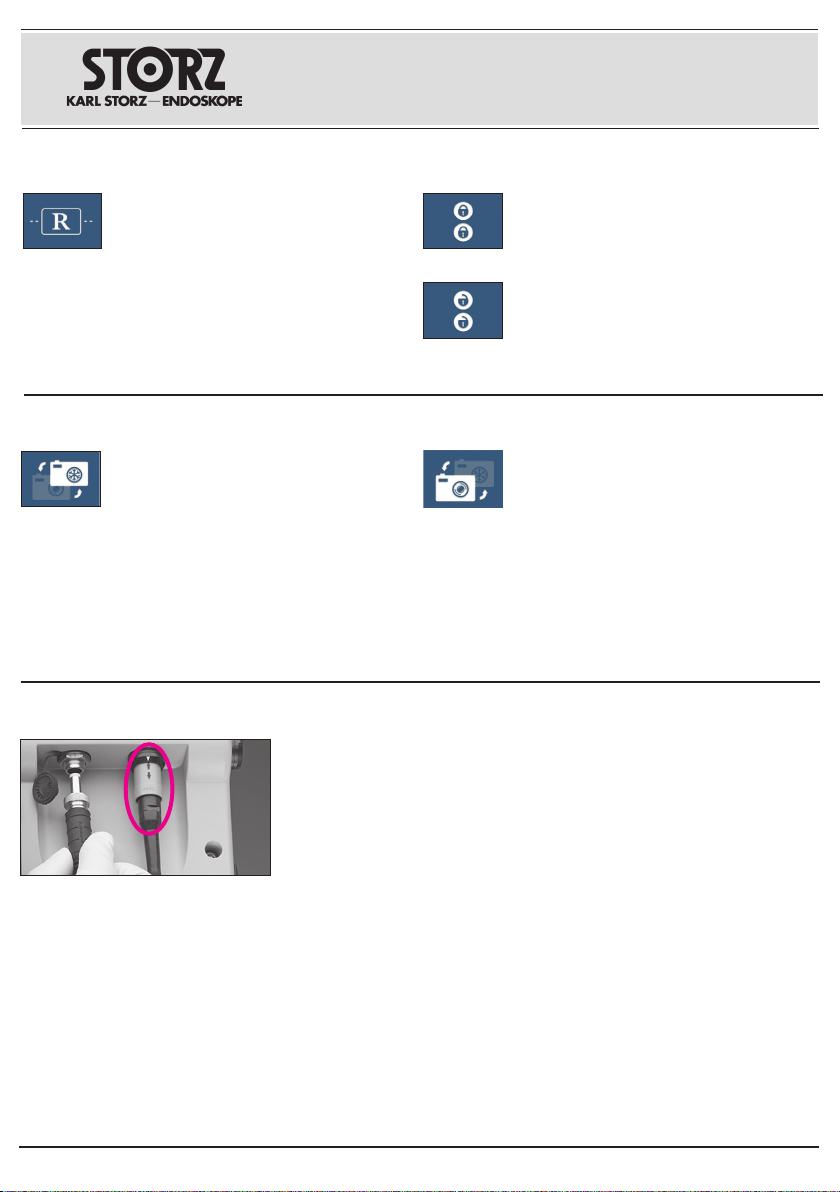

C-MAC®: Menu navigation
Image rotation:
Rotates the image on the screen by 180°.
The setting is saved for this camera.
1NOTE: This function is only activated
if the camera connected supports this
function.
Key lock:
Allows the camera keys to be locked.
The symbol changes (locks open) upon
activation.
Pressing again serves to unlock the keys.
The setting is saved for this camera.
Level 9
Level 10
Freeze function:
Pressing the ‘Freeze function’ function key
(active camera symbol in the top right-
hand corner) changes the ‘Single image
capture’ function (Level 1) to the Freeze
function. When the ‘Single image capture’
function is activated, the screen is frozen
and, at the same time, an image is saved.
The setting is saved for this camera
In order to deactivate the Freeze function,
press the function key (active camera
symbol in the bottom left-hand corner)
again..
1NOTE: This function is only acti-
vated if the camera connected sup-
ports this function.
Removing the CMOS Video unit
Unplug the CMOS video unit. Pull the plug of the CMOS video unit out of
the black connector on the monitor.
2CAUTION: Do not pull on the cable. Always grasp the plug to remove
the cable.
Disassembly

KARL STORZ GmbH & Co KG, Mittelstr. 8, 78532 Tuttlingen, Germany V 2.0.0_01-2015
C-MAC®Video-
laryngoscopes
Electronic
Module
C-CAM®
20 290131/
20 2901 32
C-MAC®monitor
8403 ZX
Wipe disinfection •
Ultrasound
Manual cleaning •••
Manual disinfection •••
Machine cleaning (max. 65 °C) •* •*
Steam sterilization
Sterrad 100 NX •••
Sterrad NX •••
Ethylene oxide •••
AMSCO V-PRO 1 •••
Steris®System 1 • •
Steris®System 1E •••
For further detailed references on the reprocessing of the C-MAC®
monitor, the electronic module and the CMOS video unit please refer
to the respective instruction manual which is available for download
at www.karlstorz.com.
C-MAC®: Reprocessing
* device-specific
