Mobility scooters DAISY User manual

Owners Manual
XILI VEHICLE CO LTD
DAISY
[ LEMS ] Luxury Enclosed Mobility Scooter
INTRODUCTION
Please read this manual carefully before using the vehicle and use the vehicle in
accordance with the manual.
We reserve the right to interpret any discrepancy between this manual and the actual
vehicle.
Important notes
Thank you for purchasing this four-wheel battery mobility scooter. You should be
familiar with the contents of this manual before driving.
Your personal safety depends not only on your alertness and familiarity with various
operating techniques, but also on your familiarity with the mechanical properties of
the electric four-wheeler.
This manual is for the DAISY four-wheel electric mobility scooter. Correct operation
method and simple maintenance adjustment method, essentials, etc. to give a
detailed description.

DAISY Luxury Enclosed Cabin Mobility Scooter
Wishing you pleasant driving, thank you again for choosing DAISY mobility scooter.
The design of this mobility scooter is limited to one driver and two passengers.
Never exceed the load weight specified in this manual.
This manual should be regarded as a permanent part of the DAISY, that is, attached to the
vehicle, can be read by the new vehicle driver at any time, even if the transfer of the
vehicle, the manual should also be transferred to the new owner.
The electric parts of the DAISY are strictly prohibited from entry of water (especially the
controller). Users must pay attention when cleaning the vehicle.
When the vehicle starts to slowly accelerate, when the meter power display shows a
voltage of less than 55V the battery needs to be charged, otherwise battery damage will
occur, and severely shorten its life or may not be able to run the vehicle. Never allow the
voltage to go below 55V.
The charging socket on the vehicle should never be touched by hand, as the battery
60V will cause injury to the human body.
DIRECTORY
PART 1 Vehicle characteristics safe driving rules
§1-1 Vehicle character
§1-2 Safe driving rules
PART 2 Vehicle parts location and user
instructions §2-1 Vehicle side
§2-2 Vehicle front and back
§2-3 Vehicle nameplate and VIN number
§2-4 Speedometer
§2-5 Start switch
§2-6 Left switch collection

DAISY Luxury Enclosed Cabin Mobility Scooter
§2-7 Right switch collection
§2-8 Function switch
§2-9 Power switch
§2-10 Doors, Windows and glass lifters
§2-11 Front seat and back seat
§2-12 Door lock and open wrench
§2-13 Door maintenance and waterproofing
PART 3 Operation guide
§3-1 Check before driving
§3-2 Driving operation
§3-3 Braking operation
§3-4 Stop operation
§3-5 Charging operation
PART 4 Vehicle maintenance and protection
§4-1 Vehicle daily maintenance
§4-2 Battery maintenance
§4-3 Simple vehicle trouble shooting
PART 5 Vehicle packaging and storage
§5-1 Packing and transportation requirements
§5-2 Vehicle storage requirements
PART 6 Electrical schematic diagram

DAISY Luxury Enclosed Cabin Mobility Scooter
PART 1 Vehicle characteristics and safe driving rules
§1-1 Vehicle character：
DAISY is small in size, which can flexibly travel through narrow road spaces and is
very convenient for parking.
Equipped with 60V permanent magnet DC brushless motor, power 1500W, low
running noise, long service life, and simple daily maintenance.
Transmission for electronic infinitely variable speed, driving operation fast, simple.
§1-2 Safe driving rules ：
1. DAISY is a mobility scooter, or a LEMS [Luxury Enclosed Mobility Scooter] and so a
driver does not need to have a driver’s license. Drivers must have reasonable vision and
ability to control the LEMS in all circumstances.
2. DAISY maybe required to be registered in some states, please check.
3. DAISY maybe driven as a mobility scooter or bicycle and must follow the rules of the
road for pedestrians, mobility scooters and cyclists.
4. DAISY maybe driven on suitable footpaths, but not in high pedestrian areas unless the
footpath allows safe driving. The maximum speed on a footpath is 10 kph.
5. DAISY maybe driven on cycle ways, and bike paths on road sides, must give way to
motor vehicles and merge in the same way as a bicycle. Maximum speed is
recommended to be 20 kph.
6. Before driving DAISY, you must do a good check on the brakes, tire pressure
and other inspection work.
7. Adjust the seat to the right position before driving.
8. Adjust the angle of the rearview mirrors before driving so that you can see clearly
behind the LEMS.
9. Mobile phones or one-handed driving is strictly prohibited.
10. When driving, do not get too close to other motor vehicles. Strictly observe traffic
regulations.

11. Speeding is prone to accidents. Please observe the speed regulations and slow down
when turning.
12. Drive carefully at road junctions and exits. Fatigue driving is strictly
prohibited. Overloading driving is strictly prohibited.
13. Avoid driving in blinding, shining / glaring and unguarded conditions at evening
and night times.
14. Ronica Trade, Mobility Scooters for Hire Sale Service or any agent or authorised
person will not be liable for any accident or traffic infringement caused by any driver of
a LEMS, and shall be indemnified from any claims of any kind.

DAISY Luxury Enclosed Cabin Mobility Scooter

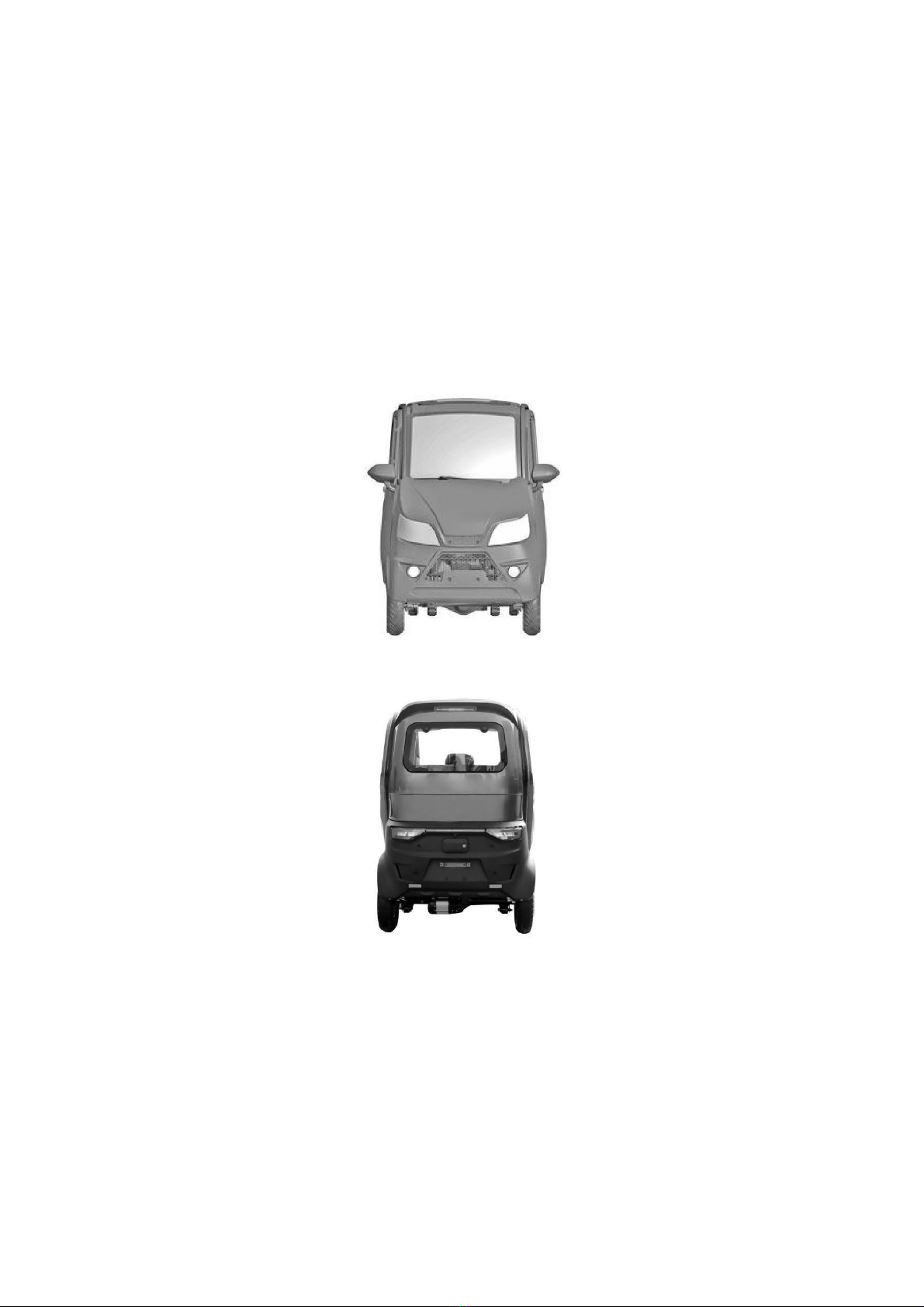

§2-1 Vehicle front and back ：

DAISY Luxury Enclosed Cabin Mobility Scooter
§2-3 Vehicle nameplate and VIN number：
The product nameplate is riveted to the plastic of the rear seat bottom plate on the right
side of the body. It is also stamped into the sub-frame at the right hand side of the front
seat.
The VIN code consists of 17 bits:
******* ******* ******* ******* *****
The VIN code must not to be tampered with. It is the vehicle's identification mark. In
addition to the VIN mark on the product nameplate, there is another VIN on the body mark,
The VIN code is printed in the middle of the door frame tube on the right side of the body.

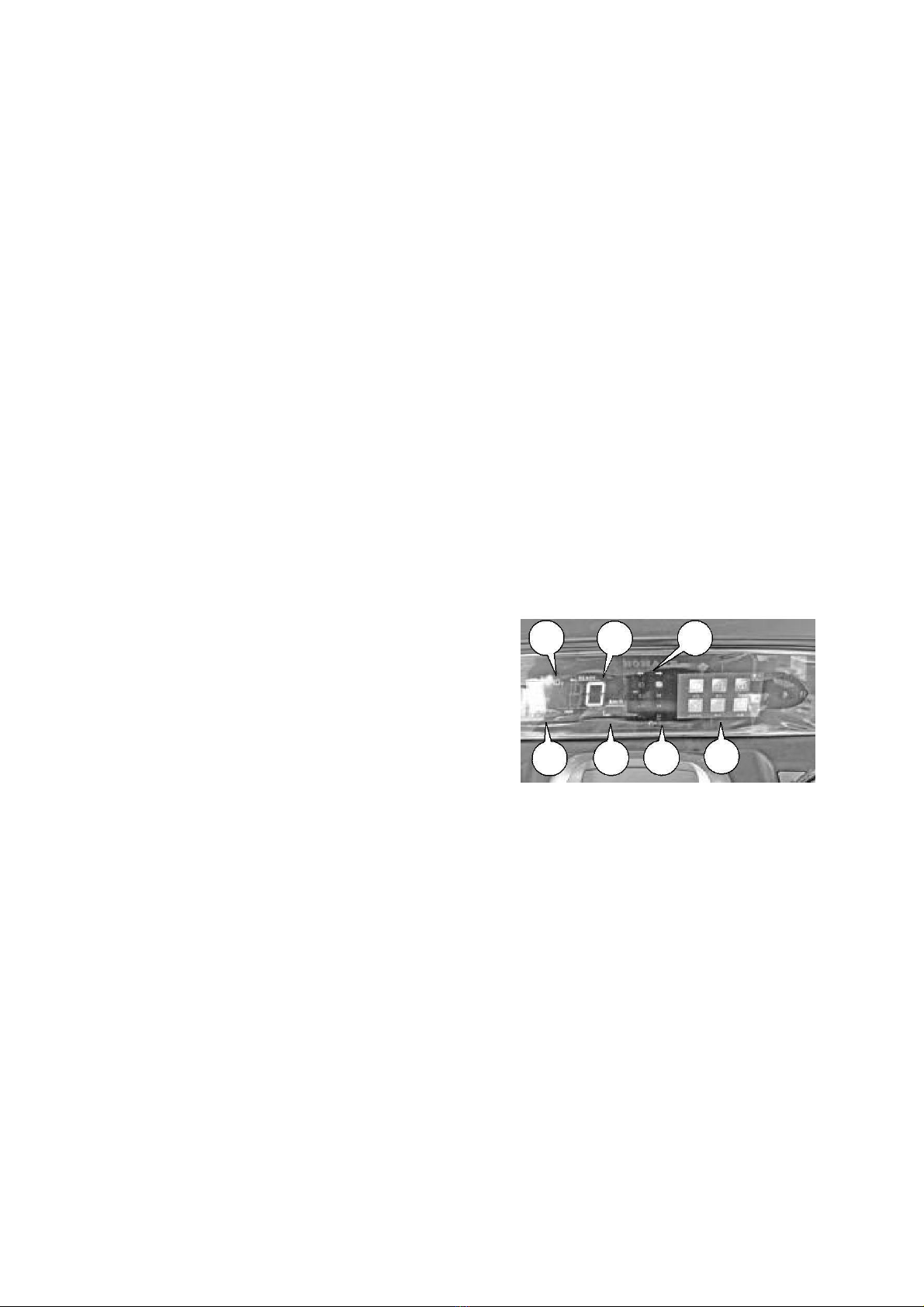

§2-4 Speedometer:
123
1. Voltmeter：Display the battery voltage。
2. Speed：In kilometers per hour (kph)。
3. The left and right indicator flashes。
4
5
6
7
when the turn signal is switched on。
4. Battery meter：Displays battery charge, graphic and numerically。
5. Odometer：Displays the current distance (km)。
6. Gear indicator light：Turn knob to right and DDrive indicator light will be on. Turn to left
and RReverse indicator light will be on。
7. While reversing the reversing camera will display the image to the rear with guidelines。

DAISY Luxury Enclosed Cabin Mobility Scooter
§2-5 Start switch:
12
1. Turn on/off the power to DAISY with one of the two keys.
3
2. Turn the drive (D/R) switch right to Drive, left to Reverse.
3. To right of D/R switch is Air Conditioner switch if A/C fitted.
Note: if equipped with a remote control, it is preferred to use the remote control to
start and turn off the power supply of the vehicle.
1
2
§2-6 Left switch assembly:
3
1. High / Low beam light switch.
Move switch down, that is low beam of headlight
Move switch up, that is high beam of headlight
2. Turn signal switch: When the switch is in the middle position, the front and rear turn
signals are all in the closed/off state
3. When the switch is in "←", the front and rear left turn signal turns on and flashes
When the switch is in "→", the front and rear right turn signal is on and flashing.
4. Horn switch: Press the horn switch button to turn the horn on.
Release the horn switch button to turn the horn off.

DAISY Luxury Enclosed Cabin Mobility Scooter
§2-7 Right switch assembly：
1. Low, medium and high speed switch, 10/20/30 kph.
2. Light switch: move the switch to the right position, that is off;
Move the switch to middle, park lights; to far left, headlights on.
3. Wiper water switch. Press to operate. Fill with funnel through
pipe below windscreen.
1
3
32
§2-8 Function switches ：
1. A/C switch: This switch has been moved in later models to be
on the RHS of the dash as in Picture §2-5 on previous page.
First turn the fan knob to the right and turn it to 1, 2 or 3.
1
2
Press the button in the middle, then rotate the A/C switch
to the corresponding position to display the instrument.
A/C indicator is bright, then the air conditioning is working.
2. Three switch in later models.
To the right, is the Fog Light switch.
In the middle, is the Wiper switch.
To the Left is the heater switch.

DAISY Luxury Enclosed Cabin Mobility Scooter
§2-9 Power / overload switches ：
1. Power switches: Located ON the left side of the front seat.
When the seat side switch is in the ON position, the
vehicle is in the energized state. Use key to turn on.
The outer switch is for an additional battery pack stored
1
below the front seat, if fitted. Only one switch can
be turned on at a time.
2
In an overload situation the switch will turn off.
After waiting for 5 minutes to cool, turn switch back on. If overload happens again,
contact your service agent or Mobility Scooters for Hire Sale Service 03 7036 4440.
2. Charging socket internal: Daisy is equipped with two charging sockets. One is
located on the left side of the front seat for the under front seat batteries if
fitted, and the main socket is located in the lock cover in the middle of the rear
of Daisy.
Daisy can have two sets of batteries installed, use the charger to charge each sets of
batteries, one at a time as required. When charging, switch the position of the two
power/overload switches according to the battery required to charge.

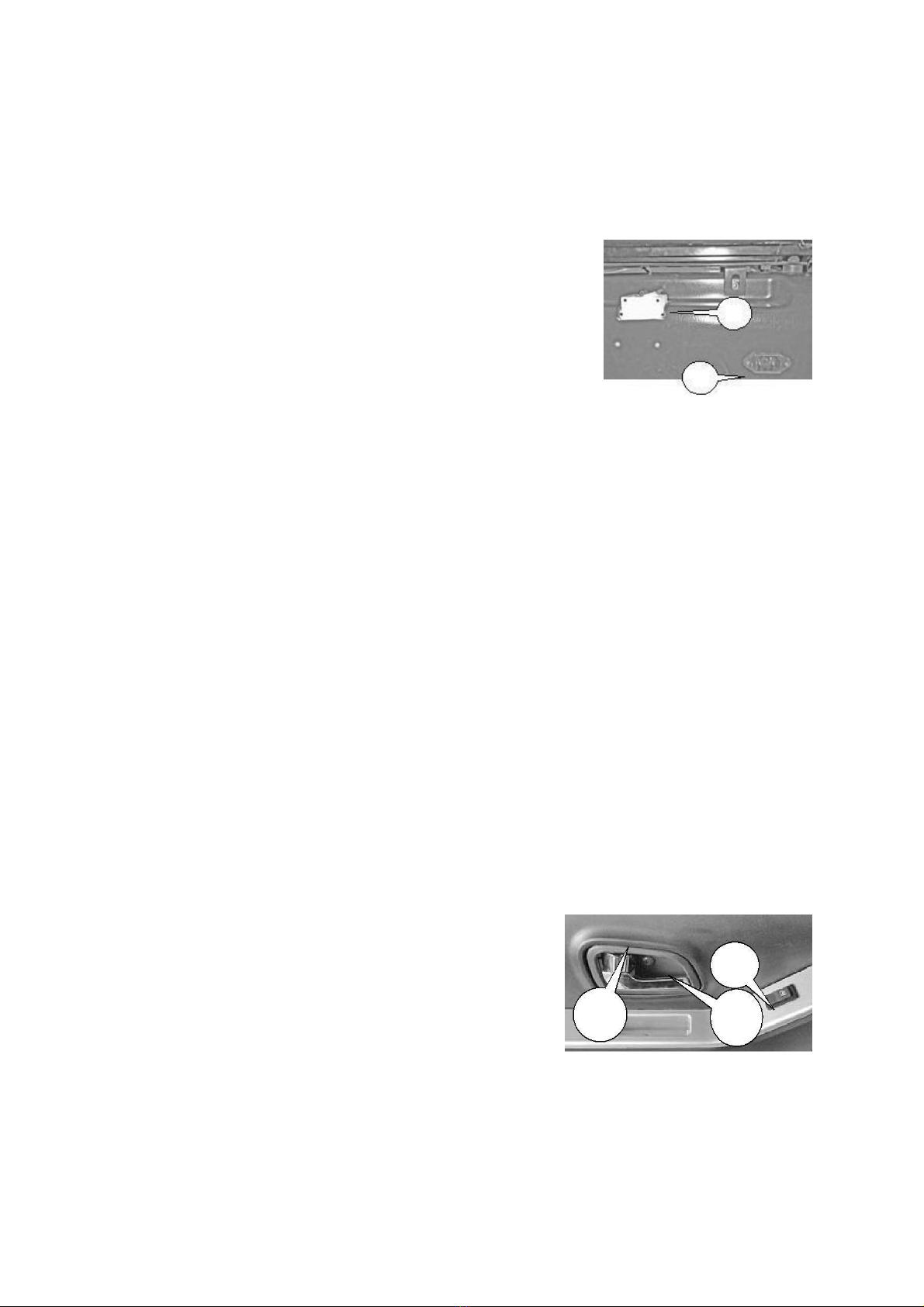

§2-10 Doors, Windows and glass lifters：
1. Use switch to lower and raise the electric windows.
2. Door handle.
3. Door lock, internal manual. Required for right door.
1
32
Note: Right door; when locked, do not close the door to prevent damage to the parts.

DAISY Luxury Enclosed Cabin Mobility Scooter

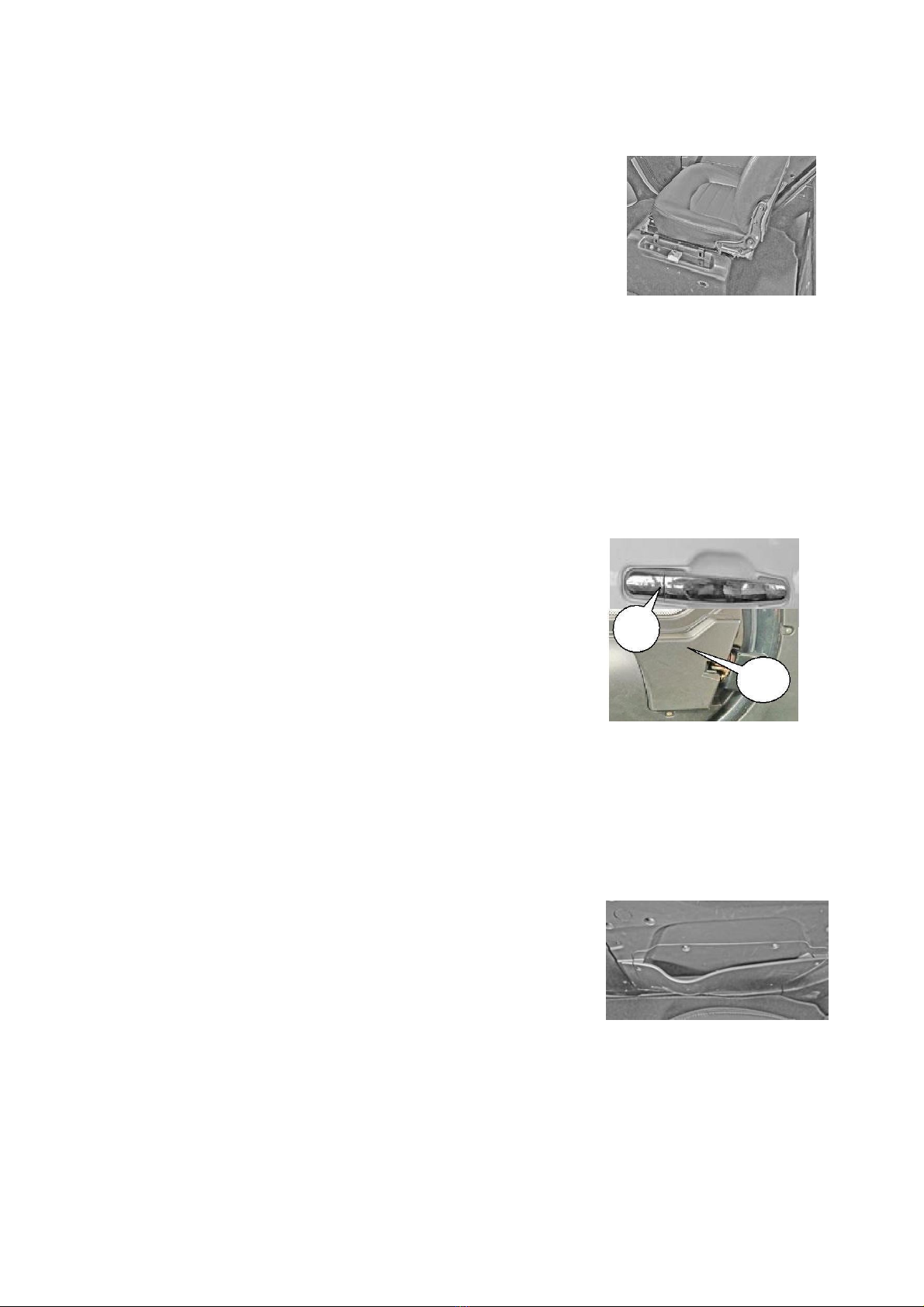

§2-11 Front seat and back seat ：
1. Front seat: Pull up the lever on the slide track to move the
seat back and forth and adjust to the appropriate position.
If the lever cannot be locked, the seat should be moved
front and back until the seat is locked securely.
2. Rear seat: the rear seat is fixed and cannot be moved back and forth.
3. The main battery is placed under the cover plate under the rear seat.
§2-12 Door lock and open：
1.Door lock handle: use the key to turn the lock core,
1
and then pull the handle on the door, you can open the door;
Turn the lock core to lock the door;
2
The center lock will work simultaneously.
Or use a remote key to open and close the door lock.
2.Internal lock body: the internal lock body is installed on the inner plate and frame of the door.
By opening the plastic lock cover, the lock body and the state of the tie rod can be removed and
adjusted。
§2-13 Door maintenance and waterproofing：
1.Door access cover plate: the cover plate is installed
and fixed on the door interior plate with six screws,
which is used for maintenance and adjustment of glass lifting
position and removal of door glass. The door is also attached to
place sundry box cover, also need to be removed together.
2. The interior is pasted with waterproof plastic paper to prevent water leakage between the

Owners Manual
DAISY Luxury Enclosed Cabin Mobility Scooter
door glass and the glass guide groove from entering the interior of the car body, so that it can be
discharged from the leakage hole under the door to the exterior of the car body.
PART 3 Operation guide
§3-1 Check before driving ：
Every day before the start of driving, should make a routine inspection of the whole vehicle, to
ensure that the battery four-wheel sightseeing vehicle performance is good and achieve a safe
driving effect.
Electric quantity:turn on the one-key start switch and watch the position indicated by the electric
meter. When the voltage is less than two grids or less than 55V, it should be charged first.
Tyre:front wheel pressure: 220KPa rear wheel pressure: 250kpa
1. The tire pressure can only be checked when the tire is cool. It should be checked and
adjusted regularly.
2. Frequently check whether there is a puncture wound on the tire, and
repair immediately if there is a leak.
3. When the tread is worn to the tread wear limit, a new tire should be replaced.
Acceleration system: when the power switch is not turned on, the acceleration knob will be
turned on, and there will be no loose stuck phenomenon.
Brake system: hold the brake handle tightly, then release should be free to return to position, no
stuck.
Other such as seat position, mirror Angle, door and door lock, whether the parts are loose,
whether the horn and lamps are normal, should be checked every day before driving the vehicle.
§3-2 Driving operation：
1. Turn on the power switch and start the switch with one key, and the instrument display
shall be normal without alarm display.
2. Put the gear switch into forward or backward gear as needed and slowly turn the
acceleration handle to the speed you want.
Must not turn around fiercely, lest cause undesirable consequence.

Owners Manual
DAISY Luxury Enclosed Cabin Mobility Scooter
3. To reduce the speed, close the acceleration handle and use the front and rear brake handles.
§3-3 Braking operation：
1. It is very important to reduce the speed by first turning off the acceleration Handle and using
the front and rear brake handle at the same time.
2. Use extreme caution when driving on wet or soft surfaces or in rainy conditions, braking,
acceleration and steering.
3. When driving at medium-high speed on slippery roads and curves, the front and rear
brakes should be used to slow down in advance to avoid accidents.
§3-4 Stop operation：
1. When parking, the vehicle should be parked on the flat and hard ground, otherwise there
may be injuries or the result of the vehicle tipping.
2. When parking, turn the start switch to the off position, take away the remote control key
and turn on the handbrakes.
3. Turn off the start switch and lock the door when you leave the vehicle.
4. When leaving the vehicle, if the vehicle is equipped with anti-theft device should be
promptly enabled.
§3-5 Charging operation：
1. Park the car to an appropriate charging place, with good ventilation and heat dissipation.
There is no combustible material piled up or fire source around.
2. Turn off the start switch, switch the position of the power switch (charge the batteries as
needed), and turn on the handbrakes.
3. Take out the special charger equipped with the car (note that the charger should match the

Owners Manual
DAISY Luxury Enclosed Cabin Mobility Scooter
battery), plug one end into the charging port of the car, and plug one end into the ~ 220V power
outlet.
Charge time and discharge time is proportional to usage, you can control.
4. Check the charging indicator on the meter, and leave as soon as the display is normal.
PART 4 Vehicle maintenance and protection
§4-1 Vehicle daily maintenance：
Vehicle cleaning：
To protect the vehicle, it should be cleaned regularly and in accordance with the normal cleaning
method. Attention should be paid to the cleaning process:
1.Avoid water into the charging socket of the vehicle, to avoid the short circuit of the car body.
2.Wash to prevent water into the battery, after cleaning dry vehicle. Before driving, do a brake test to
make sure it returns to normal condition.
Maintenance：
The whole car should often use a dry cloth to wipe off the dust and mud on the car, in order
to keep clean;
Galvanized, chrome should be coated with a little anti-rust oil, paint can be painted car
wax, in order to keep bright and beautiful.
And in each moving part home lubricating oil or grease.
Front and rear tires should be properly inflated, it is best to use pressure gauge measurement,
according to the provisions.
Check the screws, bolts and nuts of the whole vehicle regularly to prevent
the parts from loosening and falling off and cause accidents.
Check the flexibility and reliability of front and rear brakes and wheels frequently. Adjust or
replace shoes or discs if they are found to be worn or fail to deliver results.

Owners Manual
DAISY Luxury Enclosed Cabin Mobility Scooter
Periodic Maintain table：
The vehicle shall be repaired in accordance with the prescribed repair time.
The meanings of various symbols in the table are as follows:
1. Inspect, clean, adjust, lubricate or replace.
(C: cleaning R: replacement A: adjustment L: lubrication I: inspection)
△This item is repaired by the personnel of special maintenance station, the user has special
tool, repair fittings or repair ability, also can repair by oneself.
△△ To ensure safety, this item can only be repaired by the personnel of the special maintenance
station.
2.When the charging part is repaired or the charging fuse is replaced, the 220V power
supply must be disconnected and no live operation is allowed.
Maintain
Km (remarks)
Maintenance
times
project
Project
1000
Km
4000 Km
8000 Km
12000 Km
remark
cycle
△△
Motor gear oil
Every 6 months R
Rear braking
△△
system
C
I
A/L
A/L
Brake friction
△△
plate
C
I
A
R
Front braking
△△
system
C
I
A/L
A/L
Brake switch
1 month
C
I
A
L/R

Owners Manual
DAISY Luxury Enclosed Cabin Mobility Scooter
△
Front and rear
△
lighting
1
month
I/A
△
Nuts and bolts
1
month
I/A
△△
Wheels
3
month
C
I
A/L
A/L
△△
Bearing
6
month
C
I
L
L/R
△△
Battery
1
year or charged 300 times R
§4-2 Battery maintenance
1. This car uses sealed battery (no need add water).
Note: the electrolyte cover on the closed battery should never be opened.
2. When the vehicle is not in use for a long time, remove the battery and store it in
a cool, ventilated and dry place after fully charging.
3. If the pile corrosion of battery is found in use, the battery should be removed to remove (flush
with boiling water) and grease.
4. The charging frequency should be flexibly controlled according to the driving distance and
use frequency to extend the service life of the battery.
5. When starting, carrying people, and uphill, try to avoid violent acceleration, resulting in large
current discharge, which is easy to form sulfuric acid crystals, thus damaging the physical
properties of the battery plate.
6. The vehicle is prohibited to be exposed to the sun. The environment with high temperature will
increase the internal pressure of the battery, causing the battery to lose water, causing the battery
activity to decline and accelerating the aging of the plate.
7. Generally, the battery can be fully charged after charging for about 10 hours.
If the temperature of the battery exceeds 65°C during the charging process, the battery should
be stopped immediately and the battery should be checked to see if there is any fault with the
charger.

Owners Manual
DAISY Luxury Enclosed Cabin Mobility Scooter
§4-3 Simple vehicle trouble shooting：
Elimination
Problems
Cause analysis,
method
Lack of oil, poor lubrication
Replace or replenish the specified
gear oil
Replace or replenish
Low viscosity of gear oil
The specific gear oil
Noise
of Tooth surface damage or wear caused by Change gear set
excessive lateral clearance
reduction
gear
box
is Bearing damage
Replace the bearing
too
loud
or
abnormal
Reduction box body or cap compression
Replacement housing
or impact deformation
If the noise during turning increases or the
Replace the gear set and
sound is abnormal, the differential gear
differential housing in the
meshing is bad, blocked, worn, lack of oil
differential
and so on
The
motor Gear assembly gear fit too loose slip
Change gear set
turns
and The
planetary gears
in
the
the
wheel differential engage badly (wear too
Change gear set
does
not much) and slip
turn
The planetary gear shaft is broken
Replace the planetary gear shaft
Leakage from motor end:
1.Reinstall or replace the oil
1. the oil seal tight band spring fails see
1.Replace the gasket
reducer body and the cap:
The gear box 2.Damaged or worn main lip of oil seal
2.Replace the oil seal
is leaking
oil or oil
1.damage (breakage) of rubber
1.Replace the rubber
2.Repair convex asbestos pads
2.Replace the asbestos pad

Owners Manual
DAISY Luxury Enclosed Cabin Mobility Scooter
2.The end face of the box body or cover
3.Replace the box
is uneven or has convex points
4.Tighten the bolts as required
3.Case body or cover is distorted
4.The fixing bolts between the boxes
are loose
Oil leakage at half shaft joint:
1. the frame oil seal matched with the
1.Replace the oil seal
half shaft is damaged
2.
half
shaft seal belt
finish is
2.Improve
the
half
shaft
damaged
or outside diameter size is
structure and replace the half
shaft
not required
Insufficient lubrication or gear oil
Check and replace gear oil
does not meet quality requirements
Gearbox
bearing
is
Gear
oil cleanliness is
Not good or
Replace gear oil
abnormal
viscosity is too small
damage
The
bearing quality is
not up to
Replace the bearing
standard
Check whether the supply voltage
The supply voltage is too low
meets the requirement
Check all connection lines to
Connection line fault
ensure
proper
and
reliable
connection
Motor
does
Controller protection
Reset the system
not turn
Replace the controller with the
Controller damage
same specification
Replace the controller with the
Position sensor fault
same specification
Check
motor
and
controller
Wrong wiring
wiring
to
ensure
proper
and

Owners Manual
DAISY Luxury Enclosed Cabin Mobility Scooter
reliable connection
Unstable
Adjust the phase to ensure that
Motor phase deviation is large
operation
it is normal
Check
the
connection
between
vehicle
The motor is not properly connected
motor
and
controller
to make
jitter
sure it is correct and reliable
Abnormal
sound at run
Check
motor
and
controller
time
or
Connector
loose
or
unreliable
connectors and wiring to ensure
failure
to
connection or missing phase
they are correct and reliable
start
Motor
temperature
Avoid overload running to choose
is too
high
Long overload runs
the right product for the load
or burnt out
The
output
torque
The magnetic property of the rotor
Replace the rotor with the same
decreases
decreases
cation
significant
ly
1.The tire pressure is too high
1.Air at standard pressure
2.failure of front helical spring or
2.Replace
the
front
spiral
The vehicle
front shock absorber
spring or shock absorber
body shake
is bigger
when moving
When
1.Replace the rear hub bearing
driving, the
1.Rear hub bearing is worn or damaged
2.Replace
the
shock
absorber
rear axle
assembly
has abnormal
2 the rear shock absorber fails
noise

Owners Manual
DAISY Luxury Enclosed Cabin Mobility Scooter
1.tire inflation pressure is not
1.make the pressure of the left
uniform
and right wheels consistent, and
reach the specified value
2.The front hub bearing is worn, and
Brake
the tightness
on
both
sides
is
2.Replace the bearing, so that
wandering
inconsistent
the bearing clearance on both
sides of the same
3.Wheel braking force is uneven
3.Replace the brake shoe block
or disc brake
1. Lack of lubricating grease for
directional column bearing
1.Add lubricating oil
2.The anchor bolt of the directional
handle is loose
2.Tighten the bolts and nuts
Inflexible
3.The locking nut of the directional
3.Tighten the lock nut
steering,
column is loose
4.Replace
bearings
and
steel
Direction bar
4.Steering
bearing,
steel
bowl
bowls
swing
damaged
5.Adjust the tire pressure
5.Wheel pressure
is insufficient,
6.Tighten the axle nut
wheel swing
6.hub nuts loose
1 brake drum out of circle
1.Replace the brake drum or
2.Brake shoes deform, wear or slip
boring the brake drum in pairs
3.The brake shoes are stained with oil
2.Replace the brake shoe
or grease
The car body
3. remove the oil from the hoof
shakes when
4.There is something wrong with
the
4. maintenance brake pump
braking
brake pump parts
5. tighten the fixing bolt
5.The fixing bolt of the brake clamp
bracket is loose
6. Grinding
or changing
the
6. Uneven wear of brake disc thickness
brake disc
1 battery loss, insufficient voltage
Motor cannot
1.Charge
or
replace
the
new
