Mobility Sound BTH-600-R6L0 User manual

1
BTH
BTH-
600
PTT
Cellphone Answer
BTH
-600-R6L0
Zello iOS
600
-R6 Zello
Android

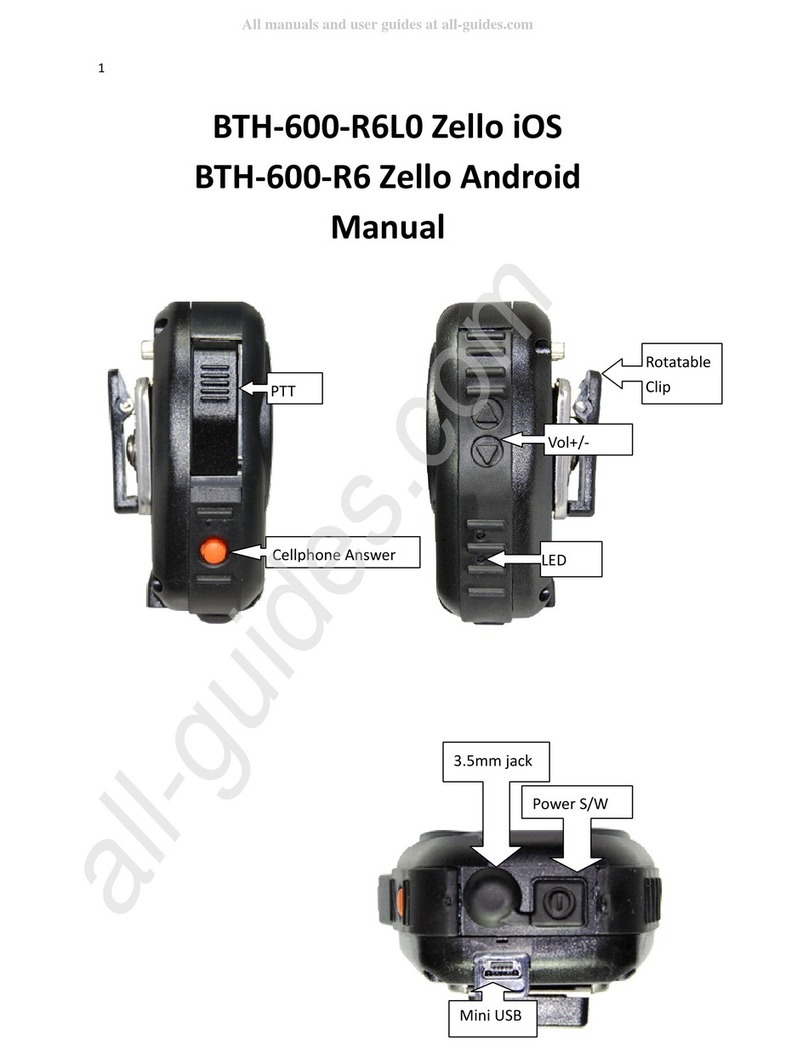

Manual
PTT
Cellphone Answer
Vol+/
LED
Mini USB
P
ower S/W
3.5mm ack
Zello iOS
Android
Vol+/
-
Rotatable
Clip
ower S/W

2
How to use BTH-600R
PIO state statement
Power S/W long held( >= 1sec) Device on
Power S/W long held( >= 2.5sec) Device off
Power S/W long press >6 sec Enter pairing mode from power off
CELL short press Answer incoming call
Hang up outgoing call or active call
Play/Pause
CELL long held( >=1sec) Connect last HFP source(when HFP/HSP is
connectable)
Dial last number(when HFP is connected)
Re ect incoming call
Transfer call(sinksource)(when call is outgoing or
active)
CELL double press Voice dial(when HFP is connected)
VOL+ short press Volume up
VOL+ long held( >=0.8sec) Volume up continuously
VOL- short press Volume down
VOL- long held( >=0.8sec) Volume down continuously
BTH-600R State and LED Flas ing Pattern
LED state statement
Blue led on : 2 sec , off : 1 sec , repeat All profiles are standby but not connected with
any Cellphone device yet.
Blue led flash every 2 sec A2DP or HFP is connected.
Blue led flash twice every 2 sec On A2DP streaming state.
Blue led on : 1 sec , off : 1 sec , repeat On active call state.
Blue led and red led flash alternative repeat Enter pairing mode.
Red led On Battery Charging
Red led Off Battery Full

3
iOS Setting
1. Go to “Setting” -> “Bluetooth”, turn on Mobile phone’s Bluetooth
and BTH-600R go to pairing mode.
Press BTH-PTT to pair it.

4
1.a. Press BTH-PTT to connect it

5
2. Go to Zello and press “Menu”

6
3.Press “Options”

7
4.Press “Push To Talk button”

8
5.Press “Wireless Zello button”

9
6.Press PTT-Z button and it will show up “PTT-Z”

10
7. It’s ready to go. You can back to main page.

11
Android Setting
1. Go to “Setting” -> “Bluetooth”, turn on Mobile phone’s Bluetooth
and BTH-600-R6 go to pairing mode.
Mobile phone will discover “BTH-PTT”, tap on it to connect

12
2. After both device connected.

13
3. After connection is established, execute Zello and tap the menu on the top right:

14
4.Then choose “Options”

15
5.press “Push-to-Talk button”

16
6.press “+ADD Button”

17
7.Press your PTT button

18
8. You can see the “BTH-PTT”

19
9. Good to go
