Modena MD 15 WWM Owner's manual

User
Manual Book
Chest Freezer
MD 15 WWM
MD 20 WWM

Table Of Content
Part 1: Safety Information 3
Part 2: Name Of Parts 6
Part 3: Installation 7
Before Using Freezer 7
Electrical Connection 7
Part 4: Usage Instruction 8
Reminders Before Using 8
Temperature Control 8
Defrosting 9
Care & Cleaning 10
Part 5: Troubleshooting 11
Part 6: Specification 13

3
Read the user manual book carefully!
•Ensure to connect power plug to proper AC 220-240V socket,
improper socket may result in fire or cause an electric shock.
•The appliance is not to be used by persons (including children)
with reduced physical, sensory or mental capabilities, or lack of
experience and knowledge, unless they have been given
supervision or instruction.
•Children being supervised not to play with the appliance.
•Use separate 13 A socket for connecting freezer. Using same
socket may cause heat and catch fire.
• Never damage power cord or use damaged power cord.
It may catch fire or cause an electric shock if you stamp
in it, pull, twist or bend the power cord.
• Ensure to disconnect power plug when cleaning or
changing lightbulb inside. It may cause a risk of electric
shock if you change it with power plug on.
• Ensure to disconnect the power plug in case not using
chest freezer for a long time.
• Do not use mechanical device or other means to
accelerate defrosting process, other than recommended
devices.
• Do not damage the refrigerant circuit.
• Do not use electrical appliances inside food storage
compartments of the appliances, unless they are of the
type recommended by the manufacturer.
•Appliances which use flammable insulation blowing gases,
instructions shall include information regarding disposal of the
appliance.
•This Freezer can be used for household or similar applications
such as:
PART 1: SAFETY INFORMATION

4
oStaff kitchen areas in shops, offices, and other working
environments
oFarm houses and by clients in hotels, motels, and other
residential environtments
oBed & breakfast type environments
oCatering and similar non-retail environments
•Hold the Power Plug when you pull it out or plug in. It may
damage the power cord and can cause risk of short circuit or
electric shock if you pull the cord to disconnect the power.
•Ensure to not splash or pour water. It may cause risk of short
circuit or electric shock.
•When chest freezer operates abnormally (burning smell etc), pull
out the power plug to disconnect the power and stop the
operation. If it keeps operating under the abnormal condition, it
can result in electric shock or catching fire.
•Never dismantle, repair or remodel. It may cause a risk of
accidental fire or a malfunction and result in personal injury.
Caution
•Never stores bottles or cans as the substances can be broken,
which may cause personal injury.
•Never stores flammable items as it may causes explosion such as:
Benzine, Low Pressure Gas, Alcohol or Adhesives.
•Never stores medicine or chemical material which requires strict
supervision of temperature.
•Do not install chest freezer in very humid place where it may get
wet and may cause leakage by weakening insulation.
•Do not touch food or (especially metalic) containers in the chest
freezer by wet hand as it may risks you to get cold injury.
•Do not touch machinery parts (especially compressor and pipe)
on the back. It may causes burns with heat radiation during
operation if you touch them.
•Do not put your hand(s) under the chest freezer. lt may cause you
injury by an iron plate underside.

5
•Ensure to hold the underside firmly when carrying the chest
freezer. The foam door may be detached if you carry the chest
freezer by holding metal fittings or the door and it may slip from
your hands, which may risk in injury.
•WARNING: Keep ventilation openings, in the appliance enclosure
or in the built-in structure, clear of obstruction.
•Do not use mechanical devices or other means to accelerate the
defrosting process, other than those recommended by the
manufacturer.
•Do not damage the refrigerant circuit.
•Do not use electrical appliances inside the food storage
compartment of the appliance, unless they are of the type
recommended by the manufacturer.
•The refrigerant and insulation blowing gas used in the appliance
require special disposal procedures. When disposal, please
consult with services agent or a similarly qualified person.
•WARNING: Do not locate multiple portable socket-outlets or
portable power supplies at the rear of the appliance.

6

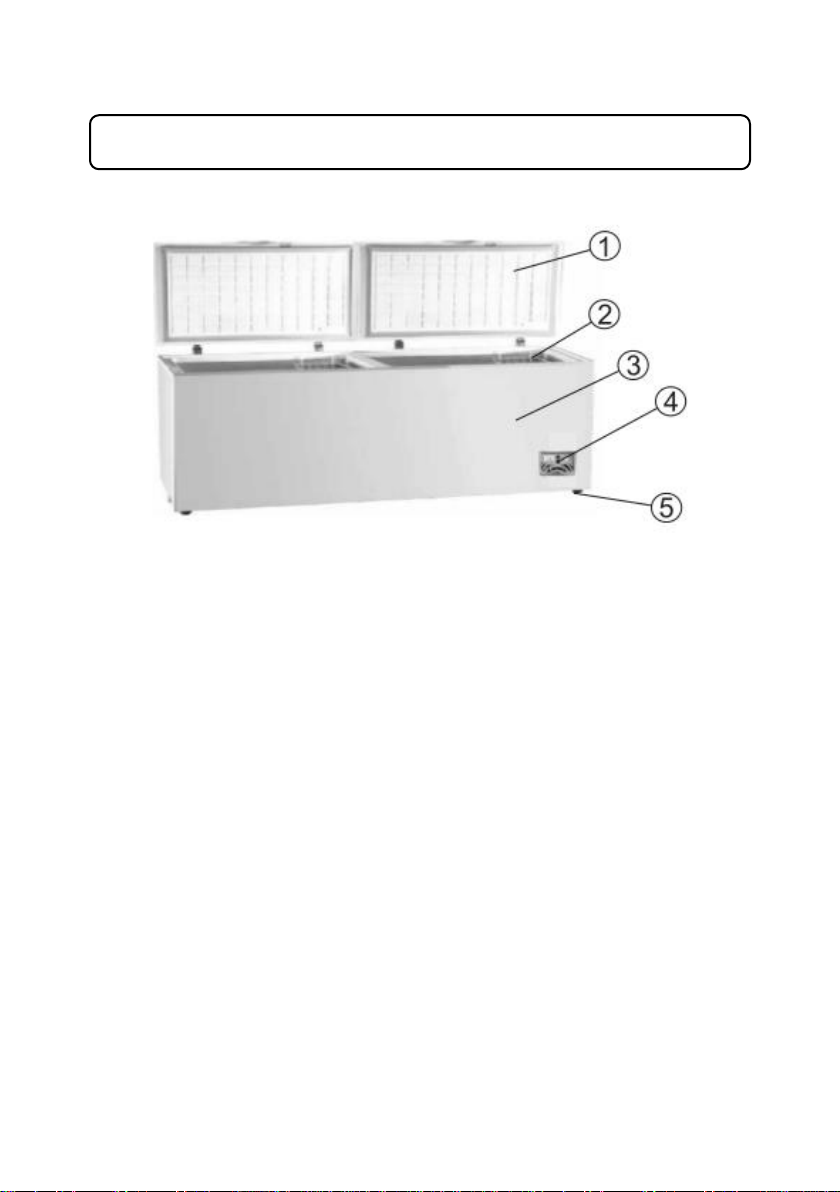

1. Door
2. Basket
3. Cabinet
4. Control panel
5. Caster wheels
*Above picture is for reference only. Difference between the picture and
actual product may occur
**Feature and equipments differ by each product
PART 2: NAME OF PARTS

7
Before Using Freezer
•Remove the exterior and interior packing.
•Check to be sure you have all of the following parts:
o1 Storage Basket
o1 Instruction Manual
•Before connecting the freezer to the power source, let it stand
upright for approximately 2 hours. This will reduce the possibility
of a malfunction in the cooling system from handling during
transportation.
•Clean the interior surface with lukewarm water using a soft
cloth.
Electrical Connection
•This freezer should be properly grounded for your safety. The power
cord of this freezer is equipped with a three pin plug which mates with
standard three pin wall socket to minimize the possibility of electrical
shock.
•Do not, under any circumstances, cut or remove the three pin plug from
the power cord supplied.
•This freezer requires a standard 220-240 Volt A.C. ~/50Hz electrical
outlet with three pin wall socket.
•This freezer is not designed to be used with an inverter.
•The cord should be secured behind the freezer and not left exposed or
dangling to prevent accidental injury.
•Never unplug the freezer by pulling the power cord. Always grip the
plug firmly and pull straight out from the receptacle.
•Do not use an extension cord with this appliance. If the power cord is
too short, have a qualified electrician or service technician install an
outlet near the appliance. Use of an extension cord can negatively
affect the performance of the unit.
PART 3: INSTALLATION
WARNING
Improper use of the grounded plug can result in the risk of
electrical shock. If the power cord is damaged, have it replaced
by an authorized service center.

8
Reminders Before Using
•Do not put flammable or explosive articles, and corrosive or
volatile organic solvents into the freezer So as to prevent
accidents and to protect freezer cabinet from corrosion.
•Temperature of the freezer should not be too high. Articles
may be wrapped in a plastic. Its weight is 2kg and piled with a
15-10mm clearance among them in order to keep convection
of the air inside the cabinet and maintain excellent freezing
effect.
•Reduce power consumption by avoiding keeping door open for
a long time.
•Defrosting shall be done when the frost on interior walls is
more than 5 mm.
Temperature Control
•Your freezer has one control for regulating the temperature.
The temperature control is located on the lower right-hand
corner.
•The first time you turn the unit on, turn the temperature control
to “on “and run for at least 2 hours before putting frozen foods
inside. This will ensure the cabinet is thoroughly chilled before
food is put in.
•The range of the temperature control is from position" 1" the
warmest to "7" the coldest. Adjust the temperature control to
the setting that best suits your needs. The setting of “4”
should be appropriate for home or office freezer use.
PART 4: USAGE INSTRUCTION

9
Defrosting
Freezer will become progressively covered with frost and must be
cleaned. Do not use sharp metal objects to scrape the frost because it
can damage the freezer. Use plastic scraper.
If the accumulated frost becomes very thick, complete defrosting
should be performed as follows:
•Unplug the unit. Remove the inner drain plug. Open the door and
let it open to accelerate the defrost process. Defrosting usually
takes a few hours.
•To collect the defrost water, place a tray beneath the outer drain
hole.
•Pull the outer drain dial and rotate 180°. The defrost water will flow
out of the freezer.
•When finished, push the outer drain plug back to its place.
Reinstall the inner drain plug. Monitor the water level in the tray to
avoid overflow.
•Clean the interior of the freezer and plug the power cord.
•Adjust the thermostat knob to the desired position.
NOTE
•If the unit is unplugged, loses power; you must wait 3 to 5
minutes before restarting the unit. If you attempt to restart
before this time delay, the freezer will not start.
•Large amounts of food will lower the cooling efficiency of
the appliance.
•Do not place the foods on the air outlet and leave spaces
for airflow.
•If you choose to change the thermostat setting, adjust
thermostat control by one increment at a time. Allow
several hours for temperature to stabilize between
adjustments.

10
When To Defrost
•The most efficient operation and minimum energy consumption,
defrost the freezer when the frost on the freezer walls is
excessive or 5 to 10 mm thick.
•Choose a time when the stock of frozen food is low.
Care & Cleaning
Clean your freezer every 30 –45 days. Unplug before cleaning and
use soft cloth with neutral soap water or mid detergent to scrub inside
and outside cabinet. Do not use acids, chemical thinner, gasoline or
benzene for cleaning any parts of chest freezer. Dry it with soft cloth
and never user water to rinse freezer.
Freezer Compartment
•This compartment is designed for the long-term storage of frozen
food. Storage time is up to three months.
•The storage life of frozen foods varies, and the recommended
storage time should not be exceeded. The instructions regarding
the care of frozen foods should be followed when defrosting the
freezer.
•Pre-packed commercially frozen food should be stored in
accordance with the frozen foods manufacturer’s instructions for
a three-star frozen food storage compartment or home freezer.
•Place frozen food into the freezer as quickly as possible after
purchase. If there are instructions on the packet, carefully follow
these instructions regarding storage times.
•The freezer door is susceptible to breaking due to excessive ice
buildup. Be sure to defrost when the ice reaches 5 to 10 mm thick.
•A storage basket is provided for the organization of odd-shaped
items. To reach other packages in the freezer, just slide the
basket to one side, or lift it out.

11
Check the following before contacting our Service Center in the event
of malfunction.
Problem
Possible Cause
The inside is not cool at all
•Check if the power lamp is off
•The power plug is unpluuged from the socket.
•A power failure has happened
•A domestic fuse or breaker has been out.
The inside is not cool enough
•Has the installation been properly done?
•Is the temperature control in proper position?
•Is the chest freezer in diret sunlight?
•Do you frequently open-close foam door?
•Have you stored too much stuff at one time?
Loud noise is heard
•Is the floor firm enough?
•Is the chest freezer rattling?
•Is there enough space between chest freezer
and the wall?
•Is there a container or other object dropped
behind chest freezer?
There is condensation on
exterior side of chest freezer
•There us possibility of condensation on the
body, the door on the packing, when humidity
is quite high. The room temperature is hotter
than normal.
IMPORTANT!
There are some normal sounds during use (compressor sound,
circulating refrigerant sounds)
WARNING!
Before troubleshooting, unplug the unit from power source. Only a
qualified technician is allowed to perform troubleshooting not stated
in this manual.
PART 5: TROUBLESHOOTING

12
Problem
Possible Cause
Sound of water flowing
•It is the sound of refrigerant.
Exterior of chest freezer is hot
•It may become hot especiall in summer or at
the beginning of the operation.
•Pipes are equipped to prevent the interior from
condensation and releasing heat.

13
MODEL
MD 15 WWM
MD 20 WWM
Capacity (Liter)
142
198
Power Input (Watt)
150
180
Color
White
White
Control panel
Knob
Knob
Basket (pcs)
1
2
Refrigerant
R600a/48g
R600a/56g
Rated Curent (A)
0.8
0.9
Rated Voltage (V)
220-240
220-240
Rated Frequency (Hz)
50
50
Product dimension (Width x
Depth x Height )(mm)
690×560×860
890×560×860
PART 6: SPECIFICATION
