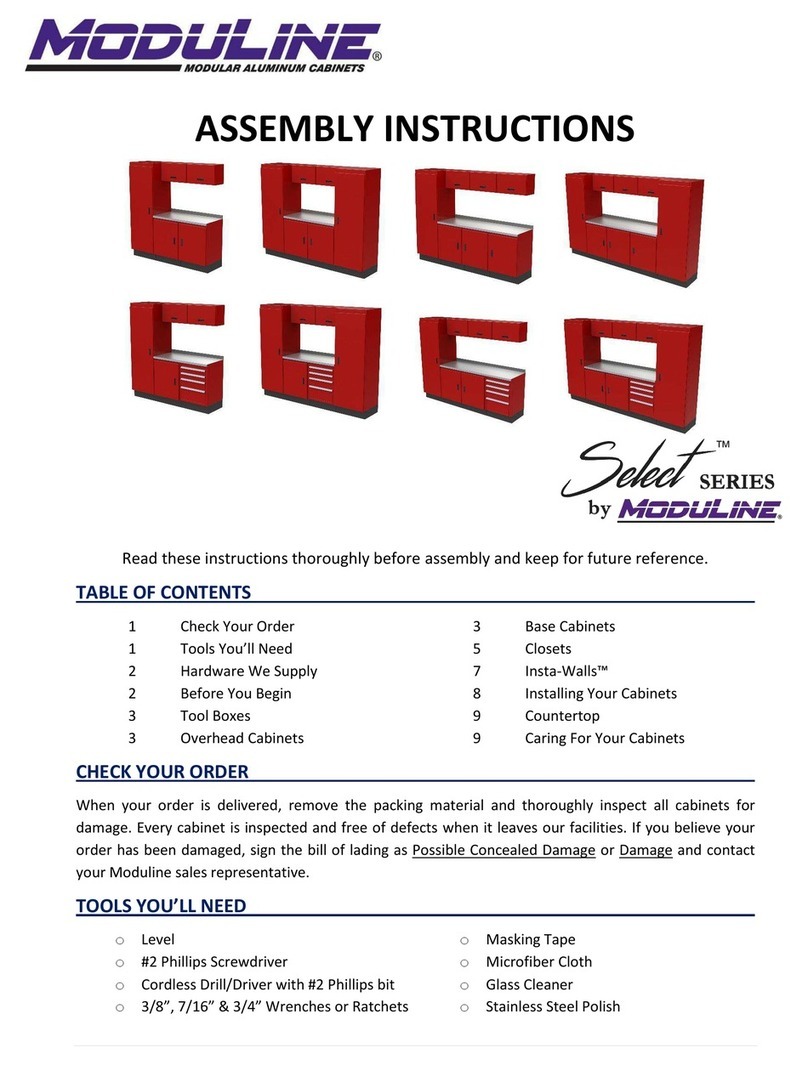

Moduline Select Series User manual

1|PageRev C |1/22/20
READ THOROUGHLY BEFORE STARTING AND KEEP FOR FUTURE REFERENCE
Assembly and Installation
Guide

2|PageRev C |1/22/20
TABLE OF CONTENTS
TOOLS YOU’LL NEED
 #2 Phillips Screwdriver -OR-
Cordless Drill/Driver with #2 Phillips Bit
 3/8” & 11/32” Wrenches
 Level
 Tape Measure
 Window/Glass Cleaner
! WARNING !
To insert self-tapping screws with an electric driver,
start with the clutch setting on low and increase it
incrementally until the screws turn.
Reset your clutch every time you
recharge your battery.
WHEN YOUR CABINETS ARRIVE
When your order is delivered, remove the packing material and thoroughly inspect all cabinets for
damage. If you see damage to the cabinets sign the bill of lading with Damage, or if you see damage
to the packaging sign the bill of lading with Possible Concealed Damage, then contact Moduline.
2When Your Cabinets Arrive
2Tools You'll Need
2Before You Begin
3Base Cabinet
8Closet
13 Overhead Cabinet
14 Instant Walls
17 Installing Your Cabinets
18 Countertop Brace
19 Corner Filler
22 Countertop
For the best results, keep these tips in mind:
 Wherever possible, leave the protective vinyl on your cabinets until installation is complete.
Peel it back only where necessary for attaching parts together.
 Mark on the floor and wall where your cabinets will go. If you have a studded wall, mark the
studs now.
 When attaching cabinets together, don't tighten down the bolts until you start shimming.
 Find the highest spot on your floor with a level. When shimming your cabinets, start there and
shim up to that level as you move away.
BEFORE YOU BEGIN

3|PageRev C |1/22/20

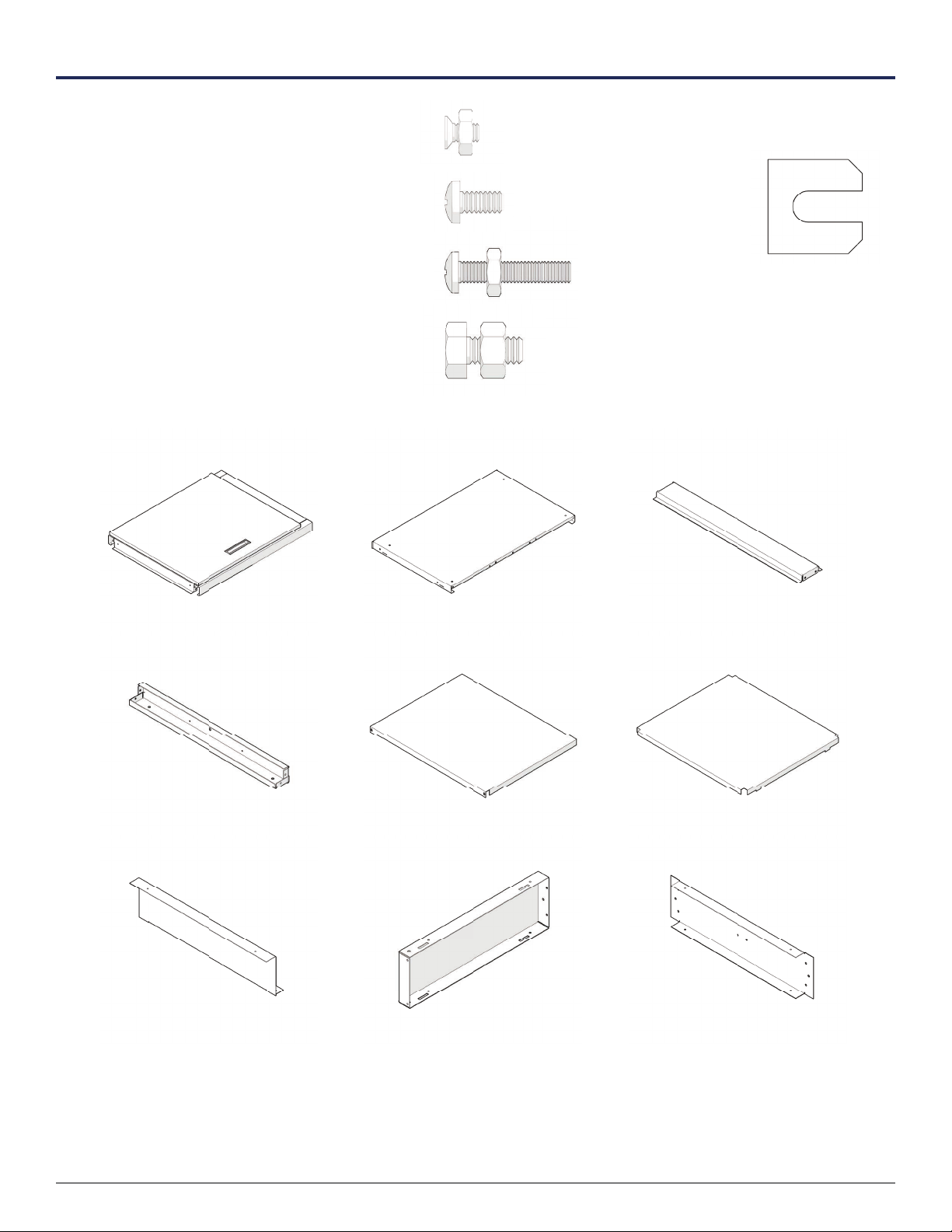

BASE CABINET
Base Door Assembly (x1)
Rear Brace (x2)
Toe Kick Front (x1)
Base Side (x2)
Shelf (x1)
Toe Kick Side (x2)
Countertop Brace (x2)
Bottom Pan (x1)
Toe Kick Rear (x1)
8-32 x 5/16” Flat Head Bolt w/ Nut (x8)
10-24 x 3/8” Self Tapping Screw (x24)
10-32 x 1” Pan Head Bolt w/ Nut (x8)
1/4-20 x 1/2” Hex Bolt w/ Nut (x2)
Shim (1 sheet of 9)






4|PageRev C |1/22/20
BASE CABINET


x4
x2
x2
x2
Step 1 Put the Door Assembly on foam to protect it from scratches.
Step 2 Attach both Sides to Door Assembly . (One side not shown for clarity)
Step 3 Attach Top Braces to Sides .
Step 4 Attach Rear Horizontals to Sides .
   





x2
Foam (Packing material)
Warning: When using a driver to install self-tapping screws, start at a low clutch setting and increase
it incrementally until the screw turns. Reset your clutch each time you change batteries.

5|PageRev C |1/22/20




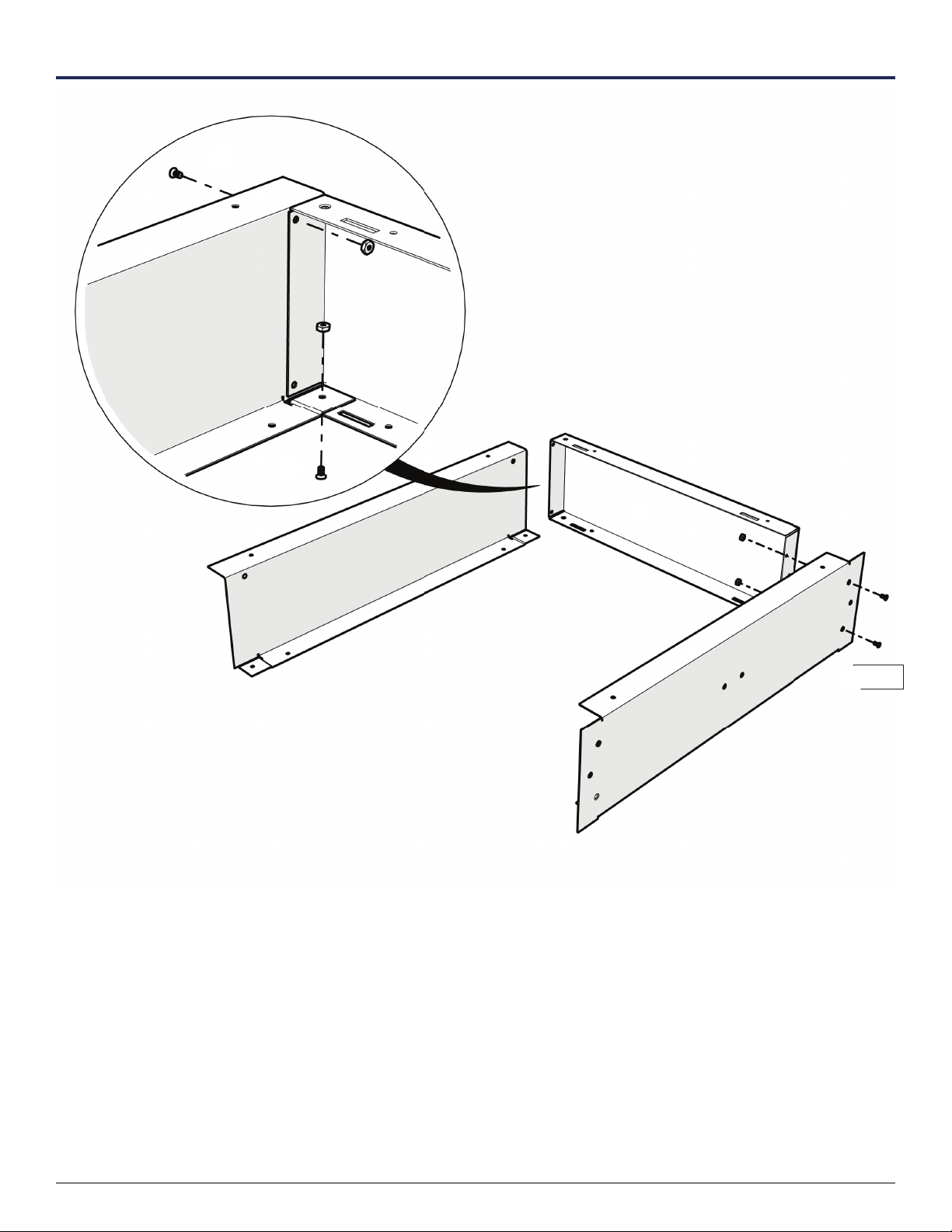

Step 5 Attach the Toe Kick Front to both Toe Kick Sides .
(One side not shown for clarity)
Step 6 Attach Toe Kick Rear to Toe Kick Sides .
 


x2

BASE CABINET

6|PageRev C |1/22/20

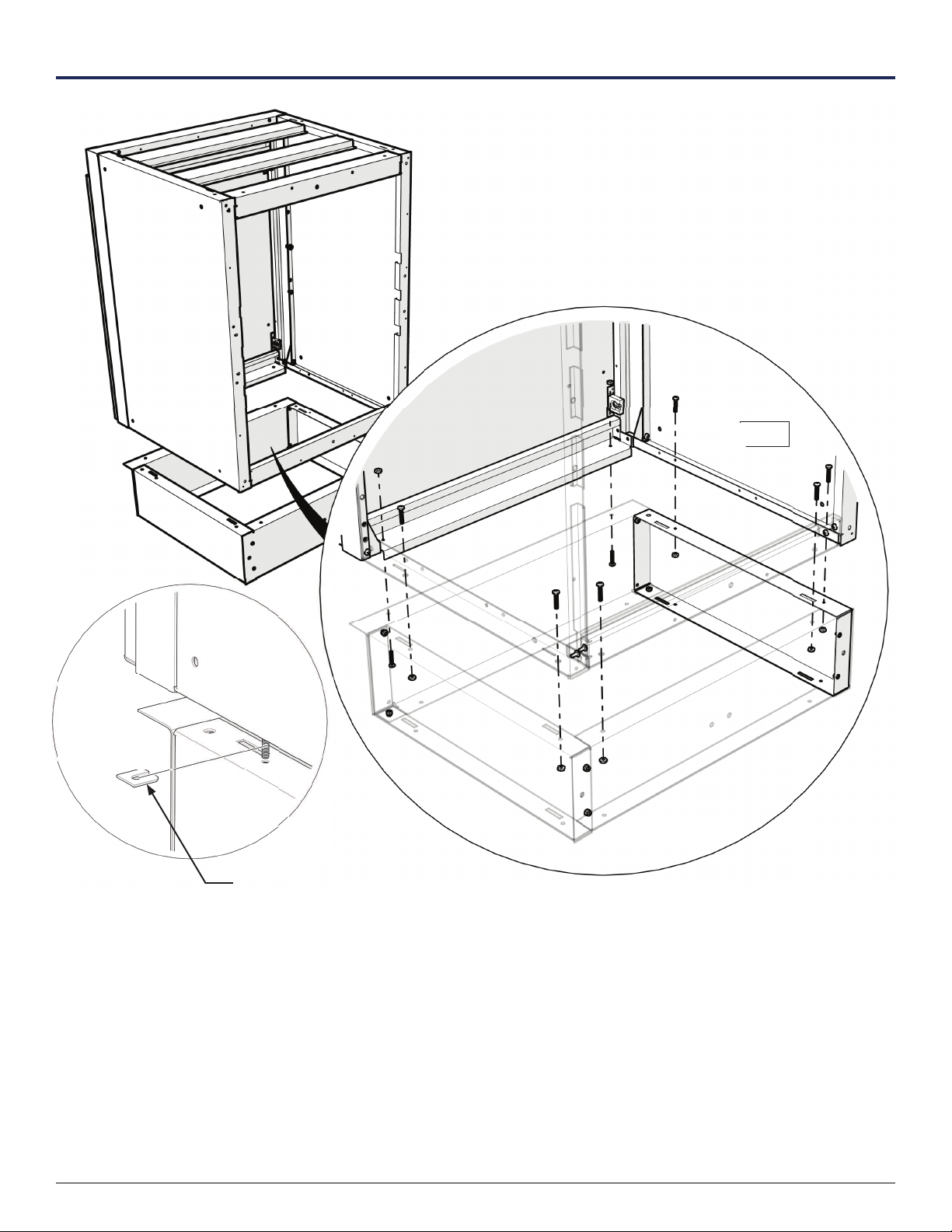

Step 7 Put the Cabinet on the Toe Kick and attach loosely. During installation, add
shim between the Cabinet and Toe Kick to level the countertop.
x8
Shims go here at installation


BASE CABINET

7|PageRev C |1/22/20
x2

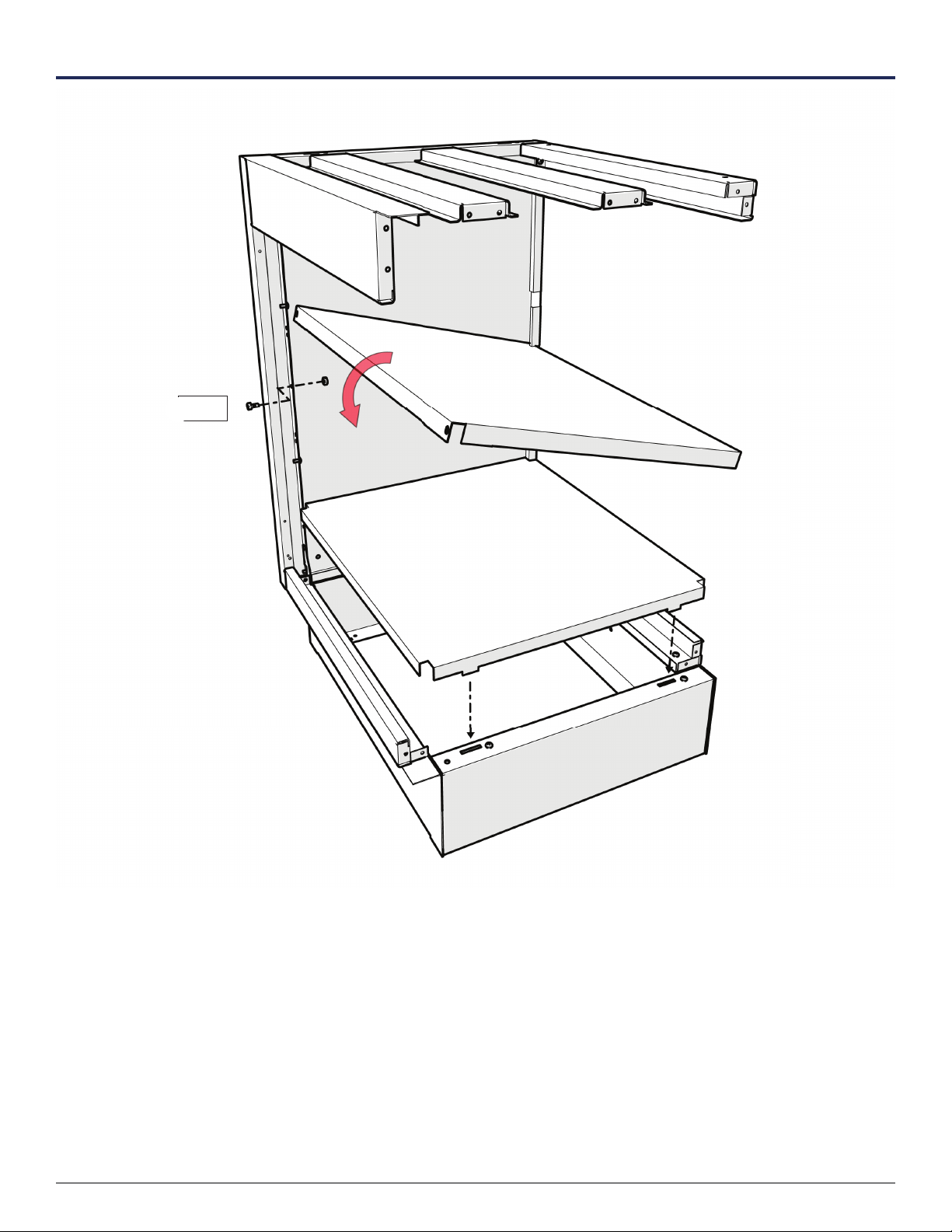

Step 8 Shift the Shelf into place and attach to Door Frame.
Step 9 Shift the Bottom Pan into slots in Toe Kick.
 


BASE CABINET

8|PageRev C |1/22/20
CLOSET
Closet Door Assembly (x1)
Rear Brace (x1)
Toe Kick Front (x1)
Closet Side (x2)
Shelf (x1)
Toe Kick Side (x2)
Closet Top (x1)
Bottom Pan (x1)
Toe Kick Rear (x1)
8-32 x 5/16” Flat Head Bolt w/ Nut (x8)
10-24 x 3/8” Self Tapping Screw (x27)
10-32 x 1” Pan Head Bolt w/ Nut (x8)
1/4-20 x 1/2” Hex Bolt w/ Nut (x2)
Shim (1 sheet of 9)






9|PageRev C |1/22/20
CLOSET


x6
x11
Step 1 Put the Door Assembly on foam to protect it from scratches.
Step 2 Attach both Sides to Door Assembly . (One side not shown for clarity)
Step 3 Attach Top to Sides .
Step 4 Attach Rear Horizontal to Sides .
   



x2
Foam (Packing material)
Warning: When using a driver to install self-tapping screws, start at a low clutch setting and increase
it incrementally until the screw turns. Reset your clutch each time you change batteries.

10 | PageRev C |1/22/20



Step 5 Attach the Toe Kick Front to both Toe Kick Sides .
(One side not shown for clarity)
Step 6 Attach Toe Kick Rear to Toe Kick Sides .
 


x2

CLOSET

11 | PageRev C |1/22/20
Step 7 Put the Closet on the Toe Kick and attach loosely. During installation, add
shim between the Cabinet and Toe Kick.
x8
Shims go here at installation


CLOSET

12 | PageRev C |1/22/20
x2
Step 8 Shift the Shelf into place and attach to Door Frame.
Step 9 Shift the Bottom Pan into slots in Toe Kick.
 


CLOSET

13 | PageRev C |1/22/20

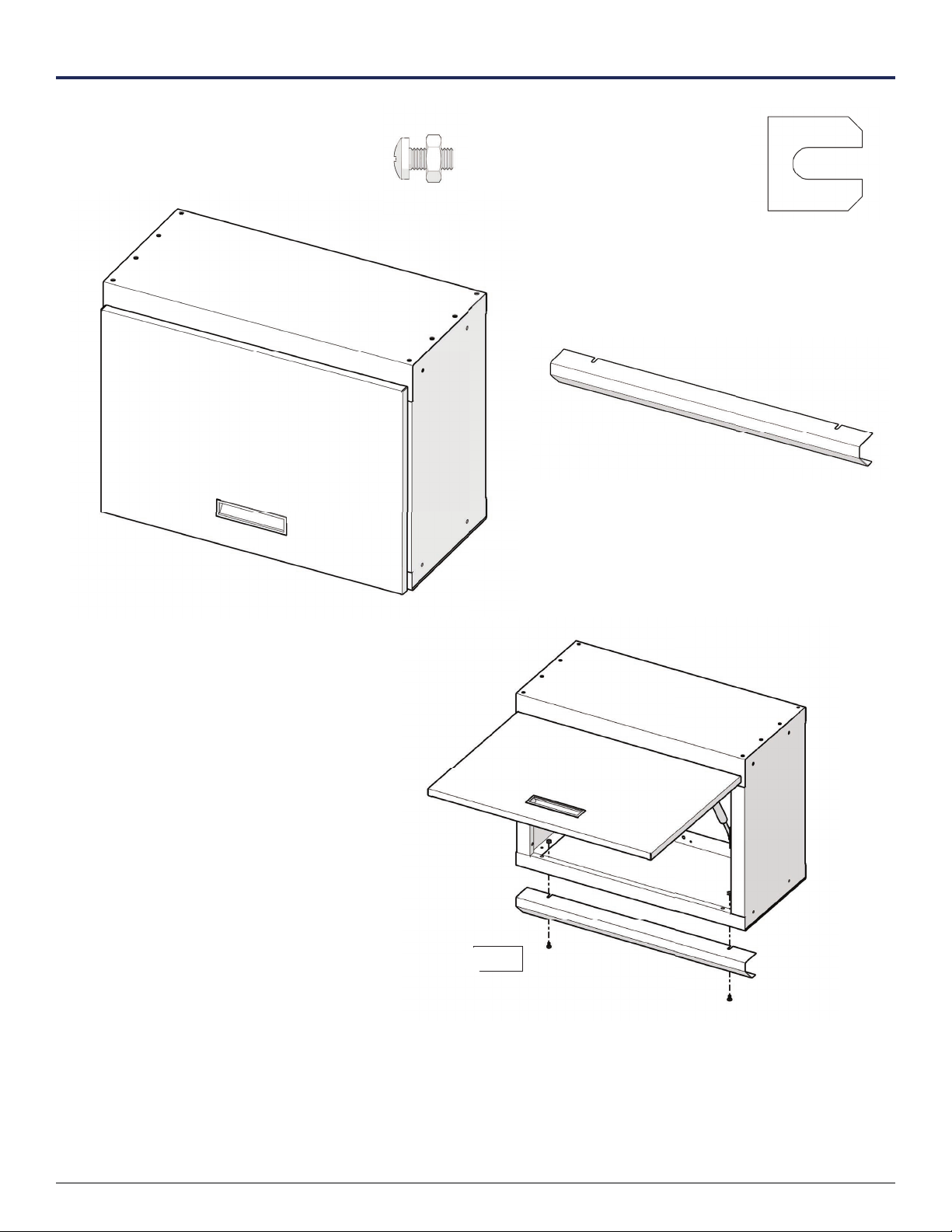

OVERHEAD
Overhead Cabinet (x1)
Light Shield (x1)
10-32 x 3/8” Hex Bolt w/ Nut (x2) Shim (1 sheet of 9)
 

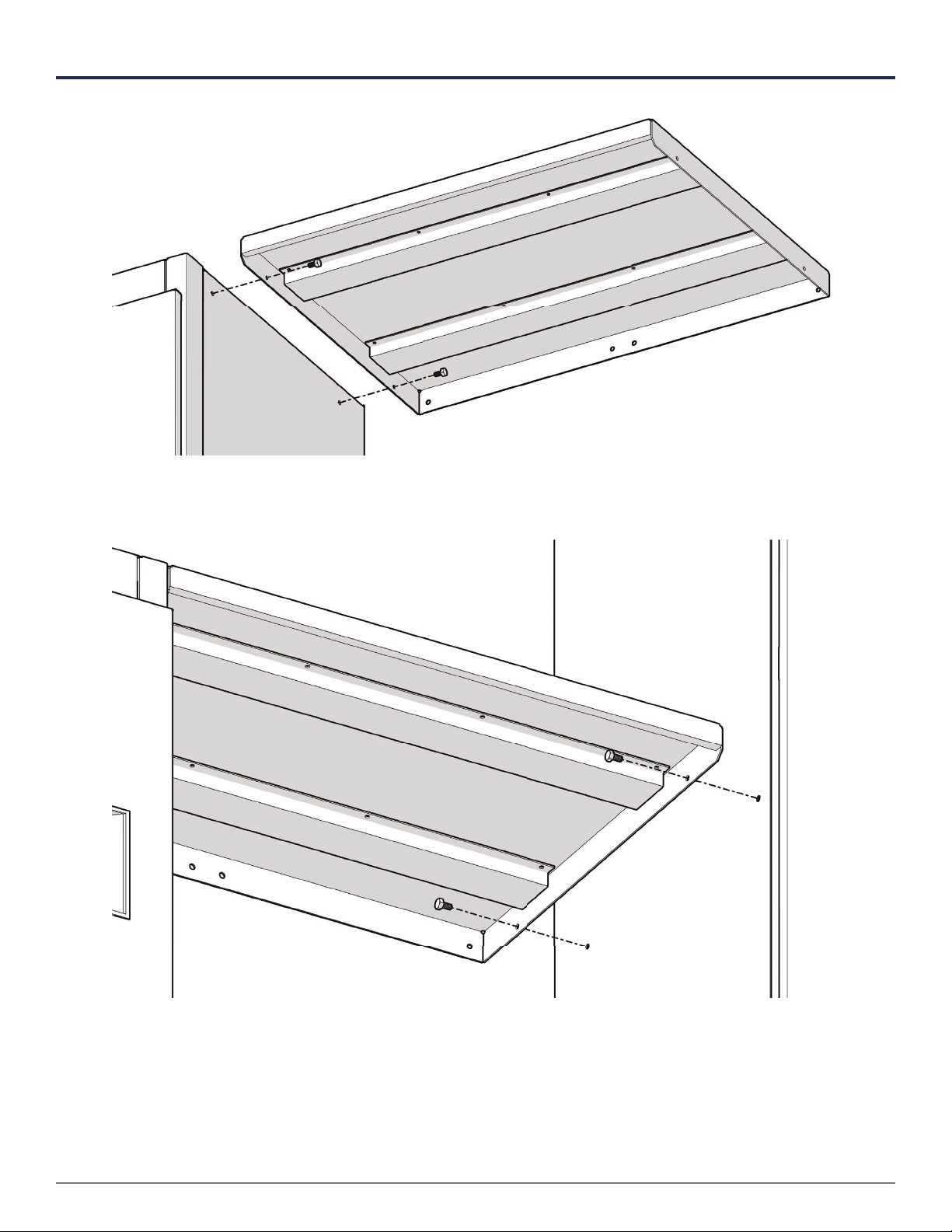

Step 1 Bolt the Light Shield to the bottom of the Overhead cabinet .
 
x2



14 | PageRev C |1/22/20

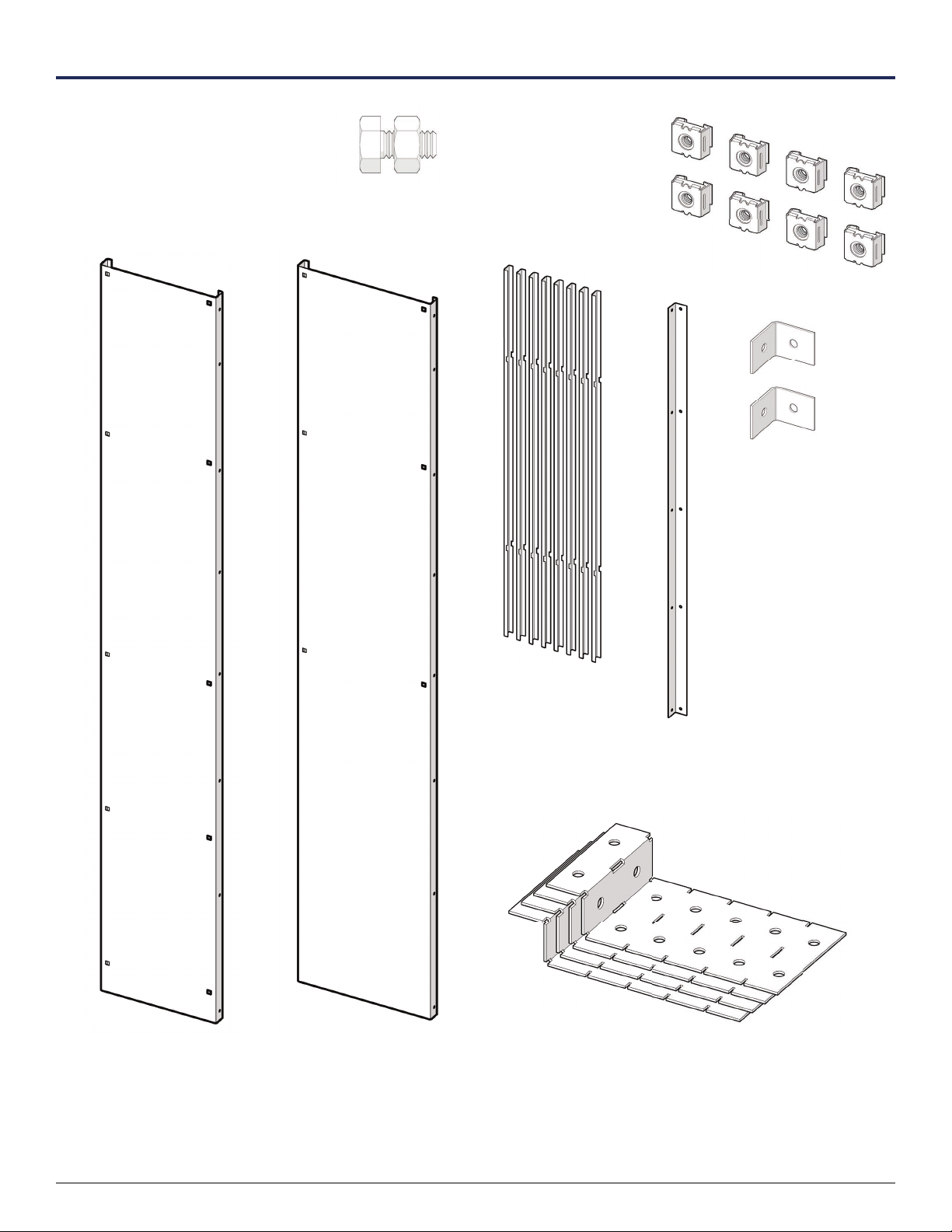

INSTANT WALLS
12" Instant Wall Panel
Stiffener
Long Corner Angle
Short Corner
Angles
Wall Anchor Bracket14" Instant Wall Panel
For Mobile Toolboxes
1/4-20 x 3/4” Hex Bolt w/ Nut
1/4-20 x 3/4” Hex Bolt w/ Nut
1/4-20 Cage Nut 

15 | PageRev C |1/22/20



x16

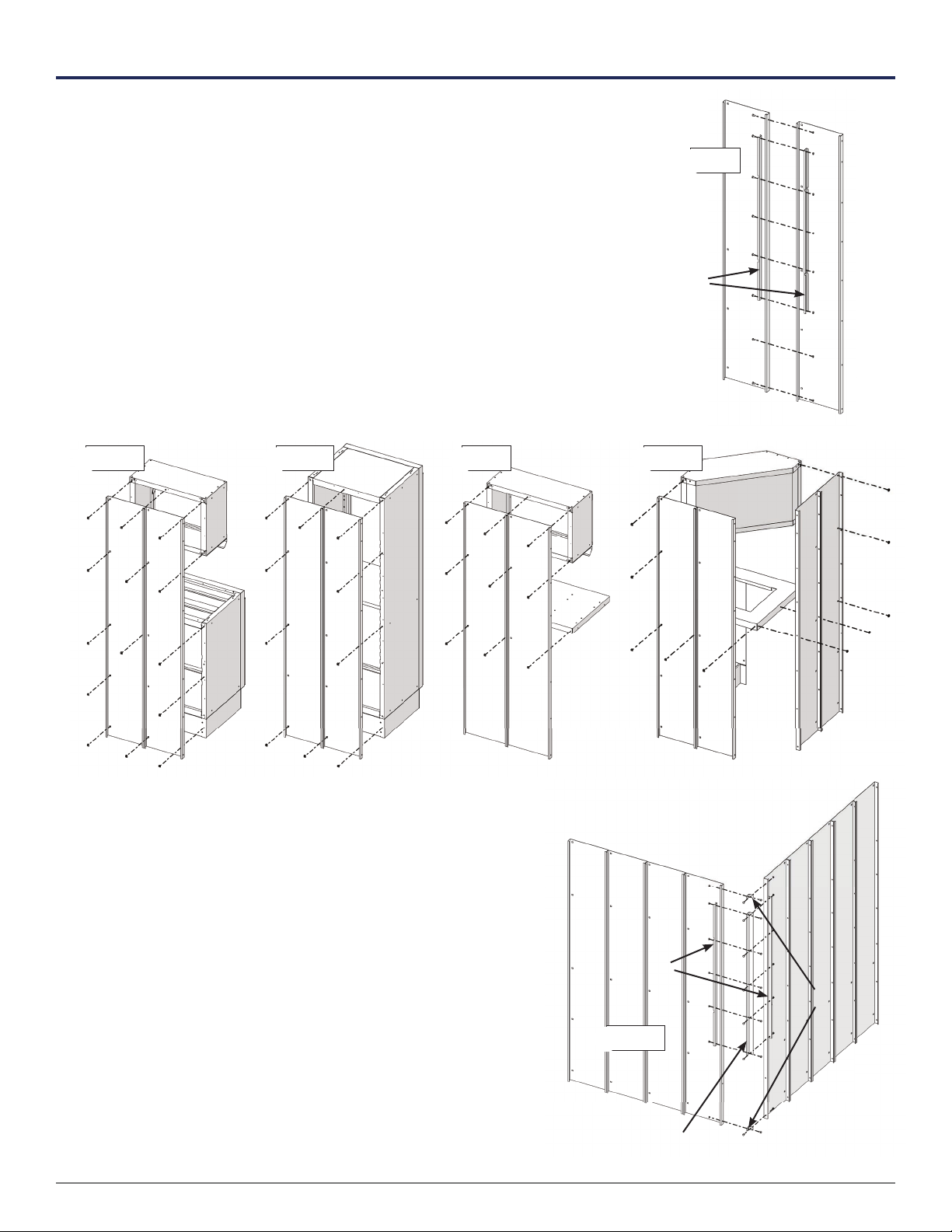

INSTANT WALL
Instant Wall panels come in two sizes: a 12" wide panel that will make
up the majority of your Instant wall, and a 14" wide panel that is only
used with Mobile Toolboxes.

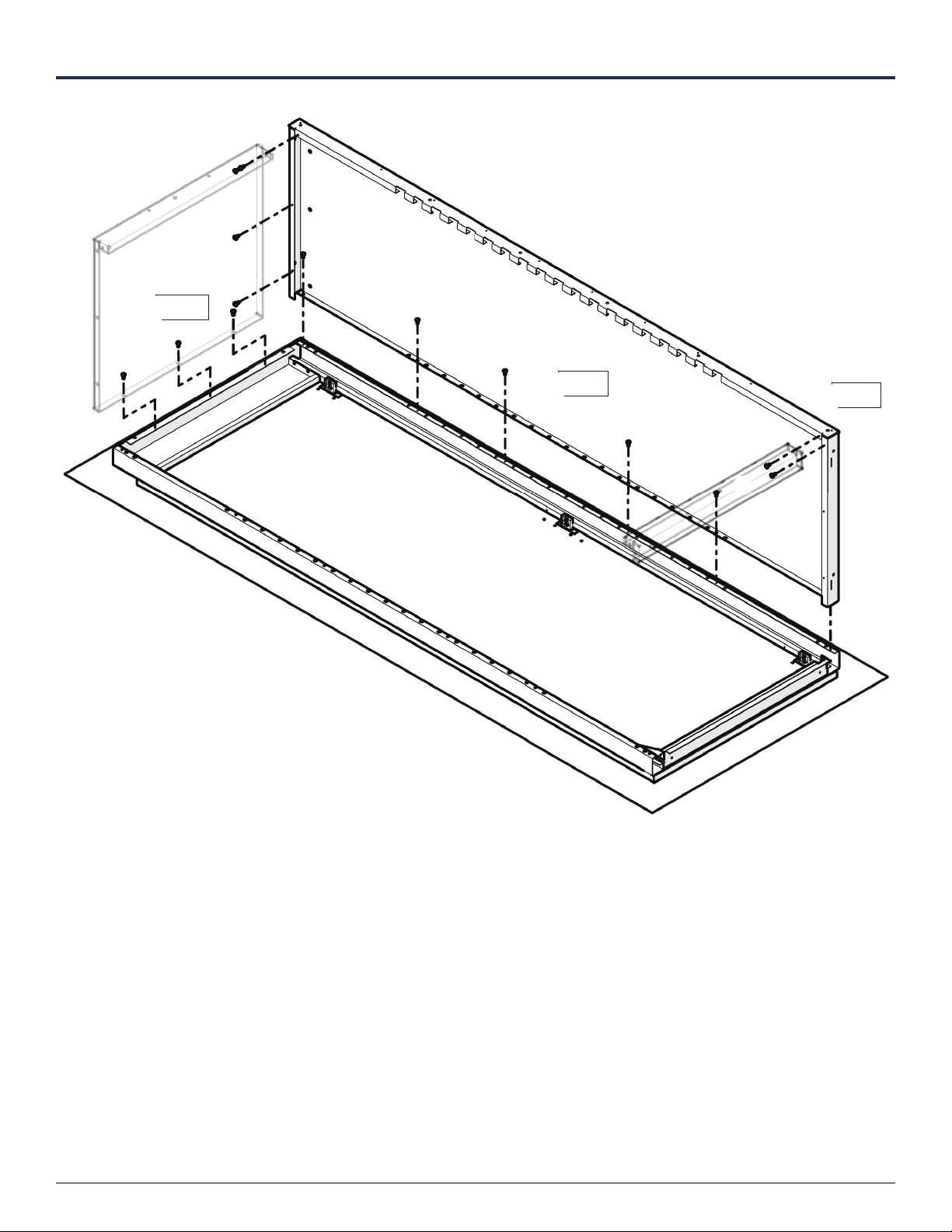

Step 1 Pair off Instant Wall panels of the same size. Bolt them together
with a stiffener on both sides of the joint. Keep the tops of
the panels flush when tightening the bolts.
Step 2 Insert cage nuts in the back of each panel section. Refer
to the diagrams below for the number of nuts and where to
put them for each type of cabinet.
Step 3 Starting at a corner (if you have one), bolt the
panel sections from step 1 together with
stiffeners until the Instant Wall is complete.
Assemble corner joints using two stiffeners,
a long angle , and two short angles .



Closet Mobile Toolbox & 28" Overhead CornerBase Cabinet & Overhead

x14
  
x10 x9 x10
 
x8

16 | PageRev C |1/22/20
Optional adjustable anchor brackets are provided for securing the Select Instant Wall to a wall for
added stability. Anchor brackets can be adjusted, up to 10" long, to accomodate stem walls and
other obstructions that prevent your cabinets from sitting flush against the wall.
Step 1 Each bracket comes with a pre-formed offset end which fits in the wall channel.
Bend the other end to the desired length up to 4". Trim if necessary.
Two brackets can be bolted together for lengths up to 10" .
Step 2 Hook the offset end of the brackets into the Instant Wall panels at an ends of the wall.
Bolt the brackets to the Instant Wall using the top hole in the panel. Secure the
brackets to the wall using appropriate mounting hardware (not provided by Moduline).
You may be able to conceal the anchors by putting them on the second panel in from the ends.
However, access in this area may be limited so installing them this way may be challenging.
ANCHOR BRACKETS

17 | PageRev C |1/22/20

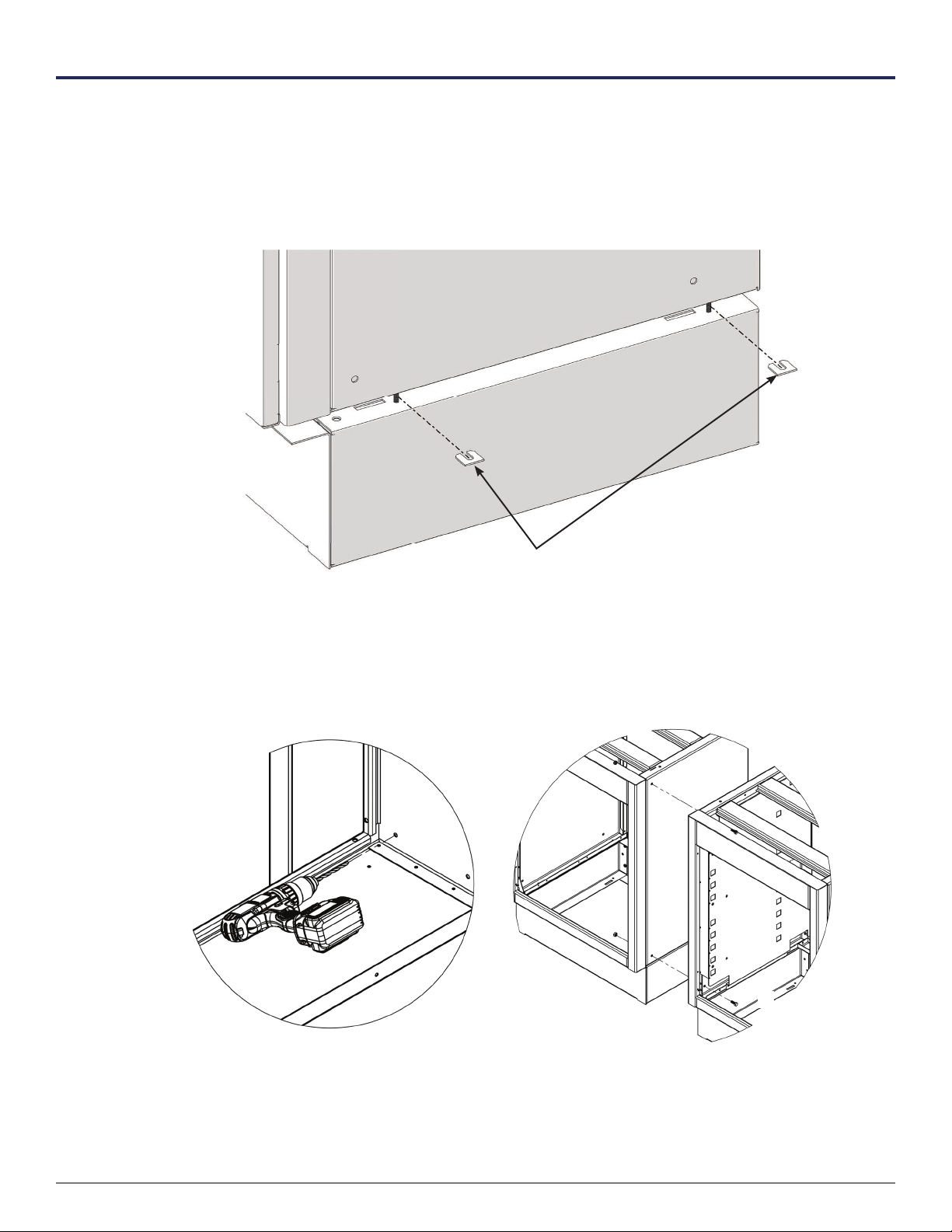

Step 1 Put the first cabinet in place. Loosen the toe kick bolts to adjust the gap between the
toe kick and cabinet sides and insert shims as necessary for leveling. We recommend
that you level each cabinet as you go, but don't tighten the toe kick bolts until all the
cabinets have been installed. Attach the cabinet to the Instant Walls with 1/4-20 bolts,
or to your own walls with appropriate mounting hardware (not provided by Moduline).
Step 2 If the next section is a Countertop Brace see page 18.
If the next section is a Corner Filler see pages 19-21.
Otherwise, put the next cabinet in place and loosely bolt the cabinets together.
To add mounting holes to a closet, drill through the holes in the adjacent cabinet.
Shim as necessary, then tighten the bolts between the cabinets.
Step 3 Repeat steps 1 & 2 until all your cabinet components have been installed.
Step 4 See page 22 for instructions on installing the countertops.
INSTALLING YOUR CABINETS
Shim

Transfering mounting
holes to a closet side
from an overhead

18 | PageRev C |1/22/20
Step 1 Attach Countertop Brace to adjacent bases and/or toolboxes.
Step 2 If adjacent to a closet, use the Countertop Brace as a template to drill
mounting holes in the Closet side. Make sure the Countertop Brace is level
when drilling or marking holes.
COUNTERTOP BRACE



19 | PageRev C |1/22/20

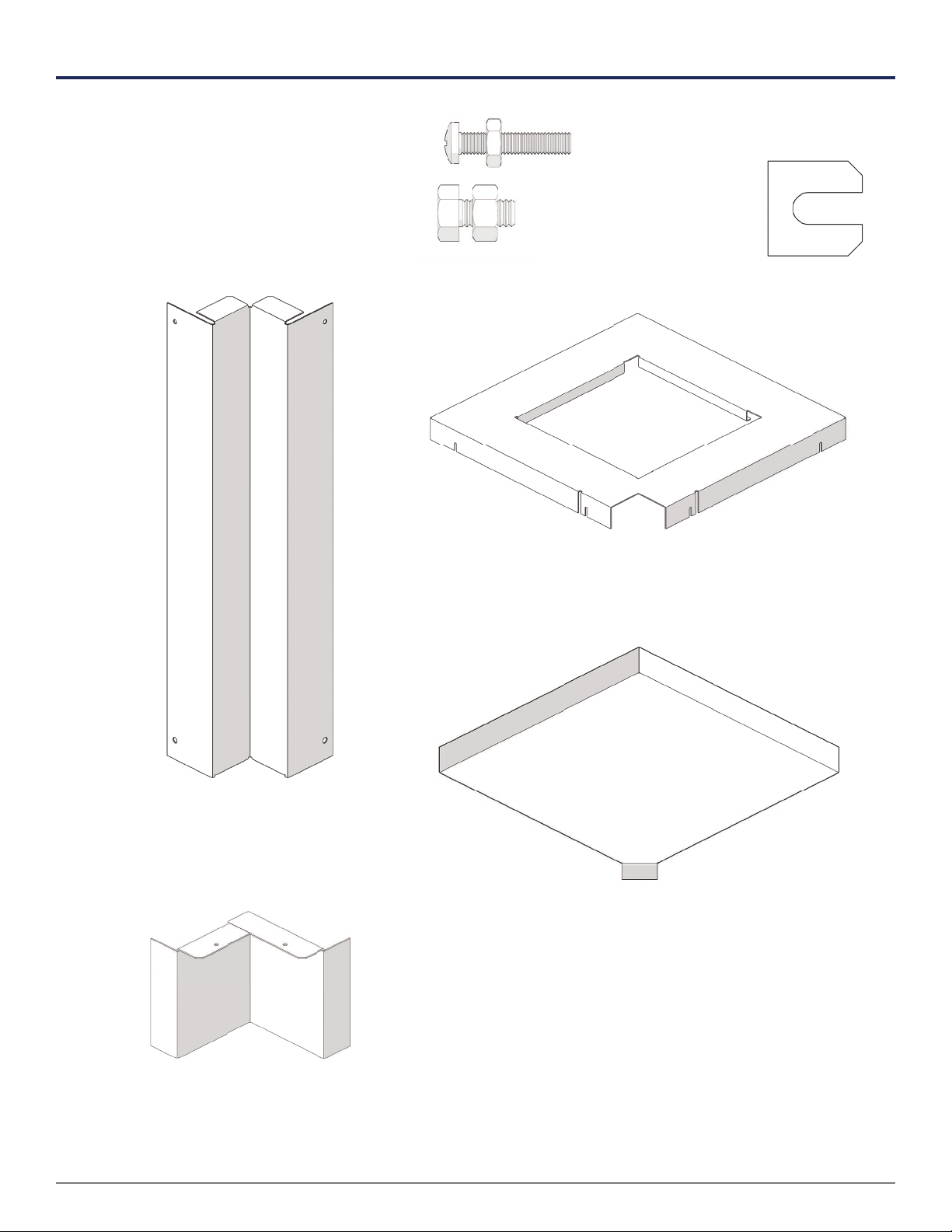

CORNER FILLER
Corner Filler (x1)
Countertop Brace (x1)
Corner Countertop (x1)
Toe Kick Filler (x1)
10-32 x 1” Pan Head Bolt w/ Nut (x2)
1/4-20 x 1/2” Hex Bolt w/ Nut (x6)

Shim (1 sheet of 9)


20 | PageRev C |1/22/20
Step 1 Bolt the Corner Filler and Toe Kick Filler together.
Step 2 Attach the assembled corner filler to adjacent bases and/or toolboxes.
Step 3 Install bolts for the Countertop Brace in the top-rear holes of the sides.
Note: Leave all 1/4-20 bolts loose and tighten them at the end.
CORNER FILLER
x2

x6





