MODUNFUL M2008S User manual

Introduction
Maintenance
Troubleshooting
Instruction Manual
Safety Precautions
Installation Diagram
Hand Dryer
M2008S////////
esuotwoH
Troubleshooting
snoitacificepS
■Thank you for your recent purchase of Modunful product. Please read the enclosed information to ensure the safe use of your product.
You are advised to record the following information to ensure a quick customer service response.
Name of seller(shop or retailer):esahcrupfoetaD
Date : year month day
Tel :
© Wenzhou Mojia Trade Co.ÿLTD All rights reserved. 2020
English
Maintenance
Specifications
Item Description
Hand Dryer (type with high speed top blower)
Directly connect to power supply
70db
Width 250, depth 157, height 250
3.999999999999999999999999999999999999999999999999999999935kg
Between 0 and 42 °C *Set a temperature that prevents condensation
Model name
Model number
Power Rating
Decibel
Heater
Safety device
Dimensions (mm)
Mass
Available set temperature range
M2008S1
AC110 120V50Hz/60Hz
ÿÿÿÿÿNickel chromium heater
Excess current fuse/Temperature fuse (Motor, heater, and power terminal block)
550W
Motor power
Sensing distance
Dry time
Arir speed
120-150mm
5-10s
82m/s
M2008S////////1
How to use

2 3
Safety Precautions
WARNING
REQUESTS
WARNING
CAUTION
The following symbols are used to indicate important safety instructions for the
use of the product.
CAUTION
May result in death or serious injury.
May result in injury or property damage.
Symbols and meanings
Symbol Definition
This symbol indicates a prohibited use the product.
This symbol is used to indicate a requirement in the use of this product.
These precautions are important for safe usage.Be sure to follow them and use
the product correctly.
Always use the specified power supply.
Otherwise, a fire could result.
Do not damage the power line.
Continuous use of a unit with a damaged line could cause
fire, electric shock, or product problems.
Never disassemble, repair or modify the product.
Doing so could cause fire or electric shock.
Do not stub out cigarettes on this product.
Doing so could result in burns on the surface or cause a fire.
Do not cover Air nozzles with a hand or insert any object into
air nozzles.
Doing so could result an electric shock or burn injury.
Do not squirt water on the product when cleaning it.
Doing so could result an electric shock.
Stop using the product immediately in case of abnormality or
product problems.
Continued use of the product could cause fire, electric shock, or injury.
When cleaning, turn off the power switch.
Failure to do so could result in sudden activation of the unit or
electrical shock.
Do not hang anything on the product.
Doing so could drop the product and result in injury.
Use water-resistant material for nearby walls or floor as small water drops
may spread about if a user moves hands violently when drying hands.

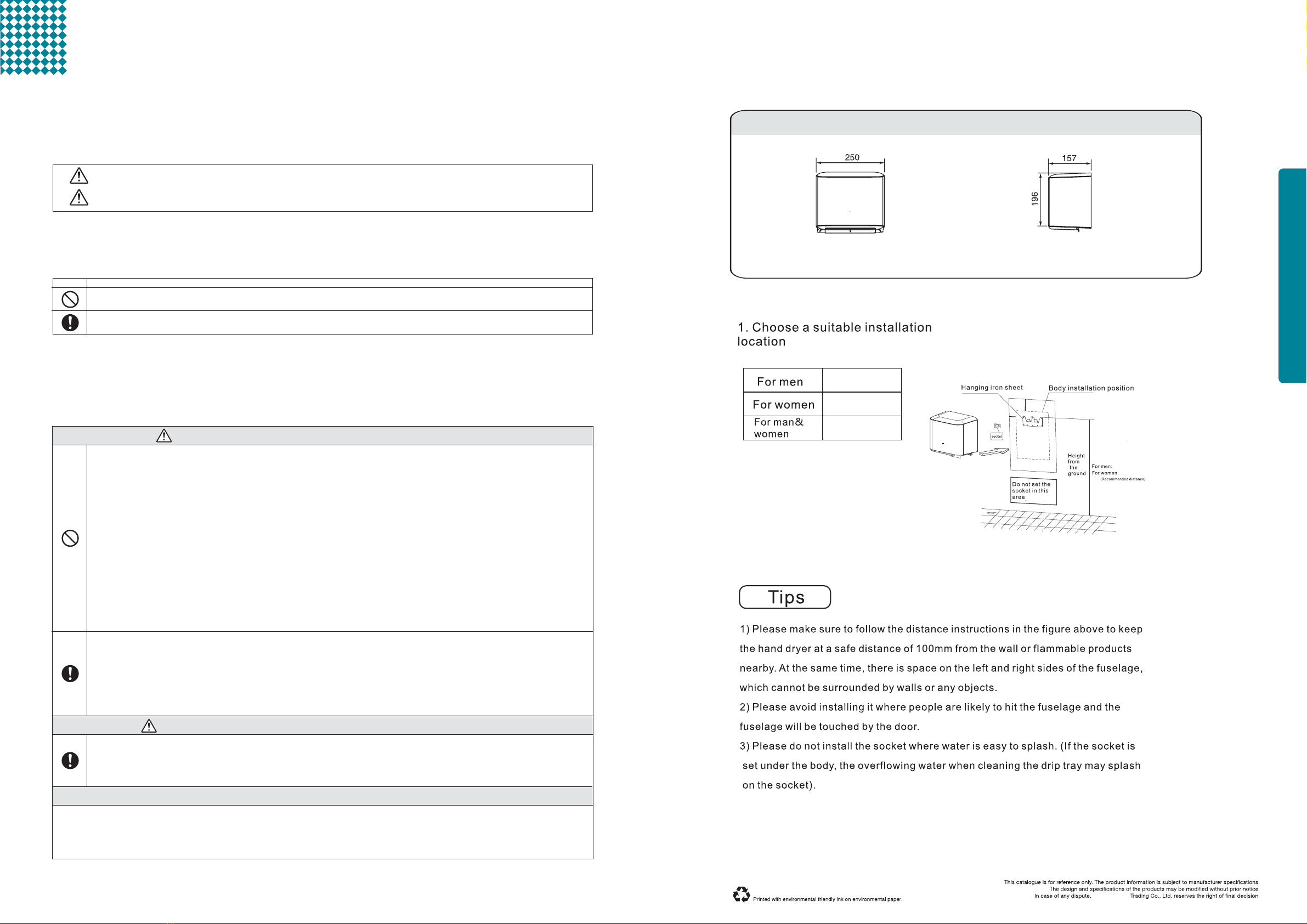

Safety Precautions
Installation
Wenzhou Mojia 10/2020
lateral view
Front view
47.24inch
47 .24inch
43.31inch
43 .31inch
43.31inch
over 3.94inch over 3.94inch
unit: mm

Hanging iron sheet
degree of depth：1.38inch
product body fixing holes
4.96inch
2.72inch
1.81inch
14.57inch
Installation Installation
REQUESTS
WARNING
Do not squirt water on the product when cleaning it.
Doing so could result an electric shock.
When cleaning, turn off the power switch.
Failure to do so could result in sudden activation of the product or electrical shock.
Do not use acid or alkali chemicals, benzine, or thinners.
Doing so could cause cracks.
Do not use cleansers, nylon sponges or dry cloth.
Doing so could make scratches.
Maintenance
4 5

How to use
Repeat
The misuse prevention timer stops operation automatically after approximately 60 seconds of
continuous operation.
In order to continue to use the product, remove hands then start again.
Misuse prevention timer
1. Expand arms straightly with fingers outstretched, then insert hands all the way into the insertion opening
with palms facing down.
2. After dry air starts to blow, pull hands slowly towards the body.
* Putting hands closer to the Air nozzle can dry hands sooner.
* Small water drops may spread around if a user moves hands violently when drying hands.
3. Then, turn hands back, and insert hands all the way into the insertion opening again with palms up,
then pull hands slowly toward the body.
4. Then wring hands to finish.
Troubleshooting
76
Please read this section to troubleshoot any problem before requesting repair services.
Trouble Solutions
If the problem still persists after performing suggested actions, turn off the power switch and set the breaker to "Off."
No dry air blown when hands put in.
Dryer not stopped when hands removed
No warm air blows
The air volume is weak
●Power Switch might be set to OFF.
→If so, set Power Switch to ON.
●Has the Circuit Breaker ON been tripped?
→If it is OFF, please reset it.
●Is the sensor dirty?
→If the sensor is not clean, wipe it with a soft damp cloth.
●Heater Power Switch might be set to OFF.
→If so, set Heater Power Switch to ON.
●Has Filter accumulated dust or debris?
→Clean Filter if there is an accumulation of dust or debris
●Is the sensor dirty?
→If the sensor is not clean, wipe it with a soft damp cloth.
