Moen io VESTIGE T9321 series User manual

5-1/2"
( 139 mm )
3" ( 76 mm ) MAX
ROUGH - IN DECK
THICKNESS
8-1/8"
( 206 mm )
MOUNT THRU
1-3/8" ( 35 mm ) HOLE
7
6-5/8"
( 168 mm )
1
4-3/8"
( 111 mm )
1-1/2"
(38 mm )
15/16"
(24 mm )
2-3/8"
( 60 mm )
9"
(228 mm )
D
MIN.
5-1/2"
( 139 mm )
3" ( 76 mm ) MAX
ROUGH - IN DECK
THICKNESS
8-1/8"
( 206 mm )
MOUNT THRU
1-3/8" ( 35 mm ) HOLE
7-5/16"
( 186 mm )
2-3/4"
( 70 mm )
6-5/8"
( 168 mm )
1-13/16"
( 46 mm )
4-3/8"
( 111 mm )
1-1/2"
(38 mm )
15/16"
(24 mm )
2-3/8"
( 60 mm )
9"
( 228 mm )
DATA CABLE ( 30' ) ( 9.2 m )
MIN.
io™VESTIGE™
Digital Roman Tub Trim Only
Models: T9321 series
Valve: 4994 (Sold separately)
Spout Shank: 4998 (Sold separately)
OptionalRemote: A349 series
(Sold separately)
Controller: T3490 series (Sold separately)

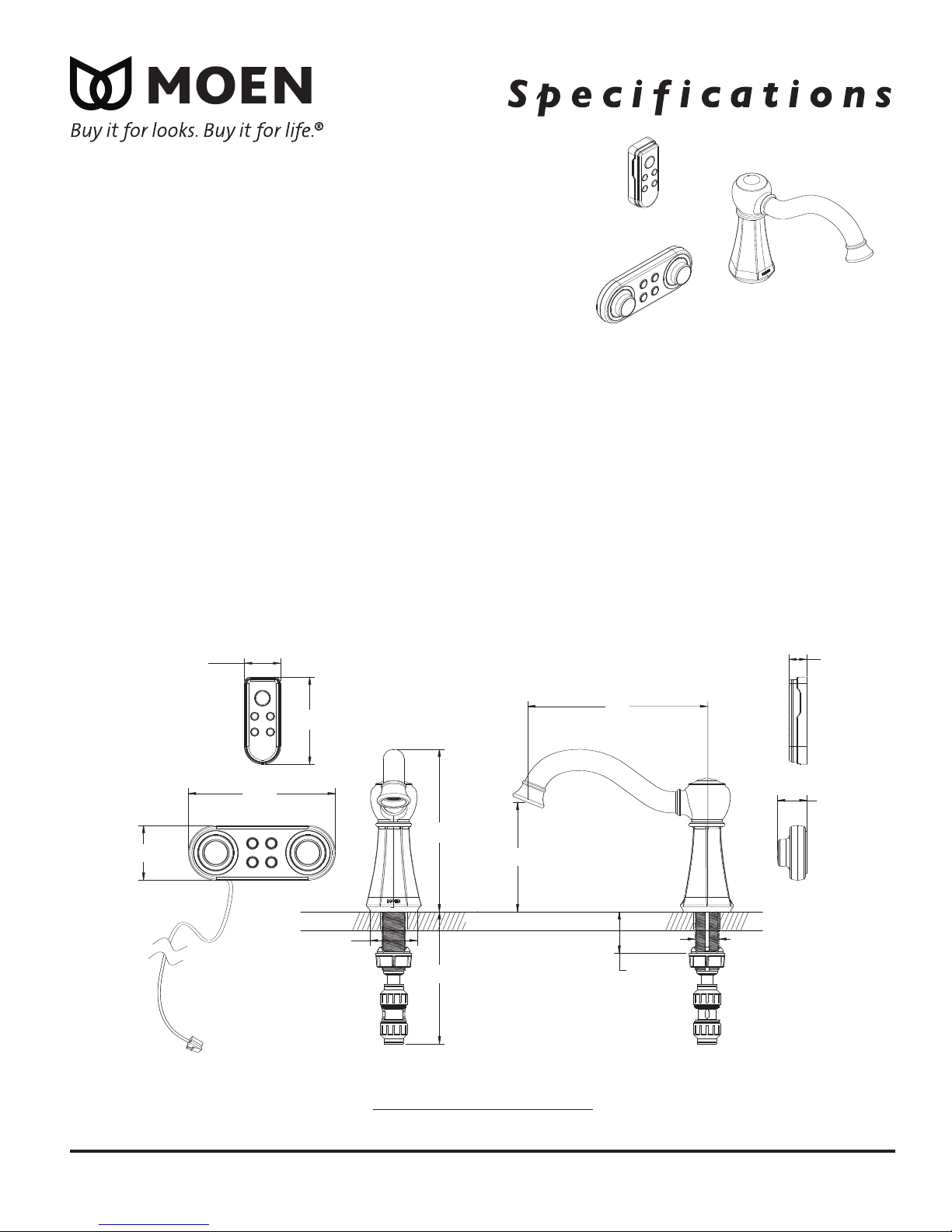

CRITICAL DIMENSIONS
(DO NOT SCALE)
TO ORDER PARTS CALL: 1-800-BUY-MOEN
www.moen.com
NOTE: THE INSTALLATION SHOWN IS FOR TILE DECKS, THIS VALVE WILL ALSO FIT STEEL, CAST IRON OR PLASTIC DECKS
DESCRIPTION
•Metal construction with various finishes identified by suffix
•Use with io Digital valve 4994 and spout shank 4998
OPERATION
•Digital Thermostatic control
•Digital control dial controls temperature with LED indicators
•Digital control dial controls the flow rate with LED indicators
•Digital on/off button
•Digital safety lock
• 3 digital presets for custom water level and temperature control
•Hot top off (optional remote required for this function)
•Temperature range adjustment from 60 degrees F to 120 degrees F (16
degrees C to 49 degrees C). Factory maximum setting is 115 degrees
(46 degrees C)
•Remote (optional) uses RF technology and has a 30’ (9.2m) range
depending on intermediary structures
STANDARDS
•Third party certified to meet ASME A112.18.1/CSA B-125.1, CSA B125.3,
ASSE1070 and all applicable requirements referenced therein
•Digital controller third party certified to meet UL1951
•Digital controller and Remote control third party certified to meet FCC
part 15
WARRANTY
•Lifetime limited warrantyagainst finish defects to the original consumer
purchaser. 5 year warranty against finish defects in commercial
installations
• 5 year warranty against leaks, drips and operation defects
to the original consumer purchaser
• 1 year warranty against leaks, drips and operation defects if used in
commercial installations
Rev. 2/09
