Moen UF1130 User manual

INS10903A - 10/27
Adjustable Pliers Adjustable Wrench Flathead Screwdriver Phillips Screwdriver
Safety Glasses Sealant Thread Seal TapeTape Measure
MOEN
400-630-8866
www.moen.cn
PLEASE CONTACT MOEN FIRST
For Installation Help, Missing or Replacement
Parts
(China) 400-630-8866
www.moen.cn
HELPFUL TOOLS
For safety and ease of replacement, Moen rec-
ommends the use of these helpful tools.
Adjustable Pliers
Safety Glasses
Adjustable Wrench
Sealant
Phillips Screwdriver
Thread Seal Tape
Flathead Screwdriver
Tape Measure
MOEN UF1130
MOEN UF1030
Ultrafiltration Water Purifier
INSTALLATION INSTRUCTIONS
Record Purchased Model Number:
(Save instruction sheet for future reference)
Image is for reference only
(Style varies by model)
UF1030 UF1130

2

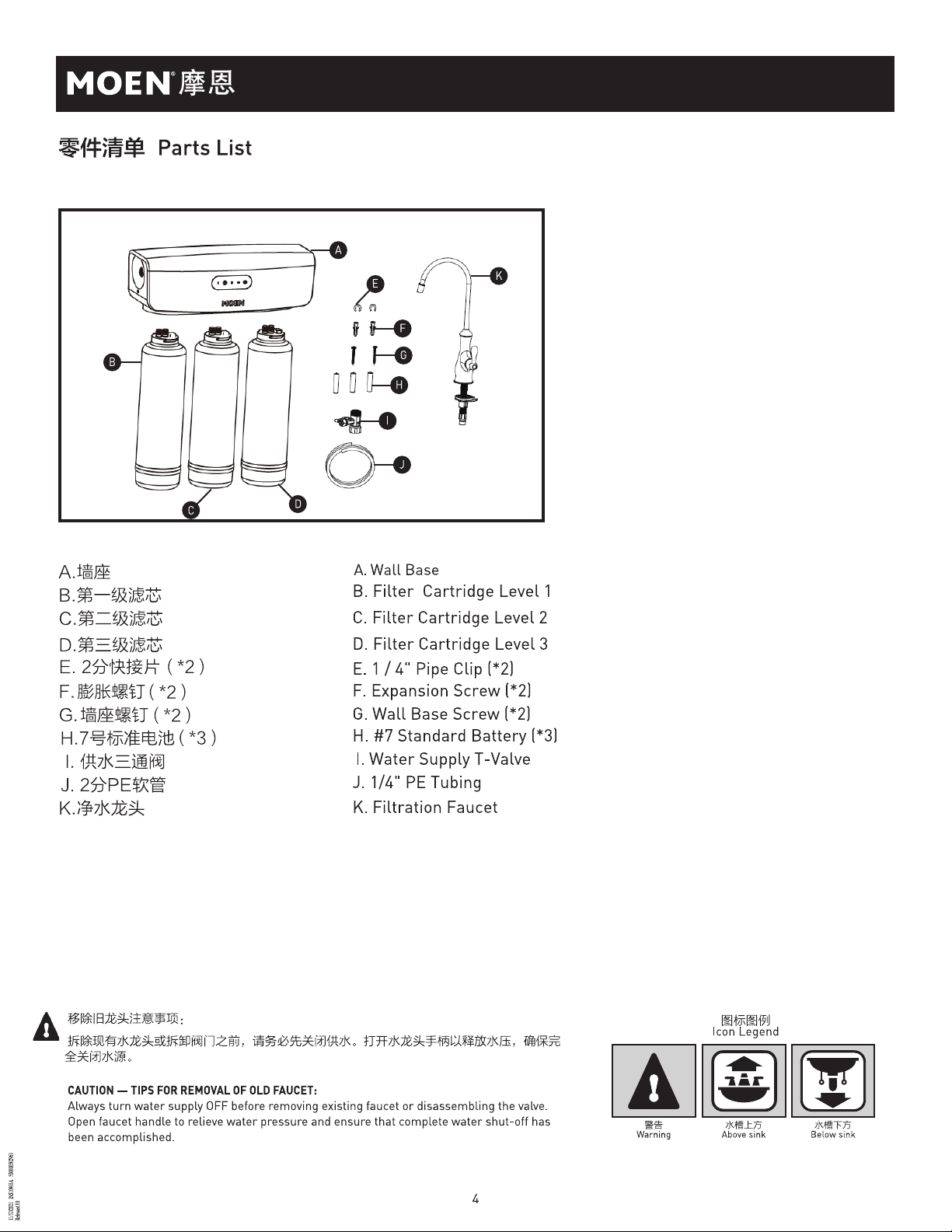

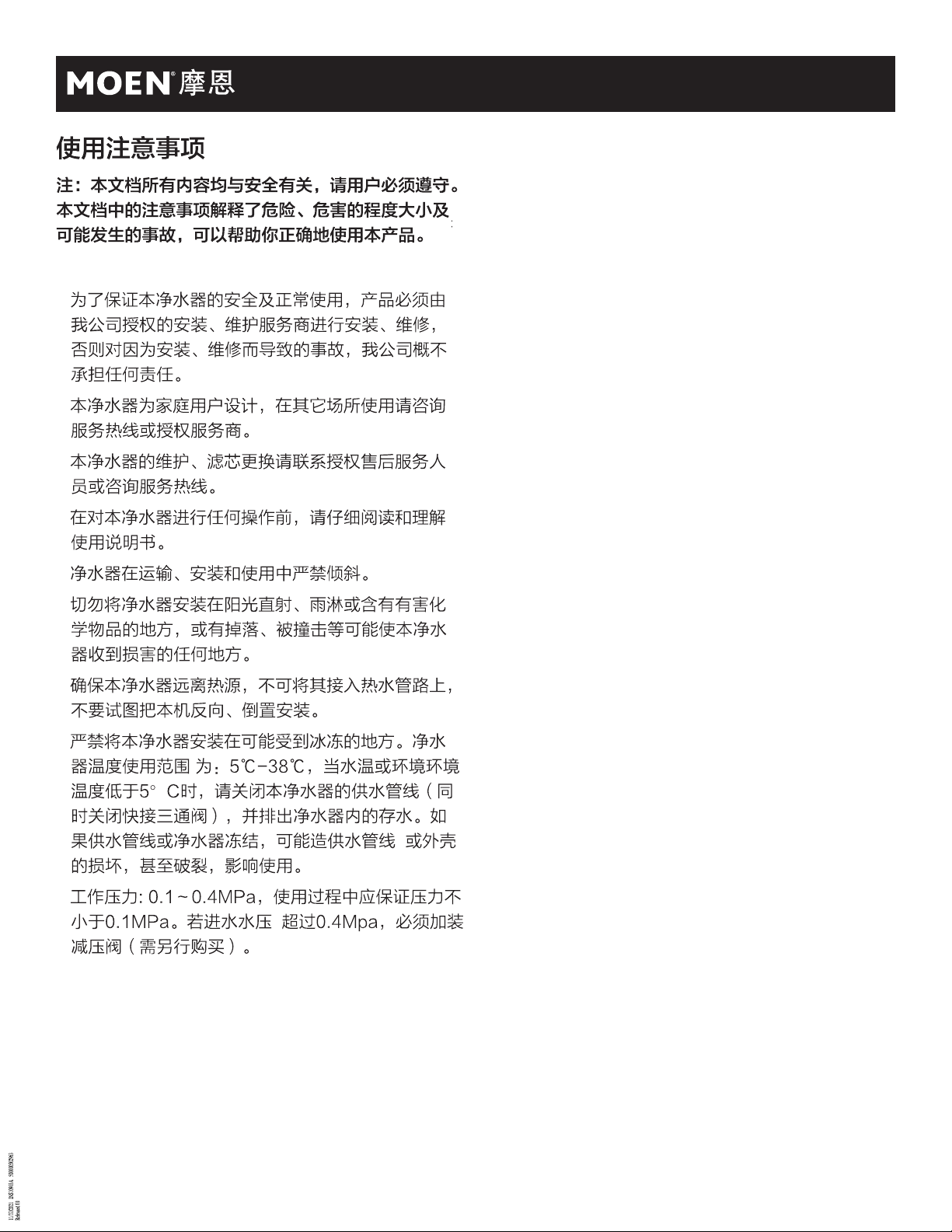

Important Consideration
• In order to ensure the safety and normal use of the
water purifier, the product must be installed and
repaired by the installation and maintenance
service provider authorized by our company.
Otherwise, our company will not bear any
responsibility for the accidents caused by the
installation and maintenance
• This water purifier is designed for household users.
For use in other places, please consult the service
hotline or authorized service provider.
• For the maintenance and filter element
replacement of the water purifier, please contact
the authorized after-sales service personnel or the
consulting service hotline.
• Please read and understand the instructions
carefully before any operation.
• It is forbidden to tilt the water purifier during
transportation, installation and use.
• Do not install the water purifier in direct sunlight,
rain or near harmful chemicals, or any place
where the water purifier may be damaged due to
falling or being hit.
• Make sure that the water purifier is far away from
any heat source. Do not connect it to a hot water
pipeline, and do not try to install the water purifier
upside down.
• It is strictly forbidden to install the water purifier
in a place that may be frozen. The temperature
range of the water purifier is 5 ℃- 38 ℃. When the
water temperature or environmental temperature
is lower than 5 ° C, please close the water supply
pipeline of the water purifier (close the water
supply T-valve at the same time) and drain the
water in the purifier. If the water supply pipeline or
water purifier freezes, it may cause damage to the
water supply pipeline or shell, or even rupture,
affecting the use.
• Working pressure: 0.1 ~ 0.4MPa. The pressure
should not be less than 0.1MPa during use. If the
inlet water pressure exceeds 0.4MPa, a pressure
reducing valve (need to be purchased separately)
must be installed.
•
•
•
•
•
•
•
•
•
Note: All the contents of this document are related
to safety, and users must abide by it. The
precautions in this document explain the danger,
the degree of hazard, and the accidents that can
occur if product is used incorrectly.

3
• If the water purifier is not used for more than 3
days, it needs to be washed before it is used again.
Do not take water for drinking during the washing
process.
• To ensure effluent quality, the filter element should
be replaced in time. The service life of filter
elements at all levels should be changed by
professionals according to the local water quality
and user requirements.
• Regularly check the water purifier and water pipe
fittings to see if there is leakage, to avoid the loss
of property caused by leakage
• The water purifier is required to use municipal tap
water conforming to GB5749.
• Please do not use this product under the following
conditions, and immediately contact the after-sales
service personnel for testing, maintenance, and
adjustment:
a. The water purifier is damaged.
b. The water supply pipeline or water purifier is
leaking.
• Do not disassemble or refit the water purifier
without authorization, otherwise it may cause
failure or water leakage, causing property loss.
Any failure caused by improper use will not be
covered by the warranty.
• Clean the machine with water. Do not use steel
balls, abrasive cleaners, or corrosive liquids (such
as gasoline or acetone) to clean the water purifier.
When cleaning, do not pour other liquid into the
filter element to avoid damage to the filter system.
• When the water purifier works, the water inlet
and outlet pipes shall be smooth.
•
•
•
•
•
•
•
•

Product Outline and Specification
The water purifier is installed under the countertop
near the sink in he kitchen, includes three level
Filter Cartridges, and is connected with the cold
water pipe in the home through the Water Supply
T-Valve：
Municipal tap water-> Filter Catridge Level 1 ->
Filter Catridge Level 2-> Filter Catridge Level 3 ->
purified water
Product Functions
Product Scenario
•
•
• Applicable place: Home
• Inlet Water Requirement: Municipal tap water,
comrly with GB5749
Water Treatment Process

6
INS10903A
Filter Components
Filter Catridge Level 1
Remove Sediment, Rust and other large particles, Chlor
Remove color, odor, chlorine, humic substances and V
in water.
Remove bacteria, colloids and other harmful substances
water, while retaining minerals and trace elements
beneficial to human body.

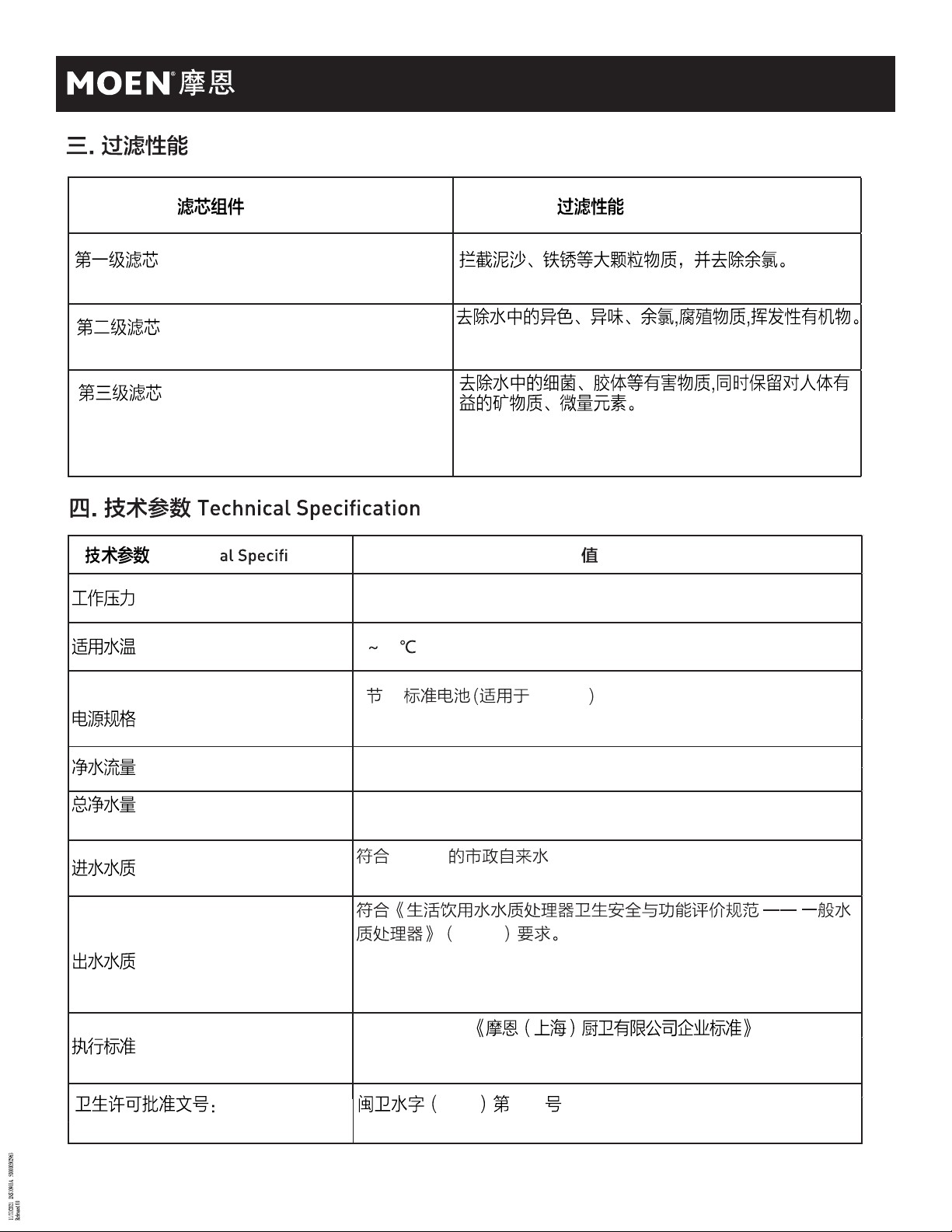

Filter Performance
ine.
OC
in
Filtering Performance
Working Pressure 0.1 ~ 0.4 MPa
Applicable Temperature 5 38
3 7# UF1130
Three 7 # standard batteries (for UF1130)
Flow rate 1.5L/min
MOH Certificated System
Capacity
2500L
Inlet Water Quality GB5749
Comply with Municipal Tap Water
Outlet Water Quality
2001
Meet the requirements of 《Sanitary Standard for Hygienic Safety
and Function Evaluation on Treatment Devices of Drinking
Water - general water quality processors》(2001).
Product Standard
Power supply specification
Q/MESN 8-20
Q/MESN 8-2021 Corporate Standards of Moen (Shanghai) Kitchen &
Bath Co., Ltd.
Fujian Drinking Water Safety (2018) No. 0055
Technic cation Value
Filter Catridge Level 2
Filter Catridge Level 3
21
2018 0055
Approval number of hygiene license:

7
1. Professional installer shall prepare installation tools
and necessary qualified inspection instruments. See "
recommended tools" on the home page for details.
2. Check whether the water purifier is in good condition
and whether the attached documents and accessories
are complete.
3. Read the operation manual carefully to understand
the function, use, installation requirements and
installation methods of the ultrafiltration water
purifier to be installed
4. Incoming water quality reach require from GB5749
Municipal tap water regulation
5. Use a pressure gauge to check the water pressure of
the water pipe. The water inlet pressure should be
within the range of 0.1 ~ 0.4MPa. If it is lower or higher
than this range, a booster pump or pressure reducing
valve should be installed.
6. Assist the user to select the installation location of
ultrafiltration water purifier.
or have strong corrosive gas environment.
rain.
Installation Instructions
Installation Preparations
7.Close first water valve before installation.
Electrical Principle (Applicable to UF1130)
to leave a certain space for future repair,
maintenance and replacement of the filter element.
not be less than 4-times the total mass of the
water purifier after being filled with water.
Controller
3.3VDC
-4.5VDC
LED
Reset

8
Install Filtration
1 2
Remove the rubber plug from the filter catridge.
Align the inlet and outlet holes of the filter catridge
with the holes in the Wall Base, and screw the needle
to the end. The hole of Wall Base is shown in right
figure.
Connect with water supply T-valve.
3 4
Connect with faucet. Install the battery in the back of the Wall Base, see
next page.
19mm
Insert depth of PE pipe: 19mm
Installation Procedure

Select a suitable flat installation position on the sink
or table, drill an installation hole with a diameter of
14-20 mm, and install the water tap according to the
figure below.
9
Install Filtration Faucet
Front of display
Open the cover of the battery box on the
back and install three #7 standard batteries.
During installation, the inlet and outlet holes
of the filter element shall be aligned with the
two holes of the wall base.
PE 19mm
The insertion depth of PE pipe :19mm
The figure below shows the installation of battery.
During installation, the inlet and outlet holes
of the filter catridge should be aligned with
the two holes of the wall base.
Open the cover of the battery box on the back
and install three #7 standard batteries.

10

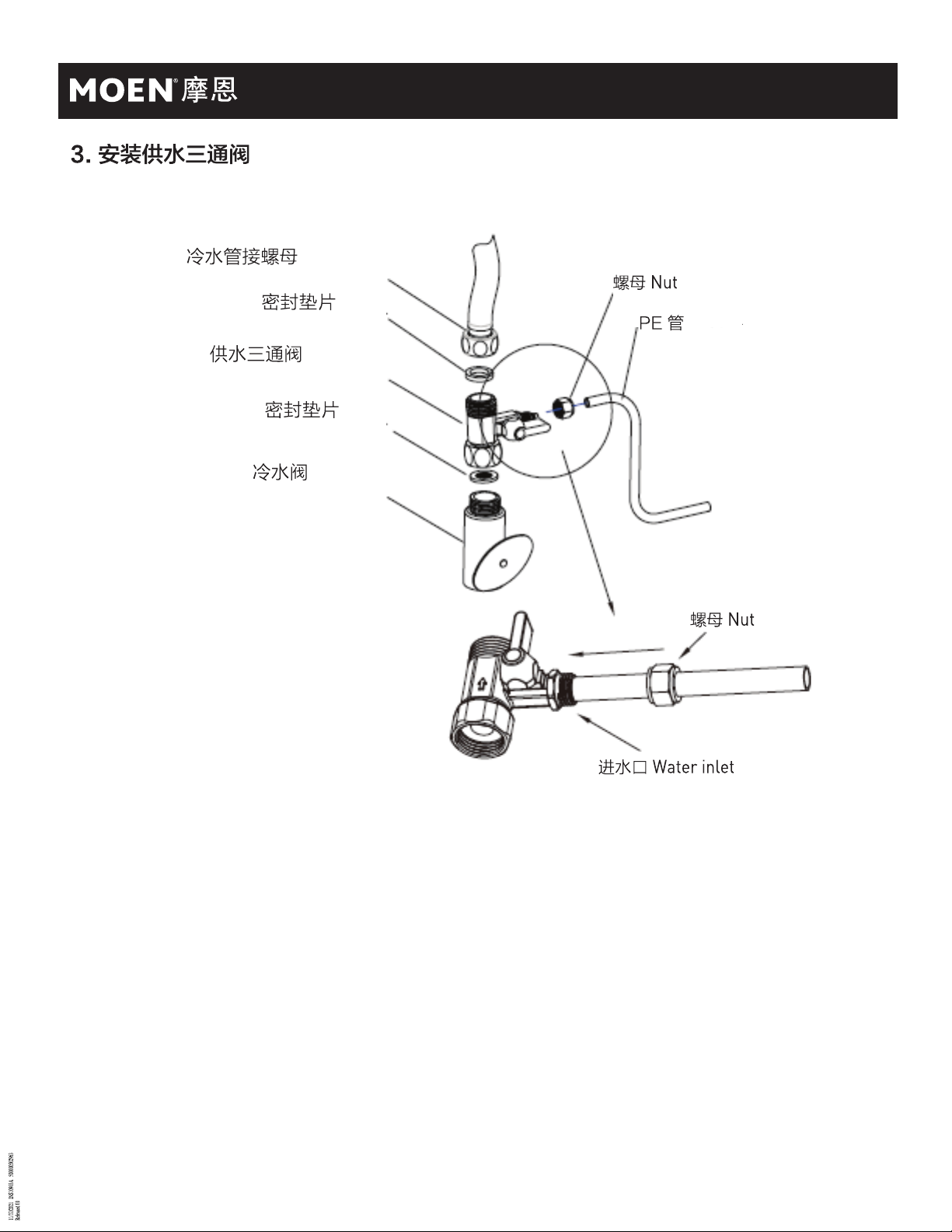

Install Water Supply Adapter
Cold water coupling nut
Sealing gasket
Water supply T-valve
Sealing gasket
Cold water valve
PE pipe

11
According to the distance between the wall hole on the
back of the wall base, drive in the expansion screw.
Lock the screw into the wall base, and hang the water
purifier on the wall base screw.
Note: The installation can be adjusted according to the
actual situation. Water purifier can also be used without
hanging on the wall.
Wall
Wall base
Expansion screw
Wall base screw
Cold water valve
Install Water Purifier to Wall
Finish Installation

INS10903A
12

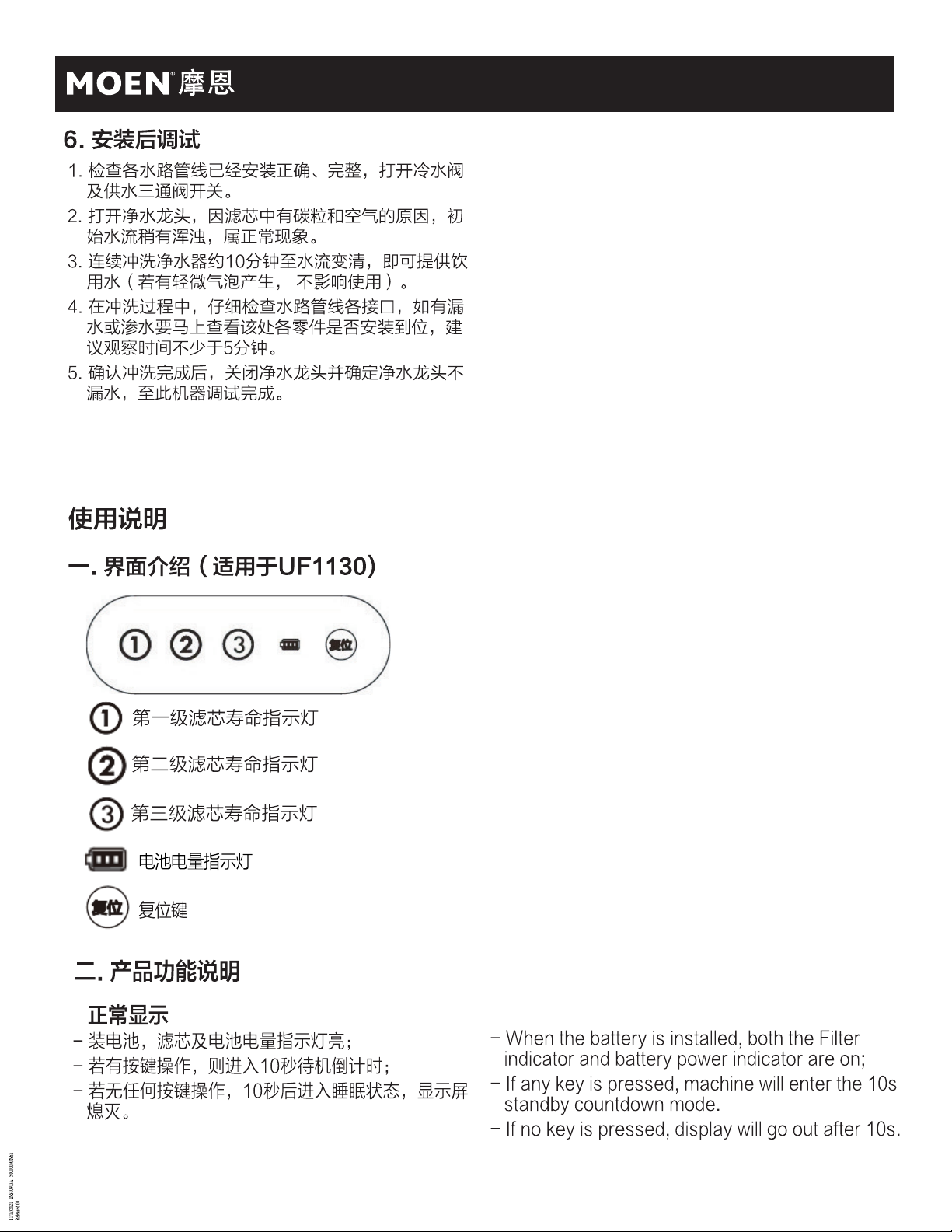

Wash Test after Installation
1. Check that all water pipelines have been installed
correctly and completely, and open the cold water
valve and water supply T-valve.
2. Turn on the tap to remove carbon particles
and air in the filter. The initial water flow is slightly
turbid, which is a normal phenomenon.
3. Flush the water purifier for about 10 minutes until
the water flow becomes clear. Drinking water can
be produced. If there are slight bubbles, the use
will not be affected.
4. During flushing, check the joints of water pipeline
for leaks to ensure the parts are installed in place.
The observation time should be at least 5 minutes.
5. After flushing, turn off the clean water tap and
make sure there is no leak.
Now, the test is complete.
Usage Instructions
Menu Introduction (for UF1130)
Battery power indicator
Reset
Lifetime indicator for the Filter Cartridge Level 1
Lifetime indicator for the Filter Cartridge Level 2
Lifetime indicator for the Filter Cartridge Level 3
Functions Description
• • Normal Display

13
- All display indicators are off.
- Press the "reset" button or there is water supply,
enter the Normal Display mode.
Turn on the water tap, and the display will be
on for 10 seconds and then goes out.
-Power indicator is green: Battery power is sufficient.
- Power indicator is red and flashes: Alarm for low battery
power, and the buzzer rings once every 3s for 3 times to
remind battery replacement.
: h p s s s
pp s .
In standby mode, the display will go out, press the "reset"
key to turn the display on, and press "reset" for 3s to enter
the setting mode.
The icon of Filter Cartridge Level 1 flashes, at this time, if
you press “reset” button for less than 3s, the machine will
turn to Filter Cartridge Level 2 ; If you press “reset” for 3s,
the lifetime of this Filter Cartridge is reset. After the reset
is successful, the buzzer will sound long one time, and the
filter indicator will be green. If it turns to Filter Cartridge
Level 3 , press "reset" for less than 3s again to exit the
setting mode.
Remaining usage days Remark
Green
Yellow
Red
＞15
0＜X≤15
≤0
/
/
When taking water, the buzzer will sound for
one second, with an interval of 0.5 seconds,
the buzzer will sound 5 times.
m
Indicator Color

INS10903A
14
Precautions for Daily Use
• Regularly check the water purifier and water
pipeline for leaks.
• If the water purifier will not be used for a long time,
disconnect the water source by closing the Water
Supply T-valve. If it will be more than one week,
remove the filter catridges, seal them and place in
the fresh grid (not cold grid) of refrigerator. When it
is used again, turn on the water tap and let water
run for 10 minutes.
• Allow tap to be run for 5s to 10s each time it is used.
• If it is not used for more than 3 days, turn on the tap
and let water run for 10 minutes.
• In the following cases, close the water supply T-valve
to shut off the water source, and contact the service
provider:
- Leakage from pipes or water purifier parts
- Any other abnormal conditions or faults.
•
•
•
•
•
FC140
FC160
FC120
6-12
6-12
12-24
Filter Cartridge Model and Replacement Cycle
When the service life of the filter cartridge is normal,
the indicator is green. When the service life of the
filter cartridge is about to end, the indicator flashes
in yellow which advice you to replace the cartridge.
When its service life is over, the indicator is red, and
the buzzer goes off 5 times (sounding for 1s each time
and then waiting for 0.5s), which advice you to replace
the filter cartridge immediately.
Note: Ensure to be power off before replacing the
filter catridge.
Replace Filter Cartridge
When you replace the filter cartridge, make sure the
replacement is an original Moen component, because
using a third-party one may impact drinking water
safety. If you encounter any issues in the process,
contact customer service.
Filter Name Filter Model Recommended Replacement Cycle
Filter Catridge Level 1
Filter Catridge Level 2
Filter Catridge Level 3
6-12 months
12-24 months
6-12 months

15

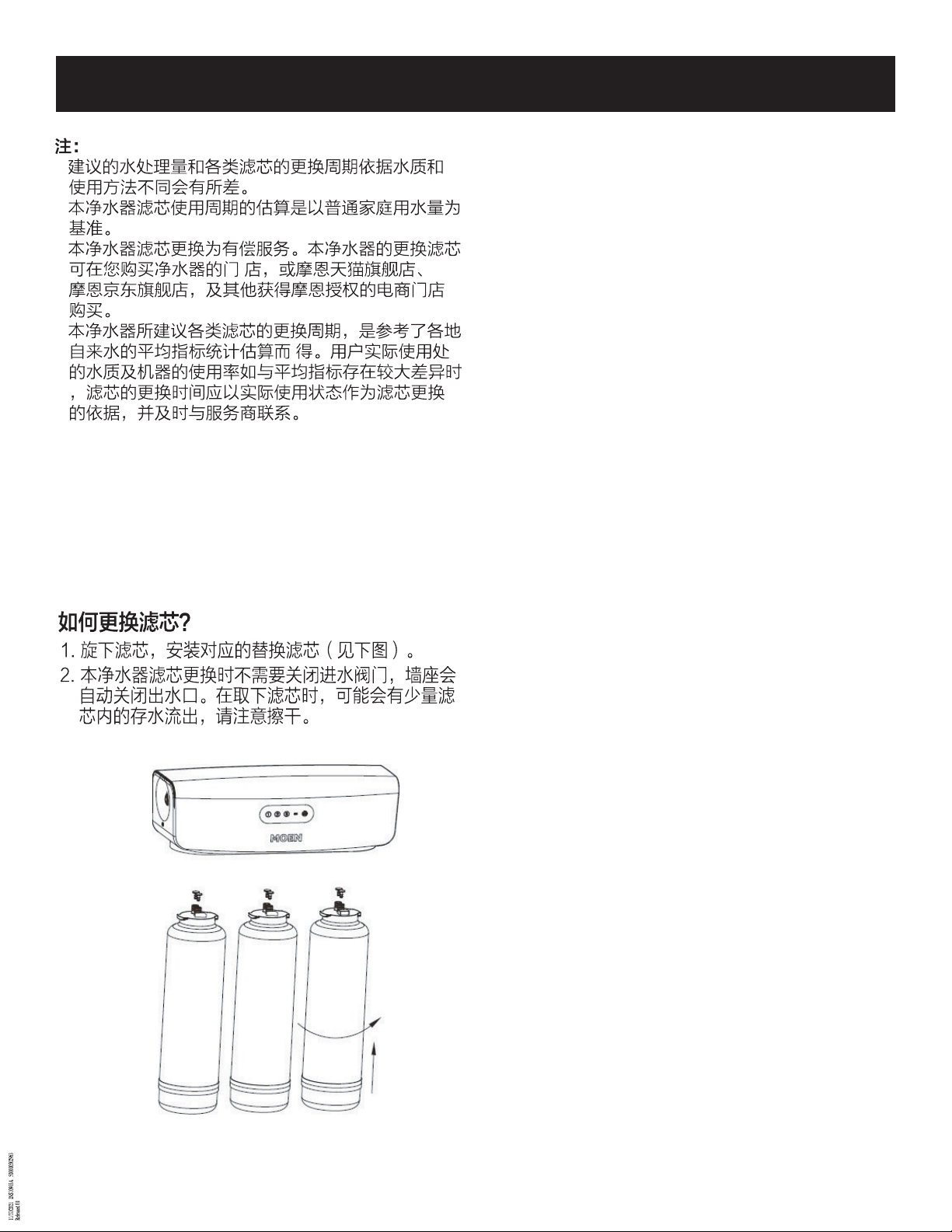

How To Replace the Filter Cartridge?
1. Unscrew the old filter cartridge and
install the new one.
2. When replacing the cartridge, it is not
required to close the inlet valve, since the
water outlet will be automatically closed
by the wall seat. When removing the filter
catridge, there may be a small amount of
water in it flowing out. Use a clean cloth
to dry any leakage.
•
•
•
•
Note:
• The recommended water treatment capacity and
the replacement cycle of different filter catridges
will be different according to the water quality and
use method.
• The estimation of the service life for the filter
catridge is based on the water consumption of
ordinary families.
• The filter cartridge is replaced with paid service.
The filter cartridge can be purchased in stores
where you buy the water purifier, or the flagship
store of the MOEN TMall, JD , and other
e-commerce stores authorized by MOEN.
• The replacement cycle recommended is
calculated by referring to the average index of tap
water in various places. If the actual water quality
and the utilization rate of the machine is very
different than the average index, the replacement
cycle should be based on the actual use status.
If this is the case, contact the service provider.

INS10903A
16
Troubleshooting Instructions
Events Possible Reasons Solutions
Install battery
Incorrect battery installation
The battery is low Replace battery
The display cable is not plugged properly
Replug the display cable
The timing module is damaged
The water inlet pressure is too low Install booster pump
Carbon leakage and filter
bottle break Excessive water inlet pressure
There is no gasket or raw material belt at
O
Replace O-ring
No filter water
Wrong connection of inlet and outlet pipes
The water pressure fluctuates greatly and the
ultrafiltration membrane breaks
No displayon the display
Flow rate is reduced
Filter water is turbid
If the water purifier demonstrates abnormal behavior,
please follow the troubleshooting methods below. If it
remains unsolved, please contact the purchasing store
or the nearest special maintenance department of our
company for help (available around the country), you
can also call Moen national after-sales service hotline
for help.
Check and re-install water supply T-valve
Replace filter cartridage
Replace filter cartridage
Replace filter cartridageFilter cartridage is blocked
The battery is not installed
Re-install the battery
Contact the After Sales staff
Filter cartridge is blocked
Filter cartridge service life comes to end
water supply T-valve
Ensure the water purifier inlet is connected with
water supply T-valve, and the outlet is connected
with the water purifying tap.
The color of the filter cartridge
lifetime icon does not change
Water supply T-valve leakage
Install the pressure reducing valve and
replace the filter catridge
Add pressure reducing valve and replace the
Flter Catridge Level 3
O
Leakage of O-ring on Filter Cartridage Level 3

MOEN LIMITED WARRANTY
©2021 Moen Incorporated
We offer limited warranty and lifetime maintenance for
Moen products, which are all manufactured with high
standards of workmanship.
The period of warranty shall start from the date of
purchase of the product (according to the invoice or
receipt issued by Moen distributors) and shall cover a
period of the following: the warranty period for filtration
machine (exclude filter catridge) is 1 year.
This warranty is your coverage against material and
workmanship malfunction or defects in Moen products
or components (such as shower bar, hose, shower, drain
assembly, handle, cover, lift rod, aerator etc.). During the
warranty period, we offer free maintenance and
changing of malfunctioned products or product
components. Moen’s after sales service liability is limited
to the maintenance of faulty items and does not cover
your other losses caused by product malfunction, except
for otherwise stipulated by law.
Cosmetic damages (scratches, dents, etc.) and
malfuntion or defects caused by abuse or improper
maintenance is not covered by this warranty. Although
the warranty period remains valid, in case of the
following conditions (1) - (5), the maintenance cost
(material cost and labor cost) shall still be charged as
the case may be:
1. Corresponding warranty card and valid invoice
cannot be presented;
2. Faults were caused by the incompliance with the
instructions and precautions provided in the user’s
manual;
3. Damages and faults were caused by self-actuated
dismantling, repair and refit;
4. Faults and damages were caused by external
factors such as force majeure;
5. Damages were caused by transportation, unloading
and extrusion, etc.
This warranty is valid for the original consumers only
(including hotel use), and excludes industrial and
commercial use of the product (except for hotel use).
This card is only responsible for product maintenance
rather than any other liabilities.
In the event that the product requires maintenance but
exceeds the warranty period, or that the product is not
covered by this warranty, labor cost and material cost
shall be charged as the case may be.
Please call 400-630-8866 or contact local dealer for any
question.
Ultrafiltration Water Purifier
超滤净水器
合格证
产品名称
检验员
生产日期
摩恩（上海）厨卫有限公司
MOEN (SHANG HAI)KITCHEN&BATH PRODUCTS CO.,LTD
No. 399 Fute North RD, China (Shanghai) Pilot Free Trade Zone,
Shanghai 200131 P.R. China
中国（上海）自由贸易试验区富特北路399号
邮编：200131
Compliance Certification
Inspector
Product Name
Date of Production
