Moffat Turbofan E311 User manual

E311 / E311MS
CONVECTION OVEN
INSTALLATION / OPERATION
MANUAL
F23621-9

MANUFACTURED BY
Moffat Limited
P O Box 10-001
Christchurch
New Zealand
Ph: [phone]
Fax: [phone]
WORLD-WIDE BRANCHES
UNITED KINGDOM
Blue Seal
Units 6-7, Mount Street Business Park
Mount Street, Nechells
Birmingham B7 5 QU
Ph: [phone]
Fax: [phone]
UNITED STATES
Moffat Inc
3765 Champion Blvd
Winston-Salem
North Carolina 27115
Ph: [phone]
Fax: [phone]
CANADA
Lessard Agencies Ltd
P O Box 97
Stn D Toronto
Ontario M6P3J5
Ph: [phone]
Fax: [phone]
NEW ZEALAND
Christchurch Auckland
Moffat Limited Moffat Limited
P O Box 10-001 4 Waipuna Road
16 Osborne Street Mt Wellington
Christchurch Auckland
Ph: [phone] Ph: [phone]
Fax: [phone] Fax: [phone]
AUSTRALIA
Victoria New South Wales
Moffat Pty Limited Moffat Pty Limited
740 Springvale Road 8/142 James Ruse Drive, Rose Hill
Mulgrave, Melbourne P O Box 913, Smithfield
Victoria 3171 Sydney, N.S.W. 2142
Ph: [phone] Ph: [phone]
Fax: [phone] Fax: [phone]
Western Australia Queensland South Australia
Moffat Pty Limited Moffat Pty Limited Moffat Pty Limited
P O Box 689 30 Prosperity Place 28 Greenhill Road
Joondalup Business Centre Geebung, Brisbane Wayville
WA 6027 Queensland 4034 South Australia 5034
Ph: [phone] Ph: [phone] Ph: [phone]
Fax: [phone] Fax [phone] Fax: [phone]

Introduction........................................................................................................2
Installation..........................................................................................................3
Before Connection
Location
Double Units
Electrical Connection
Door Handle
Water connection
Before Use
Specifications.....................................................................................................5
Operation............................................................................................................9
Description of Controls
Baking
Roast ‘n’ Hold
Grilling / Broiling
Cooking Guide .................................................................................................13
Cooking
Bake Off
Roasting
Roast ‘n’ Hold
Cleaning and Maintenance..............................................................................15
Trouble Shooting.............................................................................................16
Oven
Baking
Spare Parts.......................................................................................................18
Circuit Schematic.............................................................................................19
Date Purchased................................................................. Serial No ..........................................................
Dealer............................................................................................................................................................
Service Agent................................................................................................................................................
Contents
1

We are confident that you will be delighted with your TURBOFAN OVEN, and it will become a most valued
appliance in your commercial kitchen.
A new oven can seem very complex and confusing at first glance. To ensure you receive the utmost
benefit from your new Turbofan, there are two important things you can do.
Firstly
Please read the instruction book carefully and follow the directions given. The time taken will be well
spent.
Secondly
If you are unsure of any aspect of the installation, instructions or performance of your oven, contact your
E311 dealer promptly. In many cases a phone call could answer your question.
Model Options
This manual covers models E311 and E311MS.
The E311 models feature a vitreous enamel front exterior finish and full glass door.
The E311MS models feature a stainless steel front exterior finish and a stainless steel exterior door with
full viewing window.
The functionality of both model series are identical.
Note: Both model series are marked with the control panel coding “31”, however the full and specific
model option is found on the appliance rating plate.
Introduction
2

Before Connection to Power Supply
• Remove all packing.
• Check equipment and parts for damage. Report any damage immediately to the carrier and
distributor.
• Remove protective plastic coating from the side panels.
• Check that the following parts have been supplied with your oven:
4 x 4” Legs (Canada only)
4 x Oven racks
• Report any deficiencies to the distributor who supplied the oven.
• Fit the feet to the oven.
• Fit door handle to oven door.
• Check that the available power supply is correct to that shown on the rating plate located on the
right -hand side panel.
208V AC 60Hz, 14.0A, 2.9kW @ 208V 208-220V AC 50Hz, 14.6A, 3.2kW @ 220V
220-240V AC 60Hz, 13.0A, 3.1kW @ 240V 230-240V AC 50Hz, 13.0A, 3.1kW @ 240V
Location
• To ensure correct ventilation for the motor and controls the following minimum installation
clearances are to be adhered to:
• Position the oven in its working position.
• Use a spirit level to ensure oven is level from side to side and front to back. (If this is not carried
out, uneven cooking could occur). The feet/legs used with bench/floor mounting or provided with
stands are adjustable and will require adjusting in levelling the unit.
• The unit should be positioned such that the operating panel and oven shelves are easily reachable
for loading and unloading.
3
Installation
Important:
THE VENT LOCATED ON THE OVEN TOP MUST NEVER BE OBSTRUCTED.
Installation Requirements
It is most important that this oven is installed correctly and that operation is correct
before use.
Installation shall comply with local electrical, health and safety requirements.
Double Units
• When it is desired to mount one unit on top of another the 31mm (1¼") high spacer feet must be
used. These short feet should be screwed on, and the unit lifted on top of the bottom unit, where it
locates safely under its own weight, for normal applications.
Top 8” / 200mm
Rear 1” / 25mm
Left-hand side 1” / 25mm
Right-hand side 1” / 25mm

Electrical Connection
• Ensure unit is fitted with appropriate cord and plug.
• To access the electrical connection terminal block, grounding lug (marked with green), and strain
relief, remove the back panel (4 screws).
WARNING - THIS APPLIANCE MUST BE GROUNDED
Water Connection (Canada only)
• A cold water supply should be fitted to the water inlet which is located on the rear of the left hand
side of the unit.
• A connection elbow and sealing washer is supplied with this unit for direct connection of a 1/2” ID
hose, and is recommended for easy installation and service.
• Connect water supply - Max inlet pressure 80psi / 550kPa.
• Turn on water supply to check for leaks.
Before Use
• Operate the oven for about 1 hour at 200°C (400°F) to remove any fumes or odours which may be
present.
Installation
4
Important :
MAXIMUM INLET WATER PRESSURE IS 80 psi / 550 kPa.

ELECTRICAL ENTRY
16
45
WATER ENTRY
600
580
796
41 120
5

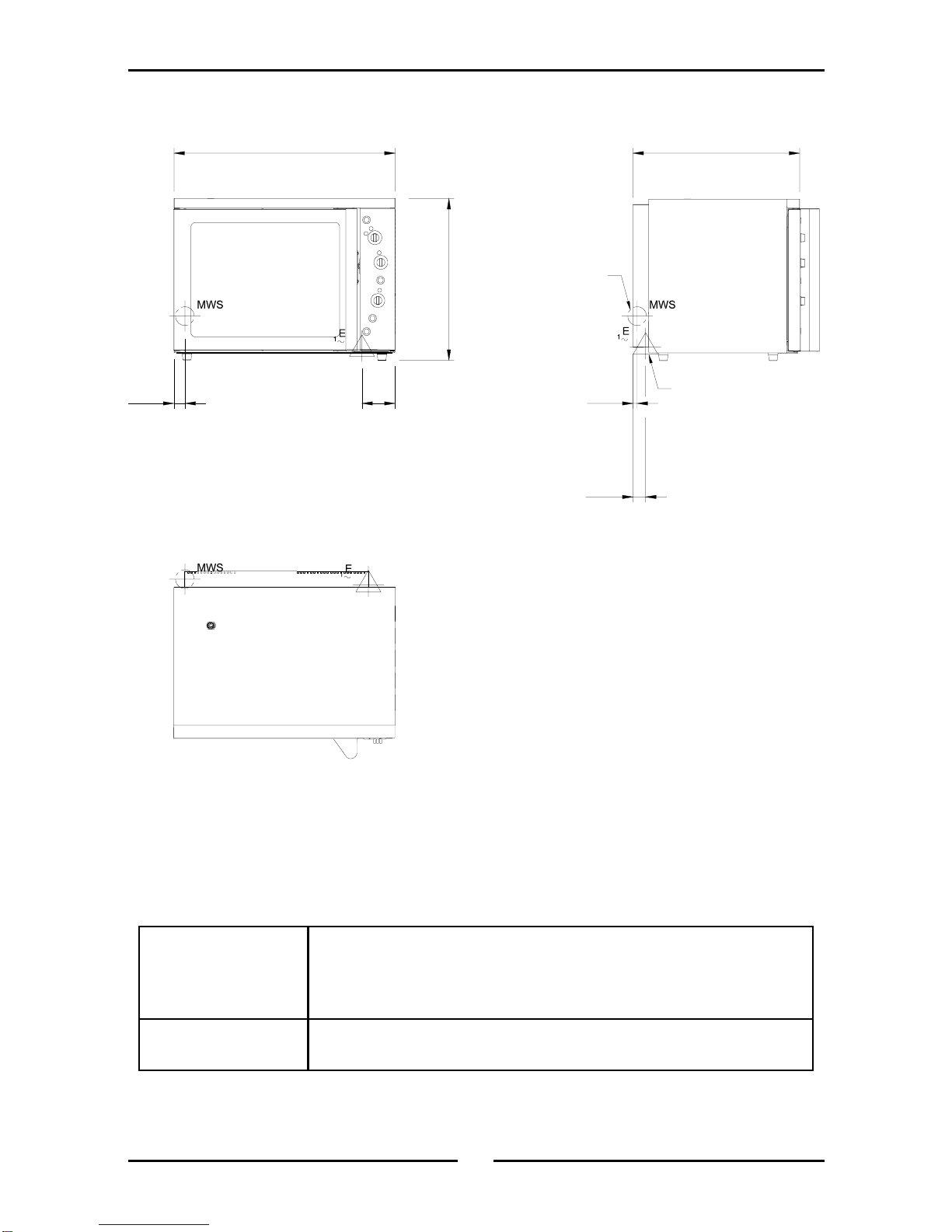

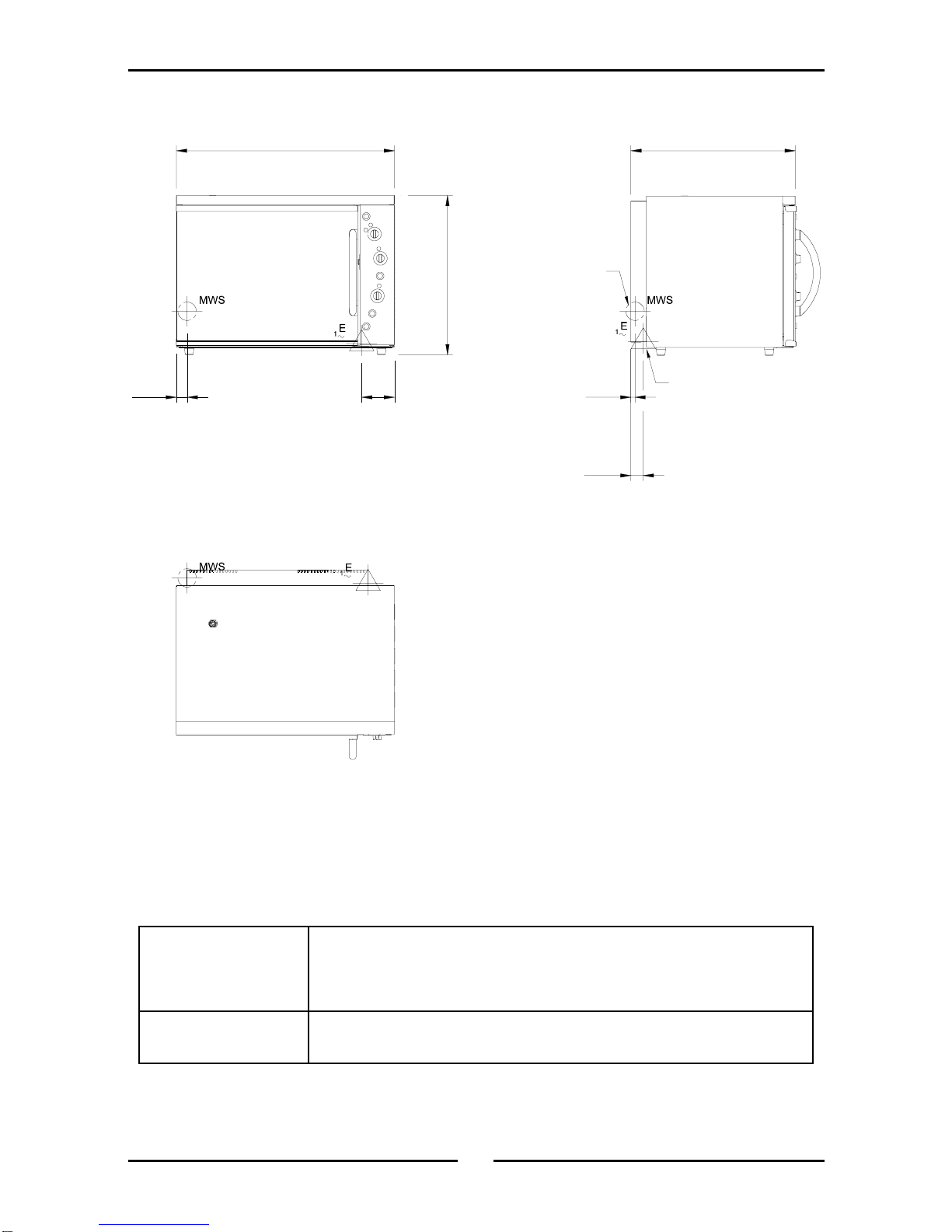

Specifications
Side
Front
Plan
Electrical Connection 208V AC 60Hz, 14.0A, 2.9kW @ 208V
220-240V AC 60Hz, 13.0A, 3.1kW @ 240V
208-220V AC 50Hz, 14.6A, 3.2kW @ 220V
230-240V AC 50Hz, 13.0A, 3.1kW @ 240V
Cold Water Connection
(Canada only) 1/2” I.D Hose (80psi maximum pressure)
E311
(31
3
/
8
”) (23
5
/
8
”)
(1
5
/
8
”) (
5
/
8
”)
(1
3
/
8
”)
(22
7
/
8
”)
(4
3
/
4
”)

6
Specifications
Side
Front
Plan
Electrical Connection 208V AC 60Hz, 14.0A, 2.9kW @ 208V
220-240V AC 60Hz, 13.0A, 3.1kW @ 240V
208-220V AC 50Hz, 14.6A, 3.2kW @ 220V
230-240V AC 50Hz, 13.0A, 3.1kW @ 240V
Cold Water Connection
(Canada only) 1/2” I.D Hose (80psi maximum pressure)
E311MS
580
796
41 120 16
45
WATER ENTRY
600
ELECTRICAL ENTRY
(31
3
/
8
”) (23
5
/
8
”)
(1
5
/
8
”) (
5
/
8
”)
(1
3
/
8
”)
(22
7
/
8
”)
(4
3
/
4
”)

10 2030
40
50
60
90
120
150
N
7
Operation
Operation Guide
Power
Depress to switch power on or off (switch
illuminates when power is on).
Thermostat
Temperature range 50 - 250°C (120 - 550°F).
Indicator illuminates when the elements are cycling
ON to maintain set temperature.
Grill/Broil position - The grill/broil indicator will
illuminate indicating that the grill/broil function has
been set. The heating indicator will also illuminate
whenever the elements are on.
Bake Timer
1 Hour bake timer.
(Indicator illuminates when “time up” (0) reached,
and buzzer sounds).
Roast ‘n’ Hold
Depress switch to activate ’Roast ’n’ Hold’ function.
(Switch illuminates when ON).
Roast Timer
3 Hour roast timer.
(Indicator illuminates when “time up” (0) reached).
Product is held at 75°C (167°F).
Steam Switch (Canada only)
Push switch to activate water injection. (Water
injects into oven while button is depressed).
Light Switch
Push switch to activate light.
(Light illuminates while button is latched in the
down position).
Description of Controls
31

Operation
8
Baking
1. Turn power on
Power switch illuminates when it is depressed and latched in the down position.
2. Set thermostat to desired temperature
The heating indicator light will illuminate whenever the elements are cycling on to maintain
the set temperature.
3. Load oven
Once the oven is up to temperature, open the door and load the oven with product. Avoid
delays in loading the oven with the door open as this will delay the oven’s temperature
recovery.
Note:
The oven’s fan will switch off and the oven lights will illuminate when the door is opened.
4. Set bake timer to desired time
To set timer, turn knob clockwise to the required time. At any stage, the time can be adjusted
in either direction.
For settings less than 10 minutes, first set to greater setting, then turn down to the required
time period.
Note:
This 60 minute timer is completely independent of the oven control.
5. Water injection (Canada only)
To steam the oven while baking, push the steam switch on the control panel. We
recommend a 2-15 second injection period, according to product need, for this oven.
Keep switch depressed for required steam period.
6. Light
To view the product while baking, depress the light switch on the control panel. The light will
stay on while the switch is latched in the down position.
7. Time up.
When the timer reaches 0 minutes the buzzer sounds and indicator illuminates.
To cancel the buzzer turn the timer to the off position.
8. Unload oven
Open the door and unload the oven .
Note:
The oven’s fan will switch off and the oven light will illuminate when the door is opened.

9
Operation
Roast ‘n’ Hold
1. Turn power on
Power switch illuminates when it is depressed and latched in the down position.
2. Set thermostat to desired temperature
The heating indicator light will illuminate whenever the elements are cycling on to maintain
the set temperature.
3. Load oven
Once the oven is up the temperature, open the door and load the oven with product. Avoid
delays in loading the oven with the door open as this will delay oven temperature recovery.
Note:
The oven elements and fan will switch off and the oven lights will illuminate when the door is
opened.
4. Set roast timer to desired time
This 3 hour timer is electrically driven and is set by turning the timer knob in either direction to
the required time. The timer can be set when convenient, but will not start working until the
oven control is set and the Roast ’n Hold switch is depressed (switch illuminated).
5. Depress roast switch
Depress the Roast ’n Hold switch. The switch will illuminate and the timer will begin to count
down.
6. Water injection (Canada only)
To steam the oven while roasting, push the steam switch on the control panel. We
recommend a 2-15 second injection period, according to product need, for this oven.
Keep switch depressed for required steam period.
7. Light
To view the product while roasting, depress the light switch on the control panel. The light
will stay on while the switch is latched in the down position.
8. Hold
When the timer reaches the hold position, the main oven thermostat is turned off and a
pre-set hold thermostat located behind the control panel will control the oven to keep the food
warm at serving temperature as long as required until the Roast ‘n Hold switch is turned off.
Note:
The hold light will illuminate when the timer reaches hold until the Roast ’n Hold switch is
turned off. The hold light may come on briefly when the Roast ’n Hold control is first switched
on until the oven heats up beyond the pre-set holding temperature.

10
Operation
Grilling / Broiling
1.
Grilling / Broiling
Turn thermostat fully clockwise until the GRILL/BROIL position is reached. The GRILL/
BROIL indicator will illuminate indicating that the GRILL/BROIL function has been set. The
heating indicator will also illuminate whenever the element is on.
It is recommended that the GRILL/BROIL mode is only used with the oven door open as the
oven fan is then automatically off. If however the GRILL/BROIL mode is used with the door
closed, the elements will cycle on/off when oven temperature rises above 300°C (570°F) to
prevent damage to the oven.
2. Load oven
Place an oven rack normally on the top position. When the element has reached bright red
(5 minutes), position the dish under the GRILL/BROIL element. Heat food on one side, then
turn on the other side.
It is not recommended to close the door when grilling/broiling.
3. Set bake timer to desired time
To set timer, turn knob clockwise to the required time. At any stage, the time can be adjusted
in either direction.
For settings less than 10 minutes, first set to greater setting, then turn down to the required
time period.
Note:
This 60 minute timer is completely independent of the oven control.
4. Time up.
When the timer reaches 0 minutes the buzzer sounds and indicator illuminates.
To cancel the buzzer turn the timer to the off position.
5. Unload oven
Open the door and unload the oven .

Cooking guide
11
This TURBOFAN oven will cook a greater quantity of food faster, at a lower temperature and more evenly
than an ordinary oven. As many excellent recipe books are published, it is not our intention to list recipes,
but to provide a temperature and time chart as a guide.
When the door is opened the fan will switch off but elements will remain on to provide quick heat recovery.
A high powered top element is fitted for toasting or broiling.
Baking
Select a temperature up to 20°C (35°F) lower than used in a conventional oven and preheat until
HEATING indicator goes out. When the HEATING indicator goes out, the oven has reached the
desired temperature and food may be placed in the oven allowing air space between cooking
utensils and around the oven walls.
The following are only approximate guides - use your judgement.
FOOD TEMP °C TEMP °F TIME
Sponges 165 330 10-12 mins
Small Cakes 165 330 8-12 mins
Butter Cakes 160 320 35 mins
Fruit Loaf 150 300 40-50 mins
Macaroons 160 320 15-20 mins
Biscuits 140 285 12-20 mins
Shortbread 130 265 15-20 mins
Scones 200 390 10-12 mins
Madeira 165 330 35-50 mins
Bread 175 350 25-35 mins
Plain Fruit Cake 165 330 1-1½ hrs
Rich Fruit Cake 130 265 2-3 hrs
Gingerbread 140 285 35-50 mins
Baked Custard 130 265 50 mins
Souffle 165 330 25 mins
Rice Pudding 130 265 2-3 hrs
Pastry
Puff 220 430 8-12 mins
Short 175 350 8-12 mins
Flakey 205 400 8-12 mins
Jam 185 365 12-20 mins
Fruit 185 365 35 mins

12
Cooking guide
Roasting
Set the oven temperature to 150-170°C (300°F-340°F). The hot air circulating in the oven reduces
moisture loss and shrinkage. Roasting times are reduced by approximately 10 minutes per kg.
Roast-’n’-Hold
This system will automatically cook food for a set time, then hold the oven at a preset temperature
indefinitely to maintain food at a serving temperature after cooking has been completed.
When the oven has reached the set temperature, place food in the oven, set roast cooking time and
depress the Roast ’n’ Hold button. The hold indicator will come on when cooking is complete.
To return to normal operation, push the Roast ‘n’ Hold switch again (switch will cease illuminating).
Browning
Different foods may be cooked together, eg baking and roasting may be carried out at the same time.
Food which requires a slightly higher temperature or more browning should be placed at the top of the
oven, so that the broil element may be selected (with the door shut) during the last few minutes of `
cooking. As the top element is quite powerful, keep a close watch on browning progress.
Grilling/Broiling
Turn the oven thermostat right around to GRILL/BROIL. Place an oven rack normally on the second
position from the top. Place the food on a grill tray. This allows fat to drain, to prevent smoking. When
the element has reached a bright red (5 minutes) position the dish under the GRILL/BROIL element.
Heat food on one side, then turn on the other side.
Toast, sandwiches etc., on a scone tray on the top rack position.
FOOD MINUTES per SIDE
Steak - 25mm thick
- Rare
- Medium
6-8
9-11
Chops
- 25mm thick
12-15
Bacon 3-4
Ham 15mm thick 8-10
Tomatoes - halved 10-12
Mushrooms 10-12
Onions - raw sliced 10-15
MEAT TIME per kg
Beef - Rare 30-40 min
Beef - Medium 40-50 min
Beef - Well Done 50-60 min
Veal 50-70 min
Lamb 30-40 min
Duck 50 min
Goose 50 min
Turkey 30-40 min
Chicken
- under 1kg
- over 1kg
50-60 min
40 min
It is not recommended to close the door when grilling/broiling.

13
Cleaning
Exterior
Clean with a good quality stainless steel cleaning compound. Harsh abrasive cleaners may damage
the surface.
Interior
Ensure that the oven chamber is cool. Do not use wire brushes, steel wool or other abrasive materials.
Clean the oven regularly with a good quality oven cleaner. Take care not to damage the fan or the
tube at the right side of the oven which controls the thermostat.
Oven Racks
To remove, slide out to the stop position, raise the front edge up, and lift out.
Side Racks
Undo the thumbscrew (anti-clockwise rotation) securing rack to oven wall, swing rack towards centre
of oven to disengage location pin at front of side, and pull rack forward to remove. To replace, engage
rack in rear holes, swing towards side of oven to engage in front hole, and replace thumbscrew.
Bottom Element Cover
Lift out vitreous enamelled element cover and thoroughly clean on a routine basis (minimum once per
week.
Fan Baffle
To remove, unscrew the oven lamp glass and lift the baffle out. To replace, locate the bottom edge of
the baffle over the bottom element terminal plate and secure in place with the oven lamp glass.
Do not over tighten lamp glass.
Oven Seals
To remove, hold at their centre point and pull forward until they unclip. Remove side seals first, then
top and bottom. The seals may be washed in the sink, but take care not to cut or damage them.
To replace, have the lip facing the oven opening. Fit the top and bottom seals first, then the side
seals.
Oven Door Glass
Clean with conventional glass cleaners
Caution:
ALWAYS TURN OFF THE POWER SUPPLY BEFORE CLEANING.
THIS UNIT IS NOT WATER PROOF.
DO NOT USE WATER JET SPRAY TO CLEAN INTERIOR OR EXTERIOR OF THIS UNIT.
Cleaning Guidelines

Trouble-shooting
14
Fault Possible Cause Remedy
The oven does not operate / start.
The mains isolating switch on the wall, circuit breaker or fuses are
“off” at the power board.
The power switch on the oven is
off.
Turn on.
Depress switch. Switch will
illuminate.
Bake timer does not time down. Bake timer not set correctly. For settings less than 10 minutes,
first set to greater setting then
turn back to desired setting.
Roast timer does not time down Roast ‘n’ Hold button not
depressed. Depress Roast ‘n’ Hold button. (Roast timer only operates when
Roast function is selected).
Oven light not illuminating. Blown bulb. Replace bulb.
No water injection / steam.
(Canada only) Water not turned on. Turn water on at water supply.
Oven trouble-shooting

Trouble-shooting
15
Moist sticky crust Too much sugar.
Hump or cracks on top Too much flour.
Oven too hot.
Heavy compact textures Too much shortening.
Too much sugar.
Oven not hot enough.
Over beating.
Undersized cake Too large a pan.
Oven too hot.
Not enough baking powder.
Uncooked streak at bottom Under mixing of ingredients.
Oven not hot enough.
Too much liquid.
Cake falling Too much baking powder.
Too much shortening.
Too much sugar.
Oven not hot enough.
Insufficient baking.
Moving cake during baking.
Mixture running over pan Pan too small.
Oven not hot enough.
Too much sugar or shortening.
Too much baking powder.
Dry cake Too much flour.
Not enough sugar or shortening.
Too much baking powder.
Over beaten egg white.
Over baking at too low a temperature.
Coarse Texture Too much baking powder.
Not enough liquid.
Oven not hot enough.
Insufficient creaming of shortening and sugar.
Uneven cooking Too high a temperature selected.
Oven or racks not level.
Insufficient air space around trays or baking tins.
Opening oven door unnecessarily.
Faulty thermostat, oven door seal or restricted
oven venting.
Smoking or discoloration around door Oven too hot.
Food spillovers not cleaned up.
Faulty oven door seal.
Oven steaming Overcrowding oven and not increasing initial tem-
perature for this extra food.
Frozen or chilled food will increase moisture in
the oven.
Adding water with meat while roasting.
Opening oven door frequently.
Obstructing oven vent or air circulation.
Baking trouble-shooting

16
Spare parts
Replacement Part List
Controls
021473 Switch - power
017121 Thermostat
020823 Knob - thermostat / bake timer
020849 Neon indicator
011760 Bake timer
011794 Buzzer
021476 Switch - ‘roast n hold’
011419 ‘Roast n hold’ timer
021472 ‘Roast n hold’ timer knob
021474 Steam switch
024773 Light switch
024562 Relay - hold
018223 Hold thermostat
002990 Microswitch
003002 Oven lamp glass
003434 Silk gasket
013521 Oven lamp - 40W miniature Edison screw (E311)
014218 Oven lamp - 25W miniature Edison screw (E311MS)
Motor & Elements
003113 Oven top element 208 volts
003114 Oven bottom element 208 volts
011604 Oven top element 240 volts
003074 Oven bottom element 240 volts
013431 Fan motor
013432 Oven fan
024562 Relay - power
Steam System (Canada only)
020851 Water solenoid
021526 Water inlet elbow
021527 Washer
Door
014225 Oven door seal strip (Side)
023257 Oven door seal strip (Top / Bottom)
021469 Handle assembly (E311)
021468 Handle (E311)
021465 Handle bracket (E311)
025499 Handle (E311MS)
023264 Door outer glass (E311)
023263 Door outer glass (E311MS)
023263 Door inner glass
011005 Door catch
025501 Door catch plate (E311MS)
025502 Door bush
Racks
023255 Oven side rack LH
023256 Oven side rack RH
023254 Oven rack
004874 Element front support
004993 Bottom element cover
004595 Fan baffle

17
Circuit schematic
E
L2
N
TIME
UP B
BUZZER
2
1
35
4
6
L1
TIMER
SWITCH
POWER
3 4
1Hr
Ø
1 2
160Hz
3
T/STAT
HOLD
HOLD
LIGHT OVEN
HEATING
50Hz
FAN
4
SWITCH MICRO
NO NC
DOOR
OVEN
OUTER
TOP
T/STAT
2
INNER TOP
GRILL
5 6
TIMER
3Hr
1P5 P6
65
M
2 3
14
LIGHT SWITCH
3
NO NC
4
1 2
B
A
4
7
163
9
POWER RELAY
34
6
9
1
7
B
A
HOLD SWITCH
WATER
SWITCH
(OPTION ONLY)
WATER
SOLENOID
(OPTION ONLY)
HOLD
RELAY
NO
