molex 207129 Series User manual

Crimp Hand Tool for Slip-On Wire-to-Wire Male Terminal
Doc No: ATS-6382563HM Release Date: 12-30-15 UNCONTROLLED COPY Page 1 of 8
Revision: A Revision Date: 12-30-15
INSULATION CRIMP
▲SEE NOTE
BRUSH
STRIP LENGTH
BELL MOUTH
CONDUCTOR
CRIMP HEIGHT
BEND
DOWN
BEND UP
ROLLING
CONDUCTOR CRIMP
TWISTING
CUT-OFF TAB
SEAM
Application Tooling
Specification Sheet
Tool Kit
Order No. 63825-6370
Hand Crimp Tool
Order No. 63825-6300
FEATURES
A full cycle ratcheting hand tool ensures complete crimps
Ergonomically designed soft handles
Precisely designed crimping profiles with simple contact positioning
Easy handling due to outstanding force ratio
Tool kits are easily installed into the Hand Crimp Tool or the 63816-0300 Power Crimp Head which is installed
into the 63816-0200 (110 V) or the 63816-0250 (220 V) Battery Powered Tool.
This tool is IPC/WHMA-A-620 Class 2 and RoHS compliant.
For 14AWG crimps, use terminals 35725-19x0 and hand tool 63825-6400
SCOPE

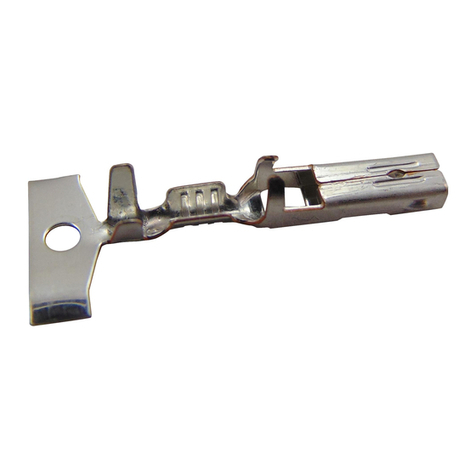

Products: Slip-On Wire-to-Wire Terminal, 6.35mm Tab, Male, 16-18 AWG.
Terminal Series No.
Terminal Order No.
Wire Size
Insulation Diameter
Strip Length
Reel Form Only
Wire Style
AWG
mm
In.
mm
In.
35725
35725-1800
35725-1810
UL1015
16
2.6 –3.2
0.102 –0.126
4.8 –5.2
0.19 –0.21
UL1015
18
2.5 –3.1
0.100 –0.122
Customer to cut off terminal from reel: 0.18mm (.007”) maximum Cut-off Tab.
DEFINITION OF TERMS
TYPE 4C

Crimp Hand Tool for Slip-On Wire-to-Wire Male Terminal
Doc No: ATS-6382563HM Release Date: 12-30-15 UNCONTROLLED COPY Page 2 of 8
Revision: A Revision Date: 12-30-15
▲Insulation Crimp Note:
Due to the terminal’s insulation grip design and/or
insulation diameter range, this tool uses “overlap” form
geometry in the insulation punch. This produces an
overlap insulation crimp (A620 –compliant). While the
insulation punch profile may appear “lopsided”, this is a
normal condition for this tool. See figure to the right.
(Some tools with multiple crimp pockets may not have
the “overlap” profile on all pockets).
CONDITIONS:
After crimping, the conductor profiles should measure the following (see notes below).
Terminal
Series No.
Wire Size
Conductor Crimp
Insulation Crimp
Pull Force
Minimum
Profile
Height
Width (Ref)
Height (Ref)
Width (Ref)
AWG
mm
In.
mm
In.
mm
In.
mm
In.
N
Lbs
B (16)
A (18)
35725
16
1.60 –1.80
0.063 –0.071
2.80
0.110
3.40
0.134
3.80
0.150
133
30
X
18
1.40 –1.50
0.055 –0.059
2.80
0.110
3.20
0.126
3.60
0.142
90
20
X
To Achieve IPC-A-620 Class 2 Crimps, the following over-all wire insulation diameter ranges are recommended:
Profile A (18): 2.5 –3.1mm (0.100 –0.122 inch)
Profile B (16): 2.6 –3.2mm (0.102 –0.126 inch)
Tool Specification Notes:
1. Pull Force should be measured with no influence from the insulation crimp.
2. The above specifications are guidelines to an optimum crimp.
Note:
A crimp height chart is provided with this manual as Reference Only. Due to the wide range of wires, strands,
insulation diameters, and durometers, actual crimp height measurements may vary slightly. An occasional,
destructive, pull force test should be performed to check crimp secureness. The pull force value must exceed the
minimum pull force specifications listed.
CAUTION: Install only Molex terminals listed above with this tool. Do not crimp hardened objects as damage
can occur to the tool or die.
INSTALLATION IN POWER ADAPTER
To install the Tool Kit into the Power Crimp Head follow the steps below:
Anvils and Punches Installation
1. Insert the Anvils into the bottom slots of the nest. Install the M4 x 10 long BHCS and tighten in place.
2. Insert the Punches into the top slots of the nest. Install the M4 x 18 long BHCS and tighten in place. See

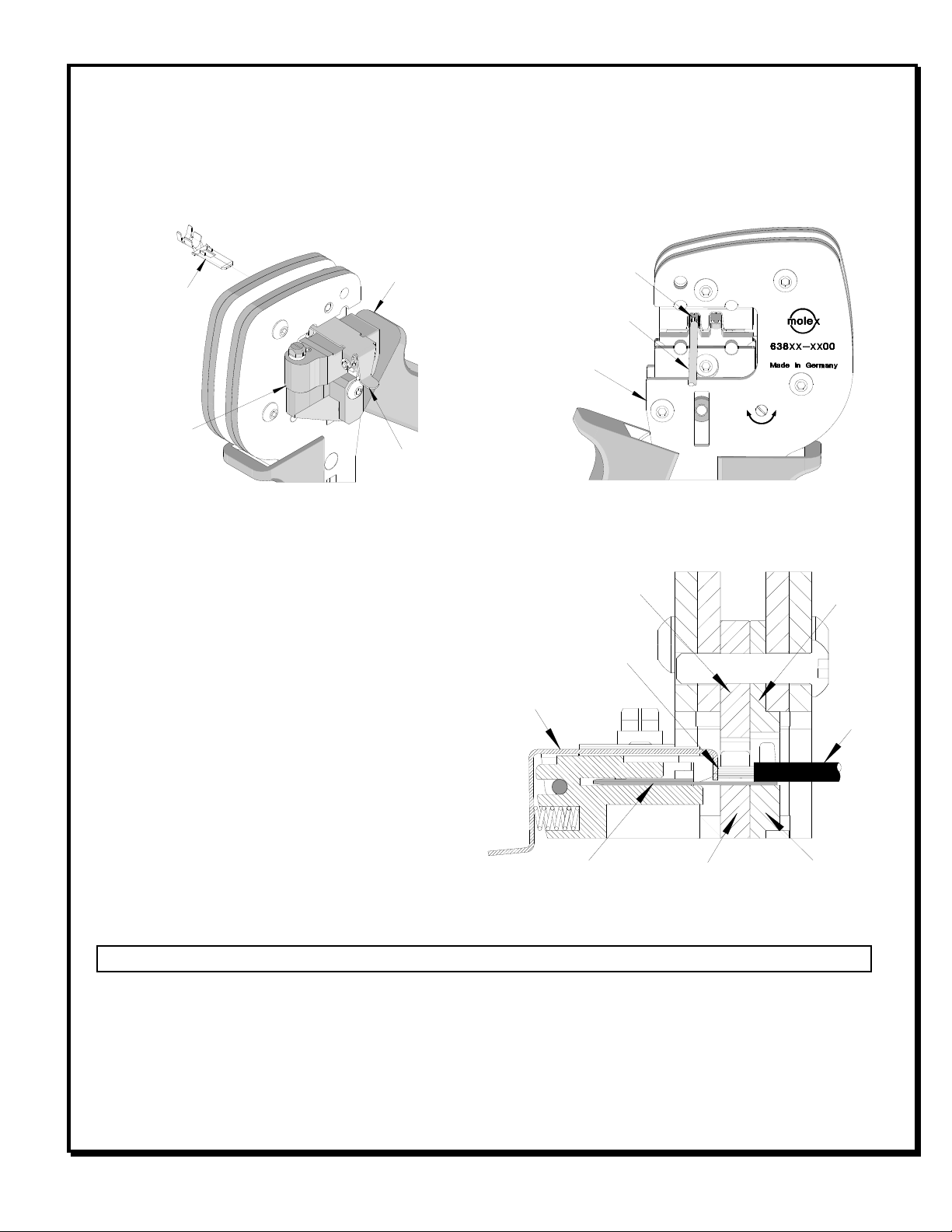

Figure 1.
Locator Installation and Removal
Follow the steps below to install or replace the locator. See Figure 2.

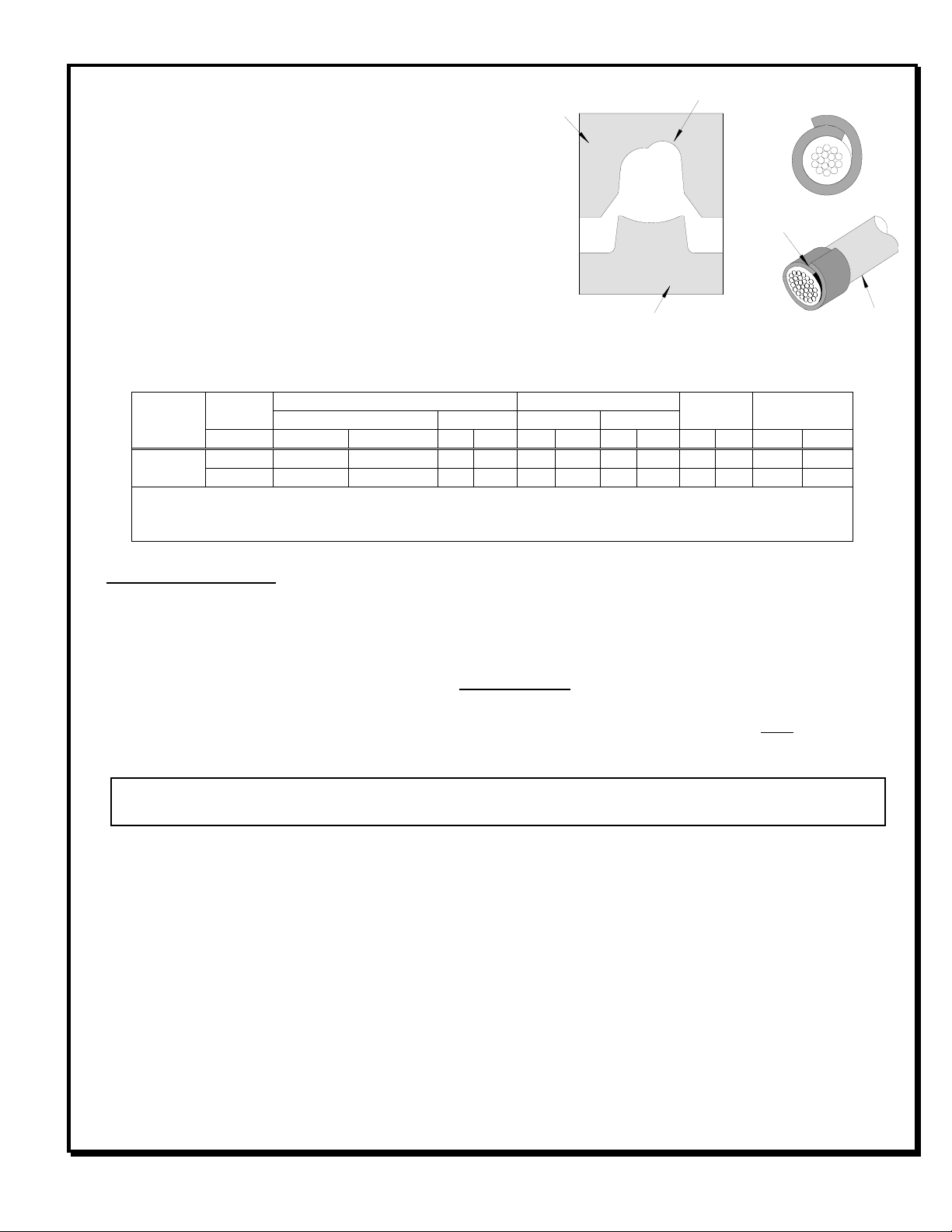

OVERLAP
INSULATION
CRIMP
OVERLAP FORM GEOMETRY
ANVIL
PUNCH
WIRE

Crimp Hand Tool for Slip-On Wire-to-Wire Male Terminal
Doc No: ATS-6382563HM Release Date: 12-30-15 UNCONTROLLED COPY Page 3 of 8
Revision: A Revision Date: 12-30-15
SWING
LOCATOR
OPEN
PRESS DOWN
ON THE BRASS
PIVOT SHAFT
LIFT UP ON
THE LOCATOR
Figure 2
ANVILS
POWER
CRIMP
HEAD
Figure 1
PUNCHES
M4 X 10 LONG
BHCS
M4 X 18 LONG
BHCS
SWING OPEN
TERMINAL
PUSH HERE TO
OPEN WIRE STOP
LOCATOR
TERMINAL
IN PLACE
Figure 4
LOCATOR LATCH
IN OPEN POSITION
To install the locator
1. Position the locator with the hole over the brass pivot shaft and snap it into place.
To remove the locator
1. Open the crimp hand tool.
2. Swing the existing locator open and away from the
hand tool.
3. Firmly press down on the brass pivot shaft with your
thumb, while pulling the locator up. Slip the locator off
the top of the brass pivot shaft.
OPERATION
Open the tool by squeezing the handles together, at the
end of the closing stroke, the ratchet mechanism will
release the handles, and the hand tool will spring open.
Figure 3
LATCH LOCKED
LATCH UNLOCKED

Crimp Hand Tool for Slip-On Wire-to-Wire Male Terminal
Doc No: ATS-6382563HM Release Date: 12-30-15 UNCONTROLLED COPY Page 4 of 8
Revision: A Revision Date: 12-30-15
JAWS PARTIALLY
CLOSED
WIRE IN TERMINAL
WIRE AGAINST
WIRE STOP
Figure 6
HANDLE
OPEN
LOCATOR
CLOSED
Figure 5
TERMINAL
PUSH HERE TO
OPEN WIRE STOP
Crimping Terminals
1. Select the desired terminal listed in the preceding charts.
2. Turn the Locator Lock Latch down to unlock. See Figure 3.
3. Swing the terminal locator away from the crimp tool shown in Figure 4. Some terminals with large insulation
grips may interfere with the crimp tooling when swinging the locator into position. The terminal must then be
loaded into the locator in the closed/crimp position. See Figure 5.
4. Press down on the wire stop on the locator as shown in Figure 5. Insert the proper terminal into the proper nest
opening. Make sure when choosing the nest opening, it will correspond with the A, or B profile on the hand tool.
5. Return the locator to its original position.
6. Turn the Locator Lock Latch up to lock. Make
sure that the terminal is visually centered over the
punch.
7. Insert the proper wire over the terminal.
8. Gently touch the wire stop with the end of the
wire. See Figure 6 and 7.
9. Compress the terminal by squeezing the tool
handles until the ratchet mechanism cycle has
been completed. Release handles to open the
jaws.
10. Remove the crimped terminal from the terminal
locator by pressing down on the wire stop and
gently pulling on the wire. The terminal locator
can be in either position.
11. Visually inspect the crimped terminal for proper
crimp location.
Note: The tamper proof ratchet action will not release the tool until it has been fully closed.
For the Battery Power Tool:
1. Cycle the Battery Power Tool to crimp the terminal to the wire.
2. Remove the crimped terminal from the terminal locator by pressing down on the wire stop and gently pulling on
the wire. The terminal locator can be in either position.
3. Visually inspect the crimped terminal for proper crimp location.
Figure 7
WIRE
INSULATION
PUNCH
CONDUCTOR ANVIL
LOCATOR
INSULATION
ANVIL
WIRES AGAINST
LOCATOR STOP
CONDUCTOR
PUNCH
TERMINAL

Crimp Hand Tool for Slip-On Wire-to-Wire Male Terminal
Doc No: ATS-6382563HM Release Date: 12-30-15 UNCONTROLLED COPY Page 5 of 8
Revision: A Revision Date: 12-30-15
Maintenance
It is recommended that each operator of the tool
be made aware of, and responsible for, the
following maintenance steps:
1. Remove dust, moisture and other
contaminants with a clean brush, or soft,
lint-free cloth.
2. Do not use any abrasive materials that
could damage the tool.
3. Make certain all pins; pivot points and
bearing surfaces in the tool head are
protected with a thin coat of high quality
machine oil. Do not oil excessively. This
tool was engineered for durability, but like any fine piece of equipment, it needs cleaning and lubrication for a
maximum service life of trouble-free crimping. The use of light oil, such as 30 weight automotive oil, every
5,000 crimps or monthly, will significantly enhance the tool life and ensure a stable calibration. See Figure 8A
or 8B for lubrication points.
4. Store the tool in a clean and dry area when not in use.
Miscrimps or Jams for Crimp Hand Tools Only (See Figure 11)
Should this tool ever become stuck or jammed in a partially closed position, Do Not force the handles open or
closed. The tool will open easily by rotating the small slotted screw marked with an arrow. See Figure 11.
Warranty
This tool kit is for electrical terminal crimping purposes only. This tool kit is made of the best quality materials. All
vital components are long life tested. All tools are warranted to be free of manufacturing defects for a period of 30
days. Should such a defect occur, we will repair or exchange the tool kit free of charge. This repair or exchange
will not be applicable to altered, misused, or damaged tools.
CAUTION: Molex crimp specifications are valid only when used with Molex terminals and tooling.
CAUTIONS
1. Manually powered hand tools are intended for low volume or field repair. This tool is NOT intended for
production use. Repetitive use of this tool should be avoided.
2. Insulated rubber handles are not protection against electrical shock.
3. Wear eye protection at all times.
4. Use only the Molex terminals specified for crimping with this tool.
CAUTION: Repetitive use of this tool should be avoided.
Certification
Molex does not certify or re-certify commercial grade hand tools but rather supplies the following guidelines for
customers to re-certify hand tools.

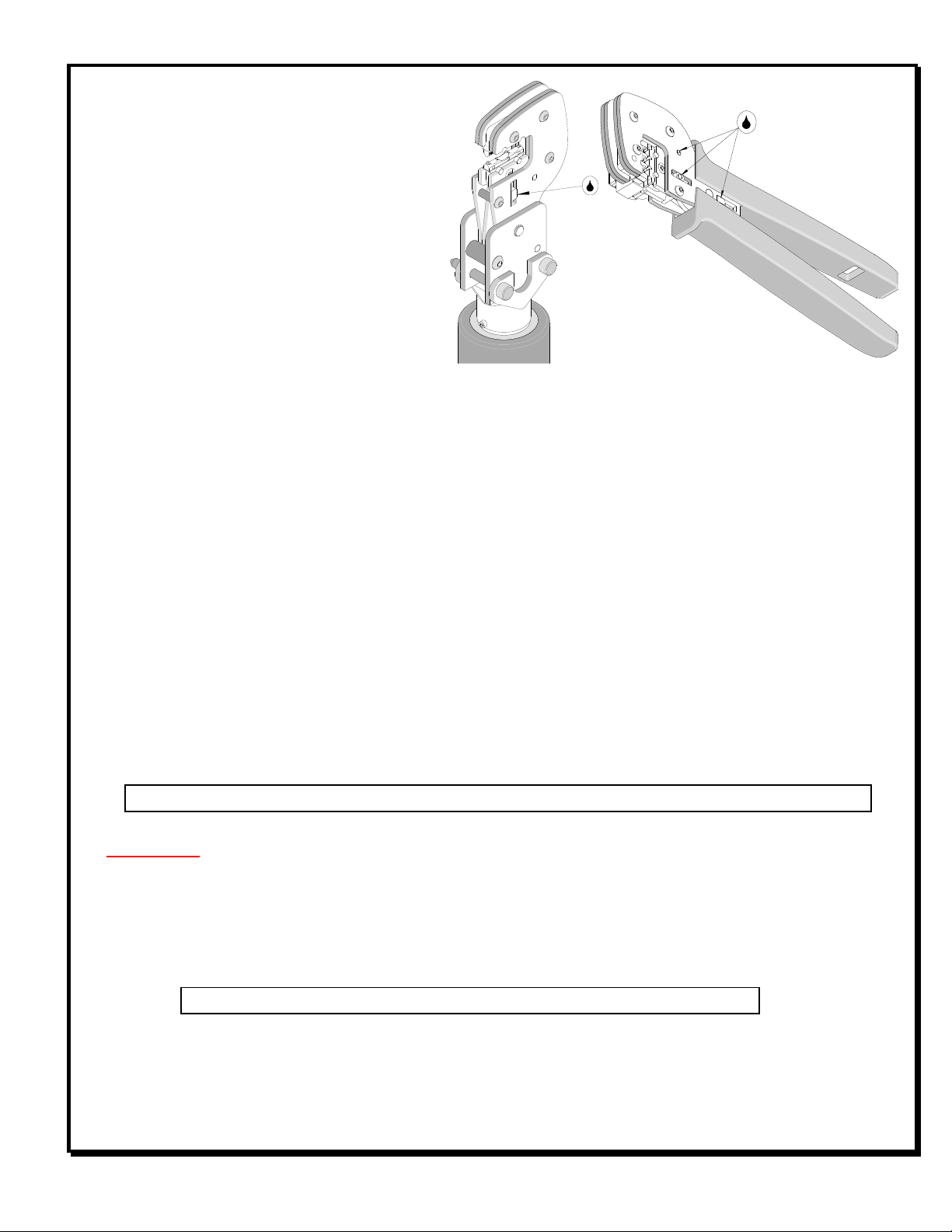

WIRE
LUBRICATION
POINTS
(BOTH SIDES)
LIGHT OIL
(EVERY MONTH
OR
5,000 CRIMPS)
Figure8A
Figure 8B

Crimp Hand Tool for Slip-On Wire-to-Wire Male Terminal
Doc No: ATS-6382563HM Release Date: 12-30-15 UNCONTROLLED COPY Page 6 of 8
Revision: A Revision Date: 12-30-15
This tool is qualified to pull force only. To re-certify, crimp a terminal to a wire, which has been stripped
12.7mm (1/2”) long, so there is no crimping of the insulation. Pull the terminal and wire at a rate no faster than
25mm (1.00”) per minute. See the Molex web site for the Quality Crimp Handbook for more information on pull
testing.
When the hand tool is no longer capable of achieving minimum pull force, it should be taken out of service and
replaced.
This tool is very difficult to disassemble and reassemble. Customer repair is not recommended.
The chart below shows all applications for this Tool Kit.
Tool Kit
Order No.
Tool
Order no.
Tool
Description
Power Head
Order No.
Adapter
Description
Figure
No.
63825-6370
63810-1050
Hand Crimp Frame (Short handles)
N/A
N/A
9
63810-1000
Hand Crimp Frame (Long handles)
N/A
N/A
9
63816-0200
Battery Power Tool (110 V)
63816-0300
Power Crimp Head
10
63816-0250
Battery Power Tool (220 V)
63816-0300
Power Crimp Head
10
Applications for the Tool Kit
Hand Crimp Tool
Battery Powered Tool
Figure 9
Figure 10
WARNING: NEVER operate service, install tool kits, or adjust the Power Crimp Head without proper
instruction and without first reading and understanding the instructions in the proper Manual or
Specification Sheet. See Chart above for the correct Manual or Specification Sheet.
WARNING: NEVER install tooling or service this tool while it is into any power source. Make sure the
power is turned off.
CAUTION: Keep fingers away from the crimping area when operating this tool. It may cause severe injury.
CAUTION: Wear safety glasses when operating or serving this tool.
POWER
CRIMP
HEAD
LOCKING PINS
BATTERY
POWERED
TOOL
TOOLING KIT
HAND CRIMP
FRAME LONG
AND SHORT
TOOLING KIT

Crimp Hand Tool for Slip-On Wire-to-Wire Male Terminal
Doc No: ATS-6382563HM Release Date: 12-30-15 UNCONTROLLED COPY Page 7 of 8
Revision: A Revision Date: 12-30-15
RATCHET
RELEASE SCREW
Figure 11
M4 X 8mm
LONG BHCS
2
1
3
M4 X 18mm
LONG BHCS
M4 X 10mm
LONG BHCS
2
4
WITH TOOL KIT
LOCATOR ONLY

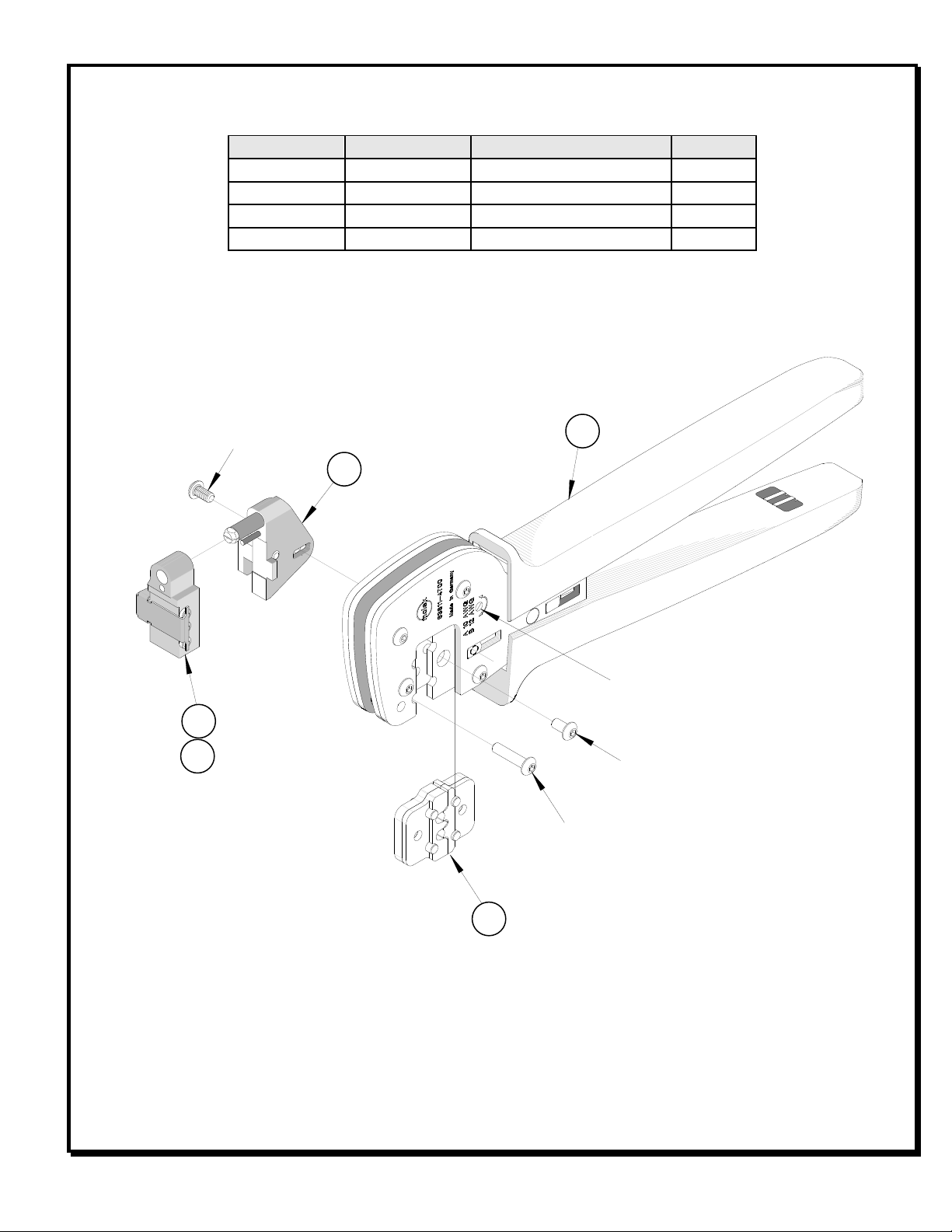

HAND TOOL PARTS LIST
Item Number
Order Number
Description
Quantity
1
63810-1050
Hand Crimp Frame (Long)
1
2
63825-6370
Tool Kit with Locator
1
3
63825-5673
Locator Base
1
4
63825-6375
Locator (only)
REF

Crimp Hand Tool for Slip-On Wire-to-Wire Male Terminal
Doc No: ATS-6382563HM Release Date: 12-30-15 UNCONTROLLED COPY Page 8 of 8
Revision: A Revision Date: 12-30-15
Figure 12
1
2
2
M4 by 8 Long
BHCS
M4 by 18 Long
BHCS
M4 by 10 Long
BHCS
1
POWER HEAD PARTS LIST
Item
Order No
Engineering No.
Description
Quantity
1
63816-0300
63816-0300
Power Crimp Head
1
2
63825-6370
63825-6370
Tool Kit
1
http://www.molex.com
