Molpir 3G012 User manual

NU
_
3G012
_
00
0
_
02082014_EN
Date: 02.08.2014 Page 1 / 18
ROUTER
ANTENNA
SMA male
POWER CA LE
MOUNTING
KIT
ANTENNA
SMA female
3
3G G W Wi ir re el le es ss s R Ro ou ut te er r
1
1. . G Ge et tt ti in ng g t to o K Kn no ow w Y Yo ou ur r W Wi ir re el le es ss s R Ro ou ut te er r
Congratulations on your purchase of 3G high-speed wireless router. efore you begin
installing your router, please check the package contents.
Your product package should contain the following items:
Ord.code
:
3G012

NU
_
3G012
_
00
0
_
02082014_EN
Date: 02.08.2014 Page 2 / 18
If any of the parts are incorrect, missing, or damaged, contact our after-sales staff.
Keep the box, including the original packing materials, in case you need to return the
product for repair.
2
2. . P Pr ro od du uc ct t O Ov ve er rv vi ie ew w
3G wireless Router Series are Industrial-Grade products designed to simplify and
optimize M2M networks. It provides secure, efficient, reliable link based on ISP
(Internet Service Provider) 2G/3G network. No matter where it is, your service can
easily access to Internet through the GPRS/CDMA/ or 3G WCDMA/EVDO network that is
available across the globe. Meanwhile it will bring a more practical management
approach over your devices and reduce significant maintenance costs.
3
3. . D De es si ig gn n f fo or r I In nd du us st tr ri ia al l p pp pl li ic ca at ti io on n
DIN-Rail mounting fitting for industrial cabinet installation
Flip SLIM card slot, provides protection
5~24V DC wide voltage range power supply, anti-reverse connect & over current
protect
Support industrial bus protocols MOD US etc.
Working temperature: -10°C ~ +60°C
Humidity: 5% ~ 95% non-condensing
IP30 grade protection
4
4. . 3 3G G W Wi ir re el le es ss s R Ro ou ut te er rs s s su ui it ta ab bl le e f fo or r b be el lo ow w a ap pp pl li ic ca at ti io on ns s
1. Automotive
2. Office, company, bank, post office, power plant
3. Electricity Power Industry
4. Automatic monitoring system
5. Water Industry
6. Oilfield monitoring
7. Heating network and Coal monitoring etc.
5
5. . S So of ft ta ar re e f fe ea at tu ur re es s
Internet connection 3G dial-up DHCP/ Static IP/ PPPoE
Amount of clients connected Via cable: 253; via wireless: 30
Operation system
Windows XP/Vista Linux 2.6, Windows 7
Mac OS: 10.3.7 or above
rowser
IE: 6.0 or above Safari 1.2.4 or above
Firefox: 2.0.0.8 or above
Security management Firewall Setting: block attack to LAN
P-to-P control: block certain websites
MAC filtering: block certain Mac address

NU
_
3G012
_
00
0
_
02082014_EN
Date: 02.08.2014 Page 3 / 18
Access control: limit LAN to access internet
locked by port: protect port from Dos
Qos Management
Uplink widthband management Settings
Downlink widthband management Settings
System service
Virtual server: internal virtual server
DMZ: set up DMD as host during virtual server is
not set to open
Port trigger: automatic access to LAN
Serial port data passthrough & AT Command
Device Management
Zone Settings
NTP Service Settings
Restore file Settings
Factory Settings
Software Update
Remote Management
Reboot
Change Password
WLAN security mode
Open System
WPA-PSK
WPA2-PSK
WPAPSK
WPA2PSK (mixed WPA-PSK with WPA2-PSK)
WPA1WPA2 ( mixed WPA with WPA2)
6
6. . H Ha ar rd dw wa ar re e F Fe ea at tu ur re es s
Wireless interface IEEE802.11b/g/n
Working frequency 2400 ~ 2483.5MHz
Main chip Ralink RT5350
Wifi: SMA male connector
Antenna
3G: SMA female connector
WiFi transmission rate 150Mb/s
External interface
LAN 2x
UART 1x
SIM slot: 1x
Antenna connector: 2x
LED Indicator 5x
DC power supply: 1x
Data transmission rate
802.11n: up to 150Mb/s
802.11b: 1; 2; 5,5; 11Mb/s
802.11g: 6; 9; 12; 18; 24; 36; 48; 54Mb/s
Transmission power 11n HT40 MCS7: + 13.5d m
11b CCK: +18d m
11g OFDM: +13.5d m

Contact surface
a up
NU
_
3G012
_
00
0
_
02082014_EN
Date: 02.08.2014 Page 4 / 18
Receiving sensibility -66d m at 15054Mp/s
-73d m at 54Mp/s
-86d m at 11Mp/s
Dimensions 105mm (L)* 73mm (W) * 21mm (H)
Weight (netto) 0.26kg
Power Supply 5~25V DC 1A
Current > 400m[email protected]
Working temperature -10°C ~ +60°C
Storage temperature -20°C ~ +70°C
Humidity 5% ~ 95% non condensate
7
7. . H Ho ow w t to o i in ns se er rt t S SI IM M c ca ar rd d
8
8. . L LE ED D I In nd di ic ca at to or r
Name Status Disription
On Power On
PWR
Off Power Off
Slow flashing
Once you switch on the
router
SYS
Fast flashing
1.
When flow value is
going to used up, Sys
light will display fast
flashing if user pre-
set

NU
_
3G012
_
00
0
_
02082014_EN
Date: 02.08.2014 Page 5 / 18
1
1
2
2
3
3
4
4
5
5
flow value
2.
After user press reset
button for 5second
s, the
router will reboot later
On Dial up successfully
Slow flashing Dial up
DIAL
Off No connection
3G
Display according to different network
(it can be ignored by users)
On RJ45 connected
LAN1&LAN2
Off No connection on RJ45
9
9. . T Th he e r re ea ar r p pa an ne el l
1 – Wifi Antenna - SMA female connector
2 – Reset button – system can reboot if press it for 5 sec. during router on
3 – RS232 series port: 3 pin for receiving data, 2 pin for sending data; 5 pin for ground
connection
4 – DC power 5~24V; 1A; PIN Ø2.1mm
5 – 3G antenna - SMA male connector

NU
_
3G012
_
00
0
_
02082014_EN
Date: 02.08.2014 Page 6 / 18
1
1
2
2
3
3
4
4
1
10 0. . T Th he e f fr ro on nt t p pa an ne el l
1 – SIM card slot
2 – LED
3 – Connection LAN1
4 – Connection LAN2/WAN
1
11 1. . P Ph hy ys si ic ca al l O Ov ve er rv vi ie ew w

NU
_
3G012
_
00
0
_
02082014_EN
Date: 02.08.2014 Page 7 / 18
1
12 2. . C Co on nn ne ec ct ti in ng g Y Yo ou ur r W Wi ir re el le es ss s R Ro ou ut te er r
efore you install your wireless router, make sure that the Internet Protocol (TCP/IP)
Property settings on your computer are set to „automatically obtain an IP address“
using DHCP and „Obtain DNS server address automatically“.
You can check these settings by looking at the TCP/IP Properties of your Internal
Network Connections, which accessible through the Control Panel of your computer.
If you need set Static IP address for your computer, you should set your computer IP
address same as LAN IP, which as follows:
LAN IP address: 192.168.10.1
Subnet: 255.255.255.0
How to connect to WiFi? Please choose the corresponding network.

NU
_
3G012
_
00
0
_
02082014_EN
Date: 02.08.2014 Page 8 / 18
1
13 3. . V Ve er ri if fy yi in ng g y yo ou ur r c co on nn ne ec ct ti io on n
Verify that you router is connected correctly by checking Ping Command as follows. If
the screen is show as follows, it means that the router has connected to your computer
successfully.
1
14 4. . S Se et tt ti in ng g u up p y yo ou ur r R Ro ou ut te er r f fo or r I In nt te er rn ne et t c cc ce es ss s
When configuring your wireless router manually, you must log in to your wireless
router to set it up initially and to make any changes to our wireless router’s settings
later.
1
15 5. . T To o a ac cc ce es ss s t th he e r ro ou ut te er r
1. Type http://www.192.168.10.1
2
2. . At the first time when user logon router website, please enter „admin“ for both ID
account and Password.

NU
_
3G012
_
00
0
_
02082014_EN
Date: 02.08.2014 Page 9 / 18
1
16 6. . S Se et tt ti in ng g y yo ou ur r r ro ou ut te er r o on n W We eb bp pa ag ge e

NU
_
3G012
_
00
0
_
02082014_EN
Date: 02.08.2014 Page 10 / 18
1
17 7. . C Co on nf fi ig gu ur ri in ng g y yo ou ur r W Wi ir re el le es ss s N Ne et tw wo or rk k
The 3G Wireless Router adopt default 3G wireless mode. Once the 3G SIM (EVDO or
WCDMA) card is insered, the router will dial up automatically.
1
18 8. . S Se et t u up p 3 3G G S Se et tt ti in ng gs s

NU
_
3G012
_
00
0
_
02082014_EN
Date: 02.08.2014 Page 11 / 18
1
19 9. . W Wi ir re ed d a ac cc ce es ss s w wo or rk ki in ng g m mo od de e
1. Static IP address Settings
2
2. . DHCP IP address Settings

NU
_
3G012
_
00
0
_
02082014_EN
Date: 02.08.2014 Page 12 / 18
3
3. . PPPoE Settings
Enter ID and password provided by ISP
2
20 0. . W Wi ir re el le es ss s P P C Cl li ie en nt t
1. Router management – working mode – wireless AP Client
2
2. . Wireless connection – select ApClient from pull-down list, which obtained from
DHCP server automatically. And then dialog boxes will pop up by searching. Users
can select WiFi network which they need. Please pay attention Channel before click
connection. And then enter corresponding password in the page of security mode if
needed. Make sure whether the password is Character type or in hexadecimal
format.
3
3. . Router management – Wireless Setting – Channel
2
21 1. . W Wi ir re el le es ss s S Se ec cu ur ri it ty y M Mo od de e S Se et tt ti in ng gs s
Enable Wireless Security Mode: There are some types of Wireless Security mode
available. User can choose according to their needs:
Disable
Open System
WPA
WPA-PSK
WPA2
WPA2-PSK
WPAPSKWPA2PSK (mixed WPA-PSK with WPA2PSK)
WPA1WPA2 (mixed WPA with WPA2)

NU
_
3G012
_
00
0
_
02082014_EN
Date: 02.08.2014 Page 13 / 18
2
22 2. . O Op pe en n S Sy ys st te em m
There are two types call encrypt in Open System which are None and WEP.
Item Description
Encryption types
None: no encrypt
WEP: as Settings
Default Encrypt Key ID
4 key can be set at the same time
Only 1 can be used each time
Default value is 1.
Length of WEP encrypt
64bit & 128bit available
Default value 64 bit
WEP encrypt Key
User can set up the type of encrypt Key and Key
settings
Encrypt Key Setting with different length and types
2
23 3. . E En nc cr ry yp pt t S Se et tt ti in ng gs s
64bit encrypted: 10 hexadecimal or 5 digits characters
128bit encrypted: 26 hexadecimal or 13 digits characters
2
24 4. . W WP P
WPA provide WPA-PSK encrypt and Radius server verification

NU
_
3G012
_
00
0
_
02082014_EN
Date: 02.08.2014 Page 14/ 18
2

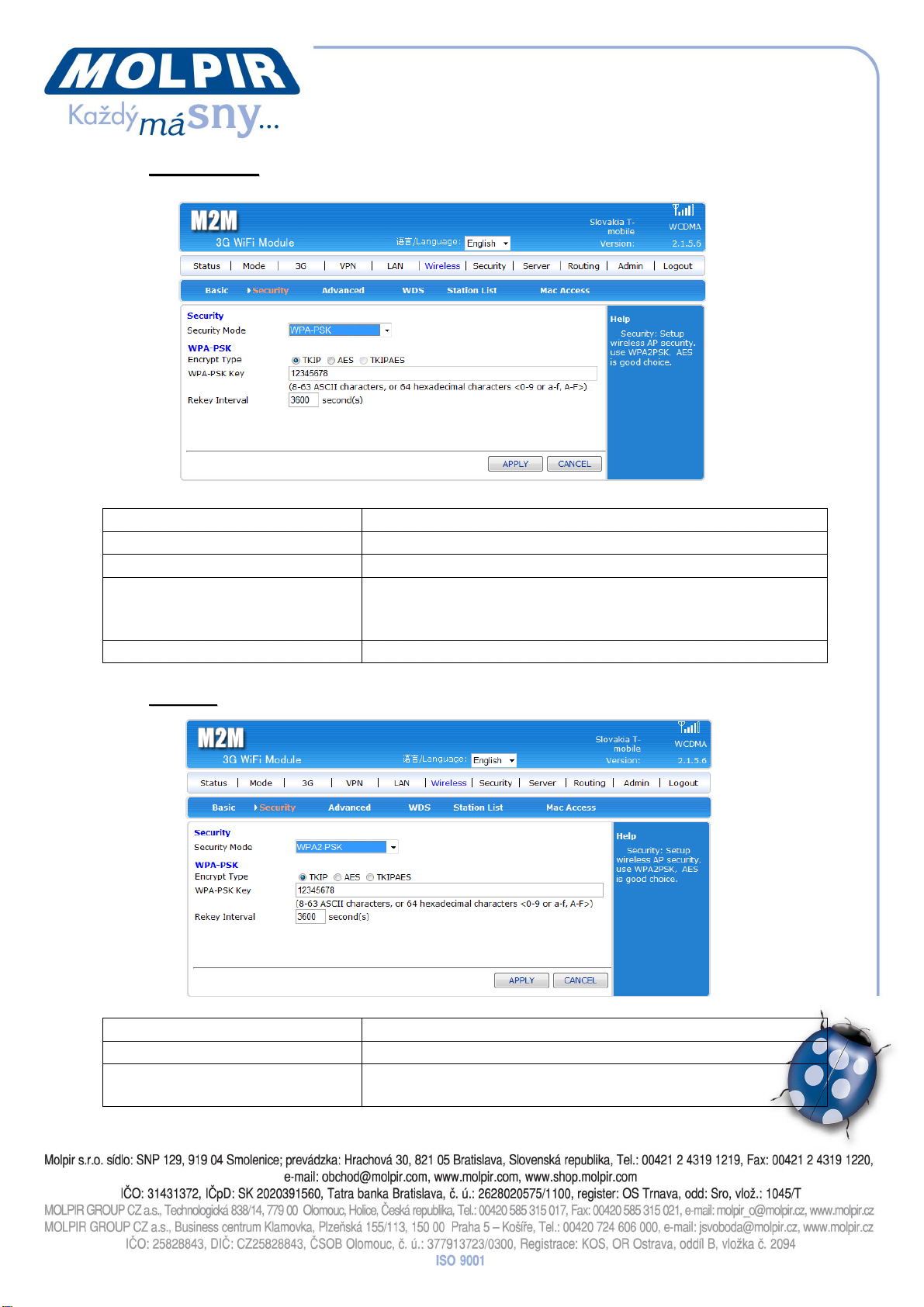

25 5. . W WP P - -P PS SK K
Items Description
Security Mode Choice WPA-PSK
Type of Encryption TKIP & AES (optional)
WPA – PSK Encrypted Key
Set up encrypt key
The length is ASCII code 863 digits or 64 digits
hexadecimal (0~9, a~f or A~F)
Encrypted Key interval Interval Unit is based on second
2
26 6. . W WP P 2 2
Item Description
Security Mode WPA2
WPA-PSK Encrypted
Typ
e
: TKIP, AEK & TKIPAES
WPA-PSK ASC Key: ASCII kode 8~63 digits or 64

NU
_
3G012
_
00
0
_
02082014_EN
Date: 02.08.2014 Page 15 / 18
digits hexadecimal (0~9, a~f or A~F)
Interval Key updating besed on second
RADIUS
RADIUS server IP address, port, Sharing encrypted
Key, conversation overtime, Idle Timeout
2
27 7. . W WP P 2 2- -P PS SK K
Items Description
Security Mode WPA2-PSK
Encrypt type THIP, AES & TKIPAES
WPA-PSK Key
ASCII code 8~63 digits or 64 hexadecimal (0~9,
a~f or A~F)
Rekey Interval ased on second
2
28 8. . W WP P P PS SK KW WP P 2 2P PS SK K

NU
_
3G012
_
00
0
_
02082014_EN
Date: 02.08.2014 Page 16 / 18
Items Description
Security Mode WPAPSKWPA2PSK
Encrypt type TKIP, AES & TKIPAES
WPA-PSK Key
ASCII code 8~63 digits or 64 hexadecimal
(0~9,a~f or A~F)
Rekey Interval ased on second
2
29 9. . W WP P 1 1W WP P 2 2
Items Description
Security Mode WPA1WPA2
Encrypt type
TKIP, AES & TKIPAES
ASCII code 8~63 digits or 64 hexadecimal (0~9,
a~f or A~F)
Rekey Interval ased on second
RADIUS
RADIUS server IP address, port, Sharing encrypted
Key, conversation overtime, Idle Timeout
3
30 0. . D De ev vi ic ce e M Ma an na ag ge em me en nt t
Equipment Function
UPnP protocol supports Windows ME, 2000, XP operation system. Enable this
function, your computer can find router automatically through UPnP protocol
UPnP (Universal Plug and Play) mainly apply to connect among devices without
using host server. It can search, find and control various devices from different
manufacturer
Enable UPnP function, router can pass through NAT

NU
_
3G012
_
00
0
_
02082014_EN
Date: 02.08.2014 Page 17 / 18
3
31 1. . F Fi ir rm mw wa ar re e U Up pg gr ra ad di in ng g
With firmware upgrading, router can upgrade to the latest version so that it can be
more stability and obtain more functions.
1. Click the link on the below page. Download and save the latest firmware version
from our company website: www.molpir.com
2
2. . Click „browsing” button and select the software that you need to upgrade.
3
3. . Click „upgrade” button and start upgrading.
3
32 2. . F Fa ac ct to or ry y D De ef fa au ul lt t
The router will reboot during factory default restore. Restoring the Default Password
and Configuration Settings will be applied when the new network is set up. The factory
default state is reset when you use the Restore Factory Settings button.
3
33 3. . P Pa as ss sw wo or rd d M Ma an na ag ge em me en nt t
oth ID account and password of Wireless router default state are „admin“.
IP account cannot be changed while password can be changed by users.
We strongly suggest that user change password before usage.
Password settings are as follows:
1. Enter original password in „original password“ box. Enter new pasword in „new
password“ box. Re-enter new password in „confirm password“ box.
2
2. . Click „OK“ button.

NU
_
3G012
_
00
0
_
02082014_EN
Date: 02.08.2014 Page 18 / 18
Note ! Specifications subject to change without notice.
3
34 4. . S Se er ri ia al l P Po or rt t I In ns st tr ru uc ct ti io on n
1. Firmware of 1.1.1.8 version and above provides serial port server function. It
keeps on improving and updating.
2
2. . In the main board, make sure serial port switch is on and turn to UART1.
3
3. . Serial port of female D 9 from a computer can connect to router D 5.3.2, pin
(GND/RX/TX) male connector.
4
4. . Router can connect to another computer via cable or wireless to set up from
webpage 192.168.10.1. So user can open „admin“ and select „serial server“ for
settings. Install server software and set up software type is TCP server with IP
192.168.10.2 and COM is 5000. Router will find the terminal device and connect
to it automatically. If some computer is on DHCP, user can enter WE page and
modify router serial port parameter accordingly to make sure server IP address is
same with COM.
