BEC 6300VNL User manual

Last revised: October 17, 2013
BEC 6300VNL
GigaConnect®
4G/LTE VoIP Wireless Broadband Router
User Manual
Version release: v1.02

TABLE OF CONTENTS
CHAPTER 1: INTRODUCTION ........................ 1
INTRODUCTION TO YOUR ROUTER ............................................................... 1
FEATURES &SPECIFICATIONS ...................................................................... 3
HARDWARE SPECIFICATIONS .......................................................................6
APPLICATION DIAGRAM............................................................................. 7
CHAPTER 2: PRODUCT OVERVIEW.............. 8
IMPORTANT NOTE FOR USING THIS ROUTER ....................................................8
DEVICE DESCRIPTION ................................................................................ 9
The Front LEDs .....................................................................................................9
The Rear Ports ....................................................................................................10
POWER SOURCE .....................................................................................11
CABLING ...............................................................................................12
CHAPTER 3: BASIC INSTALLATION............ 13
NETWORK CONFIGURATION –IPV4 ........................................................... 14
Configuring a PC in Windows 7 (IPv4) ...............................................................14

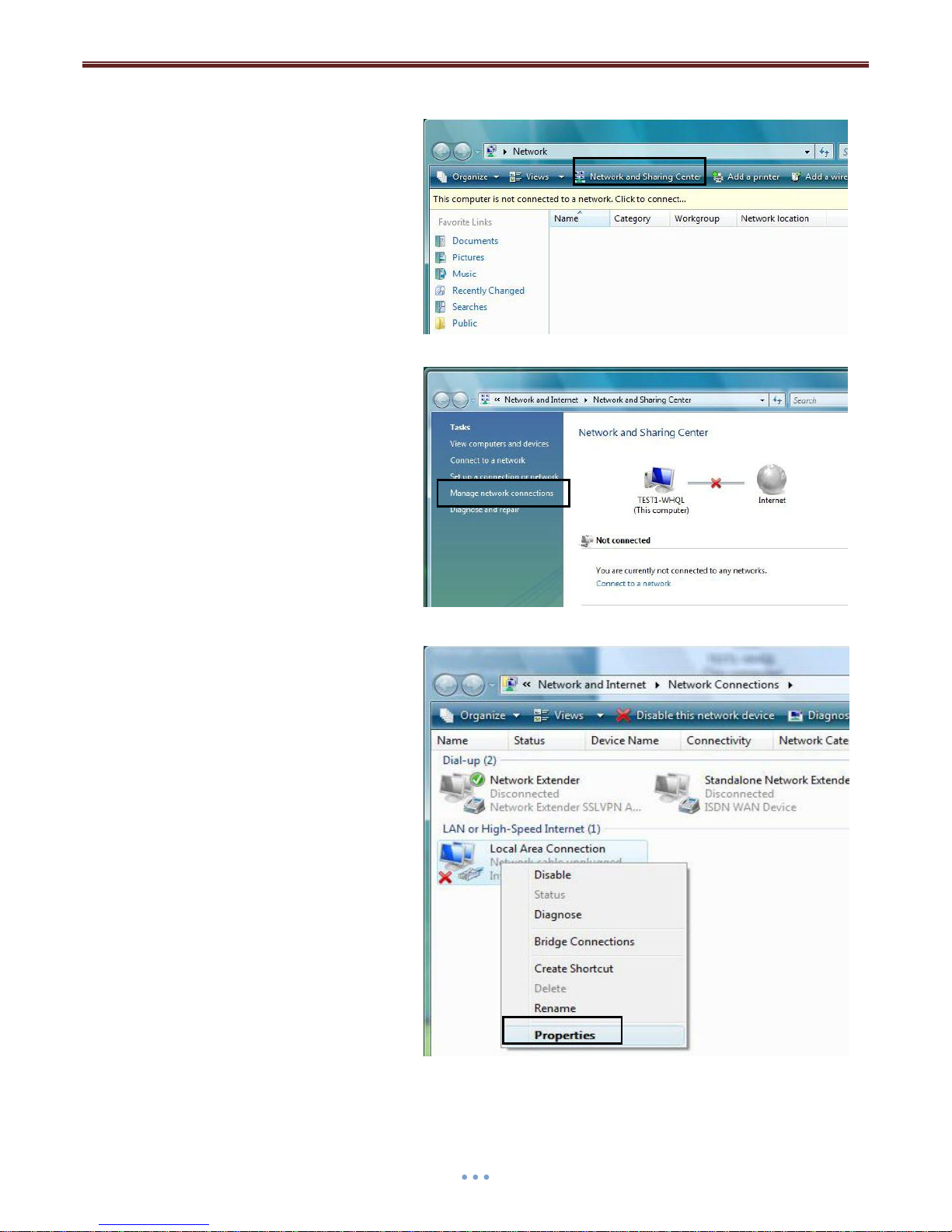

Configuring a PC in Windows Vista (IPv4) .........................................................16
Configuring a PC in Windows XP (IPv4) .............................................................18
Configuring a PC in Windows 2000 (IPv4) .........................................................19
Configuring PC in Windows 98/ME ....................................................................20
Configuring PC in Windows NT4.0 .....................................................................21
NETWORK CONFIGURATION –IPV6 ........................................................... 22
Configuring a PC in Windows 7 (IPv6) ...............................................................22
Configuring a PC in Windows Vista (IPv6) .........................................................24

BEC 6300VNL 4G/LTE VoIP Wireless Broadband Router
Configuring a PC in Windows XP (IPv6) .............................................................26
DEFAULT SETTINGS .................................................................................27
INFORMATION FROM YOUR ISP ................................................................ 28
CHAPTER 4: ROUTER CONFIGURATION.... 29
LOGIN TO YOUR DEVICE ...........................................................................29
STATUS ................................................................................................ 30
Device Info..........................................................................................................31
System Log..........................................................................................................34
3G/4G-LTE Status ................................................................................................35
Statistics .............................................................................................................36
DHCP Table .........................................................................................................40
Disk Status ..........................................................................................................40
VoIP Status..........................................................................................................40
QUICK START.........................................................................................41
CONFIGURATION .................................................................................... 46
Interface Setup ...................................................................................................47
Internet......................................................................................................................... 48
LAN............................................................................................................................... 54
Wireless........................................................................................................................ 58
Wireless MAC Filter ...................................................................................................... 68
Advanced Setup..................................................................................................69
Firewall......................................................................................................................... 70
Routing ......................................................................................................................... 71
NAT............................................................................................................................... 72
Static DNS..................................................................................................................... 76
QoS............................................................................................................................... 77
Interface Grouping........................................................................................................ 78
Port Isolation ................................................................................................................ 80
Time Schedule .............................................................................................................. 81
VoIP.....................................................................................................................82
Basic ............................................................................................................................. 83
Media ........................................................................................................................... 84
Advanced ...................................................................................................................... 85
Speed Dial..................................................................................................................... 86

BEC 6300VNL 4G/LTE VoIP Wireless Broadband Router
Call Features ................................................................................................................. 87
Access Management ..........................................................................................89
Device Management..................................................................................................... 89
SNMP............................................................................................................................ 90
Universal Plug & Play.................................................................................................... 91
Dynamic DNS ................................................................................................................ 92
Access Control............................................................................................................... 94
Packet Filter.................................................................................................................. 96
CWMP (TR-069)............................................................................................................ 99
Parental Control.......................................................................................................... 101
SAMBA & FTP Server................................................................................................... 102
Maintenance ....................................................................................................105
User Management...................................................................................................... 106
Time Zone................................................................................................................... 110
Firmware & Configuration .......................................................................................... 111
System Restart ............................................................................................................ 112
Diagnostics Tool.......................................................................................................... 113
CHAPTER 5: TROUBLESHOOTING.............114
Problems with the Router................................................................................114
Problem with LAN Interface.............................................................................114
Recovery Procedures........................................................................................114
APPENDIX: PRODUCT SUPPORT & CONTACT
......................................................................115

BEC 6300VNL 4G/LTE VoIP Wireless Broadband Router
1
Chapter 1: Introduction
Introduction to Your Router
Congratulations on your purchase of the BEC 6300VNL (4G/LTE VoIP Wireless Broadband Router).
This router is a compact and advanced broadband router that offers flexible and multiple Internet
connection options, EWAN and embedded 4G/LTE interfaces, for home, SOHO, and office users to
enjoy high-speed, high-level security Internet connection via cellular wireless and/or Ethernet WAN.
With an integrated 802.11n wireless access point and 4-port Gigabit Ethernet LAN, this router enables
faster wireless speed of up to 300Mbps and LAN connection 10 times faster than regular 10/100Mbps
Ethernet LAN. BEC 6300VNL (4G/LTE VoIP Wireless Broadband Router) provides a unique
Management Center enabling users to monitor 4G/LTE signal strength, bandwidth, download speed,
and many more. Users can choose the most economical rate of VoIP calls provided by different
providers. The device integrates two FXS ports which allows for simultaneous VoIP calls.
Cost Saving
Making VoIP calls is extremely simple; just connect the router with your existing analog telephones.
BEC 6300VNL (4G/LTE VoIP Wireless Broadband Router) complies with the most popularly
adopted VoIP standard and SIP protocol to ensure interoperability with SIP devices and major VoIP
Gateways. This router also supports a wider range of telephony features, such as Call Waiting,
Conference, Speed Dial, Return Call, Redial, etc.
4G/LTE Mobility
With 4G/LTE-based Internet connection (4G/LTE embedded module, requires an additional SIM card),
you can access to the Internet through 4G/LTE whether you are seated at your desk or taking a
cross-country trip.
Wireless Mobility and Security
With an integrated 802.11n Wireless Access Point, this router delivers up to 3 times the wireless
coverage of a 802.11b/g network device, so that wireless access is available everywhere in the house
or office. If your network requires wider coverage, the built-in Wireless Distribution System (WDS)
allows you to expand your wireless network without additional wires or cables. BEC 6300VNL
(4G/LTE VoIP Wireless Broadband Router) also supports the Wi-Fi Protected Setup (WPS)
standard and allows users to establish a secure wireless network just by pressing a button. Multiple
SSIDs allow users to access different networks through a single access point. Network managers can
assign different policies and functions for each SSID, increasing the flexibility and efficiency of the
network infrastructure.
4G/LTE Management Center
BEC 6300VNL (4G/LTE VoIP Wireless Broadband Router) Mobile Management Center visually
displays its current 4G/LTE signal status also calculates the total amount of hours or data traffic used

BEC 6300VNL 4G/LTE VoIP Wireless Broadband Router
2
per month, allowing you to manage your 4G/LTE monthly subscriptions.
IPv6 Supported
Internet Protocol version 6 (IPv6) is a version of the Internet Protocol that is designed to succeed IPv4.
IPv6 has a vastly larger address space than IPv4. The router is already supporting IPv6, you can use it
in IPv6 environment no need to change device. The dual-stack protocol implementation in an
operating system is a fundamental IPv4-to-IPv6 transition technology. It implements IPv4 and IPv6
protocol stacks either independently or in a hybrid form. The hybrid form is commonly implemented in
modern operating systems supporting IPv6.
Quick Start Wizard
Support a WEB GUI page to install this device quickly. With this wizard, simple steps will get you
connected to the Internet immediately.
Firmware Upgradeable
Device can be upgraded to the latest firmware through the WEB based GUI.

BEC 6300VNL 4G/LTE VoIP Wireless Broadband Router
3
Features & Specifications
• 4G/LTE for high speed mobile broadband connectivity
• Gigabit Ethernet WAN (GbE WAN) for Fiber (FTTC/ FTTP/ FTTH) high WAN throughput
• Gigabit Ethernet LAN
• IPv6 ready (IPv4/IPv6 dual stack)
•Multiple wireless SSIDs with wireless guest access and client isolation
• IEEE 802.11 b/g/n compliant Wireless Access Point with Wi-Fi Protected Setup (WPS)
• Wi-Fi Protected Access (WPA-PSK/ WPA2-PSK) and Wired Equivalent Privacy (WEP)
• SOHO Firewall Security with DoS Preventing and Packet Filtering
• Quality of Service Control for traffic prioritization management
• Universal Plug and Play (UPnP) Compliance
•Voice over IP compliant with SIP standard
•Two FXS ports for connecting to regular analog telephones
•Call Waiting, Conference Call
•Speed Dial, Return Call, Redial
•Don’t Disturb
• Ease of Use with Quick Installation Wizard
• One USB port for NAS (FTP/ SAMBA server)
•Ideal for SOHO, office, and home users
Network Protocols and Features
• IPv4, IPv6 or IPv4 / IPv6 Dual Stack
• NAT, static (v4/v6) routing and RIP-1 / 2
• DHCPv4 / v6
• Universal Plug and Play (UPnP) Compliant
• Dynamic Domain Name System (DDNS)
• Virtual Server and DMZ
• SNTP, DNS proxy
• IGMP snooping and IGMP proxy
• MLD snooping and MLD proxy
Firewall
• Built-in NAT Firewall
• Stateful Packet Inspection (SPI)

BEC 6300VNL 4G/LTE VoIP Wireless Broadband Router
4
• DoS attack prevention including Land Attack, Ping of Death, etc
•Access control
• IP&MAC filter, URL Content Filter
• Password protection for system management
•VPN pass-through
Quality of Service Control
•Traffic prioritization management based-on Protocol, Port Number and IP Address (IPv4/ IPv6)
Wireless LAN
• Compliant with IEEE 802.11 b/ g/ n standards
• 2.4 GHz - 2.484GHz radio band for wireless
• Up to 300 Mbps wireless operation rate
• 64 / 128 bits WEP supported for encryption
• WPS (Wi-Fi Protected Setup) for easy setup
• Wireless Security with WPA-PSK / WPA2-PSK support
• WDS repeater function support
USB Application Server
• Storage/NAS: Samba server, FTP Server
VoIP
• Compliant with SIP standard (RFC3261)
• Codec: G.729, G.726, G.711 A-Law, G.711 u-Law
• DTMF Method: Inband, RFC 2833, SIP Info
• Caller ID Generation: DTMF, FSK
• Silence Suppression (VAD), Echo Cancellation
• Call Waiting, Conference Call
• Speed Dial, Return Call, Redial
• Don't Disturb
• FAX Relay: T.38
• Call Detailed Records (CDR)
Management
•Quick Installation wizard
• Web-based GUI for remote and local management (IPv4/IPv6)

BEC 6300VNL 4G/LTE VoIP Wireless Broadband Router
5
• Firmware upgrades and configuration data upload and download via web-based GUI
• Supports DHCP server / client / relay
• Supports SNMP v1, v2, v3, MIB-I and MIB-II
• TR-069 supports remote management

BEC 6300VNL 4G/LTE VoIP Wireless Broadband Router
6
Hardware Specifications
• 4G LTE antenna: 2 external antennas
• SIM card slot: Mini SIM card (2FF) slot for mobile broadband connectivity
• VoIP phone port: 2 RJ-11 FXS phone ports to connect with 2 regular analog phones.
• USB: USB 2.0 type A port for storage service
• Ethernet: 4-port 10 / 100 / 1000Mbps auto-crossover (MDI / MDI-X) Switch
• EWAN: RJ-45 Gigabit Ethernet port for connecting to Cable/Fiber/xDSL modem for Broadband
connectivity.
• Factory default reset button
• Wireless on/off and WPS push button
• DC Power jack
• UPS Power with 4-pin connectors
• Power switch to switch between DC power and UPS power.

BEC 6300VNL 4G/LTE VoIP Wireless Broadband Router
7
Application Diagram
BEC 6300VNL (4G/LTE VoIP Wireless Broadband Router) is an all-in-one router, supporting 2
connection options (4/LTE and EWAN) to connect to the Internet.
4G/LTE router mode
With an embedded 4G/LTE module, the router can be used to connect to high speed mobile fixed
wireless connection.
Broadband Router Mode
This router also has a Gigabits Ethernet WAN port (EWAN) to connect with your Fiber / Cable/ xDSL
modem.

BEC 6300VNL 4G/LTE VoIP Wireless Broadband Router
8
Chapter 2: Product Overview
Important note for using this router
Place the router on a stable surface.
Only usethe power adapter that comes with the package. Using
a different voltage rating power adaptor may damage the router.
Attention
Do not use the router in high humidity or high temperature.
Do not use the same power source for the BEC 6300VNL on
other equipment.
Donot open or repair the case yourself. If the device becomes
too hot, turn off the power immediately and have it repaired at
a qualified service center.
Avoid using this product and all accessories outdoors.
Warning

BEC 6300VNL 4G/LTE VoIP Wireless Broadband Router
9
Device Description
The Front LEDs
LED
Status
Meaning
1
Power
Green
System ready
Red
Boot failure
2
Battery
Green
UPS is functional properly
Orange
UPS battery failure. Need to recharge or replace a new battery
Orange blinking
UPS AC power failure and battery functional properly
Off
Device powered by the DC power adaptor
3
EWAN
Green
Transmission speed is 1000Mbps
Orange
Transmission speed is10/100Mbps
Blinking
Data being transmitted/received
4
Ethernet
Port 1-3
Green
Transmission speed is 1000Mbps
Orange
Transmission speed is 10/100Mbps
Blinking
Data being transmitted/received
5
USB
Green
Connecting to a USB dongle or hard drive.
6
Wireless/WPS
Green
Wireless connection established
Green blinking
Data being transmitted / received
Orange
WPS on
7
Phone(1-2)
Green
Successfully registered
Orange
Phone is off-hook, in-use light
8
LTE
Green
Signal strength > 75%
Green
Flashing quickly
Signal strength 75%-50%
Orange
Flashing quickly
Signal strength 50%-25%
Orange
Flashing slowly
Signal strength <25%
Orange
No signal, but LTE module OK
off
No LTE module or LTE module fails
9
Internet
Red
Obtaining IP failure
Green
Having obtained an IP address successfully
Off
Router in bridged mode or WAN connection not present.

BEC 6300VNL 4G/LTE VoIP Wireless Broadband Router
10
The Rear Ports
Port
Meaning
1
Power Switch
Power ON/OFF switch
(1) with Power Switch ON: power up by the supplied DC power adaptor
(2) with Power Switch OFF: power up by the UPS battery unit
2
Power
Connect the supplied power adapter to this jack.
3
RESET
After the device is powered on, press it 6 seconds or above: to restore to factory
default settings (this is used when you cannot login to the router, e.g. forgot your
password)
4
Wireless On/Off
WPS
By controlling the pressing time, users can achieve two different effects:
(1) Wireless ON/OFF button: Press over 6 seconds to switch on wireless function
when wireless is off and press over 6 seconds again to disable wireless function.
(2) WPS: Press less than 6 seconds to trigger WPS function.
5
UPS Jack
The 4-pin connectors allow you to power the device with an external UPS battery
backup.
6
EWAN
Connect to Fiber/ Cable/ xDSL Modem with a RJ-45 cable
7
Gigabit Ethernet
Connect a UTP Ethernet cable (Cat-5 or Cat-5e) to one of the four LAN ports when
connecting to a PC or an office/home network of 10Mbps /100Mbps /1000Mbps.
8
USB
Connect an external USB dongle / hard drive for storage, network sharing, etc.
9
Phone (1X-2X)
Connect your analog phone to this port with a RJ-11 cable.
10
SIM Card Slot
Insert the mini SIM card (2FF) with the gold contact facing down.
Push the mini SIM card (2FF) inwards to eject it
11
4G-LTE Antenna
detachable
Connect the 3G / 4G detachable antenna to this port.

BEC 6300VNL 4G/LTE VoIP Wireless Broadband Router
11
Power Source
BEC 6300VNL offers two kinds of power input, namely, DC power Adapter and DC UPS (or BBU).
BEC 6300VNLcan take the advantage of UPS (Uninterruptible Power Supply) to keep working even if
the power outage hit your router when the router in working in DC UPS mode.
(A picture of the rear focusing on the power source)
(A shot from the front panel, with second icon being identified as the Battery LED)
How to switch between the two (2) power sources, DC power adaptor and external UPS battery
Pressed "Power Source" button, the button is visually being pressed down. The power source is from
the DC power adapter supplied in the package.
"Power Source" button in the un-pressed state, the power source is from the UPS. The router can
continue to operate for a period of time after AC power failure, due to uninterrupted power system
features of UPS.
UPS LED:
A Battery LED indicates if a DC UPS is in-use or not. When the router is operating via the DC power
adapter this LED will be off.

BEC 6300VNL 4G/LTE VoIP Wireless Broadband Router
12
Battery LED Definition:
Green LED: UPSAC power is working; UPS battery is also working well
Orange LED Only UPS AC power is working. Battery failure- need to change or recharge
battery
Orange LED: UPS AC power failure; UPS battery is working
Cabling
One of the most common causes of problems is bad cabling. Make surethat all connected devices are
turned on. Checkthefront panel to verify LAN LED status. If you don’t see LAN LEDs on, please check
your RJ-45 Ethernet cable(s) again.

BEC 6300VNL 4G/LTE VoIP Wireless Broadband Router
13
Chapter 3: Basic Installation
You can configure the BEC 6300VNL (4G/LTE VoIP Wireless Broadband Router) through the
convenient and user-friendly interface of a web browser. Most popular operating systems such as
Linux andWindows 98 /NT /2000 / XP/ ME / 7/ Vista include a web browser as a standard application.
PCs must have a properly installed Ethernet interface which connects to the router directly or through
an external repeater hub. In addition, PCs must have TCP/IP installed and configured to obtain an IP
address through a DHCP server or a fixed IP address that must be in the same subnet as the router.
The default IP address of the router is 192.168.1.254 and the subnet mask is 255.255.255.0 (i.e. any
attached PC must be in the same subnet, and have an IP address in the range between 192.168.1.1
and 192.168.1.253).
The easiest way get an access to the Internet is to configure your PC to obtain an IP address
automatically from the router using DHCP. If you encounter any problems accessing the router’s web
interface you are advised to uninstall any kind of software firewall on your PCs, as they can cause
problems when trying to access the 192.168.1.254 IP address of the router.
Please follow the installation steps, below, to setup your PC’s Network Card. Before you do that, check
if your PC’s network components, the TCP/IP protocol stack and Ethernet network adapter, are being
installed or not. If not, please refer to your Windows-related or other operating system manuals for
more information.
Any TCP/IPcapable workstation can be used to communicate with or
through the BEC 6300VNL. To configure other types of workstations,
please consult the manufacturer’s documentation.

BEC 6300VNL 4G/LTE VoIP Wireless Broadband Router
14
Network Configuration –IPv4
Configuring a PC in Windows 7 (IPv4)
1. Go to Start. Click on Control Panel.
2. Then click on Network and Internet.
3. When the Network and Sharing
Center window pops up, select and
click on Change adapter settings on
the left window panel.
4. Select the Local Area Connection,
and right click the icon to select
Properties.

BEC 6300VNL 4G/LTE VoIP Wireless Broadband Router
15
5. Select Internet Protocol Version 4
(TCP/IPv4) then click Properties.
6. In the TCP/IPv4 properties window,
select the Obtain an IP address
automatically and Obtain DNS
Server address automatically radio
buttons. Then click OK to exit the
setting.
7. Click OK again in the Local Area
Connection Properties window to
apply the new configuration.

BEC 6300VNL 4G/LTE VoIP Wireless Broadband Router
16
Configuring a PC in Windows Vista (IPv4)
1. Go to Start. Click on Network.
2. Then click on Network and Sharing
Center at the top bar.
3. When the Network and Sharing
Center window pops up, select and
click on Manage network
connections on the left window
pane.
4. Select the Local Area Connection,
and right click the icon to select
Properties.
