Momax Ultra-Air Plus User manual

Ultra-Air Plus
IoT UV Hot & Cool Purifying Fan
(AP7S)
Instruction Manual
IoT智能紫外光空氣淨化冷暖風機
使用說明
IoT智能紫外光空氣淨化冷暖風機
®
N

Wind Speed
22ºC
5
Power Oscillate UV SteriIization Timer
Strong Sleep Fresh Heater
Introduction p.2- 26
產品資料 p.27 - 50
產品資料 p.51 - 74
1

1. Download ‘MOMAX Smart’ APP
Search ‘MOMAX Smart’ app on iOS or Android or any platform.
How does bladeless work?
1. Air is sucked in through small vents in the base by an electric motor.
2. The air is propelled through the H13 HEPA and the UV-C chamber, then
to the slit in the frame.
3. Air passes over the ramp which channels its direction.
4. As it is pushed out of the fan, surrounding air is drawn into the airflow,
making the volume higher and smoother because of no rotor blades.
Before Using
1. Please make sure the electric power supply of your region meets
the product’s requirement. Due to high rated power (2000W), an
independent >13A charging switch must be used.
2. Make sure there is no broken of the power cord and the product.
3. This product cannot replace daily air ventilation, dust collection, or use
as a fume cupboard.
4. Do not use this appliance when you have used indoor smoke-type insect
repellents or in places with oily residues, burning incense, or chemical
fumes.
5. Leave at least 30cm of space around the product when using.
6. Do not insert your fingers or objects into the air outlet or the air inlet to
prevent physical injury or malfunctioning of the appliance.
7. This product is not waterproof.
Quick Start GuideIntroduction
2 3

Add Device
Confirm light blinks rapidly
Help
2. Register
Register an account and log in using your mobile number or email
address.
3. Turn on Wi-Fi
The app is ready to add a device, press & hold the power button for 5
secs (you will hear “beep” for 3 times).
When “ ” appears and blinks, tap “confirm indicator rapidly blink” on
MOMAX Smart app to continue.
The Home page of all connected devices.
To set scenarios or conditions and respective actions of the
new smart device.
Profile management, FAQ, setting, etc.
4 5

Connecting...
50%
5. Successfully connected
Once the connection is completed. You will see “Wi-Fi” symbol appear
on the LED screen of Ultra-Air Plus.
Tap “+” or “add device” at the upper right corner and choose the fan on
Momax Smart app.
The app will automatically match the device. After the match is found,
you can edit the name of the device.
Tips: The device name should be identifiable and easy to pronounce (voice control).
6. Connect to a new Wi-Fi network
Press & hold the power button
for 5 secs and follow step 1-5.

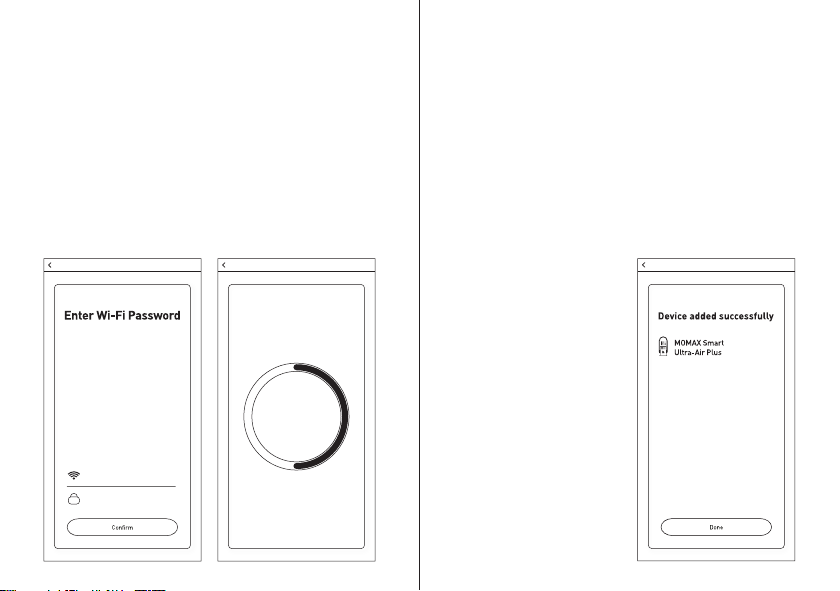

4. Connect to the Internet Wi-Fi
Choose your Wi-Fi network and enter the password. The smart device
will start connecting to your device via Wi-Fi network.
Tips:
 •StableWi-Finetworkisrequired
 •LinktotheWi-Finetworkagainwhenthedeviceisdisconnected
6 7

High mode
Fan speed: 9
You will see “HH” appear
on the LED screen.
Natural breeze mode
Fan speed: 3, 4, 5
and each runs repeatedly for 10 secs.
You will see “--” appear
on the LED screen.
Low mode
Fan speed: 1
You will see “LL” appear
on the LED screen.
ON/OFF
MODE A
MODE B
ON/OFF
Remote Control Page
You can control the ON/OFF, cool fan speed, heater temperature, UV-C,
auto-off timer function and 3 shortcut modes using the app. Moreover,
this device can execute automatically according to conditions such as
specific time, weather, etc. (allow access of your location is required).
* 3 shortcut modes is applicable to MOMAX Smart app.
3 shortcut modes
3 shortcut modes is applicable to MOMAX Smart app.
Device App Control panel. Auto Location Weather, Humidity.
8 9

Voice Control
This smart device supports voice control with Amazon Alexa, Google
Assistant and other China platform, etc.) To connect with these platforms,
please refer to the App>More Services>Voice Service. Voice commands of
each platform may vary, please refer to the relevant user manual.
Turn on/ off heater.
Set the Fan speed to 1.
Set heater temperature to 26℃.
Turn up the Fan speed.
Smart Home Ecology System
Adding Multiple Devices in interactive smart mode.
10 11

80°
30°
Magnetic Top Cover Of
Air Purifying Filter
Air Outlet
Air Inlet
Air Inlet
Magnetic
RemoteControl
Safety Lock Power
ON/OFF Button
Built-in Power Port
LED Screen
Power Button

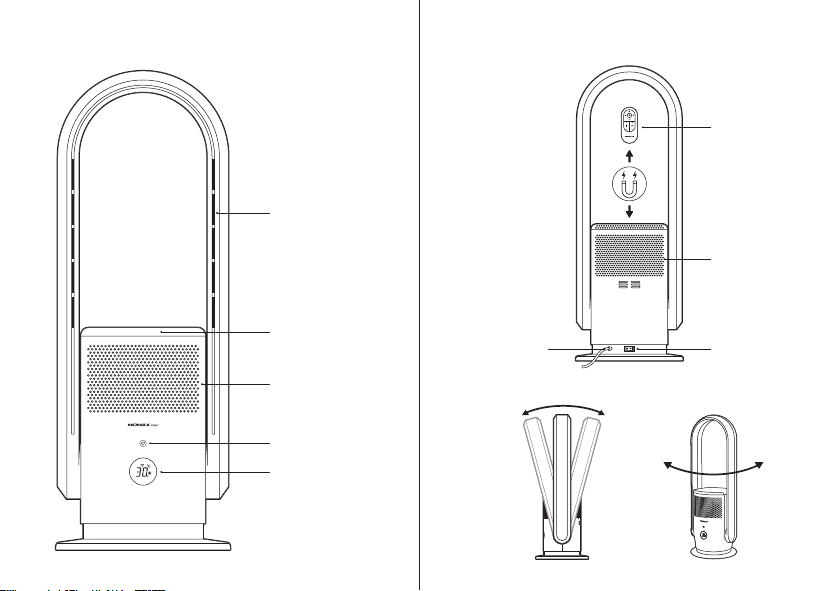

Product Overview
12 13

Wi-Fi
OFF
Fan Speed
(Up to 9-speed setting)
Heater temperature 1-30℃
Auto-off timer 1h.-8h.
3 Shortcut modes (HH / -- / LL)
UV-C
CR2025
+
CR2025
+
3
1
2
4
LED screen
Remote Control
Operating Instructions Of Remote Control
1. Battery
1st use: Simply remove the clear contact-prevention strip coming out of
the closed battery compartment.
Battery replacement: As shown in the picture. Please note the battery
direction.
- Please do not install the positive and negative poles of the battery in
wrong position.
- Please use the specified battery. Do not recharge the non-rechargeable
batteries.
- Please take out the battery when not in use for more than 2 months.
2. The remote control should be pointed at the remote control signal
receiver on the LED screen to maximize the remote control signal.
Power Button
High Speed Mode
Oscillation
UV-C Light
Auto-off Timer 1h.-8h.
Heater Mode
Temperature 1-30℃
Cool Fan Mode
Fan Speed
(Up to 9-speed setting)
14 15

Operating Instructions Of Power Button
1. Power ON/OFF
- Tap for 1 sec to Power on.
- Tap & hold for 2 secs to Power off.
2. Cool Fan speed
When the fan is operating, tap repeatedly to adjust the fan speed (up to
9-speed settings).
3. Heater speed
When the heater is operating:
- Tap to display the environmental temperature.
- Tap repeatedly the button to adjust the heater speed (up to 4-speed
settings).
4. Oscillation
When the fan is operating, tap the button for 1 sec, the fan will start to
oscillate.
Tap the button for 1 sec again to stop oscillation.
Press “heater mode sign” to turn on heater mode.
LED screen will display the environmental temperature* (envt temp℃).
Adjust the temperature setting, the number shown in the screen will flash
ranging from 1-30℃, stop flashing after 5 secs once finish the setting,
- Heater temperature setting > Environmental temperature: heater mode
is ON.
- Environmental temperature ≥ Heater temperature setting: heater mode
STOPS ; before stop, it continues to run for 40 secs to detect envt temp℃.
- Environmental temperature < Heater temperature setting: heater mode
resumes to previous temperature & speed setting.
Note: heater default temperature setting as 25℃
When envt temp℃is below 0℃, LED screen will show 01 only, negative℃
will not be shown. AP7S will turn off automatically after operating 9 hours
heater. Restart by Momax smart APP/ remote control/ power button.
Remarks: Heater first delivers heat from left side air outlet, will deliver
heat from right side after 20 secs. Both sides will deliver heat
afterso. This is a normal phenomenon.
* Built-in thermostat sensor can sense the environmental temperature
automatically: when heater mode is ON, the envt temp℃will first be
displayed. Users can adjust the temperature setting (the temperature
should be higher than the envt temp℃); When the envt temp℃
reaches the heater setting temperature, the heater will stop running
to avoid excessive drying of the environment and long-term activation
of the heater. When the envt temp℃is lower than the adjusted heater
temperature, the heater will resume to ensure a warm environment. It
can maintain the warmness in room and achieve energy saving.
Operating Instructions Of Heater Mode
16 17

Ensure the machine is unplugged before maintenance.
Maintenance
Surface
Use a lightly moistened soft cloth with neutral cleanser to clean the
remote control and the surface of the unit.
Filter
1. Use a vacuum cleaner or soft brush to clean the dust or debris of the
air inlet/outlet.
2. Use a vacuum cleaner or soft brush to remove the dust on the H13
HEPA every 3 months. This will help extend the life of the filter and
maintain its performance.
Note: Do not wash the filter directly.
Filter Replacement
This device has a memory function. After a total of 720 hours of operation,
lines will appear progressively on the display (as shown in the figure)
and you will hear “beep” sound for 5 times. After filter maintenance or
replacement, press & hold the power button of remote control for 5 secs
to restart a new memory.
1. Simply take out the magnetic top cover & filter.
2. Separate the old filter from the top cover.
3. Assemble the new filter with the top cover.
4. After assembling, put it back in the main unit and the lid is magnetically
attached.
5. After filter maintenance or replacement, press & hold the power
button of the remote control for 5 secs to restart a new memory.
Reminder for
filter replacement
18 19

About H13 HEPA Filters and UV-C
H13 HEPA filter UV-C
Structures
White mesh filter with
very fine glass threads
with a diameter of less
than 1 micron (0.001mm)
LED UV-C Light
Common
Uses
•Airborneparticlesof0.3
micron
•PM2.5(neparticulate
matter with size less
than 2.5 microns)
•Aerosolsof0.3–10
micron
•Allergens(e.g.Dust
mites, pollen, mold
spore, etc.)
Kills or inactivates
the airborne
infectious particles
(e.g. germs, mold
spore, etc.) that
circulate throughout
the space.
1. Filtration coverage up to 100 m2
2. Sterilization coverage up to 10 m2
3. Cool Fan Air Circulation :
Delivery up to 4.5m (max.)
4. Heater Air Circulation :
Delivery up to 3.6m (max.)
Make sure to leave a certain amount
of space around the machine. Leave
at least 30cm of space around the
product. Insufficient ventilation may
cause overheating or fire hazards.
The remote control should be pointer at the remote control signal receiver
on the display to maximize the remote control signal.
Effective Range
Remote Control
Possible phenomenon
1. This fan may respond to the
remote control of other devices.
2. If you use the remote control
of this fan, other devices may
respond. This is due to the
overlapping frequencies of the
remote control. There is no quality
problem in the product itself. To
avoid misuse, keep the remote
control away from other electrical
devices during operation.
20 21

Model No. : AP7S
Operating Voltage /Frequenc : 200-240V ~ 50-60Hz
Rated Voltage / Frequency : 220V±10% ~ 50-60Hz
Rated Voltage : 2000W
Heater Voltage : 2000W
Cool Fan Voltage : 35W
Filter Type : H13 HEPA
UV-C Lifecycle : 10000 hour
Horizontal Oscillation : 80° ± 5°
Vertical Manual Adjustment : 30°
Auto-off Timer : 1 - 8 hours
Battery : Button cell lithium battery CR2025 (1pc)
Wireless WiFi Frequency : 2.402GHz - 2.480GHz
Wireless WiFi Distance : 10m
Cord Lenght : 1.8m
Size : 255 x 255 x 700mm
Weight : 4.6kg
Contains
1. Ultra-Air Plus IoT UV Hot & Cool Purifying Fan
2. H13 HEPA Filter (1pc)
3. Remote Control with Button Cell Lithium Battery CR2025 (1pc)
4. Instruction Manual And Warranty Card
Specification
Points for attention
Before using, please read this user manual carefully and keep it for future
reference.
1. To avoid electric shock and fire, do not allow water, liquid or any
flammable detergent to get into or to clean the product.
2. Do not spray insecticide, perfume or other flammable sprays around
the product.
3. Before connecting the power supply, please check whether the voltage
of the product is consistent with the local power supply voltage. Due to
high rated power (2000W), an independent >13A charging switch must
be used.
4. This product cannot replace daily air ventilation, dust collection, or use
as a fume cupboard.
5. Ensure the product is used and kept in a well-ventilated area.
6. Leave at least 30cm of space on the back and sides of the product, and
at least 50cm of space above the product when using.
7. Ensure both the filter and its cover are properly installed before using.
8. Do not insert a finger or other things into the air outlet / inlet to prevent
physical damage or trouble.
9. Do not place the machine near a heating device such as a stove or
heater.
10. Do not attempt to repair, disassemble or modify this machine.
11. Please only use the correct local AC power outlet of the power supply.
Before connecting the product to the power supply, first, verify that the
voltage marked on the back or bottom of the product matches the
local voltage.
Warnings
22 23

12. Remove the dust from the power plug and insert it all the way. If the
power cord or plug is damaged or found defective, to avoid danger,
it must be replaced by a professional from the manufacturer or
maintenance department.
13. When an abnormality occurs (such as a burning smell, overheat, etc.),
turn off the machine and unplug the power cord.
14. Do not cover the air inlet with clothing, cloth strips, curtains, etc. Do
not block the inlet and air outlet, for example, do not place objects on
or in front of the air outlet.
15. Do not use the machine in the bathroom or other places where it may
come into contact with water, or wash the machine with water.
16. Do not use this unit in a location where it may be exposed to direct
sunlight or wind and rain.
17. Do not place in places where chemicals are used or where oil or
flammable gas may leak such as hospitals, factories, or laboratories.
18. When using for a long time without supervision, please check it every 2
weeks.
19. Do not allow the machine to tip over, and do not drop the machine
horizontally to carry it.
20. Make sure to leave a certain amount of space around the machine.
30cm less space and at least 50cm above. Insufficient ventilation may
cause overheating or fire hazards.
21. Hold the plug when pulling out the power plug.
22. This product is only for domestic use.
Please reference Mobile Apps content: Before accepting the Agreement,
you are supposed to thoroughly read all the contents of the Agreement,
and fully understand its terms, especially restrictive clauses or exceptions
and Privacy Notice. Restrictive clauses or exceptions are bold or
highlighted in other forms to catch your attention. In case of any doubt
about the terms of the Agreement, please contact the relevant business
department of Tuya. You are not allowed to use the service before you have
read and accepted all the terms of the Agreement, relevant agreements,
and rules, etc. Once you select “agree and submit the Agreement” (see
registration page for detailed wordings) and complete the registration
procedure, or you use the service in any form, it will be deemed that you
have read and agreed with the restriction of the Agreement and rules
above. In case of any breach of the Agreement, Tuya has the right to
unilaterally restrict, suspend or terminate the service for you, and has the
right to investigate your relevant responsibilities.
1. Do not place the product as household waste;
2. Please dispose of discarded electronic products properly according to
local regulations;
3. MOMAX encourages you to participate in the electronic recycling
program.
Service Agreement of
Smart Mobile Application Platform
Disposal of Electronic Products
24 25

1. For any defect, in the judgment of our technician, caused under
normal use, we are responsible for repairing free of charge 12 months
commencing from the date of purchase at the discretion of our
company;
2. A valid warranty card and original purchase invoice must be presented
upon request of warranty service;
3. This warranty card shall not apply to the product if:
(a) It is consumable part(s), such as Filter, or;
(b) it has explicitly modified or repaired in any way by persons other
than technicians of this company, or;
(c) it has been damaged through misuse, malicious acts, negligence,
the inflow of any liquid, or;
(d) losses or damages are caused by force majeure or natural disasters.
4. No alteration to this warranty card will be allowed;
5. The warranty terms and conditions are subject to change without prior
notice;
6. Please retain your proof of purchase for warranty service;
7. Please consult the dealer about the product compatibility with your
cell phone/ PDA before purchase. Product specifications are subject to
change without prior notice;
8. Please visit www.momax.net for the latest product information.
Warranty Conditions 簡介
無葉風扇如何工作？
1. 空氣通過底座入風口上的小孔吸入。
2. 空氣通過H13 HEPA和UV-C位置過濾並推動氣流，然後到達無葉風扇框
架中的縫隙。
3. 空氣通過坡道引導氣流方向
4. 空氣從風扇中推出時，周圍的空氣會被吸入氣流中。由於是無葉風扇，
沒有任何葉面阻礙轉動，因此可製造更大氣流，使空間更涼快。
使用之前
1. 請確保您所在地區的電源供應符合產品要求。因大功率(2000W)，必需
使用13A以上的獨立充電開關。
2. 確保電源線和產品沒有破損。
3. 本產品不能代替日常通風，日常除塵或用作抽風櫥。
4. 當您使用室內煙霧型驅蟲劑或在有油性殘留物，燃燒的香火或化學煙霧
的地方時，請勿使用本產品。
5. 使用時，產品四周至少預留30厘米的空間。
6. 請勿將手指或其他物體插入出風口或入氣口，以免造成人身傷害或設備
故障。
7. 本產品不防水。
26 27

2.註冊
 註冊一個帳戶，然後使用您的手機號碼或電子郵件地址登錄。
主頁將會連接所有設備。
可設定智能設備特定條件下、執行指定操作。
個人資料管理，常見問題解答，設置等。
快速入門指南
1.下載“MOMAXSmart”應用程式
 在iOS或Android或任何平台上搜索“MOMAXSmart”應用程式。
28 29

Connecting...
50%
Add Device
Confirm light blinks rapidly
Help
4.連接到互聯網Wi-Fi
 選擇您的Wi-Fi網絡，然後輸入密碼。智能設備將開始通過Wi-Fi網絡連接
到您的設備。
 提示：
•需要穩定的Wi-Fi網絡。
•當設備兩端連接時，再次鏈接到Wi-Fi網絡。
3.開啟Wi-Fi
 帳戶註冊後，應用程式可以添加裝置。按住電源按鍵5秒(你會聽“嗶”聲3
下)。
 當LED顯示屏出現“ ”並閃爍時，請在MOMAX Smart應用程式上點
擊“確認指示燈快速閃爍”以繼續。
30 31

ON/OFF
MODE A
MODE B
ON/OFF
控制設備版面
您可以使用應用程式控制開/關、風扇速度、紫外光、自動關機功能及3種快
捷模式*。此外，亦可以根據特定時間，天氣等條件自動執行你的預設模式
（須允許所在地區存取權，以獲取地區天氣數據）。
*三種快捷模式可以由MOMAXSmart應用程式。
控制面板 自動定位天氣、濕度
5.成功連接
 連接完成後。您可以在Ultra-AirPlus的LED顯示屏上看到“Wi-Fi”符號。
 點擊右上角的“+”或“添加設備”，然後在MOMAX Smart應用程式上，
選擇風扇符號。
 應用程序將自動與設備配對。配對後，您可以編輯設備的名稱。
 提示：設備名稱應易於識別且易於發音（語音控制）。
6.重新連接Wi-Fi網絡
 按住機身上的電源按鍵5秒鐘，再進行步驟1-5。
32 33

智能家居生態系統
添加多個設備的互動智能模式
高風速模式
風速:9
LED顯示屏顯示“HH”
自然風模式
風速:3/4/5
每段循環運行10秒鐘
LED顯示屏顯示“--”
低風模式
風速:1
LED顯示屏顯示“LL”
三種快捷模式
三種快捷模式可以由MOMAXSmart應用程式。
34 35

產品總覽
出風口
空氣淨化濾芯磁吸頂蓋
入風口
電源按鍵
LED顯示屏
語音控制
此智能設備支持使用AmazonAlexa、GoogleAssistant及中國內地等平台進
行語音控制。要連接這些平台，請參閱App>更多服務>語音服務。
每個平台的語音指令可能略有所差異，請參閱相關的用戶手冊。
打開/關閉暖風機
將風扇調到1檔
將風扇風速調高
將暖風溫度設置為26℃
36 37
