Monarch 295SEPC1K User manual

CONTENTS
1A - General information
1B - Technical specifications
1C - Main components
1 - TRANSMITTER OVERVIEW
2 - NUMBERING
3 - PROGRAMMING
4 - OPERATION
5 - BATTERY ACCESS
1B - Technical specifications
Operating frequency 295 MHz
Number of keys: 1
Battery : 2 x 3V lithium batteries CR2016
Battery life: 18 ÷ 24 months
Number combinations : 65,536
Protocol : ClikCard® compatible
Different Facilities codes 64
Operating temperature: -20°F÷+131°F (-20°C÷+55°C)
Overall dimensions: 2.4”x1.4”x0.51” (61x36x13 mm)
Weight: 0.49 oz. (14 gr.)
1C - Main components
Red
LED
Key ring
holder
Dark grey
push-button
Transmitter
Solutions
Thank you for choosing a Transmitter Solutions product .
Please read this manual carefully before using the product.
Made in Italy. Copyright © 2006 byTransmitter Solutions
6 - TROUBLESHOOTING
Manual
MONARCH 295SEPC1K
Dark grey
case
Fig. 2
1A - General information
The Transmitter Solutions - Monarch 295SEPC1K transmitter is a key
chain style mini transmitter operating at 295 MHz. It has been designed
for use with programmable telephone entry, security, and access control
systems operating with a 295 MHz frequency receiver.
The protocol is ClikCard® compatible and the code sent by the
transmitter includes a 16 bit security code which allows up to 65,536
combinations and 6 bit of facility code for 64 different combinations.
The Transmitter Solutions - 295R receiver which operates with this
transmitter has a Wiegand 26 bit and can operate any type of access
control system equipped with the same protocol. The CR 2016 lithium
batteries of the transmitter have a shelf life of about 6 months. The
product fully complies with Part 15 of FCC Regulations and the
European Directives 99/5/CE, 89/336/CEE, 73/23/CEE.

2 - NUMBERING 6 - TROUBLESHOOTING
PROBLEM SOLUTION
The operating range is reduced
Check to verify the
transmitter is programmed
into your system
Replace the transmitter
batteries

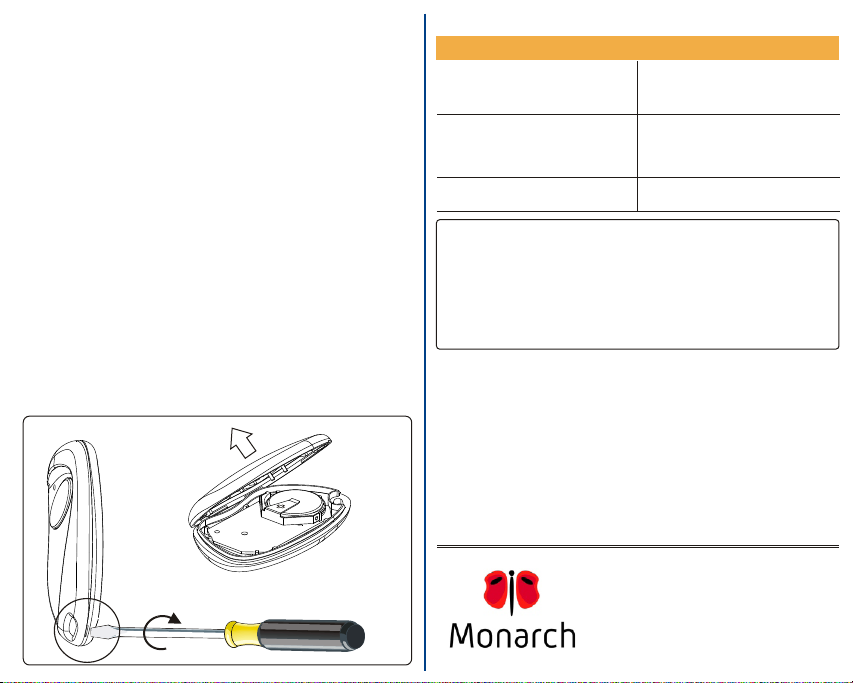

To access the battery open the case with a screwdriver acting on the slot between
the cover and the bottom and remove the bottom, as shown in fig. 3a and 3b.
Slide out the old batteries and replace them with the new ones [CR2016]
respecting the polarity, with the positive (+) side upward.
NOTE: Please dispose of the batteries properly according to local laws and
regulations.
Test proper battery installation by verifying that the red LED illuminates when
the button is pushed.
5 - BATTERY ACCESS
3 - PROGRAMMING
Each transmitter is manufactured and sold with a different factory-set serial
number .
The transmitter must be programmed into your system memory.
Your own installer or reseller will provide you the necessary instructions for your
system.
Replace the transmitter
batteries
The warranty period of Transmitter Solutions 295 transmitters is 60 months,
beginning from the manufacturing date of the transmitter. During this period, if the
product does not operate correctly, due to a defective component, the product
will be repaired or replaced at the sole discretion of Transmitter Solutions.
The warranty does not extend to the transmitter case which can be damaged by
conditions outside the control of Transmitter Solutions or to battery life.
WARRANTY
Transmitter Solutions - Type : 295SEPC1K
FCC ID : SU7295SEPC1K
This device complies with FCC Rules
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept interference received, including
interference that may cause undesired operation.
Part. 15 of the
Notice
Any changes or modification to equipment not expressly
approved by could void the manufacturer’s warranty.
Transmitter Solutions
Transmitter Solutions
The system does not receiver the
transmitter signal.
The transmitter LED is ON
The system does not receiver the
transmitter signal.
The transmitter LED will not light
4 - OPERATION
A - Firmly depress the button until the small red LED illuminates.
B - After the LED has illuminated, release the button.
If the device you are attempting to activate does not respond, repeat steps A and B
or consult section 6 ( Troubleshooting ) of this manual.
Fig. 3a
Fig. 3b TRANSMITTER SOLUTIONS
7380 S. Eastern Ave, Ste 124-320
Las Vegas, NV 89123 -
[phone] - [phone] Fax
[email protected]
