Monessen Hearth IRVF2T General instructions

THE DESIGN OF THIS HEATER COMPLIES WITH STANDARD Z21.11.2 OF THE AMERICAN NATIONAL STANDARDS INSTITUTE AS
CERTIFIED BY CSAINTERNATIONAL.
THIS IS AN UNVENTED GAS-FIRED HEATER. ITUSES AIR (OXYGEN)FROM THE ROOM IN WHICH IT IS INSTALLED. PROVISIONS
FOR ADEQUATE COMBUSTION AND VENTILATION AIR MUST BE PROVIDED. REFER TO COMBUSTION AND VENTILATION
AIR REQUIREMENTS SECTION OF THIS MANUAL FOR DETAILS.
DONOT STORE OR USE GASOLINE OR OTHER FLAMMABLE VAPORS AND LIQUIDS IN THE VICINITY OF THIS OR ANY OTHER
APPLIANCE.
WHATTODO IFYOU SMELLGAS
• DONOT TRY TO LIGHT ANY APPLIANCE.
• DONOT TOUCH ANY ELECTRICAL SWITCH; DO NOT USE ANY PHONE IN YOUR BUILDING.
• IMMEDIATELY CALL YOUR GAS SUPPLIER FROM ANEIGHBOR’SPHONE. FOLLOW THE GAS SUPPLIER’S
INSTRUCTIONS.
• IFYOU CANNOT REACH YOUR GAS SUPPLIER, CALL THE FIRE DEPARTMENT.
WARNING: IFTHE INFORMATION IN THIS MANUAL IS NOT FOLLOWED EXACTLY, AFIRE OR EXPLOSION MAY RESULT
CAUSING PROPERTY DAMAGE, PERSONAL INJURY OR LOSS OF LIFE.
INSTALLATION AND SERVICE MUST BE PERFORMED BY AQUALIFIED INSTALLER, SERVICE AGENCY OR THE GAS SUPPLIER.
WARNING
WARNING
IRVF2T, IRVF3T, AND IRVF5T MODELS
INFRARED UNVENTED ROOM HEATERS
WITH THERMOSTAT CONTROL
INSTALLATION, OPERATION AND MAINTENANCE MANUAL
THIS APPLIANCE MAY BE INSTALLED IN AN AFTERMARKET, PERMANENTLY LOCATED, MANUFACTURED (MOBILE) HOME,
WHERE NOT PROHIBITED BY LOCAL CODES.
THIS APPLIANCE IS ONLY FOR USE WITH THE TYPE OF GAS INDICATED ON THE RATING LABEL. THIS APPLIANCE IS NOT
CONVERTIBLE FOR USE WITH OTHER GASES.
53D9012. Rev 1 03/03

Important Information ............................................................................................ ..1
Parts Diagram and List ......................................................................................2-3
How This Appliance Operates ..............................................................................4
Selecting A Location ......................... ....................................................................5-6
Gas Piping and Pressure Requirements ..................................................................7-8
Combustion and Ventilation Air Requirements ........................................................9-10
Installation and Adjustment . ................................................................................11-15
Lighting and Operating Heater ..........................................................................16-17
Safety Checklist ..............................................................................................18
Maintenance ......................................................................................................19
Troubleshooting .................................................................................. ...................20
Warranty . ...........................................................................................................21
Your heater has been designed for years of safe, efficient, and trouble-free operation provided the
instructionsinthismanual are followed. To help insureyoursafety, it isveryimportantthatyou take time
to read this entire manual before installing or operating this heater.
TABLE OF CONTENTS
53D9012. Rev 1 03/03
CAUTION
•DUE TO HIGH TEMPERATURES, THE HEATER SHOULD BE LOCATED OUT OF TRAFFIC AND AWAY FROM
FURNITURE AND DRAPERIES.
•C
HILDREN AND ADULTS SHOULD BE ALERTED TO THE HAZARD OF HIGH SURFACE TEMPERATURE AND
SHOULD STAY AWAY TO AVOID BURNS OR CLOTHING IGNITION.
•Y
OUNG CHILDREN SHOULD BE CAREFULLY SUPERVISED WHEN THEY ARE IN THE SAME ROOM WITH THE
HEATER.
•D
ONOT PLACE CLOTHING OR OTHER FLAMMABLE MATERIAL ON OR NEAR THE HEATER.
•A
NY SAFETY SCREEN OR GUARD REMOVED FOR SERVICING THE HEATER MUST BE REPLACED PRIOR TO
OPERATING THE HEATER.
•I
NSTALLATION AND REPAIR SHOULD BE PERFORMED ONLY BY AQUALIFIED SERVICE PERSON.
•T
HE HEATER SHOULD BE INSPECTED BEFORE USE AND CLEANED AND INSPECTED AT LEAST ANNUALLY BY
APROFESSIONAL SERVICE PERSON. MORE FREQUENT CLEANING MAY BE REQUIRED DUE TO EXCESSIVE
LINT FROM CARPETING, BEDDING MATERIAL, ETC. ITIS IMPERATIVE THAT CONTROL COMPARTMENTS,
BURNERS AND CIRCULATING-AIR PASSAGEWAYS OF THE HEATER BE KEPT CLEAN.
•T
HIS APPLIANCE IS INTENDED FOR SUPPLEMENTAL HEATING.
FOR MASSACHUSETTS RESIDENCES ONLY:
•T
HIS PRODUCT MUST BE INSTALLED BY ALICENSED PLUMBER OR GAS FITTER WHEN INSTALLED WITHIN
THE COMMONWEALTH OFMASSACHUSETTS. FLEXLINE INSTALLATION MUST NOT EXCEED 36 INCHES.
WARNING: ANY CHANGE TO THIS HEATER OR ITS CONTROLS CAN BE DANGEROUS.
WARNING: FAILURE TO KEEP THE PRIMARY AIR OPENINGS OF THE BURNERS CLEAN MAY RESULT IN
SOOTING AND PROPERTY DAMAGE.

2
Danger:Thisheater,asanygas-
fired appliance, can produce
poisonous carbon monoxide
along with other combustion
products. Carbon monoxide, in
strong concentrations, can
cause sickness, serious
personal injury and death.
Early signs of carbon monoxide
poisoning resemble the flu, with
headache, dizziness and/or
nausea. Ifyouhave thesesigns,
the heater may not be working
properly. Get fresh airat once!
Immediately have heater
serviced by a qualified
technician.
Some people (pregnant
women, persons with heart or
lung disease, anemia, those
underthe influence ofalcohol,
those at high altitudes) are
more affected by carbon
monoxide than others.
Danger:Operationofthisheater
on gases for which it is not
equipped may lead to carbon
monoxide poisoning.
Warning: This heatercannot be
convertedtoagasotherthanthe
type for which it was equipped
atthe factory.
Warning: Any change to this
heater or its controls can be
dangerous.
IMPORTANT INFORMATION
1
Study these instructions carefully before beginning the installation of
thisheater.Theseinstructions contain information to beusedas a guide
during the installation and use of this heater. Critically important safety
information is provided in gray blocks along the edges of many pages.
These instructions must be followed for safe, efficient, and trouble-free
operationof this heater.
Before installing the heater, inspect it thoroughly for shipping damage
and missing parts. If any damage or missing parts are detected, report
this to the dealer from whom you purchased the heater and get the
deficiencycorrectedbeforeinstallingandusing theheater. Do notinstall
or use a damaged or incomplete heater.
The installer of this heater must describe the operation of the heater to
thepeoplewho will be operating itandleave this instruction manual with
the operator of the heater.
Donotusethisroomheaterifanyparthasbeenunderwater. Immediately
call a qualified service technician to inspect the room heater and to
replace any part of the control system and any gas control which has
been under water.
When properly installed, used and maintained, this heater should not
produce carbon monoxide in dangerous quantities. However, since
carbonmonoxide can be deadlypoisonous, the installer andall users of
this heater should read and follow these instructions carefully.
The type gas this heater is equipped for, and the only type gas supply it
should be attached to, is specified on a label affixed to the heater’s left
side reflector located just behind the cabinet front. An additional label
indicating the correct gas type is affixed to the bottom of the heater.
Theinput rating in Btu/hr foreachoftheheatersdescribed by this manual
is as specified below in Table 1.
TABLE 1
53D9012. Rev 1 03/03
WARNING: DONOT ALLOW FANS TO BLOW DIRECTLY INTO THE
FIREPLACE. AVOID ANY DRAFTS THAT ALTER
BURNER FLAME PATTERNS.
30,00025,0005IRVF5T
18,00015,0003IRVF3T
10,00010,0002IRVF2T
BTU/HR INPUT
FOR HEATERS
EQUIPPED WITH
NATURAL GAS
BTU/HR INPUT
FOR HEATERS
EQUIPPED WITH
EQUIPPED WITH
LP GAS
NUMBER
OF BURNER
PLAQUES
IN HEATER
MODEL
NUMBER
OF
HEATER

5

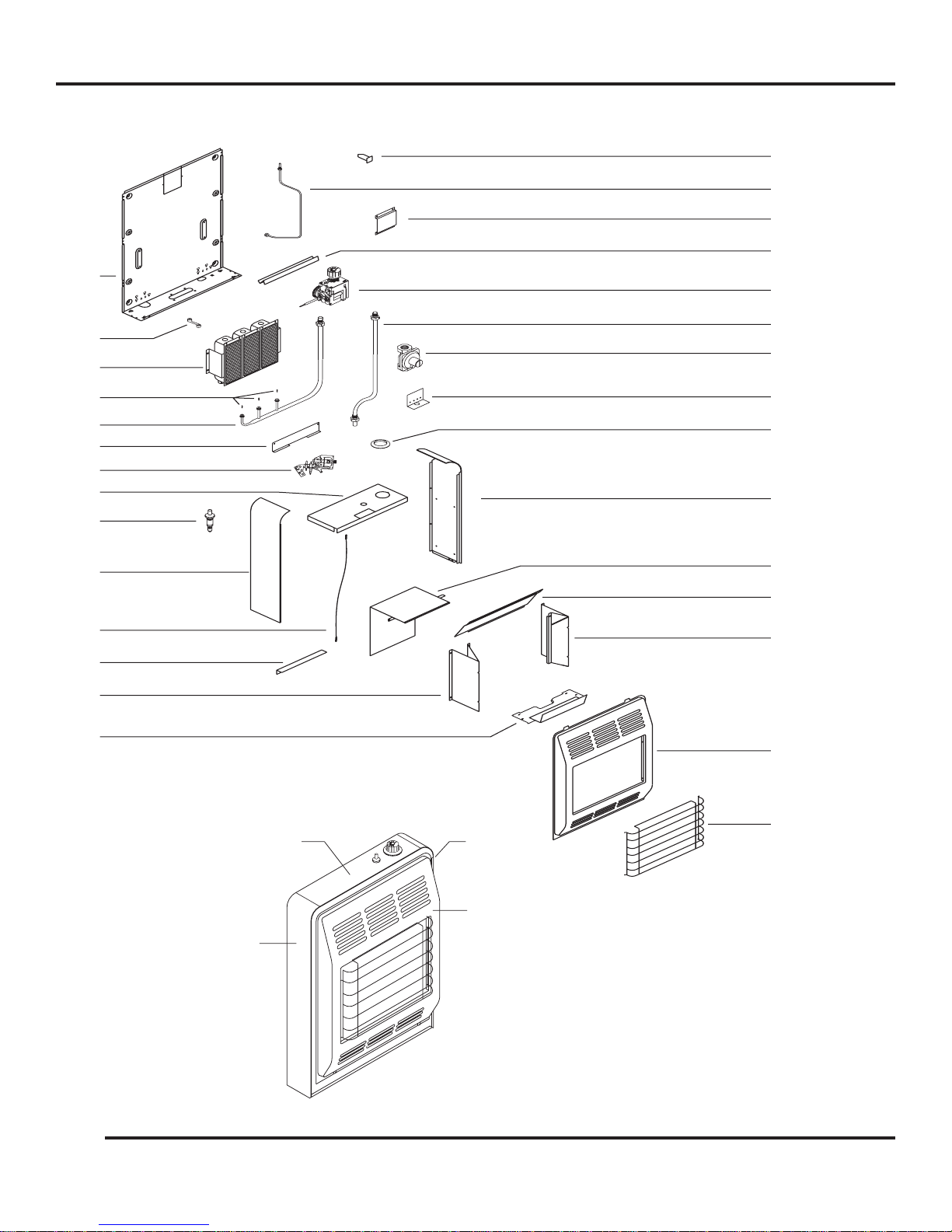

PARTS DIAGRAM
2
811 IN WC
555
30
29
28
27
26
25
24
23
22
21
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
FRONT
FRONT
RIGHT
RIGHT
SIDE
SIDE
LEFT
LEFT
SIDE
SIDE
TOP
TOP
53D9012. Rev 1 03/03

072348
072344
069103
075280
050980
078073
051041
071705
072087
072088
072425
072090
055875
054461
072423
052997
074041
069104
067972
078074
071040
074036
26D2529
14D0476
055874
072424
072084 (5)
072085 (5)
072287
P549
050889
078040
072341
072337
069103
075279
055870
078073
051041
071705
072087
072088
072425
072090
055873
054461
072421
052997
074040
069104
067972
078074
071040
074035
26D2529
14D0476
055872
072422
072084 (3)
072085 (3)
072286
P549
050889
077520
30
29
28
27
26
25
24
23
22
21
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
Dress Guard
Cabinet, Front Pntd.
Reflector, Right Side Pntd.
Deflector Pntd.
Heat Shield Weld Assembly
Cabinet Side Right W/Markings
Control Ring
Regulator Bracket
Regulator (NAT Gas)
Regulator (LP Gas)
Regulator To Control Tube Assembly
Thermostat Control
Burner Shield
Control Bracket Assembly Pntd.
Pilot Tube Assembly
Wall Anchor
Front Shield & Hearth Plate Assembly
Reflector, Left Side Pntd.
Brace Reflector
Piezo Cable
Cabinet Side Left W/Labels
Piezo Ignitor
Cabinet Top w/Caution Label
Pilot (NAT Gas)
Pilot (LP Gas)
Venturi Shield
Burner Tube Assembly
Orifice (Nat Gas)
Orifice (LP Gas)
Burner Assembly
Clamp, Thermostat Bulb
Speed Nut 10-24 U Type
Cabinet Back Pntd.
1
1
1
1
1
1
1
1
1
1
1
1
1
1
2
1
1
1
1
1
1
1
1
1
1
1
see ( )
see ( )
1
2
4
1
072334
072330
069103
075278
078073
051041
071705
072086
072088
072425
072090
055878
054461
072419
052997
074039
069104
049863
067972
078074
071040
074034
26D2529
14D0476
058711
072420
072084 (2)
072085 (2)
072285
P549
050889
077519
PART NO.
IRVF5T
PART NO.
IRVF3T
NO.
KEY DESCRIPTION HEATER
QTY. PER PART NO.
IRVF2T
1
6
All repair part orders should be placed through your local dealer. To ensure prompt and accurate service, please
provide the following information when placing a repair part order: Model number of yourAppliance, Part Name,
PartNumber,andQuantityofpartsneeded. DONOT TAKE AHEATER NEEDING REPAIR, OR BELIEVED TO BE DEFECTIVE, BACK TO
THE SELLER.
PARTS LIST
3
53D9012. Rev 1 03/03

Warning: Thisheaterishotwhile
inoperation. Do nottouch. Keep
children, clothing and furniture
away. Never operate this heater
without the factory-installed
dress guard in place. Never use
this heater to dry clothes, cook
on,or forany otherpurpose other
than providing heat to the area
around the heater.
Notice: The heater will go
through a curing process during
its initial (first 2 to 3 hours)
operating period and may emit
somesmoke and fumes(burning
off oil, etc.). Be prepared for any
smoke and fumes by raising
windows or opening doors to
provide additional ventilation
during this initial operating
period.
HOW THIS APPLIANCE OPERATES
4
This heater is to be installed either wall mounted or freestanding
according to these instructions and must not be enclosed within a
confinedspace or within acabinet. Itis intended to provideheat directly
to the space in which it is located. The heater is designed, tested and
built to operate safely, when installed according to these instructions, in
areasbuiltof material common to residential construction. Any alteration
of the heater or any installation and use not in accordance with these
instructions may be hazardous. Refer to "SELECTING ALOCATION" and
"COMBUSTION AND VENTILATIONAIR REQUIREMENTS"sectionsof this manual
fordetails.
Theheater’sburner plaques produce heat as soon as they are lit. During
operation,theheatergivesoff infrared radiant heat which travels through
the air and heats nearby objects first, then heats the room air.
The control system on this heater is a safety system that must not be
tampered with. Do not attempt to make any adjustments to the control
orpilot other than those describedinthe "INSTALLATION AND ADJUSTMENT"
or "TROUBLESHOOTING"sections of this manual.
The control system on this heater serves several functions. It regulates
theincoming gastothecorrectpressure forthecombustionraterequired.
Itwill not regulate LP gas directly fromthecontainer;aseparateregulator
mustbe installedonthetank orbottletoreduce thegaspressuresupplied
to the heater to between 11 and 13 inches water column. The control
system also provides a safety shutoff to allow gas to flow to the burner
assembly only when the pilot is burning and to shut off gas to both the
pilot and burner assembly should the pilot flame not be burning. The
control system provides a manual valve to turn gas on and off to the
burnerassembly. Thecontrolhasa thermostatwhichautomaticallyshuts
offtheburnerassemblywhen the room reaches a selected temperature.
There is a safety feature in the control valve which will lock the control
knob in the ‘Off’ position until the pilot valve closes, should the control
knobbe accidentally turned to ‘Off’whilethe pilot is burning; this prevents
escape of unburned gases. The control system also regulates the pilot
gas flow as required for proper operation and provides for shutoff of the
gastothe pilot and burner assembly beforethe oxygeninthearea of the
heater is depleted to dangerous levels.
Air is pulled into the burner assembly by the gas stream and mixed with
thegasinsidetheburnerassemblybeforeburning. Additional airrequired
to complete the burning of the gas enters the heater through its front.
See the “COMBUSTION AND VENTILATION AIR REQUIREMENTS” section of
this manual. Blocking or altering air flow into and away from the heater
couldcauseimpropercombustionandtheproductionof carbonmonoxide
gas that could accumulate to hazardous concentrations. To prevent a
disruption of the air flow through the heater, keep the heater clean as
described by the “MAINTENANCE” section of this manual.
53D9012. Rev 1 03/03

Danger: Do not install this
heater in any area where
gasoline or any combustible or
explosive material will be used
or stored. The flame from this
heater is exposed to the area
around the heater. Contact with
explosive or flammable
materials will lead to explosion
orfire.
SELECTING A LOCATION
5
These heaters are shipped from the factory equipped for mounting on a
flat wall. A wall-mount template is provided with each heater to aid in
locating the heater on a wall. Maintaining at least the minimum spacing
to combustibles as illustrated by Figure 1 is required for safety. Using
the wall-mount template will help ensure that the required minimum
clearancesbetween the heater andadjacent walls, floor, andceiling are
maintained when mounting the heater on a wall.
The wall-mount anchors provided with each heater are for mounting the
heater to a hollow wall (wall area between studs.) If the heater is to be
mounted to a solid wall such as concrete or masonry, these wall-mount
anchorsshouldnotbeused. Obtainappropriatesolidwall-mount anchors
with number 10 mounting screws from your local hardware store.
Theminimumclearances (see Figure 1) betweencombustiblematerials
and a wall mounted heater are:
Back - 0 inches (mount directly on wall).
Floor - 3 inches
Sides - 12 inches on one side of the heater;
18 inches on the opposite side of the heater.
Top - 36 inches
Front- 48 inches
36" MIN.
36" MIN.
(SEE NOTE 2 )
(SEE NOTE 2 )
18" MIN.
18" MIN.
(SEE NOTES
(SEE NOTES
1 &2 )
1 &2 )
12" MIN.
12" MIN.
(SEE NOTES
(SEE NOTES
1 &2 )
1 &2 )
NOTES:
NOTES:
1. THE 12" MINIMUM AND 18" 
1. THE 12" MINIMUM AND 18" 
MINIMUM DIMENSIONS
MINIMUM DIMENSIONS
FROM HEATER SIDES TO
FROM HEATER SIDES TO
COMBUSTIBLES MAY BE 
COMBUSTIBLES MAY BE 
REVERSED IF NECESSARY.
REVERSED IF NECESSARY.
2. WALL MOUNTED HEATER
2. WALL MOUNTED HEATER
SHOWN. UNLESS NOTED
SHOWN. UNLESS NOTED
OTHERWISE, ALL CLEARANCE
OTHERWISE, ALL CLEARANCE 
DIMENSIONS SHOWN ALSO 
DIMENSIONS SHOWN ALSO 
APPLY TO A HEATER MOUNTED
APPLY TO A HEATER MOUNTED
ON A FLOOR STAND.
ON A FLOOR STAND.
3. GAS PIPING NOT SHOWN.
3. GAS PIPING NOT SHOWN.
(SEE NOTE 2)
(SEE NOTE 2)
IN FRONT OF HEATER.
IN FRONT OF HEATER.
MATERIAL CLOSER THAN 48 INCHES
MATERIAL CLOSER THAN 48 INCHES
DO NOT PLACE COMBUSTIBLE
DO NOT PLACE COMBUSTIBLE
SIDE WALL
SIDE WALL
OR OTHER
OR OTHER
COMBUSTIBLE
COMBUSTIBLE
SURFACE
SURFACE
SIDE WALL
SIDE WALL
OR OTHER
OR OTHER
COMBUSTIBLE
COMBUSTIBLE
SURFACE
SURFACE
3"
3"
MINIMUM TO TOP SURFACE OF
MINIMUM TO TOP SURFACE OF
CARPETING, TILE OR OTHER
CARPETING, TILE OR OTHER
COMBUSTIBLE MATERIAL.
COMBUSTIBLE MATERIAL.
(APPLIES TO ALL WALL MOUNTED HEATERS ONLY)
(APPLIES TO ALL WALL MOUNTED HEATERS ONLY)
CEILING LINE OR OTHER
CEILING LINE OR OTHER
COMBUSTIBLE SURFACE
COMBUSTIBLE SURFACE
FIGURE 1
53D9012. Rev 1 03/03

SELECTING A LOCATION
6
A floor stand model XFS is available from your dealer. The floor stand
enables these heaters to be installed freestanding as shown by Figure
2.
Theminimum clearances (see Figure1)between combustible material
and a freestanding heater installed on a floor stand are:
Back - 0 inches (floor stand may touch rear wall)
Floor - 0inches (floor stand may rest directly on floor- See "FLOOR
PROTECTION"information below.)
Sides - 12 inches on one side of the heater;
18 inches on the opposite side of the heater.
Top - 36 inches
Front- 48 inches
When selecting a location for the heater, be sure attention is given to
the following considerations.
1. Some materials such as vinyls and plastics will deform at relatively
low temperatures and must be kept at greater clearance distances
than the minimum clearances specified above.
2. The heater should be located centrally within the area where heat
is desired, but out of traffic areas, or areas where children play, to
minimize the chance of persons accidentally contacting the hot
surface of the heater.
3. The heater must not be located near doorways or in other areas
wheredrafts may affectthe operation ofthepilotor burner assembly.
4. DONOT INSTALL THE HEATER BENEATH CURTAINS OR DRAPES.
To comply with the Z21.11.2 standard of the American National
Standards Institute, none of the heaters described by this manual
may be installed in a bathroom and the IRVF2T is the only model
that may be installed in a bedroom. If an infrared heater is installed
ina bedroom,itmustbewall mounted. Floorstandmountedheaters
are prohibited in bedrooms.
FLOOR PROTECTION
Some Flooring materials will discolor or otherwise deteriorate due to
the temperature underneath the heater. Therefore, when the heater is
installedfreestandingwith a floor stand in placeoncarpet,tile,linoleum
or any combustible material other than wood flooring, the heater must
be installed with a wood panel, metal panel or stoveboard extending at
least the full width and depth of the floor stand. See Figure 2.
Danger: Operationofthe heater
as a freestanding heater without
the proper floor stand correctly
installed may lead to fire or the
production of carbon monoxide
gas.
Warning:Ifheaterisinstalledand
operated at clearances less than
those specified as minimum in
these instructions, a fire hazard
may exist with possible fire
causing property damage or
personal injury. If the heater is
operated at clearances less than
those specified in these
instructions, insufficient air may
besupplied to theheatercausing
poisonous carbon monoxide to
be produced.
Notice:TheZ21.11.2standard of
theAmerican NationalStandards
Institute prohibits the installation
of a heater with a rating greater
than 6,000 Btu’s per hour in a
bathroom. The standard also
prohibits the installation of a
heater with a rating greater that
10,000 Btu’s per hour in a
bedroom.
Warning: Failure to adequately
protect the flooring materials
undera floormountedheater can
leadto damagedflooring material
orfire.
53D9012. Rev 1 03/03

GAS PIPING AND GAS PRESSURE REQUIREMENTS
7
All gas piping must be installed
to comply with local codes or, in
the absence of local codes, with
the latest edition of the National
Fuel Gas Code ANSI Z223.1/
NFPA54. Ifflexible hoseis used,
it must be listed by a recognized
testing agency.
Danger: Operationof thisheater
on LP gas without an approved
regulator at the supply container
will lead to gas leaks at the
control with possible fire or
explosion.
Caution: The heater and its
individual shutoff valve must be
disconnected from the gas
supply piping system during any
pressuretesting of thatsystemat
test pressures in excess of ˚
PSIG. The heater must be
isolated from the gas supply
piping system by closing its
individual manual shutoff valve
duringany pressuretestingof the
gas supply piping system at test
pressures equal to or less than ˚
PSIG. Pressures in excess of ˚
PSIG will cause damage to the
control valve and may cause
damage to the shutoff valve.
Danger: Do not use candles,
matchesor otherignitionsources
when checking for leaks. Fuel
gasesare very flammableand,in
certainconcentrations,explosive.
Checking for leaks with an open
flame may lead to fire or
explosion.
All gas piping must be installed to comply with local codes or, in the
absence of local codes, with the latest edition of the National Fuel Gas
CodeANSI Z223.1/NFPA54. Do not use flexible hose unless the hose
islistedbyarecognized testing agency for use with gasand isapproved
by the local code authority. Unions in gas lines shall be of the ground
joint type. Compounds used on threaded joints of gas piping must be
resistant to the action of liquefied petroleum gas.
Gas piping must be of sufficient size to provide a minimum natural gas
pressure at the appliance of 7 inches water column or 11 inches for LP
gases. The maximum inlet gas pressure to the heater must not exceed
10.5 inches for natural gas and 13 inches for LP gases. If this heater is
tobe supplied with LPgas(bottled propane or butane)the tank or bottle
supplying the gas must have a regulator that reduces the gas pressure
tobetween 11 and 13 incheswater column. The controlwill not operate
with gas line pressure directly from the tank and may leak gas due to
this excessive pressure.
Include a manual shutoff valve and union in the gas line so the heater
maybedisconnectedforservicing. Includeasedimenttrapanda plugged
1/8-inchN.P.T.tap inthegas line also. The tapmust be accessible fora
test gauge connection and should be located somewhere between the
manual shutoff valve and the heater’s 3/8-inch N.P.T. inlet fitting. See
Figures 2 and 3.
The heater may be mounted on a wall or installed freestanding on an
optionalfloorstand.

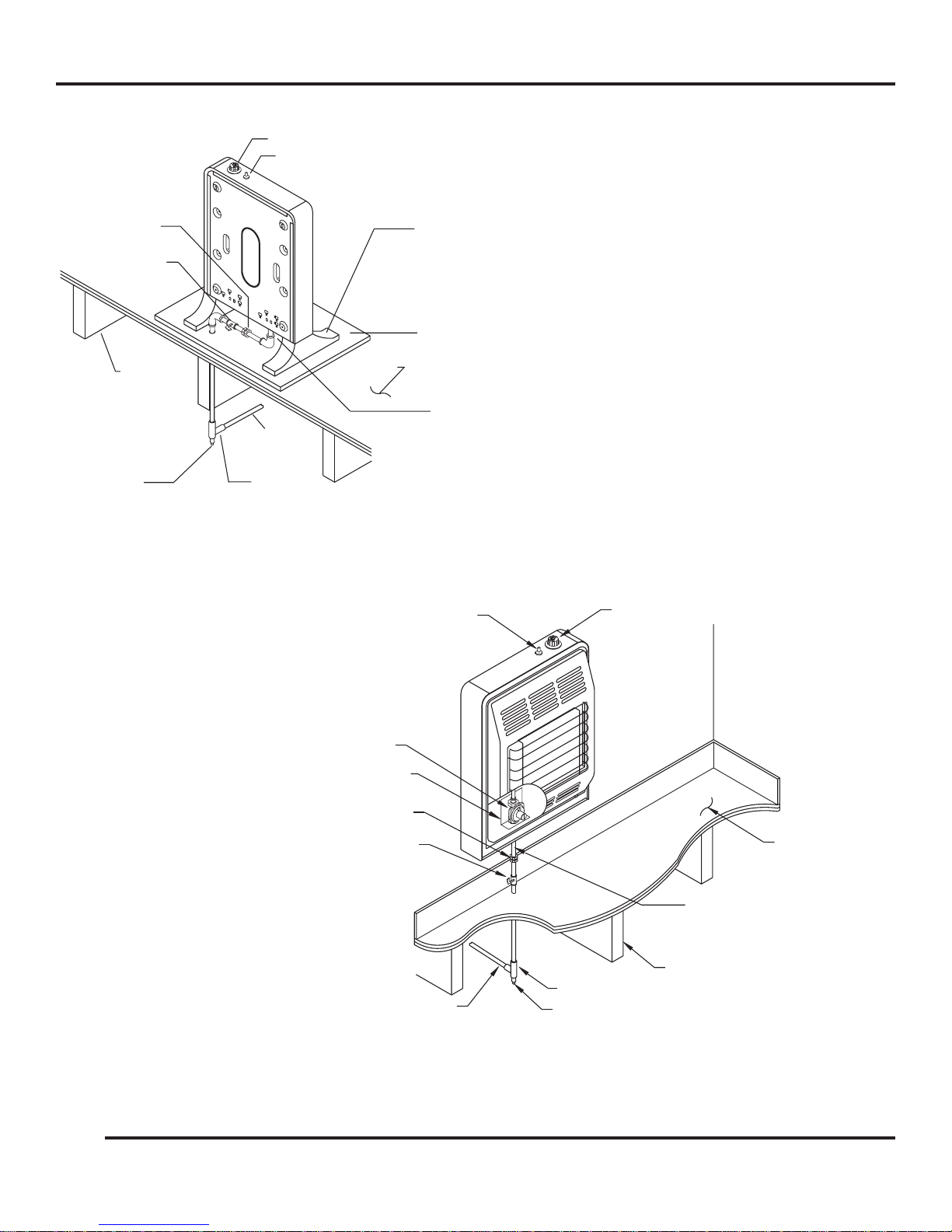

A typical gas piping diagram for a freestanding heater installed on a
floor stand is shown by Figure 2.
A typical gas piping diagram for a wall mounted heater is shown by
Figure3.
Use a soap-water solution or a liquid gas leak detector to coat each
jointinthegas line and look for bubbles whichindicate gasleaks. Never
use an open flame when checking for leaks.
Gaseous fuels are highly explosive in certain concentrations and are
very flammable. Any gas leaks in the plumbing supplying gas to this
heater can lead to fire or explosion. REPAIR ALL GAS LEAKS. ALL GAS
LEAKS SHOULD BE REPAIRED BY ACERTIFIED INSTALLER.
53D9012. Rev 1 03/03

GAS PIPING AND GAS PRESSURE REQUIREMENTS
8
REGULATOR BRACKET
REGULATOR BRACKET
CONTROL KNOB
CONTROL KNOB
IGNITOR BUTTON
IGNITOR BUTTON
NOTE:
NOTE:
MAIN REGULATOR
MAIN REGULATOR
A PLUGGED 1/8" NPT TAP MUST BE LOCATED SOMEWHERE BETWEEN THE
A PLUGGED 1/8" NPT TAP MUST BE LOCATED SOMEWHERE BETWEEN THE
SHUTOFF VALVE AND THE HEATER'S 3/8" NPT INLET FITTING.
SHUTOFF VALVE AND THE HEATER'S 3/8" NPT INLET FITTING.

GAS SUPPLY LINE
GAS SUPPLY LINE
JOIST
JOIST
UNION
UNION
TEE
TEE
SEDIMENT TRAP
SEDIMENT TRAP
SHUTOFF VALVE
SHUTOFF VALVE
FLOOR
FLOOR
3/8" NPT INLET FITTING FOR GAS
3/8" NPT INLET FITTING FOR GAS
SUPPLY IN BOTTOM OF HEATER.
SUPPLY IN BOTTOM OF HEATER.
FIGURE 3
UNION
SHUTOFF
VALVE
JOIST
SEDIMENT
TRAP TEE
GAS SUPPLY
LINE
FLOOR
NOTE:
A PLUGGED 1/8" NPT TAP MUST BE
LOCATED SOMEWHERE BETWEEN THE
SHUTOFF VALVE AND THE HEATER'S
3/8" NPT INLET FITTING.
IGNITOR BUTTON
CONTROL KNOB
FLOOR STAND REQUIRED IF 
FLOOR STAND REQUIRED IF 
HEATER IS TO BE INSTALLED 
HEATER IS TO BE INSTALLED 
AS A FREESTANDING HEATER.
AS A FREESTANDING HEATER.
(FLOOR STAND SOLD AS AN ACCESSORY.)
(FLOOR STAND SOLD AS AN ACCESSORY.)
FLOOR PROTECTION REQUIRED
FLOOR PROTECTION REQUIRED
FOR ANY COMBUSTIBLE FLOOR
FOR ANY COMBUSTIBLE FLOOR
MATERIAL OTHER THAN WOOD.
MATERIAL OTHER THAN WOOD.
3/8" NPT INLET FITTING FOR GAS
3/8" NPT INLET FITTING FOR GAS
SUPPLY IN BOTTOM OF HEATER.
SUPPLY IN BOTTOM OF HEATER.
FIGURE 2
53D9012. Rev 1 03/03

COMBUSTION AND VENTILATION AIR REQUIREMENTS
Warning: If the area in which
this appliance may be operated
is smaller than that defined as
an unconfined space or if the
building is of unusually tight
construction, provide adequate
combustion and ventilation air
byoneofthemethods described
in the National Fuel Gas Code,
ANSI Z223.1/NFPA 54, Latest
Edition, Section 5.3 or
applicable local codes. This
appliance shall not be installed
ina confined spaceor unusually
tight construction unless
provisions are provided for
adequate combustion and
ventilation air.
Caution: Because water is a
product of fuel gas combustion,
all gas-fired appliances will
produce some water vapor
(humidity)whenfired. Thewater
vapor may collect on windows
and walls, especially in
buildings constructed unusually
tight. Providing additional fresh
air will reduce the amount of
water vapor which collects on
the windows and walls.
9
This heater requires fresh air (oxygen) for proper combustion and
ventilation. Insome cases, butnotall,normalairinfiltration into abuilding
will supply a sufficient amount of fresh air for proper combustion and
ventilation. The number of gas-fired appliances involved, the type of
space being utilized, and the construction tightness of the building
involved must all be considered when determining whether normal air
infiltration is sufficient or if additional fresh air will be needed for proper
combustion and ventilation of the gas-fired appliances installed in a
particular space.
Unconfined space and confined space are the terms used to describe
the space in which gas-fired appliances may be installed. The National
Fuel Gas Code , ANSI Z223.1/NFPA 54 defines a
confined space as a
space whose volume is less than 50 cubic feet per 1,000 Btu per hour
(4.8m≈per kW) of the aggregate input rating of all gas-fired appliances
installed in that space, and an unconfined space as a space whose
volume is not less than 50 cubic feet per 1,000 Btu per hour (4.8m≈per
kW) of the aggregate input rating of all gas-fired appliances installed in
that space. Rooms communicating directly with the space in which the
appliances are installed, through openings not furnished with doors,
are considered a part of the to-be-defined space. For example, three
rooms in a house are adjoining with interconnecting passageways but
no doors; each room has an 8 foot ceiling. One room is 16 x 12 feet,
one is 12 x 12 feet, and one is 10 x 14 feet. The total volume of the
three rooms is 3,808 cubic feet; (8 x 16 x 12) plus (8 x 12 x 12) plus (8
x 10 x 14) equals 3,808 cubic feet. To be considered an unconfined
space in this example, the total maximum aggregate input rating of all
gas-fired appliances installed in the 3,808 cubic feet space must not
exceed76,160 Btu per hour; (3,808 divided by 50) x 1,000 equals76,160
Btu per hour.
Normalair infiltration into an unconfined space willbeadequatetosupply
thenecessaryfreshairforproper combustionandventilationifthebuilding
isnotconstructedunusuallytight. However,ifthebuildingisofunusually
tight construction, additional fresh air from outside will be required for
proper combustion and ventilation of the gas-fired appliances installed
in the unconfined space. Unusually tight construction is defined as
construction where:
a.) Walls and ceiling exposed to the outside atmosphere have a
continuous water vapor retarder with a rating of 1 perm (6x10-11
kg per pa-sec-m˝) or less with openings gasketed or sealed,
and
b.) Weather stripping has been added on openable windows and
doors, and
c.) Caulking or sealants are applied to areas such as joints around
windowanddoorframes, betweensoleplatesandfloors,between
wall-ceiling joints, between wall panels, at penetrations for
plumbing, electrical, and gas lines, and at other openings.
53D9012. Rev 1 03/03

Consult your local building inspector or section 5.3 in the latest edition
of National Fuel Gas Code ANSI Z223.1/NFPA 54 if you have any
questions about fresh air requirements for proper combustion and
ventilation of gas-fired appliances.
This heater is equipped with an ODS (oxygen depletion sensor) pilot
safetysystem that turns off theheaterif insufficient fresh airisavailable.
Never attempt to adjust this safety system. It will not operate correctly
iftampered with. When used without adequatefreshair, the heatermay
give off carbon monoxide, an odorless, poisonous gas.
If this heater shuts off during operation, do not relight it until you provide
additionalfreshair. Ifpermanentprovisionsforprovidingadditionalfresh
airhave not been implemented,theadditional fresh air maybeprovided
by opening a window an inch or two while the appliance is operating. If
the heater keeps shutting off during operation, have it serviced.
Warning: The ODS (Oxygen
Depletion Sensor) Pilot safety
system is not a substitute for
properinstallationanduseof this
appliance. Failure to observe
installation and use guidelines
inthismanualcanleadtocarbon
monoxide poisoning, fire or
explosion.
COMBUSTION AND VENTILATION AIR REQUIREMENTS
10
53D9012. Rev 1 03/03

INSTALLATION AND ADJUSTMENT
Usethese instructionsas aguide
while installing and adjusting the
heater. The installation must
conform with local codes or, in
the absence of local codes, with
the latest edition of the National
Fuel Gas Code ANSI Z223.1/
NFPA 54.
11
Usethese instructions asaguidewhile installing andadjustingtheheater.
Theinstallation must conform with localcodesor, in the absenceoflocal
codes,with the latest edition of the NationalFuelGasCodeANSIZ223.1/
NFPA 54.
If your heater is to be installed as a wall mounted heater begin with Step
1. If your heater is to be installed as a freestanding heater, begin with
Step10.
OPTIONAL BLOWERS
A model XAB theromstatically controlled, or model XMB manually
controlled, blower may be installed on the IRVF3T and IRVF5Theaters.
(IRVF2Tmodels are not designed for use with optional blowers.) These
blowers are the only blowers acceptable for use on these heaters. The
use of any other blower could adversely and dangerously affect the
operationofthese heaters. The blower should beinstalled ontheheater
before the heater is installed. Check with your dealer for additional
information and to purchase an optional blower.
WALL MOUNTED HEATER

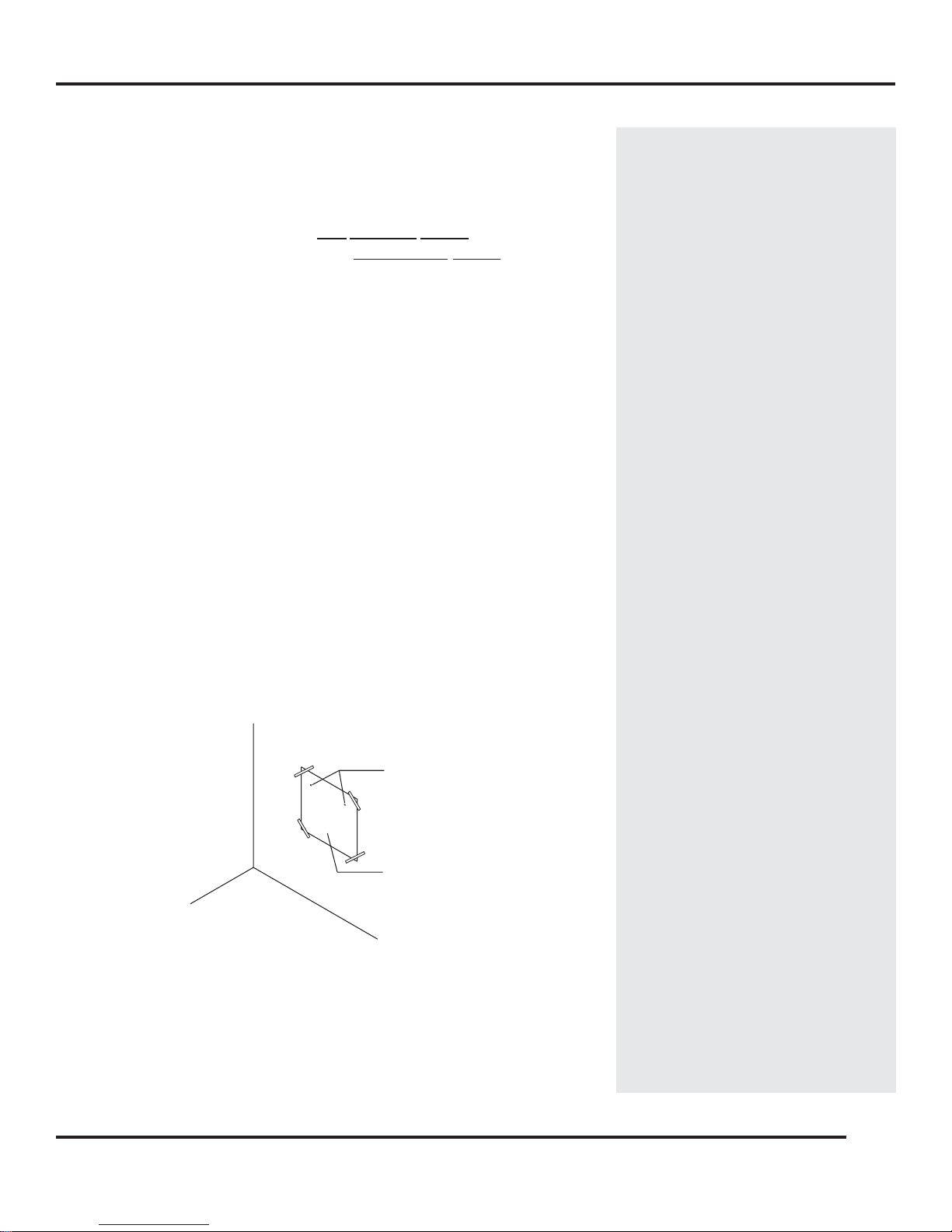

1. Locatethewall-mount template and bag of fastenersprovided with
theheater.
2. Tape the wall-mount template to the wall surface where the heater
isto be located. Template locatorpoints should be level. Figure 4.
TEMPLATE
TEMPLATE
NOTE: DO NOT LOCATE WALL-MOUNT TEMPLATE WHERE LOCATOR
POINTS ON TEMPLATE WILL ALIGN WITH STUDS IN WALL.
LOCATOR POINTS
(SEE NOTE)
LOCATE TEMPLATE ON WALL AS
LOCATE TEMPLATE ON WALL AS 
DIRECTED BY TEMPLATE.
FLOOR
SIDE WALL
3. Check minimum clearances to combustible materials as directed
by the wall-mount template. Refer to Figure 1 for additional
information.
FIGURE 4
53D9012. Rev 1 03/03

STANDOFFS
STANDOFFS
KEY-HOLE SLOTS
KEY-HOLE SLOTS
FOR ANCHOR SCREWS.
FOR ANCHOR SCREWS.
FRONT PANEL
FRONT PANEL
SCREWS
SCREWS
FRONT 
FRONT 
PANEL OF
PANEL OF
HEATER
HEATER

OPENING IN BOTTOM OF HEATER
OPENING IN BOTTOM OF HEATER
FOR THROUGH-THE-BOTTOM
FOR THROUGH-THE-BOTTOM
GAS SUPPLY CONNECTION.
GAS SUPPLY CONNECTION.
(ON SOME HEATERS THIS
(ON SOME HEATERS THIS
OPENING IS ON OPPOSITE SIDE.)
OPENING IS ON OPPOSITE SIDE.)
NOTE:
NOTE:
LOWER
LOWER
MOUNTING
MOUNTING
SCREWS
SCREWS
FOR CLARITY, INTERNAL COMPONENTS
FOR CLARITY, INTERNAL COMPONENTS
OF HEATER NOT SHOWN.
OF HEATER NOT SHOWN.
Danger: Excessive torque
(twisting)ontheinletfittingofthis
heater may cause gas leaks at
one or more of the fittings inside
theheater.
12

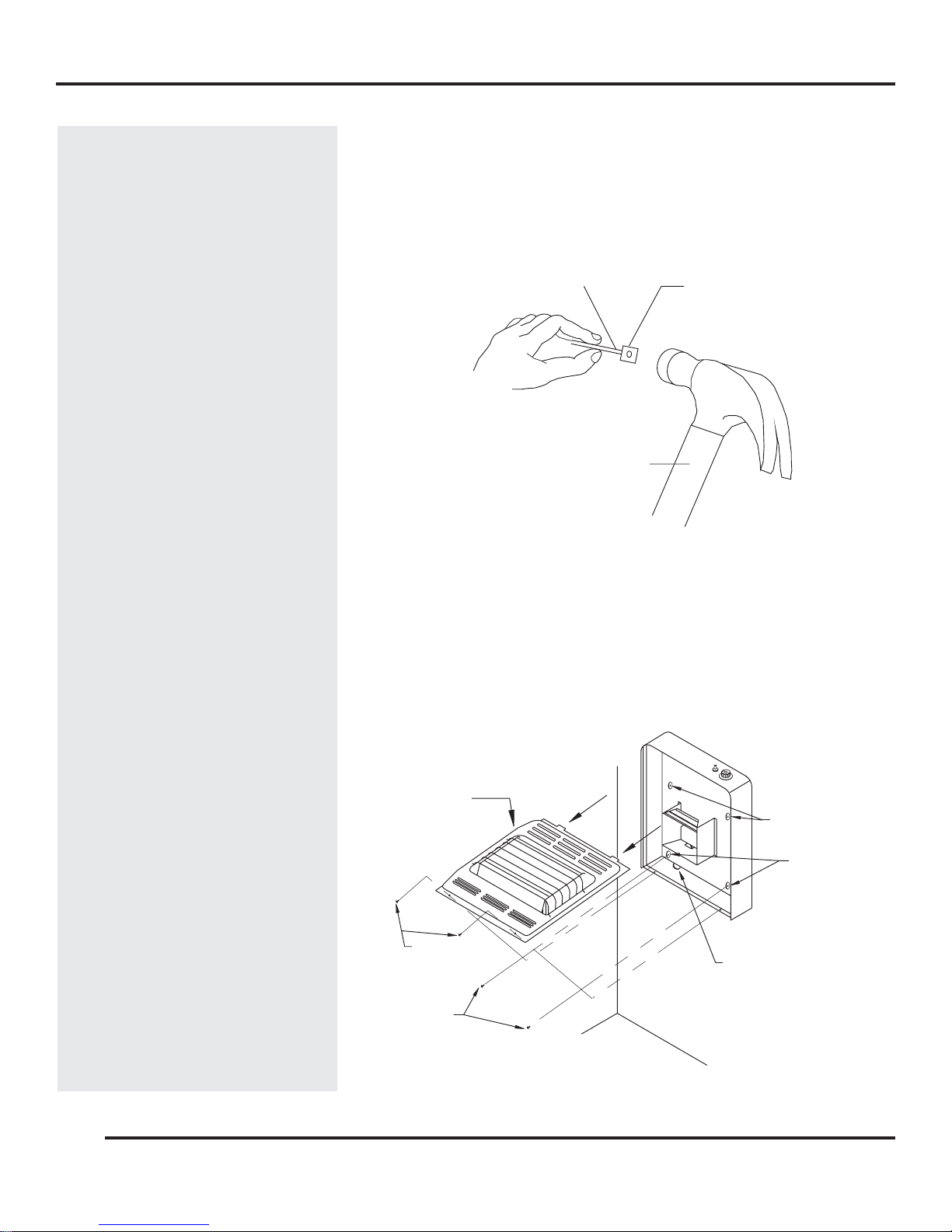

4. Marklocator points on wall;removetemplateanddrivewall-mount
anchors through the locator points and into the wall as shown by
Figure 5.
USE HAMMER TO DRIVE ANCHOR INTO WALL.
USE HAMMER TO DRIVE ANCHOR INTO WALL.
NOTE: ANCHORS ARE FOR USE IN HOLLOW
NOTE: ANCHORS ARE FOR USE IN HOLLOW
WALLS (WALL AREA BETWEEN STUDS). DO 
WALLS (WALL AREA BETWEEN STUDS). DO 
NOT DRIVE ANCHORS INTO WALL STUDS.
NOT DRIVE ANCHORS INTO WALL STUDS.
FLAT SURFACES OF ANCHOR BLADES
MUST BE PARALLEL TO THE FLOOR. 
MUST BE PARALLEL TO THE FLOOR. 
DO NOT INSTALL ANCHOR WITH FLAT
SURFACES OF BLADES PERPENDICULAR 
SURFACES OF BLADES PERPENDICULAR 
TO THE FLOOR. BACK SURFACE OF ANCHOR
FACE SHOULD BE TOUCHING WALL
FACE SHOULD BE TOUCHING WALL
WHEN PROPERLY INSTALLED.
5. Insert mounting screws into anchors and turn each screw until
back of screw head is touching front face of anchor, then back
each screw out of its anchor 1/16 inch.
6. Remove the two front panel screws and then remove the front
panelfromtheheaterbypullingthelowerportionofthefrontpanel
up and away as shown by Figure 6.
INSTALLATION AND ADJUSTMENT
FIGURE 5
FIGURE 6
53D9012. Rev 1 03/03

INSTALLATION AND ADJUSTMENT
Danger: Excessive torque
(twisting)ontheinletfittingofthis
heater may cause gas leaks at
oneormore of the fittings inside
theheater.
Danger: Do not use candles,
matches or other ignition
sources when checking for gas
leaks. Fuel gases are very
flammable and, in certain
concentrations, explosive.
Checkingfor leaks with anopen
flame may lead to fire or
explosion which could cause
personal injury, property
damage,or death.
13
7. If the heater is to be equipped with an optional blower, install the
bloweraccording totheinstructions providedwiththeblower. (Note:
IRVF2T heaters cannot be equipped with a blower.)
8. Locate the two key-hole slots on the back of the heater. Align the
large openings of the key-hole slots with the mounting screws in
theanchorsinthewall. Hangtheheateronthetwomounting screws
bypositioning the heater sothat the heads ofthemounting screws
protrudeintothelarge openings of the key-hole slots; let the heater
slide downward until the mounting-screw shanks are in the small
openings of the key-hole slots. Tighten the two upper mounting
screws into the wall anchors. See Figure 6.
9. Locate the two standoffs on back of the heater. Insert two screws
fromthe bagoffastenersthrough the holesinthestandoffs. Tighten
the screws into the wall until the heater is firmly secured to the
wall. See Figure 6.
Proceed to Step 14.
FREESTANDING HEATER INSTALLED ONA FLOOR STAND
10. Attachtheproper floor stand according to theinstructionsprovided
with it. Model XFS Floor Stand is available from your local dealer.
11. Selecta location which willmaintainthe minimum clearances from
the heater to combustible materials.
12. Remove the two front panel screws shown by Figure 6 and then
remove the front panel from the heater by pulling the lower portion
of the front panel up and away as shown by Figure 6.
13. If the heater is to be equipped with an optional blower, install the
bloweraccording totheinstructions providedwiththeblower. (Note:
IRVF2T heaters cannot be equipped with a blower.)
14. Install proper gas piping according the "GAS PIPING AND GAS
PRESSURE REQUIREMENTS"section of this manual.
15. Turn the heater’s control knob clockwise to "Off". Figures 2 and 3.
16. Turn the gas on at the shutoff valve. Use a soap-water solution or
liquidgasleakdetector to check carefully for gas leaksat allfittings
from the shutoff valve to the heater’s control valve located at the
top of the heater. If any leaks are found, turn the shutoff valve off
and repair all leaks before proceeding.
53D9012. Rev 1 03/03

INSTALLATION AND ADJUSTMENT
Note:Ifthe controlknobstill does
not function properly after the
control’s mounting bracket has
been adjusted as described, the
wall is probably too bowed or
uneven. Refer to the
TROUBLESHOOTING section
of this manual for more
information.
Danger: Do not use candles,
matchesorother ignitionsources
when checking for gas leaks.
Fuel gases are very flammable
and, in certain concentrations,
explosive. Checking for leaks
with an open flame may lead to
fire or explosion which could
cause personal injury, property
damage,or death.
14
WALL MOUNT AND FREESTANDING INSTALLATION
17. Carefullyreadtheentire"LIGHTINGAND OPERATING HEATER"section
of this manual, then light the heater’s pilot according to the
instructions. The pilot flame should be blue and should appear as
indicatedbyFigure7. Seethe"MAINTENANCE"sectionofthismanual
foradditional information about the pilot.
Caution: If the wall on which the heater is mounted is bowed or
uneveninthe vicinity of theheater,the heater’scabinet might be in
a bind which may not allow the heater’s control knob to move up
and down freely enough to function as described by the heater’s
lightinginstructions. If the control knobwill not depress andspring
back into position freely due to a bowed or uneven wall, do the
following: Turn the gas off at the shutoff valve. Loosen the four
screws which secure the control’s mounting bracket (Item No. 23
of "PARTS DIAGRAM"- found in the upper righthand corner of the
heater. Slidetheloosenedmounting bracket either right or left until
the control knob will depress and spring back into position freely.
Leave the bracket at that location and retighten the screws.
Recheck for gas leaks as directed. Relight the heater’s pilot, and
proceed to Step 19.
18. Immediately after the heater’s pilot is lit, use a soap-water solution
or a liquid gas leak detector to check each joint in the heater’s pilot
tubing for gas leaks. If any leaks are found, turn shutoff valve off
and repair all leaks before proceeding.
19. Afterthepilot flame is established, turn theheater’scontrol knobto
‘"High". If the burner plaques do not light within four seconds, turn
thecontrol knob to "Pilot" andreadthe "TROUBLESHOOTING" section
of this manual for help in determining what the problem may be.
555
555
811IN WC
8 11 IN WC
PILOT FLAME 
PILOT FLAME 
1-1/4 TO 1-1/2 INCHES
1-1/4 TO 1-1/2 INCHES
FOR LP MODELS
FOR LP MODELS
2-3/4 3-1/4 INCHES
2-3/4 3-1/4 INCHES
FOR NAT MODELS
FOR NAT MODELS
NOTE: NEVER ATTEMPT TO ADJUST THE PILOT IN ANY WAY, 
NOTE: NEVER ATTEMPT TO ADJUST THE PILOT IN ANY WAY, 
TO DO SO WILL CAUSE IT NOT TO OPERATE AS IT IS INTENDED.
TO DO SO WILL CAUSE IT NOT TO OPERATE AS IT IS INTENDED.
AIR INTAKE
AIR INTAKE
THERMOCOUPLE
THERMOCOUPLE
FIGURE 7
53D9012. Rev 1 03/03

Danger: Do not use candles,
matchesorother ignitionsources
when checking for gas leaks.
Fuel gases are very flammable
and, in certain concentrations,
explosive. Checking for leaks
with an open flame may lead to
fire or explosion which could
cause personal injury, property
damage,or death.
Important: Please refer to the
"LIGHTING AND OPERATING HEATER"
section of this manual for proper
lighting instructions.
Notice: The heater will go
through a curing process during
its initial (first 2 to 3 hours)
operating period and may emit
somesmoke andfumes (burning
offoil,etc.). Be prepared for any
smoke and fumes by raising
windows or opening doors to
provide additional ventilation
during this initial operating
period.
INSTALLATION AND ADJUSTMENT
15

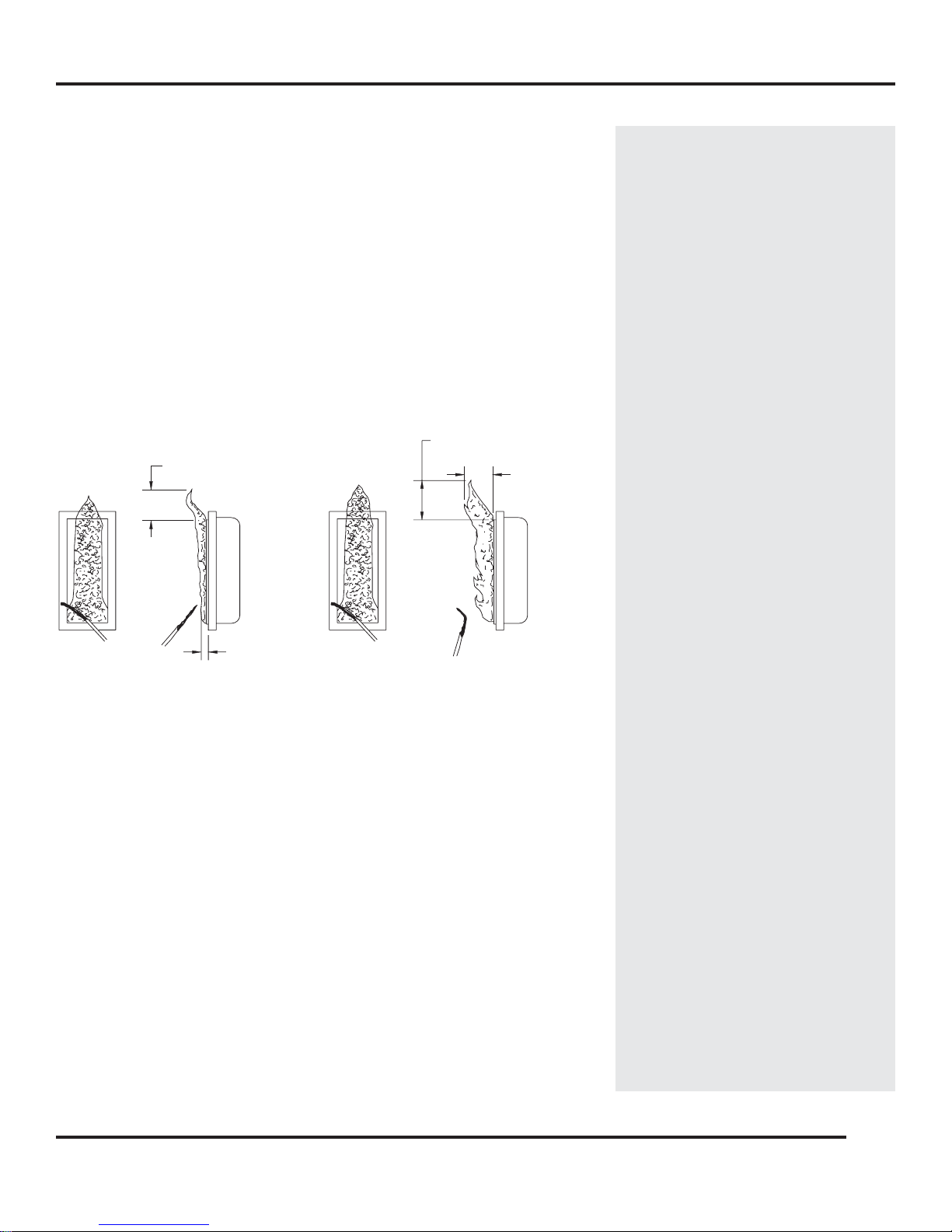

MORE THAN
MORE THAN 
1/4 INCH
1 INCH OR LESS
MORE THAN 
1 INCH
1/4 INCH OR 
LESS
CORRECT APPEARANCE INCORRECT APPEARANCE
21. After all checks are satisfactorily completed as described above,
turn the heater’s control knob to "Pilot", and reinstall the heater’s
front panel. See Figure 6.
22. The heater may now be operated for desired heat. If no heat is
desired,leavethecontrolknobatthe"Pilot"positionorturnto"Off".
Forcomplete shutdown ofthe heater, turn the shutoffvalve offand
turn heater’s control knob to "Off".
20. Immediately after the burner plaques light, use a soapy water
solution or a liquid gas leak detector to check all burner tube joints
for gas leaks. If any leaks are found, turn the shutoff valve off and
repair all leaks before proceeding.
Note:Duringoperation,the surface of each burner plaque willglow
evenly as shown by Figure 8. Ceramic burner plaques operate
withaslightlyaudiblesoundwhenoperatingcorrectly. If the burner
plaques’ flame does not appear correct or makes a loud roaring
sound, turn the heater’s control knob to "Off" and refer to the
"TROUBLESHOOTING"section of this manual for probable cause and
remedy.
FIGURE 8
53D9012. Rev 1 03/03

R
EAD THE PRECEDING SAFETY INFORMATION BEFORE LIGHTI
BE SURE YOU HAVE READ THE PRECEDING SAFETY INFORMATION BEFORE LIGHTI
NG THE HEATER.

INFORMATION ABOVE ON THIS PAGE.
1. STOP! READ THE SAFETY INFORMATION ABOVE ON THIS PAGE.
to off. As you turn the knob between Pilot
2. Turn the knob clockwise to off. As you turn the knob between Pilot
and Off you will hear a click. This indicates a safety
has been activated that will prevent you from
lockout feature of the control has been activated that will prevent you from
turning the control knob back toward the LO position
Wait until the lockout is deactivated befor
until the pilot valve is closed. Wait until the lockout is deactivated befor
e attempting to turn the knob. WARNING: Applying 
w
hile the lockout feature is activated will dama
excessive force to the knob while the lockout feature is activated will dama
ge the control.
out any gas. Then smell for gas, including nea
3. Wait five (5) minutes to clear out any gas. Then smell for gas, including nea
r the floor. If you smell gas, STOP! Follow "B" in the
y
ou don't smell gas, go to the next step.
safety information above. If you don't smell gas, go to the next step.
n
the next page. Turn the control knob counte
4. Find the pilot as illustrated on the next page. Turn the control knob counte
rclockwise until it stops at the Pilot position. 
control knob as you turn it.)
(DO NOT press down on the control knob as you turn it.)
5a
re not directly in front of the heater, but where
. Position yourself where you are not directly in front of the heater, but where
the pilot is clearly in view, then push the control
o
lding it down, immediately depress the ignitor
knob down fully and, while holding it down, immediately depress the ignitor
button until a loud click is heard. If the pilot does 
the ignitor at five second intervals for a ma
not light, continue to depress the ignitor at five second intervals for a ma
ximum of ten times. If the pilot does not light, try the
with a match, on the next page of this manua
alternate method of lighting it with a match, on the next page of this manua
l.
6o
hold the control knob down for a minute an
. After the pilot is lit, continue to hold the control knob down for a minute an
d then release it. The control knob should pop back
e
main lit. 
up fully and the pilot should remain lit. 
 s
not pop up when released, stop and immediately and call
If the control knob does not pop up when released, stop and immediately and call
your service technician or gas supplier.

lit after several tries, turn the gas control knob cl
If the pilot will not stay lit after several tries, turn the gas control knob cl
ockwise to "OFF" and call your service
l
ier.
technician or gas supplier.
ng steadily, slowly turn the control knob coun
7. When the pilot is lit and burning steadily, slowly turn the control knob coun
terclockwise past LO toward HI until the 
e
burners cycle off before the room has reach
burners light, then stop. If the burners cycle off before the room has reach
ed the desired temperature, turn the knob toward HI 
of time the burners burn before cycling off
in small steps until the length of time the burners burn before cycling off
is sufficient to keep the room at the desired 
e
control knob may be turned to Pilot or OFF.
temperature. For no heat, the control knob may be turned to Pilot or OFF.




- Turn the control knob clockwise to OFF
FOR COMPLETE SHUTDOWN - Turn the control knob clockwise to OFF
and turn the shutoff valve
and turn the shutoff valve
off. (See Figures 2 & 3)
LIGHTING INSTRUCTIONS
HI
HI
PILOT
PILOT
OFF
OFF
LO
LO
CONTROL KNOB
(SHOWN IN "OFF" POSITION)
IGNITOR
BUTTON
D
E
P
R
E
S
S
F
O
R
P
I
L
O
T
TO THE APPLIANCE
TO TURN OFF GAS TO THE APPLIANCE
e
to OFF. The knob will click betwee
Turn the control knob clockwise to OFF. The knob will click betwee
n pilot and OFF.
LIGHTING AND OPERATING HEATER
16
FOR YOUR SAFETY - READ BEFORE LIGHTING
WARNING: IFYOU DO NOT FOLLOW THESE INSTRUCTIONS EXACTLY,AFIRE OR EXPLOSION MAY RESULT CAUSING PROPERTY
DAMAGE, PERSONAL INJURY OR LOSS OF LIFE.
A. This appliance has a pilot which must be lighted by hand. When lighting the pilot, follow these instructions
exactly.
B. Beforelightingsmell all around the applianceareafor gas. Be sure to smellnexttothe floor because some gas
is heavier than air and will settle on the floor.
WHAT TO DO IFYOU SMELL GAS
• DONOT TRY TO LIGHT ANY APPLIANCE.
• DONOT TOUCH ANY ELECTRIC SWITCH; DO NOT USE ANY PHONE IN YOUR BUILDING.
• IMMEDIATELY CALL YOUR GAS SUPPLIER FROM ANEIGHBOR’SPHONE. FOLLOW THE GAS SUPPLIER’SINSTRUCTIONS.
• IFYOU CANNOT REACH YOUR GAS SUPPLIER, CALL THE FIRE DEPARTMENT.
C. Use only your hand to push in or turn the gas control knob. Never use tools. If the knob will not push in or turn
byhand, don’t try torepairit, call a qualifiedservicetechnician. Force or attempted repairmay result in afireor
explosion.
D. Do not use this appliance if any part has been under water. Immediately call a qualified service technician to
inspect the appliance and to replace any part of the control system and any gas control which has been under
water.
53D9012. Rev 1 03/03

LIGHTING AND OPERATING HEATER
17
PILOT
ALTERNATE METHOD OF LIGHTING THE PILOT WITH A MATCH
Follow the steps as if you were going to light the pilot with the push button i
Follow the steps as if you were going to light the pilot with the push button i
gnitor up to the point 
of pushing down on the control knob to initiate the flow of gas to the pilot. 
of pushing down on the control knob to initiate the flow of gas to the pilot. 
Then:
Then:
1. Position yourself where you are not directly in front of the heater and will
1. Position yourself where you are not directly in front of the heater and will
be able to simultaneously reach 
be able to simultaneously reach 
the pilot with a burning match and push down on the control knob. (To reach
the pilot with a burning match and push down on the control knob. (To reach
the pilot easier, use a long fire place
the pilot easier, use a long fire place 
style match.)
style match.)
2. Place a burning match at the end of the pilot barrel as shown below and push
2. Place a burning match at the end of the pilot barrel as shown below and push
the control knob down fully.
the control knob down fully.
3. After the pilot is lit, continue to hold the control knob down for a minute a
3. After the pilot is lit, continue to hold the control knob down for a minute a
nd then release it. The control knob
nd then release it. The control knob
should pop back up fully and the pilot should remain lit.
should pop back up fully and the pilot should remain lit.
 If the control knob does not pop up when released, stop and immediately call you
If the control knob does not pop up when released, stop and immediately call you
r service
 technician or gas supplier.
 If the pilot will not stay lit after several tries, turn the gas control knob cl
If the pilot will not stay lit after several tries, turn the gas control knob cl
ockwise to "OFF"
ockwise to "OFF"
 and call your service technician or gas supplier. 
and call your service technician or gas supplier. 
4. Return to Step 7 of the Lighting Instructions on the previous page of this ma
4. Return to Step 7 of the Lighting Instructions on the previous page of this ma
nual.
TO TURN OFF THE HEATER - Turn the control knob clockwise to OFF. The k
TO TURN OFF THE HEATER - Turn the control knob clockwise to OFF. The k
nob will click 
nob will click 
between Pilot and OFF.
between Pilot and OFF.
FOR COMPLETE SHUTDOWN - Turn the control knob clockwise to OFF
FOR COMPLETE SHUTDOWN - Turn the control knob clockwise to OFF
OF THE HEATER and turn the shutoff valve off. (See Figur
OF THE HEATER and turn the shutoff valve off. (See Figur
es 2 & 3.)
es 2 & 3.)
53D9012. Rev 1 03/03

SAFETY CHECKLIST
Continued safe operation of this heater requires, but is not limited to, these “Do’s” and “Don’ts”:
DO’S:
1. Do make the installation according to local codes or, in the absence of local codes, with latest edition of the
National Fuel Gas Code ANSI Z223.1/NFPA 54.
2. Do provide ample fresh air when using heater.
3. Do use only soap-water solution or a liquid gas leak detector when checking for leaks.
4. Do operate the heater only with the factory-installed dress guard in place.
5. Do keep clothing, furniture, draperies and other flammable materials away from the heater.
6. Do inspect the heater periodically and clean it as necessary.
7. Do keep the area around the heater clear and free from combustible materials, gasoline and other flammable
liquids.
9. Do take the necessary precautions during any pressure testing of the heater’s gas supply piping system.
10. Do keep children and mentally impaired persons away from the heater.
DON’TS:
1. Don’t use candles, matches or any source of ignition when checking for leaks.
2. Don’t operate the heater without the dress guard in place.
3. Don’t place any combustible material near the heater.
4. Don’t allow lint and dust to accumulate around the heater.
5. Don’t close any openings in the heater cabinet or alter the cabinet in any way.
6. Don’t use or store gasoline or any flammable or explosive material in the area heated by this heater.
7. Don’t attempt to adjust the pilot flame.
8. Don’t block or alter air flow into and away from the heater (other than installing an optional blower).
9. Don’t allow children to play near or with the heater.
18
53D9012. Rev 1 03/03
