Monessen Hearth VWF18 User manual

This gas log set is to be installed
only in a solid-fuel burning fi replace
with a working fl ue constructed of
noncombustible material.
READ AND SAVE THESE INSTRUCTIONS
VENTED GAS LOG SET
INSTALLATION AND OPERATING INSTRUCTIONS
Approved to ANSI Z21.60
MODELS: VWF18 VWF24 VWF30 VWF36
Natural Gas or Propane/LPG Control Type:
Manual, Milli-Volt or Hi/Lo Remote
WARNINGS
If the information in this manual is not followed exactly,
a fi re or explosion may result causing property damage,
personal injury or loss of life.
– Do not store or use gasoline or other fl ammable
vapors and liquids in the vicinity of this or any
other appliance.
– WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any
phone in your building.
• Immediately call your gas supplier from a
neighbor's phone. Follow the gas supplier's
instructions.
• If you cannot reach your gas supplier, call the
fi re department.
– Installation and service must be performed by
a qualified installer, service agency or the gas
supplier.

2
27D8520
CONTENTS
Important Safety Information
..........................
3
Product Specifi cations
.....................................
4
Getting Started
.................................................
5
Placement in a Fireplace with a Restrictive
Barrier
..........................................................
6
Installation
.........................................................
7
Damper Stop Installation
................................
7
Before Installing the Appliance
.......................
7
Installing Valve Cover
.....................................
Installing Valve Cover .....................................Installing Valve Cover
8
Wiring (Milli-volt)
...............................................
9
Connecting the Gas
........................................
10
Manual Control
.............................................
11
Milli-Volt Control
...........................................
11
Hi/Lo Remote Control
..................................
11
Log Placement
................................................
12
VWF18MO Log Placement
..........................
12
VWF24MO Log Placement
..........................
13
VWF30MO Log Placement
..........................
13
VWF36MO Log Placement
..........................
14
VWF18AO, 24AO, 30AO Log Placement
....
15
VWF24/18SRO, 30/24SRO, 36/30SRO
.......
17
VWF24B Log Placement
..............................
16
VWF18SPA, 24SP Log Placement
..............
18
VWF30SPA Log Placement
........................
19
Operating Instructions
....................................
20
Manual Control Lighting Instructions
...........
20
Milli-Volt Control Lighting Instructions
.........
21
Hi/Lo Control Lighting Instructions
...............
22
Flame Appearance
...........................................
23
Fireplace Draft Test
.........................................
24
Remote Control Receiver Replacement
........
25
Cleaning and Servicing
..................................
25
Replacement Parts Lists
................................
26
Assembly
......................................................
26
Massive Oak Logs
.......................................
27
American Oak Logs
.....................................
28
Birch Logs
....................................................
28
Split River Oak Logs
....................................
29
Split Pine Logs
.............................................
30
Warranty
...........................................
Back Cover

27D8520
3
INSTALLER
Please leave these instructions with the owner.
OWNER
Please retain these instructions for future reference
.
IMPORTANT SAFETY INFORMATION
1. The installation, combustion and ventilation air must
conform with local codes or, in the absence of local
codes, with the National Fuel Gas Code, ANSI Z223.1,
or the CAN/CGA-B149 Installation code (series). This
unit complies with ANSI Z21.60-2000 decorative gas
appliance for installation in solid-fuel burning fi replace.
2. Installation and repair should be done by a qualifi ed ser-
vice person. Monessen Vented Gas Logs must be installed
only in a masonry or a UL 127 solid-fuel fi replace with
minimum venting requirements, see installation sec-
tion.
3. To prevent malfunction, gas log set and fl ue should be
cleaned at least annually by a professional service person.
More frequent cleaning may be required due to exces-
sive lint from carpeting, etc. It is imperative that control
compartments, burners and circulating air passageways
be kept clean.
4. A damper clamp must be installed to provide the mini-
mum permanent vent opening to vent fl ue products,
Refer to installation instructions.
5. Never burn solid fuels in a fi replace where a gas log set
is installed.
6.
This appliance must
NOT
be used with glass
doors in the closed position.
A fi replace screen
must be in place when the log set is burning. Provisions
for adequate combustion air must be provided. Adequate
combustion air usually results in all fl ames curling into
the fi replace away from the screen and up the fl ue.
8. Keep room area clear and free from combustible materi-
als, gasoline and other fl ammable vapors and liquids.
9. Children and adults should be alerted to the hazard of
high surface temperature and should stay away to avoid
burns or clothing ignition.
10. Young children should be carefully supervised when they
are in the same room with the gas log set in operation.
11. Do not place clothing or other fl ammable material near
the fi replace when the gas logs are in use.
12. Do not use this gas log set if any part has been underwater.
Immediately call a qualifi ed service technician to inspect
the gas logs and replace any part of the control system
and any gas control which has been under water.
13. The gas log set
must be isolated from the gas supply
piping system by closing its individual manual shutoff
valve during any pressure testing of the gas supply piping
system at test pressures equal to or less than 1/2 psig
(3.5kPa).
14. Secure gas log set to fi replace.
15. This log set will burn off the paint on the front grate bar.
Note: See cleaning section for refurbishing.
16
.
FOR MASSACHUSETTS RESIDENTS ONLY:
IMPORTANT
Read these instructions carefully before installing or trying to operate this gas log set.
• Any c
hange to this appliance or its controls can be dangerous.
• Improper installation or use of the heater can cause serious injury or death from fi re,
burns, explosion or carbon monoxide poisoning.
• Do not allow fans to blow directly into the fi replace. Avoid any drafts that alter burner
fl ame patterns.
• Do not use a blower insert, heat exchanger insert or other accessory, not approved for
use with this appliance where applicable.
WARNING
This appliance is for installation only in
a solid fuel burning fi replace (masonry
fi replace or manufactured fi replace).
WARNING
This product must be installed by a
licensed plumber of gas fi tter when
installed within the Commonwealth of
Massachusetts.
WARNING
Installation of this vented gas log in the Commonwealth
of Massachusetts requires the damper be permanently
removed or welded in the full open position. In addition, a
naturally vented gas log may not be installed in a bedroom
or bathroom in the Commonwealth of Massachusetts.
Flex line installation must not exceed 36".

4
27D8520
The manifold pressure for propane is 10" WC.
The manifold pressure for natural is 4"WC.
The minimum inlet gas supply pressure is 4" WC for natural and 10" WC for LP.
The maximum inlet gas supply pressure for this log set is 10" WC for natural and 13" WC for LP.
Nominal Rates (BTU/Hr)
VWF18N/P 60,000 VWF24N 70,000 VWF30N 80,000 VWF36N 80,000
VWF24P 60,000 VWF30P 60,000 VWF36P 60,000
Note: Actual performance, fl ame height, BTU/Hr will vary with specifi c installation, gas pressure,
shutoff valve position (fully open), valve type, and fi rebox draft conditions.
Figure 1 - Minimum Hearth Dimensions
MINIMUM HEARTH DIMENSIONS
PRODUCT SPECIFICATIONS
www.nfi certifi ed.org
We suggest that our gas hearth
products be installed and
serviced by professionals who
are certifi ed in the U.S. by the
National Fireplace Institute
®
(NFI) as Gas Specialists.
SAFETY INFORMATION
Never connect unit to private
(non-utility) gas wells. This
gas is commonly known as
wellhead gas.
WARNING
MANUAL CONTROL
Model A B C
Model A B C
Model A B C
Model A B C
Model A B C
VWF18
VWF18
21" 13" 24"
21" 13" 24"
21" 13" 24"
21" 13" 24"
VWF24
27" 13" 30"
27" 13" 30"
27" 13" 30"
27" 13" 30"
VWF30
33" 13" 36"
33" 13" 36"
33" 13" 36"
33" 13" 36"
VWF36
39" 13" 42"
39" 13" 42"
39" 13" 42"
39" 13" 42"
MILLI-VOLT & HI/LO CONTROL
Model A B C
Model A B C
Model A B C
Model A B C
Model A B C
VWF18
VWF18
25" 13
25" 13
25" 13
1
/
2
" 28"
" 28"
VWF24
31" 13
31" 13
31" 13
1
/
2
" 34"
" 34"
VWF30
37" 13
37" 13
37" 13
1
/
2
" 40"
" 40"
VWF36
43" 13
43" 13
43" 13
1
/
2
" 46"
" 46"

27D8520
5
CHIMNEY HEIGHT FLUE OPENING
6' 64 sq in
8' 64 sq in
10' 64 sq in
15' 51 sq in
20' 51 sq in
30' 51sq in
CHIMNEY HEIGHT FLUE OPENING
6' 64 sq in
8' 64 sq in
10' 64 sq in
15' 51 sq in
20' 51 sq in
30' 51sq in
GETTING STARTED
MAKE SURE YOU HAVE RECEIVED ALL PARTS:
Check your packing list to verify that all listed parts have been received. You should have the following:
BURNER - GRATE ASSEMBLY 18, 24, 30, 36"
• Burner and Grate Weldment Assembly • Lava Rocks (x2) • Extenders with Knob (Manual Control Only)
• Glowing Embers (Rock Wool) • Damper Clamp • Vermiculite
• Installation /Operating Instructions •
3
/
8
" Aluminum tube with
3
/
8
"
90° elbow,
1
/
2
"
to
3
/
8
"
tube fi tting
• Control Cover • Shield Plate
18", 24", 30" OR 36" CERAMIC FIBER OR REFRACTORY LOGS
• Individual Logs • Installation Instructions
Carefully inspect the contents for shipping damage. If any parts are missing or damaged, immediately inform the
dealer from whom you purchased the appliance.
Do not attempt to install any part of the appliance unless you
have all parts in good condition.
ITEMS REQUIRED FOR INSTALLATION
Ensure that the following items are available before proceeding with installation:
• External regulator (for propane/L.P.G. only) • Shutoff valve
• Piping which complies with local codes • Pipe wrench
• Pipe sealant approved for use with propane/L.P.G. (Resistant to sulfur compounds)
• Drill with masonry bit (for mounting to the fl oor)
MINIMUM OPENING AREA OF CHIMNEY DAMPER FOR VENTING
MINIMUM CHIMNEY HEIGHT AND FLUE OPENING
• Handle the gas log burner assembly by the grate only. Do not pick the unit up by the
burner. Burner pan is a separate assembly.
• Gloves are recommended when handling ceramic fi ber logs to prevent skin irritation
from loose fi bers. Logs are fragile — handle with care.
CAUTION
The fi replace and gas logs function as a system. If the fi replace is not drafting properly
and spilling into the room (check with a match or a smoke stick), reposition the damper
clamp until a positive draft is obtained by opening the damper. If negative pressure in
home prevents having a positive draft, contact your dealer for assistance.
WARNING

6
27D8520
Height of Restriction (X) Minimum Depth of Fireplace/Firebox
Height of Restriction (X) Minimum Depth of Fireplace/Firebox
No restriction 13" Manual Control 13
No restriction 13" Manual Control 13
1
/
2
" Milli-Volt and Hi/Lo Control
0 to 1.5" 15"
0 to 1.5" 15"
Greater than 1
Greater than 1
1
/
2
" to 3" 15"
Greater than 3"
Greater than 3"
ANY BARRIER GREATER THAN THREE INCHES (3")
PLACED IN FRONT OF THE GAS LOG SET IS NOT
RECOMMENDED BY THE MANUFACTURER.
PLACEMENT IN A FIREPLACE WITH A RESTRICTIVE BARRIER
IMPORTANT INFORMATION FOR THE INSTALLATION OF THIS GAS LOG SET
The following are guidelines for placing a VWF log set in a fi replace that has a restrictive barrier along the bottom front
opening of the fi replace. Some examples of barriers are glass/screen door frames and sunken/recessed fi replaces.
Glass door frames
with adjustable
louvers should have
the lovers
fully open
while the unit is in
operation.
Height of restrictive barrier
caused by glass door frames,
recessed fi replaces, etc. from
the base or bottom surface of the
unit.
(Refer to Table).
The log set should be
placed against or as near
as possible to the rear wall
of the fi replace/fi rebox.
Depth of fi replace/fi rebox.
(Refer toTable).
Figure 2
Height of Restriction (X) Minimum Depth of Fireplace/Firebox
No restriction 13" Manual Control 13
0 to 1.5" 15"
" to 3" 15"
NOTE: Non combustible material such as
refractory brick may be used to line the
fl oor of the fi replace in order to raise the
height of the gas log set in relation to a
restrictive barrier.
X
Barriers such as the bottom of a glass door frame placed in front of a gas log set can
change the air fl ow characteristics of the fi replace which in turn can cause the unit to
overheat and malfunction. Any deviation from the installation guidelines on this sheet
will potentially void the warranty.
WARNING
If the fi replace has a restrictive barrier
and is equipped with a remote receiver,
it must be placed outside or the
combustion chamber. See “Installing
Receiver” on page 21.
CAUTION

27D8520
7
Damper Stop
Damper
Injector
(Natural Gas
only)
FOR MASSACHUSETTS RESIDENTS ONLY
Installation of this vented gas log set in the Commonwealth
of Massachusetts requires the damper be permanently
removed or welded in the fully open position. In addition, a
naturally vented gas log may not be installed in a bedroom
or bathroom in the Commonwealth of Masasachusetts.
BEFORE INSTALLING THE APPLIANCE:
• Turn off gas supply to fi replace or fi rebox.
• Clean the fi replace fl oor and chimney before installing the log set. Seal any ash clean-out doors to protect the
unit from down drafts.
INSTALLATION
Figure 4 - Securing Grate/Burner Assembly into Firebox
Screws
INSTALL AND OPERATE THE APPLIANCE AS DIRECTED IN THIS MANUAL.
DAMPER STOP INSTALLATION
A damper stop must be provided with the unit. The damper stop must be installed as shown in (Figure 3) to prevent full
closure of the fi replace damper blade and provide a minimum fl ue opening, per table on page 5.
Should the clamp not fi t, or provide the required permanent opening from the table, have the damper cut to provide a
minimum permanent opening or install a permanent stop.
Figure 3 - Damper Stop Installation
In compliance with ANSI Z21.60•CGA2.26 and National Fuel Gas Code, Section 6.
ASSEMBLY PROCEDURE
1. Place grate/burner assembly into fi rebox
with the front pan facing forward.
2. Drill two (2)
5
/
32
" diameter holes approxi-
mately 1
1
/
2
" deep.
3. Anchor the front pan to the fl oor using
the screws provided.
Proper installation of the grate is
essential to prevent any movement
of the gas logs and controls during
operation.

8
27D8520
Covers must be installed prior to
operation to prevent overheating.
WARNING
Grate bar must not touch the valve.
NOTICE
Figure 5 - Placing Cover on Manual Control
Figure 6 - Placing Cover on Milli-volt Control
INSTALLATION
Grate Bar
Valve Cover
Valve
Valve
Cover
Valve
Valve
Grate Bar
Figure 7 - Placing Cover on Hi/Lo Control
Valve Cover
Valve
Grate Bar
INSTALLING VALVE COVER

27D8520
9
Label all wires prior to disconnection
when servicing controls. Wiring errors
can cause improper and dangerous
operation. Verify proper operation after
servicing.
WARNING
Do not connect to 110 volt supply.
WARNING
Keep wiring away from heat
source and hot surfaces.
WARNING
THTP
THTP
TP
TH
Milli-volt
Valve
Pilot
WIRING (MILLI-VOLT)
Figure 8 - Wiring Diagram
The Milli-Volt (thermopile) is a self powered combination gas control
that does not require 110VAC to operate. Refer to
Figure 8
and installa-
tion instructions provided with optional wall switch or remote control
for wiring instructions. A maximum length of 15 feet of 18awg two
conductor wire is to be used for wall switch. Note switches must be
suitable for millivolt operation. The optional wall switch and remote
receiver must be mounted outside the fi rebox.
CHECKING SYSTEM OPERATION
The milli-volt system and individual components may be
checked with a millivolt meter having a 0-1000MV range.
Conduct each check shown in chart below by connection
meter test leads to terminals as indicated.
A. COMPLETE MILLI-VOLT SYSTEM CHECK
("A" READING - THERMOSTAT CONTACTS CLOSED - CONTROL KNOB "ON" - MAIN BURNER
SHOULD BE COME ON)
a. If the reading is more than 100 millivolts and the automatic valve still does not come on - replace the control.
b. If the closed circuit reading (“A” reading) is less than 100 millivolts, determine cause for low reading —
proceed as follows:
B. THERMOPILE OUTPUT READING CHECK
(“B” READING - THERMOSTAT CONTACTS OPEN - MAIN BURNER OFF)
a. 325 millivolts minimum. If the minimum millivolt reading is not obtainable, readjust pilot for maximum millivolt
output. If millivolt reading is still below minimum specifi ed, replace thermopile.
CONNECT
METER METER
METER METER
METER METER
CHECK TO LEADS TO READING
CHECK TO LEADS TO READING
CHECK TO LEADS TO READING
TEST TEST TERMINALS SHOULD BE
TEST TEST TERMINALS SHOULD BE
TEST TEST TERMINALS SHOULD BE
A COMPLETE TH & THTP CLOSED
A COMPLETE TH & THTP CLOSED
A COMPLETE TH & THTP CLOSED
SYSTEM
SYSTEM
SYSTEM
B THERMOPILE TH & THTP OPEN
B THERMOPILE TH & THTP OPEN
B THERMOPILE TH & THTP OPEN
OUTPUT
OUTPUT
OUTPUT
CONNECT
METER METER
CHECK TO LEADS TO READING
TEST TEST TERMINALS SHOULD BE
A COMPLETE TH & THTP CLOSED
B THERMOPILE TH & THTP OPEN
METER METER
CHECK TO LEADS TO READING
TEST TEST TERMINALS SHOULD BE
A COMPLETE TH & THTP CLOSED
B THERMOPILE TH & THTP OPEN
Optional Wall Switch
or Remote Reciever
Switch

10
27D8520
CONNECTING THE GAS
Pipe Coupling
To Gas Log
Set or to Gas
Valve
Shutoff
Valve
Gas Supply Inlet
Figure 9 - Gas Connection
Gas Supply Inlet
Pipe Coupling
Pipe
IMPORTANT:
Hold appliance fi rmly with a wrench to prevent movement when connecting to inlet piping.
Always use an external regulator for all propane/LPG gas logs only,
to reduce the supply tank pressure to a maximum of
13" w.c. High pressure natural gas systems require a regulator to reduce supply pressure to 10" W.C.
Locations that the Pressure Tapping
Point May be Installed
NOTICE: A qualifi ed gas appliance installer must connect the appliance to the gas
supply. Consult all local codes before installation.
NOTICE
Use new black iron pipe, steel pipe, copper tubing, or internally tinned copper tubing.
Copper or internally tinned copper tubing can only according to the National Fuel Gas
Code, section 2.6.3, providing gas meets sulfi de limits, and where permitted by local
codes. Gas piping system must be sized to provide minimum inlet pressure at the
maximum fl ow rate (BTU/Hr). Undue pressure loss will occur if the pipe is too small.
A manual shutoff valve must be installed upstream of the appliance. Union tee and
plugged 1/8" NPT pressure tapping point should be installed upstream of the appliance.
See Figure 9.
CAUTION
Connecting directly to an
unregulated propane/LPG
tank can cause an explosion.
WARNING

27D8520
11

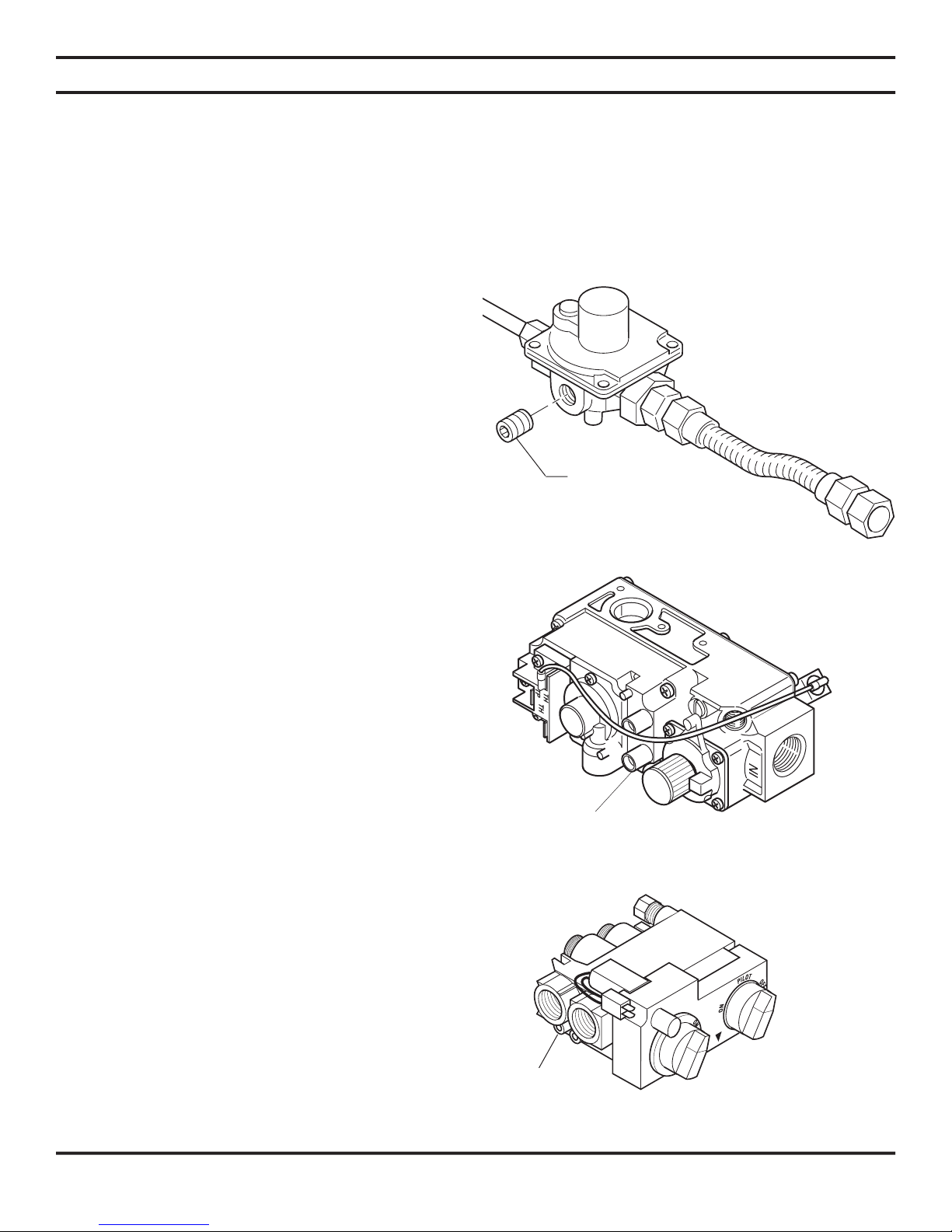

Figure 10 - Pressure Test Point Location
Test Plug
MANUAL CONTROL
(Figure 10)
The pressure regulator is preset and locked to discourage
tampering. If the pressure is not as specifi ed, replace with
the correct part from the parts list in this manual.
Remove 1/8" NPT plug, located on side of regulator body.
Install fi tting and tubing to pressure gauge. After taking
pressure reading, re-install test plug. which should be
checked at the pressure test point. Check for gas leaks.
Test Port
“Out”
Figure 11 - Pressure Test Point Location
CONNECTING THE GAS
The gas log set gas inlet connection is 3/8" NPT at the regulator, inlet on the right side facing the gas log. If a left
side connection is required, the connecting pipe may be led under the rear of the gas logs or behind the grate for
connection to the inlet.
Test all gas joints from the gas meter to the appliance regulator for leaks using a gas analyzer or soap and water solution after
completing connection.
DO NOT USE AN OPEN FLAME.
Check the gas pressure with the appliance burning.
MILLI-VOLT CONTROL
(Figure 11)
The valve regulator controls the burner pressure which should
be checked at the pressure test point. Turn captured screw
counter clockwise 2 or 3 turns and then place tubing to pres-
sure gauge over test point (Use test port labeled “OUT”).
After taking pressure reading, be sure and turn captured
screw clockwise fi rmly to re-seal. Do not over torque. Check
for gas leaks.
Figure 12 - Pressure Test Point Location
Hi/Lo Remote Control
“OUT” Test Port
HI/LO REMOTE CONTROL
(
Figure
12)
Turn captured screw counter clockwise two or three
turns. (The port is labeled
) Place tubing to pressure
gauge over test point. After taking pressure reading, be
sure to turn captured screw clockwise fi rmly to reseal.
Do not over torque. Check for gas leaks.
➜

12
27D8520
#1
#2
#3
#4
#5
#6
2"
LOG PLACEMENT
FILLING THE BURNER PAN
Fill the burner pan with vermiculite to the bottom of the rear log and sloped to the front edge of the burner pan. Excess ver-
miculite can spill forward or to the side of the burner pan. Do not overfi ll the propane model. Do not cover the pilot (if SPK
or MVVK is installed) with vermiculite or rock wool (embers).
PLACEMENT OF GLOWING EMBERS (ROCK WOOL)
The Wildfi re fl ame appearance can vary due to differences in draft and fi replace confi gurations and ember placement. After
installing rear (#1) and front logs (#2 and #3), cover the entire top surface of the vermiculite in the burner pan with the rock
wool supplied with unit. Tear the rock wool into pieces approximately
1
/
2
" in size (roughly the size of a nickel) and cover
the burner evenly. Do no use more rock wool than the amount supplied with the unit. To enhance the appearance of the
Wildfi re fl ame, it is recommended to form a mound of rock wool in the center of the burner, 2" to 3" high, visible through
the two front logs.
PLACEMENT OF DECORATIVE VOLCANIC ROCK
Sprinkle volcanic rock in front of front glowing embers and to both sides.
DO NOT SPRINKLE ON BURNERS, EMBER BED, PILOT OR LOGS.
IMPORTANT: Do not handle logs with your bare hands! Always wear gloves to prevent skin irritation
from ceramic fi bers. After handling logs, wash your hands gently with soap and water to remove any
traces of fi bers.

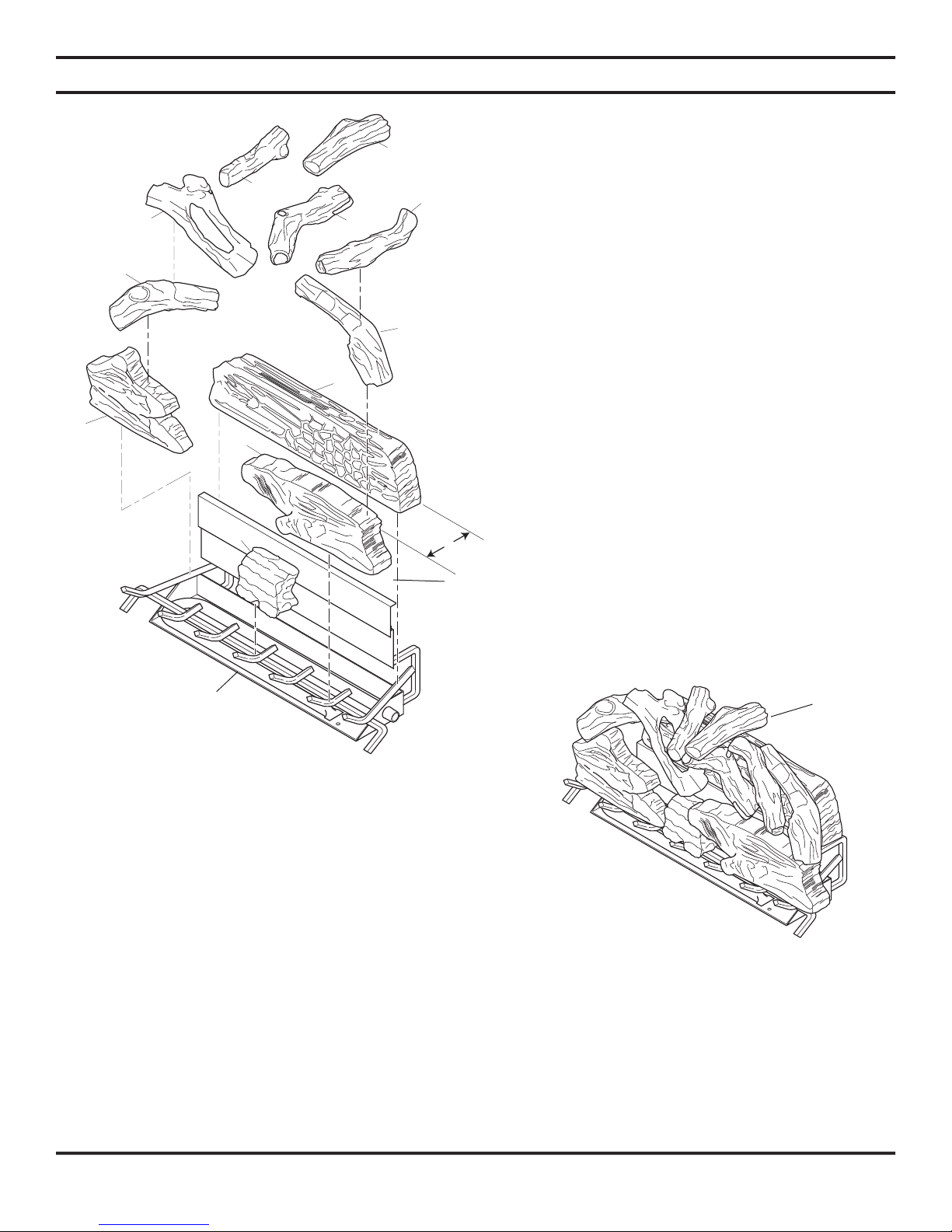

Figure 13 - VWF18MO (Massive Oak)
Log Placement
VWF18MO LOG PLACEMENT
(6 Logs)
1. Slide shield plate down back of burner pan.
See
Figure 13
.
2. Center rear log #1 on grate bars and fl ush with rear of
the grate.
See Figure 13.
3. Place front left log #2 on the front of the plate and to the
left.
See Figure 13.
4. Place front right log #3 on the front of the plate and to
the right.
See Figure 13.
NOTE: Allow 2" between the back log and the
two front logs.
5. Install left crossover log #4 as shown.
See Figure 13.
6. Install right crossover log #5 as shown.
See Figure 13.
7. Install top log #6 as shown.
See Figure 13.
Shield
Plate

27D8520
13
#1
#2
#3
#4
#5
#6
#7
2"
#1
#2
#3
#4
#5
#7
#6
#8
2"
LOG PLACEMENT
Figure 14 - VWF24MO (Massive Oak)
Log Placement
VWF24MO LOG PLACEMENT
(7 Logs)
1. Slide shield plate down back of burner pan.
See
Figure 14
.
2. Center rear log #1 on grate bars and fl ush with rear of
the grate.
See Figure 14.
3. Place front left log #2 on the front of the plate and to the
left.
See Figure 14.
4. Place front right log #3 on the front of the plate and to
the right.
See Figure 14.
NOTE: Allow 2" between the back log and the
two front logs.
5. Install left log #4 as shown.
See Figure 14.
6. Install right top log #5 as shown.
See Figure 14.
7. Install left top log #6 as shown.
See Figure 14.
8. Install top crossover log #7 as shown.
See Figure 14.
Figure 15 - VWF30MO (Massive Oak)
Log Placement
VWF30/36MO LOG PLACEMENT
(8 Logs)
1. Slide shield plate down back of burner pan.
See
Figure 15
.
2. Center rear log #1 on grate bars and fl ush with rear of
the grate.
See Figure 15.
3. Place front left log #2 on the front of the plate and to the
left.
See Figure 15
4. Place front right log #3 on the front of the plate and to
the right.
See Figure 15
NOTE: Allow 2" between the back log and the
two front logs.
5. Install left middle log #4 as shown.
See Figure 15
6. Install right middle log #5 as shown.
See Figure 15
7. Install right top log #6 as shown.
See Figure 15
8. Install left top log #7 as shown.
See Figure 15
9. Install top crossover log #8 as shown.
See Figure 15
Shield
Plate
Shield
Plate

14
27D8520
2"
#8
#6
#7 #9
#10
#11
#5
#4
#2
#1
#3
Figure 16 - VWF36MO Log Placement
(Massive Oak)
MODEL VWF36MO
(11 LOGS)
1. Slide shield plate down back of burner pan.
See
Figure 16
.
2. Center rear log #1 on grate bars and fl ush with rear
of the grate.
See Figure 16.
3. Place front left log #2 in front of the plate and to the
left.
See Figure 16.
4. Place center front log #3 on middle grate prong.
See
Figure 20.
5. Place front right log #4 in front of the plate and to
the right.
See Figure 16.
NOTE: Allow 2" between the back log and the
two front logs.
6. Install left side log #5.
See Figure 16.
7. Install right side log #6.
See Figure 16.
8. Install right side middle log #7.
See Figure 16.
9. Install top log #8.
See Figure 16.
10. Install top log #9.
See Figure 16.
11. Install top log #10.
See Figure 16.
12. Install top left log #1.
See Figure 17.
Shield
Plate
Figure 17 - VWF36MO Log Placement
(Massive Oak)
Middle Grate
Prong
Top Log #11
LOG PLACEMENT

27D8520
15
Optional
Accessory
Cover
#1
#3
#4
#5
#6
#7
#2
#8
LOG PLACEMENT
1. Place Back Log #1 on grate bars on back of grate.
See
Figure 18.
2. Place Front Log #2 on front of grate.
See Figure 18.
3. Position Right Log #3 on top right of Log #1 and Log #2.
Make sure back of Log #3 fi ts in right grove in top of Log
#1.
See Figure 18.
4. Place Left Log #4 on top left of Log #1 and Log #2. Make
sure back of Log #4 fi ts in left grove in top of Log #1.
See Figure 18.
5. Rest Top Right Log #5 on Log # 3 and Log #2.
See Figure 18.
6. Rest Top Left Log #6 on Log #4 and Log #2.
See
Figure 18.
MODEL VWF30AO ONLY (8 LOGS)
7. Place Log #7 on Log #2 and Log #5.
See Figure 18.
8. Place Log #8 on Log #3 and Log #7.
See Figure 19.
Figure 18 - VWF18AO, VWF24AO and VWF30AO
(American Oak) Log Placement
Figure 19 - VWF18AO, VWF24AO and VWF30AO
(American Oak) Log Placement
MODELS VWF18AO, VWF24AO AND VWF30AO
(6 Logs)

16
27D8520
LOG PLACEMENT
1. Slide shield plate down back of burner pan.
See
Figure 20
.
2. Place Back Log #1 on grate bars on back of grate.
See
Figure 20.
3. Place Middle Log #2 in front of Log #1.
See Figure 20.
4. Position Right Front Log #3 on right front side of grate.
See Figure 20.
5. Position Left Front Log #4 on left front side of grate. Make
sure notch in bottom of log sits on grate prong.
See Figure
20.
6. Rest Top Right Log #5 across top right sides of Log #1
and Log #2.
See Figure 20.
7. Rest Top Left Log #6 across top left side of Log #1 and
Log #2.
See Figure 20.
Figure 20 - VWF24B (Birch) Log Placement
Figure 21 - VWF24B (Birch) Log Placement
MODELS VWF24B
(6 Logs)
Grate
Bar
#2
#3
#4
#5
#6
#1
Grate
Prong
Notch
Shield
Plate

27D8520
17
LOG PLACEMENT
1. Slide shield plate down back of burner pan.
See
Figure 22
.
2. Place Back Log #1 on back of grate.
See Figure 22.
3. Place Bottom Left Log #2 in front of back log on left
arm of grate. Rest end of bottom left log between
second and middle prong of grate.
See Figure 22.
4. Place end of Bottom Right Log #3 on cutout of back
log #1. Rest other end of right bottom log to the out-
side of right grate prong.
See Figure 22.
5. Rest right end of Top Right Log #4 on bottom right
log.
See Figure 22.
6. Rest Bottom Left Log #5 on back log #1 and to the
outside of the left grate prong.
See Figure 22.
7. Place end of Top Left Log #6 on bottom left log.
Rest the other end between the fi rst and second grate
prongs.
See Figure 22.
8. Rest Center Top Log #7 on bottom left log #2 and
back log #1.
See Figure 22.
9.
VWF36/30SRO only:
Rest Front Right Log #8 on top
right log #4 and front of burner pan.
See Figure 23.
#1
#2
#2
#2
#3
#5
#6
#8
#4
MODELS VWF24/18SRO
(7 LOGS)
, VWF30/24SRO
(7 LOGS),
AND VWF36/30SRO
(8 LOGS)
Figure 22 - VWF24/18SRO, VWF30/24SRO and
VWF36/30SRO (Split River Oak) Log Placement
Figure 23 - VWF36/30SRO (Split River Oak)
Log Placement
Right
Prong
Middle
Prong
Left
Arm
Cutout
Second
Prong
First
Prong
#7
Shield
Plate
#8
(VWF36/30SRO only)

18
27D8520
LOG PLACEMENT
NOTE: Each log may have an identifying number on
bottom surface.
1. Slide shield plate down back of burner pan.
See Figure 24
.
2. Place Left Front Log #1A on front left of grate. Place Right Front
Log #1B on front right of the grate.
See Figure 24.
3. Place front end of Side Support Log #2 on top left of Log #1. Rest
other end of Log #2 on the rear grate bar.
See Figure 24.
4. Fit cutout in the bottom left of Rear Log #3 over the back end of log
#2. Rest right end of Log #3 on rear grate bar.
See Figure 24.
5. Rest front end of Right Log #4 (not used in VWF18SP) on right top
of Log #1. The back end of Log #4 should rests next to right hump
of Log #3.
See Figure 24.
6. Place front end of Right Middle Log #5 to left of the hump on Log
#1. Rest back end of Log #5 on Log #4.
See Figure 24.
7. Rest front end of Left Log #6 on Log #1 next to Log #5. Place back
end of Log #6 on left top of Log #3.
See Figure 24.
8. Place Top Center Log #7 on Log #5 with its back end resting on Log
#6.
See Figure 1. See Figure 24.
9. Place Top Left Log #8 on Log #7.
See Figure 24.
Figure 24 - VWF18SPA and VWF24SPA
(Split Pine) Log Placement
#8
#2
#4
#1A
#5
#7
#6
#3
#7
#6
Hump
Hump
#1B
Optional Accessory
Cover
MODELS VWF18SPA AND VWF24SPA
(8 LOGS)
Figure 25 - VWF18SPA and VWF24SPA
(Split Pine) Log Placement
Shield
Plate

27D8520
19
Figure 26 - VWF30SPA (Split River Oak)
Log Placement
Optional
Accessory Cover
NOTE: Each log may have an identifying number on
bottom surface.
1. Slide shield plate down back of burner pan.
See Figure 26
.
2. Place Left Front Log #1A on front left of grate. Place Right Front
Log #1B on front right of the grate.
See Figure 26.
3. Place front end of Side Support Log #2 on top left of Log #1. Rest
other end of Log #2 on rear grate bar.
See Figure 26.
4. Fit cutout in the bottom left of Rear Log #3 over the back end of
log #2. Rest right end of Log #3 on rear grate bar.
See Figure 26.
5. Rest front end of Right Log #4 on right top of Log #1. The back
end of Log #4 rests to right hump on Log #3.
See Figure 26.
6. Place front of Right Middle Log #5 on top right of Log #4. Rest
back end of Log #5 on top right of Log #3.
See Figure 26.
7. Rest front of Left Log #6 just left of the middle of Log #1 and back
end of Log #6 just left of middle of Log #3.
See Figure 26.
8. Lay Top Center Log #7 across log #5 with front end resting on Log
#1.
See Figure 26.
9. Place front end of Top Left Log #8 on Log #7. Let back end of Log
#8 rest on Log #6.
See Figure 26.
10. Rest front of Top Top Log #9 on Log #6 and back of Log #9 on left
end of Log #2.
See Figure 26.
#1A
#2
#3
#4
#5
#7
#6
#8
#9
#1B
Figure 27 - VWF30SPA (Split River Oak)
Log Placement
MODEL VWF30SPA
(8 LOGS)
LOG PLACEMENT
Shield
Plate

20
27D8520
1. STOP! Read the safety information label.
2. Make sure the manual shutoff valve is fully open.
3. Push in gas control knob slightly and turn clockwise
to “OFF.”
NOTE: Knob cannot be turned to “OFF” unless knob is pushed in slightly.
4. Wait fi ve (5) minutes to clear out any gas. Then smell for gas, including near the
fl oor. If you smell gas, STOP! Follow “B” in the safety information label. If you
donʼt smell gas, go to next step.
5. Find pilot — follow metal tube from gas control.
6. From “OFF” position, push in gas control knob slightly and turn counterclockwise
to “PILOT.” Push in control knob for 5 seconds.
7. With the control knob pushed in, immediately light the pilot with a match. Continue to
hold the control knob in for about one (1) minute after the pilot is lit. Release knob and
it will pop back up. Pilot should remain lit. If it goes out, repeat steps 5 through 8.
• If knob does not pop up when released, stop and immediately call your service
technician or gas supplier.
• If the pilot will not stay lit after several tries, turn the gas control knob to off and call
your service technician or gas supplier.
8. Turn gas control knob counterclockwise
to “ON.”

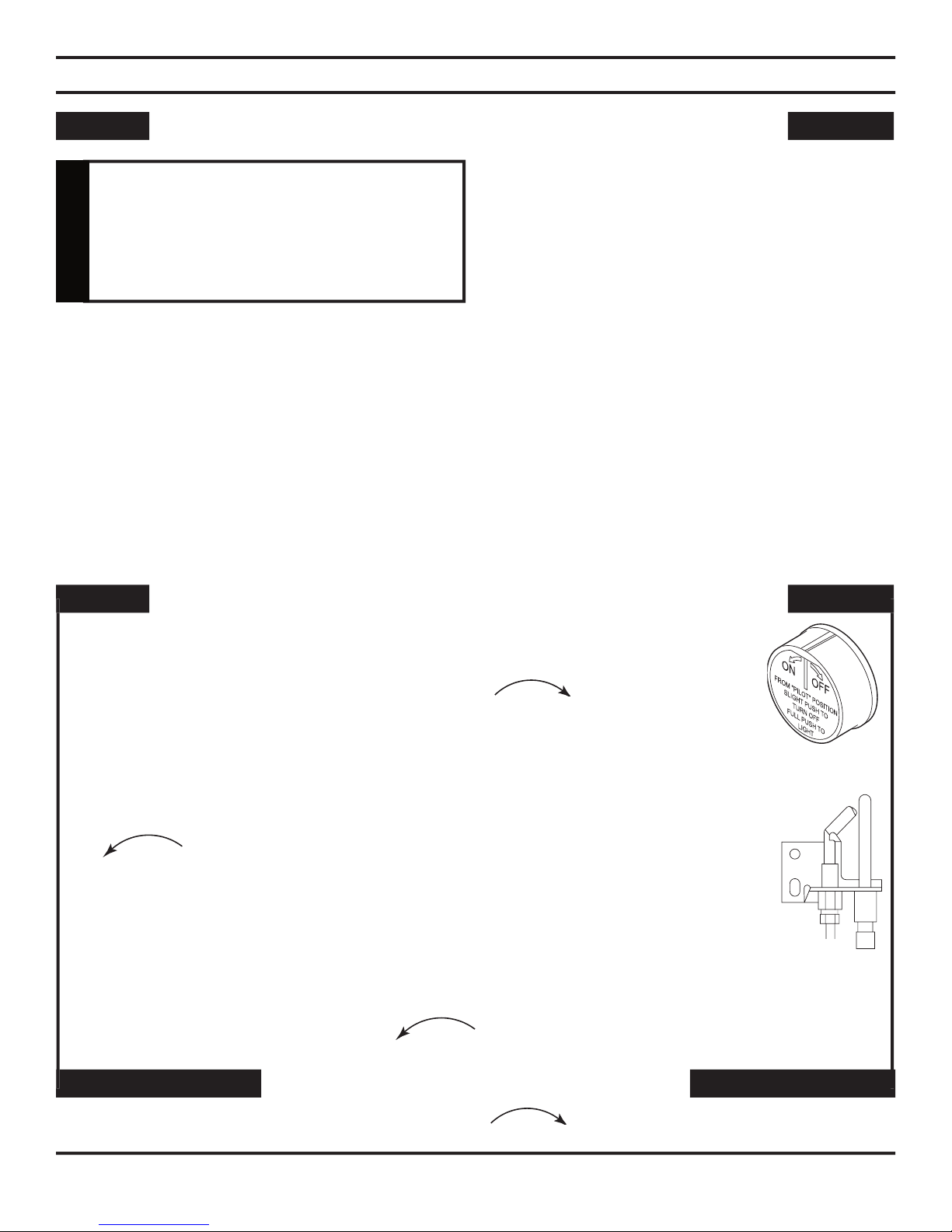

OPERATING INSTRUCTIONS
Figure 28 -
Control Knob
Figure 29 -
Manual Pilot
WHAT TO DO IF YOU SMELL GAS:
• Do not attempt to light any appliance.
• Do not touch any electric switch; do not use any phone in your building.
• Immediately call your gas supplier from a neighbor's phone. Follow the gas supplier's instructions.
• If you cannot reach your gas supplier, call the fi re department.
B.
Use only your hand to push in, or turn the gas control knob. Never use tools. If the knob will not push
in or turn by hand, don't try to repair it. Call a qualifi ed service technician. Force or attempted repair
may result in a fi re or explosion.
C.
Do not use this appliance if any part of it has been under water. Immediately call a qualifi ed service
technician to inspect the appliance and to replace any part of the control system and any gas control
that has been under water.
A.
BEFORE OPERATING smell all around the appli-
ance area for gas. Be sure to smell next to the fl oor
because some gas is heavier than air and will settle
on the fl oor.
If you do not follow these instruction
exactly, a fi re or explosion may result
causing property damage, personal
injury or loss of life.
WARNING
TO TURN OFF GAS TO HEATER
1. Push in gas control knob slightly and turn clockwise
to
OFF
position. Do not force.
MANUAL CONTROL LIGHTING INSTRUCTIONS
FOR YOUR SAFETY READ BEFORE LIGHTING
