INSTALLATION
INSTRUCTIONS
TM
30” and 36”
Professional Induction Ranges
ENGLISH/FRANÇAIS/ESPAÑOL.
MONOGRAM.COM

231-2001170 Rev 0
Safety Information
READ AND SAVE THESE INSTRUCTIONS
BEFORE YOU BEGIN
Read these instructions completely and carefully.
ŶIMPORTANT— Save these instructions
for local inspector’s use.
ŶIMPORTANT— Observe all governing
codes and ordinances.
ŶIMPORTANT— Remove all packing
material and literature from oven before connecting
electrical supply to range.
ŶIMPORTANT— To avoid damage to
your cabinets, check with your builder or cabinet
supplier to make sure that the materials used will
not discolor, delaminate or sustain other damage.
This range is Listed to applicable standards and
requirements by UL Solutions and complies with the
maximum allowable wood cabinet temperatures of
194°F (90°C).
ŶNote to Installer — Be sure to leave these
instructions with the consumer.
ŶNote to Consumer — Keep these instructions with
your Owner’s Manual for future reference.
ŶServicer — The electrical diagram is in an envelope
attached to the back of the range.
ŶProper installation is the responsibility of the
installer.
ŶProduct failure due to improper installation is not
covered under warranty.
ŶBefore installing your range on linoleum or any other
synthetic floor covering, make sure the floor covering
can withstand 180°F without shrinking, warping or
discoloring. Do not install the range over carpeting
unless a sheet of 1/4” thick plywood or similar
insulator is placed between the range and carpeting.
ŶFor Monogram™ Parts and Accessories, visit our
website at monogram.com/ownership/parts/
ŶIf you received a damaged range, you should
contact your dealer.
FOR YOUR SAFETY
If you did not receive an anti-tip bracket with your
purchase, call 1.800.626.8774 to receive one at no
cost. (In Canada, call 1.800.561.3344.) For installation
instructions of the bracket, visit: GEAppliances.com.
(In Canada, GEAppliances.ca.)
WARNING Before beginning the installation,
switch power off at service panel and lock the
service disconnecting means to prevent power from
being switched on accidentally. When the service
disconnecting means cannot be locked, securely
fasten a prominent warning device, such as a tag, to
the service panel.
Have a question or need assistance with your appliance? Try the Monogram™ website 24 hours a day, any
day of the year! You can also shop for more great Monogram™ products and take advantage of all our on-line
support services designed for your convenience. In the US: monogram.com

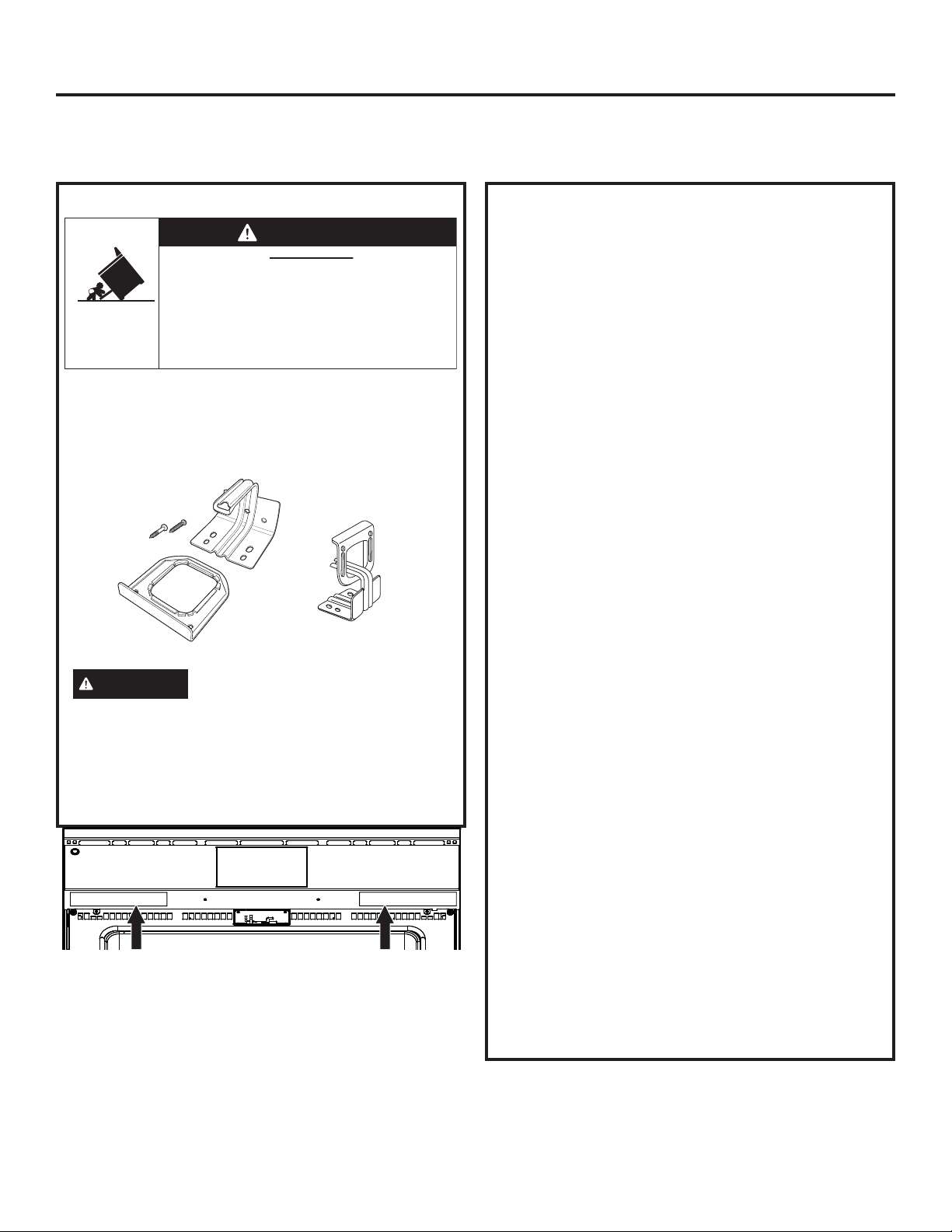

• A child or adult can tip the range and be killed.
• Install the anti-tip bracket to the wall or floor.
• Engage the range to the anti-tip bracket by sliding the
range back such that the foot is engaged.
• Re-engage the anti-tip bracket if the range is moved.
• Failure to do so can result in death or serious burns
to children or adults.
Tip-Over Hazard
WARNING
Anti-Tip Bracket
Kit Included
Rear View
Rating Label Location Rating Label Location

31-2001170 Rev 0 3
Contents
CONTENTS
Safety Information.......................................................2
Design Information
Product Dimensions and Clearances............................4
Installation Information
Materials Provided.........................................................7
Tools Required..............................................................7
Installation
Remove Packaging.......................................................8
Move the Range Indoors...............................................9
Install Anti-Tip Device..................................................10
Electrical Connections.................................................11
Roll Range into Position..............................................12
Level the Range..........................................................13

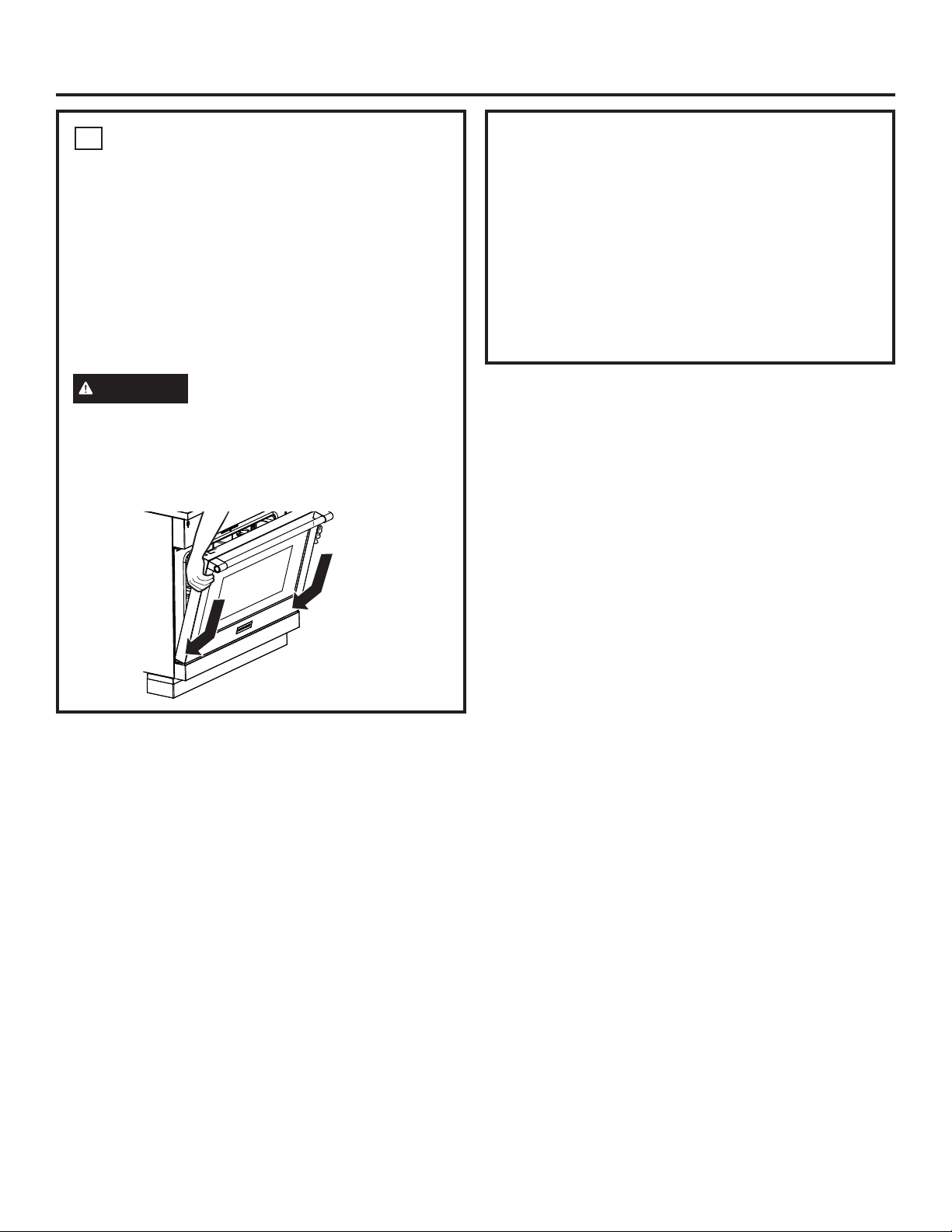

Replace Oven Door(s).................................................13
When All Hookups Are Completed..............................14
Accessory Installation
Toekick (included).......................................................15

431-2001170 Rev 0

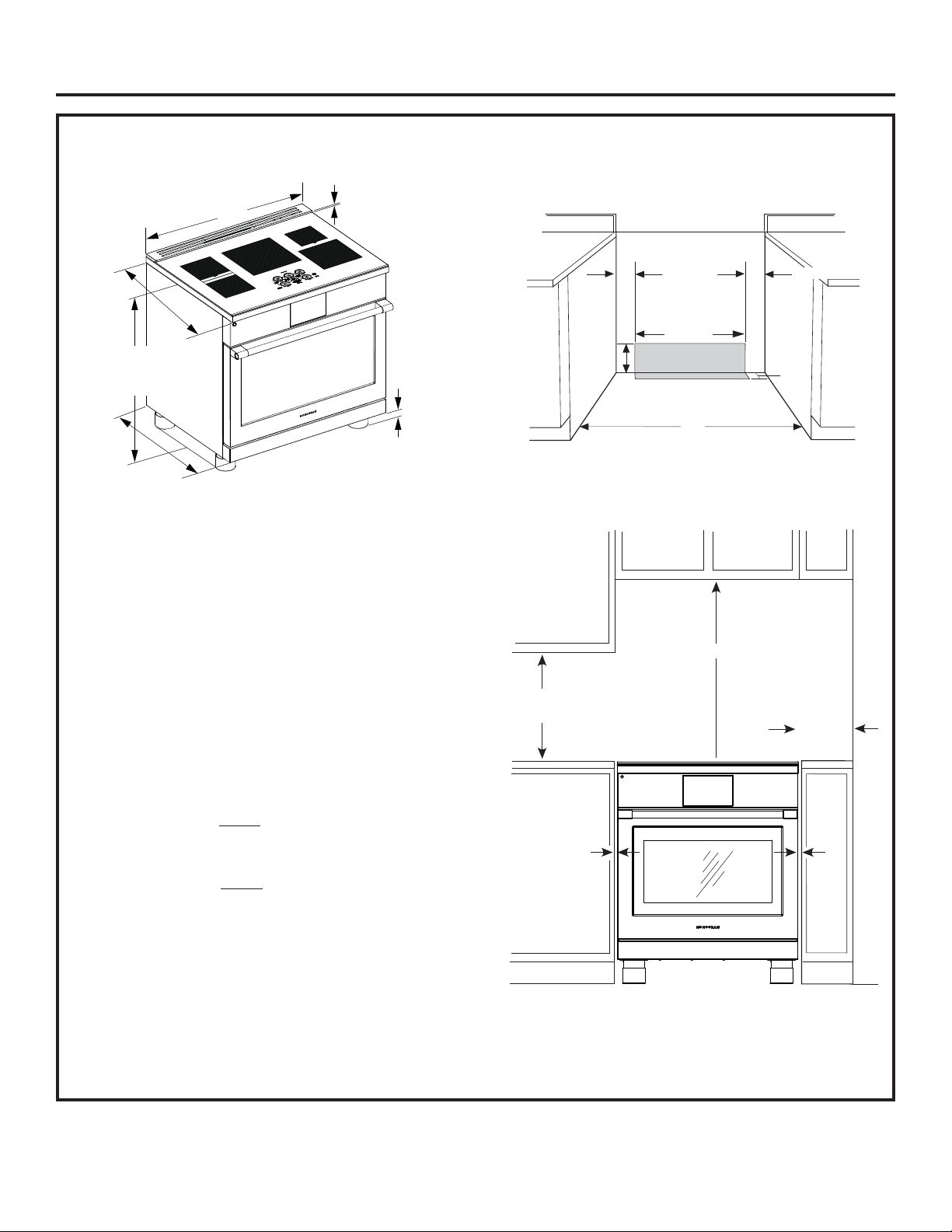

PRODUCT DIMENSIONS AND CLEARANCES
36” Wide Range Models
MINIMUM DIMENSIONS BETWEEN COOKTOP,
WALLS AND ABOVE THE COOKTOP:
Make sure the wall covering, countertop, flooring and
cabinets around the range can withstand the heat (up to
200°F) generated by the range.
A. Above range: Allow 30” minimum clearance between
surface units and bottom of unprotected wood or
metal cabinet, or allow a 24” minimum when bottom
of wood or metal cabinet is protected by no less than
1/4” thick flame retardant millboard covered with not
less than No. 28 MSG sheet metal, (.015”), .015”
thick stainless steel, .024” aluminum or .020” copper.
B. Adjacent to range below the cooktop: This
appliance has been approved for 0” spacing to
adjacent surfaces below the cooktop.
C. Adjacent to range above the cooktop: This
appliance has been approved for 0” spacing to
adjacent surfaces above the cooktop. However, a
6” minimum lateral spacing to surfaces less than
15” above the cooktop is recommended to reduce
exposure to steam, grease splatter and heat.
To reduce the risk of burns or fire when reaching over
hot surface elements, cabinet storage space above the
cooktop should be avoided. If cabinet storage space
is to be provided above the cooktop, the risk can be
reduced by installing a range hood that projects at least
5” beyond the front of the cabinets. Cabinets installed
above the cooktop must be no deeper than 16”.
Design Information
Universal Utility Locations
35-7/8”
Width 9/16” (Top of Glass to
Top of Vent Trim)
35-7/16” to
36-15/16”
Height to
Top of Glass
29 3/8”
Depth to
Front of
Bullnose
28-1/2” Depth
to Front of Door
Toekick/
leg Height
3-1/4”
to 4-3/4”
36”
4-5/8”
26-3/4”
Electric
6-1/2” 2”
C
Both
Sides
A
C
Both
Sides
B B
4-5/8”

31-2001170 Rev 0 5
Design Information
PRODUCT DIMENSIONS AND CLEARANCES
30” Wide Range Models
MINIMUM DIMENSIONS BETWEEN COOKTOP,
WALLS AND ABOVE THE COOKTOP:
Make sure the wall covering, countertop, flooring and
cabinets around the range can withstand the heat (up to
200°F) generated by the range.
A. Above range: Allow 30” minimum clearance between
surface units and bottom of unprotected wood or
metal cabinet, or allow a 24” minimum when bottom
of wood or metal cabinet is protected by no less than
1/4” thick flame retardant millboard covered with not
less than No. 28 MSG sheet metal, (.015”), .015”
thick stainless steel, .024” aluminum or .020” copper.
B. Adjacent to range below the cooktop: This
appliance has been approved for 0” spacing to
adjacent surfaces below the cooktop.
C. Adjacent to range above the cooktop: This
appliance has been approved for 0” spacing to
adjacent surfaces above the cooktop. However, a
6” minimum lateral spacing to surfaces less than
15” above the cooktop is recommended to reduce
exposure to steam, grease splatter and heat.
To reduce the risk of burns or fire when reaching over
hot surface elements, cabinet storage space above the
cooktop should be avoided. If cabinet storage space
is to be provided above the cooktop, the risk can be
reduced by installing a range hood that projects at least
5” beyond the front of the cabinets. Cabinets installed
above the cooktop must be no deeper than 16”.
Universal Utility Locations
28-1/2” Depth to
Front of Door
29-7/8” Width 9/16” (Top of
Glass to Top
of Vent Trim)
29 3/8”
Depth to
Front of
Bullnose
35-7/16” to
36-15/16”
Height to Top of
Glass
Toekick/
Leg Height
3-1/4”
to 4-3/4” 30”
4-5/8”
20-3/4”
Electric
6-1/2” 2”
4-5/8”
C
Both
Sides
A
C
Both
Sides
B B

631-2001170 Rev 0
PRODUCT SIDE DIMENSIONS
36” and 30” Range Models
Design Information
31-1/8”
To Front of Handle
48-1/4”
With Oven Door Open
35-7/16” to 36-15/16”
Height to Top of
Glass
29-3/8”
To Front Edge
28-1/2”
To Front of Door
26” To Front of
Side Panel
7-3/16”
Control Panel
Height
9/16” Top of Glass to
Top of Vent Trim

31-2001170 Rev 0 7
Installation Information

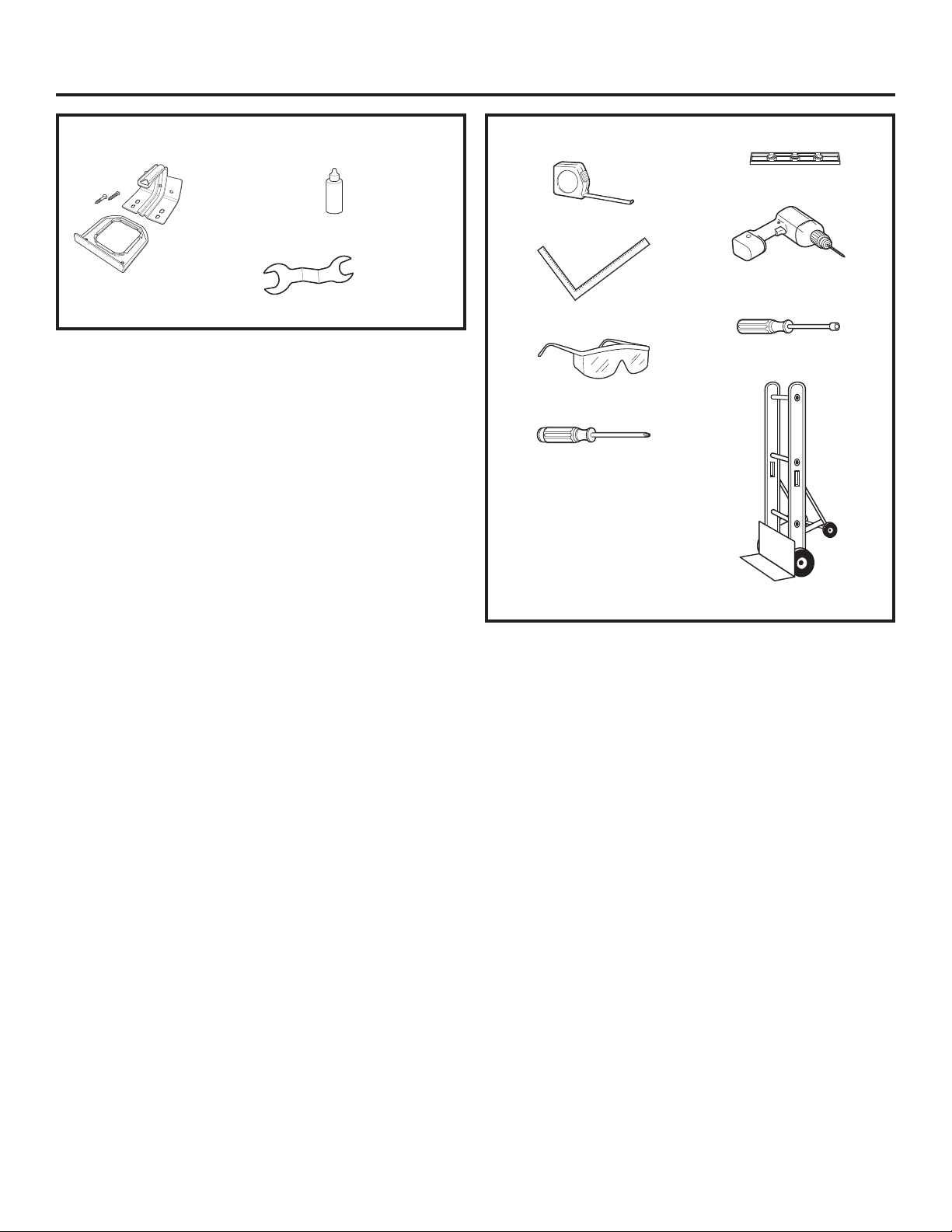

TOOLS REQUIREDMATERIALS PROVIDED
Oven Rack
Lubricant
Anti-Tip
Bracket, Brace
and Screws Leveling Leg
Wrench
1/4” Driver or Wrench
Safety Glasses
Drill and
Appropriate Bits
Measuring Tape
Phillips #2 Screwdriver
Carpenter’s Square
Level
Hand Truck

831-2001170 Rev 0
Installation

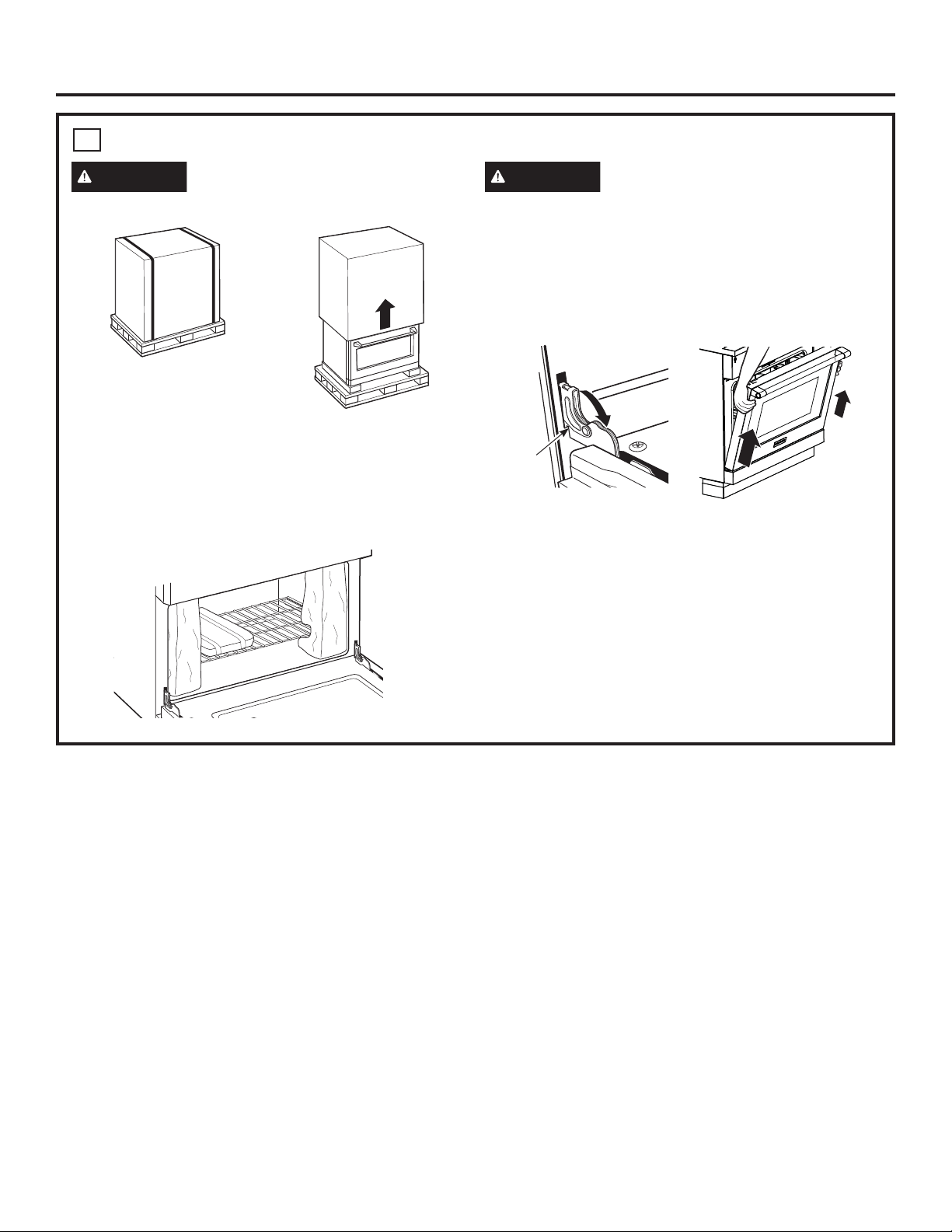

1REMOVE PACKAGING
CAUTION Stand clear. The ends of the cut metal
banding may snap toward you.
Ŷ&XWWKHPHWDOEDQGLQJ/LIWWKHFDUWRQVWUDLJKWXS
Ŷ5HPRYHFRUQHUSRVWV'LVSRVHRISDFNDJLQJPDWHULDOV
Ŷ2SHQRYHQGRRUVDQGUHPRYHSDFNDJLQJ5HPRYH
shelf holding broiler pan, tape, literature package, shelf
lubricant and probe.
CAUTION Doors and passageways leading to the
installation location require at least 32” opening. If the
opening is less than 32”, the oven door(s) and control
knobs must be removed.
REMOVE THE OVEN DOOR(S) ONLY IF NECESSARY
to move the range through the doorways. To prevent
damage to the sides of the range, it will be necessary to
pad the corners beneath the straps on the hand-truck.
To remove the oven door(s):
Ŷ7RUHPRYHWKHRYHQGRRUV
Ŷ)XOO\RSHQWKHGRRU
Ŷ(DFKKLQJHKDVDKLQJHORFN3XOOWKHKLQJH
Ŷ)LUPO\JUDVSWKHGRRUDWWKHWRSVLGHV
Ŷ&ORVHWKHGRRUWRWKHQHDUYHUWLFDOSRVLWLRQ
Ŷ/LIWWKHGRRUXSDQGSXOOVWUDLJKWRXW
Hinge
Lock

31-2001170 Rev 0 9
Installation

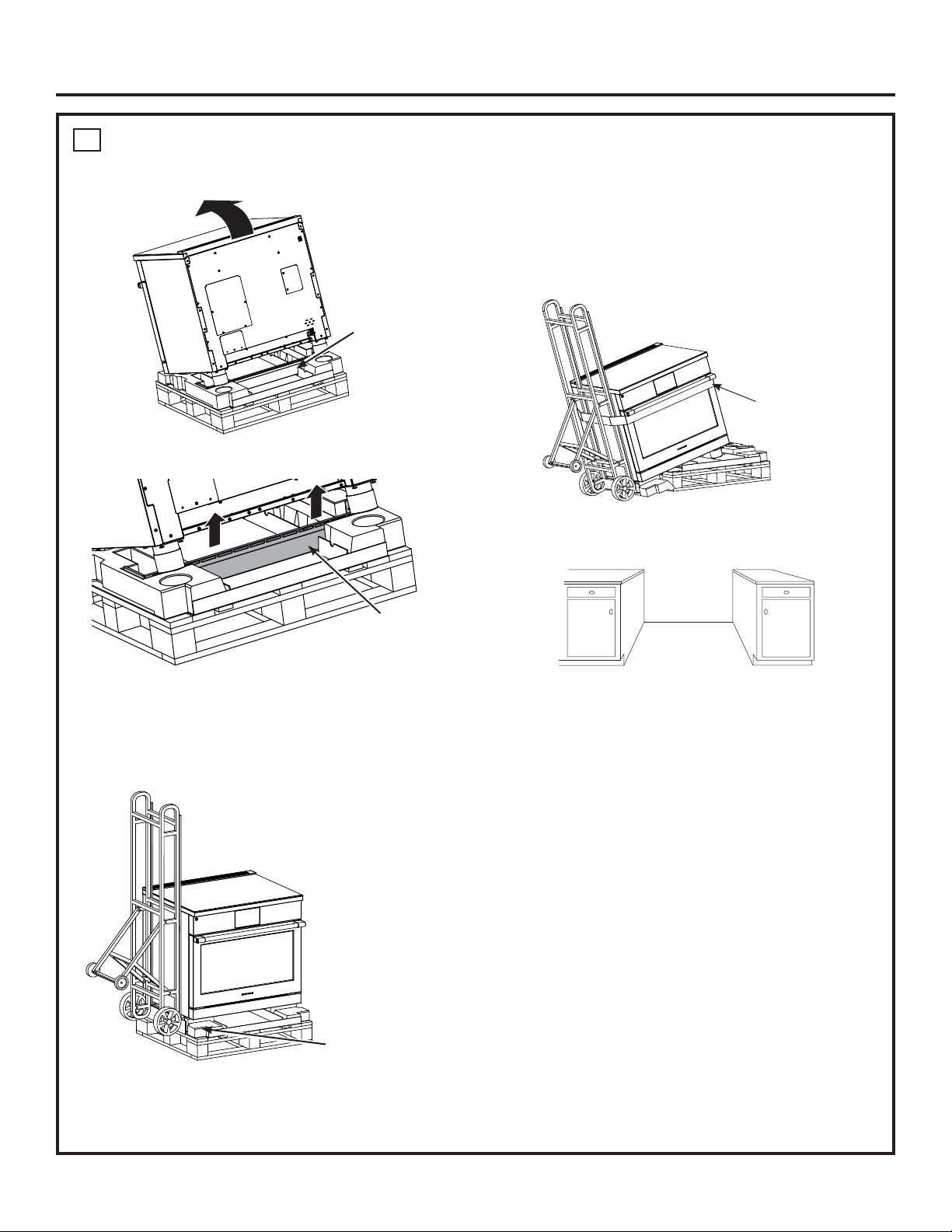

2MOVE THE RANGE INDOORS
1. Tilt the range forward on the skid.
2. Lift the toekick out of the foam base.
3. Drive the blade of the hand-truck beneath the foam
block.
The hand-truck can be installed on either the right or
left side of the range, but cannot be installed on the
front or rear of the range.
IMPORTANT: Do not remove the base foam block while
the hand-truck is in use. Place the hand-truck blade
underneath the base foam block and transport the range
to the final location.
4. Attach the hand-truck straps around the unit.
IMPORTANT: Place the hand-truck straps below the
oven door handles. To avoid damaging the side panels,
place a pad between the hand-truck and the range.
5. Tilt the range to lower the hand-truck wheels off the
skid.
6. Move the range indoors. Position the range in front of
the installation location.
Toekick
Toekick
Insert Blade Under
the Foam Block
Hand-Truck
Straps Below
Oven Door
Handles
Range
Opening

10 31-2001170 Rev 0
Installation

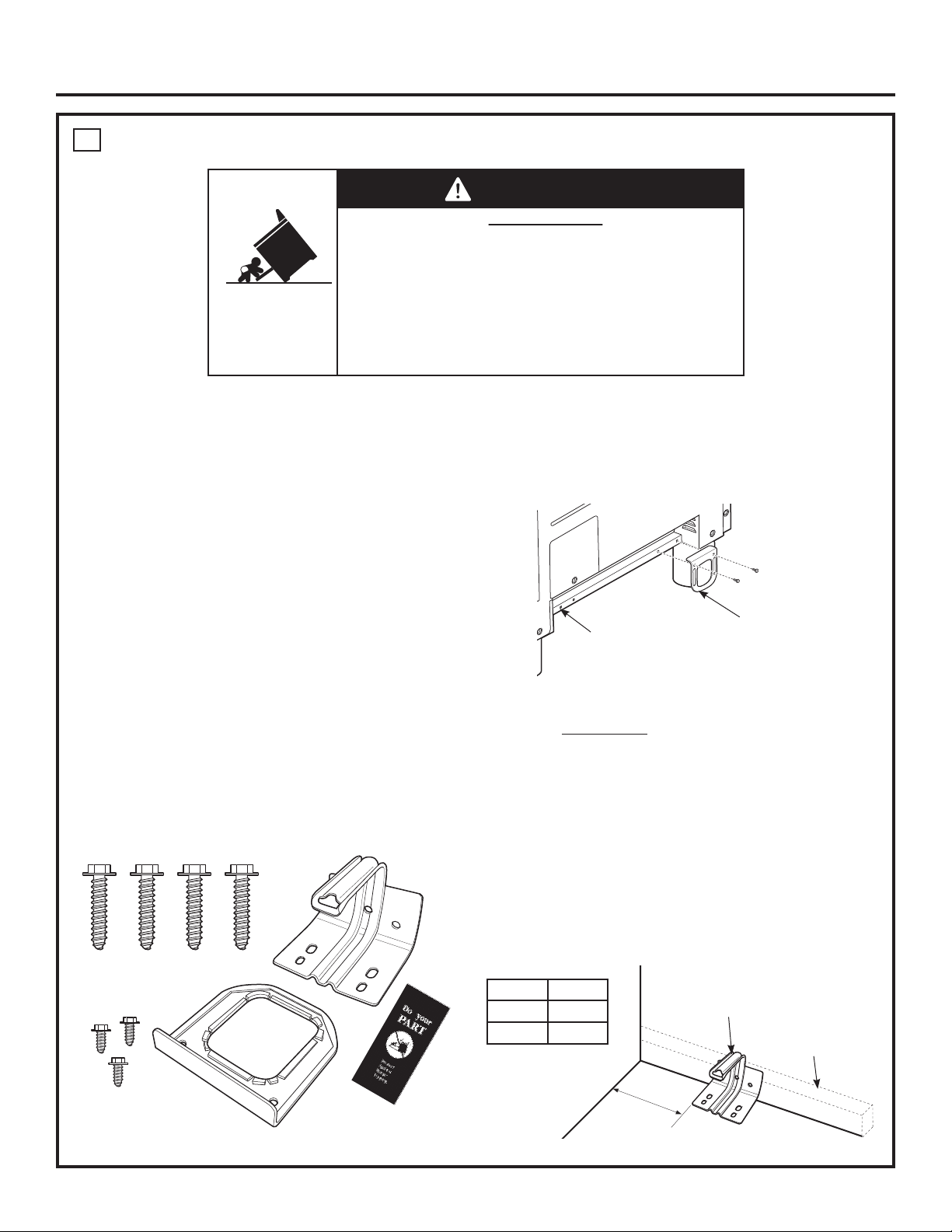

3INSTALL ANTI-TIP DEVICE
To reduce the risk of tipping the range, the range must
be secured by a properly installed anti-tip bracket. See
installation instructions shipped with the bracket for
complete details before attempting to install.
To check if the bracket is installed and engaged
properly, look underneath the range. The anti-tip bracket
should be inserted into the opening on the anti-tip brace
on the range. If the bracket arm misses the brace to the
left or right, or the bracket arm is not protruding through
the brace opening, the bracket must be reinstalled.
If the range is pulled from the wall for any reason,
always repeat this procedure to verify the range is
properly secured by the anti-tip bracket.
If your range has no anti-tip bracket, call 1.800.626.8774
to receive one at no cost.
If the anti-tip device supplied with the range does not
fit this application, use the universal Anti-Tip Device
WB2X7909.
Read the AHAM Anti-Tip Safety Brochure packed with
the bracket.
Anti-Tip Parts Provided
Ŷ$WWDFKWKHDQWLWLSEUDFHRQWRWKHERWWRPRIWKHUDQJH
in the recessed area. Install 2 hex screws (provided)
through the brace and into the range.
NOTE: This anti-tip device may be installed on the
opposite side of the range.
Ŷ0HDVXUHDQGPDUN'LPHQVLRQ$VHHWDEOHEHORZ
from the left (or right) side of the installation location.
If the countertop has an overhang, add that dimension
to Dimension A.
Ŷ3ODFHWKHDQWLWLSEUDFNHWDJDLQVWWKHIORRUDQGEDFNZDOO
at the marked location. Mark screw holes for fastening
the bracket to the wall sole plate and the floor.
Ŷ'ULOO´SLORWKROHVDWDDQJOH
Ŷ6HFXUHWKHEUDFNHWWRWKHZDOODQGRUIORRUZLWKDWOHDVW
2 wood screws (provided).
For Concrete or Cement Construction: You must use
appropriate fastening hardware (not provided).
• A child or adult can tip the range and be killed.
• Install the anti-tip bracket to the wall or floor.
• Engage the range to the anti-tip bracket by sliding the
range back such that the foot is engaged.
• Re-engage the anti-tip bracket if the range is moved.
• Failure to do so can result in death or serious burns
to children or adults.
Tip-Over Hazard
WARNING
Anti-Tip Bracket
Anti-Tip Brace
4 Wood Screws
AHAM Anti-Tip
Safety Brochure
3 Hex Head Screws (2
required, 1 extra)
Alternate Brace
Position
Hex Screws
Anti-Tip Brace
Anti-Tip Bracket
A
Wall Sole Plate
Range A
30” 5-1/16”
36” 5-1/16”

31-2001170 Rev 0 11
Installation
4ELECTRICAL CONNECTIONS
WARNING This appliance must be properly
grounded.
WARNING All new constructions, mobile
homes, recreational vehicles and installations where
local codes do not allow grounding through neutral,
require a 4-conductor UL listed range cord.
WARNING To prevent fire or shock, do not use
an extension cord with this appliance.
WARNING To prevent shock, remove house
fuse or open circuit breaker before beginning
installation.
We recommend you have the electrical wiring and
hookup of your range connected by a qualified
electrician. After installation, have the electrician show
you how to disconnect power from the range.
You must use a single-phase, 120/240 VAC, 60 hertz
electrical system. If you connect to aluminum wiring,
properly installed connectors approved for use with
aluminum wiring must be used.
Effective January 1, 1996, the National Electrical
Code requires that new construction (not existing)
utilize a 4-conductor connection to an electric range.
When installing an electric range in new construction,
mobile home, recreational vehicle, or an area where
local codes prohibit grounding through the neutral
conductor, refer to the section on four-conductor
branch circuit connections.
Check with your local utilities for electrical codes which
apply in your area. Failure to wire your oven according
to governing codes could result in a hazardous
condition. If there are no local codes, your oven must
be wired and fused to meet the National Electrical
Code, NFPA No. 70 – latest edition, available from the
National Fire Protection Association.
This appliance must be supplied with the proper
voltage and frequency, and connected to an individual,
properly grounded, branch circuit protected by a circuit
breaker or time-delay fuse. The breaker or fuse should
be at a minimum 40 amp for the 30” induction range
and a minimum 50 amp the 36” induction range (larger
amp breaker/fuse acceptable).
Use only a 3-conductor or a 4-conductor UL listed
range cord. These cords may be provided with ring
terminals on wire and a strain relief device.
4
ELECTRICAL CONNECTIONS (Cont.)
All 30” and 36’ induction ranges are supplied with a
50 amp UL listed cord (4 wire, NEMA 14-50P).
NOTE: Use of automatic, wireless or wired external
switches that shut off power to the appliances, are not
recommended for this product.
5
4-WIRE POWER CORD
INSTALLATION
NOTE: A 4-wire cord is connected to the range at the
factory. Use the following steps to change an existing
installation from a 3-wire cord (not included with the
new range) back to a 4-wire cord.
WARNING The neutral wire of the supply circuit
must be connected to the neutral terminal located
in the lower center of the terminal block. The power
leads must be connected to the lower left and the
lower right terminals of the terminal block. The 4th
grounding lead must be connected to the frame of the
range with the ground plate and the ground screw.
ŶRemove the 3 lower terminal screws from the
terminal block. Remove the ground screw and
ground plate and retain them.
ŶRemove the ground strap.
DO NOT DISCARD THE GROUND STRAP OR
ANY SCREWS.
ŶInsert the one ground screw into the power cord
ground wire terminal ring, through the ground plate
and into the frame of the range.

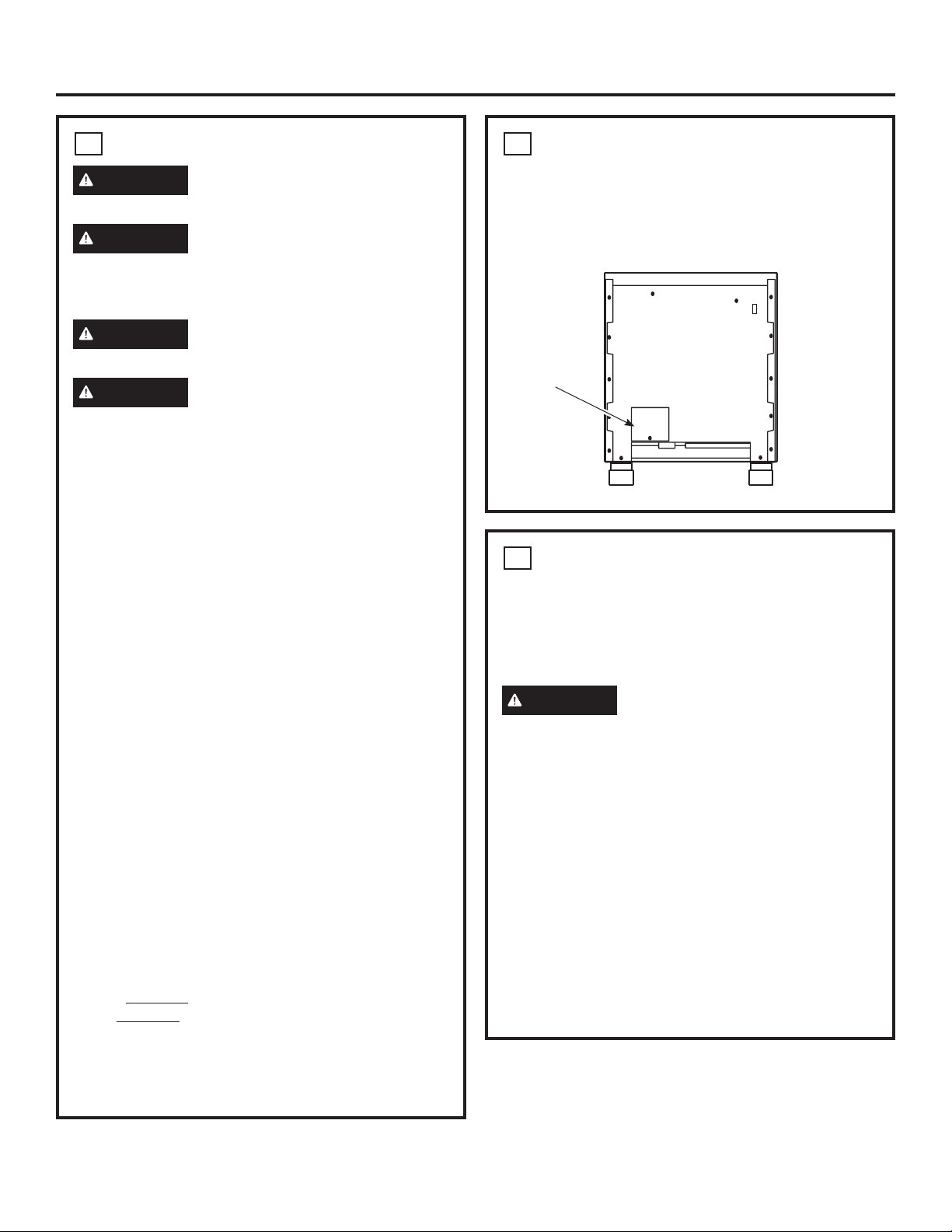

The access
plate is on
the back of
the range.

12 31-2001170 Rev 0
7ROLL RANGE INTO POSITION
WARNING The Anti-Tip Bracket must be
properly installed to prevent tipping of the range.
Failure to do so can cause serious damage or injury.
Ŷ&KHFNWREHVXUHWKHDSSOLDQFHUXQQHUVDUH
beneath the wheels.
Ŷ7KHUDQJHLVVKLSSHGZLWKWKHZKHHOVLQWKHGRZQ
position. Carefully roll the range into position, being
careful not to entangle or pinch the power cord and
flexible gas tubing.
Ŷ5HPRYHWKHUXQQHUVEHQHDWKWKHUDQJH
Be sure Anti-Tip
Bracket is engaged
with the brace on
the range.
Installation
5
4-WIRE POWER CORD
INSTALLATION (Cont.)
ŶInsert the 3 terminal screws (removed earlier)
through each power cord terminal ring and into the
lower terminals of the terminal block. Be certain that
the center wire (white/neutral) is connected to the
center lower position of the terminal block. Tighten
screws securely into the terminal block.
6
3-WIRE POWER CORD
INSTALLATION
NOTE: A 4-wire cord is connected to the range at the
factory. Use the following steps to change the range
to a 3-wire cord (not included with the new range).
WARNING The neutral or ground wire of the
power cord must be connected to the neutral terminal
located in the center of the terminal block. The power
leads must be connected to the lower left and the
lower right terminals of the terminal block.
Ŷ5HPRYHWKHJURXQGVWUDSORFDWHGDWWKHULJKWVLGH
of the terminal block) and connect between the
center lower portion of the terminal block to the
frame of the range.
6
3-WIRE POWER CORD
INSTALLATION (Cont.)
Ŷ5HPRYHWKHORZHUWHUPLQDOVFUHZVIURPWKH
terminal block. Insert the 3 terminal screws through
each power cord terminal ring and into the lower
terminals of the terminal block. Be certain that
the center wire (white/neutral) is connected to the
center lower position of the terminal block. Tighten
screws securely into the terminal block.
DO NOT REMOVE THE GROUND STRAP
CONNECTION.
Before
After
Terminal
Block
Terminal
Block
Neutral
Terminal
Neutral Terminal
Ground Strap
Ground Plate
(grounding to
range)
Ground
Screw
Ground Strap
or
Ground
Strap
Terminal Block
(appearance may vary)
Neutral
Terminal
Power Cord
Ground
Plate

31-2001170 Rev 0 13
Installation
8LEVEL THE RANGE
WARNING
The range must be level and be
supported by the legs—not the wheels. The range could
move if the wheels make contact with the floor. Be sure
all legs make contact with the floor in any installation.
Ŷ$OOOHJVPXVWEHOHYHOHGDIWHUWKHSURGXFWLVLQVWDOOHG
Ŷ&KHFNWREHVXUHWKHDGMRLQLQJFDELQHWVFRXQWHUWRSV
are level, front to back and left to right across the
opening of the range.
Ŷ Measure the distance from the floor to the top of the
countertop in the left and right rear corners.
Ŷ Adjust the height of the range to countertop height
or higher.
IMPORTANT: This range should always be installed
at countertop height or higher. DO NOT INSTALL THE
RANGE LOWER THAN ADJACENT COUNTERTOP
HEIGHT. The range must be supported by all 4 legs,
regardless of countertop height.
FRONT LEG ADJUSTMENT
Ŷ$OHYHOLQJOHJZUHQFKLVVXSSOLHG5HDFKXQGHUWKH
front of the range near the right leg. Locate and
remove a thumb screw, then slide wrench out of
the slot.
Ŷ6OLGHIURQWF\OLQGHUVXSWRDFFHVVIURQWOHYHOLQJOHJV
Be careful not to damage cylinder.
Ŷ8VHWKHVXSSOLHGZUHQFKWRDGMXVWWKHIURQWOHYHOLQJ
legs. Turn clockwise to extend the legs to lift and
stabilize the range. Turn counterclockwise to retract
the legs and allow the range to rest on its rollers.
Ŷ%HVXUHWRUHWXUQWKHZUHQFKWRLWVVWRUDJHVORWIRU
future use.
8LEVEL THE RANGE (cont.)
REAR LEG ADJUSTMENT
WARNING To reduce the risk of fire or electric
shock, always replace the spill plugs in the leveling
rod holes.
Ŷ Remove two screws from rear vent trim. Slide vent
trim forward, then lift up to remove.
Ŷ Remove the 2 spill plugs to locate the rear leg
extension leveling rods. Use a 1/4” driver or socket
wrench to adjust the left or right rear legs.
Ŷ Find the two rear leg extension rods. Use a 1/4” driver
or wrench to adjust the left or right rear legs.
Ŷ Replace the 2 spill plugs and then replace the rear
vent trim using the original screws.
WARNING
Do not adjust legs over the 36 15/16”
maximum unit height (as specified on Pages 4-6) with
respect to whatever surface the range sits on.
Slide leg
cylinder up.
Thumb Screw
Spill Plugs Rear Leg
Extension
Rods

14 31-2001170 Rev 0
Installation
WHEN ALL HOOKUPS ARE
COMPLETED
Make sure all controls are left in the off position.
Make sure the flow of ventilation air to the range is
unobstructed.
Check that all packing materials and tape have been
removed. This will include tape on metal panel,
adhesive tape, wire ties, cardboard, and protective
plastic. Failure to remove these materials could result
in damage to the appliance once the appliance has
been turned on and surfaces have heated.
9REPLACE OVEN DOOR(S)
Skip this step if oven doors are in place.
IMPORTANT: Do not lift the door by the handle.
To replace the oven doors:
Ŷ Firmly grasp the door at the top sides. This is critical.
Ŷ$SSURDFKWKHUDQJHZLWKWKHGRRUDQJOHGLQD
vertical position.
Ŷ*XLGHWKHKLQJHVLQWRWKHVORWV
Ŷ3XVKWKHGRRULQILUPO\ZKLOHRSHQLQJ
Ŷ2QFHLQSRVLWLRQRSHQWKHGRRUFRPSOHWHO\3XVK
the hinge locks back in toward the front frame.
CAUTION
Take care when replacing the
oven doors. If the hinge latch is not securely locked,
the hinge may snap back and separate. If the hinge
separates, you must apply pressure (possibly with your
foot) to press it back together and then engage the
hinge latch.

31-2001170 Rev 0 15
Accessory Installation
TOEKICK (included)
Ŷ,QVWDOOWKHWRHNLFNDIWHUWKHUDQJHKDVEHHQOHYHOHG
Ŷ0HDVXUHWKHGLVWDQFHEHWZHHQWKHIORRUDQGWKH
bottom of range.
Ŷ7KHWRHNLFNKDV´RIWRWDOKHLJKWDGMXVWPHQW7R
adjust, loosen the two screws on each end and slide
the upper and lower pieces apart to 1/8” less than the
measured height.
NOTE: The top screw may be removed for maximizing
the height of the toekick
Ŷ6HFXUHWKHWRSDQGERWWRPVHFWLRQVE\WLJKWHQLQJWKH
screws on each end.
Ŷ3XVKWKHWRHNLFNDJDLQVWWKHWZRUDQJHOHJV
NOTE: Be sure the toekick locks securely against both
range legs.
Bottom
of Toekick Screw
Top of
Toekick
Push
Push

16 31-2001170 Rev 0
NOTE: While performing installations described in this book,
safety glasses or goggles should be worn.
NOTE: Product improvement is a continuing endeavor at
GE Appliances. Therefore, materials, appearance and
specifications are subject to change without notice.
31-2001170 Rev 0
06-23 GEA
Printed in Mexico
© 2023 GE Appliances, a Haier company.
All trademarks are the property of their
respective holders.

INSTRUCTIONS
D’INSTALLATION
Cuisinières à induction professionnelles
de 30” (76 cm) et de 36” (91 cm)
FRANÇAIS
MONOGRAM.COM
TM

231-2001170 Rev 0
Consignes de Sécurité
LISEZ ET CONSERVEZ CES INSTRUCTIONS
AVANT DE COMMENCER
Lisez attentivement l’ensemble des consignes.
ŶIMPORTANT— Conservez ces instructions
pour l’inspecteur local.
ŶIMPORTANT— Respectez toutes les normes
ainsi que les recommandations préconisées par les
autorités compétentes.
ŶIMPORTANT— Retirez tout le matériel
d’emballage et la documentation dans le four avant de
raccorder les électrique à la cuisinière.
ŶIMPORTANT— Pour éviter d’endommager
vos armoires, vérifiez auprès de votre entrepreneur ou
votre fournisseur d’armoires si les matériaux utilisés
résisteront à la décoloration, la délamination et à d’autres
dommages. Cette cuisinière est conforme aux normes
et exigences applicables de UL Solutions ainsi qu’aux
températures maximales autorisées pour les armoires en
bois de 90 °C (194 °F).
ŶRemarque à l’attention de l’installateur — BAssurez-
vous de laisser ces instructions au consommateur.
Ŷ Note au consommateur — Gardez ces instructions avec
votre manuel d’utilisation pour référence ultérieure.
Ŷ Technicien en réparation — Le schéma électrique se trouve
dans une enveloppe attachée à l’arrière de la cuisinière.
Ŷ /¶H[DFWLWXGHGHO¶LQVWDOODWLRQUHOqYHGHODUHVSRQVDELOLWpGH
l’installateur.
Ŷ /DJDUDQWLHQHFRXYUHSDVXQSURGXLWGpIHFWXHX[HQ
raison d’une installation incorrecte.
Ŷ $YDQWG¶LQVWDOOHUYRWUHFXLVLQLqUHVXUGXOLQROpXPRX
tout autre recouvrement de plancher synthétique,
assurez-vous que le recouvrement peut supporter une
température de 180 °F sans rétrécir, gauchir ou se
décolorer. N’installez pas la cuisinière sur un tapis à
moins de poser un contreplaquéde 1/4 pod’épaisseur ou
un matériau isolant similaire entre la cuisinière et le tapis.
ŶPour les pièces et accessoires Monogram™, visitez notre
site sur monogram.com/ownership/parts/
ŶSi vous recevez une cuisinière défaillante, veuillez
contacter votre revendeur.
POUR VOTRE SÉCURITÉ
Si vous n’avez pas reçu une ferrure antibasculement
avec votre achat, composez le 1.800.626.8774 pour
en obtenir une gratuitement. (Au Canada, composez
le 1.800.561.3344.) Pour des instructions d’installation
de la ferrure, visitez GEAppliances.com. (Au Canada,
GEAppliances.ca.)
AVERTISSEMENT Avant de commencer l’installation,
coupez l’alimentation électrique au panneau de service
et verrouillez ce panneau de façon à empêcher le
rétablissement accidentel du courant électrique. S’il est
impossible de verrouiller le panneau de service, fixez
solidement un avertissement bien visible, par exemple une
étiquette, sur le panneau de service.
Vous avez une question ou vous avez besoin d’aide pour votre appareil électroménager? Visitez le site Web Monogram™ 24
heures par jour, tous les jours de l’année! Vous pouvez aussi y trouver d’autres produits Monogram™ formidables et tirer
avantage de tous nos services d’assistance en ligne. Aux États-Unis : monogram.com
• Un enfant ou un adulte peut faire basculer la cuisinière
et ainsi perdre la vie.
• Posez la ferrure antibasculement sur le mur ou le plancher.
• Remettez la cuisinière en place en la glissant de façon que
son pied s’insère dans la ferrure antibasculement.
• Insérez le pied de nouveau si vous déplacez la cuisinière.
• L’omission d’observer ces consignes peut occasionner
la mort ou des brûlures graves aux enfants ou aux adultes.
Risque de basculement
AVERTISSEMENT
Trousse de ferrure
antibasculement incluse
Vue arrière
Emplacement de l’étiquette signalétique Emplacement de l’étiquette signalétique

31-2001170 Rev 0 3
Table des Matières
TABLE DES MATIÈRES
Consignes de Sécurité..........................................................2
Caractéristiques
Dimensions du Produit et Espaces de Séparation..................4
Consignes d’installation
Matériel Fourni ........................................................................7
Outils Nécessaires ..................................................................7
Installation
Sortez L’appareil De Son Emballage......................................8
Déplacez La Cuisinière À L’intérieur.......................................9
Installez Le Support Anti-Basculement.................................10
Branchements Électriques ....................................................11
Placez la Cuisinière Dans a Position Finale
en la Faisant Rouler...........................................................12
Ajustez Le Niveau de la Cuisinière.......................................13
Replacez La(Les) Porte(S) du Four......................................13
Une fois tous les raccordements terminés............................14
Installation d’accessoires
Plinthe (incluse).....................................................................15

431-2001170 Rev 0
Caractéristiques
DIMENSIONS DU PRODUIT ET ESPACES DE SÉPARATION
Modèles de cuisinière 91 cm (36”)
DÉGAGEMENTS MINIMAUX ENTRE LA TABLE DE
CUISSON ET LES MURS, ET AU-DESSUS DE LA
TABLE DE CUISSON :
Assurez-vous que le revêtement mural, le comptoir, le
revêtement de sol et les armoires autour de la cuisinière
peuvent résister à la chaleur (jusqu’à 200 °F) générée par la
cuisinière.
A. Au-dessus de la cuisinière : Laissez un dégagement
d’au moins 30 po entre les unités de surface et le bas de
l’armoire en métal ou en bois non protégé, ou laissez un
minimum de 24 po lorsque le bas de l’armoire en métal ou
en bois est protégé par un carton à l’enrouleuse ignifuge
d’au moins 1/4 po d’épaisseur recouvert d’au moins une
tôle nº 28 MSG (0,015 po), d’acier inoxydable (0,015 po),
d’aluminium (0,025 po) ou de cuivre (0,020 po).
B. Adjacent à la cuisinière sous la table de cuisson : Cet
appareil a été approuvé pour un espacement de 0 pouce
par rapport aux surfaces adjacentes situées sous la table
de cuisson.
C. Adjacent à la cuisinière au-dessus de la table de cuisson
: Cet appareil a été approuvé pour un espacement de
0 pouce par rapport aux surfaces adjacentes situées
au-dessus la table de cuisson. Cependant, un espacement
latéral minimum de 6 po par rapport aux surfaces situées
à moins de 15 po au-dessus de la table de cuisson est
recommandé pour réduire l’exposition à la vapeur, aux
éclaboussures de graisse et à la chaleur.
Afin de réduire le risque de brûlures ou d’incendie lors d’un
mouvement au-dessus des éléments de surface chauds, le
rangement dans une armoire au-dessus de la table de cuisson
doit être évité. Si le rangement au-dessus de la table de
cuisson est nécessaire, le risque peut être réduit en installant
une hotte qui se projette à un minimum de 5 po au-delà de
l’avant des armoires. La profondeur des armoires installées
au-dessus de la table de cuisson ne doivent pas dépasser 16
po.
Emplacements de raccord universels
29 3/8 po de
profond jusqu’au
devant du nez
Plinthe/
Hauteur
de pied
3-1/4”
(6,98 cm)
à
4-3/4”
(8,25 cm)
28-1/2” (72,39 cm) Profondeur
jusqu’à l’avant de la porte
35 7/16 à 36
15/16 po -
Hauteur jusqu’au
dessus du verre
35-7/8” Largeur
de (86,67 cm)
36”
(91 cm)
4-5/8”
(8,57 cm)
26-3/4”
(67,95 cm)
6-1/2”
(13,97 cm) 2” (5 cm)
Electricité
9/16” (Dessus du verre
jusqu’au dessus de la
garniture d’évent)
C
Des deux
côtés
A
C
Des deux côtés
B B
4-5/8”
(8,57 cm)
