ZIC30GNZII/ZIK30GNZII
GE Monogram® 30" Fully Integrated Customizable Refrigerators with
Convertible Drawer

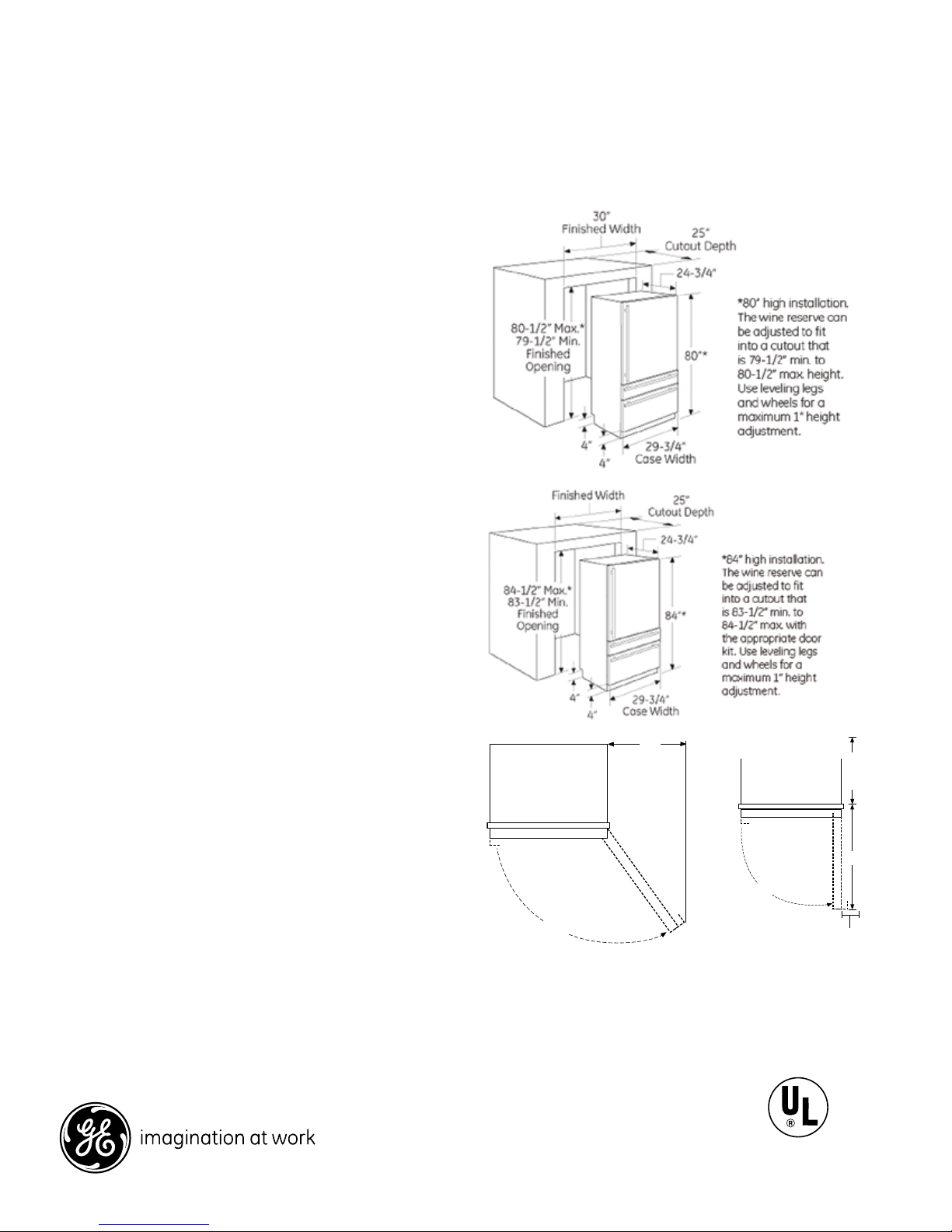

Dimensions and Installation Information (in inches)
The Installation Space
The finished cutout width must be 30".
The cutout depth must be 25" for flush installations.
• The front face of the refrigerator fits flush with 25"depth
adjacent cabinets.
Electrical
A 115V, 60Hz., 15 or 20 amp power supply is required. An
individual properly grounded branch circuit or circuit breaker
is recommended. Install a properly grounded 3-prong
electrical receptacle recessed into the back wall. Electrical
must be located on rear wall as shown.
Note: GFI (ground fault interrupter) is not recommended.
Height options
80” or * 84“
25” min. depth
30” Finished Width
Height adjustable
from 79-3/8” to 80-3/8” *
3/4”
23-3/4”
29-3/4”
1/8”
1-1/4”
4”
4”
Water Line
• A cold water supply is required for automatic icemaker
operation. The water pressure must be between 40 and 120
p.s.i.
• Route 1/4" OD copper or GE SmartConnect™ plastic
tubing between the house cold water line and the water
connection location.
• Tubing should be long enough to extend to the front of the
refrigerator. Allow enough tubing to accommodate a bend
leading into the water line connection.
• Water line can enter an opening through the floor or back wall.
• Install a shut-off valve between the icemaker water valve
and cold water cupply in the home.

For answers to your Monogram,® GE Profile™or
GE®appliance questions, visit our website at
geappliances.com or call GE Answer Center®
service, 800.626.2000.
110118
Specification Revised 3/12
Listed by
Underwriters
Laboratories
ZIC30GNZII/ZIK30GNZII
GE Monogram® 30" Fully Integrated Customizable Refrigerators with
Convertible Drawer
Dimensions and Installation Information (in inches)
Customization Basics:
These refrigerators are factory set for a right hinged door
swing. The door swing is reversible. Choose an RH model
with hinge on the right side; the door swings left to right.
Choose an LH model with hinge on the left side; the door will
swing right to left.
Note:
For 84" panels, the top space behind the top panel can be
enclosed with wood and stained by the cabinet maker to
match adjacent cabinetry.
Door Handles
Custom handles of your choice, supplied by your
cabinetmaker, can be installed. If desired, you may order
WR12X10988 Monogram® European stainless steel tubular
handle kit for custom panels.
Optional Accessory Kits
ZUG30: For side-by-side installation
European Handle Kit: can be purchased through GE Parts
store - WR12X10988
Door Swing Clearances
The installation must allow for clearances to adjacent walls or
cabinets. These refrigerators are equipped with a 2-position
door stop. The factory-set 115° door swing can be adjusted to
90° if clearance to adjacent cabinets or walls is restricted.
Product Dimensions
23-7/8"
Behind
Frame
36-3/4"
605Dia21
90°
90°Door Swing
4" Min. to Wall
5" Min. for Professional Models
Allow 15" minimum clearances for a full 115° door swing.
• 5" minimum clearance is required when the door swing is
adjusted to 90°.
• See door swing illustrations to determine interaction with
adjacent cabinets or countertops.
605Dia20
25"
Min. to
Wall
130°
130°Door Swing

For answers to your Monogram,® GE Profile™or
GE®appliance questions, visit our website at
geappliances.com or call GE Answer Center®
service, 800.626.2000.
110118
Specification Revised 3/12
Listed by
Underwriters
Laboratories
ZIC30GNZII/ZIK30GNZII
GE Monogram® 30" Fully Integrated Customizable Refrigerators with
Convertible Drawer
Dimensions and Installation Information (in inches)
45-3/8” for 80” Installation
49-3/8” for 84” Installation
7-1/2”
22-3/4”
Ice Drawer
Fresh
Food
Freezer
Convertible
Drawer
Cabinets
29-3/4”
4”
1/8” Min.*
SS PANEL ACCESSORY & DIMENSIONS
3/4"-Thick Solid Door Panel Options
For 80"High Installation
• European - Panel Model ZKST300N LH & RH capable
• Professional - Panel Model ZKSP300N LH & RH capable
For 84"High Installation the door panel is not reversible
for the 84" installations. A left or right-hand door panel
accessory must be purchased.
• LH European - Model ZKST304NLH
• RH European - Model ZKST304NRH
• LH Professional - Model ZKSP304NLH
• RH Professional - Model ZKSP304NRH
Note: Each kit also contains matching freezer and
cutomizable drawer panels, handles and toekick.
3/4"-Thick Frame for Glass Door Options
For 80"High Installation
• European - Panel Model ZKGT300N LH & RH capable
• Professional - Panel Model ZKGP300N LH & RH capable
For 84"High Installation The door panel is not reversible
for the 84" installations. A left or right-hand door panel
accessory must be purchased. The top space behind the top
panel can be enclosed with wood and stained by the cabinet
maker to match adjacent cabinetry.
• LH European - Model ZKGT304NLH
• RH European - Model ZKGT304NRH
• LH Professional - Model ZKGP304NLH
• RH Professional - Model ZKGP304NRH
Note: Each kit also contains matching freezer and convertible
drawer panels, handles and toekick.
45-3/8”
49-3/8”
29-3/4”
Glass Panel
for Fresh Food
10”
84”
Install.
6”
80”
Install.
3-3/8”
6”
23”
*Pro style window is slightly smaller.
Optional Accessory Kits#:
• Side-by-Side Installation Kit - ZUG30
• European handle kit - 3 handles (can be purchased through
GE Parts) - WR12X10988
Note:
EXTREMELY IMPORTANT: Routing of custom wood panels is
required where the hooks and brackets attach to the panel.
Custom panels must be at least 3/4” thick where the hooks
and brackets hardware are attached.

For answers to your Monogram,® GE Profile™or
GE®appliance questions, visit our website at
geappliances.com or call GE Answer Center®
service, 800.626.2000.
110118
Specification Revised 3/12
Listed by
Underwriters
Laboratories
ZIC30GNZII/ZIK30GNZII
GE Monogram® 30" Fully Integrated Customizable Refrigerators with
Convertible Drawer
Dimensions and Installation Information (in inches)
3/4"CUSTOM PANEL DIMENSIONS:
3/4"CUSTOM PANEL DIMENSIONS:
80"High Fully Integrated Installation
If you choose to install custom panels, they must be cut to
the dimensions shown. The panels will attach to the door and
drawers using a hook and bracket system.
NOTE: This product is designed to handle 3/4" panels that are
made of wood.
33-3/8" x 23" is the maximum opening for a glass window.
The opening may be smaller if desired.
84"High Fully Integrated Installation
If you choose to install custom panels, they must be cut to
the dimensions shown. The panels will attach to the door and
drawers using a hook and bracket system. The top space
behind the top panel can be enclosed with wood and stained
by the cabinet maker to match adjacent cabinetry.
NOTE: This product is designed to handle 3/4" panels that are
made of wood.
33-3/8" x 23" is the maximum opening for a glass window.
The opening may be smaller if desired.
IMPORTANT NOTE: Maximum panel
weight:
A Fresh Food Door Panel: 33 lbs.
B Freezer Door Panel: 9 lbs.
C Convertible Food Door Panel: 19 lbs.
IMPORTANT NOTE: Maximum panel
weight:
A Fresh Food Door Panel: 33 lbs.
B Freezer Door Panel: 9 lbs.
C Convertible Food Door Panel: 19 lbs.
A
B
C
45-3/8”
7-1/2”
22-3/4”
29-3/4”
4”
A
B
C
49-3/8”
22-23/32”
29-3/4”
7-17/32”
4”
45-3/8” 33-3/8”
29-3/4”
3-3/8” 3-3/8”
23”
6”
6”
49-3/8” 33-3/8”
29-3/4”
10”
6”
23”
3-3/8”3-3/8”
PANELS FOR SOLID DOOR AND
DRAWERS PANELS FOR SOLID DOOR AND
DRAWERS
*Styles must be a min 3-3/8" to cover aluminum door frame.
*Styles must be a min 3-3/8" to cover aluminum door frame.
Design Tip: Some amount of each panel will be visible on the
interior side of the unit. It is recommended that both sides of
each panel be finished.
Design Tip: If using custom panels, a custom toe kick should
be considered. The bottom of case is white.
Design Tip: Some amount of each panel will be visible on the
interior side of the unit. It is recommended that both sides of
each panel be finished.
Design Tip: If using custom panels,
a custom toe kick should be considered.
The bottom of case is white.
PANELS FOR GLASS DOOR
PANELS FOR GLASS DOOR
Note:
EXTREMELY IMPORTANT: Routing of custom wood panels
is required where the hooks and brackets attach to the
panel. Custom panels must be at least 3/4” thick where
the hooks and brackets hardware are attached.

For answers to your Monogram,® GE Profile™or
GE®appliance questions, visit our website at
geappliances.com or call GE Answer Center®
service, 800.626.2000.
110118
Specification Revised 3/12
Listed by
Underwriters
Laboratories
ZIC30GNZII/ZIK30GNZII
GE Monogram® 30" Fully Integrated Customizable Refrigerators with
Convertible Drawer
Dimensions and Installation Information (in inches)
1-1/2”
1-1/4”
1”
3/4”
1-1/2” 1-1/4” 1” 3/4”
1/8”
1-3/8”
2-1/16”
Refrigerator
Allow 15” minimum clearance
for a full 115˚door swing.
Product Clearances These refrigerators are equipped
with a 2-position door stop. The factory-set 115˚ door
swing can be adjusted to 90˚ if clearance to adjacent
cabinets or walls is restricted.
Use this page to determine door swing interaction with
adjacent cabinets or countertops.
Advance Planning
SS European or Custom Panels
Top View
115˚ DOOR SWING
(factory setting)

For answers to your Monogram,® GE Profile™or
GE®appliance questions, visit our website at
geappliances.com or call GE Answer Center®
service, 800.626.2000.
110118
Specification Revised 3/12
Listed by
Underwriters
Laboratories
ZIC30GNZII/ZIK30GNZII
GE Monogram® 30" Fully Integrated Customizable Refrigerators with
Convertible Drawer
Dimensions and Installation Information (in inches)
Allow 15” minimum clearance
for a full 115˚door swing.
1-1/8”
2-1/2”
1-1/4”
Refrigerator
SS Professional Panels
Top View
115˚ DOOR SWING
(factory setting) Product Clearances These refrigerators are equipped
with a 2-position door stop. The factory-set 115˚ door
swing can be adjusted to 90˚ if clearance to adjacent
cabinets or walls is restricted.
Use this page to determine door swing interaction with
adjacent cabinets or countertops.
Advance Planning

For answers to your Monogram,® GE Profile™or
GE®appliance questions, visit our website at
geappliances.com or call GE Answer Center®
service, 800.626.2000.
110118
Specification Revised 3/12
Listed by
Underwriters
Laboratories
ZIC30GNZII/ZIK30GNZII
GE Monogram® 30" Fully Integrated Customizable Refrigerators with
Convertible Drawer
Dimensions and Installation Information (in inches)
For a 90º door swing
allow 5” min. clear-
ance to a wall, for
stainless steel
models.
1-1/2” 1-1/4” 1” 3/4”
1-1/2”
1-1/4”
1”
3/4”
1/8”
1-3/16”2-1/4”
Refrigerator
Use this page to determine door swing
interaction with adjacent cabinets or
countertops.
Advance Planning
SS European or
Custom Panels
Top View
90˚ DOOR SWING
(optional setting)

For answers to your Monogram,® GE Profile™or
GE®appliance questions, visit our website at
geappliances.com or call GE Answer Center®
service, 800.626.2000.
110118
Specification Revised 3/12
Listed by
Underwriters
Laboratories
ZIC30GNZII/ZIK30GNZII
GE Monogram® 30" Fully Integrated Customizable Refrigerators with
Convertible Drawer
Dimensions and Installation Information (in inches)
For a 90º door
swing allow 5” min.
clearance to a wall,
for stainless steel
models.
Refrigerator
1-1/4”
2-9/16”
SS Professional
Panels
Top View
90˚ DOOR SWING
(optional setting)
Use this page to determine door swing
interaction with adjacent cabinets or
countertops.
Advance Planning

For answers to your Monogram,® GE Profile™or
GE®appliance questions, visit our website at
geappliances.com or call GE Answer Center®
service, 800.626.2000.
110118
Specification Revised 3/12
ZIC30GNZII/ZIK30GNZII
GE Monogram® 30" Fully Integrated Customizable Refrigerators with
Convertible Drawer
Dimensions and Installation Information (in inches)
Features and Benefits
• Integrated design - Blends seamlessly with surrounding
cabinetry and can be fitted with custom, professional or
European-style panels in 80- or 84-inch heights
• Dual-refrigeration system - Provides precise and customizable
climate control with three independent temperature-
management zones
• Convertible lower drawer - With independent temperature
controls can be used to store fresh food, frozen foods, wine or
beverages
• GE unveils first HFC-free refrigerator in the U.S. - Replaces
the standard hydrofluorocarbon (HFC) refrigerant with a
hydrocarbon (HC) alternative, R600A
• Freezer drawer with electronic icemaker - Includes a removable
ice bin and scoop and accommodates everyday freezer items
• LED interior lighting - Gradually brightens and dims when door or
drawer is opened and closed
• Adjustable glass shelves - With aluminum trim provides an
elegant and uncluttered appearance
• Soft-close freezer and convertible drawers - Smoothly and
quietly slide into a secure shut position
• Illuminated, electronic glass-touch controls - Make it easy to
adjust interior lighting, temperature (Fahrenheit or Celsius),
control lock and other settings for all three climate zones
• GE water filtration system - Provides clean, fresh-tasting ice
cubes (GSWF)
• Sabbath mode-capable - Allows the refrigerator to comply with
Kosher practices
• ENERGY STAR® qualified - To use less energy and save money
(ZIC30GNZII model only)
• Model ZIC30GNZII - Solid door
• Model ZIK30GNZII - Glass door
ZKST3080N
ZKGT3080N
ZIC30GNZII - Solid door
ZIK30GNZII - Glass door
