Monoprice 18513 User manual

Unity 100-watt Bridgeable Power Amp
P/N 18513
User's Manual

2
CONTENTS
SAFETY WARNINGS AND GUIDELINES.......................................................................................................................................3
INTRODUCTION................................................................................................................................................................................................4
FEATURES..............................................................................................................................................................................................................4
CUSTOMER SERVICE....................................................................................................................................................................................5
PACKAGE CONTENTS.................................................................................................................................................................................5
PRODUCT OVERVIEW.................................................................................................................................................................................6
Front Panel.....................................................................................................................................................................................................6
Rear Panel.......................................................................................................................................................................................................6
THERMAL PROTECTION ............................................................................................................................................................................ 7
SHORT CIRCUIT PROTECTION.............................................................................................................................................................. 7
MOUNTING OPTIONS .................................................................................................................................................................................8
Stand-Alone Setup.................................................................................................................................................................................8
Single Rack-Mount Setup.................................................................................................................................................................8
Dual Rack-Mount Setup.....................................................................................................................................................................9
STEREO INSTALLATION.............................................................................................................................................................................9
MONO BRIDGED INSTALLATION....................................................................................................................................................12
TECHNICAL SUPPORT...............................................................................................................................................................................14
SPECIFICATIONS............................................................................................................................................................................................14
REGULATORY COMPLIANCE..............................................................................................................................................................15
Notice for FCC ..........................................................................................................................................................................................15
Notice for Industry Canada...........................................................................................................................................................15

3
SAFETY WARNINGS AND GUIDELINES
Please read this entire manual before using this device, paying extra attention to these
safety warnings and guidelines. Please keep this manual in a safe place for future reference.
This device is intended for indoor use only.
Do not expose this device to water or moisture of any kind. Do not place drinks or
other containers with moisture on or near the device. If moisture does get in or on
the device, immediately unplug it from the power outlet and allow it to fully dry
before reapplying power.
Do not touch the device, the power cord, or any other connected cables with wet
hands.
This device uses a grounded power cord and requires a ground connection for safe
operation. Ensure that the power source has a proper ground connection. Do not
modify the plug or use a "cheater" plug to bypass the ground connection.
Do not expose this device to excessively high temperatures. Do not place it in, on,
or near heat sources, such as a fireplace, stove, radiator, etc. Do not leave it in direct
sunlight.
This device ventilates excessive heat through the slots and openings in the case. Do
not block or cover these openings. Ensure that the device is in an open area where
it can get sufficient airflow to keep from overheating.
Prior to operation, check the unit and power cord for physical damage. Do not use if
physical damage has occurred.
Take care to prevent damage to the power cord. Do not allow it to become
crimped, pinched, walked on, or become tangled with other cords. Ensure that the
power cord does not present a tripping hazard.
Never unplug the unit by pulling on the power cord. Always grasp the connector
head or adapter body.
Ensure that power is turned off and disconnected before making any electrical
connections.

4
Clean using a soft, dry cloth only. Do not use chemical cleaners, solvents, or
detergents. For stubborn deposits, moisten the cloth with warm water.
This device has no user serviceable parts. Do not attempt to open, service, or
modify this device.
INTRODUCTION
Thank you for purchasing this Unity 100-Watt Bridgeable Power Amp! This 2-channel class
D power amplifier features a stereo speaker output, with support for 4-ohm and 8-ohm
speakers. It can deliver 50 watts per channel into 8-ohm loads or 65 watts per channel into
4-ohm loads. Additionally, the output can be bridged to provide 120 watts to a single 8-
ohm speaker. It includes a buffered loop line output of the original signal for driving
another power amplifier in distributed whole house audio systems. The amp can be
configured for always on, signal detection, or triggered power on status. It also includes a
12-volt trigger output for controlling other devices.
FEATURES
Class-D amplifier providing 50 watts/channel (RMS) into 8 ohm loads or 65
watts/channel into 4-ohm loads
Bridgeable output provides 120 watts into a single 8-ohm load
4-pole detachable speaker screw connector (Phoenix connector) with support for
up to 12 AWG speaker wire
12-volt trigger input for power-on/off
12-volt trigger output for controlling other devices
Buffered loop output of original signal for connecting additional amplifiers
Rear panel volume gain adjustment
Built-in thermal and short circuit protection circuits
Includes rack-mount ears

5
CUSTOMER SERVICE
The Monoprice Customer Service department is dedicated to ensuring that your ordering,
purchasing, and delivery experience is second to none. If you have any problem with your
order, please give us an opportunity to make it right. You can contact a Monoprice
Customer Service representative through the Live Chat link on our website
www.monoprice.com during normal business hours (Mon-Fri: 5am-7pm PT, Sat-Sun: 9am-
6pm PT) or via email at [email protected]
PACKAGE CONTENTS
Please take an inventory of the package contents to ensure you have all the items listed
below. If anything is missing or damaged, please contact Monoprice Customer Service for a
replacement.
1x 100-watt stereo power amplifier
1x AC power cord (NEMA 5-15 to IEC 60320 C13)
1x Power cord anchor
2x Short rack-mount ears
1x Long rack-mount ear
1x Bridge plate
6x Button head screws
4x Countersunk screws
4x Rubber feet
1x User's manual

6
PRODUCT OVERVIEW
Front Panel
1. Power Switch: Turns the amplifier on and off.
2. Power LED: Illuminates amber on initial power-up, then glows either green during
normal operation or red when in standby mode.
Rear Panel
3. Line In: Stereo line-level analog RCA input jacks. When using bridged mode, the
mono input should be connected to the Linput.
4. Line Out: Stereo, buffered, loop line output of the original signal for connecting
additional amplifiers.
5. Volume: Gain control to limit the maximum volume level.
6. Output Selection: Switch to configure the type of output. When in the Bridged
position, the amplifier can be bridged for more power into a single 8-ohm load. The
8-ohm and 4-ohm positions optimize the stereo output for 8- or 4-ohm loads.

7
7. Power Selection: Switch to control the power-on behavior of the amplifier. When in
the On position, the amplifier is always on whenever the Power Switch (1) is in the
On position. When set to Auto, the amplifier will automatically go into standby
mode when no audio signal is detected and will power on when an audio signal is
detected. When set to the Trigger position, the amplifier will power on or off
whenever a 12-volt trigger is applied to the Trigger In (8). When set to the Auto or
Trigger positions, the Power Switch (1) on the front panel should be left in the On
position.
8. Trigger: 3.5mm jacks for 12-volt Trigger In and Out. The Trigger In can turn the
amplifier on or off and the Trigger Out can be used to control other devices.
9. Speaker: Removable Phoenix connector for attaching the speaker wires. When
connecting a single speaker in bridged mode, the negative lead should be attached
to L- and the positive lead to R+. It can accept speaker wire up to 12 AWG.
10. AC IN: IEC 60320 C14 panel connector for attaching the included power cord.
THERMAL PROTECTION
The amplifier monitors its temperature and will activate the thermal protection circuit if
the temperature exceeds a safe limit. This can occur if the amp has been operated at high
volumes for an extended period of time, if it has inadequate ventilation, or if the speaker
load is below the minimum impedance of 4 ohms. The amp will shut down when the
Thermal Protection circuit engages. You must turn off the amp's power switch and wait
until the amp cools down, then power the amp back on.
SHORT CIRCUIT PROTECTION
If the amplifier detects a short circuit on one or both speaker outputs, the Power LED (2)
will glow orange and output will be disabled. If this occurs, turn off the amplifier and check
the speakers and speaker wires for a short circuit.

8
MOUNTING OPTIONS
This amplifier can be placed stand-alone on a flat surface, such as a table or shelf, or can be
installed into a standard 19" equipment rack, either by itself or side-by-side with a second
Unity power amp.
Stand-Alone Setup
To use the amplifier in a stand-alone installation, locate the included sheet with four
rubber feet. Peel each rubber foot from the sheet and attach them to the bottom of the
amp at each of the four corners. This will both protect your mounting surface from
scratches and will prevent any incidental noise from vibration.

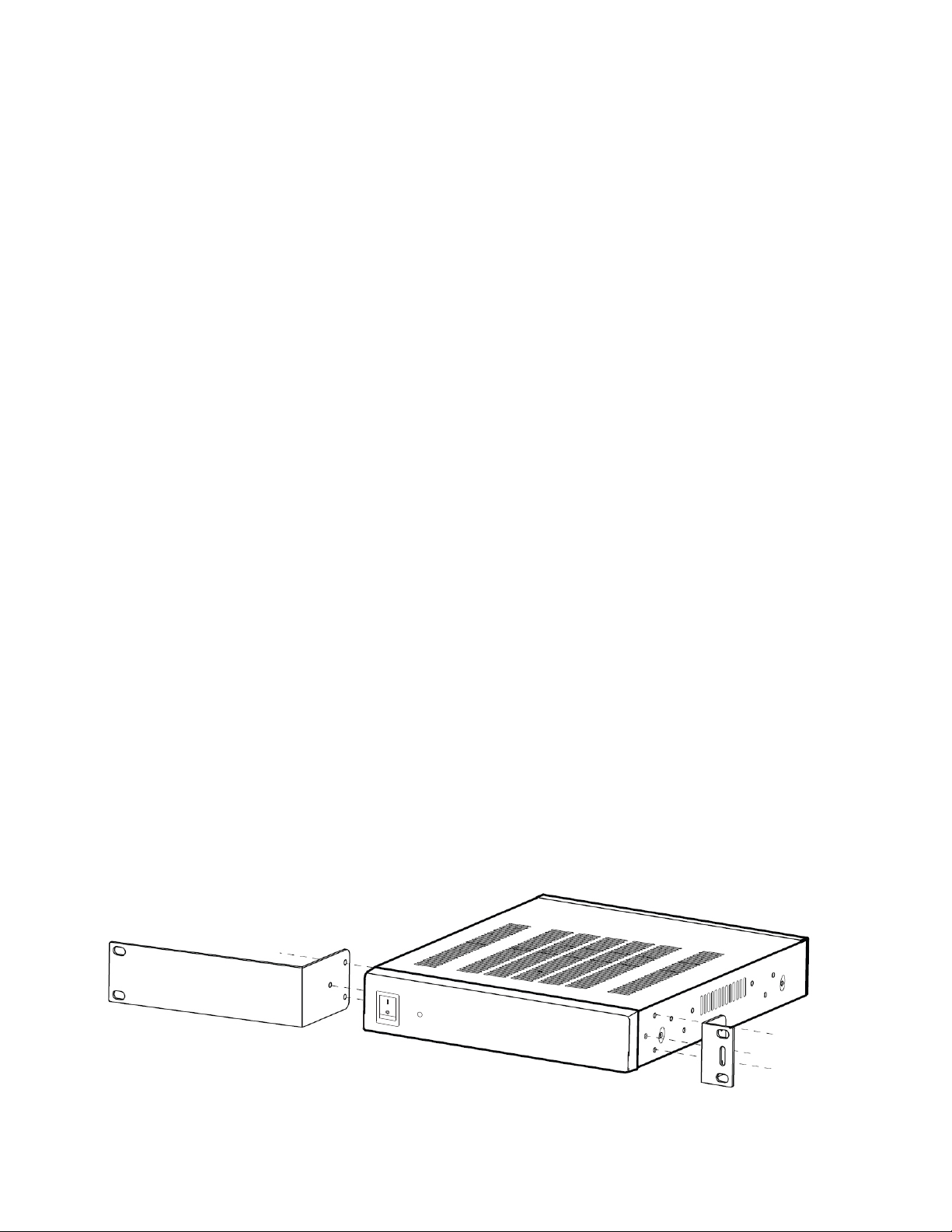

Single Rack-Mount Setup
Perform the following steps to install a single amplifier into a 19" equipment rack.
1. Using three of the button head screws, attach one short rack-mount ear to one side
of the amplifier, with the flat side flush with the front panel.
2. Using the remaining three button head screws, attach the long rack-mount ear to
the other side of the amplifier, with the long flat side flush with the front panel. It
does not matter which side of the amp has the short rack-mount ear and which side
has the long one.
3. Using rack-mount screws (not included), secure the two rack-mount ears to the rack
mount.
ON/STANDBY
POWER

9
Dual Rack-Mount Setup
Perform the following steps to install two amplifiers side-by-side into a 19" equipment rack.
1. Turn the amplifiers over and place them side by side.
2. Place the bridge plate over the junction of the two amps with the beveled holes
visible, then attach it to the two amps using the four countersunk screws.
3. Turn the amps over so they are right-side up, then attach one short rack-mount ear
to the exposed side of each amp using three button head screws.
4. Using rack-mount screws (not included), secure the two rack-mount ears to the rack
mount.
STEREO INSTALLATION
1. Ensure that all equipment to be connected is powered off and unplugged from its
power source prior to making any electrical or audio connections.
2. Place the amplifier in its intended location.
3. Using a 1/8" flat head screwdriver, loosen the four screws on the Speaker (9)
Phoenix connector to open the speaker wire clamps.
4. Using a two-conductor speaker wire (not included), insert the negative lead into the
L- connector, then tighten the screw to lock it in place. Give the wire a gentle tug to
ON/STANDBY
POWER
ON/STANDBY
POWER

10
ensure it is securely attached to the connector. Repeat for the positive lead and the
L+ connector.
5. Connect the negative lead of the speaker wire to the negative input on your left
channel speaker, then connect to the positive lead to the positive input.
6. Using a second two-conductor speaker wire, repeat steps 4 and 5 for the R- and , R+
connectors, and the right channel speaker.
7. Using a stereo RCA cable (not included), plug the left and right plugs into the Land
Rconnectors on the Line In (3), then plug the other end into the analog stereo
outputs on your preamplifier, television, or other audio source device.
8. (Optional) Using a stereo RCA cable (not included), plug one end into the inputs on
a second amplifier, then plug the left and right plugs into the Land Rconnectors on
the Line Out (4).
9. (Optional) Using a 3.5mm cable (not included), plug one end into the Trigger In (8)
jack, then plug the other end into the trigger output of your controller.
10. (Optional) Using a 3.5mm cable (not included), plug one end into the trigger input of
a device you want to control using the amplifier, then plug the other end into the
Trigger Out (8).
11. If you connected 8-ohm speakers, set the Output Selection (6) switch to the 8Ω
position. If you connected 4-ohm speakers, set it to the 4Ω position.
12. Set the Power Selection (7) switch to the On, Auto, or Trigger position, depending
on how you want to control the amplifier's power-on behavior. When set to On, the
amplifier is always on whenever the Power Switch (1) is in the On position. When set
to Auto, the amplifier will power on when an audio signal is detected and will
power off after a few minutes without an audio signal on the input. When set to the
Trigger position, the amplifier turns on and off when a 12-volt signal is detected on
the Trigger In (8). When using the Auto or Trigger options, the Power Switch (1) on
the front panel must be set to the On position.
13. Using a 1/8" flat head screwdriver, turn the Volume (5) control fully
counterclockwise to the minimum position.
14. Ensure that the Power Switch (1) is in the Off position.

11
15. Plug the C13 connector on the included AC power cord into the C14 Power In (10)
connector, then plug the other end into a nearby AC power outlet.
16. (Optional) Squeeze both sides of the included power cord anchor, insert the two
ends into the two loops above the Power In (10) connector, then release the anchor
so the two ends lock into the two loops. Position the anchor over the boot of the
power cord connector, so that it cannot accidentally disconnect from the amplifier.
17. Flip the Power Switch (1) to the On position.
18. Plug in and power on your audio source device, then start audio playback.
19. Set the volume control on your preamplifier, television, or other audio source
device to the maximum position.
20. Using a 1/8" flat head screwdriver, slowly turn the Volume (5) control clockwise until
the volume level is at the loudest you would ever want it to be.

12
MONO BRIDGED INSTALLATION
Rather than driving two 8-ohm or 4-ohm speakers in stereo mode, the amplifier can be
configured to bridge the two channels to provide 120 watts of power into a single 8-ohm
load. Note that only 8-ohm loads can be used when using Mono Bridged mode.
1. Ensure that all equipment to be connected is powered off and unplugged from its
power source prior to making any electrical or audio connections.
2. Place the amplifier in its intended location.
3. Using a 1/8" flat head screwdriver, loosen the L- and R+ screws on the Speaker (9)
Phoenix connector to open the speaker wire clamps.
4. Using a two-conductor speaker wire (not included), insert the negative lead into the
L- connector, then tighten the screw to lock it in place. Give the wire a gentle tug to
ensure it is securely attached to the connector. Repeat for the positive lead and the
R+ connector.
5. Connect the negative lead of the speaker wire to the negative input on your
speaker, then connect to the positive lead to the positive input.
6. Using a single conductor RCA cable (not included), plug one end into the L
connector on the Line In (3), then plug the other end into one of the analog stereo
outputs on your preamplifier, television, or other audio source device.
7. (Optional) Using a second single-conductor RCA cable (not included), plug one end
into one of the inputs on another amplifier, then plug the other end into the L
connector on the Line Out (4).
8. (Optional) Using a 3.5mm cable (not included), plug one end into the Trigger In (8)
jack, then plug the other end into the trigger output of your controller.
9. (Optional) Using a 3.5mm cable (not included), plug one end into the trigger input of
a device you want to control using the amplifier, then plug the other end into the
Trigger Out (8).
10. Set the Output Selection (6) switch to the Bridge position.
11. Set the Power Selection (7) switch to the On, Auto, or Trigger position, depending
on how you want to control the amplifier's power-on behavior. When set to On, the

13
amplifier is always on whenever the Power Switch (1) is in the On position. When set
to Auto, the amplifier will power on when an audio signal is detected and will
power off after a few minutes without an audio signal on the input. When set to the
Trigger position, the amplifier turns on and off when a 12-volt signal is detected on
the Trigger In (8). When using the Auto or Trigger options, the Power Switch (1) on
the front panel must be set to the On position.
12. Using a 1/8" flat head screwdriver, turn the Volume (5) control fully
counterclockwise to the minimum position.
13. Ensure that the Power Switch (1) is in the Off position.
14. Plug the C13 connector on the included AC power cord into the C14 Power In (10)
connector, then plug the other end into a nearby AC power outlet.
15. (Optional) Squeeze both sides of the included power cord anchor, insert the two
ends into the two loops above the Power In (10) connector, then release the anchor
so the two ends lock into the two loops. Position the anchor over the boot of the
power cord connector, so that it cannot accidentally disconnect from the amplifier.
16. Flip the Power Switch (1) to the On position.
17. Plug in and power on your audio source device, then start audio playback.
18. Set the volume control on your preamplifier, television, or other audio source
device to the maximum position.
19. Using a 1/8" flat head screwdriver, slowly turn the Volume (5) control clockwise until
the volume level is at the loudest you would ever want it to be.

14
TECHNICAL SUPPORT
Monoprice is pleased to provide free, live, online technical support to assist you with any
questions you may have about installation, setup, troubleshooting, or product
recommendations. If you ever need assistance with your new product, please come online
to talk to one of our friendly and knowledgeable Tech Support Associates. Technical
support is available through the online chat button on our website www.monoprice.com
during regular business hours, 7 days a week. You can also get assistance through email by
sending a message to [email protected]
SPECIFICATIONS
Model
18513
Audio Inputs
Stereo analog RCA
Audio Outputs
Buffered stereo analog RCA loop output
Output Power
50 watts/channel into 8 ohms with < 0.1% THD+N or
65 watts/channel into 4 ohms with < 0.1% THD+N or
120 watts into a single 8-ohm load with < 0.1% THD+N
Maximum Speaker Wire Size
12 AWG
Minimum Output Impedance
4 ohms in stereo mode
8 ohms in mono bridged mode
Trigger Input
12 VDC, 10 kΩ
Trigger Output
12 VDC, 100mA
Input Power
100 ~ 240 VAC, 50/60 Hz, 2.5A
Standby Power Consumption
≤ 0.5 watts
Dimensions
8.5" x 10..5" x 1.8" (216 x 267 x 45 mm)

15
REGULATORY COMPLIANCE
Notice for FCC
This device complies with Part 15 of the FCC rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
Modifying the equipment without Monoprice’s authorization may result in the equipment no
longer complying with FCC requirements for Class B digital devices. In that event, your right to use
the equipment may be limited by FCC regulations, and you may be required to correct any
interference to radio or television communications at your own expense.
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
Consult the dealer or an experienced radio/TV technician for help.
Notice for Industry Canada
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
