Blackbird™ 4K HDBaseT™ Extender Kit
P/N 41097
User's Manual

2
SAFETY WARNINGS AND GUIDELINES
Please read this entire manual before using this device, paying
extra attention to these safety warnings and guidelines. Please
keep this manual in a safe place for future reference.
•This device is intended for indoor use only.
•Do not expose this device to water or moisture of any
kind. Do not place drinks or other containers with
moisture on or near the device. If moisture does get in or
on the device, immediately unplug it from the power
outlet and allow it to fully dry before reapplying power.
•Do not touch the device, the power cord, or any other
connected cables with wet hands.
•Do not expose this device to excessive vibration.
•Do not subject the product to extreme force, shock, or
fluctuations in temperature or humidity.
•Do not expose this device to excessively high
temperatures. Do not place it in, on, or near a heat source,
such as a fireplace, stove, radiator, etc. Do not leave it in
direct sunlight.
•This device ventilates excessive heat through the slots
and openings in the case. Do not block or cover these

3
openings. Ensure that the device is in an open area where
it can get sufficient airflow to keep from overheating.
•Prior to operation, check the unit and power cord for
physical damage. Do not use if physical damage has
occurred.
•Before plugging the unit into a power outlet, ensure that
the outlet provides the same type and level of power
required by the device.
•Never unplug the unit by pulling on the power cord.
Always grasp the connector head or adapter body.
•Ensure that power is turned off and disconnected before
making any electrical connections.
•Clean using a soft, dry cloth only. Do not use chemical
cleaners, solvents, or detergents. For stubborn deposits,
moisten the cloth with warm water.
•This device has no user serviceable parts. Do not attempt
to open, service, or modify this device.

4
INTRODUCTION
This Blackbird™ 4K HDBaseT™ Extender Kit allows you to extend
4K@60Hz HDMI® video signals to distances up to 394 feet (120
meters) over a single Cat6 Ethernet cable. It complies with the
HDMI 2.0 and HDCP™ 2.2 specifications and supports up to
18Gbps bandwidth. It supports the Power over Cable (PoC)
feature, allowing either the transmitter or receiver to receive its
power from the other device over the connecting Ethernet cable.
The transmitter includes an HDMI loop output for connecting a
local display and the receiver includes an analog audio output for
connecting an external amplifier or powered speakers for
amplification of audio de-embedded from the HDMI signal. It
supports bidirectional IR and RS-232 pass-through and includes
two IR transmitters, two IR receivers, and 2 Euroblock connectors
for the RS-232 connections.

5
FEATURES
•Compliant with the HDMI® 2.0, HDCP™ 2.2/1.4, and DVI™
1.0 standards
•Supports 18Gbps bandwidth
•Extends 4K@60Hz video to distances up to 394 feet (120
meters) and 1080p@60Hz signals to distances up to 492
feet (150 meters)
•Includes an HDMI loop pass-through output on the
transmitter
•Includes a stereo analog audio output on the receiver for
separate amplification of audio de-embedded from the
HDMI signal
•Supports bidirectional IR, RS-232, and CEC pass-through
•Supports HDR, HDR10+, Dolby Vision™, and Hybrid Log-
Gamma (HLG)
•Supports the Power over Cable (PoC) feature

6
CUSTOMER SERVICE
The Monoprice Customer Service department is dedicated to
ensuring that your ordering, purchasing, and delivery experience
is second to none. If you have any problem with your order,
please give us an opportunity to make it right. You can contact a
Monoprice Customer Service representative through the Live
Chat link on our website www.monoprice.com or via email at
[email protected]. Check the website for support times
and links.
PACKAGE CONTENTS
Please take an inventory of the package contents to ensure you
have all the items listed below. If anything is missing or damaged,
please contact Monoprice Customer Service for a replacement.
1x HDBaseT™
Transmitter
1x HDBaseT Receiver
2x IR Transmitter
2x IR Receiver
4x Mounting Ears
2x 3-pin Euroblock
Terminals
1x AC Power Adapter
(24 VDC, 1A)
1x User's Manual

7
PRODUCT OVERVIEW
Transmitter
•: The LED illuminates red when power is applied.
•SERVICE: Micro USB port for performing firmware
updates.
•DC 24V: DC barrel connector for connecting the included
AC power adapter. Note that this extender kit supports
the Power over Cable (PoC) feature and therefore only
includes a single AC power adapter.
•HDBT OUT: RJ45 jack for connecting a Cat6 Ethernet cable
(not included) to the receiver.
oThe LED on the left indicates the HDBaseT™ connection
status. It illuminates fully when there is a good
connection to the receiver, flashes when the
connection is poor, and is dark when there is no
connection.

8
oThe LED on the right indicates the data status. It
illuminates fully when the HDMI® signal contains
HDCP™, flashes when the signal does not have HDCP,
and is dark when there is no HDMI signal.
•HDMI OUT: HDMI loop pass-through output for
connecting a local display.
•HDMI IN: HDMI input port for connecting the video
source device (e.g., DVD player, cable box, Blu-ray Disc™
player, etc.).
•IR IN: 3.5mm jack for connecting one of the included IR
receivers.
•IR OUT: 3.5mm jack for connecting one of the included IR
transmitters.
•RS-232: 3-pin terminal block for RS-232 pass-through to or
from the receiver.

9
Receiver
•: The LED illuminates red when power is applied.
•SERVICE: Micro USB port for performing firmware
updates.
•DC 24V: DC barrel connector for connecting the included
AC power adapter. Note that this extender kit supports
the Power over Cable (PoC) feature and therefore only
includes a single AC power adapter.
•HDBT IN: RJ45 jack for connecting a Cat6 Ethernet cable
(not included) from the transmitter.
oThe LED on the left indicates the HDBaseT™ connection
status. It illuminates fully when there is a good
connection to the transmitter, flashes when the
connection is poor, and is dark when there is no
connection.
oThe LED on the right indicates the data status. It
illuminates fully when the HDMI® signal contains

10
HDCP™, flashes when the signal does not have HDCP,
and is dark when there is no HDMI® signal.
•HDMI OUT: HDMI port for connecting an HDMI display.
•AUDIO OUT: 3.5mm stereo analog jack for connecting an
amplifier or powered speakers for separate amplification
of audio de-embedded from the HDMI signal.
•IR IN: 3.5mm jack for connecting one of the included IR
receivers.
•IR OUT: 3.5mm jack for connecting one of the included IR
transmitters.
•RS-232: 3-pin terminal block for RS-232 pass-through to or
from the transmitter.

11

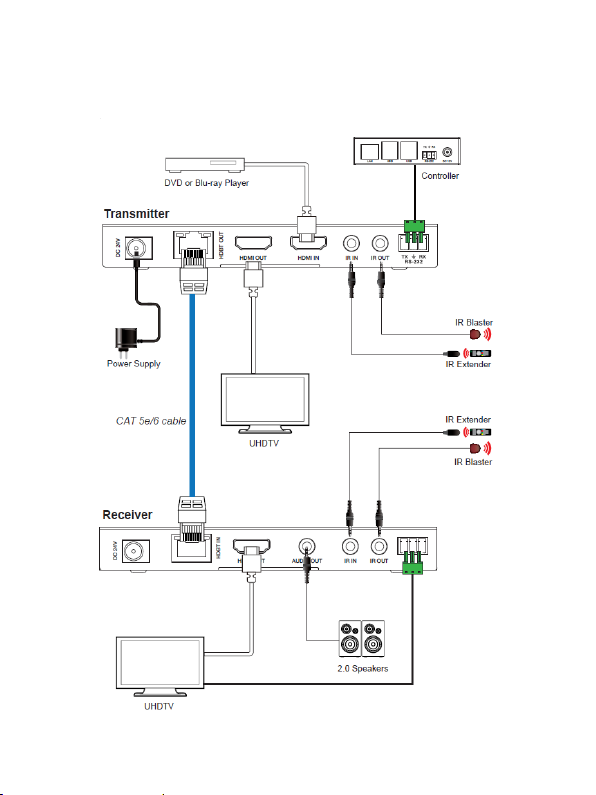

SAMPLE CONNECTION DIAGRAM

12
IR PASS-THROUGH
The following diagram illustrates the connection and operation of
IR pass-through.

13
TECHNICAL SUPPORT
Monoprice is pleased to provide free, live, online technical
support to assist you with any questions you may have about
installation, setup, troubleshooting, or product recommendations.
If you ever need assistance with your new product, please come
online to talk to one of our friendly and knowledgeable Tech
Support Associates. Technical support is available through the
online chat button on our website www.monoprice.com or
through email by sending a message to [email protected].
Check the website for support times and links.
SPECIFICATIONS
Model
41097
Maximum Video Resolution
4K@60Hz YCbCr 4:4:4,
including 4K@30Hz YCbCr
4:4:4, 1080p@60Hz, all HDMI
3D formats, and PC video up
to 1920x1200
Supported Color Spaces
RGB, YCbCr 4:4:4, YCbCr
4:2:2, YCbCr 4:2:0
HDMI® Version
2.0

14
HDCP™ Version
2.2 and 1.4
Video Bandwidth
18Gbps
Color Depth
8/10/12-bit: 1080p@60Hz,
4K@30Hz, 4K@60Hz YCbCr
4:2:2/4:2:0
8-bit: 4K@60Hz YCbCr 4:4:4
Transmission Method
HDBaseT™
Maximum Transmission
Distances
4K@60Hz: 394 feet (120
meters)
1080p@60Hz: 492 feet (150
meters)
Maximum HDMI® Cable
Length
4K@60Hz: 10 feet (3 meters)
4K@30Hz: 32 feet (10 meters)
1080p@60Hz: 49 feet (15
meters)
Input Power
24 VDC, 1A
AC Adapter Input Power
100 ~ 240 VAC, 50/60 Hz
Maximum Power
Consumption
9.36 watts
Operating Temperature
+32 ~ +104°F (0 ~ +40°C)
Storage Temperature
-4 ~ +140°F (-20 ~ +60°C)

15
Operating Humidity
20 ~ 90% RH, noncondensing
Dimensions (each)
5.5" x 2.6" x 0.7"
(140 x 65 x 18 mm)
Transmitter Weight
5.6 oz. (160g)
Receiver Weight
5.5 oz. (155g)
REGULATORY COMPLIANCE
Notice for FCC
This device complies with Part 15 of the FCC rules. Operation is
subject to the following two conditions: (1) this device may not
cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.
Modifying the equipment without Monoprice's authorization may
result in the equipment no longer complying with FCC
requirements for Class B digital devices. In that event, your right
to use the equipment may be limited by FCC regulations, and you
may be required to correct any interference to radio or television
communications at your own expense.

16
This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications. However, there is no guarantee that
interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference
by one or more of the following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and
receiver.
•Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
•Consult the dealer or an experienced radio/TV technician
for help.

17
Notice for Industry Canada
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme
NMB-003 du Canada.
Blackbird™ is a trademark of Monoprice Inc.
HDBaseT™ and the HDBaseT Alliance logo are trademarks of the
HDBaseT Alliance.
HDMI®, the HDMI Logo, and High-Definition Multimedia Interface
are trademarks or registered trademarks of HDMI Licensing LLC in
the United States and other countries.
HDCP™ is a trademark of Digital Content Protection LLC.
DVI™ is a trademark of the Digital Display Working Group.
Dolby®, Dolby Vision™, and the double-D symbol are trademarks
of Dolby Laboratories.
Blu-ray Disc™, Blu-ray™, and the logos are trademarks of the Blu-
ray Disc Association.
