Monoprice SB-300 User manual

SB-300 Dolby Atmos® Soundbar
P/N 42033
User's Manual

2
CONTENTS
SAFETY WARNINGS AND GUIDELINES............................................................................................................4
INTRODUCTION....................................................................................................................................................................6
FEATURES.................................................................................................................................................................................6
CUSTOMER SERVICE........................................................................................................................................................7
PACKAGE CONTENTS.....................................................................................................................................................7
PRODUCT OVERVIEW.....................................................................................................................................................8
Overall..................................................................................................................................................................................8
Top Panel...........................................................................................................................................................................9
Rear Panel.........................................................................................................................................................................9
Remote Control..........................................................................................................................................................10
INSTALLATION.....................................................................................................................................................................11
Safety Warning............................................................................................................................................................11
Positioning .....................................................................................................................................................................12
Wall Mounting............................................................................................................................................................12
Remote Control..........................................................................................................................................................14
SOUNDBAR ENHANCED FEATURES..................................................................................................................14
Dolby Atmos.................................................................................................................................................................14
eARC/ARC.......................................................................................................................................................................15
CONNECTIONS...................................................................................................................................................................16
HDMI OUT.......................................................................................................................................................................16
HDMI IN 1/HDMI IN 2.............................................................................................................................................17
OPTICAL............................................................................................................................................................................18
COAXIAL ..........................................................................................................................................................................19

3
AUX......................................................................................................................................................................................20
Power.................................................................................................................................................................................20
POWER SAVING................................................................................................................................................................21
BLUETOOTH OPERATION...........................................................................................................................................21
USB OPERATION..............................................................................................................................................................23
TROUBLESHOOTING.....................................................................................................................................................24
TECHNICAL SUPPORT..................................................................................................................................................26
SPECIFICATIONS ..............................................................................................................................................................26
REGULATORY COMPLIANCE.................................................................................................................................27
Notice for FCC............................................................................................................................................................27
RF Exposure Statement for FCC .................................................................................................................28
Notice for Industry Canada.............................................................................................................................29
RF Exposure Statement for Industry Canada..................................................................................29

4
SAFETY WARNINGS AND GUIDELINES
Please read this entire manual before using this device, paying extra attention to
these safety warnings and guidelines. Please keep this manual in a safe place for
future reference.
•This device is intended for indoor use only.
•Do not expose this device to water or moisture of any kind. Do not place
drinks or other containers with moisture on or near the device. If
moisture does get in or on the device, immediately remove it from its
power source and allow it to fully dry before reapplying power.
•Do not touch the device, the power cord, or any other connected cables
with wet hands.
•If operating this speaker in a humid environment, ensure that no
condensation occurs. Condensation could cause damage to the speaker
cone and could cause a short in the amplifier, which in turn could cause
fire or severe electric shock.
•Do not install this device on an unstable surface where it could fall and
cause either personal injury or damage to the device and/or other
equipment.
•Do not expose this device to excessive vibration, extreme force, shock,
or fluctuations in temperature or humidity.
•Avoid prolonged exposure to excessive volume levels, which could
cause hearing damage. Reduce the volume to minimum before using this
soundbar, then increase the volume to a comfortable listening level.
•Do not expose this device to excessively high temperatures. Do not
place it in, on, or near a heat source, such as a fireplace, stove, radiator,
etc. Do not leave it in direct sunlight.
•Do not place or install this device in an area where it can be exposed to
excessive amounts of dust, humidity, oil, smoke, or combustible vapors.

5
•Prior to operation, check the unit and power cord for physical damage.
Do not use if physical damage has occurred.
•Before plugging the unit into a power outlet, ensure that the outlet
provides the same type and level of power required by the device.
•Unplug this device from the power source when not in use.
•Take care to prevent damage to the power cord. Do not allow it to
become crimped, pinched, walked on, or become tangled with other
cords. Ensure that the power cord does not present a tripping hazard.
•Never unplug the unit by pulling on the power cord. Always grasp the
connector head or adapter body.
•Ensure that power is turned off and disconnected before making any
electrical connections.
•Remove the batteries from the controller if it will go unused for a
lengthy period of time.
•Do not mix new and old batteries or batteries of different types.
•Do not mix alkaline, standard, or rechargeable batteries with this
product.
•Clean using a soft, dry cloth only. Do not use chemical cleaners, solvents,
or detergents. For stubborn deposits, moisten the cloth with warm
water.
•This device has no user serviceable parts. Do not attempt to open,
service, or modify this device.

6
INTRODUCTION
The Monoprice™ SB-300 Dolby Atmos® Soundbar features built-in Atmos height
speakers for a true and powerful Dolby Atmos home theater experience. Two
HDMI® inputs, an HDMI eARC output, coaxial and optical digital audio inputs, and
a 3.5mm analog audio input allow you to connect your various audio and video
devices, while the Bluetooth® 4.2 radio and USB input allow you to stream audio
from your smartphone or PC. Enjoy total control from the comfort of your easy
chair using the included IR remote control. The Monoprice SB-300 Dolby Atmos
Soundbar delivers stellar looks and a complete home theater experience.
FEATURES
•Dolby Atmos® soundbar
•Two HDMI® inputs and an HDMI ARC output
•Bluetooth® 4.2 and USB streaming
•Coaxial and optical digital inputs
•3.5mm analog audio input
•Four DSP sound modes
•Includes an IR remote control
•Includes a Premium High Speed HDMI® Cable and mounting hardware
•Automatic standby mode after 15 minutes of inactivity

7
CUSTOMER SERVICE
The Monoprice™Customer Service department is dedicated to ensuring that
your ordering, purchasing, and delivery experience is second to none. If you have
any problem with your order, please give us an opportunity to make it right. You
can contact a Monoprice Customer Service representative through the Live Chat
link on our website www.monoprice.com or via email at
[e-mail]. Check the website for support times and links.
PACKAGE CONTENTS
Please take an inventory of the package contents to ensure you have all the
items listed below. If anything is missing or damaged, please contact Monoprice
Customer Service for a replacement.
1x SB-300 Soundbar
1x Remote Control
2x AAA Batteries
1x AC Power Cord
1x Premium High Speed HDMI® Cable
1x 3.5mm Audio Cable
2x Wall Mount Brackets
4x Wall Mount Screws
4x Wall Mount Anchors
2x Mounting Screws
1x User's Manual

8
PRODUCT OVERVIEW
Overall
1. IR RECEIVER: The IR RECEIVER accepts signals from the included IR
remote control. The remote control has a maximum operating range of
up to 19.6 feet (6 meters) with angles up to ±30°.
2. DISPLAY: The DISPLAY shows information about the status of the
system, including the selected input. When audio playback begins, the
display shows DOLBY ATMOS, DOLBY DIGITAL, PCM, or NONSUPPORT
FORMAT, depending on the audio format.
3. WALL MOUNT MOUNTING POINTS: The soundbar mounting screws are
installed to these two locations.

9

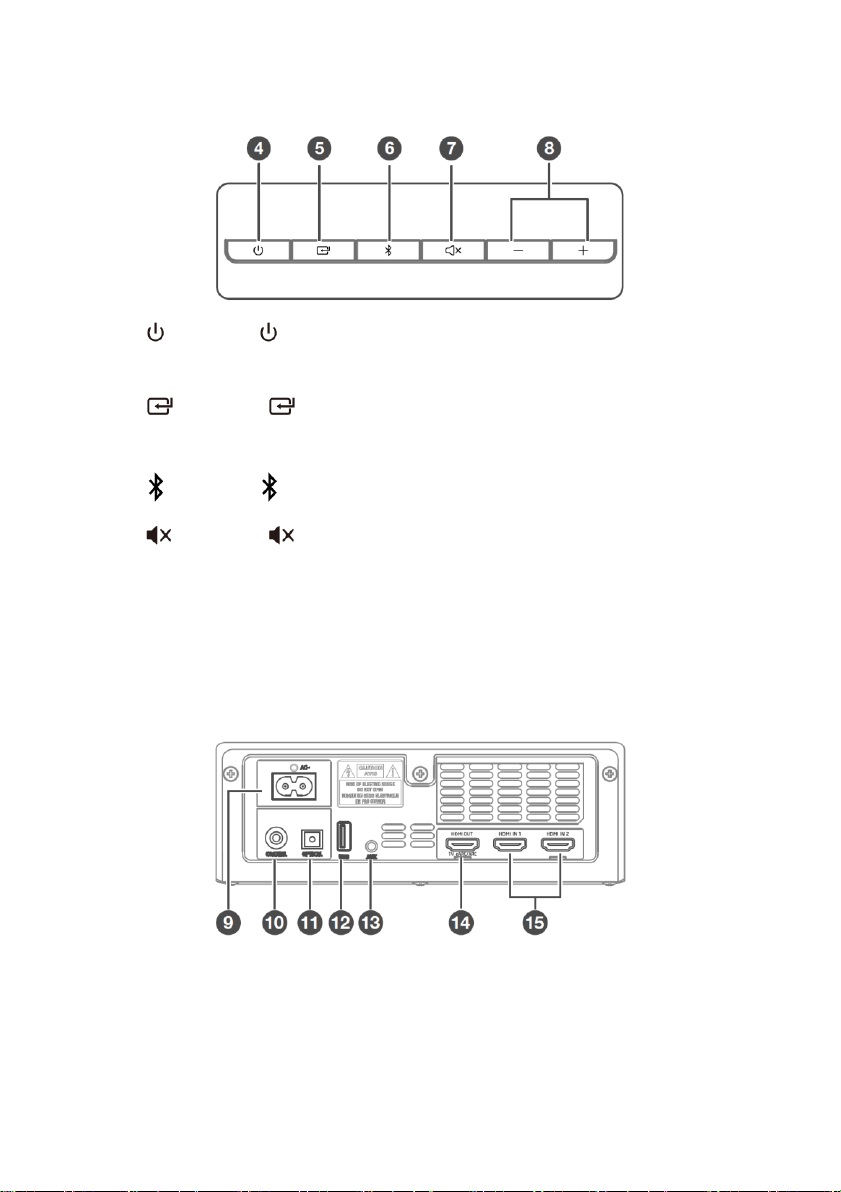

Top Panel
4. : Press the button to turn the system on or to put it into standby
mode.
5. : Press the button to cycle through the inputs. The cycle order is
AUX, BT, OPT/COA, HDMI® 1/2, HDMI eARC, USB.
6. :Press the button to select Bluetooth® mode.
7. :Press the button to turn audio mute on or off.
8. ━/╋: Press the ━button to decrease the volume level and the ╋
button to increase the volume level.
Rear Panel
9. AC~: AC power socket for connecting the included AC power cord.
10. COAXIAL: Digital coaxial audio input for connecting the coaxial output
on your TV. Note that you can use either the OPTICAL or COAXIAL input,
but not both.

10
11. OPTICAL: Digital optical audio input for connecting the optical output on
your TV. Note that you can use either the OPTICAL or COAXIAL input,
but not both.
12. USB: USB port for connecting a USB flash drive with mp3 files for audio
playback. You can use flash drives up to 32GB capacity, formatted with
the FAT16 or FAT32 file system. The files can be in subdirectories.
13. AUX: 3.5mm stereo audio input for connecting an external audio device,
such as a smartphone or mp3 player or for connecting the analog audio
outputs on your TV.
14. HDMI OUT: HDMI® port for connecting a TV. The port supports the
eARC/ARC HDMI feature, which allows the soundbar to play audio that
originates on the connected TV.
15. HDMI IN: Two HDMI ports for connecting HDMI source devices, such as a
DVD player, Blu-ray Disc™ player, or gaming console. Note that only one
HDMI input is usable at a time.

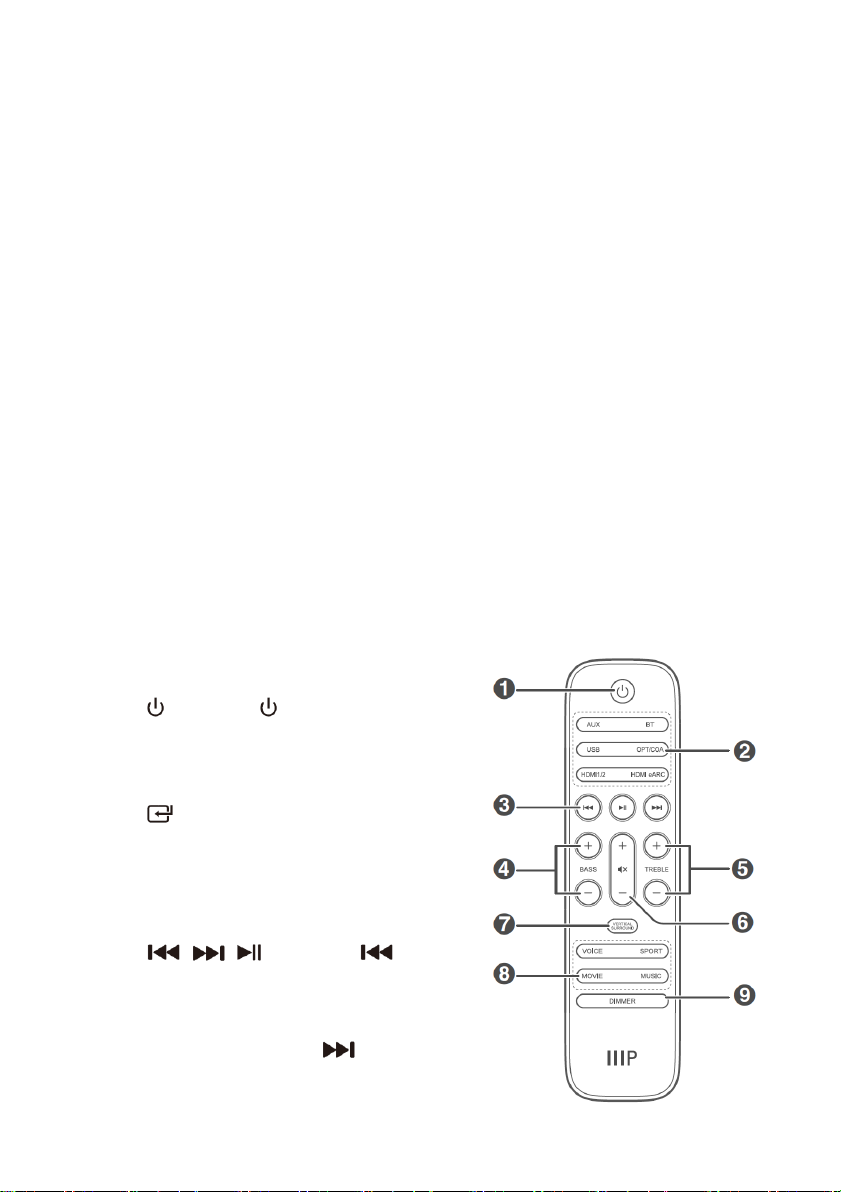

Remote Control
1. : Press the button to turn the
system on or to put it into standby
mode.
2. : These rocker buttons (AUX / BT,
USB / OPT/COA, and HDMI 1/2 /
HDMI® eARC) are for selecting one
of the input sources.
3. / / : Press the button
to skip back to the previous track
when using the Bluetooth® (BT) or
USB input. Press the button to
skip forward to the next track when

11
using the Bluetooth® (BT) or USB input. Momentarily press the
button to pause or resume playback when using the Bluetooth (BT) or
USB input. Press and hold the button for about 1 second to enter
Bluetooth® pairing mode or to disconnect an existing paired Bluetooth
device.
4. BASS: Press the ╋button to increase the bass response or press ━the
button decrease the bass response.
5. TREBLE: Press the ╋button to increase the treble response or press ━
the button decrease the treble response.
6. ╋/━/ : Press the ╋button to increase the volume level of the
system or press the ━button to decrease the volume level of the
system. Press the icon in the center of the button to toggle audio
mute on or off. If audio is muted, increasing or decreasing the volume
level toggles mute off.
7. VERTICAL SURROUND: Turns the Atmos® height speakers on or off.
8. EQ: These rocker buttons select one of the four DSP sound modes.
9. DIMMER: Adjusts the display brightness.
INSTALLATION
Safety Warning
Mounting the soundbar to the wall should be performed by qualified personnel
only. Incorrect installation can result in severe personal injury or property
damage. Care must be taken to avoid damage to any electrical wiring or
plumbing inside the walls. It is the installer's responsibility to ensure that the wall
can safely support the weight of the soundbar and wall mount brackets. Use a
stud finder as necessary to find the studs on a wood stud drywall wall. Additional
tools (not included) are required to install this speaker system.

12

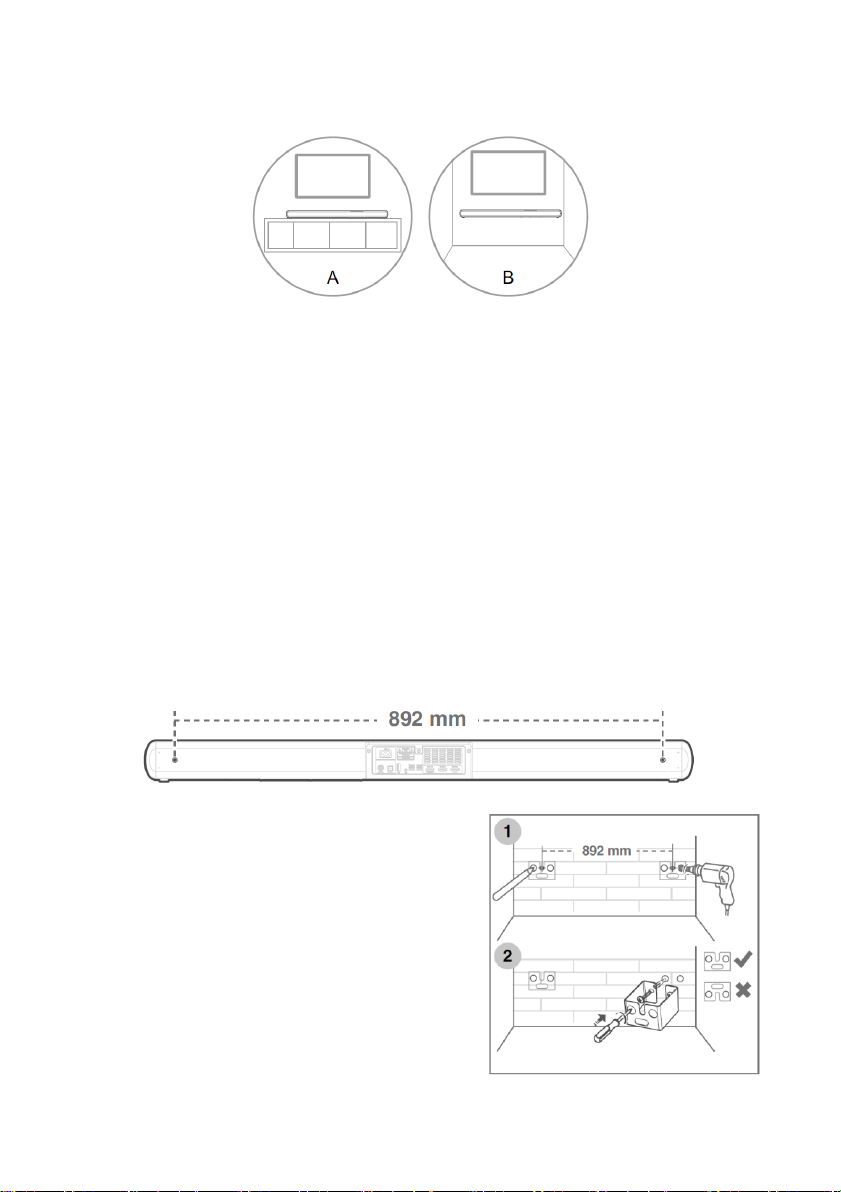

Positioning
A. If your TV is placed on a table, you can simply place the soundbar on the
table in front of the TV's stand. The feet on the soundbar will protect the
surface of your table.
B. If your TV is mounted to a wall, you can mount the soundbar to the wall
directly beneath the TV using the included wall mount brackets and
mounting hardware.
Wall Mounting
Perform the following steps to mount the soundbar to the wall. Use common
sense at all times.
1. Using a pencil, a carpenter's level,
and a tape measure, mark two
positions on the wall exactly 892mm
apart. Use the level to ensure that
these marks are at the same height
on the wall. These marks will be at
the center of each wall mount
bracket.

13
2. For each mark, place one of the wall mount brackets against the wall,
with the mark in the center of the notch. Use the level to ensure the
bracket is level, then mark each hole in the bracket, which is where the
two screws will be used to secure the bracket to the wall.
3. Use a ø5.5 ~ 6.0 mm drill bit to drill a hole at each of the four marked
screw hole locations.
4. If using wall anchors, insert an anchor into each hole. If they do not
insert fully by hand, lightly tap each anchor with a small hammer to drive
them completely into the wall.
5. Position each bracket over the holes, then use a #2 Phillips screwdriver
and the wall mount bracket screws to secure each bracket to the wall.
Take care not to overtighten the screws. Ensure that the opening of the
notch is at the top of the bracket.
6. Remove the two screws at the wall
mount mounting locations on the
rear of the subwoofer. Store them in
a safe place in case you need to use
them in the future.
7. Install the mounting screws into the
screw holes at the wall mount
mounting locations.
8. Position the soundbar so the
mounting screws are positioned
over the notches in the brackets,
then slide it down into place.

14
Remote Control
Perform the following steps to prepare the remote control for use.

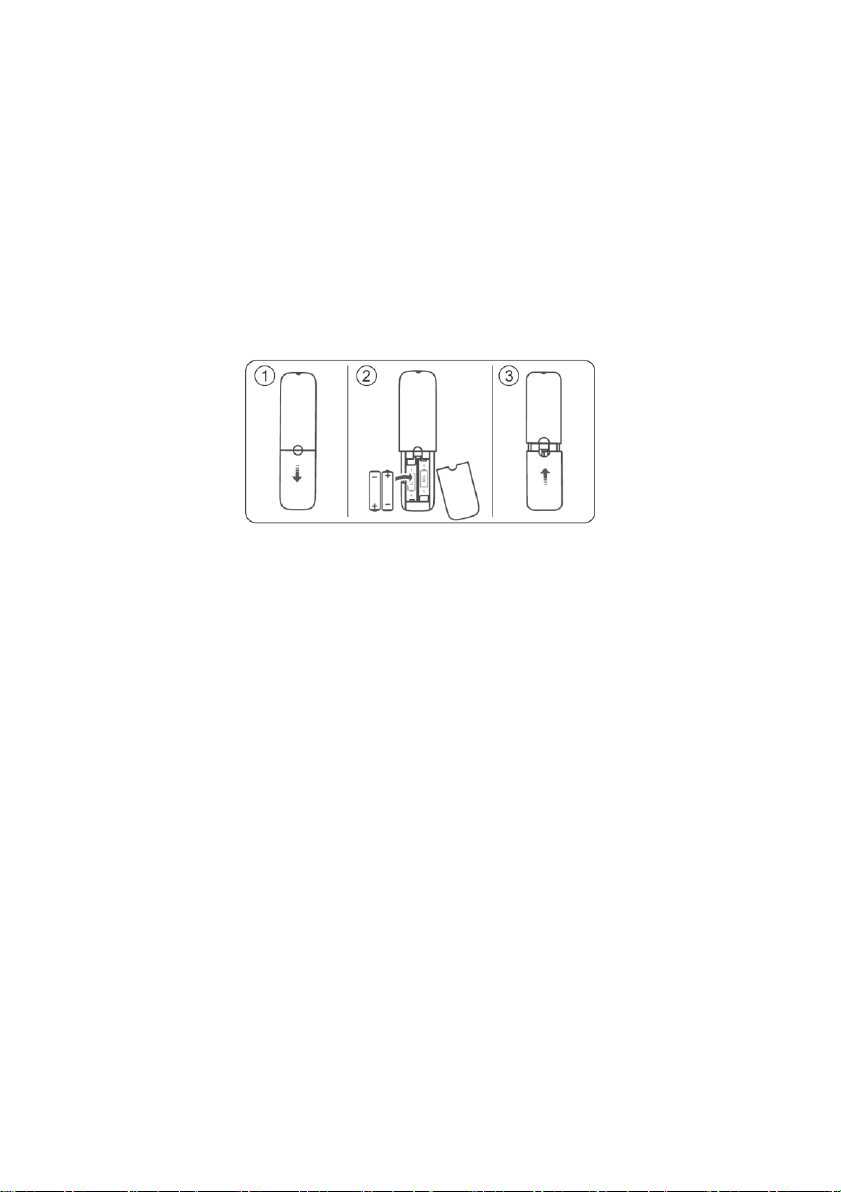

1. Press and slide back the battery compartment cover on the remote
control.
2. Insert two AAA batteries (included). Take care to match the polarity of
the batteries with the markings inside the battery compartment.
3. Slide the battery compartment cover back into place.
Notes:
•Remove the batteries from the controller if it will go unused for a
lengthy period of time.
•You can use either rechargeable or non-rechargeable batteries.
•Do not mix new and old batteries or batteries of different types.
•Do not mix alkaline, standard, or rechargeable batteries with this
product.
SOUNDBAR ENHANCED FEATURES
Dolby Atmos
One of the primary features of this soundbar is support for Dolby Atmos®. Dolby
Atmos is an audio encoding method that delivers an immersive listening
experience. It does this by using height speakers to create sound in three
dimensional space. However, rather than requiring speakers physically mounted

15
in the ceiling or high on the walls, it uses upward firing drivers that bounce
sound off the ceiling to create the three dimensional audio experience. Please
visit https://www.dolby.com/technologies/dolby-atmos for more details.
The following elements are required for Dolby Atmos® support:
•Full Atmos support is only available when using one of the HDMI® inputs.
•You must use an HDMI cable that complies with the HDMI version 2.0
specification, such as the included Premium High Speed HDMI Cable.
•The HDMI source devices should have No Encoding selected for the
audio bitstream.
•If using the eARC/ARC audio input, the TV must support Dolby Atmos.
eARC/ARC
This soundbar supports the HDMI® Audio Return Channel (ARC) and Enhanced
Audio Return Channel (eARC) features, which allow it to receive and playback
audio that originates on the connected TV. This is useful for when you watch
broadcast TV or when using an app on a smart TV. When properly configured,
you can use your TV's remote control to adjust the volume level and mute status
of the soundbar.
The following elements are required to use the eARC/ARC feature:
•Your TV must support both the HDMI CEC (Consumer Electronics
Control) and eARC or ARC features.
•You must enable CEC and eARC/ARC on your TV.
•The HDMI cable between the TV and the soundbar must comply with
the HDMI version 1.4 specification or later.
•Your TV's digital sound output S/PDIF mode must be set to PCM.
•To use eARC/ARC, select the HDMI eARC input on the soundbar.

16
CONNECTIONS
HDMI OUT

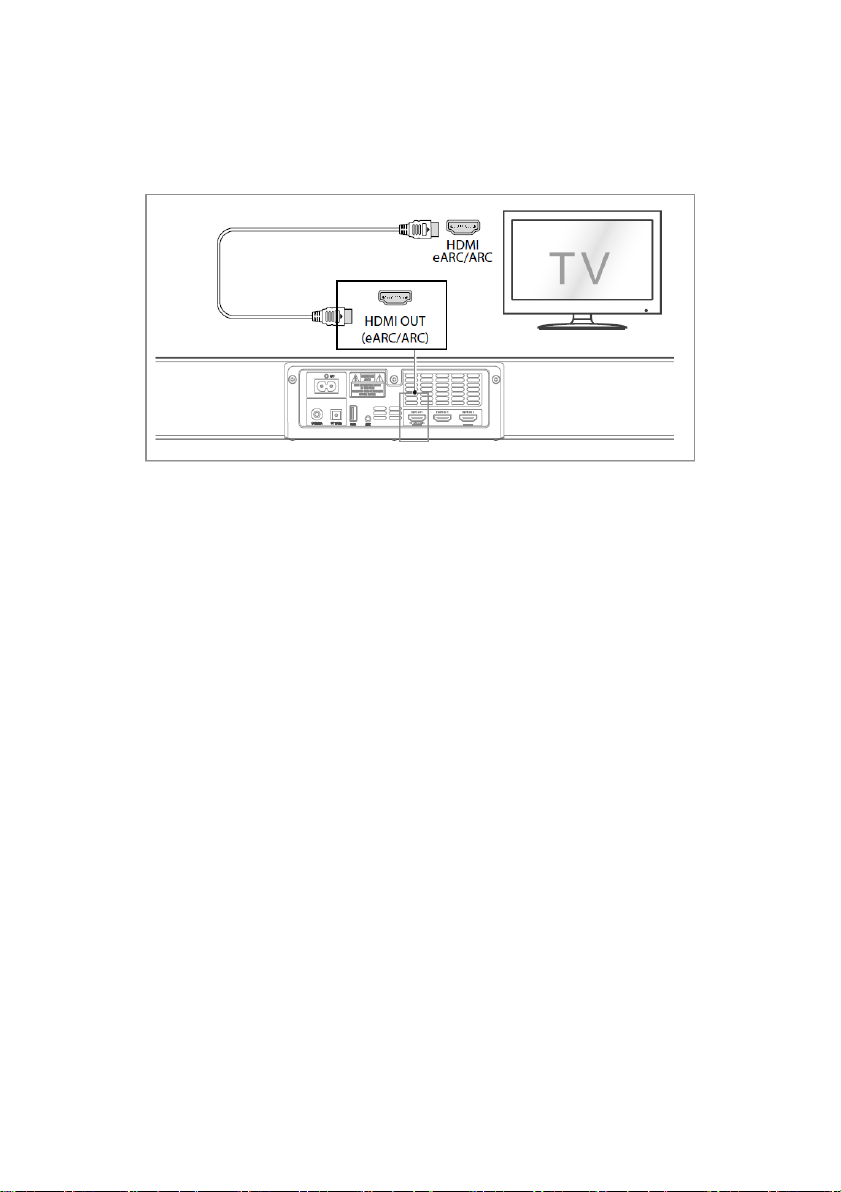

Use the included Premium High Speed HDMI® Cable to connect your TV to the
soundbar. Plug one end of the cable into an HDMI input on your TV, then plug
the other end into the HDMI OUT TV eARC/ARC port on the soundbar.
Notes:
•Some 4K HDR TVs require the HDMI input or picture settings to be set
for HDR content reception. Please refer to your TV's user's manual for
setup details.
•To use the eARC/ARC feature, you must connect to the HDMI input on
your TV that supports eARC/ARC. Please refer to your TV's user's manual.
•If you want to use Dolby Atmos® with the eARC/ARC feature, your TV
must support Dolby Atmos and you must use a Premium High Speed
HDMI Cable, such as the one included with the soundbar.

17
HDMI IN 1/HDMI IN 2
Use Premium High Speed HDMI® Cables, such as the one included in the package,
to connect your video source devices to the soundbar. Plug one end of the cable
into the HDMI IN 1 or HDMI IN 2 port on the soundbar, then plug the other end
into the HDMI output on your video source device.
Notes:
•Only one of the two HDMI inputs can be used at a time.
•If you will not be using Dolby Atmos® encoded content from either
video source device, you can connect using a High Speed HDMI® Cable
instead of a Premium High Speed HDMI Cable.

18
OPTICAL

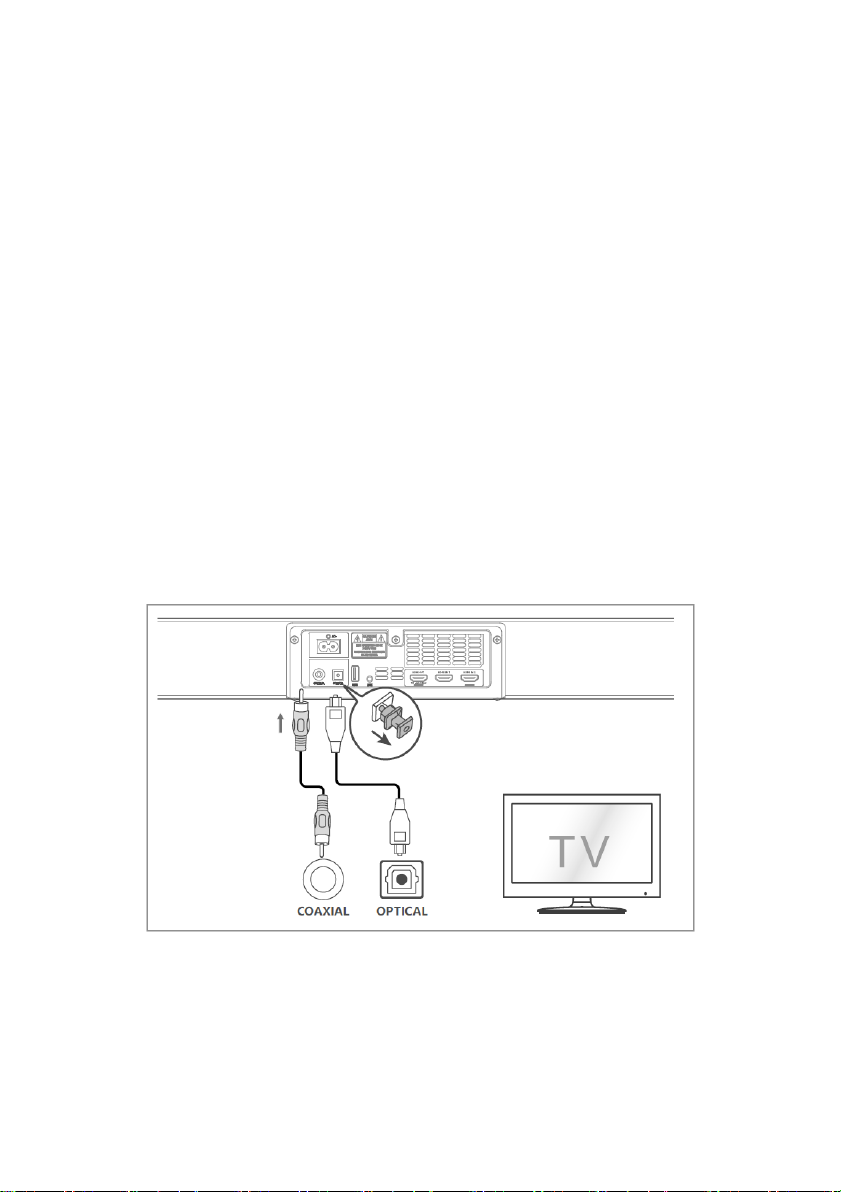

Use a digital optical S/PDIF cable (not included) to connect your TV or other
audio source device to the soundbar. First, remove the protective plug from the
OPTICAL connector on the soundbar. Put it in a safe place for later use. Plug one
end of an optical cable into the OPTICAL connector on the soundbar, then plug
the other end into the optical output on your TV or other audio source device.
Notes:
•You can use either the OPTICAL input or the COAXIAL input, but not
both at the same time.
•The OPTICAL input does not fully support Dolby Atmos®. For Dolby
Atmos playback, use one of the HDMI® inputs.
•The soundbar is not capable of decoding all digital audio formats. If an
unsupported format is detected, the audio will be muted. Ensure that
the audio format of the input source device is set to Dolby Digital™ or
PCM.

19
COAXIAL
Use a digital coaxial cable (not included) to connect your TV or other audio
source device to the soundbar. Plug one end of a digital coaxial cable into the
COAXIAL connector on the soundbar, then plug the other end into the coaxial
output on your TV or other audio source device.
Notes:
•You can use either the OPTICAL input or the COAXIAL input, but not
both at the same time.
•The COAXIAL input does not fully support Dolby Atmos®. For Dolby
Atmos playback, use one of the HDMI® inputs.
•The soundbar is not capable of decoding all digital audio formats. If an
unsupported format is detected, the audio will be muted. Ensure that
the audio format of the input source device is set to Dolby Digital™ or
PCM.

20
AUX
The AUX input is used to connect an analog audio source, such as your TV or the
headphone output of your smartphone, to the soundbar.
To connect the headphone output of a device, plug one end of the included
3.5mm audio cable into the AUX input on the soundbar, then plug the other end
into the headphone output of your source device.
To connect the stereo RCA outputs of a device to the soundbar, plug the 3.5mm
end of a 3.5mm to RCA stereo audio cable (not included) into the AUX input on
the soundbar, then plug the RCA end into the left and right RCA outputs of your
source device.
Power
Perform the following steps to connect the soundbar to AC power.
1. Ensure that all other connections have been made before connecting
power.
2. Ensure that your AC power source provides the 100 ~ 240 VAC, 50/60 Hz
mains power required by the soundbar.
