Monte Carlo Fan Company 5FNR60 Series User manual

OWNER’S
MANUAL
Ceiling Fan Installation Instructions
Total fan weight
with light
READ AND SAVE THESE INSTRUCTIONS
For 5FNR60XXD-L Series Fans

Remove keeper from pin and pin
from downrod. Place keeper back on
pin and save for later.
5
Loosen the 2 set screws until you
can not feel them on inside of yoke.
4
Place canopy on downrod. (as
shown)
6

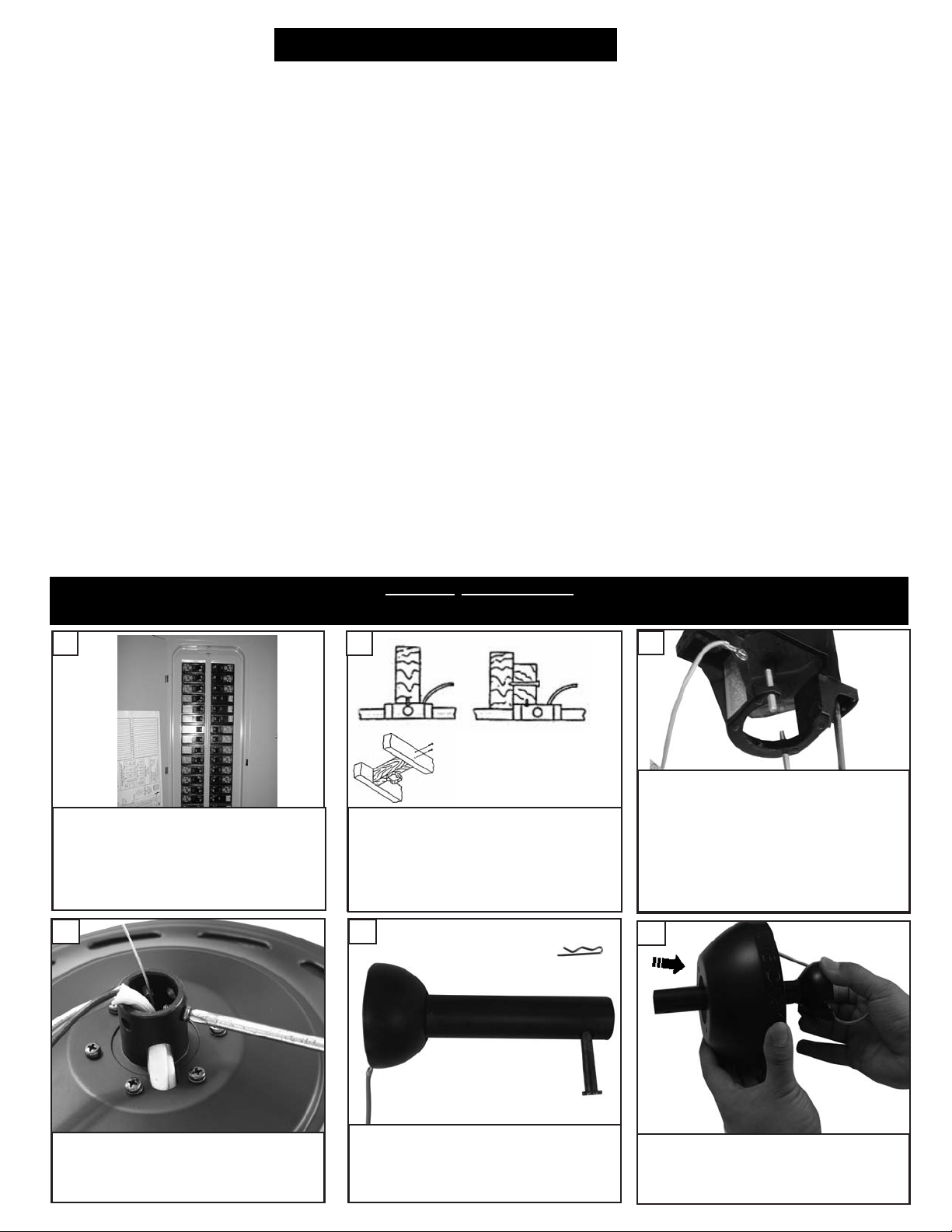

Before you begin installing the fan, Switch
power off at Service panel and lock service dis-
connecting means to prevent power from being
switched on accidentally. When the service dis-
connecting means cannot be locked, securely
fasten a prominent warning device, such as a
tag, to the service panel.
Before installing this fan make sure the outlet
box is properly installed to the house structure.
To reduce the risk of fire, electric shock, or per-
sonal injury, mount to outlet box or supporting
system acceptable for fan support. (Mounting
must support at least 35 lbs.)
Use metal outlet box suitable for fan support and
use only the screws provided with the outlet
box (must support 35 lbs). Before attaching fan to
outlet box, ensure the outlet box is securely fas-
tened by at least two points to a structural ceiling
member (a loose box will cause the fan to wobble).
Remove the two outlet box screws provided with
the box, aligning the holes of the mounting bracket
with the holes of the outlet box. Re-install the 2
outlet box screws securely.
3
21
Installation work and electrical wiring must be done by qualified person(s) in accordance with applicable codes ANSI/NFPA 70-1999),
including fire-rated construction.
Use this unit only in the manner intended by the manufacturer. If you have any questions contact the manufacturer.
After making the wire connections, the wires should be spread apart with the grounded conductor and the equipment-grounding con-
ductor on one side of the outlet box and ungrounded conductor on the other side of the outlet box.
Before you begin installing the fan, Switch power off at Service panel and lock service disconnecting means to prevent power from
being switched on accidentally. When the service disconnecting means cannot be locked, securely fasten a prominent warning device,
such as a tag, to the service panel.
Be cautious! read all instructions and safety information before installing your new fan. Review the accompanying assembly diagrams.
When cutting or drilling into wall or ceiling, do not damage electrical wiring and other hidden utilities.
Make sure the installation site you choose allows the fan blades to rotate without any obstructions. Allow a minimum clearance of 7
feet from the floor to the trailing edge of the blade.
To reduce the risk of fire, electric shock, or personal injury, mount to outlet box or supporting system acceptable for fan support.
Use only the screws provided with the outlet box. (Mounting must support at least 35 lbs.)
Do not bend blade holders during installation to motor, balancing or during cleaning. Do not insert foreign object between rotating
blades.
Attach the mounting bracket using only the hardware supplied with the outlet box.
WARNING - To reduce the risk of fire or electric shock, this fan should be used with fan speed control part no. UC7067RC-L, manufac-
tured by Rhine Electronic Co., Ltd.
The combustion airflow needed for safe operation of fuel-burning equipment may be affected by this unit’s operation. Follow the heat-
ing equipment manufacturer’s guideline safety standards such as those published by the National Fire Protection Association (NFPA),
and the American Society for Heating, Refrigeration and Air Conditioning Engineers (ASHRAE) and the local code authorities.
Before servicing or cleaning unit, Switch power off at Service panel and lock service disconnecting means to prevent power from being
switched on accidentally. When the service disconnecting means cannot be locked, securely fasten a prominent warning device, such
as a tag, to the service panel.
WARNING - To reduce the risk of electric shock, this fan must be installed with an isolating wall contorl,switch.
WARNING - All set screws must be checked and retightened where necessary before installation.
Suitable for use with solid state speed controls.
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.
WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS,
OBSERVE THE FOLLOWING: READ AND SAVE THESE INSTRUCTIONS
SAFETY TIPS
TOOLS REQUIRED
Phillips Screwdriver Wire Cutters Pliers Step Ladder
Installation

Hang assembled fan from the mounting bracket
installed to ceiling in previous step. Make sure
the fan is hanging straight. Rotate fan until the
tab on the Mounting bracket engages the slot
on the Downrod Ball. This must be done to
prevent the fan body from rotating when the
blades are in motion.
14
Make sure the studs protruding from the
bottom of the Mounting bracket are
installed with threads all the way through
the bracket.
16
Place downrod into fan yoke.
9
Install the keeper to pin.
11
Tighten the 2 set screws on the yoke
once the downrod is in place.
12
Align the hole in the downrod with
the hole in the yoke. Insert the pin
through the yoke and downrod until
the point appears on the other side.
10
Thread leadwires and safety cable
through downrod. (as shown)
8
Place yoke cover on downrod. (as
shown)
7
Pull down yoke cover.
13
Set dip switches on the Remote Transmitter and
Remote Receiver to the same settings. This must be
done so the units will communicate properly. If you
have other fans you can set to control from one trans-
mitter by setting both receivers the same as the
transmitter. If you have more than one fan with
remote. You can set the dip switches to different posi-
tions to have seperate control.
17
Remote Transmitter
Dip switches
Remote Receiver Dip
switches
Fan and light kit combinations over 35 lbs,
in both flush and downrod mode the safety
cable must be installed into the house struc-
ture beams using the 3” lag screws,washers,
and lock washers. provided. Make sure that
when the safety cable is fully extended the
lead wires are longer than the cable and no
stress is placed on the lead wires.
15 Safety cable installation
Safety Cable
Lag Screw
safety
cable
3” lag
screw
lock
washer
washer
Install remote receiver by sliding into opening in
the Mounting bracket. Make sure that the dip
switches on the Transmitter and the Receiver
are set to the same position.
18

Install the 75watt JD E11 mini candelabra base
bulb. Do not touch the surface of the bulb as
the oil from your skin can cause it to burn out.
Bulb included.
WARNING: Over lamping the fan will
result in the fan lights shutting down
until the proper wattage of bulbs are
installed.
Reset the lights by turning off the wall
switch, breaker,or by remote. Replace
bulbs with the correct wattage bulbs, turn
the power on.
28
Attach the light kit plate to the motor
plate. Align the keyslot holes and twist
to lock. Tighten the screw removed in
step 23 and tighten the other 2
screws.
24
Place light kit over the two screws
loosened and twist to lock into place.
Replace the screw previously
removed from step 25. Tighten
securely all 3 screws.
27
Attach blade to the motor using 3
screws and washers in the hardware
bag and tighten screws securely.
Repeat 4 more times.
22
Loosen 2 screws and remove 1 screw
from motor plate. Save removed
screw for use later.
23
Loosen 2 screws and remove 1
screw from the light kit plate. Save
the removed screw for use later.
25
Connect white wire from fan to white
wire from light kit. Then plug blue
wire from fan to black wire from light
kit.
26
Lift canopy allowing the 2 studs to pro-
trude through the canopy and install the
knurled nuts as shown. Tighten the
knurled nuts securely. The canopy should
adjust for any irregularity in the ceiling or
Outlet box.
21
Make wire connections to power source using
wire nuts provided. Make sure that no filiments
are outside of the wirenut. After making the
wire connections, the wires should be spread
apart with the grounded conductor and the
equipment-grounding conductor on one side of
the outlet box and ungrounded conductor on
the other side of the outlet box. Splices after
being made should be turned upward and
pushed carefully.
20
Make wiring connections as indicated above.
White from fan to white from remote marked
N. Blue from fan to blue from remote marked
light. Black from fan to Black from remote
marked L. White from house to white from
remote marked AC N . Black from house to
Black from remote marked AC L. Connect all
green ground wires to Ground wire from
House.
19
white
black
Install the glass by twisting clock-
wise to secure the glass.
29
Remove hand remote cover by snaping off from
top or bottom. Remove battery cover. Install
12V battery into wall remote. Duracell MN21 /
Eveready A23 / GP 23A all 12V
.Attach cover of
remote by placing over buttons and snap the
battery cover in place.
30

Place battery cover over battery compartment
and buttons. Place hand remote cover over 2
pins on front cover. Attach hand remote cover
the by placing over 4 pins and snapping into
place.
31 HAND HELD INSTALL
Install wall control unit to outlet box
using machine screws provided.
32 WALL MOUNT INSTALL
Attach the wall trim plate to the wall
control with the screws provided.
Snap battery cover in place.
33

Remote Control Transmitter
Features:
FAN SPEED Depress “l dot” for low speed, “2 dots” for medium or “3 dots” for
high. To turn fan off press square”.
LIGHT DIMMER To turn light on, press light dimmer once quickly. To turn off
press once quickly while light is on. To dim light hold down button “light dimmer”.
The light will cycle from bright to dim to bright until button is released. Light will
maintain last setting if turned off.
FORWARD/REVERSE Depress rev button allow a few seconds for remote to
change rotation direction with fan running.
HIGH SPEED
MEDIUM SPEED
LOW SPEED
FAN OFF SETTING
(Turns fan off only)
FAN REVERSE
(Press once to
change direction of
the fan)Fanmust be
running to reverse.
LIGHT ON/OFF SET-
TING AND DIMMER
(Press and hold to
dim light infinitively)
LED LIGHT

1.Check main and branch circuit fuses or circuit breakers.
2.Check line wire connections to fan and switch wire connections in switch housing.
CAUTION: Make sure main power is turned off.
3.Make sure forward/reverse switch is firmly in up or down position. Fan will not operate when
switch is in the middle.
1.Check to make sure all screws in motor housing are snug (not over tightened).
2.Check to make sure the screws which attach the fan blade holder to the motor are tight.
3.Check to make sure wire nut connectors in switch housing are not rattling against each other or
against the interior wall of the switch housing.
CAUTION: Make sure main power is turned off before entering switch housing.
4.Some fan motors are sensitive to signals from Solid State variable speed controls.
5.Allow "break-in" period of 24 hours. Most noises associated with a new fan will disappear after
this period.
1.Make sure that the ridge of the canopy engages the notch in the downrod ball. (See illustration in
Step #6 of Downrod Mount installation).
2.Check that all blades are screwed firmly into blade holders.
3.Check that all blade holders are tightened securely to motor.
4.Make sure that canopy and mounting bracket are tightened securely to ceiling junction box and
junction box is mounted firmly to ceiling joist.
5.Most fan wobble problems are caused when blade levels are unequal. Check this level by selecting
a point on the ceiling above the tip of one of the blades. Measure this distance from blade tip to
ceilng. Keeping measure within 1/8", rotate the fan until the next blade is positioned for measure-
ment. Repeat for each blade. If all blade levels are not equal, you can adjust blade levels by the fol-
lowing procedure. To adjust a blade tip down, insert a washer (not supplied) between the blade and
blade holder at the screw closest to the motor. To adjust a blade tip up, insert washer (not supplied)
between the blade and blade holder at the two screws farthest from the motor
. Reverse the position
of the washer if blades mount from top of blade.
6.If blade wobble is still noticeable, interchanging two adjacent (side by side) blades can redistribute
the weight and possibly result in smoother operation.
1.Check blue wire from fan to make sure it is connected to hot wire from house.
2.Check for loose or disconnected wires in fan switch housing.
3.Check for loose or disconnected wires in light kit.
4.Check for faulty light bulbs.
WARNING: Over lamping the fan will result in the fan lights shutting down until
the proper wattage of bulbs are installed.
Reset the lights by turning off the wall switch, breaker,or by remote. Replace bulbs with
the correct wattage bulbs, turn the power on.
CAUTION: Make sure main power is turned off before entering switch housing.
User Servicing Instructions
WARNING: Before attempting to replace the fuse make sure the main power is turned off
to the fan. (Fuse is inside the canopy on the blue wire to remote receiver, push and twist
the cap to open the fuse case) Push and twist to reassemble fuse.
Risk of fire. Replace fuse only with 3 amp, 125 volt fuse.
2. If fan sounds noisy:
1. If fan does not start:
3. If fan wobbles:
4. If light does not work:
TROUBLE SHOOTING
If you have difficulty operating your new ceiling fan, it may be the result of incorrect assembly, installation, or wiring. In
some cases, these installation errors may be mistaken for defects. If you experience any faults, please check this Trouble
Shooting Chart. If a problem cannot be remedied, or you are experiencing difficulty in installation, please call our
Customer Service Center at the
number printed on your parts list insert sheet.
Warning: Before servicing or cleaning unit, Switch power off at Service panel and lock service disconnecting
means to prevent power from being switched on accidentally. When the service disconnecting means cannot
be locked, securely fasten a
prominent warning device, such as a tag, to the service panel.
Customer Service Center:
301 West Washington St.
Riverside, NJ 08075
1-800-519-4092
www.montecarlofans.com
