Monte Carlo Fan Company 5SH54XXD-L Series User manual

Ceiling Fan Installation Instructions
For 5SH54XXD-L Series Fans
READ AND SAVE THESE INSTRUCTIONS
Total fan weight
with light kit
OWNER’S
MANUAL

Installation work and electrical wiring must be done by qualified person(s) in accordance with applicable codes ANSI/NFPA 70-1999),
including fire-rated construction.
Use this unit only in the manner intended by the manufacturer. If you have any questions contact the manufacturer.
After making the wire connections, the wires should be spread apart with the grounded conductor and the equipment-grounding con-
ductor on one side of the outlet box and ungrounded conductor on the other side of the outlet box.
Before you begin installing the fan, Switch power off at Service panel and lock service disconnecting means to prevent power from
being switched on accidentally. When the service disconnecting means cannot be locked, securely fasten a prominent warning device,
such as a tag, to the service panel.
Be cautious! read all instructions and safety information before installing your new fan. Review the accompanying assembly diagrams.
When cutting or drilling into wall or ceiling, do not damage electrical wiring and other hidden utilities.
Make sure the installation site you choose allows the fan blades to rotate without any obstructions. Allow a minimum clearance of 7
feet from the floor to the trailing edge of the blade.
To reduce the risk of fire, electric shock, or personal injury, mount to outlet box or supporting system acceptable for fan support.
(Mounting must support at least 35 lbs.)
Do not bend blade holders during installation to motor, balancing or during cleaning. Do not insert foreign object between rotating
blades.
Attach the mounting bracket using only the hardware supplied with the outlet box.
To reduce the risk of fire or electric shock, do not use this fan with any solid state fan speed control device, or variable speed control.
If this unit is to be installed over a tub or shower, it must be marked as appropriate for the application.
NEVER place a switch where it can be reached from a tub or shower.
The combustion airflow needed for safe operation of fuel-burning equipment may be affected by this unit’s operation. Follow the heat-
ing equipment manufacturer’s guideline safety standards such as those published by the National Fire Protection Association (NFPA),
and the American Society for Heating, Refrigeration and Air Conditioning Engineers (ASHRAE) and the local code authorities.
Before servicing or cleaning unit, Switch power off at Service panel and lock service disconnecting means to prevent power from being
switched on accidentally. When the service disconnecting means cannot be locked, securely fasten a prominent warning device, such
as a tag, to the service panel.
To assure success of this installation be sure to read the instructions and review the dia grams thoroughly before beginning. Follow
the instructions that are applicable for your light kit.
Review the installation instructions supplied with your fan. Make sure that your fan has been wired properly into the ceiling to allow
use with your light kit.
All electrical connections must be in accordance with local codes, ordinances, and national electrical codes.
If you are unfamiliar with methods of installing electrical wiring, secure the services of a qualified electrician.
Caution - risk of electrical shock. Before starting installation, disconnect the power by turning off the circuit breader or
removing the fuse at the fuse box. Turning the power off using the fan switch is not sufficient to avoid electrical shock.
Warning: Risk of fire, use only compact fluorescent lamps rated 13 watts.
Warning: This fixture is not dimmable. Use only with on/off switch. Do not use in conjunction fan/light remote controls
or light dimmers.
NOTE: The important safeguards and instructions appearing in this manual are not meant to cover all possible conditions and situa-
tions that may occur. It must be understood that common sense, caution and care are factors that cannot be built into any product.
These factors must be supplied by the person(s) caring for and operating the unit.
Note--For Outdoor Fans Only: Suitable for use in wet locations when installed in a GFCI protected branch circuit.
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.
17.
18.
19.
20.
21.
22.
23.
24.
WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS,
OBSERVE THE FOLLOWING: READ AND SAVE THESE INSTRUCTIONS

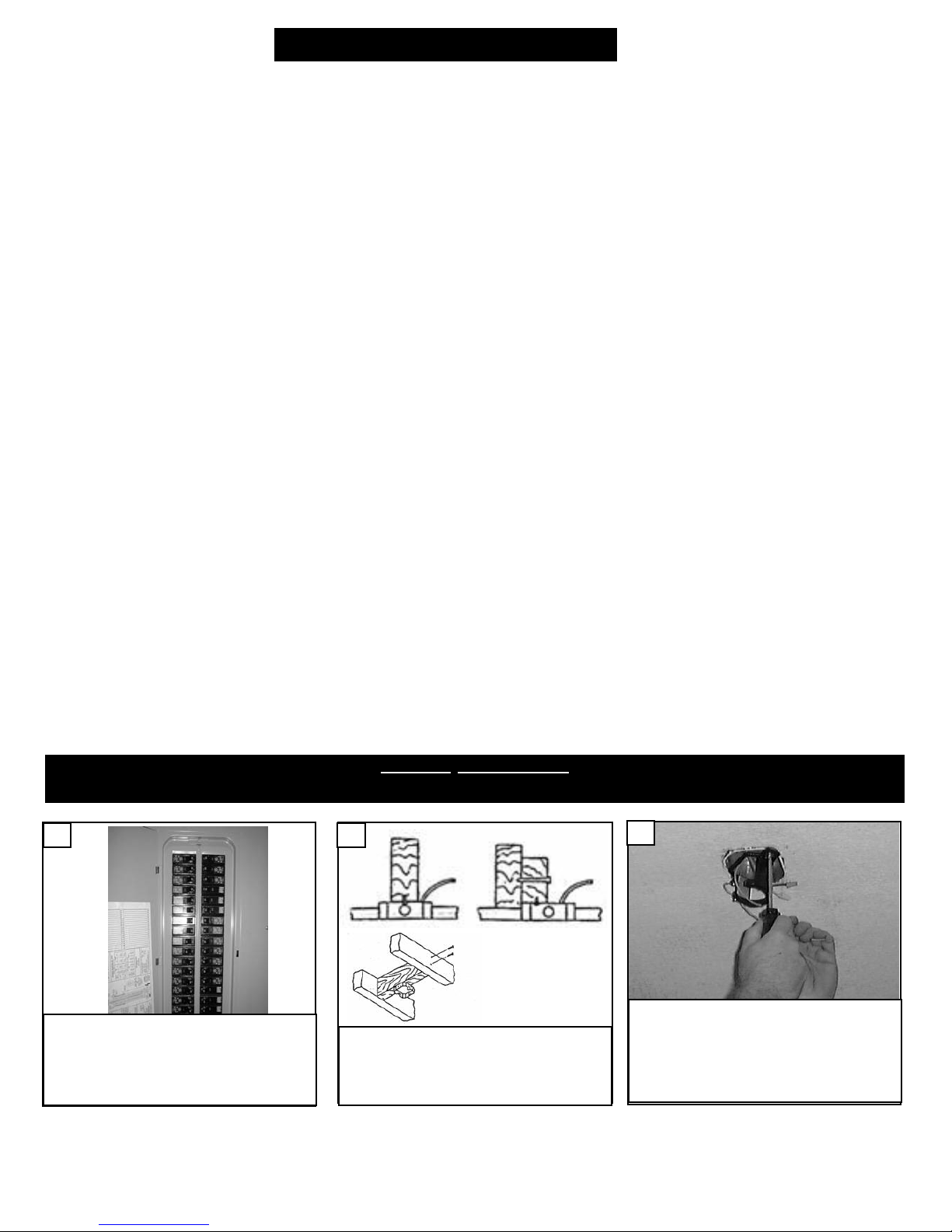

SAFETY TIPS
TOOLS REQUIRED
Phillips Screwdriver Wire Cutters Pliers Step Ladder
Before you begin installing the fan, Switch
power off at Service panel and lock service dis-
connecting means to prevent power from being
switched on accidentally. When the service dis-
connecting means cannot be locked, securely
fasten a prominent warning device, such as a
tag, to the service panel.
Before installing this fan make sure the outlet box is
properly installed to the house structure. To reduce
the risk of fire, electric shock, or personal injury,
mount to outlet box or supporting system acceptable
for fan support. (Mounting must support at least 35
lbs.)
Use metal outlet box suitable for fan support
(must support 35 lbs). Before attaching fan to
outlet box, ensure the outlet box is securley
fastened by at least two points to a structural
ceiling member ( a loose box will cause the fan
to wabble). Use only the screws provided
with the outlet box.
3
21
Installation

Loosen set screws with locking nuts. Loosen screw on downrod ball.
Remove keeper from pin and then
pin from yoke for downrod.
56
4
Check the motor for plastic shipping
stabilizer tabs and remove them if
they are present.
15
Place the downrod ball over the
downrod and slide the cross pin back
into the hole it was removed from.
12
Slide the downrod ball down, remove
the cross pin and save.
7
Place the canopy over the downrod
as shown above.
11
Place the yoke cover over the down-
rod as shown above.
10
Tighten the set screws securely.
9
Thread the leadwires and safety
cable through the downrod and place
the downrod into the yoke. Insert
the clevis pin by aligning the holes
from the yoke and downrod. Insert
the keeper pin into the end of the
clevis pin.
8
Pull the downrod ball up aligning the
seated area to fit around the
crosspin.
13
While holding the downrod ball in
place, tighten the set screw securely.
14

Lift canopy to ceiling aligning the key
hole slots with the screws on the bottom
of the mounting bracket. Rotate the
canopy counter clockwise to lock in place.
Tighten the screws to secure the canopy.
See insert for key hole shape.
20
Make wire connections to power source using wire
nuts provided. Make sure that no filiments are out-
side of the wirenut. After making the wire connec-
tions, the wires should be spread apart with the
grounded conductor and the equipment-grounding
conductor on one side of the outlet box and
ungrounded conductor on the other side of the outlet
box.
19
Remove 1 screwand save. Loosen
other 2 screws .Remove cap by
twisting and pulling down. Save
screws.
Install switch housing to light kit by
aligning keyslots and turning clock-
wise. Tighten 3 screws.
24
23
Attach blade brackets to blades
using the blade bracket screws
and washers provided.
21
The screws, washers, and motor
pads are pre-installed to the blade
holders. Attach blade assembly to
motor and tighten screws securely.
22
Connect 9 plug connectors together.
25
Black capacitor box needs to be
stuck to the switch housing. Not
being attached can cause motor
noise.
Remove twin adhesive tape from the
black capacitor as shown above.
27
26
Hang assembled fan from the mounting bracket
installed to ceiling in previous steps. Make
sure the fan is hanging straight. Rotate fan
until the tab on the Mounting bracket engages
the slot on the Downrod Ball. This must be
done to prevent the fan body from rotating
when the blades are in motion.
16
Connect black and blue wire from fan to
Black or (Hot) wire from house. Connect
White wire from Fan to White (Neutral)
wire from house. Connect Ground leads
from mounting bracket and downrod to
Ground lead from house. Refer to
Safety Tips section of manual.
18
House Fan
Blue
Black
White
Green
Black
White
Ground
For Canadian installation and for USA fan and
light kit combinations over 35 lbs, in both flush
and downrod mode the safety cable must be
installed into the house structure beams using
the 3” lag screws,washers, and lock washers.
provided. Make sure that when the safety cable
is fully extended the leadwires are longer than
the cable and no stress is placed on the lead-
wires.
17 Safety cable installation
Safety Cable
Lag Screw
safety
cable
3” lag
screw lock
washer
washer

Locate blue and white wire from the
fan marked “For light kit”. Connect
blue from fan to black from light and
white from fan to white from light by
pushing connectors together.
Attach switch cap to fan by lining up
3 screw holes and installing the 3
screws removed and saved from ear-
lier step. Tighten screws securely.
33
34
If not installing the light kit
skip to step 40. Push wires
through center hole of the switch
cap.
30
Place pull chain from fan through
guide from light kit. Be sure they are
lined up vertically.
38
Loosen 3 screws on the ridge of the
light kit.
35
Attach fob with connector to extend
your pull chains.
39
Push glass up into fitter and hand
tighten the 3 screws to hold in place.
37
Install keeper nut from the threaded
pipe of the light kit.
Install the keeper nut from the lead
wires.
31
Remove 3 screws on the ridge of
the switch cap and save.
29
32
Place and press firmly on the capaci-
tor to stick it to the switch housing.
Be sure it is secure.
28
Install 2 x 13 watt (E27) based
fluorescent bulbs.(Bulbs Included)
36

Attach switch cap to fan by lining up
3 screw holes and installing the 3
screws removed and saved from ear-
lier step. Tighten screws securely.
40 Installing without light kit.

1.Check main and branch circuit fuses or circuit breakers.
2.Check line wire connections to fan and switch wire connections in switch housing.
CAUTION: Make sure main power is turned off.
3.Make sure forward/reverse switch is firmly in up or down position. Fan will not operate when
switch is in the middle.
4.Make sure that shipping stabilizer tabs have been removed from motor.
1.Check to make sure all screws in motor housing are snug (not over tightened).
2.Check to make sure the screws which attach the fan blade holder to the motor are tight.
3.Check to make sure wire nut connectors in switch housing are not rattling against each other or
against the interior wall of the switch housing.
CAUTION: Make sure main power is turned off before entering switch housing.
4.If using an optional Ceiling Fan Light Kit, check to be sure the screws securing the glassware are
finger tight. Check to be sure light bulb is tight in socket and not touching glass shade(s). If
vibration persists from glass, remove glass and install a 1/4" wide rubber band on glass neck to
act as an insulator. Replace glass and tighten screws against rubber band.
5.Some fan motors are sensitive to signals from Solid State variable speed controls. DO NOT
USE a Solid State variable speed control.
6.Allow "break-in" period of 24 hours. Most noises associated with a new fan will disappear after
this period.
1.Make sure that the ridge of the canopy engages the notch in the downrod ball. (See illustration
in Step #6 of Downrod Mount installation).
2.Check that all blades are screwed firmly into blade holders.
3.Check that all blade holders are tightened securely to motor.
4.Make sure that canopy and mounting bracket are tightened securely to ceiling junction box and
junction box is mounted firmly to ceiling joist.
5.Most fan wobble problems are caused when blade levels are unequal. Check this level by select-
ing a point on the ceiling above the tip of one of the blades. Measure this distance from blade tip
to ceilng. Keeping measure within 1/8", rotate the fan until the next blade is positioned for meas-
urement. Repeat for each blade. If all blade levels are not equal, you can adjust blade levels by
the following procedure. To adjust a blade tip down, insert a washer (not supplied) between the
blade and blade holder at the screw closest to the motor. To adjust a blade tip up, insert washer
(not supplied) between the blade and blade holder at the two screws farthest from the motor.
Reverse the position of the washer if blades mount from top of blade.
6.If blade wobble is still noticeable, interchanging two adjacent (side by side) blades can redistrib-
ute the weight and possibly result in smoother operation.
1.Check blue wire from fan to make sure it is connected to hot wire from house
2.Check for loose or disconnected wires in fan switch housing.
3.Check for loose or disconnected wires in light kit.
4.Check for faulty light bulbs.
CAUTION: Make sure main power is turned off before entering switch housing.
WARNING: USE MAXIMUM 13 WATTS LISTED SBCFL (SELF-BALLASTED
COMPACT FLUORESCENT LAMP) ONLY, NOT USING SBCFL WILL OVERHEAT THE UNIT
AND CAUSE DAMAGE TO THE UNIT OR THE FAN WHICH THE UNIT IS INSTALLED
TOGETHER.
2. If fan sounds noisy:
1. If fan does not start:
3. If fan wobbles:
4. If light does not work:
TROUBLE SHOOTING
If you have difficulty operating your new ceiling fan, it may be the result of incorrect assembly, installation, or wiring. In
some cases, these installation errors may be mistaken for defects. If you experience any faults, please check this Trouble
Shooting Chart. If a problem cannot be remedied, or you are experiencing difficulty in installation, please call our
Customer Service Center at the
number printed on your parts list insert sheet.
Warning: Before servicing or cleaning unit, Switch power off at Service panel and lock service disconnecting
means to prevent power from being switched on accidentally. When the service disconnecting means cannot
be locked, securely fasten a prominent warning device, such as a tag, to the service panel.
Customer Service Center:
301 West Washington St.
Riverside, NJ 08075
1-800-519-4092
www.montecarlofans.com
