Montigo 34FID-S Instruction Manual

XG0526 151109.2
34FID - Linear
I-Series
Indoor
Resi
dential
Fireplace Insert
Installation & Maintenance Manual
Installer: Leave this manual with the appliance.
Consumer: Retain this manual for future reference.
NOTICE
Canadian Heating Products Inc. Langley, BC V4W 4A1 | Montigo Del Ray Corp. Ferndale, WA 98248

Page 2 XG0526-151109.2
Table of Contents
I-Series Indoor Gas Fireplace
Safety Alerts 3
Introduction 4
Section 1: Product Dimensions 7
Standard Trim 7
Oversized Trim 8
Four-sided Trim 9
Clearances: 10
Section 2: Installation 10
Install Dimensions: 10
Non Combustible Board Install 11
Approved Vent Components 12
Section 3: Venting 12
Vent Congurations 13
Section 4: Unpacking 15
Standard Faceplate Kit 16
Door Installation & Removal 17
LP Conversion 18
Gas line connection 23
Fuel Supply + Manifold Pressure Checking 24
Standard and Oversized Faceplate Installation 25
Four Sided Faceplate Installation 28
CPI [Continuous Pilot Ignition] / IPI [Intermittent Pilot Ignition] Jumper
Cable Installation 31
Leveling the Unit 32
Connecting Power 32
Battery Installation / Replacement 32
Firestones or Fireglass Installation 33
Speckled Stone Installation 34
Driftwood Log Set Installation 36
Operation 37
Initial Operation 37
Pilot FlameAdjustment 37
Master Override Switch 38
AerationAdjustment 40
Remote Operation 41
Accent Light Control 44
Maintenance 47
Burner Removal / Installation 47
Firebox Panel Removal / Replacement 49
Accent Light Replacement 50
Optional Fan / Blower Replacement 50
Window Cleaning / Screen Removal 53
Battery Replacement 54
Pilot Maintenance / Replacement 56
Control Board Replacement 59
Control Board Fuse Replacement 60
Vent Maintenance / Inspection 61
SIT Proame 2 Troubleshooting: 62
AppendixA: Warranty 63
Appendix B: State of Massachusetts 64
Replacement Parts 65

Page 3
XG0526-151109.2
I-Series Indoor Gas Fireplace

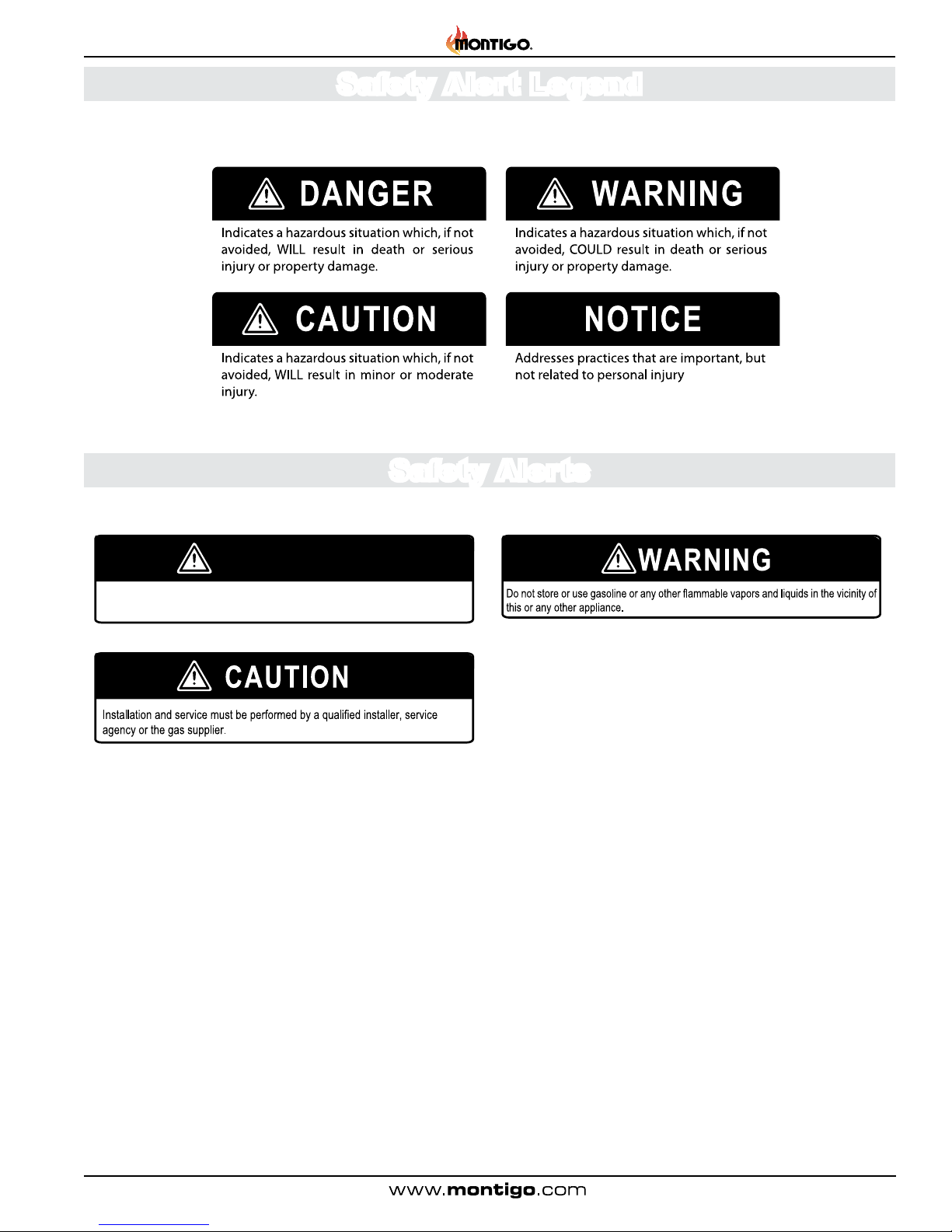

Safety Alert Legend
Safety Alerts
If the information in these instructions is not followed exactly, a fire or explosion
may result causing property damage, personal injury or death.
WARNING
Safety Alerts

Page 4 XG0526-151109.2
I-Series Indoor Gas Fireplace
Installation
Introduction
Congratulations on your purchase of a Montigo Fireplace.
With over 30 years of experience, Montigo is committed to providing
you with a gas replace that is not only a beautiful addition to your
space, but that is also designed and manufactured to the highest
safety, reliability and engineering standards.
We strongly encourage you to read and carefully follow the instructions
laid out in this Installation, Operation and Maintenance Manual
and retain it for your future reference. Pay special attention to all
cautions, warnings, and notices throughout this manual intended
to ensure your safety.
This manual covers installation, operation and maintenance. Lighting,
operation and care of this replace can be easily performed by the
homeowner. All installation and service work should be performed
by a qualied or licensed installer, plumber or gas tter as certied
by the state, province, region or governing body where the replace
is being installed.
This installation, operation and maintenance manual is applicable
to the models described below. Refer to your rating plate to verify
included options.
Warranty and Installation Information: (See Appendix B)
The Montigo warranty will be voided by, and Montigo disclaims any
responsibility for, the following actions:
► Modication of the replace and/or components including
Direct-Vent assembly or glass doors.
► Use of any component part not manufactured or approved
by Montigo in combination with this Montigo replace system.
► Installation other than as instructed in this manual.
ConsultyourlocalGasInspectionBranchoninstallationrequirements
for factory-built gas replaces. Installation & repairs should be done
by a qualied contractor.
This appliance is equipped for altitudes from 0 - 4500 feet [0
-1370 m]. For higher altitudes contact your Montigo dealer.
34FIDN-L-F [NG] 34FIDL-L-F [LP]
Part Number 34FIDNIL-01 34FIDLIL-01
Input Rating 31,000 BTU 30,000 BTU
Gas Supply Pressure 7" WC 11" WC
Manifold Pressure
High 3.5" 10"
Low 2.2" 6.4"
Orice Size (DMS) 35 52
Pilot Orice Size (No.) 62 35
Air Shutter Min Settings Fully Closed 3/16" Open
Electrical Requirement 115 VAC, 60Hz 115 VAC, 60Hz
Vent Size 4"Exhaust/3" Intake 4"Exhaust/3"Intake Aluminum / Stainless Flex
Minimum Vent Length 10' 10'
Maximum Vent Length 36' 36'
Efciency AFUE Method 70.01% 71.06%
Efciency P.4 Method 77.40% 78.50%
Clearances
Mantel 17" 17"
Hearth 0" 0"
Side Wall 8" 8"
Control Type SIT Proame 2 SIT Proame 2
Light Bulb Specication 20W, G6.35, Qty 5 20W, G6.35, Qty 5
Fuse Specication 3.15Amps 3.15Amps
Fan Amperage 1.6Amps 1.6Amps
Certication(s) Ansi Z21.88-2014 / CSA 2.33-2014 VENTED GAS FIREPLACE HEATERS
CGA2.17-M91 [R2009] GAS FIREDAPPLIANCES FOR HIGHALTITUDES
CSA P.4.1-09 Fireplace Efciency
CSA P.4.1-09 [R2014] Fireplace Efciency
Introduction

Page 5
XG0526-151109.2
I-Series Indoor Gas Fireplace
Installation
Installation
Introduction
Before You Begin
IMPORTANT MESSAGE: SAVE THESE INSTRUCTIONS
TheI-Seriesinsert replaces must be installed in accordance with
theseInstructions.Carefullyreadalltheinstructionsinthismanual
rst. Consult the Local Gas Branch to determine the need for a
permit prior to starting the installation. It is the responsibility of the
installer to ensure this replace is installed in compliance with the
manufacturers instructions and all applicable codes.
Installations into a Factory Built Solid Fuel Burning Fireplace
This gas appliance has been tested and approved for installation into
any approved masonry or factory built solid fuel replace, in which
this gas insert will t.
In the event that the vertical height of the factory built replace is less
than 20" you may remove some of the components such as the ue
bafe, ue damper or surround panels. These components can be
removed on the condition that:
1). The removal of such components in no way compromises the
structural integrity of the unit.
2). A label supplied with your insert is prominently afxed to the
existing replace. This label can be found included in the bag that
contains the back-up batteries for the insert.
The bottom of the existing replace may be removed as long as it
does not compromise the structural integrity of the existing rplace
andyoumaintainamandatoryminimum3/4"clearancebetweenthe
bottom of the insert and the bottom shell of the existing replace.
This can be achieved by using strips of noncombustible material or
by using the leveling bots on the insert.
REMOVE THIS
SECTION OF
METAL FLOOR
3
4
"
20
MIN.
LEVELING
BOLTS
REMOVE THIS
SECTION OF
METAL FLOOR
3
4
"
20
MIN.
LEVELING
BOLTS
Figure 1 Sec.1

Page 6 XG0526-151109.2
I-Series Indoor Gas Fireplace
Installation
Rating label sample: Natural Gas Sample Shown
Figure 2 Sec.1 Ratinglabel location



 












LB1223-V5.2 SIT IPI -with screen AUG.17.2015
  










 


    




  

  








    






 
 
 

 

 

Teklynx LabelView Demo
Rating Label:

Page 7
XG0526-151109.2
I-Series Indoor Gas Fireplace
Installation
Introduction

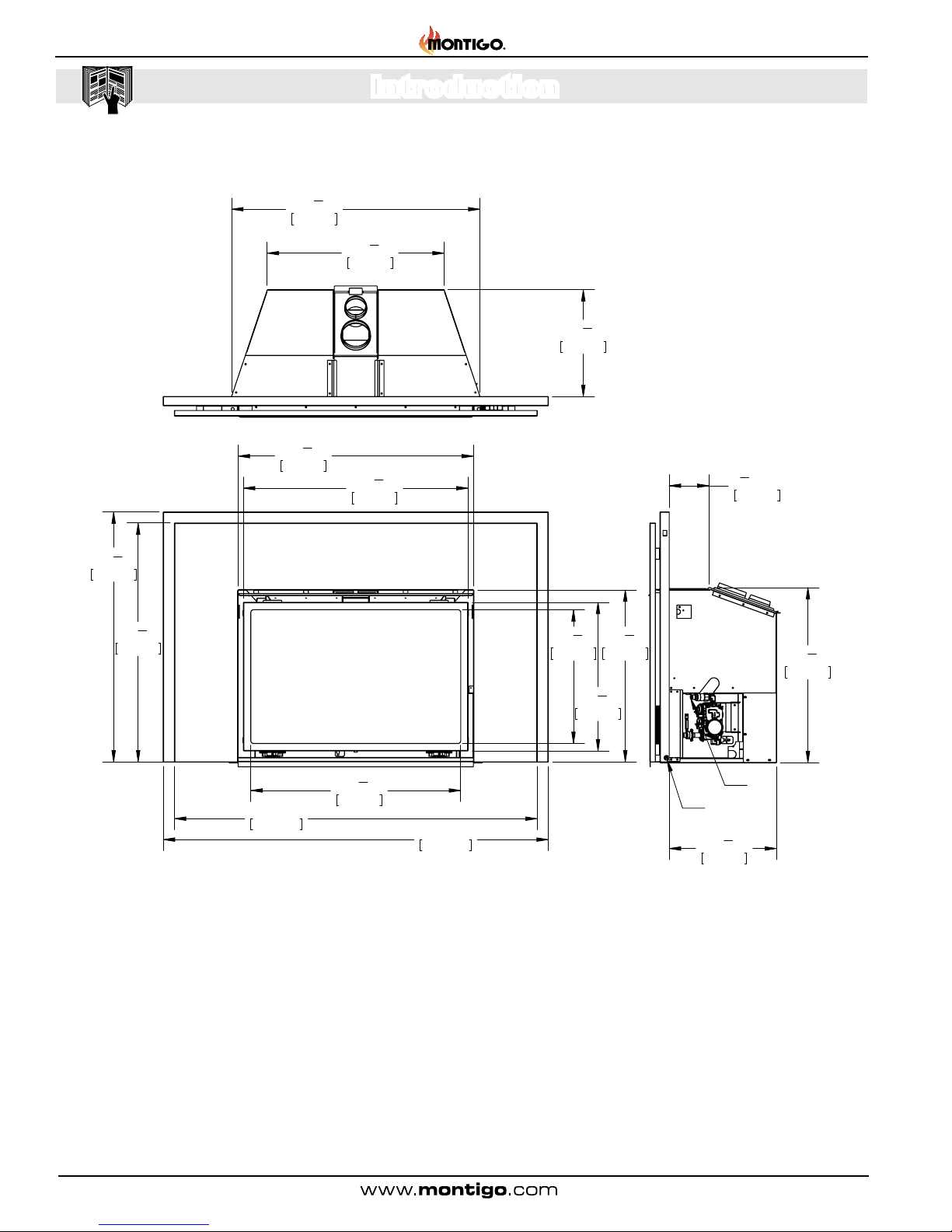

Section 1: Product Dimensions
Figure 3 Sec.1 34DFID-Ldimensions (Tolerance ± ⅛") [1.25 mm]
30
3
8
"
771mm
28
3
8
"
720mm
20
1
8
"
511mm
18
1
8
"
460mm
46
1
2
"
1181mm
43
1
2
"
1105mm
30
7
8
"
784mm
29
3
8
"
746mm
23
1
4
"
592mm
31
3
4
"
807mm
23
7
8
"
607mm
14
1
2
"
368mm
33
1
2
"
852mm
14
1
2
"
368mm
23
3
4
"
603mm
53
8
"
137mm
ELECTRICAL
GAS LINE
Standard Surround
Standard Trim

Page 8 XG0526-151109.2
I-Series Indoor Gas Fireplace
Installation
Introduction
30 3
8
"
771mm
28 3
8
"
720mm
20 1
8
"
511mm
18 1
8
"
460mm
52"
1321mm
49"
1245mm
33 7
8
"
860mm
32 3
8
"
822mm
31 3
4
"
807mm
23 1
4
"
592mm
23 7
8
"
607mm
14 1
2
"
368mm
33 1
2
"
852mm
23 3
4
"
603mm
14 1
2
"
368mm
53
8
"
137mm
ELECTRICAL
GAS LINE
Oversize Surround
Figure 4 Sec.1 34DFID-Ldimensions (Tolerance ± ⅛") [1.25 mm]
Oversized Trim

Page 9
XG0526-151109.2
I-Series Indoor Gas Fireplace
InstallationIntroduction
Four-sided Trim
46 1
2
"
1181mm
36"
914mm
31 3
4
"
807mm
33"
838mm
30 3
8
"
771mm
75
8
"
192mm
23 1
4
"
591mm
43 1
2
"
1105mm
28 3
8
"
720mm
20 1
8
"
511mm
18 1
8
"
460mm
14 1
2
"
368mm
23 7
8
"
607mm
33 1
2
"
852mm
14 1
2
"
368mm
23 3
4
"
603mm
53
8
"
137mm
ELECTRICAL
GAS LINE
4-Sided Surround
Figure 5 Sec.1 34DFID-Ldimensions (Tolerance ± ⅛") [1.25 mm]

Page 10 XG0526-151109.2
I-Series Indoor Gas Fireplace
Installation

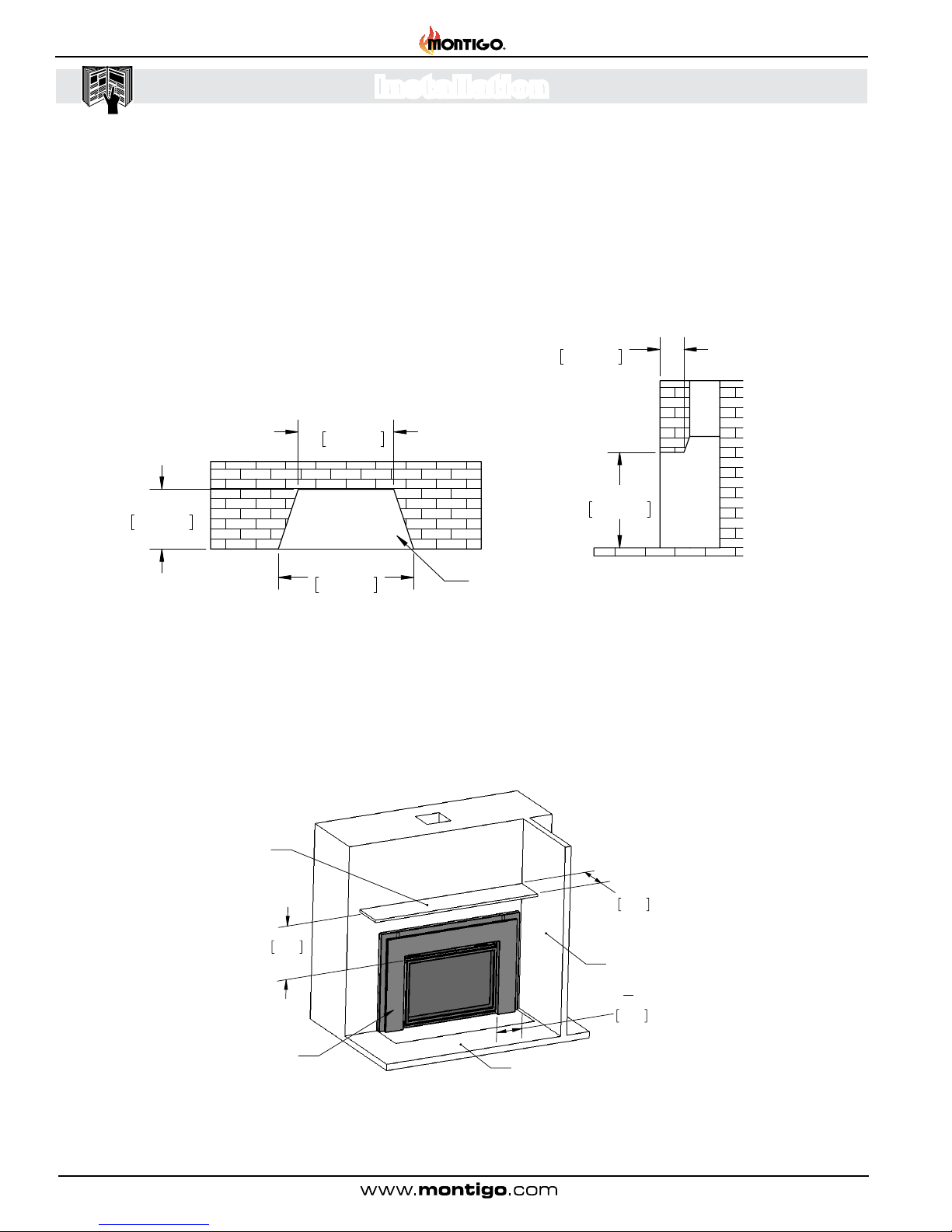

Clearances:
The 34DFID-L Insert is designed and built to be installed into masonry or manufactured replaces. There is no requirement to have
a non-combustible hearth in front of the unit. Clearances to the underside of the mantel or sidewall are measured from the edge of
the door/screen front. The Mantel is shown as 10” maximum at a distance of 17” minimum from the door edge top. The mantel can
be extended further providing that you increase the height proportionately. For instance, if you want a mantel that is 2” beyond the
10” maximum, you have to install it 2” above the 17” minimum.
Figure 2 Sec.2 34DFID-Lclearances
10"
254
Max
17"
432
Min
81
2
"
216
Min.
Mantel
Side Wall
Hearth Protection
Not Required
Faceplate
17"
432
Minimum
10"
254
Max
Allowable
Mantel
Area
25"
27"
29"
31"
33"
35"
37"
39" 10"14"18"24"26"30"34"38"
21"
19"
17"
23"
Section 2: Installation
Figure 1 Sec.2 34DFID-L installation dimensions (Standard Trim)
Install Dimensions:
The install size requirements of your replace insert are dependent
on several factors. Gas line location, electrical connection and
gas line type can play into what the minimum installation size
can be. The diagram below illustrates the smallest possible size
requirement of this model. Please take into consideration these
other factors when determining if this appliance will t into your
masonry or manufactured replace.
24"
610mm
34"
864mm
15"
381mm
Gas and Electrical
Supply at Right Side
6"
152mm
24"
610mm

Page 11
XG0526-151109.2
I-Series Indoor Gas Fireplace
Installation
10"
254
8"
203
17"
432
Mantel
Side Wall
Hearth Protection
Not Required
Faceplate
17"
432
Minimum
10"
254
Max
Allowable
Mantel
Area
25"
27"
29"
31"
33"
35"
37"
39" 10"14"18"24"26" 30"34"38"
21"
19"
23"
Figure 3 Sec.2 34DFIDV-LINmantel clearances
10"
254
Max
17"
432
Min
81
2
"
216
Min.
Mantel
Side Wall
Hearth Protection
Not Required
Faceplate
17"
432
Minimum
10"
254
Max
Allowable
Mantel
Area
25"
27"
29"
31"
33"
35"
37"
39" 10"14"18"24"26"30"34"38"
21"
19"
17"
23"
WARNING
Do not place any materials or objects in front of
door relief. Doing so could result in failure of door
relief system or heat dissipation.

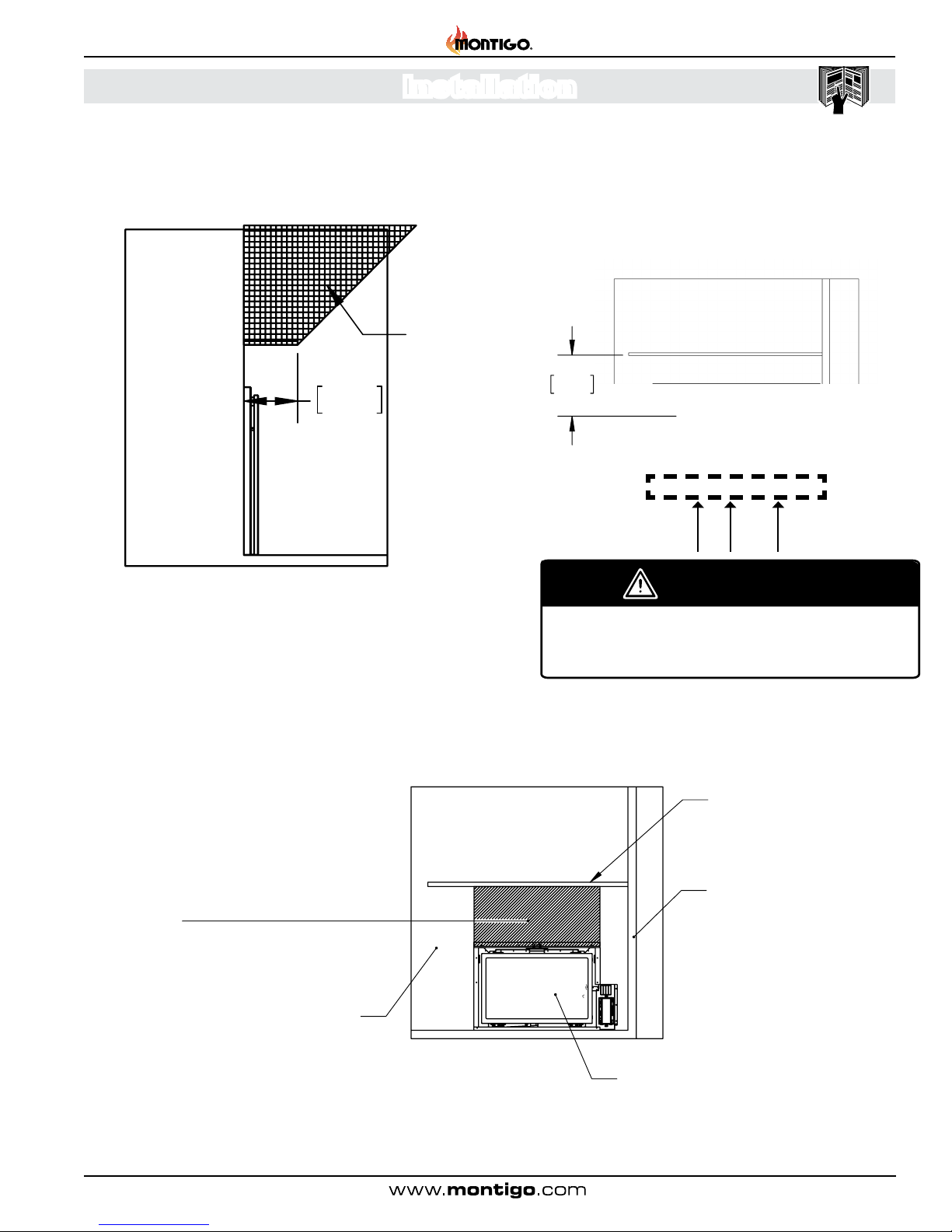

Non Combustible Board Install
Mantle
Side Wall
Gas Insert
Wall Face
Non combustible facing
materials must be used above
the unit, up to the minimum
required mantel height clearance
and for the entire width of the
fireplace opening. This includes
all types of possible installations.
Figure 4 Sec.2NonCombustible Board Install

Page 12 XG0526-151109.2
I-Series Indoor Gas Fireplace
Installation
Section 3: Venting
Approved Vent Components
Your Montigo 34FID is approved to be installed with the following
venting components:
Termination
46DVA-VCH, Duravent Vertical, High Wind Termination
Adaptor
46DVA-CT,Duravent3"x3"to4"x55/8"Co-lineartoCo--axialAdaptor
Connectors
4DFA-FC, Duravent 4" Flex Liner Coupling
3DFA-FC, Duravent 3" Flex Liner Coupling
Venting
4" Flex Liner and 3" Flex Liner MONTIGO

Page 13
XG0526-151109.2
I-Series Indoor Gas Fireplace
Installation
Figure 1 Sec.3
Vent Congurations
This appliance can only be vented vertically. The minimum vent
height measured from the oor under the unit to the bottom of the
termination is 10’. The maximum height that a vent can extend is
36’. This unit uses 4” x 3” Co-linear venting. This is a direct vent
unit and as such requires that both intake and exhaust vents are
connected and operational. Using existing chases as a partial vent
mechanism is not allowed. Due care is required to ensure that all
vent components are properly connected and sealed. Care must
also be taken when installing ashing or termination caps to make
sure that the structure of the building cannot be subject to water
penetration. Proper roong and chimney nishing techniques
must be used.
Steps for vent connection
** Before installing the venting system, make sure that any dampers
or bafe plates in the replace are removed or do not present any
hindrance to your installation **
1). Determine the length of ex venting that will be required. Cut
2 lengths a couple of feet longer than you anticipate needing. The
length of these needs to be determined after the vent is stretched
out. Flex venting generally comes compressed and needs to be
stretch out to meet the lengths as specied.
2). From the roof, attach the Vent Lengths to the Adaptor. Don`t
forget to have the Flashing placed between the Flex Vent and the
Adaptor before attaching the Flex Vent.
3). Using commercial grade sealant around the perimeter of the
CollarsoftheAdaptor,useaminimumof3TechscrewsineachVent.
4). Install the Termination to the top of Adaptor. Use a minimum of
4 tech screws to attach the Termination to the Adaptor.
5). Feed the Flex Venting down the chimney until the Adaptor is
situated near the top of the Chimney. Use a commercial grade of
sealant between the Flashing and the Chimney top. Fasten the
Flashing to the top of the Chimney using a fastening method that
will properly secure the ashing permanently.
6). Attach the Adaptor to the top of the Flashing using 4 tech
screws. Seal around the perimeter of theAdaptor where it meets
the Flashing.
7). From inside the house check how long the vents protrude into
the Fireplace. Read the section on installation where fuel supply
pressure checking needs to be done. This procedure can be
done at this point by installing the venting to the appliance prior
to pushing the appliance into the replace cavity.
8). Oncepre-installationstepshavebeencompleted,trimthevent
length to the correct length for installation. The Correct length will
leave the Flue Collar Slide Plate suspended around 18-19 inches
from the oor of the Fireplace.
9). RemovetheFlue CollarSlide Platefrom theappliance.Attach
both ex ends to the Flue Collar Slide plate. Use a commercial high
temp sealant around the Flue Collars on Flue Collar Slide Plate
before installing the Venting. Use a minimum of 3 tech screws to
properly secure the Venting to the Flue Collar Slide Plate.
**MakecertainthattheExhaustandIntakeVentsareconnected
to the correct collars on the Flue Connection Plate. If they
are connected in reverse, this unit will not operate and re-
installation will be necessary. **

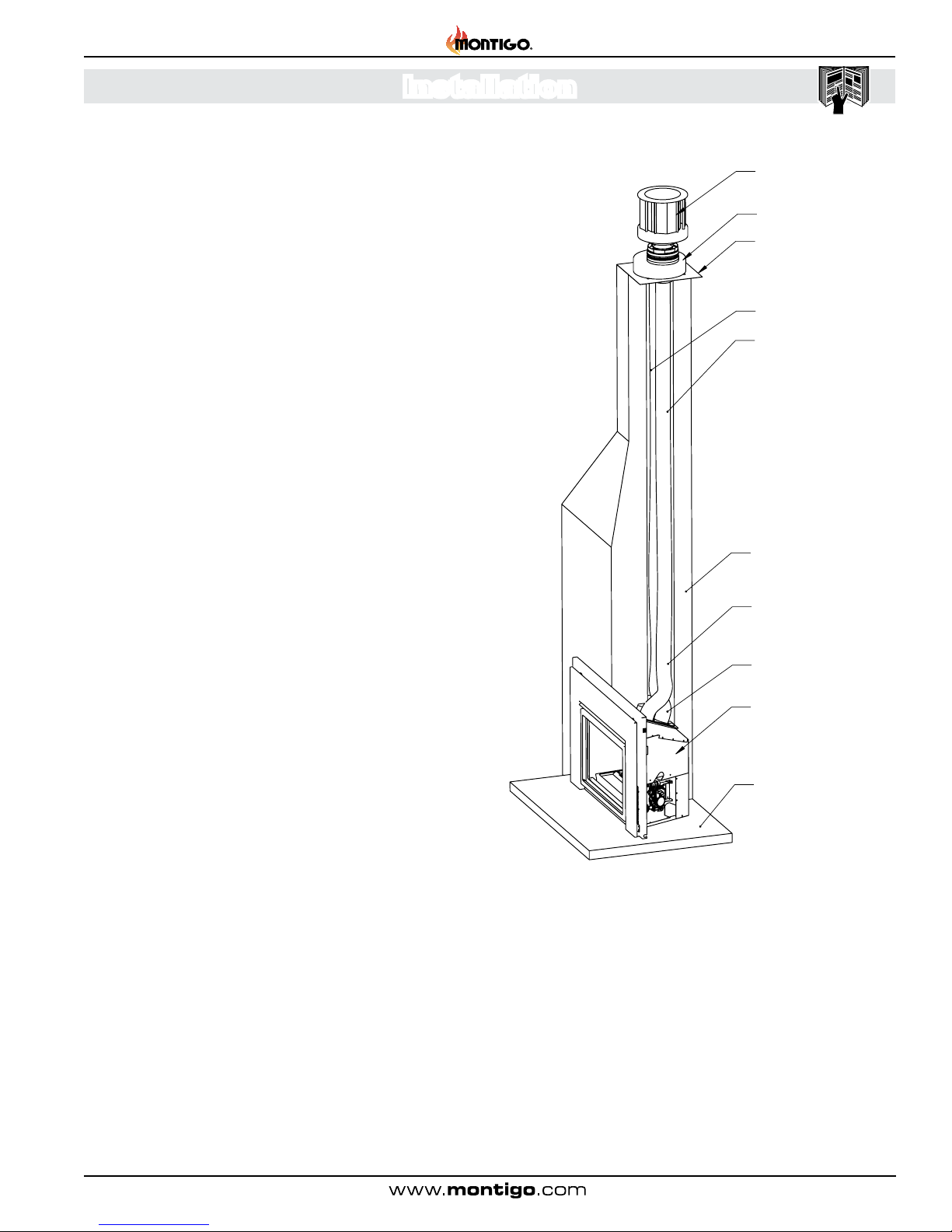

Termination 46DVA-VCH
Adaptor 46DVA-CT
Flex Liner VT15FL3 BC
(Intake)
Hearth / Floor
Masonry Chimney
(Cut-away View)
Exhaust Flue
Intake Flue
Flashing
Fireplace Insert
Flex Liner VT15FL4 BC
(Exhaust)

Page 14 XG0526-151109.2
I-Series Indoor Gas Fireplace
Installation
Figure 2 Sec.3
Figure 3 Sec.3
Figure 4 Sec.3
**Forclarity,thepicturesinthissectionshowtheFireplaceInsertin
an open room. You will be performing these tasks in the Fireplace
as you complete this installation **
10). Using the Door Opening Tool provided with the Fireplace Insert,
insert the tool through the Outer Shell of the Fireplace Insert. You
will be inserting this tool through a keyhole on front edge of the Flue
Collar Slide Plate.
11). The Flue Collar Slide Plate needs to be engaged into the Slide
Plate Retainers as you pull it forward.
12). You will slowly slide the Fireplace Insert back into the Fireplace
Cavity. At the same time, you will be pulling the Flue Slide Plate
forward onto the Fireplace Insert.
** Be extremely careful that the Gasket between the Fireplace
Insert and the Flue Collar Slide Plate is not damaged and remains
in the correct position. Failure of this gasket will greatly diminish the
operation of this appliance. **
14). Once the Flue Collar Slide Plate is within 1" of the front, Use
the 1/4" NC screw supplied and secure the Flue Collar Slide Plate
to the front of the Fireplace Insert
13). MakecertainthatwhentheFlueCollarSlidePlatecomesforward
that the tab at the back of the appliance engages into the Flue Collar
Slide Plate. Without this engagement, the Flue Collar Slide Plate will
not seal against the Gasket and the unit will not function.

Page 15
XG0526-151109.2
I-Series Indoor Gas Fireplace
Installation
Section 4: Unpacking
Figure 1 Sec.4 Opening the replace carton (30 FID shown).
Figure 2 Sec.4 Top of the unit (30 FID shown).
Figure 3 Sec.4 Items included in replace carton.
Figure 4 Sec.4 Front of unit unpackaged (30 FID shown).
While unpacking your new replace, take special care to ensure
thatallthecomponentsshownhereareincludedinyourshipment
and that all components are received in good condition. Please
notify your retailer directly if there are any discrepancies with
your shipment.
Instruction Guide
Remote Control
Batteries
Door Tool
Door Tool
Instruction Guide
Batteries
Remote Control
Additional Items Required To Be Ordered Separately
● Faceplate Kit
● Media
● Optional Logs
● Venting
● Termination
See price list for ordering information

Page 16 XG0526-151109.2
I-Series Indoor Gas Fireplace
Installation
Figure 5 Sec.4 Faceplate Trim Box (standard trim)
Figure 6 Sec.4 Supplied Screws
Figure 7 Sec.4 Front and Rear Standard Faceplates
Standard Faceplate Kit
Figure 8 Sec.4 Back of Rear Faceplate
Figure 9 Sec.4 Suppled electrical strain relief and zap strap
Master Override Switch

Page 17
XG0526-151109.2
I-Series Indoor Gas Fireplace
Installation
Door Installation & Removal
This appliance is supplied with a safety screen installed. The
Safety Screen is attached to the replace door using 4 screws,
and can be removed when necessary for outer glass cleaning.
The Fireplace Door is attached to the Firebox by way of 2 tabs
mounted to the top of the Firebox and by 2 spring loaded retainers
at the bottom underneath the Door. The Retainers at the bottom
of the unit are manipulated using a Door Tool that is supplied with
the unit. The general operation of the Door Retainers is:
Figure 10 Sec.4 Door Tool / Bottom of Door
Figure 11 Sec.4 Insert the Door Tool and slide left
Figure 12 Sec.4The door latch released fromtheDoor
Figure 13 Sec.4SwingtheDooraway fromtheunit,liftover theretainingtabs
on top of the rebox. Be careful to not roll the gasket up off the glass when reinstalling
thedoor.Installation is the reverseofremoval.
Engage door tool into door retainer. Pull door tool towards you and
push downwards, disengaging the door retainer from the door.
WARNING
When reinstalling door(s), always make sure all door
buckles are properly hooked and fully engaged.
a). Engage the Door Tool into the Door Retainer
b). MovetheDoorTooltothelefttoreleasetheDoorRetainer
c). Move theretainerdownward andthenback underneath
the Door
d). Swing the Door outward from the unit and then lift the
Door up and over the top Tabs
Engage door tool into door retainer. Push door tool left, disengaging
the door retainer from the door.

Page 18 XG0526-151109.2
I-Series Indoor Gas Fireplace
Installation
Figure 14 Sec.4 Locationof Doorretainertabs
Check that the door retainers are properly engaged.
If they are not the door relief system may not operate
properly. This can cause a risk of injury or improper
operation of the appliance.
LP Conversion
The34FID-LisavailableinNaturalGasorLiquidPropaneversions.
If you have a Natural Gas unit and would like to burn Propane
you can purchase an optional LP conversion kit and install it using
the following steps. To convert the unit to LP, the unit must be
disconnected from any gas supply, disconnected from any electrical
supply and batteries and removed from any installation cavity.
The 6 major items that need modication to convert a unit to LP
1). Variable regulator on the gas valve
2). The main burner orice
3). The pilot burner orice
4). Set minimum primary air tab
5). Label on the valve showing the new specications
6). Gas tter conversion label
Figure 15 Sec.4 LP conversion kit showing pilot orice, main burner
orice, LP stepper motor, zap strap and gas tter conversion label.
Tools required
1). Torx T20 Screw Driver Bit
2). 3/8" Socket Driver
3). 5/32" Allen Key
4). Needle Nose Pliers or Small Flat Head Screw Driver
WARNING
When installing the replace - gas lines, ttings, accesso-
ries or any other objects cannot impede the proper
movement of the door buckles.

Page 19
XG0526-151109.2
I-Series Indoor Gas Fireplace
Installation
Figure 16 Sec.4
Figure 17 Sec.4
Figure 18 Sec.4
3). Using a T20 Torx screw driver, remove the 2 screws that attach
the stepper motor to the valve.
4). Remove the screws, stepper motor and rubber diaphragm.
5). Remove the top 2 screws that hold the control mounting
bracket in place.
Figure 19 Sec.4
Figure 20 Sec.4
Converting the gas regulator on the valve
1). On the right side (control side) of the unit, remove 2 screws
that enable the valve to swing away from the unit.
2). Swing the valve away from the unit in order to get access to
the front of the valve and regulator. Be careful not to damage gas
lines or wires.

Page 20 XG0526-151109.2
I-Series Indoor Gas Fireplace
Installation
Figure 21 Sec.4
Figure 22 Sec.4
6). Unplug the cable that runs from the stepper motor to the control
board and remove it from in between the control board mounting
bracket and the replace.
Figure 23 Sec.4
7). Place the LP stepper motor onto the valve being extremely
careful that the orientation of the regulator is correct.
8).Reinstallthe2screwssuppliedwiththeconversionkittofasten
the stepper motor to the valve body.
Figure 24 Sec.4
9). Attach the label provided to the side of the valve body. This
label shows that the valve has been converted using SIT approved
components.
Figure 25 Sec.4
10). Run the cable from the stepper motor in between the control
mounting bracket and replace.
Figure 26 Sec.4
12). Plug the cable into the control board.
