Montigo EP28-4 Installation and operating instructions

Installation
Operation &
Maintenance
4" B-Vented
Gas Fireplaces
EP28-4
EP28-4-2LB
EP28-4-4LB
What To Do If You Smell Gas:
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any phone in
your building.
• Immediately call your gas supplier from a neighbor's phone.
Follow the gas supplier's instructions.
Warning:
Improper installation, adjustment, altera-
tion, service or maintenance can cause
injury or property damage. Refer to this
manual. For assistance or additional
information consult a qualied installer,
service agency or the gas supplier.
For Your Safety:
Do not store or use gaso-
line or other ammable
vapors and liquids in the
vicinity of this or any other
appliance.
Installer: Leave this manual
with the appliance.
Consumer: Leave this man-
ual for future reference.
Check local codes and read all
instructions prior to installation.

Page 2
EC Plus-4 Series B-Vent
®
Part No. XG0303C
Table Of Contents
Introduction............................................................................... 2
Installation..............................................................................3-7
Installing the Fireplace Shell .......................................... 3
Installing the Gasline...................................................... 4
The Remote Switch........................................................ 4
Vent Requirements......................................................... 4
Construction around the fireplace
Facing .............................................................. 5
Mantels and Surrounds ..................................... 5
Wiring............................................................................. 6
Adjusting the Optional Doors ......................................... 7
Installing the Logset ....................................................... 7
Operation................................................................................8-9
Model EP28-4 ................................................................ 8
Model EP28-4-I .............................................................. 9
Maintenance....................................................................... 10-11
Warranty.................................................................................. 12
CAUTIONS
Due to its high operating temperatures, the appliance
should be located out of traffic & away from furniture and
draperies.
•Children and adults should be alerted to the hazards
of the high surface temperature, which could cause
burns or clothing ignition.
•Young children should be carefully supervised when
they are in the same room as the appliance.
•Clothing or other flammable materials should not be
placed on or near the appliance.
Introduction
Thank you for purchasing the EC-Plus Series Fireplace. This
fireplace is modular, allowing the installation of three different burner
configurations and provides flexibilty and the opportunity to upgrade
and customize to your immediate and future decorative considera-
tions.
The EP28-4 Series are certified in Canada and the USA as a Vented
Gas Fireplace ( ANSI Z21.50 - 2000 / CSA 2.22 - 2000). The models
and their descriptions are shown below:
EP-28-4-2LB - 2 logs, 16,700 BTU/H (natural & propane gas)
EP-28-4-4LB - 4 logs, 16,700 BTU/H (natural & propane gas)
How to use this manual:
This manual covers installation, operation and maintenance. Light-
ing, operation and care of this fireplace can be easily performed by
the homeowner. However, all installation and service work should be
performed by a qualified or licensed contractor, plumber, gasfitter, or
installer who is qualified or licensed by the state, province, region, or
governing body in which the appliance is being installed.
The warranty will be voided by, and the manufacturer disclaims any
responsibility for, the following actions:
Modification of the fireplace and/or components including com-
bustion air assembly or glass doors.
Use of any component part not manufactured or approved by the
manufacturer in combination with an EC-Plus fireplace system.
Installation other than as instructed in this manual.
Consult your local Gas Inspection Branch on installation requirements
for factory-built gas fireplaces. Installation & repairs should be done
by a qualified contractor.
Installations in Canada must conform to the current CAN/CGA
B-149.1 and .2 Gas Installation Code and local regulations. When the
unit employs the optional Blower Kit, it must be electrically grounded
in accordance with CSA C22.1 Canadian Electrical Code Part 1
and/or Local Codes.
Installations in the USA must conform to the National Fuel Gas
Code, ANSI Z223.1-1988. When the unit employs the optional Blower
Kit it must be grounded in accordance with local codes or, in the ab-
sence of local codes, with the National Electrical Code, ANSI/NFPA
70-1987.

Page 3
EC Plus-4 Series B-Vent
®
Part No. XG0303C

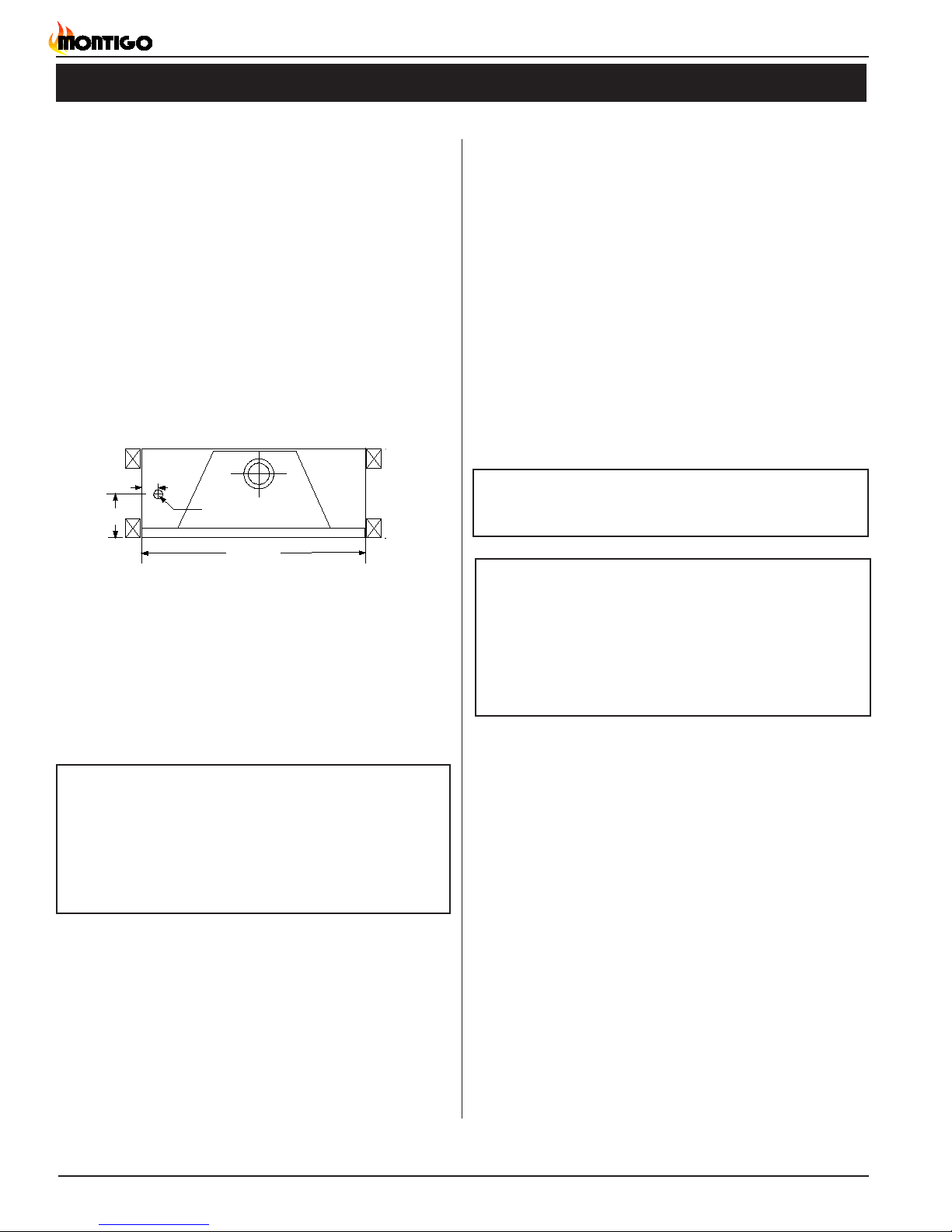

Figure 2. Framing dimensions.
Installing The Fireplace Shell
The fireplace may be installed in any location that maintains clear-
ances to air conditioning ducts, electrical wiring and plumbing. Safety,
as well as efficiency of operation, must be considered when selecting
the fireplace location. Try to select a location that does not interfere
with room traffic, has adequate ventilation, and offers an accessible
pathway for the optional B-Vent & Combustion Air Kit installation.
The fireplace dimensions are shown below:
Installation
Figure 1. Fireplace dimensions.
Clearances
The EP-28 Series clearances to combustible materials are:
Top* 12"
Back 0"
Sides 1"
Floor 0"
Mantle** 6"
Recess Depth*** 15"
* Clearance from the top of the fireplace to
a combustible ceiling, within the fireplace
enclosure.
** Refer to page 5.
See Figure 2.
Framing
For protection against freezing temperatures, it is recommended that
outer walls of the chase be insulated with a vapour barrier. This will
reduce the possibility of a cold-air convection current on the fireplace.
37 1/2
15 1/2*
36
* When sheetrock is not used behind the fireplace, framing
depth may be reduced to 14 3/4"
37 1/2
31 1/4
19
9 1/2
4' B-Vent
14 3/4
C
Top View
Front View Side View
4" B-Vent
WARNING:
When this appliance is installed directly on carpeting, tile or any
combustible material other than wood flooring, it must be installed
on a metal or wood panel extending the full width and depth of
the appliance.
Figure 3. Corner Installation - framing dimensions.
1
14 3/4
9 1/2
938
37
53
1/2

Page 4
EC Plus-4 Series B-Vent
®
Part No. XG0303C
Installing The Gas Line
The gas line must be installed before finishing the fireplace. Natural
Gas requires a minimum inlet gas supply pressure of 5.5" W.C. & a
manifold pressure of 3.5" W.C. Propane Gas requires a minimum in-
let gas supply pressure of 11" W.C. & a manifold pressure of 10" W.C.
Provision must also be made for a 1/8" N.P.T. plugged tapping and be
accessible for test gauge connection immediately upstream of the gas
supply controls to the appliance. The fireplace gas connection and
the main operating gas valve is located behind the removable brass
trim at the bottom of the unit and need only be attached to the gas line
with an approved fitting, as required by the applicable installation
codes.
• Only use gas shut-off valves approved for use by the state, province,
region, or governing body, in which the appliance is being installed, or
as required by the applicable installation codes.
• Flexible gas connectors must not exceed 3 feet in length, unless it is
Installation
B-Vent Installation
The EP-28-4 Series is certified for use with standard 4" B-Vent and
requires no B-Vent appliance connector. Simply attach the B-Vent
to the fireplace flue collar, and secure it to the L-shaped brackets on
each side of the opening using sheet metal screws. Do not penetrate
the inner sleave of the B-Vent when tightening the screws.
Refer to the current CAN/CGA B-149.1 and .2 or ANSI Z223.1-1988
Gas Installation Code for specific vent sizing.
2
7
37 1/2
Gasline
16
* After gas line is connected each appliance connection,
valve and valve train must be checked while under normal
operating pressure with either a liquid solution, or leak detec-
tion device, to locate any source of leak. Tighten any areas
where bubbling appears or leak is detected until bubbling
stops completely or leak is no longer detected. Do NOT use
a ame of any kind to test for leaks.
Installing The Remote Switch
The EP-28-4 Series is equipped with a remote-operated valve,
located behind the removable brass grille, to the right of the gas
control valve (refer to Figure 10a and 10b.) The valve is pre-wired and
completely self contained to generate its own power. DO NOT con-
nect any external power to it.
Note: The switch location must not exceed 30' from the fireplace.
allowable within applicable installation codes.
The appliance and its individual shutoff valve must be disconnected
from the gas supply piping system during any pressure testing of that
system at test pressures in excess of 1/2 psig (3.5 kPa).
The appliance must be isolated from the gas supply piping system by
closing its individual manual shutoff valve during any pressure testing
Figure 4. Gas line access.
Test your B-Vent installation after completion to ensure that no
combustible by-products are spilling from the fireplace opening.
This draft test should be performed after a fifteen (15) minute
warm up period. The manufacturer will not be responsible for
any installations with inadequate draw.
CAUTION:
This appliance needs fresh air for safe operation and must be
installed so there are provisions for adequate combustion and
ventilatoin air.

Page 5
EC Plus-4 Series B-Vent
®
Part No. XG0303C
Finishing Around the Fireplace
Combustible mantels and mouldings may be safely installed over the
top and on the front of the fireplace provided that they do not project
beyond shaded area shown in Figure 5a. Side wall clearances are 0".
Combustible surrounds may be installed with 0" clearance to the side
of the fireplace as shown in Figure 5b.
Fireplace Facing
When selecting the finish material for your fireplace, it is important
to remember the following: TRIMS MUST NOT BE OBSTRUCTED
IN ANY WAY - to do so restricts the air supply for the control
compartments and heat exchanger it also prevents access for
servicing controls.
The face of the fireplace may be painted to match the room decor,
provided you use a heat-resistant paint. Decorative facing must not
extend past the fireplace opening at all, because it will interfere with
the access to retainers for removal of glass door.
Installation
Mantels & Surrounds
NOTE: Mantel clearances shown are for fire hazard prevention.
New technology, to meet consumer and government demands for the
wise use of energy, has prompted us to manufacture many models of
fireplaces which are hot, fuel and energy efficient.
Please be aware; temperatures over the mantel will rise above nor-
mal room temperature and walls above fireplace may be hot to touch.
We recommend careful consideration be given to the effects of
elevated mantel temperatures which may be in excess of product
design, for example: candles, plastic or pictures. This can cause melt-
ing, deformation, discoloration or premature failure of T.V. and radio
components.
Painting:
Figure 5b. Combustible surrounds.
Special care is recommended by the Master Painters and Decorators
Association, when painting the fireplace surrounds, to select and ap-
ply a quality Alkyd sealer prior to the applying of latex paints. This is
to prevent leaching of water from evaporation and causing a brownish
staining effect to paint over coats.
Figure 5a. Combustible mantles and facings.
Top of fireplace
Combustible Facing
Combustible construction
allowed in shaded area.
123456789101112
8
8

Page 6
EC Plus-4 Series B-Vent
®
Part No. XG0303C
Installation
Wiring
Gas Control and Pilot Wiring
Honeywell (Q3450)
Pilot Assembly
Pilot Electrical
Harness Connector
Honeywell Gas
Control (SV9501M)
Gas Control
Connector Fuse
Limit
Switch Wall
Switch
Fan Plug
Receptacle
Junction Box
Junction Box Cover
White
Black
Green
40 VA
Transformer
115VAC
24VAC
Grnd Screw
Figure 6. Wiring for the EP28-I with Honeywell gas control and pilot.
EP-28-4-I Optional Blower Kit
EP-28 Series decorative fireplaces may be equipped with an optional
blower kit (Part #FAN-28) for circulating heat into the living space.
Refer to Fan-28 Installation Instructions for more information.
Installations in Canada which employ the fan kit, must be in accord-
ance with CSA C22.1 Canadian Electrical Code Part 1 and/or Local
Codes.
Installations in the USA employ the fan kit, must be in accordance
with local codes or, in the absence of local codes, with the National
Electrical Code, ANSI/NFPA 70-1987.
NOTE: If any of the original wire supplied with the appli-
ance is replaced, it must be replaced with the same
type, or its equivalent.

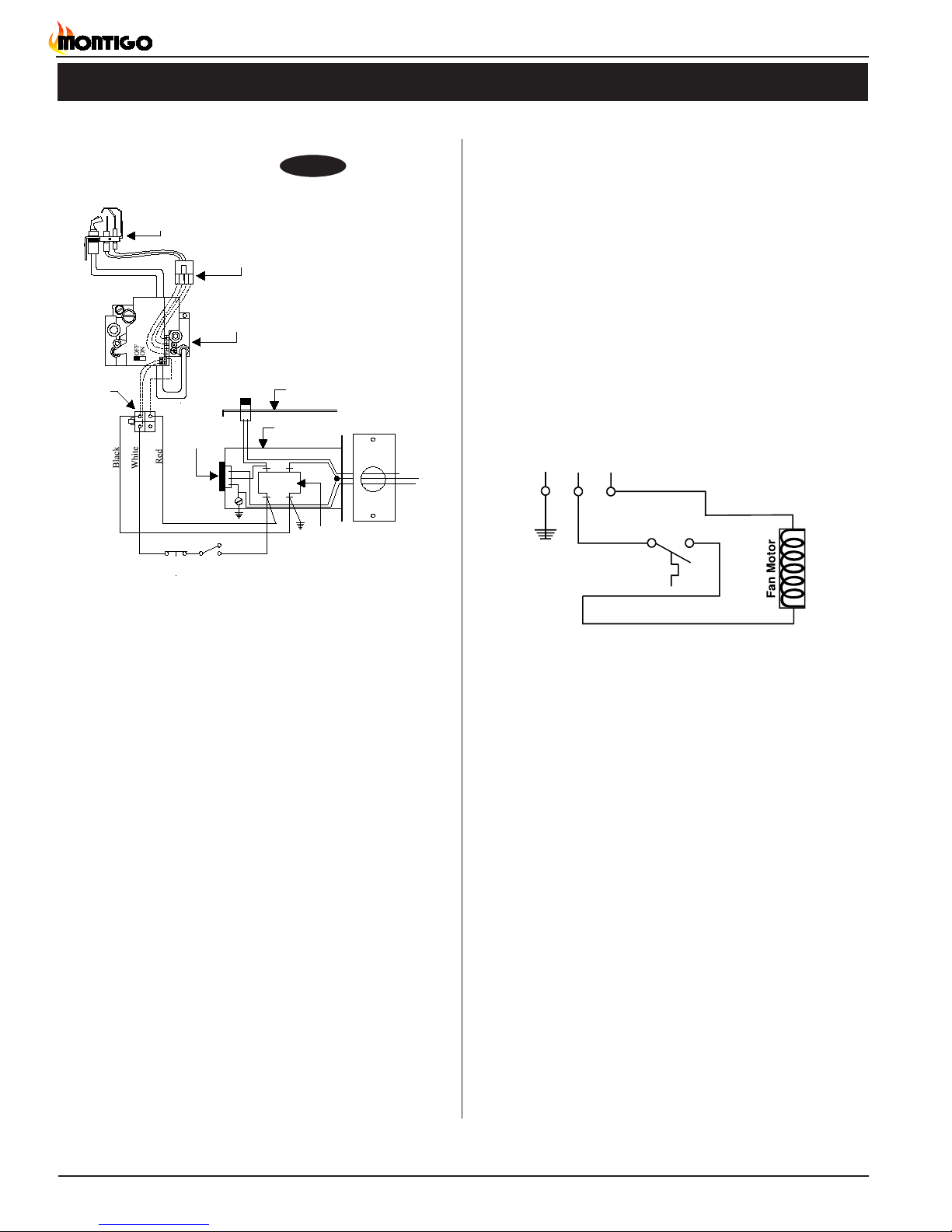

Figure 7. Wiring schematic for optional blower kit.
Supply
WH
BLK Fan Switch
GL1 L2
Spill

Page 7
EC Plus-4 Series B-Vent
®
Part No. XG0303C
Installation
Logset Installation
EP28-4-2LB Logset
This burner assembly is supplied with two (2) cultured oak logs. To
install simply place log A's rectangular shaped extension into the log
mounting slot located on rear wall of the burner assembly. Place log
Bonto front log slots as shown below.
EP28-4-4LB Logset
This burner assembly is supplied with a four piece ceramic fibre
logset. To install the logs, simply place log A's rectangular shaped
extension into the log mounting slot located on rear wall of the burner
assembly. Place log Bonto front log slots. Place log Cand log Donto
pins on the burner bar as shown below.

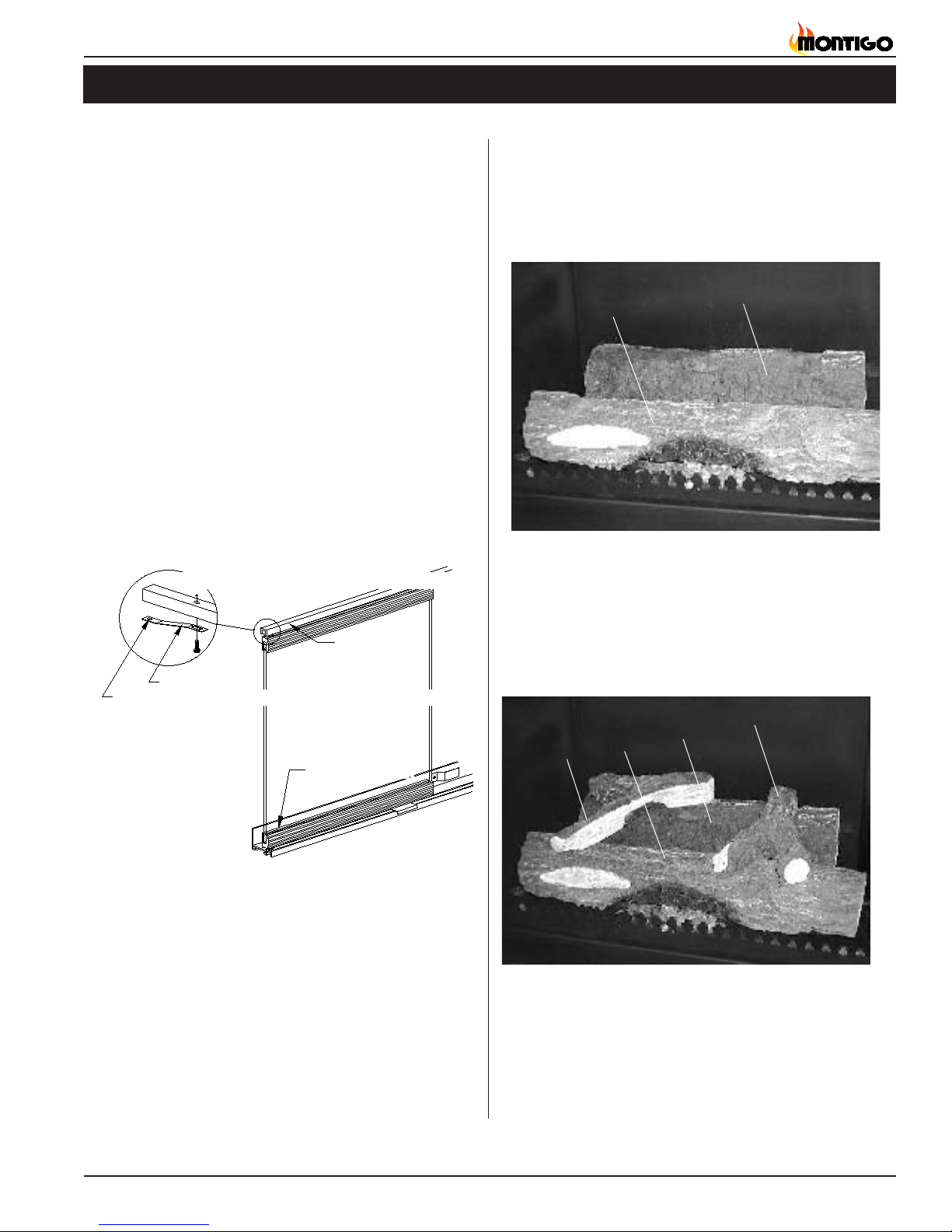

Figure 9a. Installing the -2LB logset.
Figure 9b. Installing the -4LB logset.
Optional Doors
EC-Plus 4-Series Fireplaces come standard with a firescreen, and
may be fitted with one of the following optional door kits:
Twin-Pane-Style Doors Part # EP-TWD28
Bi-Fold Doors Part # EP-BD28
Stereo Cabinet Doors Part # EP-TWD28E
Twin-Pane and Bi-Fold Doors are available in Black, Brass or Nickel
Finshes to match your fireplace's trim. Stereo Cabinet Doors are an
all-glass design.
Installation
Complete installation instructions are included with the door kit.
Adjustment
After installation of the fireplace, the doors may require some adjust-
ment.
The spring clips that are installed on both sides of the top door rail
are used to align the doors. With the door open, loosen the screw
that holds the spring clip in place (see Inset). This will allow the door
to move back and forth. Fit the doors so that they are straight and
tighten the screw to hold the door in position. Adjust both doors until
the opening between the doors, when closed, is even from top to
bottom.
Figure 8. Adjusting the glass doors.
Spring Clip
Top Door Rail
Bottom Door Rail
Inset
Pivot Point
Log 'B'
Log 'A'
Log 'D'
Log 'C'
Log 'B'
Log 'A'

Page 8
EC Plus-4 Series B-Vent
®
Part No. XG0303C
For Your Safety - READ BEFORE LIGHTING:
WARNING:If you do not follow these instructions exactly, a re or explosion
may result causing property damage, personal injury or loss of life.
Department.
C. Use only your hand to push in or turn the gas control
knob. Never use tools. If the knob will not push in or
turn by hand, don't try to repair it, call a qualied serv-
ice technician. Force or attempt to repair may result in
a re or explosion.
D. Do not use this appliance if any part has been under
water. Immediately call a qualied service technician
to inspect the appliance and to replace any part of the
control system, and any gas control which has been
under water.
A. This appliance has a pilot which must be lighted by
hand. When lighting the pilot, follow these instructions
exactly.
B. BEFORE LIGHTING smell all around the appliance
area for gas. Be sure to smell next to the oor be-
cause some gas is heavier than air and will settle on
the oor.
What To Do If You Smell Gas:
Do not try to light any appliance.
Do not touch any electrical switch; do not use any
phone in your building.
Immediately call your gas supplier from a neigh-
bour's phone. Follow the gas supplier's instruc-
tions.
If you cannot reach your gas supplier, call the Fire
To Turn Off Gas To Appliance:
Operation - Model EP28-4
3. Push in gas control knob slightly and turn clock-
wise to "Off". Do not force.
4. Replace brass trim.
1. Turn off remote switch.
2. Remove lower brass trim.
1. STOP! Read the safety information above on this
label.
2. Remove lower brass trims.
3. Push in gas control knob and turn clockwise to
"OFF."
4. Wait ve (5) minutes to clear out any gas. Smell for
gas, including near the oor. If you then smell gas,
STOP! Follow "B" in the safety information above on
this label. If you don't smell gas, go to the next step.
5. Locate pilot burner (See illustration at right.) and fol-
low steps below.
6. Turn knob on gas control counterclockwise to
"PILOT."
7. Push in gas control knob completely and hold. Light
the pilot with a match. Continue to hold the control
knob in for about (1) minute after the pilot is lit. Re-
lease the knob and it will pop back up. Pilot should
remain lit. If it goes out repeat steps 3 through 8.
If knob does not pop up when released. Stop and
immediately call your service technician or gas
supplier.
If the pilot will not stay lit after several tries, turn
the gas control knob to "OFF" and call your service
technician or gas supplier.
8. Push in gas control knob and turn
counterclockwise to "ON."
9. Replace lower brass trim.
10.Turn on remote switch to ignite re.
Lighting Instructions:
with Continuous Pilot
EP-28-4
NOTE: Knob cannot be turned from "PILOT" to "OFF"
unless knob is pushed in slightly. Do not force.
Honeywell
Gas Valve Robershaw
Gas Valve

Page 9
EC Plus-4 Series B-Vent
®
Part No. XG0303C

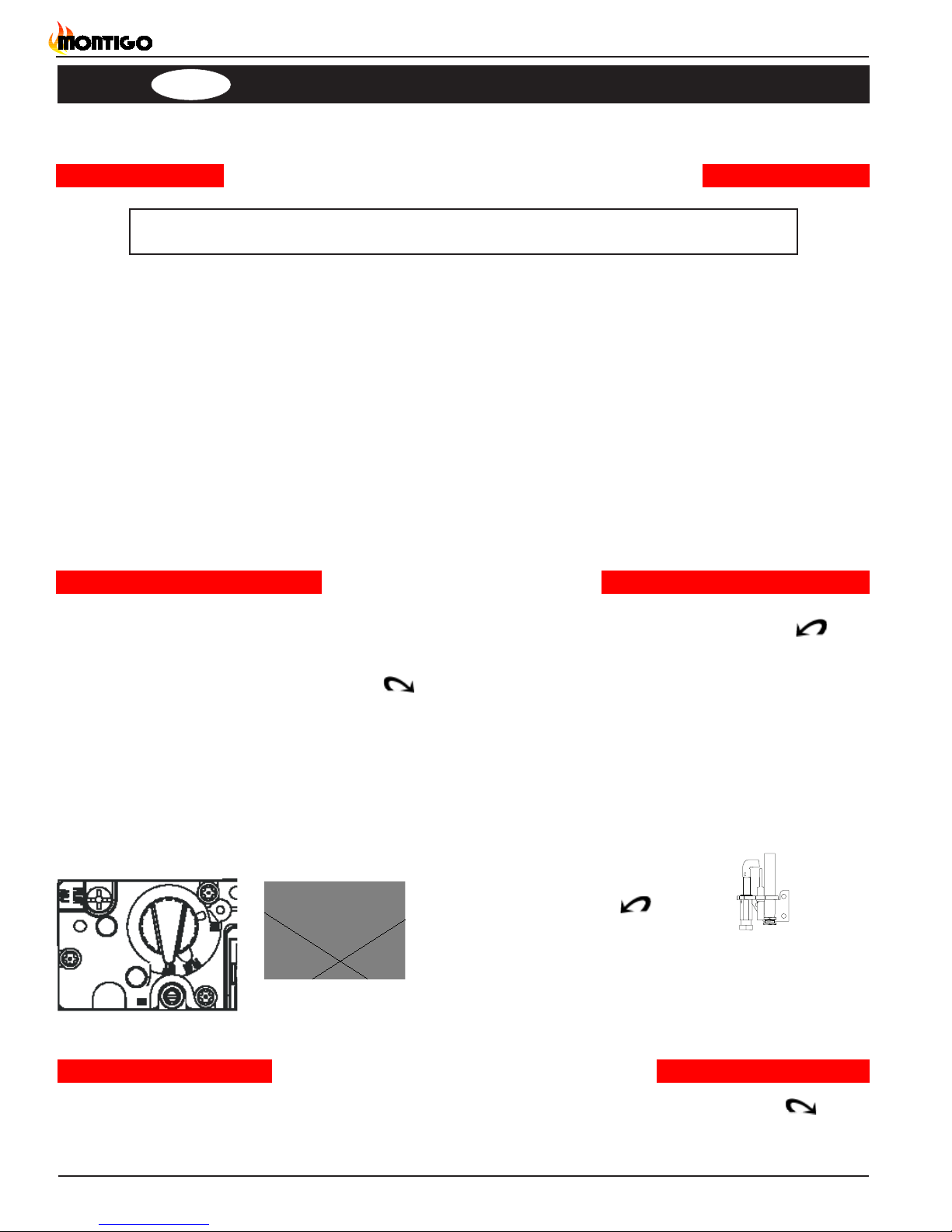

For Your Safety - READ BEFORE LIGHTING:
To Turn Off Gas To Appliance:
Lighting Instructions:
WARNING:If you do not follow these instructions exactly, a re or explosion
may result causing property damage, personal injury or loss of life.
If you cannot reach your gas supplier, call the Fire
Department.
C. Use only your hand to push in or turn the gas control
knob. Never use tools. If the knob will not push in or
turn by hand, don't try to repair it, call a qualied serv-
ice technician. Force or attempt to repair may result in
a re or explosion.
D. Do not use this appliance if any part has been under
water. Immediately call a qualied service technician
to inspect the appliance and to replace any part of the
control system, and any gas control which has been
under water.
A. This appliance is equipped with an ignition system
that lights the pilot burner automatically. Do not at-
tempt to light the pilot by hand.
B. BEFORE LIGHTING smell all around the appliance
area for gas. Be sure to smell next to the oor be-
cause some gas is heavier than air and will settle on
the oor.
What To Do If You Smell Gas:
Do not try to light any appliance.
Do not touch any electrical switch; do not use any
phone in your building.
Immediately call your gas supplier from a neigh-
bour's phone. Follow the gas supplier's instruc-
tions.
1. Turn off remote switch.
2. Remove lower brass trim.
Gas
Inlet
Gas Control Switch
Shown in "On" Position
3. Turn the switch on the gas control to "Off".
4. Replace brass trim.
1. STOP! Read the safety information above on this
label.
2. Remove lower brass trims.
3. Turn switch on the gas control to OFF".
4. Wait 5 minutes to clear out any gas. If you smell gas,
STOP! Follow "B" in the safety information above on
this label. If you don't smell gas, go to the next step.
5. Turn switch on the gas control to "ON". NOTE: This
unit is equipped with an ignition system that lights the
pilot burner automatically. Do not attempt to light the
pilot by hand.
6. Turn on wall switch.
7. Replace lower brass trim.
8. If the replace does not operate, follow the instruc-
tions "To Turn Off Gas To Appliance" and call your
service technician or gas supplier.
Operation - Model EP28-4-I
with Honeywell Intermittent Pilot
EP-28-I

Page 10
EC Plus-4 Series B-Vent
®
Part No. XG0303C
Maintenance
General
Have the fireplace installation inspected yearly, including a visual
check of the vent system, the burner and the pilot flame. For your
convenience a 1/8" manifold pressure tap is supplied on the gas
valve for a test gauge connection. See Figure 10a and 10b.
For Natural Gas this appliance requires a minimum inlet pressure
of 5.5" W.C. and a manifold pressure of 3.5" W.C.
For Propane Gas this appliance requires a minimum inlet pres-
sure of 11" W.C. and a manifold pressure of 10" W.C.
Always keep the fireplace area clear and free of combustible
materials, as well as gasoline and other flammable vapours and
liquids.
Do not use this appliance if any part has been under water. Imme-
diately call a qualified service technician to inspect the appliance
and to replace any part of the control system and any gas control
which has been under water.
CAUTION
•Fireplace gas control must be in the “OFF” position and pilot
and main burners extinguished when cleaning appliance with
a vacuum.
• Glass and logs can get very hot. Handle only when cool.
Cleaning
When the fireplace is first activated, there may be some smoking and
a visible film may be left on the glass doors. This is a normal condi-
tion, and is the result of burning the protective coatings on new metal.
Glass must be cleaned periodically to remove any film (a normal
bi-product of combustion) which may be visible. Handle the door
carefully, and clean it with non-abrasive glass cleaners. One of
the most effective products is Kel Kem.
Silicone seals on inner door during initial firing will "off gas",
leaving a visual deposit of a white substance on combustion
chamber walls. This can easily be removed by following the steps
described above.
Use a vacuum cleaner or whisk broom to keep the control com-
partment, burner, and firebox free from dust and lint.
Logs may be cleaned periodically to remove soot.
WARNING:
Do not attempt to clean glass when hot.
Do not clean glass with abrasive materials as any glass etch-
ing may cause premature glass failure.

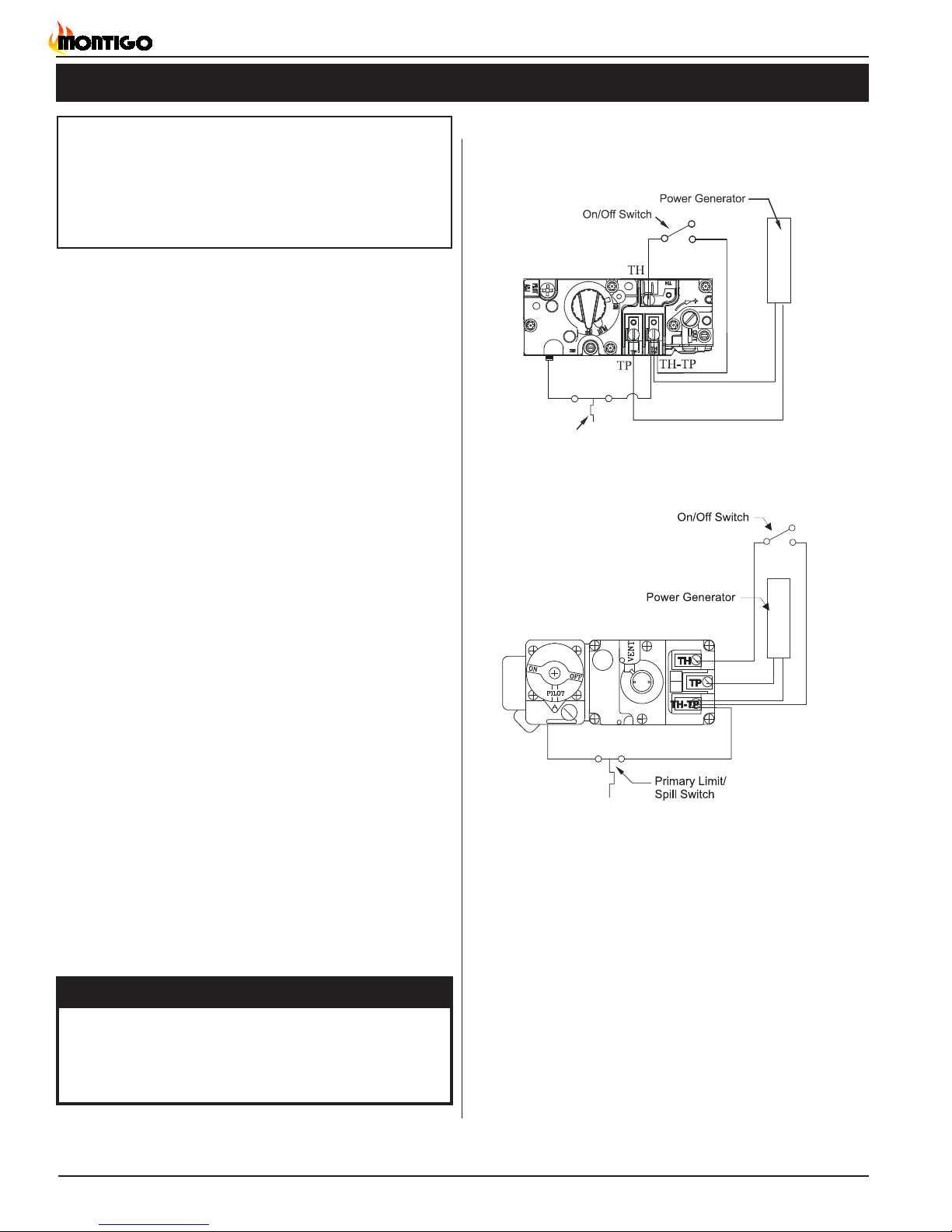

Gas Control Valve
Figure 10b. Robertshaw gas valve used on the EP28-2LB or the
EP28-4LB.
Figure 10a. Honeywell gas valve used on the EP28-2LB or the
Spill Switch

Page 11
EC Plus-4 Series B-Vent
®
Part No. XG0303C
Maintenance

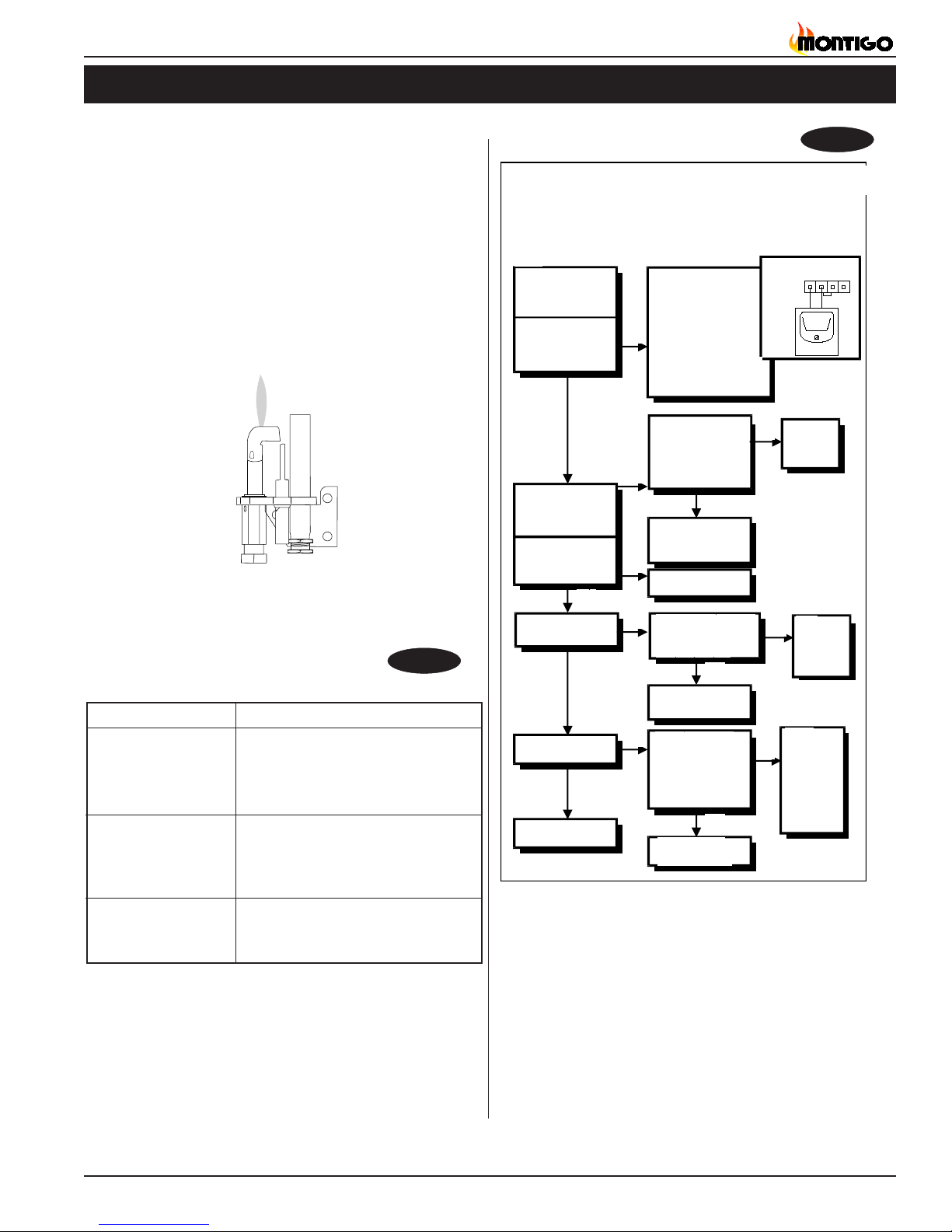

HONEYWELL SV 9500 /SV9600
Trouble
shooting Sequence
NOTE: Before Troubleshooting, Familiarize Yourself With
The Startup And Checkout Procedure.
·TurnGasS
upplyoff
· Se
tther mos
tatto
ca
ll for h
eat
S
V95
00/SV960
0
i
spower
ed
(24VACnom
inal)
NO
NO
NO
NO
NO
YES
YES
YES
YES
YES
YES
YES
NO
NO
NO
START
Igniterwarm
sup
a
ndglowsred.
PilotValveopens.
Turngason.
PilotBurnerligh
ts?
MainValveopens?
SYSTEMOK
Unp
lu
gPilotBu
rn
erCa
ble,
Measu
reVolt
ageat
SV9500/SV9600HSI
Termina
ls(24V
AC
N
ominal
, SeeINSE
T)
Replac
eIgnite
r/
FlameRod
Asse
mbly.
Repla
ceIgniter/
FlameRodAssembly.
Rep
laceSV9500/SV9600
Measu
reVoltagetoSV9500
/SV96
00. Voltagemust
bea
tleast19.5V
AC
DiscardoldIgniter/
FlameRodAssembly.
Replac eIgniter/Flame
RodAssemblyandretain.
RestartTroubleshooting
Sequence. Doesmain
valveopen?
R
eplace
SV9500/
SV9600
Check
Transformer
LineVolt
Supply
Replace
SV9500/
SV9600.
Saveold
Igniter/Flame
RodAssembly
forservice.
INSET
HSI
Terminals
CH
ECK:
· Lin
evoltagepowe
r
· Lowvoltage transformer
· LimitCont
roller
· Ther
most
at
· Wiring
· Airprovingswitchon
combustionairblowersystem
· Ve
ntdamper(if used) isop
en
a
nden
dswitchm
ade
Troubleshooting
If your fireplace still does not operate correctly, consult your dealer or
the manufacturer.
All service and repairs should be performed by a qualified
agency.
All spare parts, optional fans (see optional fan instruction guide), and
optional trim finishes are available from the manufacturer or your local
dealer.
Troubleshooting
The following is a troubleshooting chart of possible problems:
PROBLEM CORRECTIVE ACTION
Noisy Pilot Flame Remove pilot adjuster cap, located
on the gas control valve. Flame is de-
creased by turning adjustment screw
clockwise.
Pilot won’t ignite Disconnect remote wires and try to
light pilot. If pilot now works, remote
connections are faulty. Check wiring
diagram figure 10a/b.
Main burner will 1. Check wiring (see figure 10a/b)
not light 2. Check wall switch for proper con-
nection.
EP28-4
EP28-4-I
Pilot Burner Adjustment
1. Determine which pilot is installed in the fireplace based on figure
25.
2. Locate Pilot Adjustment Screw. (See figures 10a or 10b)
3. Adjust pilot key to provide properly sized flame. (See figure 10a or
10b).
4. Replace pilot adjustment cap.
5. After installing or servicing, leak test with a soap solution with
main burner on. Coat pipe and tubing joints, gasket etc. with soap
solution. Bubbles indicate leaks. Tighten any areas where the
bubbles appear until the bubbling stops completely.
Figure 10. PSE Pilot Burner used on the EP28 4" Series models.

Page 12
EC Plus-4 Series B-Vent
®
Part No. XG0303C
Warranty
The Warranty
The Companies warrants the Montigo Gas Appliance to be free from defects in materials and workmanship at the time of manufacture. On the Montigo, there is a
ten-year warranty on the firebox and its components, a five-year warranty on the main burner and pilot burner, and a one-year warranty on the gas control valve
and fibre logs. Glass, plated/painted finishes, and refractory lining are exempt.
Remedy And Exclusions
The coverage of this Warranty is limited to all components of the Gas Appliance manufactured by The Companies.
This Warranty only covers Montigo Gas Appliances installed in the United States or Canada.
If the components of the Gas Appliance covered by this Warranty are found to be defective within the time frame stated (see The Companies right of investigation
outlined below). The Companies will, at its option, replace or repair defective components of the Gas Appliance manufactured by The Companies at no charge,
and will also pay for reasonable labour costs incurred in replacing or repairing components. If repair or replacement is not commercially practical, The Companies
will, at its option, refund the purchase price of the Montigo Gas Appliance.
This Warranty covers only parts and labour as provided above. In no case shall The Companies be responsible for materials, components, or construction which
are not manufactured or supplied by The Companies, or for the labour necessary to install, repair or remove such materials, components or construction. All
replacement or repair components will be shipped F.O.B. the nearest The Companies factory.
Qualifications To The Warranty
The Gas Appliance Warranty outlined above is further subject to the following qualifications:
(1) The GasAppliance must be installed in accordance with The Companies installation instructions and local building codes. The Warranty on this Montigo Gas
Appliance covers only the component parts manufactured by The Companies. The use of components manufactured by others with this Montigo Gas Appli-
ance could create serious safety hazards, may result in the denial of certification by recognized national safety agencies, and could be in violation of local
building codes. This warranty does not cover any damages occurring from the use of any components not manufactured or supplied by The Companies
(2) The Montigo Gas Appliance must be subjected to normal use. The Gas Appliances are designed to burn gas only. Burning conventional fireplace fuels such
as wood, coal or any other solid fuel will cause damage to the Gas Appliance, will produce excessive temperatures and will result in a fire hazard.
Limitations On Liability
It is expressly agreed and understood that The Companies sole obligation, and purchaser's exclusive remedy under this Warranty, under any other warranty,
expressed or implied, or in contract, tort or otherwise, shall be limited to replacement, repair, or refund, as specified above.
In no event shall The Companies be responsible for any incidental or consequential damages caused by defects in its products, whether such damage occurs
or is discovered before or after replacement or repair, and whether or not such damage is caused by The Companies negligence. Some states do not allow the
exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. The duration of any implied warranty
with respect to this Montigo Gas Appliance is limited to the duration of the foregoing warranty. Some states do not allow limitation on how long an implied warranty
lasts, so the above may not apply to you.
Investigation Of Claims Against Warranty
The Companies reserves the right to investigate any and all claims against this Warranty and to decide upon method of settlement.
The Companies Are Not Responsible For Work Done Without Written Consent
The Companies shall in no event be responsible for any warranty work done without first obtaining The Companies written consent.
Dealers Have No Authority To Alter This Warranty
The Companies employees and dealers have no authority to make any warranties nor to authorize any remedies in addition to or inconsistent with those stated
above.
How To Register A Claim Against Warranty
In order for any claim under this Warranty to be valid, The Companies must be notified of the claimed defect in writing or by telephone, as soon as reasonably
possible after the defect is discovered. Claims against this Warranty in writing should include the date of installation, and a description of the defect.
Other Rights
Canadian Heating Products Inc. and/or Montigo DelRay Corp. reserves the right to make changes at any time, without
notice, in design, materials, specifications, prices and also to discontinue colors, styles and products.

Page 13
EC Plus-4 Series B-Vent
®
Part No. XG0303C
Notes

Canadian Heating Products Inc.
Langley, BC V4W 4A1
Montigo Del Ray Corp.
Ferndale, WA 98248
XG0303C - 112006
