Montigo 30FID Traditional Instruction Manual

XG0513 092314
30FID - Linear
I-Series
Indoor
Resi
dential
Fireplace Insert
Installation & Maintenance Manual
Installer: Leave this manual with the appliance.
Consumer: Retain this manual for future reference.
NOTICE
Canadian Heating Products Inc. Langley, BC V4W 4A1 | Montigo Del Ray Corp. Ferndale, WA 98248

Page 2 XG0513-092314
Table of Contents
I-Series Indoor Gas Fireplace
Instruction Manual Contents
Safety Alerts 3
Introduction 4
Section 1: Product Dimensions 6
Standard Trim 6
StandardTrim with Offset Kit 7
Oversized Trim 8
Four-sided Trim 9
Section 2: Installation 10
Install Dimensions: 10
Clearances: 11
Section 3: Venting 12
Approved Vent Components 12
Vent Congurations 13
Section 4: Unpacking 15
Door Installation & Removal 16

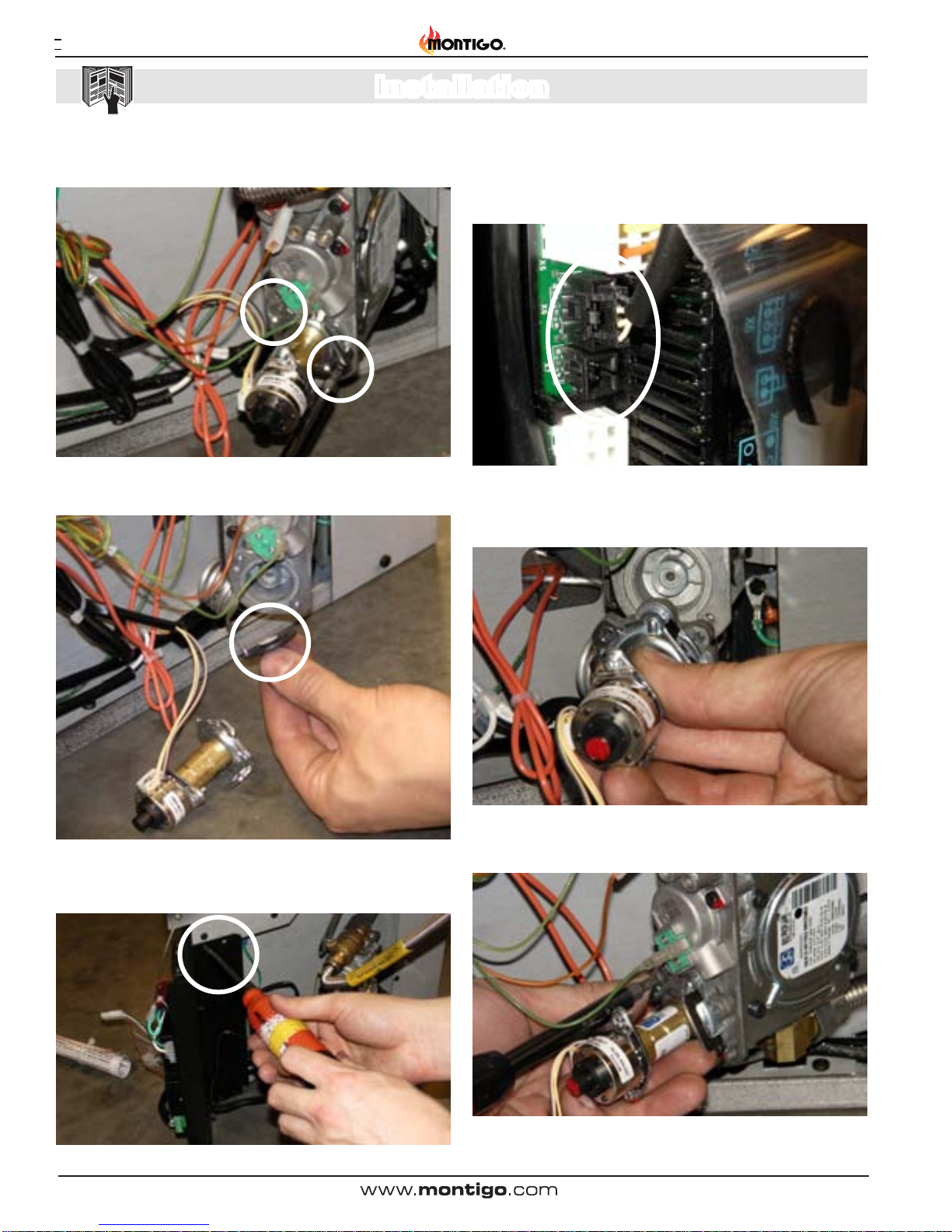

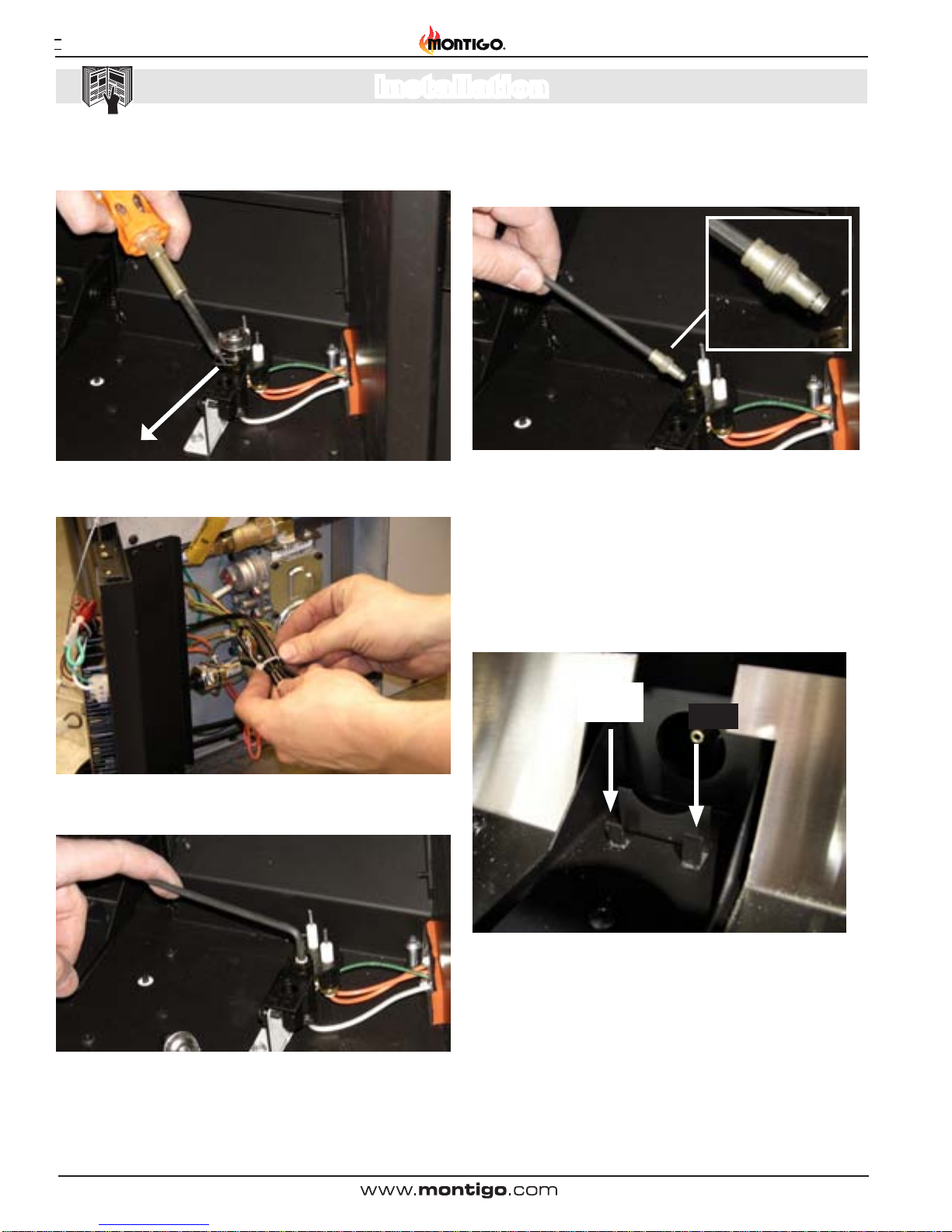

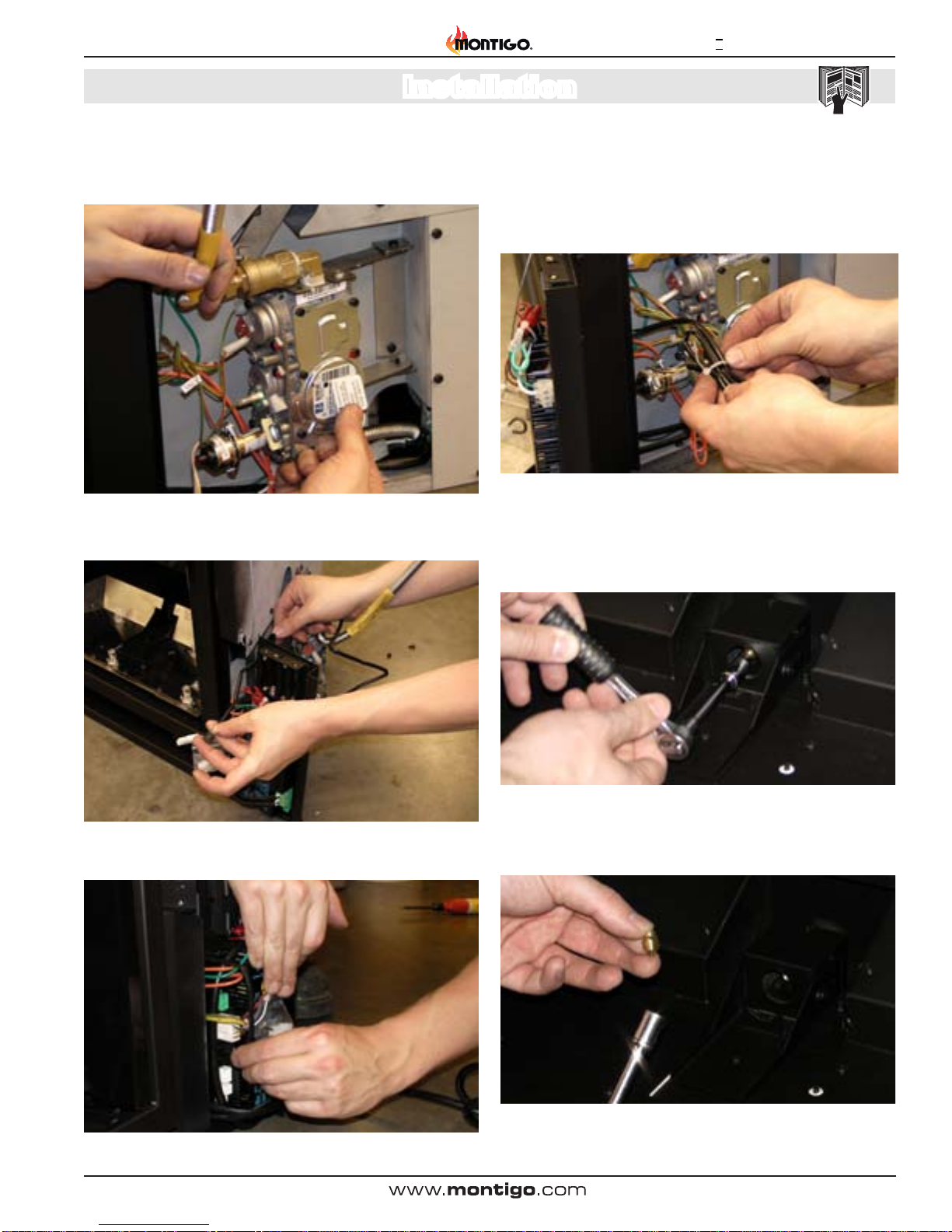

LP Conversion 17
Gas line connection 22
Fuel Supply + Manifold Pressure Checking 23
Faceplate Installation 24
Standard Faceplate Offset Installation 24
Standard or Oversized Faceplate Installation 25
Four Sided Faceplate Installation 28
CPI [Continuous Pilot Ignition] / IPI [Intermittent Pilot Ignition]
Jumper Cable Installation 31
Leveling the Unit 32
Connecting Power 33
Battery Installation / Replacement 33
Firestones or Fireglass Installation 34
Speckled Stone Installation 35
Driftwood Log Set Installation 37
Operation 38
Initial Operation 38
Pilot FlameAdjustment 38
Master Override Switch 39
AerationAdjustment 41
Remote Operation 42
Burner Removal / Installation 48
Firebox Panel Removal / Replacement 50
Accent Light Replacement 51
Window Cleaning / Screen Removal 54
Battery Replacement 55
Pilot Maintenance / Replacement 57
Control Board Replacement 60
Control Board Fuse Replacement 61
Vent Maintenance / Inspection 62
SIT Proame 2 Troubleshooting: 63
Appendix 64
AppendixA: Warranty 64
Appendix B: State of Massachusetts 65

Page 3
XG0513-092314
I-Series Indoor Gas Fireplace

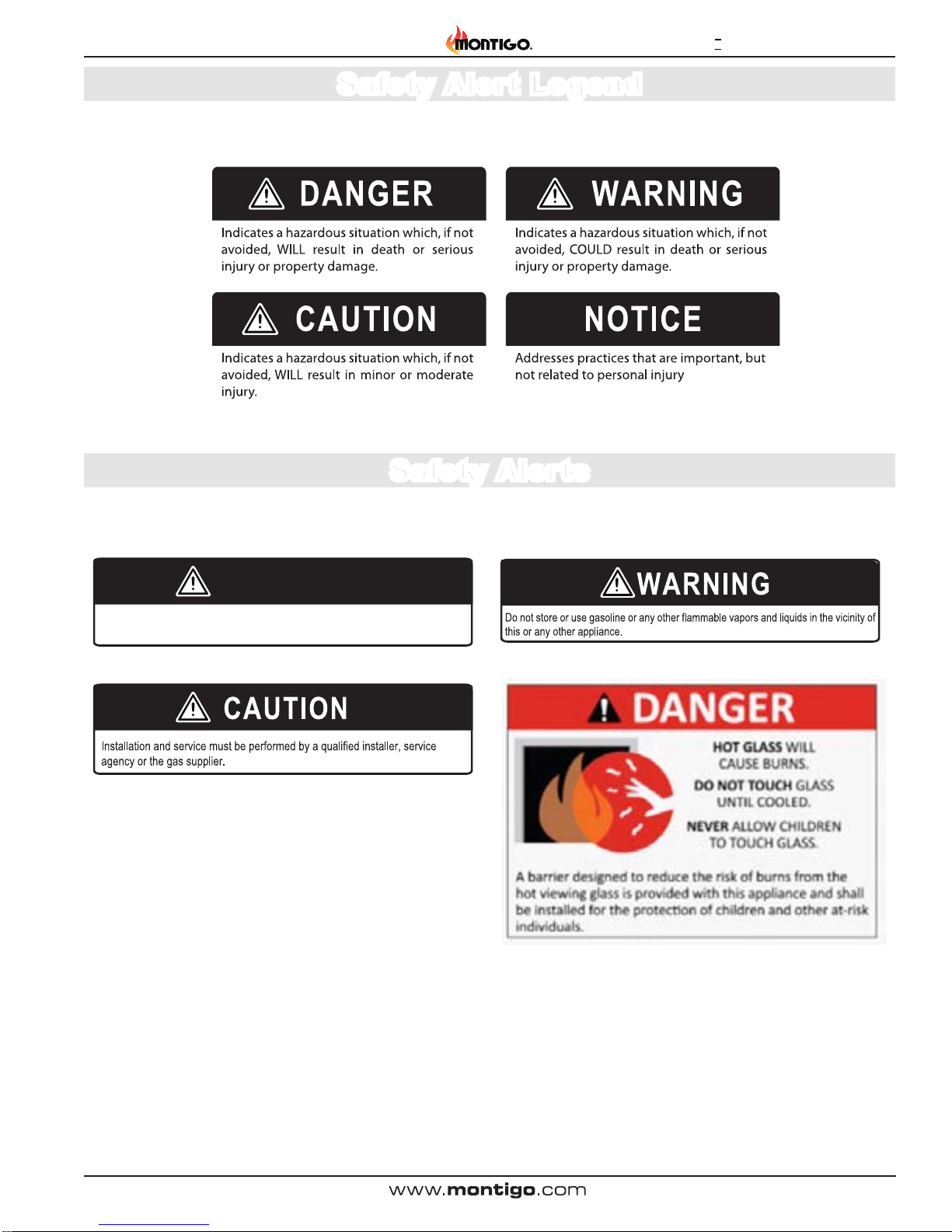

Safety Alert Legend
Safety Alerts
If the information in these instructions is not followed exactly, a fire or explosion
may result causing property damage, personal injury or death.
WARNING
Safety Alerts

Page 4 XG0513-092314
I-Series Indoor Gas Fireplace
Introduction
Introduction
Congratulations on your purchase of a Montigo Fireplace.
With over 30 years of experience, Montigo is committed to providing
you with a gas replace that is not only a beautiful addition to your
space, but that is also designed and manufactured to the highest
safety, reliability and engineering standards.
We strongly encourage you to read and carefully follow the instructions
laid out in this Installation, Operation and Maintenance Manual
and retain it for your future reference. Pay special attention to all
cautions, warnings, and notices throughout this manual intended
to ensure your safety.
This manual covers installation, operation and maintenance. Lighting,
operation and care of this replace can be easily performed by the
homeowner. All installation and service work should be performed
by a qualied or licensed installer, plumber or gas tter as certied
by the state, province, region or governing body where the replace
is being installed.
This installation, operation and maintenance manual is applicable
to the models described below. Refer to your rating plate to verify
included options.
Warranty and Installation Information: (See Appendix B)
The Montigo warranty will be voided by, and Montigo disclaims any
responsibility for, the following actions:
► Modication of the replace and/or components including
Direct-Vent assembly or glass doors.
► Use of any component part not manufactured or approved
by Montigo in combination with this Montigo replace system.
► Installation other than as instructed in this manual.
ConsultyourlocalGasInspectionBranchoninstallationrequirements
for factory-built gas replaces. Installation & repairs should be done
by a qualied contractor.
This appliance is equipped for altitudes from 0 - 4500 feet [0
-1370 m]. For higher altitudes contact your Montigo dealer.
30FIDN-L-F [NG] 30FIDL-L-F [LP]
Input Rating 24,000 BTU 23,000 BTU
Gas Supply Pressure 7" WC 11" WC
Manifold Pressure
High 3.5" 10"
Low 2.2" 6.4"
Orice Size (DMS) 41 54
Pilot Orice Size (No.) 62 35
Air Shutter Min Settings Fully Closed 3/16"
Electrical Requirement 115 VAC, 60Hz 115 VAC, 60Hz
Vent Size 3" 3" Aluminum / Stainless Flex
Minimum Vent Length 10' 10'
Maximum Vent Length 36' 36'
Efciency AFUE Method 71.27% 73.26%
Efciency P.4 Method 77.60% 79.00%
Clearances
Mantel 16" 16"
Hearth 0" 0"
Side Wall 7 7/8" 7 7/8"
Control Type SIT Proame 2 SIT Proame 2
Light Bulb Specication 20W, G6.35, Qty 5 20W, G6.35, Qty 5
Fuse Specication 3.15Amps 3.15Amps
Fan Amperage 1.6Amps 1.6Amps
Certication(s) Ansi Z21.88-2014 / CSA 2.33-2014 VENTED GAS FIREPLACE HEATERS
CGA 2.17-M91 [R2009] GAS FIRED APPLIANCES FOR HIGH ALTITUDES
CSA P.4.1-09 [R2014] Fireplace Efciency
Introduction

Page 5
XG0513-092314
I-Series Indoor Gas Fireplace
Introduction
Installation
Introduction



 












LB1223-V5.0 SIT IPI MAY.10.2012
  










 


    




  

  








    






 
 
 


 


Teklynx LabelView Demo
Before You Begin Rating label sample: Natural Gas Sample Shown
IMPORTANT MESSAGE: SAVE THESE INSTRUCTIONS
TheI-Seriesinsert replaces must be installed in accordance
with these Instructions. Carefully read all the instructions in
this manual rst. Consult the Local Gas Branch to determine
the need for a permit prior to starting the installation. It is
the responsibility of the installer to ensure this replace is
installed in compliance with the manufacturers instructions
and all applicable codes.
InstallationsintoaSolidFuelBurnerFireplaceoraFactory
Built Fireplace
This gas appliance has been tested and approved for installation
into any approved masonry or factory built solid fuel replace,
in which this gas insert will t. In the event that the vertical
height of the factory built replace is to low and that the removal
of some components such as the ue bafe, ue damper or
surround panels will facilitate the installation of the gas insert,
such components can be removed on the condition that:
1). The removal of such components in no way compromises
the structural integrity of the unit.
2). A Sticker, supplied by the installer, showing this information
is prominently afxed to the rebox.
Figure1 Sec.1Ratinglabellocation

Page 6 XG0513-092314
I-Series Indoor Gas Fireplace
Introduction
Introduction
Section 1: Product Dimensions
Standard Trim

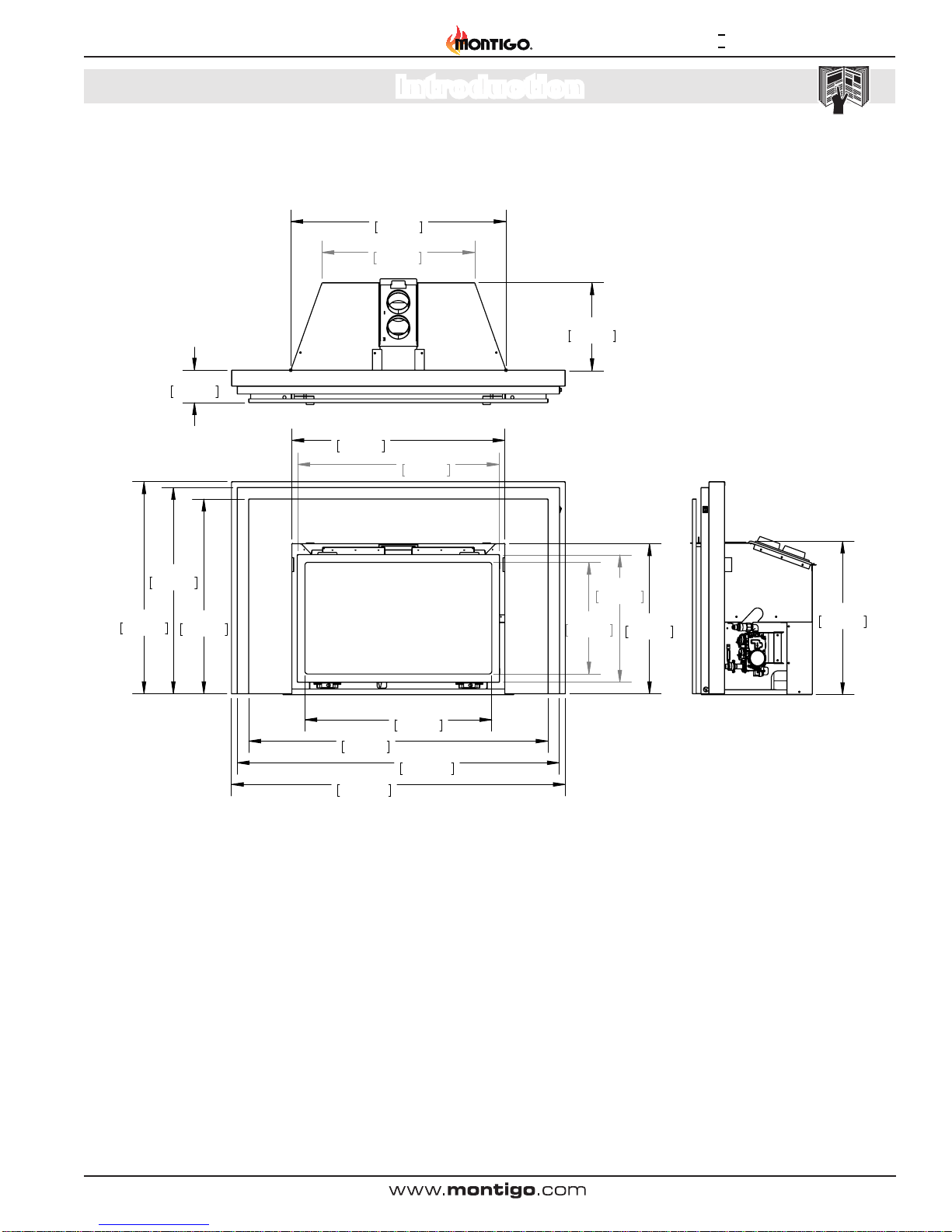

Figure2 Sec.130DFID-Lstandardtrimdimensions(Tolerance±⅛")[1.25mm]
27 3/4"
705mm
26 1/4"
667mm
24 1/4"
616mm
26 7/8"
683mm
19 1/2"
497mm
16 5/8"
421mm
14 1/4"
361mm
42"
1067mm
13 1/2"
343mm
19 7/8"
506mm
8"
203mm
11 1/4"
286mm
29 1/2"
750mm
I
E
3" Exhaust
(76mm)
3" Intake
(Air Inlet)
(76mm)
13 1/2"
343mm
6 3/4"
171mm
25 3/8"
645mm
20"
508mm
30DVI UNIT DIMENSIONS

Page 7
XG0513-092314
I-Series Indoor Gas Fireplace
Introduction
Section 1: Product Dimensions
Standard Trim with Offset Kit
Figure3 Sec.130DFIDV-Loffsettrimdimensions(Tolerance±⅛")[1.25mm]
26 1/4"
667mm
16 5/8"
421mm
14 1/2"
370mm
27 3/4"
705mm
24 3/8"
619mm
25 3/8"
645mm
26 7/8"
683mm
27 5/8"
702mm
39"
991mm
42"
1066mm
43 1/2"
1105mm
19 1/2"
497mm
19 7/8"
506mm
11 1/2"
291mm
4 1/4"
107mm
28"
712mm
20"
508mm
Set Back Surround

Page 8 XG0513-092314
I-Series Indoor Gas Fireplace
Introduction
Section 1: Product Dimensions
Oversized Trim

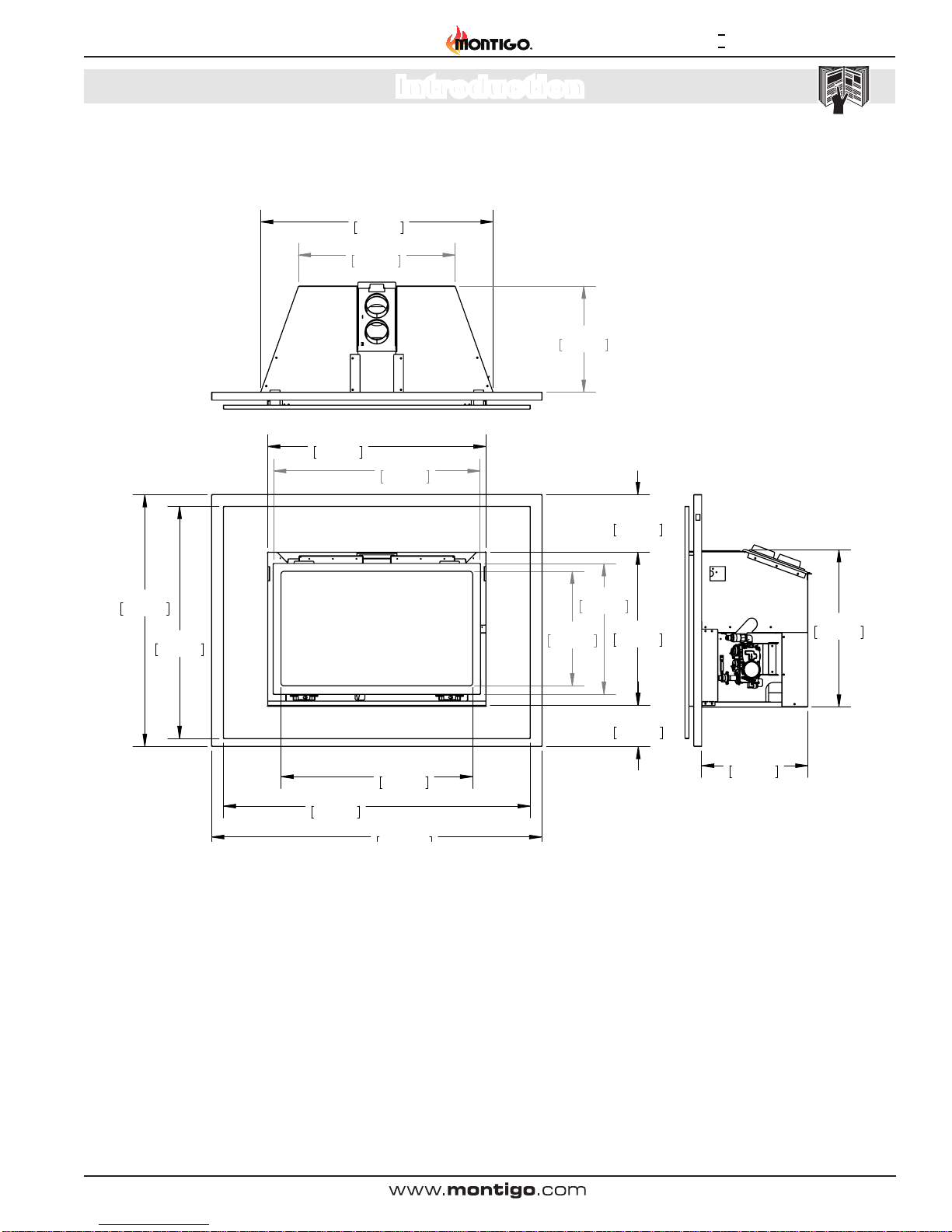

Figure4 Sec.130DFIDV-Loversizedtrimdimensions(Tolerance±⅛")[1.25mm]
27 3/4"
705mm
26 1/4"
667mm
24 1/4"
616mm
19 1/2"
497mm
16 5/8"
421mm
14 1/2"
370mm
29 7/8"
759mm
27 3/8"
695mm
43"
1092mm
47 7/8"
1217mm
13 1/2"
343mm
19 7/8"
506mm
29 1/2"
750mm
20"
508mm
13 1/2"
343mm
Oversize Surround

Page 9
XG0513-092314
I-Series Indoor Gas Fireplace
Introduction
Section 1: Product Dimensions
Four-sided Trim
Figure5 Sec.130DFIDV-Lfour-sidedtrimdimensions(Tolerance±⅛")[1.25mm]
26 1/4"
667mm
16 5/8"
421mm
14 1/2"
370mm
27 3/4"
705mm
19 1/2"
494mm
29 1/2"
749mm
32"
813mm
39"
991mm
42"
1066mm
24 3/8"
619mm
5 1/4"
133mm
7 3/8"
186mm
13 1/2"
343mm
19 7/8"
506mm
29 1/2"
750mm
20"
508mm
13 1/2"
343mm
4-Sided Surround

Page 10 XG0513-092314
I-Series Indoor Gas Fireplace
Installation
Section 2: Installation
Figure1 Sec.2 30DFID-L installationdimensions
Install Dimensions:
The install size requirements of your replace insert are dependent
on several factors. Gas line location, electrical connection and
gas line type can play into what the minimum installation size
can be. The diagram below illustrates the smallest possible size
requirement of this model. Please take into consideration these
other factors when determining if this appliance will t into your
masonry or manufactured replace.
A A
20"
508mm
14"
356mm
30"
762mm
Gas and Electrical
supply on right side
B
B
20"
508mm
5"
127mm

Page 11
XG0513-092314
I-Series Indoor Gas Fireplace
Installation
Figure2 Sec.230DFID-Lclearances
Clearances:
The 30DFIDV-LIN Insert is designed and built to be installed into
masonry or manufactured replaces. There is no requirement to
have a non-combustible hearth in front of the unit. Clearances
to the underside of the mantel or sidewall are measured from
the edge of the door/screen front. The Mantel is shown as 10”
maximum at a distance of 16” minimum from the door edge top.
The mantel can be extended further providing that you increase
the height proportionately. For instance, if you want a mantel that
is 2” beyond the 10” maximum, you have to install it 2” above the
16” minimum.
10"
254
Max
Allowable
Mantel
Area
30"
32"
34"
36"
38"
16"
406
Min
16"
18"
20"
22"
24"
26"
28"
32"
28"
24"
20"
16"
12"
8"
4"
Figure3 Sec.2 30DFID-L mantelclearances
Min

Page 12 XG0513-092314
I-Series Indoor Gas Fireplace
Installation
Section 3: Venting
Approved Vent Components
Your Montigo 30FID is approved to be installed with the following
venting components:
Termination
46DVA-VCH, Duravent Vertical, High Wind Termination
Adaptor
46DVA-GK,Duravent3"x3"to4"x55/8"Co-lineartoCo--axialAdaptor
Connectors
3DFA-FC, Duravent 3" Flex Liner Coupling
Venting
3" Flex Liner MONTIGO

Page 13
XG0513-092314
I-Series Indoor Gas Fireplace
Installation

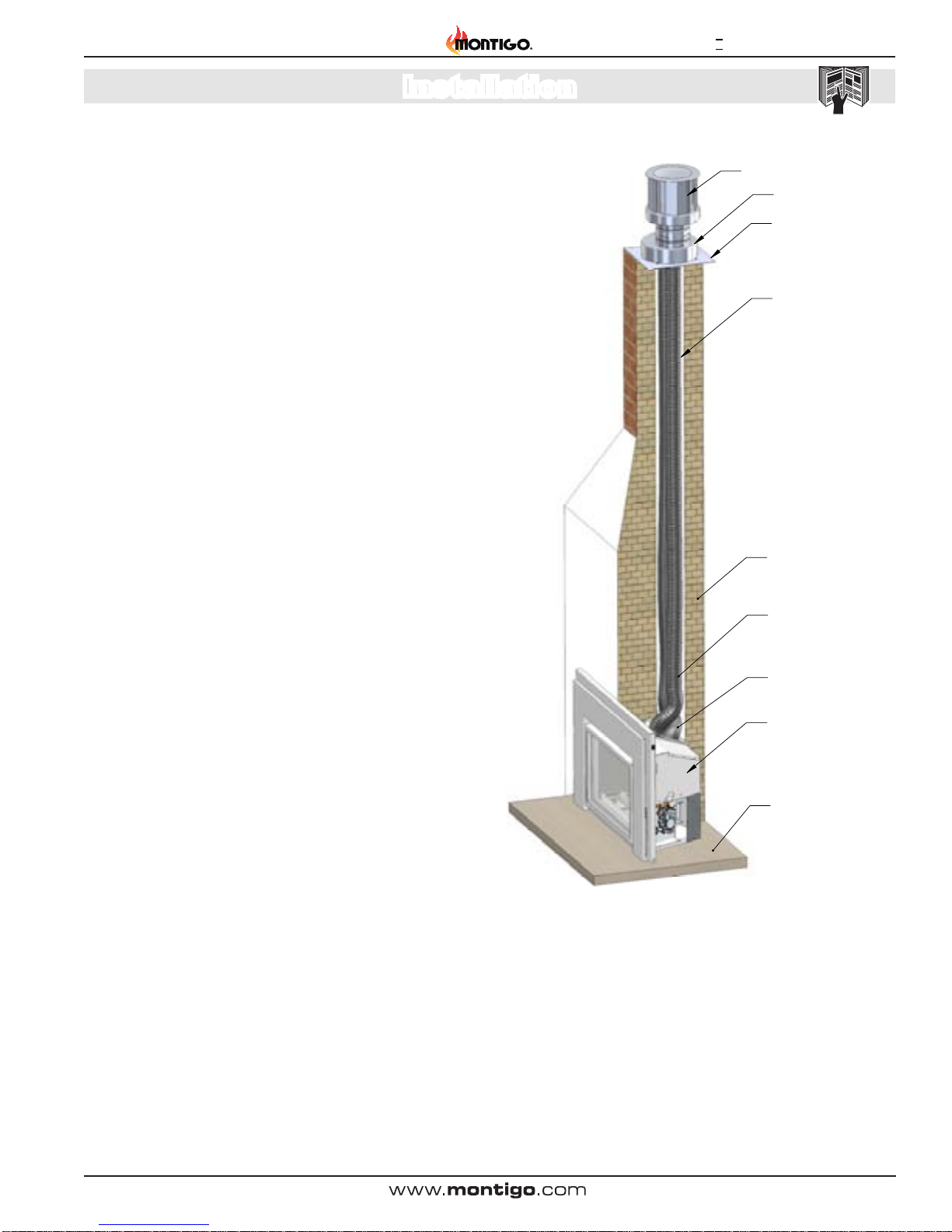

Figure1 Sec.3
Vent Congurations
This appliance can only be vented vertically. The minimum vent
height measured from the oor under the unit to the bottom of the
termination is 10’. The maximum height that a vent can extend is
36’. This unit uses 3” x 3” Co-linear venting. This is a direct vent
unit and as such requires that both intake and exhaust vents are
connected and operational. Using existing chases as a partial vent
mechanism is not allowed. Due care is required to ensure that all
vent components are properly connected and sealed. Care must
also be taken when installing ashing or termination caps to make
sure that the structure of the building cannot be subject to water
penetration. Proper roong and chimney nishing techniques
must be used.
Steps for vent connection
** Before installing the venting system, make sure that any dampers
or bafe plates in the replace are removed or do not present any
hindrance to your installation **
1). Determine the length of ex venting that will be required. Cut
2 lengths a couple of feet longer than you anticipate needing. The
length of these needs to be determined after the vent is stretched
out. Flex venting generally comes compressed and needs to be
stretch out to meet the lengths as specied.
2). From the roof, attach the Vent Lengths to the Adaptor. Don`t
forget to have the Flashing placed between the Flex Vent and the
Adaptor before attaching the Flex Vent.
3). Using commercial grade sealant around the perimeter of the
CollarsoftheAdaptor,useaminimumof3TechscrewsineachVent.
4). Install the Termination to the top of Adaptor. Use a minimum of
4 tech screws to attach the Termination to theAdaptor.
5). Feed the Flex Venting down the chimney until the Adaptor is
situated near the top of the Chimney. Use a commercial grade of
sealant between the Flashing and the Chimney top. Fasten the
Flashing to the top of the Chimney using a fastening method that
will properly secure the ashing permanently.
6). Attach the Adaptor to the top of the Flashing using 4 tech
screws. Seal around the perimeter of theAdaptor where it meets
the Flashing.
7). From inside the house check how long the vents protrude into
the Fireplace. Read the section on installation where fuel supply
pressure checking needs to be done. This procedure can be
done at this point by installing the venting to the appliance prior
to pushing the appliance into the replace cavity.
8). Oncepre-installationstepshavebeencompleted,trimthevent
length to the correct length for installation. The Correct length will
leave the Flue Collar Slide Plate suspended around 18-19 inches
from the oor of the Fireplace.
9). Removethe FlueCollar SlidePlatefromtheappliance.Attach
both ex ends to the Flue Collar Slide plate. Use a commercial high
temp sealant around the Flue Collars on Flue Collar Slide Plate
before installing the Venting. Use a minimum of 3 tech screws to
properly secure the Venting to the Flue Collar Slide Plate.
**MakecertainthattheExhaustandIntakeVentsareconnected
to the correct collars on the Flue Connection Plate. If they
are connected in reverse, this unit will not operate and re-
installation will be necessary. **
Termination 46DVA-VCH
Adaptor 46DVA-GK
Flex Liner VT15FL3
Hearth / Floor
Masonry Chimney
(Cut-away View)
Exhaust Flue
Intake Flue
Flashing
Fireplace Insert

Page 14 XG0513-092314
I-Series Indoor Gas Fireplace
Installation
Figure2 Sec.3
Figure3 Sec.3
Figure4 Sec.3
**Forclarity,thepicturesinthissectionshowtheFireplaceInsertin
an open room. You will be performing these tasks in the Fireplace
as you complete this installation **
10). Using the Door Opening Tool provided with the Fireplace Insert,
insert the tool through the Outer Shell of the Fireplace Insert. You
will be inserting this tool through a keyhole on front edge of the Flue
Collar Slide Plate.
11). The Flue Collar Slide Plate needs to be engaged into the Slide
Plate Retainers as you pull it forward.
12). You will slowly slide the Fireplace Insert back into the Fireplace
Cavity. At the same time, you will be pulling the Flue Slide Plate
forward onto the Fireplace Insert.
** Be extremely careful that the Gasket between the Fireplace
Insert and the Flue Collar Slide Plate is not damaged and remains
in the correct position. Failure of this gasket will greatly diminish the
operation of this appliance. **
14). Once the Flue Collar Slide Plate is within 1" of the front, Use
the 1/4" NC screw supplied and secure the Flue Collar Slide Plate
to the front of the Fireplace Insert
13). MakecertainthatwhentheFlueCollarSlidePlatecomesforward
that the tab at the back of the appliance engages into the Flue Collar
Slide Plate. Without this engagement, the Flue Collar Slide Plate will
not seal against the Gasket and the unit will not function.

Page 15
XG0513-092314
I-Series Indoor Gas Fireplace
Installation
Section 4: Unpacking
Figure1 Sec.4Opening the replace carton
Figure2 Sec.4Topoftheunit
Figure3 Sec.4Items included in replace carton.
Figure4 Sec.4Frontofunitunpackaged.
While unpacking your new replace, take special care to ensure
thatallthecomponentsshownhereareincludedinyourshipment
and that all components are received in good condition. Please
notify your retailer directly if there are any discrepancies with
your shipment.
Instruction Guide
Remote Control
Batteries
Door Tool
Door Tool
Instruction Guide
Batteries
Remote Control
Additional Items Required To Be Ordered Separately
● Faceplate Kit
● Media
● Optional Logs
● Venting
● Termination
See price list for ordering information

Page 16 XG0513-092314
I-Series Indoor Gas Fireplace
Installation
Door Installation & Removal
This appliance is supplied with a safety screen installed. The
Safety Screen is attached to the replace door using 4 screws,
and can be removed when necessary for outer glass cleaning.
The Fireplace Door is attached to the Firebox by way of 2 tabs
mounted to the top of the Firebox and by 2 spring loaded retainers
at the bottom underneath the Door. The Retainers at the bottom
of the unit are manipulated using a Door Tool that is supplied with
the unit. The general operation of the Door Retainers is:
a). Engage the Door Tool into the Door Retainer
b). Pull forward away from the tabs that engage it on the
bottom of the Door Frame
c). Movetheretainerdownwardandthenbackunderneath
the Door
d). Swing the Door outward from the unit and then lift the
Door up and over the top Tabs.
Figure5 Sec.4DoorTool/ BottomofDoor
Figure6 Sec.4Engaging theDoorTool IntotheDoorRetainer
Figure7 Sec.4ThedoorlatchreleasedfromtheDoor
Figure8 Sec.4 Swing the Door away from the unit, lift over the retaining
tabs on top of the rebox. Be careful to not roll the gasket up off the glass
whenreinstallingthedoor.
Figure9 Sec.4Location ofDoorretainer tabs
Engage door tool into door retainer. Pull door tool towards you and
push downwards, disengaging the door retainer from the door.
Check that the door retainers are properly engaged. If they are
not the door relief system may not operate properly. This can
cause a risk of injury or improper operation of the appliance.

Page 17
XG0513-092314
I-Series Indoor Gas Fireplace
Installation
LP Conversion
The 30FIDV-LIN is available in Natural Gas or Liquid Propane
versions. Should you have a Natural Gas unit that you would like
toburnPropanewith;youcanpurchaseanoptionalLPconversion
kit and install it using the following steps. To convert the unit to LP,
the unit must be disconnected from any gas supply, disconnected
from any electrical supply and batteries and removed from any
installation cavity.
Figure1 Sec.6LP conversion kit showing pilot orice, main burner orice,
LP stepper motor, zap strap and gas tter conversion label.
Figure2 Sec.6
Figure3 Sec.6
Tools required
1). Torx T20 Screw Driver Bit
2). 3/8" Socket Driver
3). 5/32" Allen Key
4). Needle Nose Pliers or Small Flat Head Screw Driver
Converting the gas regulator on the valve
1). On the right side (control side) of the unit, remove 2 screws
that enable the valve to swing away from the unit.
The 6 major items that need modication to convert a unit to LP
1). Variable regulator on the gas valve
2). The main burner orice
3). The pilot burner orice
4). Set minimum primary air tab
5). Label on the valve showing the new specications
6). Gas tter conversion label
2). Swing the valve away from the unit in order to get access to
the front of the valve and regulator. Be careful not to damage gas
lines or wires.

Page 18 XG0513-092314
I-Series Indoor Gas Fireplace
Installation
Figure4 Sec.6
Figure5 Sec.6
Figure6 Sec.6
Figure7 Sec.6
3). Using a T20 Torx screw driver, remove the 2 screws that attach
the stepper motor to the valve.
4). Remove the screws, stepper motor and rubber diaphragm.
Figure8 Sec.6
5). Remove the top 2 screws that hold the control mounting
bracket in place.
6). Unplug the cable that runs from the stepper motor to the control
board and remove it from in between the control board mounting
bracket and the replace.
Figure9 Sec.6
7). Place the LP stepper motor onto the valve being extremely
careful that the orientation of the regulator is correct.
8).Reinstallthe2screwssuppliedwiththeconversionkittofasten
the stepper motor to the valve body.

Page 19
XG0513-092314
I-Series Indoor Gas Fireplace
Installation
Figure10Sec.6
9). Attach the label provided to the side of the valve body. This
label shows that the valve has been converted using SIT approved
components.
Figure11Sec.6
10). Run the cable from the stepper motor in between the control
mounting bracket and replace.
Figure12Sec.6
12). Plug the cable into the control board.
Figure13 Sec.6
13). Reinstall the 2 screws to secure the top of the control board
mounting bracket. Using the zip strap supplied, secure the excess
of wires neatly within the control / valve area. Re-install the 2
screws that keep the valve body from swinging out from the unit.
When swinging valve back in use care to not pinch or kink
wires or pilot gas line. Inspect pilot gas line for leaks.
Converting the main burner orice to LP
15). Place the LP main orice into the end of the socket wrench.
Being sure not to cross thread the orice, install the orice into
the mounting within the air shutter box.
Figure14 Sec.6
14). Remove burner, see burner removal section. Using a socket
wrench and driver, loosen and remove the main burner orice.
Figure15Sec.6

Page 20 XG0513-092314
I-Series Indoor Gas Fireplace
Installation
17). Remove the pilot hood from the pilot assembly
Figure16Sec.6
Converting the pilot burner orice to LP
16). Remove the spring clip that retains the Pilot Flame Hood.
Figure17Sec.6
18). Using an Allen key, remove the NG Pilot Orice
Figure18 Sec.6
19). Replace the NG Pilot orice with the LP Pilot orice. If you
get the orices mixed up, the LP orice has a grove machined
around the diameter near the end.
Figure19 Sec.6
20). Reverse steps to install pilot hood.
21). The minimum primary air setting is different depending on fuel
and burner. The minimum primary air is set by hand-bent tabs on
theprimaryairadjustment.Bendtheappropriatetabdownforyour
fuel and burner. See specications table or primary air adjustment
for proper tab. See image below for tab lengths. If your setting is
fully closed, bend both tabs up.
1/16 " 3/16 "
Figure20 Sec.6
