Montigo H34DF Instruction Manual

H34DF HC34DF
HL34DF
Indoor
Resi dential
Gas Fireplace
®
C US
Read and understand this manual. Improper installation, adjustment, alteration,
service or maintenance can cause serious injury, property damage or even death.
For assistance or additional information consult a qualified installer, service
agency or the gas supplier.
DANGER
Installation & Maintenance Manual
Do not store or use gasoline or any other flammable vapors and liquids in the vicinity of
this or any other gas burning appliance. A fire or explosion my occur causing serious
injury, property damage or even death.
WARNING
Installer: Leave this manual with the appliance. Do not remove.
Consumer: Retain this manual for maintenance and future reference. Do not Discard.
NOTICE
IF YOU SMELL GAS
Do not try to light any appliance.
Do not touch any electrical switch; do not use any phone in your building.
Immediately call your gas supplier from a neighbor's phone. Follow the gas
supplier's instructions.
If you cannot reach your gas supplier, call the fire department.
DANGER
Irritant
Cutting
Watchyour step
Slipperyfloor
Hightemperatures
Glasshazard
Dangerof suffocation
Highvoltage
Toxic
Flammablematerials
Corrosive
Forklift trucks
Dangeroverhead crane
Explosionrisk
Oxidising
Dangerof death
Biohazard
LaserRadiation
Dangerof entrapment
Hotsurface
GeneralWarning
Blank
Gasbottles
Watchfor
fallingobjects
Electricity
Dangerfor cutter
Entrapmenthazard
Batteryhazard
Rotatingparts
Lowtemperature
Strongmagnetic field
Opticalradiation
Nonionizing
radiation
Radiation
Hazardousto the
Environment
Dangerof harming
yourhands
Irritant
Cutting
Watchyour step
Slipperyfloor
Hightemperatures
Glasshazard
Dangerof suffocation
Highvoltage
Toxic
Flammablematerials
Corrosive
Forklift trucks
Dangeroverhead crane
Explosionrisk
Oxidising
Dangerof death
Biohazard
LaserRadiation
Dangerof entrapment
Hotsurface
GeneralWarning
Blank
Gasbottles
Watchfor
fallingobjects
Electricity
Dangerfor cutter
Entrapmenthazard
Batteryhazard
Rotatingparts
Lowtemperature
Strongmagnetic field
Opticalradiation
Nonionizing
radiation
Radiation
Hazardousto the
Environment
Dangerof harming
yourhands
Irritant
Cutting
Watchyour step
Slipperyfloor
Hightemperatures
Glasshazard
Dangerof suffocation
Highvoltage
Toxic
Flammablematerials
Corrosive
Forklift trucks
Dangeroverhead crane
Explosionrisk
Oxidising
Dangerof death
Biohazard
LaserRadiation
Dangerof entrapment
Hotsurface
GeneralWarning
Blank
Gasbottles
Watchfor
fallingobjects
Electricity
Dangerfor cutter
Entrapmenthazard
Batteryhazard
Rotatingparts
Lowtemperature
Strongmagnetic field
Opticalradiation
Nonionizing
radiation
Radiation
Hazardousto the
Environment
Dangerof harming
yourhands
Irritant
Cutting
Watchyour step
Slipperyfloor
Hightemperatures
Glasshazard
Dangerof suffocation
Highvoltage
Toxic
Flammablematerials
Corrosive
Forklift trucks
Dangeroverhead crane
Explosionrisk
Oxidising
Dangerof death
Biohazard
LaserRadiation
Dangerof entrapment
Hotsurface
GeneralWarning
Blank
Gasbottles
Watchfor
fallingobjects
Electricity
Dangerfor cutter
Entrapmenthazard
Batteryhazard
Rotatingparts
XG0146 150204
Canadian Heating Products Inc. Langley, BC V4W 4A1 | Montigo Del Ray Corp. Ferndale, WA 98248

Page 2
You must read and understand this manual prior to installation, operation or
troubleshooting this appliance. Please retain this owner’s manual for future reference
and maintenance.
NOTICE
XG0146 - 150204
Table of Contents
H*34DF Indoor Gas Fireplace
Instruction Manual Contents
Introduction 3
Before You Start 4
Installation Checklist 4
Rating Plate Sample - H34DF 5
Rating Plate Sample - HC34DF 6
Section 1: Installation Overview and Product Dimensions 7

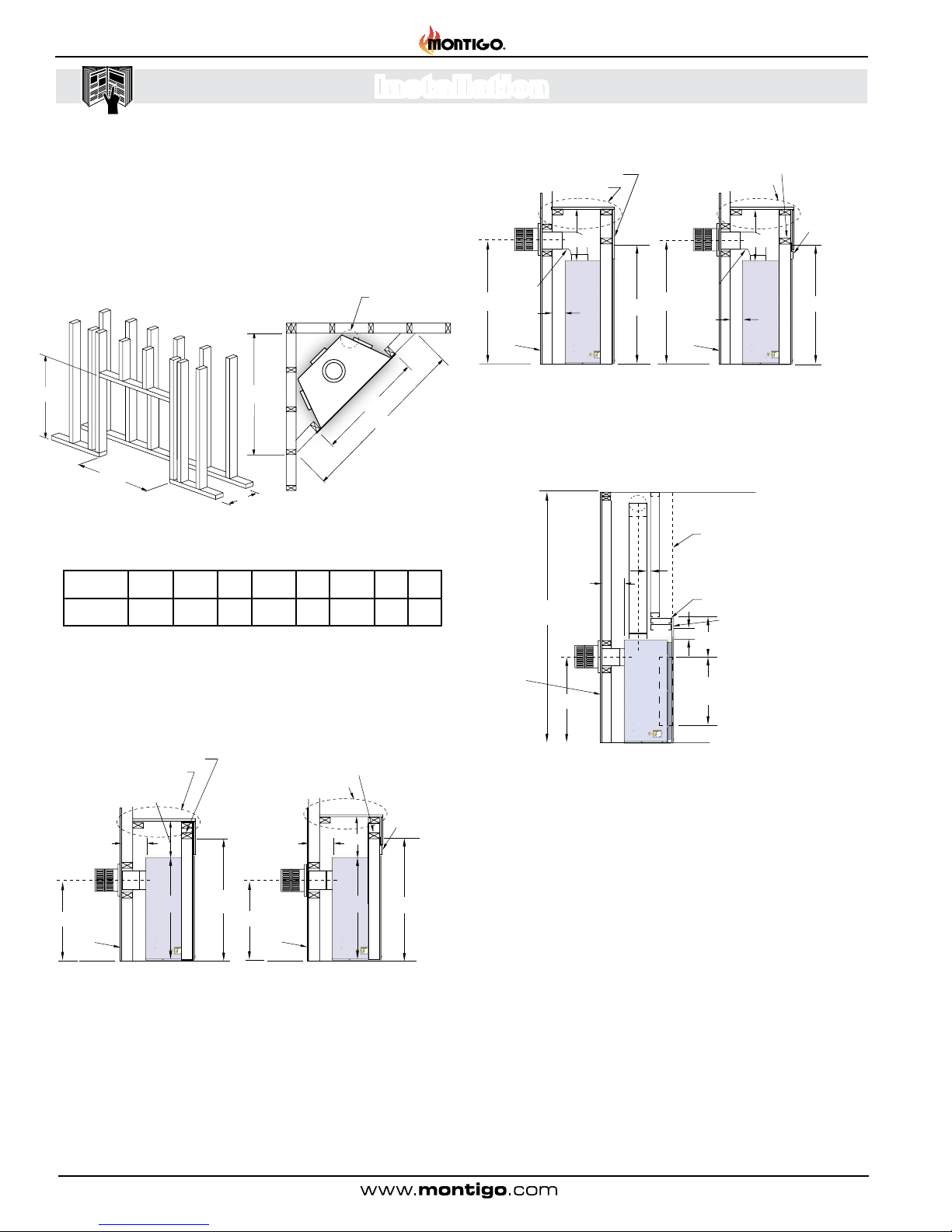

Section 2: Framing 8
Clearances 9
Installing The Standoffs 9
Installing the Nailing Flange Extension - HC34DF* Only 9
Section 3: Venting 10
Section 3-1: Converting to Rear Vent 10
Section 3-2: Installing a Roof Mounted Direct Vent Termination
(MVTK-1) 11

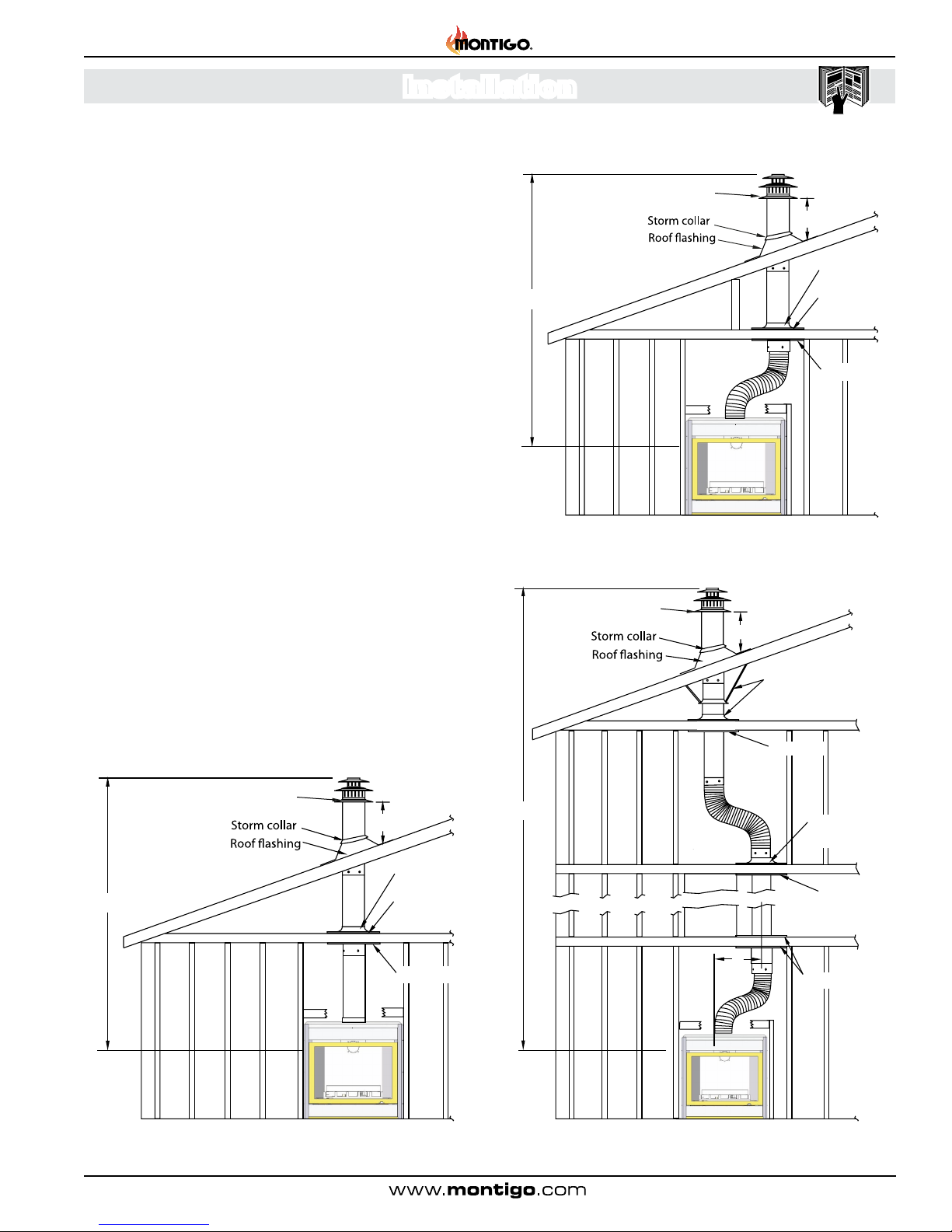

Section 3-2-1: Venting Layout: Roof Mounted Termination 11
Roof mounted Terminations 11

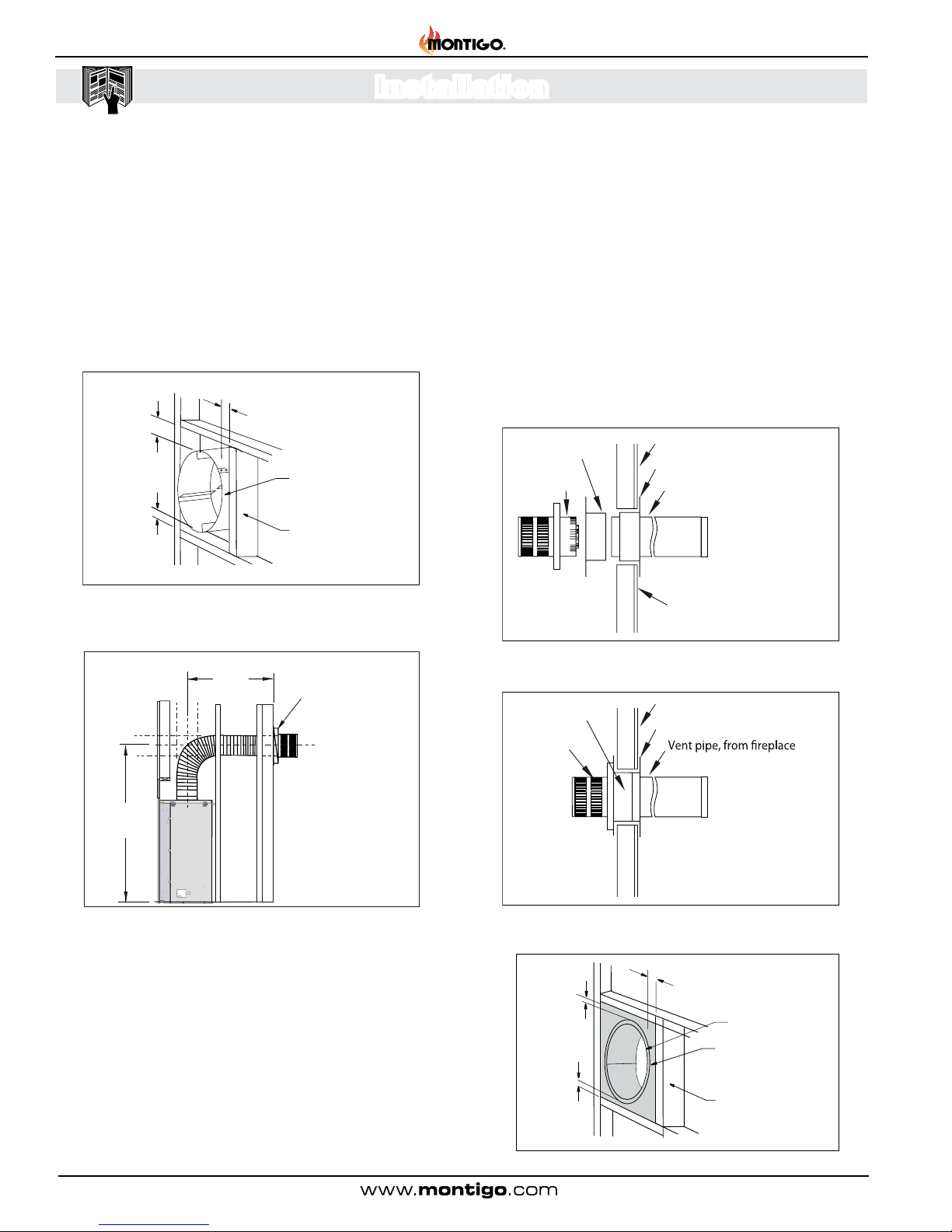

Section 3-3: Installing a Wall Mounted Direct Vent 13
Termination 13

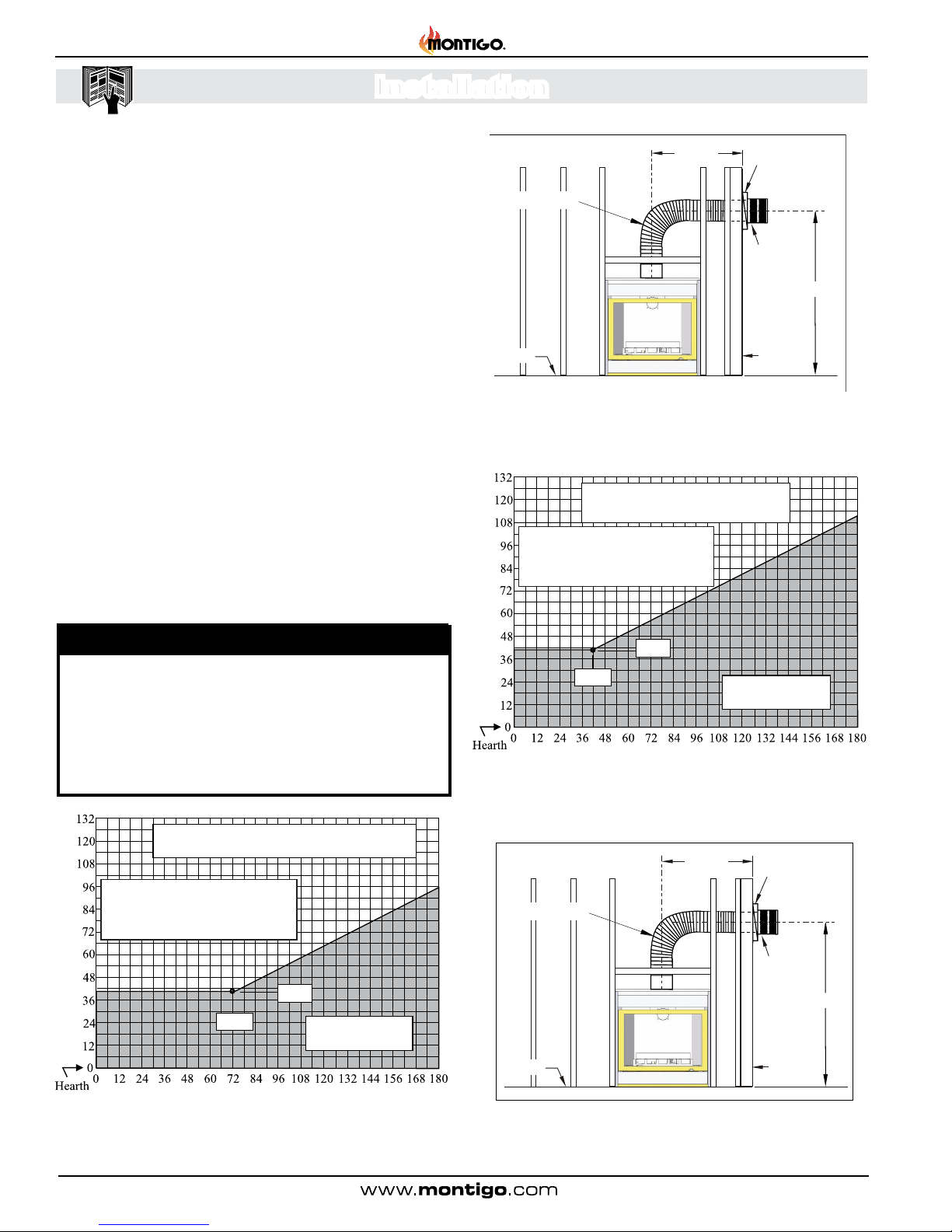

Section 3-3-1: Venting Layout: Wall mounted termination 14
Section 3-3-2: Venting Components 17
Section 3-3-3: Heat Shields 18

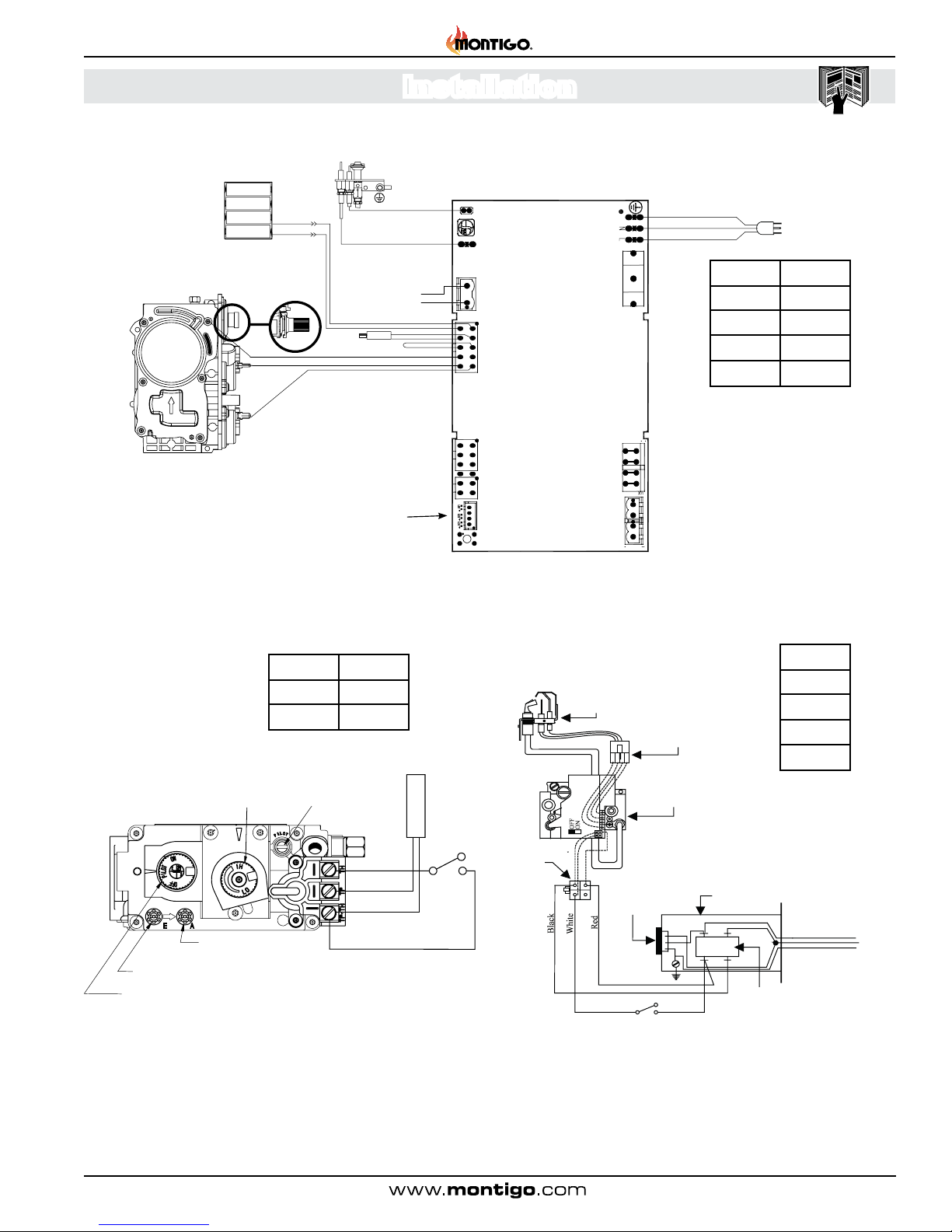

Section 4: Wiring 19
Section 5: Installing the Gas Line 21
Section 5-1: Fuel Conversion 21
Section 5-2: Gas Pressure 21
Section 5-3: Gas Connection 21
Section 6: Finishing 22
Section 7: Screen Installation and Removal 24
Section 8: Installing & Removing the Door 25
Section 9: Installing the Accessories 27
Installing the H34DF* Log Set (Part # LGSH34) 27
Installing the HC34DF* Log Set (Previous model HD34DF*) (Part # LGS44P)
28
Installing Firestones in Natural Gas and Propane Fireplaces 29
Designer River Rocks - Converting from H34DFN* to HR34DFN*: 29
Installing the Designer River Rocks: 30
Section 10: Operation - Start up Sequence 33
Standing (Continuous) Pilot Ignition (SIT NOVA 820) 33
SIT Proame 2 Electronic Ignition 34
Honeywell Electronic Ignition 35
Maintenance 36
Lighting Instructions 36
General 36
Cleaning 36
Hi-Lo Burner Adjustment: (SIT Nova 820). 36
Hi-Lo Burner Adjustment: (SIT Proame 2). 36
Pilot Burner Adjustment. 36
Troubleshooting: 37
SIT Nova 820: 37
Honeywell: 37
SIT Proame 2: 37
Replacement Parts: 38
Appendix A: Venting Terminations 39
Appendix B: Warranty 40

Page 3
XG0146 - 150204
H*34DF Indoor Gas Fireplace
Safety Alert Key
Introduction
Indicates a hazardous situation which, if not
avoided, WILL result in death or serious
injury or property damage.
Indicates a hazardous situation which, if not
avoided, COULD result in death or serious
injury or property damage.
Indicates a hazardous situation which, if not
avoided, WILL result in minor or moderate
injury.
Address practices that are important, but
not related to personal injury
DANGER WARNING
CAUTION NOTICE
Young children should be carefully supervised when they are
in the same room as the applicance. Toddlers, young children
and others may be susceptible to accidental contact burns. A
physical barrier is recommended if there are at risk individuals
in the house. To restrict access to a fireplace or stove, install
an adjustable safety gate to keep toddles, young children and
other at risk individuals out of the room and away from hot
surfaces.
CAUTION
Note: The HC34DF replaces the Previous HD34DF model.
This installation, operation and maintenance manual is applicable to the
models described above. Refer to your rating plate to verify included
options. Throughoutthis manual instructionsareapplicable to allmodels
designated as H*34DF* unless otherwise note.
H34DFN X 18,000 X X
H34DFNE X 18,000 X X
H34DFNI X 18,000 X X
H34DFL X 18,000 X X
H34DFLE X 18,000 X X
H34DFLI X 18,000 X X
HC34DFN X 22,000 X X
HC34DFNE X 22,000 X X
HC34DFNI X 22,000 X X
HC34DFL X 22,000 X X
HC34DFLE X 22,000 X X
HC34DFLI X 22,000 X X
HL34DFNI X 20,000 X X
HL34DFLI X 20,000 X X
MODEL Natural Gas Liquid Propane Gas Rating (BTU hr) Traditional Burner / Logset Contemporary Burner w/River rock Linear Burner w/ Glass Accessories Standing Pilot Ignition Honeywell Hot Surface Ignition SIT Electronic Ignition
Introduction
Congratulations on your purchase of a Montigo Fireplace.
With over 30 years of experience, Montigo is committed to providing you
with a gas replace that is not only a beautiful addition to your space, but
that is also designed and manufactured to the highest safety, reliability
and engineering standards.
We strongly encourage you to read and carefully follow the instructions
laidout in this Installation,OperationandMaintenance Manual andretain
itforyour future reference. Pay specialattentiontoallcautions,warnings,
and notices throughout this manual intended to ensure your safety.
This manual covers installation, operation and maintenance. Lighting,
operation and care of this replace can be easily performed by the
homeowner. All installation and service work should be performed by
a qualied or licensed installer, plumber or gas tter as certied by the
state, province, region or governing body where the replace is being
installed.
This installation, operation and maintenance manual is applicable
to the models described below. Refer to your rating plate to verify
included options.
Warranty and Installation Information: (See Appendix B)
The Montigo warranty will be voided by, and Montigo disclaims any
responsibility for the following actions:
► Modication of the replace and/or components including
Direct-Vent assembly or glass doors.
► Use of any component part not manufactured or approved
by Montigo in combination with this Montigo replace system.
► Installation other than as instructed in this manual.
Consult your local Gas Inspection Branch on installation requirements
for factory-built gas replaces. Installation & repairs should be done by
a qualied contractor.

H*34DF Indoor Gas Fireplace
Page 4 XG0146 - 150204
Installation
Installation and repairs should be done by an authorized gas fireplace service technician.
The appliance should be inspected before use and at least annually by a professional. More
frequent cleaning may be required due to excessive lint from carpeting, bedding material,
etc. It is imperative that control compartments, burners and circulating air passageways of
the fireplace are kept clean.
NOTICE
Due to high operating temperatures, this appliance should be located out of traffic &
away from furniture and draperies.
Children and adults should be alerted to the hazards of the high surface temperature,
which could cause burns or clothing ignition.
Young children should be carefully supervised when they are in the same room as the
appliance.
Clothing or other flammable materials should not be placed on or near the appliance.
CAUTION
When this appliance is installed directly on any combustible material other than wood
flooring, it must be installed on a metal or wood panel extending the full width and
depth of the appliance or a fire will occur causing serious injury, property damage or
even death.
DANGER
Before You Start
Installation Checklist
Determine the desired install location of your replace.
See Section 1, Dimensions on Page 5, and refer to the Framing
Section 2 for details.
Select the location of your termination and resulting vent run.
Yourselected terminationlocation mustbethe highest point
in the Direct Vent installation.
Should it be impossible to meet the venting requirements laid
out in Section 3: Venting, please contact a local Montigo dealer
regarding the use of a Montigo Power Vent.
Lay out the Vent run; calculating the required elbows and straight
runs of 4"/7" flex and/or rigid pipe.
Layout Electrical Requirements Refer to Section 4: Wiring, for
Details.
Refer to Section 5: Installing the Gas Line, for details on the
gas connection and access.
Refer to local codes and guidelines for installation requirements.
Installation and repairs should be done by a qualied
contractor and must conform to:
• Installations in Canada must conform to the local codes or
in the absence of local codes to the current version of Natural Gas and
Propane Installation Code, CSA B149. Electrical Installations must
conform to the local codes or, in the absence of local codes, to the
current version of Canadian Electrical Code, CSA C22.1.1
• Installations in the USA must conform to the local codes or in
the absence of local codes to the current version of National Fuel Gas
Code, ANSI Z223.1/NFPA 54. Electrical Installations must conform to
the local codes or, in the absence of local codes, to the current version
of the National Electrical Code, ANSI/NFPA 70. See Appendix C for
installation within the State of Massachusetts.
IMPORTANT MESSAGE: SAVE THESE INSTRUCTIONS
The H*34DF* Direct Vent replace must be installed in accordance
with these Instructions. Carefully read all the Instructions in this manual
rst. Consult the Local Gas Branch to determine the need for a permit
prior to starting the installation. It is the responsibility of the installer to
ensure this replace is installed in compliance with the manufacturers
instructions and all applicable codes.
BEFORE YOU START:
WARNING
A barrier designed to reduce the risk of burns from hot viewing glass is provided with this
appliance and shall be installed for the protection of children and other at-risk individuals.
If the barrier becomes damaged, the barrier shall be replaced with the manufacturer’s
barrier for this appliance.
WARNING
Any safety screen, guard, or barrier removed for servicing an appliance must be replaced
prior to operating the appliance.

H*34DF Indoor Gas Fireplace
Page 5
XG0146 - 150204
Installation
Rating Plate Sample - H34DF
Figure A: Rating Plate for standing pilot (SIT) Figure B: Rating Plate for IPI eletronic ignition



 













LBL1205-V6.1 Stand. Pilot- Screen DEC06.2014
  










 


    




  

  







    






 
 
 


 



Teklynx LabelView Demo



 












LB1223-V5.1 SIT IPI -with screen DEC06.2014
  










 


    




  

  







    






 
 
 


 


Teklynx LabelView Demo

H*34DF Indoor Gas Fireplace
Page 6 XG0146 - 150204
Installation
Rating Plate Sample - HC34DF
Figure C: Rating Plate for standing pilot (SIT) Figure D: Rating Plate for IPI eletronic ignition



 













LBL1205-V6.1 Stand. Pilot- Screen DEC06.2014
  










 


    




  

  








    






 
 
 


 



Teklynx LabelView Demo



 












LB1223-V5.1 SIT IPI -with screen DEC06.2014
  










 


    




  

  








    






 
 
 


 


Teklynx LabelView Demo

H*34DF Indoor Gas Fireplace
Page 7
XG0146 - 150204
Installation
Section 1: Installation Overview and Product Dimensions
Top View
Front View
Side View
Pleasereview the Installation ChecklistonPage4 for general information
on preparing for a successful installation of your replace.
The H*34DF* replace may be installed in any location that maintains
properclearancestoairconditioningducts,electrical wiring and plumbing.
Safety, as well as efciency of operation, should be considered when
selecting the replace location. Select a location that does not interfere
with room trafc, has adequate ventilation and offers an accessible path
for Direct Vent installation.
Figure 1. Fireplace dimensions (Tolerance ± ⅛").
The replace dimensions are shown below:
22 3
8
"
567
29 1
4
"
744
33 1
2
"
851
33 7
8
"
860
93
4
"
249
18 5
8
"
473
18 1
8
"
460
5"
127
8"
203
24"
608
19 7
8
"
504
25 5
8
"
651

H*34DF Indoor Gas Fireplace
Page 8 XG0146 - 150204
Installation
Section 2: Framing
1). Framein the enclosure fortheunit with framingmaterials. The framed
opening for the assembled replace is 33 ⅞" wide, x 39" high x 20"
deep, see Figure 2 .
NOTE: When constructing the framed opening, please ensure there is
access to install the gas line when the unit is installed. See Figure 24.
Figure 2. Framingdimensions, (Straight wall&Corner Installation). (ALLModels,
shown in Table on Page 3).
Figure 4. Combustible Framing for shelves over the replace, Top vent.
* When sheetrock is not used behind
the replace, framing depth "O" may be
reduced by 5/8".
Figure 5. Non Combustible Framing for Top Vent or Rear Vent, with Alcove
ABOVE FIREPLACE.
Figure 3. Combustible Framing for shelves over the replace, Rear vent.
M N O P Q R S T
H*34DF 39 33 7/8 20 56 1/4 40 N/A 33 43
H34DF*, HL34DF* & HR34DF* HC34DF* ONLY,
see gures 7 and 25a.
H34DF*, HL34DF* & HR34DF* HC34DF* ONLY,
see gures 7 and 25a.
17⅜”
21⅞”
10”
C
L
7”
4”
1”
Top View
5½"
5¼"
22¾"
(Opening)
33½"
1¼"
1"
31⅜"
(Opening)
1¼"1¼"
33⅞"
Front View
33½"
4"
7"
26"
17⅜"
Side View
P”
N”
Q”
N”
M”
O”
0" clearance
to corners only
Models Included: H34DFN, H34DFNE, H34DFNI, H34DFL, H34DFLE,
H34DFLI, HC34DFN, HC34DFNE, HC34DFNI,
HC34DFL, HC34DFLE, HC34DFLI, HL34DFLI,
HL34DFNI, HL34DFLI, HR34DFN, HR34DFNI,
56¼”
33⅞”
40”
33⅞”
39½”
20”
0" clearance
to corners only
17⅜”
21⅞”
10”
C
L
7”
4”
1”
Top View
5½"
5¼"
22¾"
(Opening)
33½"
1¼"
1"
31⅜"
(Opening)
1¼"1¼"
33⅞"
Front View
33½"
4"
7"
26"
17⅜"
Side View
P”
N”
Q”
N”
M”
O”
0" clearance
to corners only
Models Included: H34DFN, H34DFNE, H34DFNI, H34DFL, H34DFLE,
H34DFLI, HC34DFN, HC34DFNE, HC34DFNI,
HC34DFL, HC34DFLE, HC34DFLI, HL34DFLI,
HL34DFNI, HL34DFLI, HR34DFN, HR34DFNI,
56¼”
33⅞”
40”
33⅞”
39½”
20”
0" clearance
to corners only
9” (H34DF, HR34DF)
11” (HL34DF)
M
S
C
ombustible Header
Combustible Shelf
2
6”
18”
max.
2” min.
Exterior
Wall
M
9”
S
18”
max.
2” min.
C
ombustible Header
Combustible Shelf
Non-Combus-
tible Nailing
Flange, (sup-
plied) figure 7
.
2
6”
Exterior
Wall
43”
MEL Short
90° elbow
M
17 1/2”
Combustible Header
Combustible Shelf
2” min.
Exterior
Wall
43”
MEL Short
90° elbow
M
17 1/2”
2” min.
Combustible Header
Combustible Shelf
Non-Combus-
tible Nailing
Flange, (sup-
plied) figure 7
.
Exterior
Wall
Note: Images are shown without screens for clarity purposes. However,
your replace should not be operated without proper installation of
screens.
Min.
84”
10.5”
door
opening
3”
Rear
Vent
Floor
Top Vent
18”
max.
2”
min.
Non-combustible
header
Min 1”
26”
Exterior
Wall
Ceiling level
Non-Combustible
materials. Alcove
over fireplace.
Non-combustible
Facing materials
.

H*34DF Indoor Gas Fireplace
Page 9
XG0146 - 150204
Installation
6”
Clearances
When installing a shelf over the top of the replaces, the following
guidelines must be adhered to:
For Rear Vent applications, the minimum clearance is 2" from the rear
of the replace to a wall, or any combustible materials. A clearance to
combustibles of 9" for H34DF* and a clearance to combustibles of 11"
forHC34DF* , & HL34DF*is required to theundersideof any combustible
shelf materials, Figure 3.
For Top Vent applications, the minimum clearance is 2" from the rear of
the replace to a wall, or any combustible materials, and 17 1/2" to the
underside of any combustible shelf materials, Figure 4.
For Top or Rear Vent applications where the Minimum mantel height
is required above the replace, (for an alcove or low prole shelf), ALL
Materials MUST BE NON-COMBUSTIBLE, Figure 5. The minimum
clearance is 2" from the rear of the replace to a wall, or any combustible
materials. 1” clearance is maintained on sides and bottom of vent runs
and 2” above horizontal vent runs to any combustible material.
H34DF* 9 17 1/2 2 1 0 See Section
6: Finishing
around the
replace
HC34DF* 11 17 1/2 2 1 0
HL34DF* 11 17 1/2 2 1 0
Installing The Standoffs
To avoid elevated mantel temperatures, all H*34DF*-Series gas
replaces are required to have the supplied standoffs installed.
The replace is supplied with two standoffs. Bend and install these
standoffs on top of the replace ensuring that the height of the standoff
maintains a 6" clearance.
Figure 6. Installing the standoff's.
Installing the Nailing Flange Extension - HC34DF* Only
Once the replace is placed into the rough framed opening, the supplied
nailing ange extension (Part No. HC34074) must be fasten securely
into place, with nails or wood screws. as shown in Figure 7.
3” 6”
Front View Side View
Figure 7. Installing the Nailing Flange Extension, see , Figure 25a.
The supplied nailing ange extension must be placed along the top
edge of the replace and securely fastened in place to the combustible
wood framing.
Note: The nailing ange extension can be substituted with a piece of
NON-Combustiblematerial of the same size and thermalcharacteristics,
ie: cement board or equivalent. This is recommended in applications
where the facing materials will not adhere to the metal nailing ange.
MODEL Top - Rear Vent †
† Note: Clearance from top of replace to a ceiling within the replace
enclosure.
Top - Top Vent †
Rear Sides Floor Mantel

H*34DF Indoor Gas Fireplace
Page 10 XG0146 - 150204
Installation
Section 3: Venting
Montigo supplies a variety of direct venting and termination options.
The direct vent termination location MUST be selected such that
it is the highest point in the venting assembly. It should also be
selected such that it provides the shortest vent run possible. Should it
be impossible to ensure that the termination is the highest point or to
meet the venting guidelines laid out below please contact your Montigo
dealer to discuss power venting options.
NOTES FOR PLANNING VENTING:
Venting originatesfromtheunit through the top orthrough therear
Ventingcanterminate through theroof orthrough anexterior wall.
For a detailed diagram of allowed termination locations, see
Appendix A.
Once the termination location has been established, refer to the
appropriate section below for installation details
All replaces shipped from the factory are Top vent.
Silicone application is NOT required when joining Montigo vent
pipes and components.
Figure 9. Flue cover and collar removal, Top Vented replace.
Figure 9a. Flue cover and collar installation, Rear Vented replace.
Use the following instructions to convert an H*34DF* for Rear Vent use:
1. Remove the Rear ue cover and gasket (4" and 7") on the ue
outlet, as shown in Figure 9.
2. Next, Remove the Top ue collar's (4" and 7") on the ue outlet,
as shown in Figure 9.
3. Install the (removed) Rear ue cover and gasket material, to the
Top vent outlet. Fasten the cover with included hardware, as
illustrated Figure 9a.
4. Install the (4" and 7") collars to the rear vent outlet using the
included hardware, as illustrated Figure 9a.
4”Inner Flue Collar
7”Outer Flue Collar
Flue Gasket
Flue Cover Plate
7” Outer Flue Collar
4” Inner Flue Collar
Flue Gasket
Flue Cover Plate
Note: Images are shown without screens for clarity purposes. However,
your replace should not be operated without proper installation of
screens.
Section 3-1: Converting to Rear Vent

H*34DF Indoor Gas Fireplace
Page 11
XG0146 - 150204
Installation

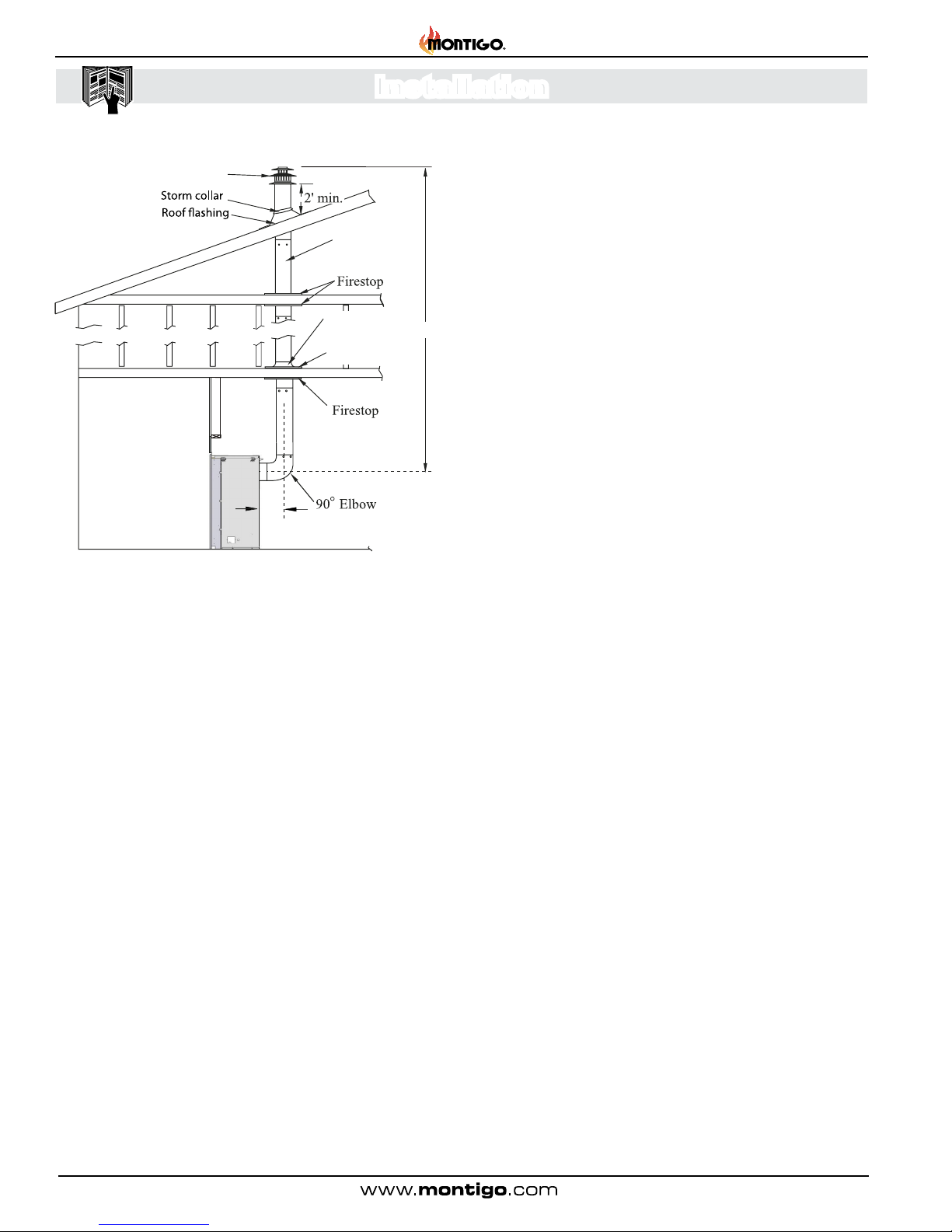

Section 3-2: Installing a Roof Mounted Direct Vent
Termination (MVTK-1)
Thissectionappliestoinstallationswherethe direct vent termination
will be roof mounted.
Section 3-2-1: Venting Layout: Roof Mounted Termination
Selection of components and details of venting lay out should
adhere to the following guidelines:
The maximum termination point is 32’ above the replace (NOTE:
if the maximum termination height is used, the ame pattern
may be affected).
The Vertical termination must be a minimum 2’higher than where
the termination exits the roong materials, (asphalt shingles,
cedar shakes, etc). This distance should be measured from the
high side of the roof slope where the ue ashing intersects the
roong materials. (see Figures 11 to 11c).
Termination location must be a minimum 6’ from a mechanical
air inlet.
For a more detailed diagram of allowed termination locations,
see Appendix A.
A maximum of two offsets (each offset is made up of 2-90°
bends) may be made for vertical vent runs.
Firestops must be installed as required by National & local codes.
Ensure all horizontal runs are supported with a minimum of 3
supports per 10’ of venting.
Install all roof ashing and storm collars as shown.
Figure 11.Top vent, Roof mounted termination with no offset in vent run.
Figure 11a. Top vent, Roof mounted with 1 offset (1 offset= two 90° bends).
Figure 11b. Top vent, Roof mounted with 2 offsets (1 offset= two 90° bends).
Roof mounted Terminations
The following details are some possible congurations for Roof
mounted terminations.
Support ring
Support plate
Firestop
32’ max.
2’ min.
PVTK1
Termination
Support ring
Support plate
Firestop
32’ max.
2’ min.
Obstacle
PVTK1
Termination
Support straps or
support plate & ring
2’ min.
Firestop
Firestop
2’
Firestop
3
2’ max Support plate
& ring
Obstacle
PVTK1
Termination
MVTK1
Termination
MVTK1
Termination
MVTK1
Termination

H*34DF Indoor Gas Fireplace
Page 12 XG0146 - 150204
Installation
Figure 11c. Rear vent, Roof mounted venting (1 = 90° bend).
Support ring
Support plate 32’ max
MVTK1
MEXT Sections
Termination
18”
Max.
Note: Images are shown without screens for clarity purposes. However,
your replace should not be operated without proper installation of
screens.

H*34DF Indoor Gas Fireplace
Page 13
XG0146 - 150204
Installation
1
12”
2”
12”
12”
Section 3-3: Installing a Wall Mounted Direct Vent
Termination
Thissectionappliestoinstallations where the direct venttermination
will be wall mounted.
1). Installation of Termination with built in frame
ATermination with a Built-In Frame is installed duringframing of a structure.
1. Frame the termination opening to 11" x 11".
2. Install exterior sheathing to the structure framing.
3. Fasten the termination to the sheathing using a minimum of 4 screws.
MSR Frame
MTO-4 (4"/7")
Termination
MTO-4F (4"/7")
Termination
Figure 12. Installing a MTO-F termination.
Figure 12a. Installing a MTO termination with the MSR frame.
Figure 12d. Installing the VSS Vinyl Shield.
5). Installation of a termination shield for Vinyl Siding
The VSS Termination shield is installed when the exterior of a structure
is clad with Vinyl siding. It is placed directly above, and on-center with
the termination.
2). Installation of termination frame at time of framing
Terminations with a MSR frame allow the installation of the frame prior
to installation of the termination.
1. Frame the termination opening to 12" x 12".
2. Secure the MSR Frame to the exterior sheathing of the structure.
3. Fasten the termination to the MSR Frame using a minimum of 4
screws.
Figure 12b. Installing a MTO termination with the BSR frame.
3). Installation of termination frame at time of framing in Masonry
Terminations with a BSR frame allow the installation of the frame in
masonry prior to the installation of the termination
1. Frame the BSR opening to 12" x 12".
2. Secure the BSR Frame to the exterior sheathing of the structure.
1. Frame the MOSR opening to 12" x 12".
2. Fasten the MOSR frame to the interior side of the studs, concrete,
or nished wall construction using a minimum of 4 screws.
3. Insert the termination into the MOSR frame as shown here, (from
the inside) and attach to the MOSR by installing a min. quantity of
4 bolts into the threaded nuts on the MOSR Frame.
4). Installation of termination from inside structure
A Termination with a MOSR Frame is installed from the inside of the
structure. These are commonly used in high-rise construction.
MOSR Frame
MTO-4 (4"/7")
Termination
Figure 12c. Installing a MTO termination with the MOSR frame.
BSR Frame
MTKOG
Installing Heat Guards over Terminations is recommended in
installations where the termination is located within 7' feet above
grade, or above a pedestrian walkway, and may be Required by code
in Public areas.
1. Ensure that the two long mounting brackets are facing the bottom
ofthe termination. (Seeinset).This willprovidemore heat protection
at the top of the termination, where temperatures are highest.
2. Attach to the faceplate of the termination using four sheet metal
screws.
Figure 13. Installing a MTO termination heat guard.
1
1”
11”
Framing
Exterior
Sheathing
Fastening Hardware,
minimum 4-screws
Framing
Exterior
Sheathing
Fastening Hardware,
minimum 4-screws
MTO-4 (4"/7")
Termination
Framing
Exterior
Sheathing
Fastening Hardware,
minimum 4-screws
12”
12”
Fastening Hardware,
minimum 4-screws
Framing, con-
crete or other
materials
Exterior Sheath-
ing, concrete or
other materials
Exterior Vinyl
siding
MTO-4 (4"/7")
Termination
VSS Vinyl shield

H*34DF Indoor Gas Fireplace
Page 14 XG0146 - 150204
Installation
WARNING:
An inspection of the explosion relief appers and door
MUST be made prior to lighting the replace. Faulty seal
on the door gasket and/or explosion ports will result in
products of combustion leaking into the living space and
may result in carbon monoxide poisoning.
Selectionofcomponentsanddetails of venting layout should adhere
to the following guidelines:
Vent terminations must not be recessed in walls or siding.
For Heat Shield requirements, see Section 3-3-3 on page 16.
Once the proposed venting layout has been determined refer to Figure
14, 15, or 16 to ensure the layout is acceptable.
Notes Wall Mounted Terminations: TOP VENT
All measurements for vertical or horizontal runs are measured
from centre of the vent pipe.
Venting runs must fall within the limits set by the venting graph,
see Figure 14 or 15.
The Venting Graph
Measure the vertical height from the replace hearth to the centre of the
termination and the horizontal run from the replace ue collar to the
wall ange of the termination. Plot on the Venting Graph Figure 14 or
15 with an 'X'. If the 'X' falls on or above the top boundary of the shaded
area, the installation is acceptable.
Figure 15. H*34DF* Top Vent Venting Graph for wall mounted
terminations, See Figures 15a or 15b.
Figure 15a. Top Vented, wall mounted installation with 1 elbow (1 one
90° bend). The vent run must comply with Venting Graph for Top vent,
wall mounted terminations, Figure 15.
Figure 14a. H34DFN Top Vented, wall mounted installation with 1 elbow
(1 one 90° bend). The vent run must comply with Venting Graph for Top
vent, wall mounted terminations, Figure 14.
Wall mounted Terminations
The following details are some possible congurations for Wall mounted
terminations.
Figure 14. H34DFN Top Vent Venting Graph for wall mounted terminations,
See Figures 14a or 15b.
Heat
Shield
Termination
Hearth Exterior
Wall
39” Min.
Flex section
40"
Max.
Heat
Shield
Termination
Hearth Exterior
Wall
39” Min.
72” Max.
Flex section
72”
39”
Horizontal Run (in.)
Vertical Height (in.)
Unacceptable Vent run
within shaded area
If your installation does not fall within
the venting graph parameters, (non-
Shaded area) please contact a local
Montigo dealer for Power Venting options.
H34DFN with LOGS ONLY
40”
39”
Horizontal Run (in.)
Vertical Height (in.)
Unacceptable Vent run
within shaded area
If your installation does not fall within
the venting graph parameters, (non-
Shaded area) please contact a local
Montigo dealer for Power Venting Options.
All Other Models including
H34DF with Rock Option
Section 3-3-1: Venting Layout: Wall mounted termination

H*34DF Indoor Gas Fireplace
Page 15
XG0146 - 150204
Installation
18
26
A
C
B
Acceptable
Vent run within
non-shaded area
Horizontal Run (in.)
Vertical Height (in.)
Unacceptable Vent run
within shaded area
48
50
Figure 16. H*34DF* Rear Vent Venting Graph for wall mounted terminations,
See Figures 16a or 16b.
Figure 16b. Rear Vented, wall mounted Multi-elbow termination installation.
Multi-elbow venting Installation for H*34DF* must have a minimum vertical rise
of 50".The vent run must comply with the Venting Graph for Rear vent, wall
mounted terminations, Figure 16.
The Venting Graph
Measure the vertical height from the replace hearth to the centre of the
termination and the horizontal run from the replace ue collar to the wall
ange of the termination. Plot on the Venting Graph Figure 16 with an 'X'.
If the 'X' falls on or above the top boundary of the shaded area, the
installation is acceptable.
Example A: (Acceptable Installation)
If the vertical dimension from the hearth is 60" and the horizontal run to
the wall ange of the vent termination is 24", this would be an acceptable
installation.
Example B: (Acceptable Installation)
If the vertical dimension from the hearth is 78" and the horizontal run to
the wall ange of the vent termination is 60", this would be an acceptable
installation.
Example C: (Unacceptable Installation)
If the vertical dimension from the oor of the replace is 60" and the
horizontal run to the wall ange of the vent termination is 120", this
would NOT be an acceptable installation.
Figure 16a. Straight run, Rear Vented, wall mounted termination for H*34DF*,
Figure 16.
If your installation does not fall within the
venting graph parameters, (non-Shaded
area) please contact a local Montigo
dealer for Power Venting options.
30” Max.
50” Min.
18”
Max.
Flex or Rigid
Section
24”
Min.
26”
Acceptable Vent
run within non-
shaded area.
Acceptable Vent run
within non-shaded area.
26”
MXT Extension
RHS100 Heat
Shield
Termination
Hearth Exterior
Wall
NOTE:
18” MAX. horizontal
run with no vertical lift.
18” MAX.
Figure 15b.Top Vented, wall mounted Multi-elbow installation. See
VentingGraphforTopvent, wall mountedterminations, Figure 14 or 15.
Notes Wall Mounted Terminations: TOP VENT
All measurements for vertical or horizontal runs are measured
from centre of the vent pipe.
Venting runs must fall within the limits set by the venting graph,
see Figure 16.
The replace must be converted to Rear Vent conguration prior
to running vent, see Figure 9 and 9a.
Solid Section
Flex Section
Hearth
30”min
15’ Max.
Heat
Shield
Termination
Exterior
Wall
8' MIN
at MAX
horizontal

H*34DF Indoor Gas Fireplace
Page 16 XG0146 - 150204
Installation

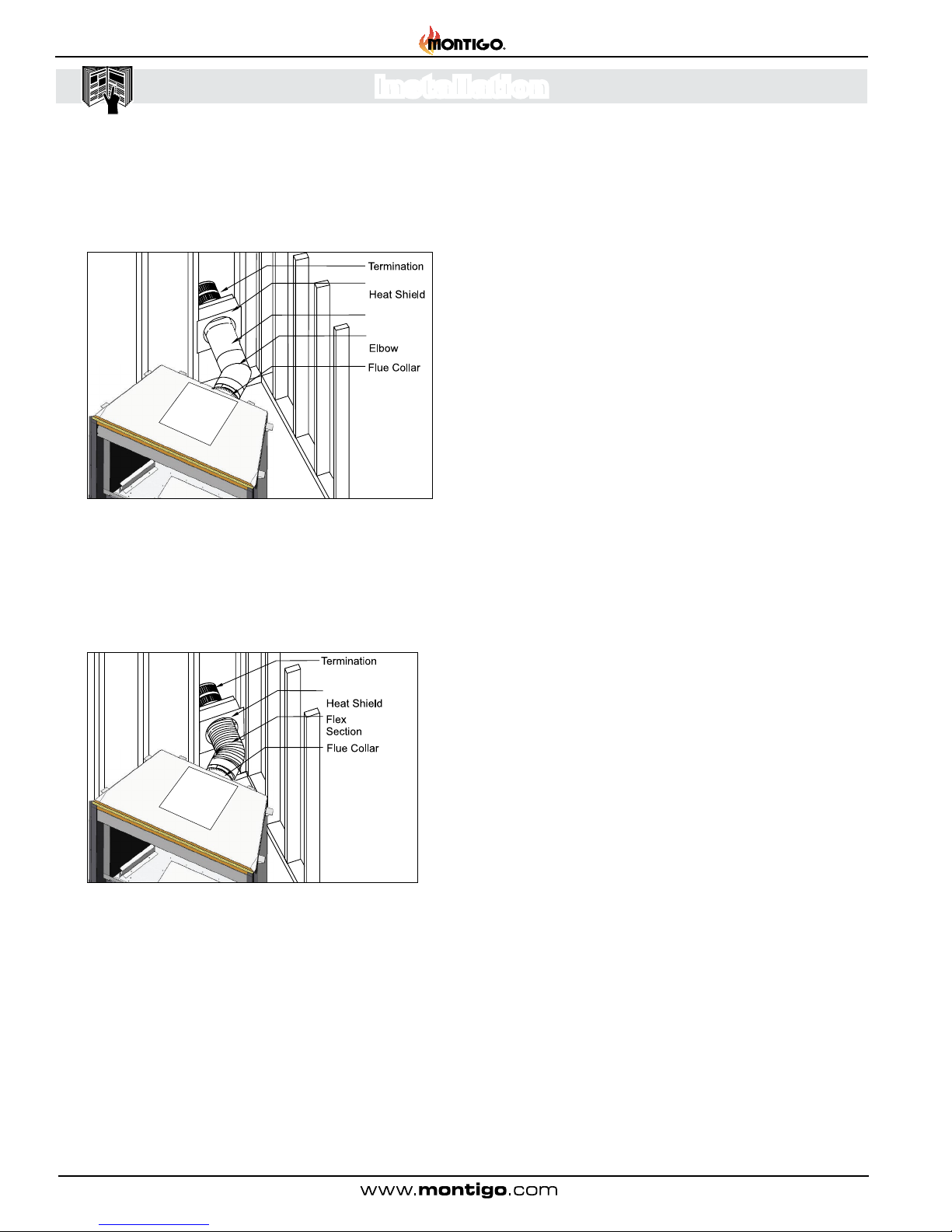

Figure 17. Corner installation (Rigid). (Natural Gas Models Only)
Figure 17a. Corner Installation (Flex). (Natural Gas Models Only)
45° Corner Installation.
Attach an EEL-45 (45° elbow) directly onto the ue collar. Cut the
MXT-20 to suit, and attach it to the EEL-45. Slide the replace into
position and attach to the termination.
45° or less Corner Installation.
Use an MTO-4 termination and an MFL-1 or MFL-2 (12" or 24"
compressed length) and a frame, if appropriate. Flex may be turned
to obtain desired degree of angle required but must not exceed 45°.
Note: Through the wall venting kits are also available for both
the Straight and the Corner Installation. The Kit includes a heat
shield, a MFL-12 (f/f) exible pipe, and a termination with or without
a mounting frame.
RHS 100
MXT-20
EEL-45
RHS 100

H*34DF Indoor Gas Fireplace
Page 17
XG0146 - 150204
Installation
A - Termination MVTK1
MTO4 (3" Length)
MTO4F (3" Length)
B - Flex Sections MFL - 1 (12" f/f Section)
MFL - 18 (18" f/f Section)
MFL - 2 (24" f/f Section)
MFL - 3 (36" f/f Section)
MFL - 4 (48" f/f Section)
MFL - 6 (72" f/f Section)
C - Frame Kits MSR (Stucco Frame)
MOSR (Stucco Frame)
BSR-4 (4" Brick Frame)
BSR-6 (6" Brick Frame)
D - Rigid Sections MXT - 5 (5" f/f Section)
MXT - 10 (10" f/f Section)
MXT - 20 (20" f/f Section)
MEXT - 1 (12" f/m Section)
MEXT - 2 (24" f/m Section)
MEXT - 3 (36" f/m Section)
MEXT - 4 (48" f/m Section)
MEXT - 6 (72" f/m Section)
E - Elbows MEL-90MM (m/m 90ºElbow)
MEL-90FF ( f/f 90ºElbow)
MEL-90FM ( f/m 90ºElbow)
EEL-45FM ( f/m 45ºElbow)
F - Support Ring & Plate MSPXT-7
G - Firestop FS-7
H - Roof Flashing MRF-7 (1/12 - 7/12 pt.)
MRF-12 (7/12 - 12/12 pt.)
I - Heat Shield RHS100
J - Heat Guard MTKOG
Connection and installation of the vent components should
adhere to the following guidelines:
Montigo recommends the use of a ex section for the nal pipe
connected directly to the replace offering greater exibility of
installation and absorption of movement.
Firestops must be installed as required by National & local codes.
Montigorecommendsthat all exterior cornersand jointsbe sealed
with exterior caulking. However, we encourage you to consult
your Building Envelope Engineer or Waterproong Consultant
for further recommendations.
Section 3-3-2: Venting Components
The following components and associated Montigo part numbers for
installation of a roof or wall mounted termination. Use only Montigo
Vent Components. Use of non-Montigo parts will VOID the warranty
and may impede operation of the replace.
Use any combination of rigid and ex pipe as required and in
any orientation (Male connectors can face in any direction).
Flex sections may be stretched up to 50% of their total length
(e.g. a 24” section maybe stretched to 36”).
Connect all vent sections using a minimum of three sheet metal
screws on the outer pipe ue.
Ensure the pipe ends male to female slide in a minimum of 1
1/2” of overlap.
Ensure all horizontal runs are supported with a minimum of 3
supports per 10’ of venting.
When hanging/ supporting venting, ensure that 1” clearance
is maintained on sides and bottom of vent runs and 2” above
horizontal vent runs to any combustible material.
Rigidpipemay be cut less thanhalf wayfrom thefemale end only.
Ensure when cutting sections of rigid pipe to maintain integrity
of internal supports.
Place the springs, supplied with the pipe kit, between the outer
and inner pipes to keep the pipes separate and avoid any
possible hot spots.
IMPORTANT:
Please Refer to your Building Envelope Engineer
or Waterproong Consultant for a review of ALL
penetrations through exterior walls or the roof.

H*34DF Indoor Gas Fireplace
Page 18 XG0146 - 150204
Installation
Installing a Wall Mounted RHS7 Heat shield
The RHS7 Heat shield CANNOT be used WITHIN 36" horizontal or
60" vertically of the replace, (see gure 18a). For applications within
these dimensions the RHS100 Heat Shield MUST be used.
To install the RHS7, frame an opening in combustible construction,
Figure 18 below. Slide the Heat shield in place over the vent pipe
which attaches to the replace. After the replace and vent pipe has
been installed, clearances should match the dimensions in Figure 18.
Figure 18. RHS7 Installation. (Install by sliding over vent pipe where it passes
through the combustible construction).
Figure 18a. RHS7 Installation. (Minimum requirements).
Figure 19. RHS100 Installation. (Install by sliding Outer Section over vent pipe
where it passes through the combustible construction.
Figure 19a. Heat Shield. After sliding the outer section in place.
Installing a Wall Mounted RHS100 Heat shield.
The RHS100 Heat shield MUST be used where the RHS7 Termination
(Figure 18 and 18a) CANNOT be used. Use the RHS100 within 36"
horizontal or 60" vertical.
To install the RHS100, Slide the Inner Section over the vent pipe that will
connect to the replace. Fasten the vent pipe to the back of the replace
with a Min. of three sheet metal screws.
Next, slide the RHS100 outer section from the outside of the structure,
see Figure 19.
To complete the installation fasten the Heat Shield Outer Section &
Termination frame to the structure Figure 19a.
Figure 19b. RHS100 Installation.
RHS7 Heat Shield
1” Min. Both sides Typical
1” Min.
1” Min.
Combustible Framing
Outer Shield
3/8” Min. Both sides Typical
3/8” Min.
3/8” Min .
Combustible Framing
Inner Shield
Combustible
framing
Termination
Drywall / sheetrock
RHS100 Heat Shield, inner Section
RHS100 Heat Shield
Outer Section
Vent pipe, from fireplace
Termination
Drywall / sheetrock
RHS100 Heat Shield, inner Section
RHS100 Heat Shield
Outer Section
RHS7 Heat
Shield
36” Min
60” Min.
Note: Images are shown without screens for clarity purposes. However,
your replace should not be operated without proper installation of
screens.
Section 3-3-3: Heat Shields

H*34DF Indoor Gas Fireplace
Page 19
XG0146 - 150204
Installation
Section 4: Wiring
Models
H34DFNE
H34DFLE
HC34DFNE
HC34DFLE
Models
H34DFNI HL34DFNI
H34DFLI HL34DFLI
HC34DFNI
HC34DFLI
Figure 20. Wiring Diagram for the SIT Proame 2 Electronic Ignition
Figure 22. Wiring Diagram for Honeywell gas control and pilot.
Honeywell (Q3450)
Pilot Assembly
Pilot Electrical
Harness Connector
Honeywell Gas
Control (SV9501M)
Gas Control
Connector
Junction Box
115VAC
24VAC
40 VA
Transformer
Black
White
Green
Gnd Screw
Wall Switch
Fan Plug
Receptacle
Manifold Pressure
Test Connection
Wall Switch
Power
Generator
Pilot Adjustment Screw
Inl
e
t Pr
essu
r
e
'Hi-Lo' Adjustment Knob
Gas Control Knob (Shown in “Pilot” position)
Figure 21. Wiring Diagram for SIT Nova 820 gas and pilot.
Models
H34DFN HC34DFN
H34DFL HC34DFL
1.5V AA type
1.5V AA type
1.5V AA type
1.5V AA type
BLACK
WHITE
GREEN
To PPO
SPARK
SENSOR
RED
BLACK
BATTERY
PACK
TO ON/OFF
WALL SWITCH
YELLOW/GREEN
ORANGE
GREEN
6
10
4
6
3
4
OPTIONAL CPI/IPI SWITCH
BLUE
WHITE
X1
X5
X4
X3
X2
LED Lights
LED1 - Red LED
LED2 Amber LED
3.15A FUSE
SW1
BLUE
RED
OPTIONAL
X10
X11
X12
X13

H*34DF Indoor Gas Fireplace
Page 20 XG0146 - 150204
Installation
Installing the remote On/Off Wall Switch
The H*34DF* gas valve may be connected to a wall switch. Do NOT
connect any external power to the remote switch. The valve will
generate its own power on a millivolt circuit or will draw its power from
an AC Connection inside the replace, depending on the model of the
unit. Use only low voltage wire, and DO NOT connect any external
power to the remote switch.
Refer to Figure 20, 21, or 22 for wiring requirements.
NOTE: The switch location must not exceed 30' from the replace.
NOTE: If any of the original wire supplied with the appliance
is replaced, it must be replaced with the same type,
or its equivalent.
