Montigo M38DV-PFC Owner's manual

Installation
Operation &
Maintenance
What To Do If You Smell Gas:
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any
phone in your building.
• Immediately call your gas supplier from a neighbor's
phone. Follow the gas supplier's instructions.
Warning:
Improperinstallation,adjustment,
alteration,serviceormaintenance
can cause injury or property
damage. Refer to this manual.
For assistance or additional
information consult a qualied
installer, service agency or the
gas supplier.
For Your Safety:
Do not store or use
gasoline or other am-
mable vapors and liq-
uids in the vicinity of this
or any other appliance.
Peninsula
Direct-Vented
Gas Fireplace
M38DV-PFC
Installer: Leave this manual
with the appliance.
Consumer: Leave this man-
ual for future reference.
Check local codes and read all
instructions prior to installation.

P/N XG0202
Page 2
M38DV-PFC Peninsula Gas Fireplace
Introduction
The M38DV-PFC is a direct-vented, 3-sided Gas Fireplace with an
adjustable center burner and air-circulating fans. It is available in two
models:
Model M38DV-PFC (continuous pilot)
Model M38DV-PFC-I (intermittent pilot)
This manual covers both models and unless otherwise specified, the
designation M38DV-PFC refers to both models. Sections which are
specific to a particular model are marked with a symbol,
plus the appropriate model number.
The M38DV-PFC is rated for:
Natural Gas at 32,000 BTU/H (9.38 Kilowatts) max. input, and
11,000 BTU/H (3.7 Kilowatts) min. input when the middle burner
is turned off
Propane at 32,000 BTU/H (9.38 Kilowatts) max. input, and
11,000 BTU/H (3.7 Kilowatts) min. input when the middle burner
is turned off
The Montigo warranty will be voided by, and Montigo disclaims any
responsibility for, the following actions:
Modification of the fireplace and/or components including Direct-
Vent assembly or glass doors.
Use of any component part not manufactured or approved by
Montigo in combination with this Montigo fireplace system.
Installation other than as instructed in this manual.
Consult your local Gas Inspection Branch on installation require-
ments for factory-built gas fireplaces. Installation & repairs should be
done by a qualified contractor.
Installations in Canada must conform to the current CAN/CGA
B-149.1 and .2 Gas Installation Code and local regulations. This fire-
place's fans must be electrically grounded in accordance with CSA
C22.1 Canadian Electrical Code Part 1 and/or Local Codes.
Installations in the USA must conform to local codes, or in the
absense of local codes to the National Fuel Gas Code, ANSI Z223.1-
1988. The fans must be grounded in accordance with local codes
or, in the absence of local codes, with the National Electrical Code,
ANSI/NFPA 70-1987.
Table Of Contents
Introduction............................................................................... 2
Installation..........................................................................3 - 12
Installing the Fireplace Shell .......................................... 3
Installing the Gasline...................................................... 4
The Remote Switch........................................................ 4
Direct Vent Installation ................................................... 4
General Requirements ...................................... 4
Terminations ...................................................... 5
Horizontal Venting Runs .................................... 6
Vertical Venting Runs ........................................ 8
Construction around the fireplace
Facing ............................................................ 10
Mantels and Surrounds ................................... 10
Installing the Logset ..................................................... 10
Pilot Burner Adjustment................................................ 11

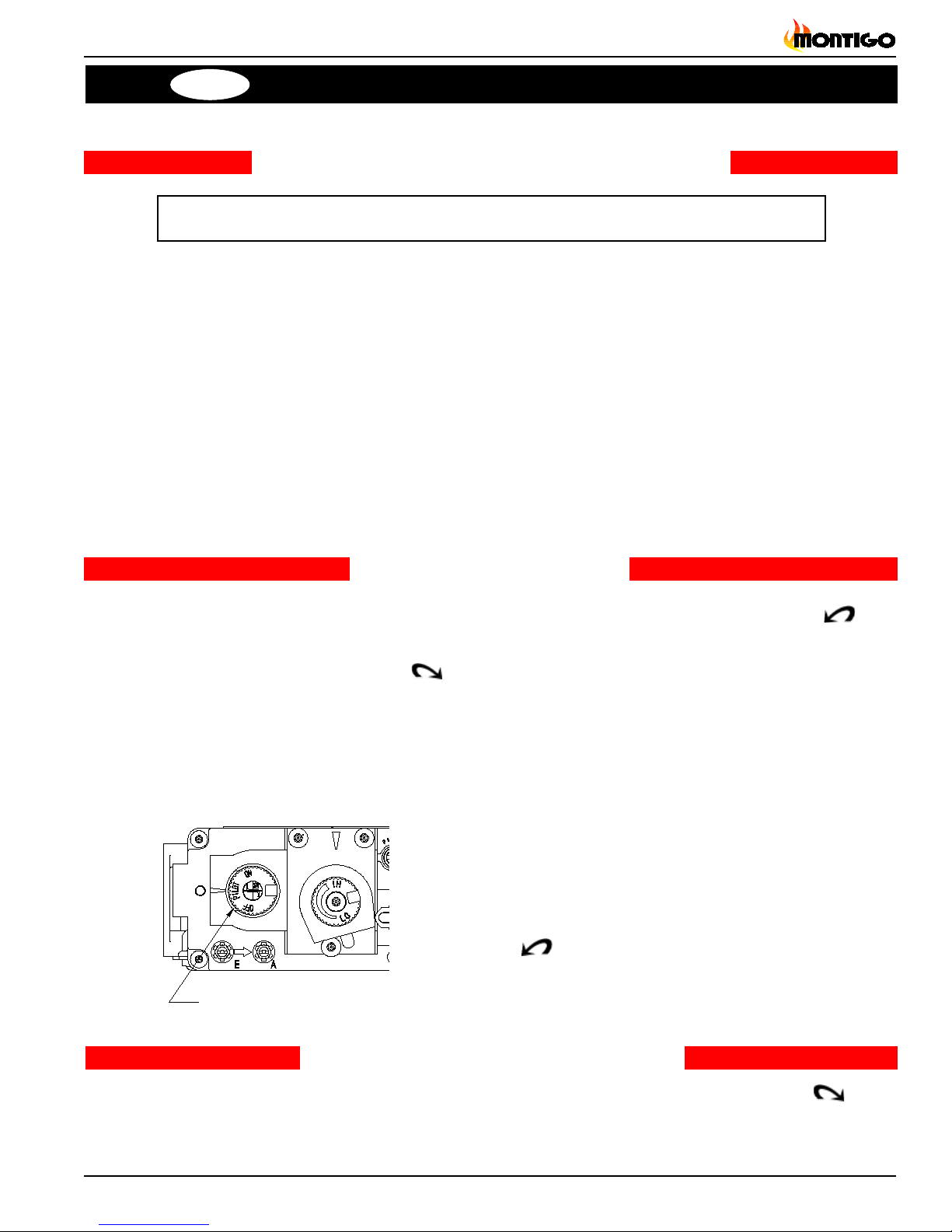

Gas Control Valve ........................................................ 11
Fans ............................................................ 11
Removing and Installing the Insert............................... 12
Removing and Installing the Door................................ 12
Operation............................................................................13-14
Model M38DV-PFC ...................................................... 13
Model M38DV-PFC-I.................................................... 14
Maintenance............................................................................ 15
Warranty.................................................................................. 16
CAUTIONS
Due to its high operating temperatures, the appliance
should be located out of traffic & away from furniture and
draperies.
•Children and adults should be alerted to the hazards
of the high surface temperature, which could cause
burns or clothing ignition.
•Young children should be carefully supervised when
they are in the same room as the appliance.
•Clothing or other flammable materials should not be
placed on or near the appliance.

Page 3
P/N XG0202
M38DV-PFC Peninsula Gas Fireplace
Installation
Installing The Fireplace Shell
The fireplace may be installed in any location that is free of air con-
ditioning ducts, electrical wiring and plumbing. Safety, as well as ef-
ficiency of operation, must be considered when selecting the fireplace
location. Try to select a location that does not interfere with room
traffic, has adequate ventilation, and offers an accessible pathway for
Direct Vent installation.
The fireplace dimensions are shown below:

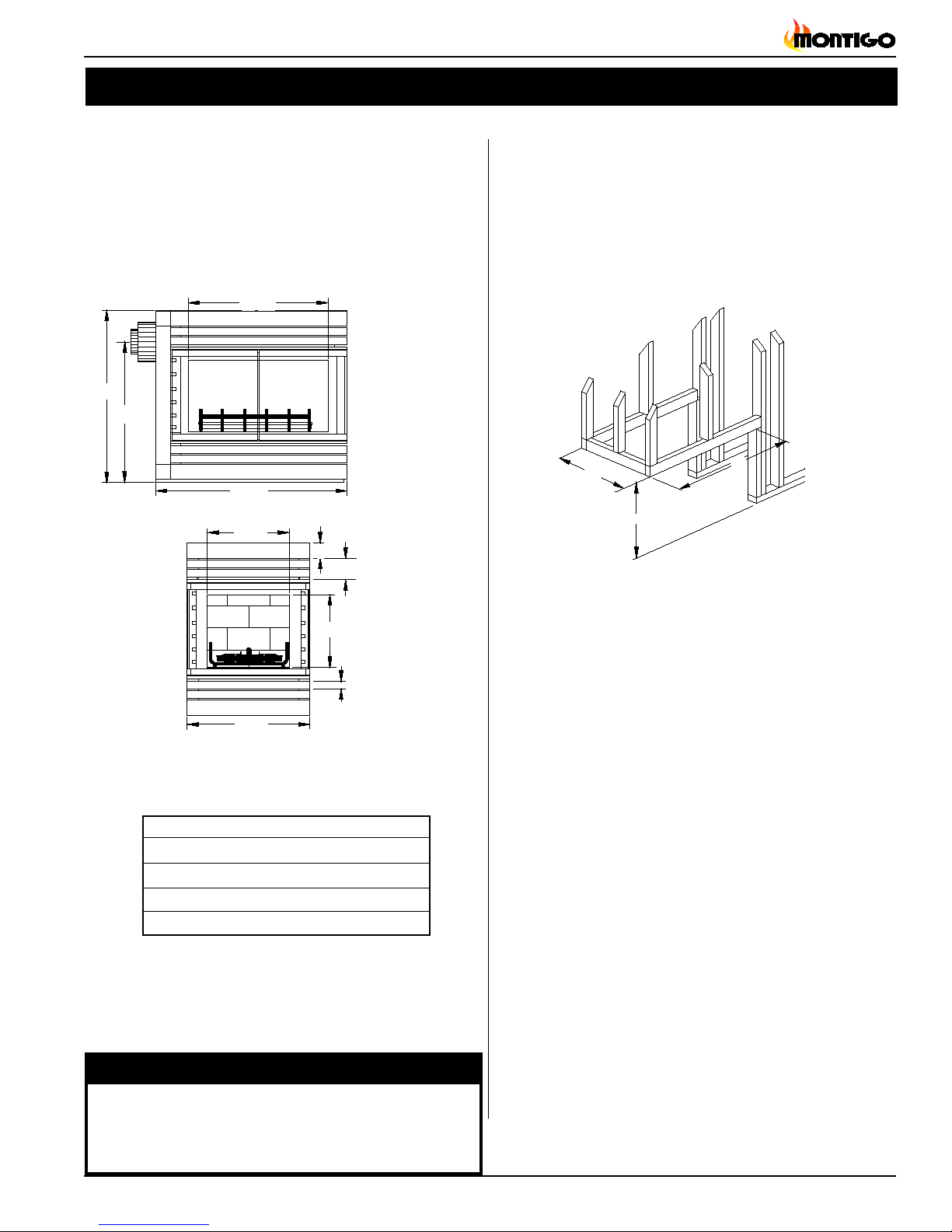

Figure 1. Fireplace dimensions.
Framing
Unprotected combustible walls which are perpendicular to the
fireplace opening, must not project beyond the shaded area shown in
Figure 19b.
For protection against freezing temperatures, it is recommended that
outer walls of the chase be insulated with a vapour barrier. This will
reduce the possibility of a cold-air convection current on the fireplace.
End View
WARNING:
When this appliance is installed directly on carpeting, tile or any
combustible material other than wood flooring, it must be installed
on a metal or wood panel extending the full width and depth of
the appliance.
Side View
23
35 3/4
38
Figure 2. Framing dimensions. Clearance between the top of the
fireplace and the header may be 0", but we recommend a
clearance of 1/2" - 1" to allow for settling of the building.
Clearances
The M38DV-PFC clearances to combustible materials are:
Top* 0"
Back 0"
Floor 0"
Mantle** 6"
Flue 1"
* Clearance from the top of the fireplace to
a combustible ceiling within the fireplace
enclosure.
** Refer to page 8.
34 5/8
27 3/4
28 1/2
38 1/2
24 5/8
1 1/2
13 3/4
16 1/4
3
3 1/2

P/N XG0202
Page 4
M38DV-PFC Peninsula Gas Fireplace
Installing The Gas Line
The gas line must be installed before finishing the M38DV-PFC fire-
place. Natural Gas requires a minimum inlet gas supply pressure of
5.5" W.C. & a manifold pressure of 3.5" W.C. Propane Gas requires a
minimum inlet gas supply pressure of 11" W.C. & a manifold pressure
of 10" W.C. Provision must also be made for a 1/8" N.P.T. plugged
tapping and be accessible for test gauge connection immediately
upstream of the gas supply controls to the appliance. The fireplace
gas connection and the main operating gas valve is located behind
the removable brass trim at the bottom of the unit and need only be
attached to the gas line with an approved fitting, as required by the
applicable installation codes.
* After gas line is connected each appliance connection,
valve and valve train must be checked while under normal
operating pressure with either a liquid solution, or leak detec-
tion device, to locate any source of leak. Tighten any areas
where bubbling appears or leak is detected until bubbling
stops completely or leak is no longer detected. Do NOT use
a ame of any kind to test for leaks.

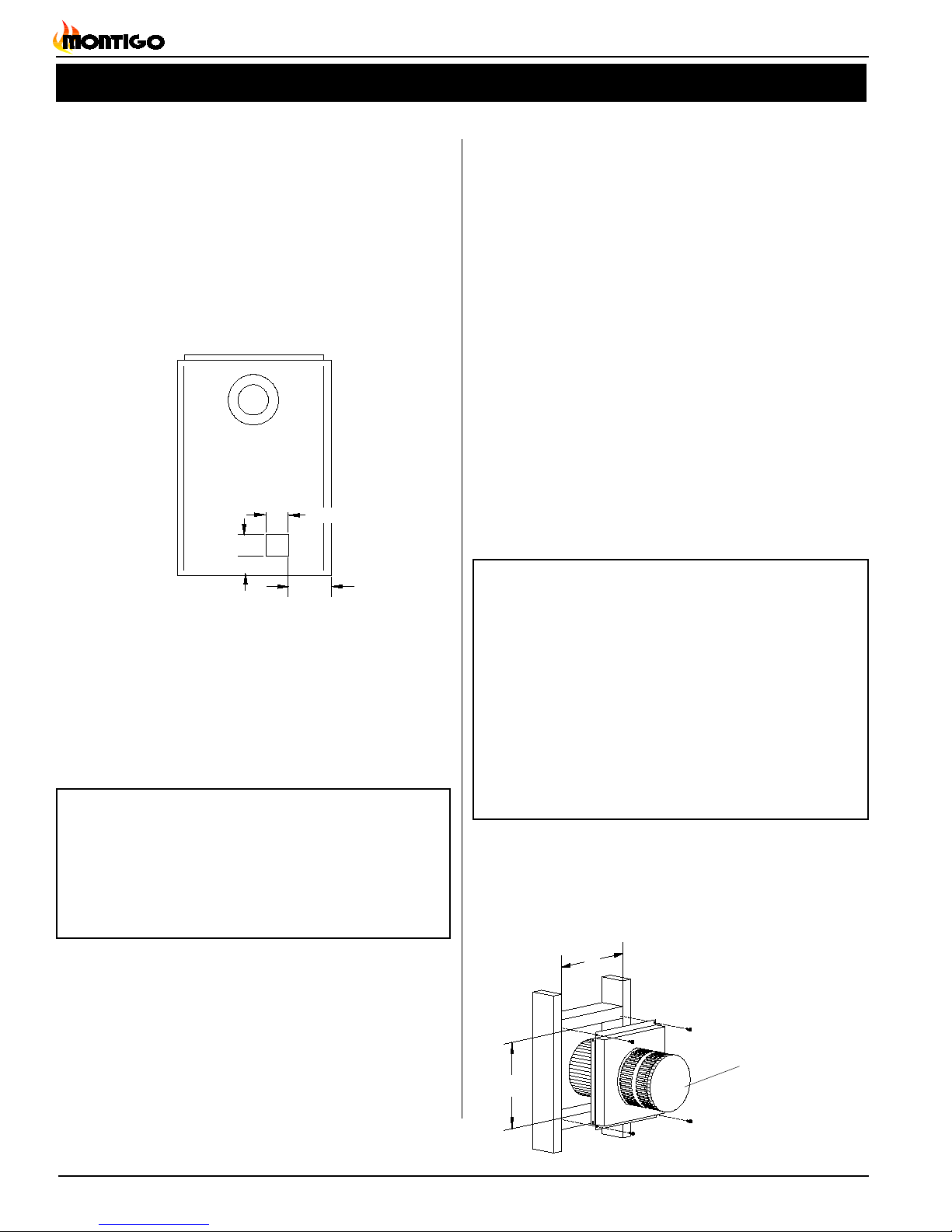

Installing The Remote Switch
The M38DV-PFC is equipped with a remote-operated valve for use
with a wall switch. See Figure 19 for information on wiring the switch.
The valve is pre-wired and generates its own power. DO NOT con-
nect any external power to it.
Note: The switch location must not exceed 30' from the fireplace.
Figure 5. Gas line access.
The appliance and its individual shutoff valve must be disconnected
from the gas supply piping system during any pressure testing of that
system at test pressures in excess of 1/2 psig (3.5 kPa).
The appliance must be isolated from the gas supply piping system by
closing its individual manual shutoff valve during any pressure testing
of the gas supply piping system at test pressures equal to or less than
1/2 psig (3.5 kPa).
Installation
Vent Installation
This section covers the installation of direct venting and terminations.
For a detailed diagram of allowed termination locations, see Appen-
dix B.
Installation Requirements
The M38DV-PFC fireplace uses Premium venting components
with:
5" inner dia. /8" outer dia.
Minimum 2" clearance to combustibles required for vent pipes
Use only certified Montigo vent components. (Use of other parts
will void the Montigo warranty, and may impede the operation of
the fireplace.)
All joints must be secured with a minimum of two screws per joint
Vent terminations must not be recessed in walls or siding
Horizontal runs must be supported by a minimum of two supports
per horizontal run. A minimum of one screw on each side of sup-
port is also required
Flex vent sections may be stretched up to 50% of their total length
(eg. a 24" section may be stretched to 36")
Solid vent sections may be cut less than half way from the tapered
end
Vent terminations can be very hot. If the termination is less than
7 feet above a public walkway, it should be fitted with a certified
Montigo Heat Guard. (Part no. PTKOG)
Do not obstruct, or attempt to conceal, the vent termination.
These actions will affect the operation of the fireplace, and may
be hazardous.
In heavy snow areas, take extra care to prevent snow buildup
from obstructing the vent termination.
Use Montigo VSS Vinyl Heat Shield when using on
applications with vinyl siding to guard against possible
damage.
CAUTIONS:
3 1/4
1 3/4
7 1/4
2 1/2
Installing Terminations with Built-In Frames
Vent Terminations
1. Frame the termination opening to 11" x 11".
2. Fasten the termination to the studs using a minimum of 4
screws.
PTO-3
PTO-3F
11
11
Figure 6a. Installing a PTKO-F termination.

Page 5
P/N XG0202
M38DV-PFC Peninsula Gas Fireplace
Installation

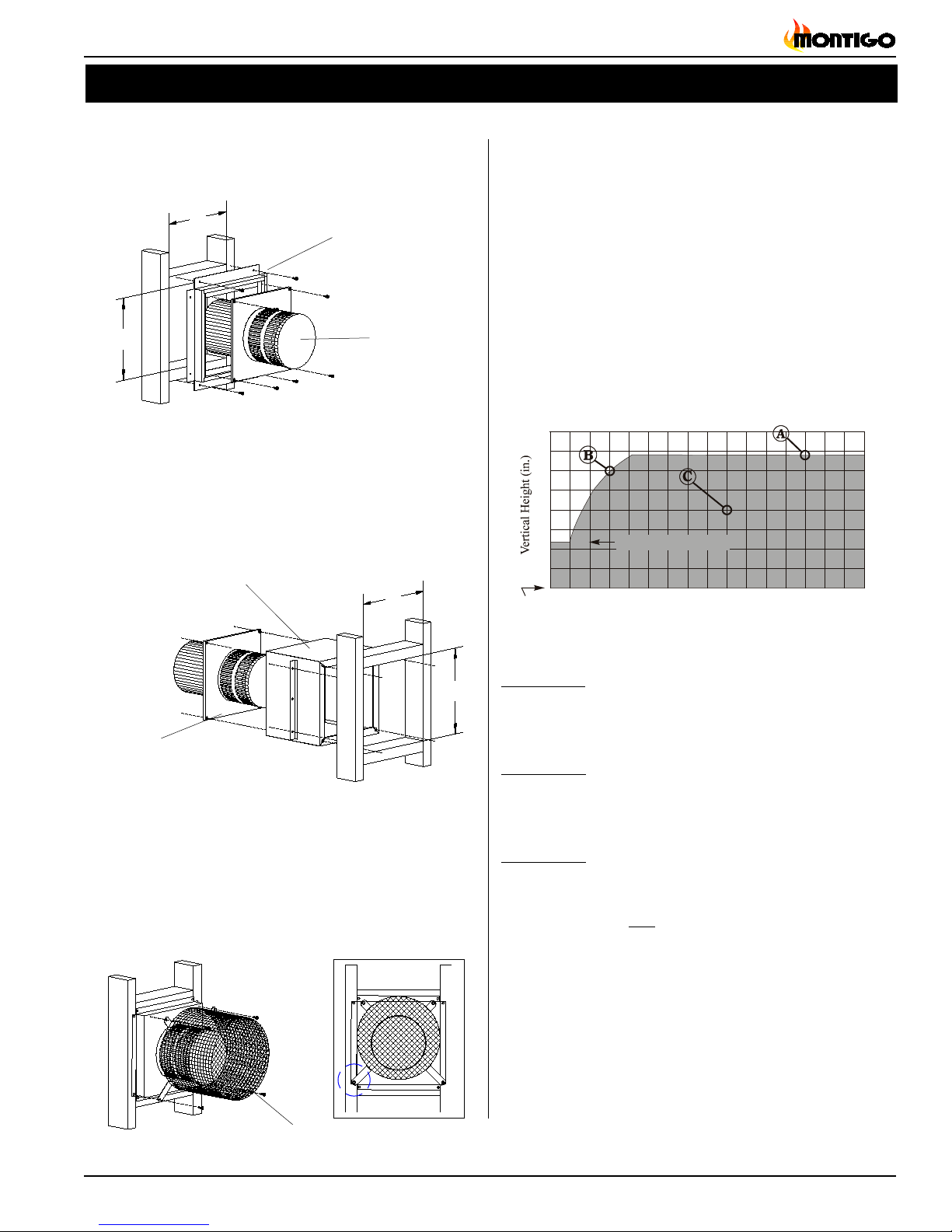

Installing Heat Guards over Terminations
1. Ensure that the two long mounting brackets are facing the bot-
tom of the termination. (See inset). This will provide more heat
protection at the top of the termination, where temperatures are
highest.
2. Attach to the faceplate of the termination using four sheet metal
screws.
Installing Terminations with MSR Frames
1. Frame the termination opening to 12" x 12".
2. Fasten the termination to the studs using a minimum of 4 screws.
12
12
MSR
PTO-3
PTO-3F
Figure 6b. Installing a PTKO termination with the MSR frame.
Figure 6c. Installing a PTKO termination with the MOSR frame.
1212
12
MOSR
PKO-3
PTO-3F
Installing Terminations with MOSR Frames
1. Frame the termination opening to 12" x 12".
2. Fasten the MSR frame to the interior side of the studs using a
minimum of 4 screws.
3. Insert the termination into the MSR frame as shown here, and
attach by screwing through the four pilot holes in the termination.
Venting Runs
If your installation requires more than 12" of horizontal venting, some
vertical lift is required. Use the vent graph below to determine an
acceptable vent run. Unacceptable venting can affect the fireplace's
combustion.
the maximum horizontal vent run is 16 feet
The Venting Graph
Measure the vertical height from the fireplace hearth to the centre of
the termination and the horizontal run from the from the fireplace flue
collar to the wall flange of the termination. Plot on the Venting Graph
(Fig. 7) with an 'X'.
If the 'X' falls on or above the top boundary of the shaded area, the
installation is acceptable.
024 48 72 96 120 144 168 192
Horizontal Run (in.)
Hearth
0
12
24
36
48
60
72
84
96
Center of Vent (28.5")
Figure 7. Venting Graph.
Example A: (Acceptable Installation)
If the vertical dimension from the hearth is 82", and the hori-
zontal run to the wall flange of the vent termination is 156", this
would be an acceptable installation.
Example B: (Acceptable Installation)
If the vertical dimension from the hearth is 72" and the horizontal
run to the wall flange of the vent termination is 36", this would be
an acceptable installation.
Example C: (Unacceptable Installation)
If the vertical dimension from the floor of the fireplace is 48" and
the horizontal run to the wall flange of the vent termination is
108", this would NOT be an acceptable installation.
PTKOG
Figure 6d. Installing the heat guard.

P/N XG0202
Page 6
M38DV-PFC Peninsula Gas Fireplace
Installation
Direct Vent Installation
Vent systems that terminate through a wall may comprise up to six
different components:
A - Termination PTKO-2 (2" length)
PTKO-5 (5" length)
PTKO-9 (5" length)
PTKO-2F (2" length)
PTKO-5F (5" length)
PTKO-9F (9" length)
B - Stucco Kits MSR (stucco frame)
MOSR (stucco can)
C - Flex sections PFL-1 (12" section)
PFL-2 (24" section)
PFL-3 (36" section)
PFL-4 (48" section)
D - Solid sections PEXT-1 (12" section)
PEXT-2 (24" section)
PEXT-3 (36" section)
PEXT-4 (48" section)
PEXT-6 (72" section)
E - Extensions PXT-3 (5" section)
PXT-10 (10" section)
F - 90° elbow PEL-90F/F
PEL-90M/M
Short Configurations:
For installations straight through the wall, use a 2" or 5" termination
(see above chart for Part #), and PXT-5 or PXT-10 to achieve the
desired length. The maximum horizontal vent run with no vertical lift
is 12".
See Figure 8.
Example:
A 10' section and elbow (PIHR-10) used in conjunction with 3 ft. flex
section (PFL-3) will, when extended in a chase, allow for a maximum
horizontal run of twelve and one-half feet from the centre of the
fireplace to outside wall and a minimum of 7'6" when retracted in op-
posite direction. (See Figure 9.)
"D" flex sections and "E" solid sections may be used in conjunction
with one another to obtain different possible horizontal length instal-
lations. NOTE: Flex section must not exceed maximum horizontal
length of 3 feet.
Long Vent Runs:
For longer or more complex vent runs, vertical lift is required. First
ensure that the planned run is acceptable using the Vent Graph. Plan
out the required components using the chart above. You may be able
to use fewer components using the chart below.
Hearth
Termination
PTKO
Extension
PXT-5 / -10
Exterior
Wall
12" max. horizontal
(with no vertical lift)
28 1/2"
Figure 8. Short Horizontal installation.
192" max.
Hearth
Flex Section
PVA Adaptor
Exterior
Wall
PIHR-6/-10
Termination
PEL-90F/F
Figure 9. Retracted installation using PIHR-10.

Page 7
P/N XG0202
M38DV-PFC Peninsula Gas Fireplace
Installation

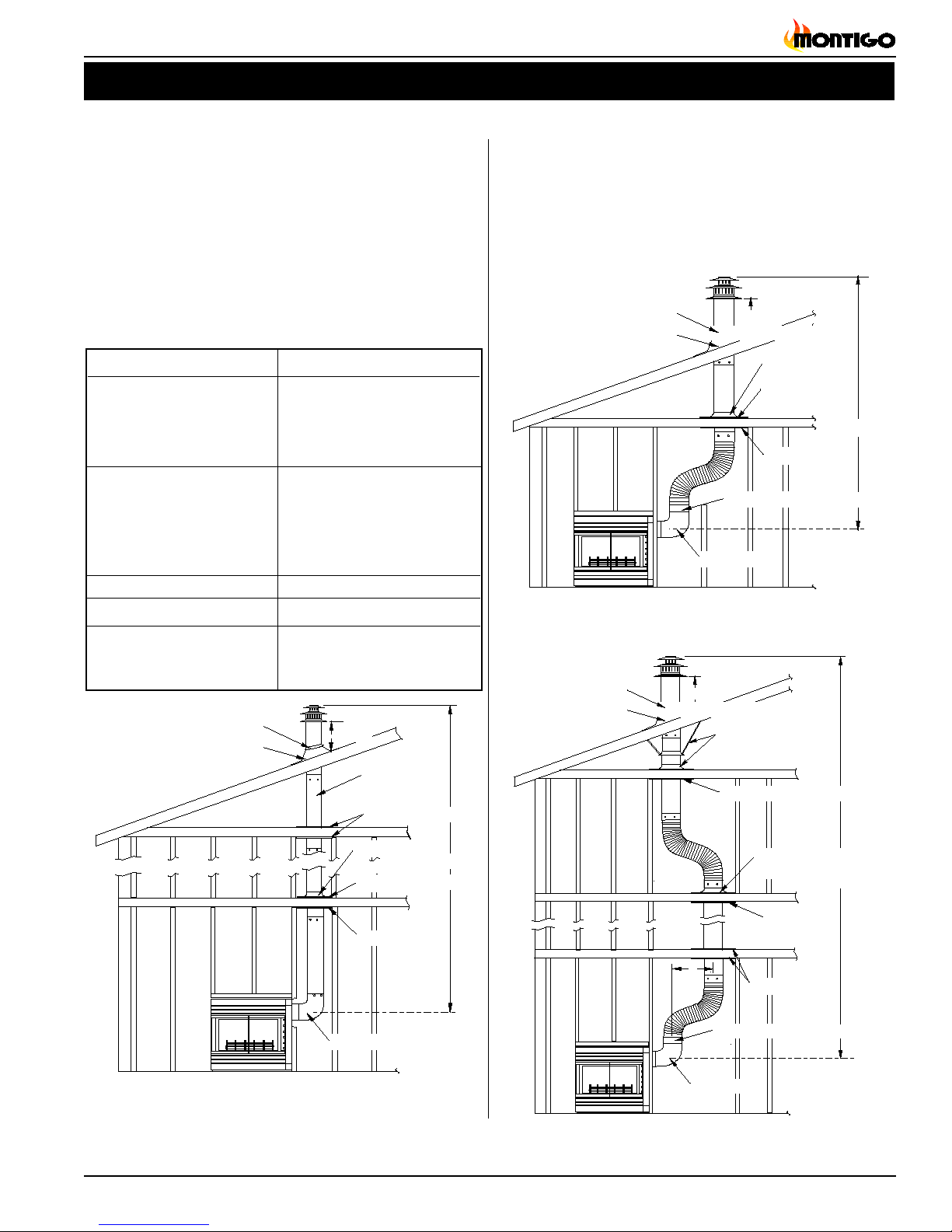

Vertical Vent Installations
Vertical Terminations must be installed:
•minimum 2' (two feet) above the highest point where
vent passes through the roof.
•minimum 6' (six feet) from a mechanical air inlet
•minimum 3' (three feet) from a parapet wall.
Maximum vent height is 30 feet above fireplace.
Note: Flame characteristics will change if the maximum vent
height is used.
Minimum clearances 2" from vent to all combustible materials
must be maintained.
A maximum of two offsets with 45° bends may be made if the length
of the offsets does not exceed 25% of the vertical vent height, when
measured center to center of piping.
Example: Typical vent installation.
30' vertical vent
2 - 2' offsets required
25% of 30' = 7-1/2' max. offset allowed
This venting configuration meets requirements.
A - Termination PVTK-1
B - Flex sections PFL-1 (12" section)
PFL-2 (24" section)
PFL-3 (36" section)
PFL-4 (48" section)
C - Solid sections PEXT-1 (12" section)
PEXT-2 (24" section)
PEXT-3 (36" section)
PEXT-4 (48" section)
PEXT-6 (72" Section)
D - Support Ring & Plate PSPXT-7 (8" dia.)
E - Firestop PS-8 (8" dia.)
F - Roof Flashing PRF-7 (1/12 - 7/12 pitch)
PRF-12 (7/12 - 12/12 pt.)
PRF-16 (12/12 - 16/12 pt.)
Figure 10. Straight, vertical venting. The elbow shown is a PEL-90F/
F, which is connected directly to the fireplace flue collar.
No special adaptor is required.
Storm collar
PEXT
Solid Section
Roof flashing
30' max.
* Minimum 2" clearance to all combustibles
Firestop
Firestop
2' min.
90° Elbow (F/F)
Support plate
Support ring
2' min.
Storm collar
Support ring
Roof flashing
30' max.
* Minimum 2" clearance to all combustibles
Support plate
Firestop
PVA Adaptor
90° Elbow
2'min.
2'
Storm collar
Roof flashing
30' max.
* Minimum 2" clearance to all combustibles
Support straps or
support plate & ring
Firestop
Firestop
Firestop
Support plate
& ring
PVA Adaptor
90° Elbow
Figure 12. Typical vertical venting application application 2 offsets.
Figure 11. Typical vertical venting application using 1 offset.

P/N XG0202
Page 8
M38DV-PFC Peninsula Gas Fireplace
Finishing Around the Fireplace
Combustible mantels and mouldings may be safely installed over the
top and on the front of the fireplace provided that they do not project
beyond shaded area shown in Figure 13a. Side wall clearances are
0". Combustible surrounds may be installed with 0" clearance to the
side of the fireplace as shown in Figure 13b.
Fireplace Facing
When selecting the finish material for your fireplace, it is important
to remember the following: BRASS TRIMS MUST NOT BE OB-
STRUCTED IN ANY WAY - to do so restricts the air supply for
the control compartments and heat exchanger it also prevents
access for servicing controls.
The face of the fireplace may be painted to match the room decor,
provided you use a heat-resistant paint. Decorative facing must not
extend past the fireplace opening at all, because it will interfere with
the access to retainers for removal of glass door.
Installation
Mantels & Surrounds
NOTE: Mantel clearances are for fire hazard prevention to combus-
tible materials.
New technology, to meet consumer and government demands for the
wise use of energy, has prompted us to manufacture many models of
fireplaces which are hot, fuel and energy efficient.
Please be aware; temperatures over the mantel will rise above nor-
mal room temperature and walls above fireplace may be hot to touch.
We recommend careful consideration be given to the effects of
elevated mantel temperatures which may be in excess of product
design, for example: candles, plastic or pictures. This can cause melt-
ing, deformation, discoloration or premature failure of T.V. and radio
components.
Painting:

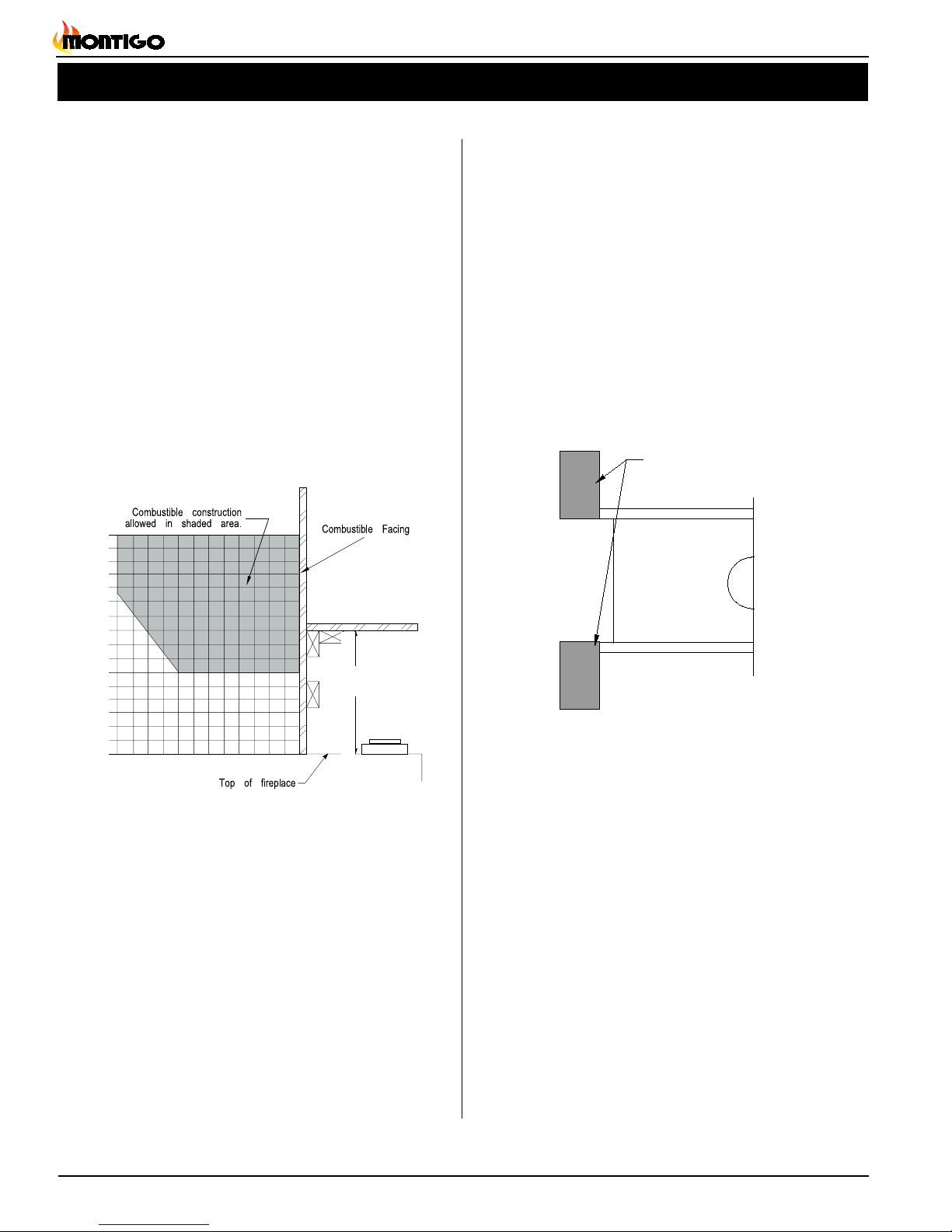

Figure 13a. Combustible mantles and facings.
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
0
89101112 67 45 23 01
Figure 13b. Combustible surrounds.
Special care is recommended by the Master Painters and Decorators
Association, when painting the fireplace surrounds, to select and ap-
ply a quality Alkyd sealer prior to the applying of latex paints. This is
to prevent leaching of water from evaporation and causing a brownish
staining effect to paint over coats.
Combustible construction
allowed in shaded area.

Page 9
P/N XG0202
M38DV-PFC Peninsula Gas Fireplace
Installation
Wiring
115/1/60 Supply
G L1 L2
Figure 15b. Fan wiring schematic.
Gas Control and Pilot Wiring
Honeywell (Q3450)
Pilot Assembly
Pilot Electrical
Harness Connector
Honeywell Gas
Control (SV9501M)
Gas Control
Connector Fuse
Limit
Switch Wall
Switch
Fan Plug
Receptacle
Junction Box
Junction Box Cover
White
Black
Green
40 VA
Transformer
115VAC
24VAC
Grnd Screw
Figure 14. Wiring for the M38DV-PFC-I with Honeywell gas control
and pilot.
Figure 15a. Fan wiring.
NOTE: If any of the original wire supplied with the appli-
ance is replaced, it must be replaced with the same
type, or its equivalent.
Fan Wiring
The M38DV-PFC is equipped with 3 fans for circulating heat into the
living space. Installations in Canada must be in accordance with
CSA C22.1 Canadian Electrical Code Part 1 and/or Local Codes.
Installations in the USA must be in accordance with local codes
or, in the absence of local codes, with the National Electrical Code,
ANSI/NFPA 70-1987.
G
L1-WH
L2-BLK
Quick Connect
plug to motor
Fan Switch
Fan Switch
Fan Motors (3)
M38DV-PFC-I
Figure 16b. Completed Installation.
Figure 16a. Log Installation.
Installing the Logs and Embers
Bottom Logs
The M38DV-PFC is supplied with five (5) fibre logs. The two large
bottom logs (logs "A" and "B") are mounted on the burner grate by
placing them into the slots.
Top Logs
Place logs "C" and "D" into their mating positions on the large logs as
shown in Figure 16a below. Log "E" is mounted on top of logs "C" and
"D" as shown in Figure 16b.
WARNING: If logs are not placed properly, excessive
sooting will result.

P/N XG0202
Page 10
M38DV-PFC Peninsula Gas Fireplace
Installation
Removing and Installing the In-
ner Doors
Door Removal
The inner (combustion) doors are located behind the outer decorative
doors. To remove the inner doors, simply unscrew the nine (9) ma-
chine screws on the top, bottom and side of the door. (See figure 17).
Door Installation
To attach the inner doors, align the door with the screw holes and
re-fasten with all nine machine screws. Ensure that a good seal is
maintained.
Operation
Lighting Instructions
See Pages 11-12.
Figure 17. Removing inner doors.
9 x machine screws
Burner Adjustment
The M38DV-PFC is equipped with an adjustable burner, allowing you
to raise or lower the flames. To adjust the flames, locate the black
knob marked 'Hi-Lo', in the centre of the gas control valve (See Figure
26). The front burners are not adjustable.
To raise the flame height, turn the black knob (located behind the
lower trim) counterclockwise.
To lower the flame height, turn clockwise.
Figure 9. 'Hi-Lo' Adjustment on the M38DV-PFC gas valve.
Note: M38DV-PFC models (electronic ignition) do not feature
hi/lo adjustment.

Page 11
P/N XG0202
M38DV-PFC Peninsula Gas Fireplace
For Your Safety - READ BEFORE LIGHTING:
WARNING: If you do not follow these instructions exactly, a re or explosion
may result causing property damage, personal injury or loss of life.
Department.
C. Use only your hand to push in or turn the gas control
knob. Never use tools. If the knob will not push in or
turn by hand, don't try to repair it, call a qualied serv-
ice technician. Force or attempt to repair may result in
a re or explosion.
D. Do not use this appliance if any part has been under
water. Immediately call a qualied service technician
to inspect the appliance and to replace any part of the
control system, and any gas control which has been
under water.
A. This appliance has a pilot which must be lighted by
hand. When lighting the pilot, follow these instructions
exactly.
B. BEFORE LIGHTING smell all around the appliance
area for gas. Be sure to smell next to the oor be-
cause some gas is heavier than air and will settle on
the oor.
What To Do If You Smell Gas:
Do not try to light any appliance.
Do not touch any electrical switch; do not use any
phone in your building.
Immediately call your gas supplier from a neigh-
bour's phone. Follow the gas supplier's instruc-
tions.
If you cannot reach your gas supplier, call the Fire
To Turn Off Gas To Appliance:
Operation - Model M38DV-PFC
3. Push in gas control knob slightly and turn clock-
wise to "Off". Do not force.
4. Replace lower trim.
1. Turn off remote switch.
2. Remove lower trim.
1. STOP! Read the safety information above on this
label.
2. Remove lower trims.
3. Push in gas control knob and turn clockwise to
"OFF."
4. Wait ve (5) minutes to clear out any gas. Smell for
gas, including near the oor. If you then smell gas,
STOP! Follow "B" in the safety information above on
this label. If you don't smell gas, go to the next step.
5. Locate pilot burner (See illustration at right.) and fol-
low steps below.
6. Turn knob on gas control counterclockwise to
"PILOT."
7. Push in gas control knob completely and hold. Light
with Piezo Igniter button. Continue to hold the control
knob in for about (1) minute after the pilot is lit. Re-
lease the knob and it will pop back up. Pilot should
remain lit. If it goes out repeat steps 3 through 8.
If knob does not pop up
when released. Stop
and immediately call
your service technician
or gas supplier.
If the pilot will not stay
lit after several tries,
turn the gas control knob to "OFF" and call your
service technician or gas supplier.
8. Push in gas control knob and turn counterclockwise
to "ON."
9. Replace lower trim.
10.Turn on remote switch to ignite re.
Lighting Instructions:
with Continuous Pilot
M38DV-PFC
Gas Control Knob
(Show n in "Pilot" postion.)

P/N XG0202
Page 12
M38DV-PFC Peninsula Gas Fireplace
For Your Safety - READ BEFORE LIGHTING:
To Turn Off Gas To Appliance:
Lighting Instructions:
WARNING: If you do not follow these instructions exactly, a re or explosion
may result causing property damage, personal injury or loss of life.
If you cannot reach your gas supplier, call the
Fire Department.
C. Use only your hand to push in or turn the gas
control knob. Never use tools. If the knob will
not push in or turn by hand, don't try to repair it,
call a qualied service technician. Force or at-
tempt to repair may result in a re or explosion.
D. Do not use this appliance if any part has been
under water. Immediately call a qualied serv-
ice technician to inspect the appliance and to
replace any part of the control system, and any
gas control which has been under water.
A. This appliance is equipped with an ignition sys-
tem that lights the pilot burner automatically. Do
not attempt to light the pilot by hand.
B. BEFORE LIGHTING smell all around the appli-
ance area for gas. Be sure to smell next to the
oor because some gas is heavier than air and
will settle on the oor.
What To Do If You Smell Gas:
Do not try to light any appliance.
Do not touch any electrical switch; do not use
any phone in your building.
Immediately call your gas supplier from a
neighbour's phone. Follow the gas supplier's
instructions.
1. Turn off remote switch.
2. Remove lower trim.
Gas
Inlet
Gas Control Switch
Shown in "On" Position
3. Turn the switch on the gas control to "Off".
4. Replace trim.
1. STOP! Read the safety information above on
this label.
2. Remove lower trims.
3. Turn switch on the gas control to OFF".
4. Wait 5 minutes to clear out any gas. If you smell
gas, STOP! Follow "B" in the safety information
above on this label. If you don't smell gas, go to
the next step.
5. Turn switch on the gas control to "ON". NOTE:
This unit is equipped with an ignition system that
lights the pilot burner automatically. Do not at-
tempt to light the pilot by hand.
6. Turn on wall switch.
7. Replace lower trims.
8. If the replace does not operate, follow the in-
structions "To Turn Off Gas To Appliance" and
call your service technician or gas supplier.
Operation - Model M38DV-PFC-I
with Honeywell Intermittent Pilot
M38DV-PFC-I

Page 13
P/N XG0202
M38DV-PFC Peninsula Gas Fireplace

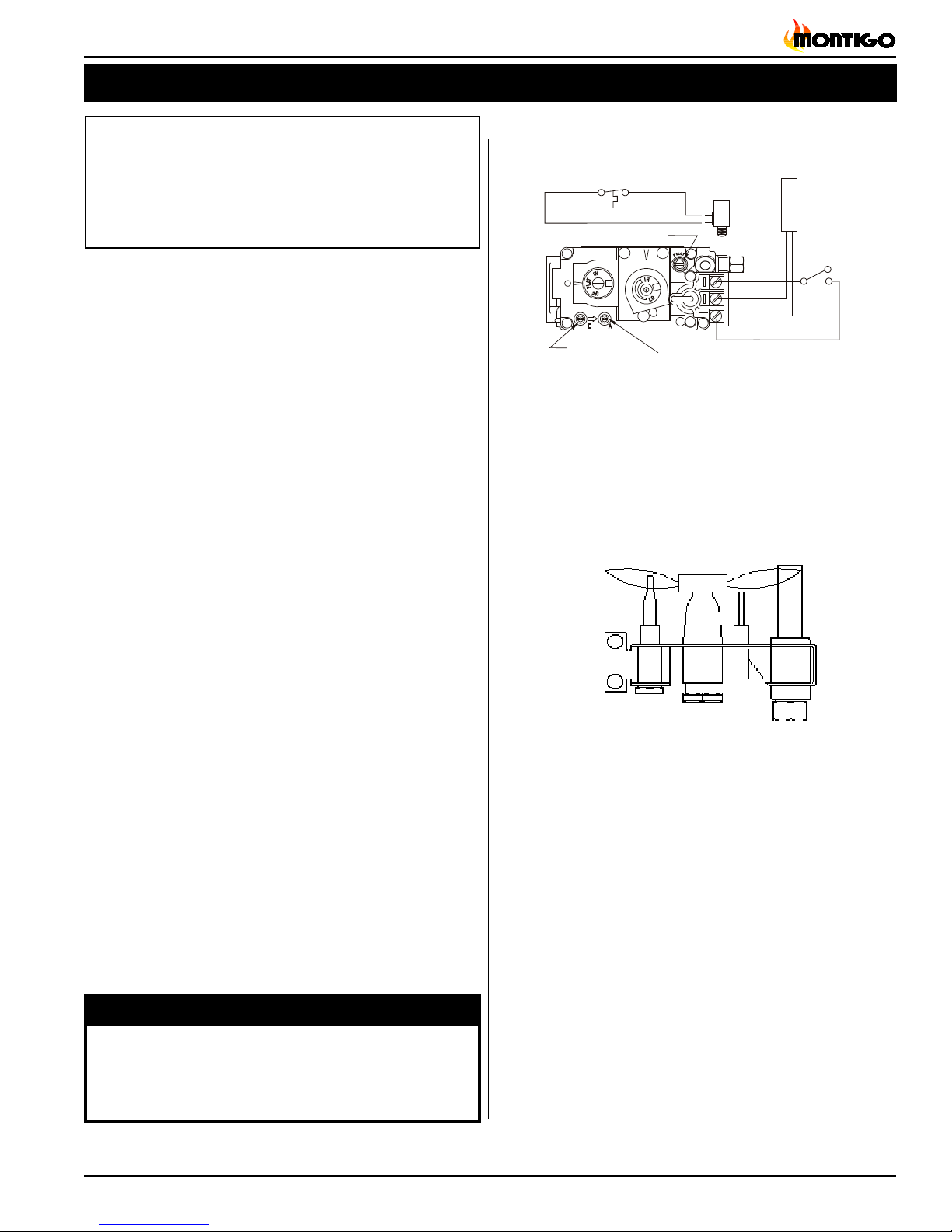

Maintenance
General
Have the fireplace installation inspected yearly, including a visual
check of the vent system, the burner and the pilot flame. For con-
venience a 1/8" manifold pressure tap is supplied on the gas valve
for a test gauge connection. See Figure 19.
For Natural Gas this appliance requires a minimum inlet pressure
of 5.5" W.C. and a manifold pressure of 3.5" W.C.
For Propane Gas this appliance requires a minimum inlet pres-
sure of 11" W.C. and a manifold pressure of 10" W.C.
Always keep the fireplace area clear and free of combustible
materials, as well as gasoline and other flammable vapours and
liquids.
Do not use this appliance if any part has been under water. Imme-
diately call a qualified service technician to inspect the appliance
and to replace any part of the control system and any gas control
which has been under water.
CAUTION
•Fireplace gas control must be in the “OFF” position and pilot
and main burners extinguished when cleaning appliance with
a vacuum.
• Glass and logs can get very hot. Handle only when cool.
Cleaning
When the fireplace is first activated, there may be some smoking and
a visible film may be left on the glass. This is a normal condition, and
is the result of burning the protective coatings on new metal.
Glass must be cleaned periodically to remove any film (a normal
bi-product of combustion) which may be visible. Film can easily
be removed by removing the door, as shown on page 10. Handle
the door carefully, and clean it with glass cleaners. One of the
most effective products is Kel Kem.
Silicone seals on inner door during initial firing will "off gas",
leaving a visual deposit of a white substance on combustion
chamber walls. This can easily be removed by following the steps
described above.
Use a vacuum cleaner or whisk broom to keep the control com-
partment, burner, and firebox free from dust and lint.
Logs may be cleaned periodically with a vacuum to remove soot.
WARNING:
Do not attempt to clean glass when hot.
Do not clean glass with abrasive materials as any glass etch-
ing may cause premature glass failure.
Pilot Burner Adjustment
1. Locate Pilot Adjustment Screw. (See figure 19.)
2. Adjust pilot key to provide properly sized flame. (See figure 20).
3. After installing or servicing, leak test with a soap solution with
main burner on. Coat pipe and tubing joints, gasket etc. with soap
solution. Bubbles indicate leaks. Tighten any areas where the
bubbles appear until the bubbling stops completely.
Figure 20. Pilot Burner
Gas Control Valve
Figure 19. Sit Nova 820 gas valve.
Manifold Pressure
Test Connection
Pilot Adjustment Screw
Vent Safety Switch
Inlet
Pressure
Power
Generator
Thermocouple
Connection
Wall Switch
TP-TH TP TH
Secondary Limit

P/N XG0202
Page 14
M38DV-PFC Peninsula Gas Fireplace
Maintenance

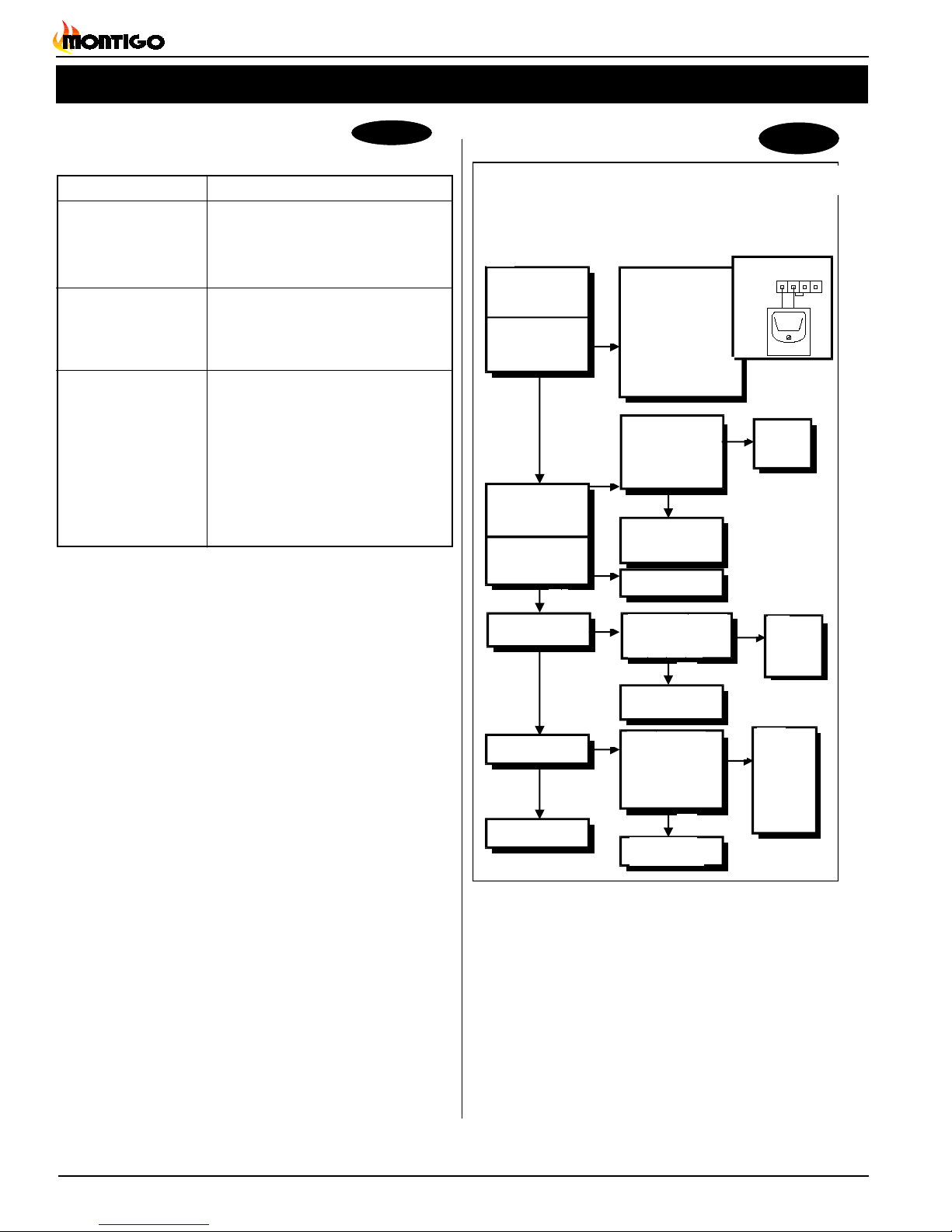

HONEYWELL SV 9500 /SV9600
Trouble
shooting Sequence
NOTE: Before Troubleshooting, Familiarize Yourself With
The Startup And Checkout Procedure.
·TurnGasS
upplyoff
· Se
tther mos
tatto
ca
ll forh
eat
S
V95
00/SV960
0
i
spower
ed
(24VACnom
inal)
NO
NO
NO
NO
NO
YES
YES
YES
YES
YES
YES
YES
NO
NO
NO
START
Igniterwarm
sup
a
ndglowsred.
PilotValveopens.
Turngason.
PilotBurnerligh
ts?
MainValveopens?
SYSTEMOK
Unp
lu
gPilotBu
rn
erCa
ble,
Measu
reVolt
ageat
SV9500/SV9600HSI
Termina
ls(24V
AC
N
ominal
, SeeINSE
T)
Replac
eIgnite
r/
FlameRod
Asse
mbly.
Repla
ceIgniter/
FlameRodAssembly.
Rep
laceSV9500/SV9600
Measu
reVoltagetoSV9500
/SV96
00. Voltagemust
bea
tleast19.5V
AC
DiscardoldIgniter/
FlameRodAssembly.
Replac eIgniter/Flame
RodAssemblyandretain.
RestartTroubleshooting
Sequence. Doesmain
valveopen?
R
eplace
SV9500/
SV9600
Check
Transformer
LineVolt
Supply
Replace
SV9500/
SV9600.
Saveold
Igniter/Flame
RodAssembly
forservice.
INSET
HSI
Terminals
CH
ECK:
· Lin
evoltagepowe
r
· Lowvoltage transformer
· LimitCont
roller
· Ther
most
at
· Wiring
· Airprovingswitchon
combustionairblowersystem
· Ve
ntdamper(ifused) isop
en
a
nden
dswitchm
ade
Troubleshooting
If your fireplace still does not operate correctly, consult your dealer or
the manufacturer.
All service and repairs should be performed by a qualified
agency.
All spare parts, optional fans (see optional fan instruction guide), and
optional trim finishes are available from Canadian Heating Products
Inc. or your local dealer.
M38DV-PFC-I
Troubleshooting
The following is a troubleshooting chart of possible problems:
PROBLEM CORRECTIVE ACTION
Noisy Pilot Flame Locate pilot adjustment screw on the
front of the gas control valve. Flame
is decreased by turning adjustment
screw clockwise.
Pilot won’t ignite Disconnect remote wires and try to
light pilot. If pilot now works, remote
connections are faulty. Check wiring
diagram figure 19.
Main burner will 1. Check wiring (see figure 19)
not light 2. Check wall switch for proper con-
nection.
3. Check pilot burner. If extinguished:
a. Allow fireplace to cool, then try to
relight.
b. If condition persists, call a qualified
service person.
M38DV-PFC

Page 15
P/N XG0202
M38DV-PFC Peninsula Gas Fireplace
Warranty
The Warranty
The Companies warrants the Montigo Gas Appliance to be free from defects in materials and workmanship at the time of manufacture. On the Montigo, there is a
ten-year warranty on the firebox and its components, a five-year warranty on the main burner, and a one-year warranty on the gas control valve, pilot burner and
fibre logs. Glass, plated/painted finishes, and refractory lining are exempt.
Remedy And Exclusions
The coverage of this Warranty is limited to all components of the Gas Appliance manufactured by The Companies.
This Warranty only covers Montigo Gas Appliances installed in the United States or Canada.
If the components of the Gas Appliance covered by this Warranty are found to be defective within the time frame stated (see The Companies right of investigation
outlined below). The Companies will, at its option, replace or repair defective components of the Gas Appliance manufactured by The Companies at no charge,
and will also pay for reasonable labour costs incurred in replacing or repairing components. If repair or replacement is not commercially practical, The Companies
will, at its option, refund the purchase price of the Montigo Gas Appliance.
This Warranty covers only parts and labour as provided above. In no case shall The Companies be responsible for materials, components, or construction which
are not manufactured or supplied by The Companies, or for the labour necessary to install, repair or remove such materials, components or construction. All
replacement or repair components will be shipped F.O.B. the nearest The Companies factory.
Qualifications To The Warranty
The Gas Appliance Warranty outlined above is further subject to the following qualifications:
(1) The Gas Appliance must be installed in accordance with The Companies installation instructions and local building codes. The Warranty on this Montigo Gas
Appliance covers only the component parts manufactured by The Companies. The use of components manufactured by others with this Montigo Gas Appli-
ance could create serious safety hazards, may result in the denial of certification by recognized national safety agencies, and could be in violation of local
building codes. This warranty does not cover any damages occurring from the use of any components not manufactured or supplied by The Companies
(2) The Montigo Gas Appliance must be subjected to normal use. The Gas Appliances are designed to burn gas only. Burning conventional fireplace fuels such
as wood, coal or any other solid fuel will cause damage to the Gas Appliance, will produce excessive temperatures and will result in a fire hazard.
Limitations On Liability
It is expressly agreed and understood that The Companies sole obligation, and purchaser's exclusive remedy under this Warranty, under any other warranty,
expressed or implied, or in contract, tort or otherwise, shall be limited to replacement, repair, or refund, as specified above.
In no event shall The Companies be responsible for any incidental or consequential damages caused by defects in its products, whether such damage occurs
or is discovered before or after replacement or repair, and whether or not such damage is caused by The Companies negligence. Some states do not allow the
exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. The duration of any implied warranty
with respect to this Montigo Gas Appliance is limited to the duration of the foregoing warranty. Some states do not allow limitation on how long an implied warranty
lasts, so the above may not apply to you.
Investigation Of Claims Against Warranty
The Companies reserves the right to investigate any and all claims against this Warranty and to decide upon method of settlement.
The Companies Are Not Responsible For Work Done Without Written Consent
The Companies shall in no event be responsible for any warranty work done without first obtaining The Companies written consent.
Dealers Have No Authority To Alter This Warranty
The Companies employees and dealers have no authority to make any warranties nor to authorize any remedies in addition to or inconsistent with those stated
above.
How To Register A Claim Against Warranty
In order for any claim under this Warranty to be valid, The Companies must be notified of the claimed defect in writing or by telephone, as soon as reasonably
possible after the defect is discovered. Claims against this Warranty in writing should include the date of installation, and a description of the defect.
Other Rights
Canadian Heating Products Inc. and/or Montigo DelRay Corp. reserves the right to make changes at any time, with-
out notice, in design, materials, specifications, prices and also to discontinue colors, styles and products.

P/N XG0202
Page 16
M38DV-PFC Peninsula Gas Fireplace
Appendix A - Spare Parts
1
34
56
Model M38DV-
PFC-I
Model M38DV-PFC
5/ 16 A lum .
Tubing
PSE
5/ 16 A lum .
Tubing
2
7
1. Fan Motor (MBL-1)
2. Power Cord (PPCH-4)
3. Stucco Frame (MSR)
4. Stucco Frame (MOSR)
5. Brick Frame (BSR)
6. Termination (PTKO Series)
7. Heat Guard (PTKOG)
8. Horizontal Trim Kits
9. Peninsula 5-Piece Fibre Logset
8
9

Page 17
P/N XG0202
M38DV-PFC Peninsula Gas Fireplace
Appendix B - Termination Locations
A= clearance to the termination frame above grade, veranda, porch, deck,
or balcony [16 inches (41 cm) minimum]
B= clearance to door, or sides and top of window, that may be opened [16
inches (41 cm) minimum for appliances ≤100 000 BTU/H (30kW)]
C= clearance to bottom of window that may be opened horizontally [36
inches (92 cm) minimum for appliances ≤100 000 BTU/H (30kW)]
D= no clearance to permanently closed window when installed with ap-
proved glass penetration termination
E= clearance to permanently closed window [16 inches 41 cm recom-
mended to prevent condensation on window]
F = vertical clearance to ventilated soft located above the termination
within a horizontal distance of 2 feet (61 cm) from the centreline of the
termination [22 inches (56 cm) minimum]
G = clearance to unventilated soft
[16inches (41 cm) minimum to non-combustibles]
[22 inches (56 cm) minimum to combustibles]
H= clearance to outside corner [9 inches (23 cm) minimum]
I= clearance to inside corner [12 inches (31 cm) minimum]
J= * not to be installed above a meter/regulator assembly within
40" (103 cm) horizontally from the centreline of the regulator
K= clearance to service regulator vent outlet [3 feet minimum in the United
States] [*6 feet (1.8 m) minimum in Canada]
L = clearance to nonmechanical air supply inlet to building or the combus-
tion air inlet to any other appliance [16 inches (41 cm) minimum for
appliances ≤100 000 BTU/H (30kW)]
M= clearance to mechanical air supply inlet
[*6 feet (1.8 m) minimum]
N= †clearance above paved sidewalk or a paved driveway located on
public property [*7 feet (2.1 m) minimum]
P= clearance under veranda, porch, deck, or balcony
[16 inches (41 cm) minimum‡to non-combustibles]
[22 inches (56 cm) minimum‡to combustibles]
Q= clearance above a roof [24 inches (61 cm) minimum]
R= clearance to adjacent walls and neighbouring buildings
[18 inches (46 cm) minimum]
S= clearance from corner in recessed location
[12 inches (31 cm) minimum]
T= maximum depth in recessed location
[48 inches (122 cm) minimum]
U= minimum width for back wall of recessed location
[24 inches (61 cm) minimum]
V= no horizontal clearance between the frames of two terminations that
are level.
W= horizontal clearance between the frames of two terminations that are
not level. [36 inches (92 cm) minimum]
†a vent shall not terminate directly above a sidewalk or paved drive-
way which is located between two single family dwellings and serves
both dwellings
‡only permitted if veranda, porch, deck, or balcony has an open side
that is equal to or greater than the depth of the enclosed area
* as specied in CGA B149 Installation Codes. Note: local Codes or
Regulations may require different clearances

Canadian Heating Products Inc.
Surrey, BC V3W 2V6
Montigo Del Ray Corp.
Ferndale, WA 98248
XG0202 Rev. 07/99
