montpellier DCH7250BGT User manual
Cod:0103086060
Black Glass Angled Hood
DCH7250BGT / DCH6760BGT - 50/60cm
A
2
Impoant
j
3
Using Your Extractor
For best performance, you should switch on the extractor 15 minutes before starting to cook and leave it to run for
approximately 15 minutes after the end of cooking.
Fig. 1
Power Key
4
Care and Maintenance
IMPORTANT : DO NOT PERFORM
MAINTENANCE OR CLEANING OF
THE EXTRACTOR WITHOUT FIRST
SWITCHING OFF THE ELECTRICITY
SUPPLY.
Cleaning
You should use a nonabrasive cleaner.
Any abrasive cleaner (including Cif) will
scratch the surface and could erase the
control panel markings.
by simply using a dilute solution of
water and mild detergent and drying to
a shine with a clean cloth.
The grease filter should be kept clean
to minimise the risk of fire.
At least once a month you should
remove the grease filter and clean
it with hot soapy water. You can also wash the grease filter in a
dishwasher, ensuring that you place it in an upright position to prevent
damage from other items in the dishwasher.
Fig. 4
Fig. 5
Fig. 3
5
tOpen the hinged panel as shown in Fig. 3.
tPush in the button on the handle and then pull down on the filter at
the top as shown in Fig. 4.
tWhen you have released it at the top, then you can pull the filter out
completely.
After rinsing and drying, reassemble the grease filter to the hood by
reversing the removal process.
Please note:
Cleaning the grease filter in the dishwasher may lead to
discolouration. This is normal and does not constitute a fault with the
appliance.
6
&KDUFRDOƪOWHULQVWDOODWLRQ
&DUHDQG0DLQWHQDQFH
,03257$17'2127$77(037720$,17$,1
25&/($17+((;75$&725:,7+287),567
6:,7&+,1*2))7+((/(&75,&,7<6833/<
Fig. 6
Fig. 8
Fig. 7
In re-circulating mode, air is vented back
into the kitchen through the opening in
the cooker hood.
This method is advised if you are not
using your hob intensively.
Re-circulated air requires the use of
charcoal filters to remove odours.
These are included with the cooker hood.
$WWHQWLRQthe cooker hood leaves the
factory fitted with a charcoal filter.
If you wish to use the ducted method,
please remove the charcoal filter first
before attempting to do so.
1RWH This charcoal filter is non-washable and must be replaced as
required. To install a new charcoal filter, first remove the grease filter,
as shown in Fig.7.
To ensure the best performance from
your cooker hood, the charcoal filter
should be replaced every 3-4 months,
dependent on use.
Check with your local retailer or dealer
for information on how to obtain
replacement charcoal filters.
7
Changing the Light
NOTE: LED lights replacement must
EHGRQHE\DTXDOLƪHGHOHFWULFLDQ
Disconnect the mains plug in order to
interrupt flow of electricity.
Take out the grease filter and open the
black protective cap of the plug-in
connection from inside.
Loosen the plug-in connection contained
therein.
Carefully loosen the defective LED
module downwards and replace the
LED.
Connect the plug-in connection and
close the external protective cap.
Connect with power supply again.
Fig. 9
Fig. 10
Fig. 11
Fig. 12
8
9

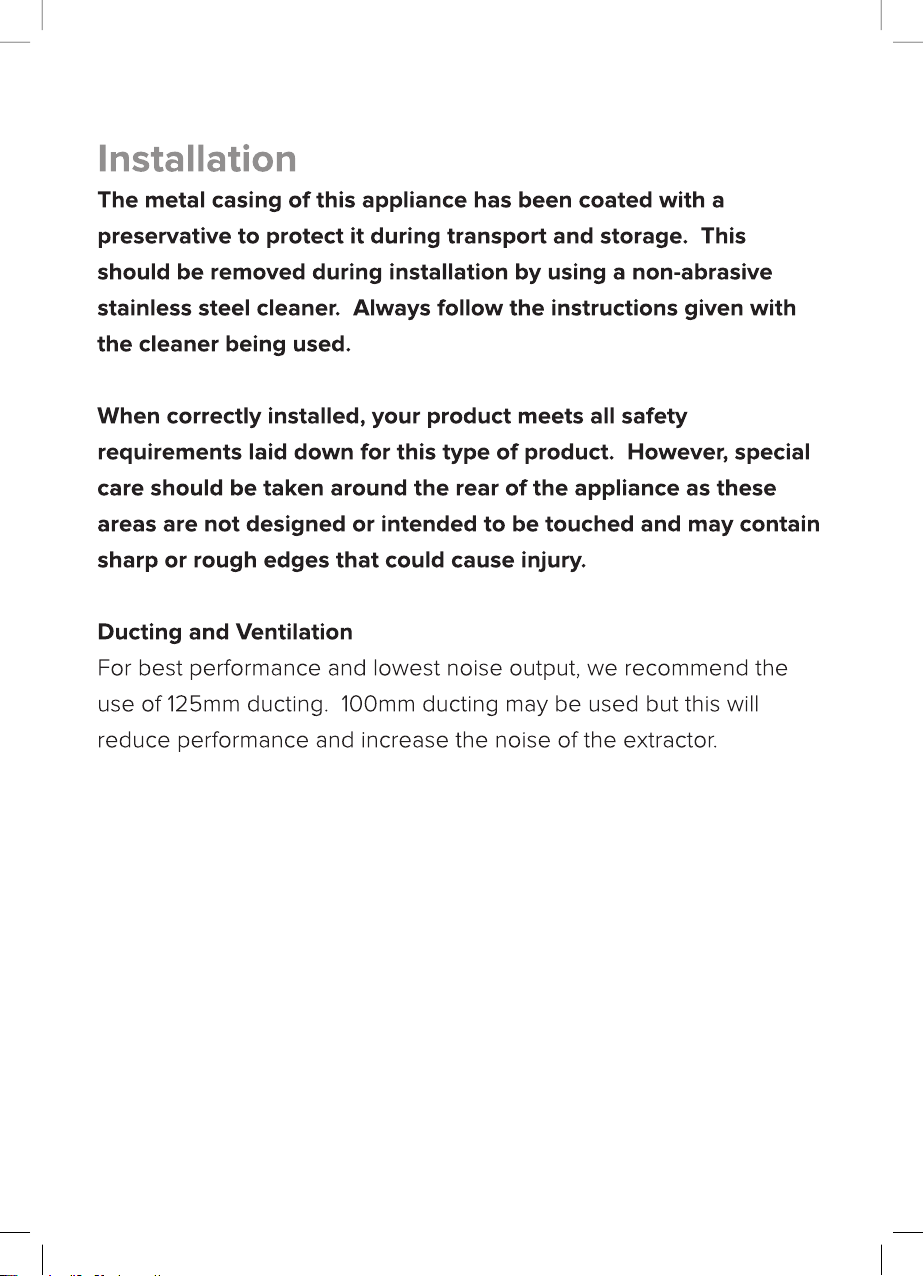

Assembly and electrical connection should be carried out by
specialised personnel.
When installing this product we recommend you seek the help of
another individual.
Electrical Information
Mains electrical voltage: 230 – 240Vac
Total rated power consumption:
112W
If your extractor is not working:

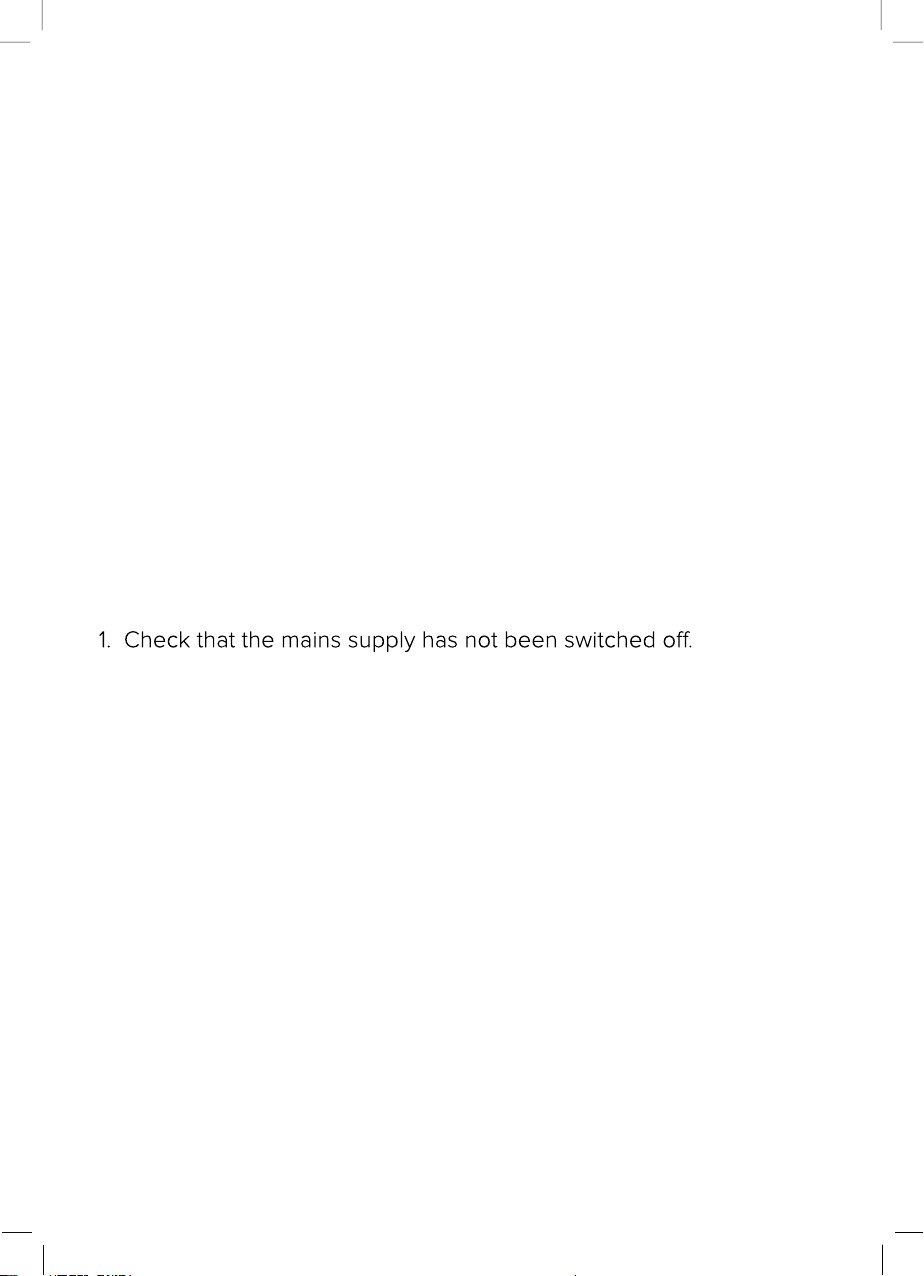

2. Check that the fuse in the spur has not blown.
Mounting Your
Extractor
Your extractor can be used to filter and
recycle the air within your kitchen, or to
extract the air outside.
When installing this appliance over a
hob, the clearance between the extractor
and the hob must be equal to or exceed
550mm. This instruction overrides the
instructions supplied with the hob.
(The height should be measured from
the top of the hotplates or burners).
Where the extractor is to be installed
above a non hob, the instructions
supplied with the hob may dictate that
the height required above the hob is
greater than 550mm.
IN THE ABSENCE OF ANY INSTRUCTIONS SUPPLIED WITH A
GAS HOB, THE MINIMUM DISTANCE BETWEEN THE HOB AND
EXTRACTOR MUST BE AT LEAST 760mm.
The width of any hob must not be greater than the width of the
extractor installed above it.
Fig. 13
Gas: 550mm minimum
Electric: 550mm minimum
A
B
C
D
A
B
C
D
94
297
130
75
10
DCH7250 or 6760BGT
11
IMPORTANT SAFETY WARNING: ONLY USE THE SCREWS PROVIDED
WITH THE EXTRACTOR TO MOUNT THE DUCTING ADAPTOR. THE USE
OF LONGER SCREWS MAY CAUSE DAMAGE TO THE INTERNAL WIRING
WHICH WILL NOT BE COVERED BY THE WARRANTY.
Tools required
8
Tools required.
Fig. 14
F
ig. 8
Mark out wall as required, see Fig 9.
Fig. 15
F
i
g
. 9
D
r
ill
6
h
o
l
es
f
or mount
i
ng t
h
e
b
o
d
y
Drill six mounting holes.
Fig. 16 Fig. 10
Fit wall fixings and top screws - Ensure
that any fixings you use are appropriate
for the wall type.
Fig. 17
Fit wall fixings and top screws.
Ensure that any fixings you use are
appropriate for the wall type.
12

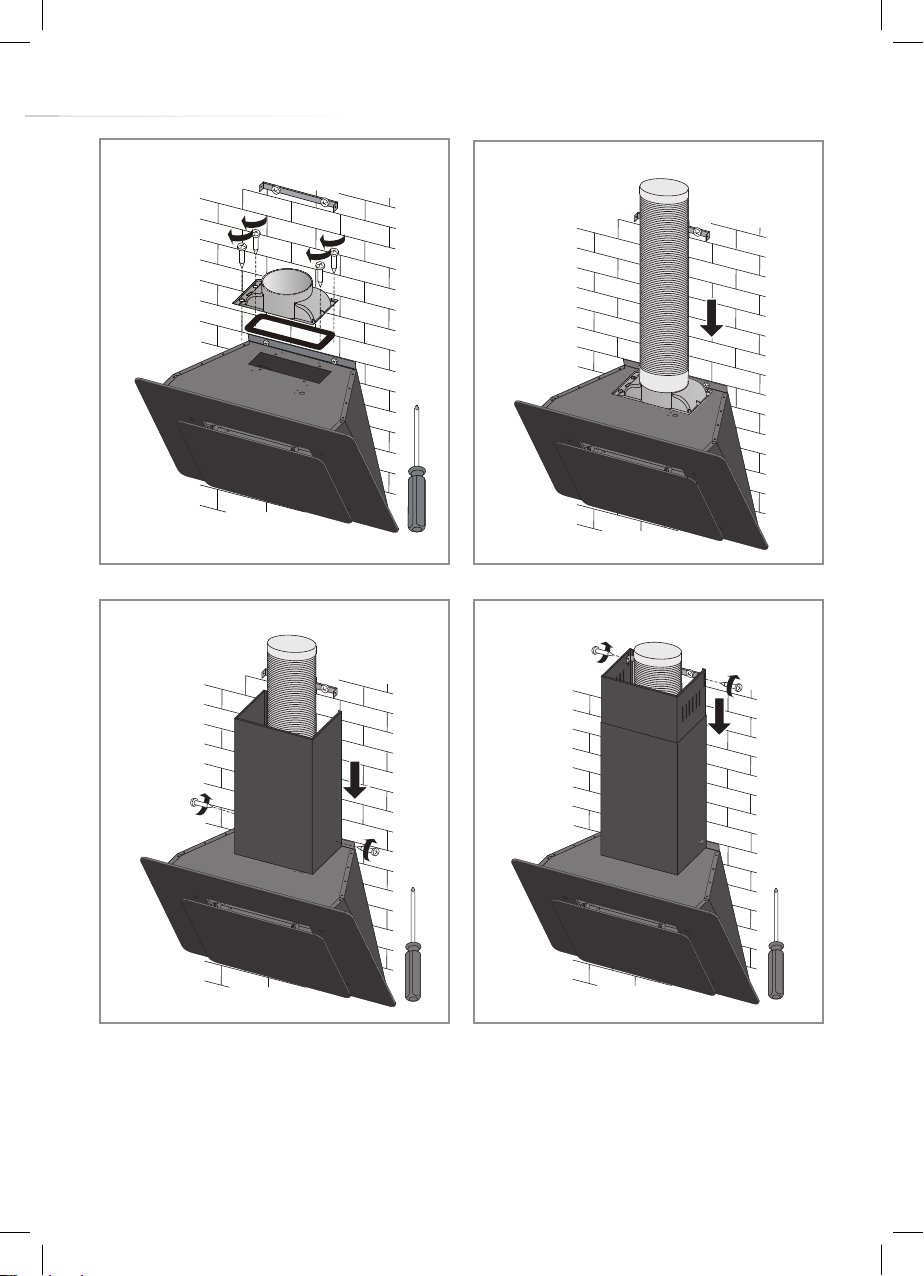

Fix ducting and seal joints.
Adjust and secure the chimney.
Fit ducting adaptor
Fig. 11
Fig. 18
Fit the ducting adaptor.
Fig. 19
Mount the chimney.
Fig. 20 Fig. 21
13
Attribute Symbol Value Units
Model identification DCH7250BGT/DCH6760BGT
Annual Energy Consumption AECHood 43.7 kWh
Time increase factor f 1.3
FDEHood 19.0
EEIHood 66.8
Measured airflow at Best QBEP 186.5 m3/h
Measured Pressure at Best PBEP 326 Pa
Maximum airflow QMAX 350 m3/h
Measured electric power at Best WBEP 89.0 W
Nominal lighting power WL 2.0 W
Average illumination of the
lighting system on the cooking
surface
EMiddle 161 Lux
Measured power consumption in
standby
PS0.7 W
Measured power consumption PO0.45 W
Sound power level LWA 66 dBA
GFEHood 37 (G) %
LEHood 80 (A) %
14
evreserREILLEPTNOM.ylnoecnadiugrofdedivorperasnoitartsullidnasnoisnemid,snoitcurtsnillA.EO&E
the right to change specifications without prior notice.
Here For You
Here For You
After-sales assistance
If you continue to experience problems with your &RRNHU+RRG please call the Montpellier customer service
helpline on: 01759 487839.
Please have all your product details available, including the model number, serial number, date of purchase,
and your retailer’s details before registering a fault.
The service call cannot progress without this information.
Your 2 year Manufacturer’s guarantee
THIS DOES NOT AFFECT YOUR STATUTORY RIGHTS.
Your new Montpellier appliance carries a free guarantee which protects you against the cost of repairs during the
ƮUVWPRQWKVIURPGDWHRISXUFKDVHSURYLGHGWKDW
Any claim is accompanied by evidence of the model reference, model serial number and proof of purchase, such
DVD6DOHV5HFHLSWVKRZLQJWKDWWKHDSSOLDQFHZDVSXUFKDVHGZLWKLQWKHPRQWKVSULRUWRWKHGDWH
of claim.
What is not covered under the Guarantee
•Any appliance not correctly installed and operated in accordance with the manufacturer’s instructions.
•Any appliance that is used for anything other than domestic purposes.
•$Q\GHIHFWFDXVHGE\DFFLGHQWPLVXVHXQDXWKRULVHGPRGLƮFDWLRQRULQH[SHUWUHSDLU
•Cost of Call-out where a fault cannot be found with the appliance.
•&RVWRI&DOORXWIRUZRUNFRYHULQJURXWLQHPDLQWHQDQFHVXFKDVEXWQRWH[FOXVLYHO\FOHDQLQJRIƮOWHUVRU
defrosting.
•Cost of Call-out for work required to correct the alignment of doors following door reversal procedures
carried out by you.
•Use of the appliance by anyone other than the Householder.
•Use in any commercial environment.
•Consumable items, such as, but not exclusively, fuses in plugs, bulbs and breakable items which require
routine replacement.
•Repair costs incurred that have not been authorised by Montpellier and/or carried out by a non-approved
Montpellier engineer.
YOUR GUARANTEE IS VALID ONLY IN THE UK52,.
7RUHJLVWHU\RXUDSSOLDQFHVLPSO\FRPSOHWHWKHFDUGLQ\RXUDSSOLDQFHSDFNDQGUHWXUQLWZLWKDVWDPSDƱ[HGRU
alternatively you can register online at www.montpellier-appliances.com/support
SERVICE HELP-LINE
Should your appliance develop a fault, please call the Montpellier customer service helpline on: 01759 487839.
Please remember to have all your product details available, including the model number, serial number, date of
purchase and your retailer’s details before registering a fault.
Your service call cannot progress without this information.
The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall
be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product
is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could
otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product,
SOHDVHFRQWDFW\RXUORFDOFLW\RƱFH\RXUKRXVHKROGZDVWHGLVSRVDOVHUYLFHRUWKHVKRSZKHUH\RXSXUFKDVHGWKHSURGXFW
www.montpellier-appliances.com
Montpellier Domestic Appliances Ltd.
Unit 1, Tewkesbury Retail Park, Northway Lane,
7HZNHVEXU\*ORXFHVWHUVKLUH*/-8
