Monty e-bike E-Bike E-48 User manual

E-48
USER’S MANUAL

2

3
INTRODUCTION
WELCOME TO THE MONTY FAMILY
Firstly, we would like to welcome you and thank you for choosing the Monty brand
This “User’s Manual” for your new Monty electric bike contains important
information which you will need to keep your bike in good condition. It has been designed
so that you can enjoy your E-Bike safely, making the most of your time.
Please read this manual carefully before using your electric bike ( hereafter: E-
48),and save this manual for future reference. If you have any doubt or questions, please
contact your authorized Monty dealer. The E-48 includes a long-lasting, top-quality
engine which is not to require much maintenance from your side. Its innovative design and
safe construction is to provide you with km and km of satisfaction.
Parents or guardians should explain the contents of this manual to any minors
using the E-Bike to ensure that they have understood its contents.
The drawings and images may not correspond exactly to your model. They are
used solely to facilitate your understanding. We apologize if any part of this manual does
not correspond with the precise characteristics of your E-48.
At Monty, we always strive to improve our products, as such, we may incorporate
other new technical components to its models or change pieces without prior notice.
Always give this manual to any future bicycle owner.
The Monty family is constantly innovating to offer its clients a top-quality product
made from the best materials. Our new E-Bikes are a clear example. They provide a new
means of light and fun transport which is also ecological, silent and does not pollute. For
this reason, we want to thank you for choosing us, a decision which will benefit the
environment and all of us.
Thank you as well for dedicating a few minutes to reading this manual. We hope
that we have succeeded in making a product to you liking.
For further information about our products, visit the Monty web site: http://www.monty.es

4
ATENTION: IMPORTANT WARNING
NON-FULFILLMENT OF THE INSTRUCTIONS DETAILED IN THIS
MANUAL MAY LEAD TO MECHANICAL FAILLURES, A LOSS OF
CONTROL AND POSSIBLE FALLS, WITH SERIOUS PHYSICAL
INJURIES TO THE USER OR OTHERS, INCLUDING EVEN DEATH.
INCORRECT USAGE MAY ALSO RISK YOUR PHYSICAL INTEGRITY
AND THAT OF OTHERS.
SAFETY WARNING
DO NOT OPEN OR MANIPULATE THE BATTERY, DOING SO WILL
FORFEIT THE WARRANTY ESTABLISHED IN THIS MANUAL.
IF YOU OPEN OR MANIPULATE THE BATTERY, CHARGER OR
ELECTRICAL CIRCUIT, YOU MAY PROVOKE A SHORT-CIRCUIT AND
POSSIBLE INJURIES ( SHOCK OR BURNS ).
IT IS RECOMMENDED TO USE A HELMET WHILE RIDING.
SAFETY WARNING
DO NOT OPEN THE BATTERY NOR MANIPULITE IT, OTHERWISE, THE
WARRANTY ARE TO BE ANNULED.
MODIFYING THE TRANSMISSION, FORK OR ANY OTHER COMPONENT
IMPLIES THE E-48 NO LONGER IS TO BE CONFORMED TO THE MONTY
SPECIFICATIONS AND THEREBY ANNULS THE WARRANTY.
MANIPULATING THE ELECTRIC BIKE’S ELECTRICAL COMPONENTS WILL
ALSO FREE MONTY OF ANY POSSIBLE LIABILITY.
SHOULD YOU HAV
E ANY QUESTIONS OR DOUBTS, PLEASE CONTACT
AN AUTHORIZED DEALER OR VISIT THE MONTY WEB SITE
:
http://www.monty.es
CE (European Conform)

5
INDEX
SECTION PÁG
PRESENTAT
I
O
N.............................................
..........................................................
3
IMPORTANT..................................................................................................
4
INDEX
..............................................................................
.........................................
5
1. E
-
48
PARTS
........................................................................................
6
2. ICONS
...........................................................................
6
3.
GENE
RAL
NORMS
....................................................................................
7
4. VEHICLE ASSEMBLING
..............................................................................
7
5. USER’S GUIDE
.................................
...................................................
8
5.1
How does the E
-
48
work
......................................................
9
5.2
LCD
display fun
c
tions
............................
11
6. VERIFICA
T
IO
N
S...................................
..........................................................
13
7. ADVISES
.......................................................................................................
14
8. SAFETY
.........................................................
.............................................
15
9. MECHANICS AND MAINTENANCE
................................................................
17
9.1
Seat and Seat post
...........................................................................
.
17
9.1.1
Seat position adjustment ...............................
17
9.1.2
How to adjust the seat position.....................................
19
9.2
Handlebar and Stem
............................................................
..............
20
9.2.1
Conventional stem................................................................
20
9.2.2
Ahead stem...........................................................
21
9.3
Fork and Headset
...
........................................................................
23
9.4 S
uspensi
o
n
system
: Forks
..................................................
24
9.5
Wheels
......................................................................
..................................
24
9.5.1
Tyre pressure chart............................................................
26
9.6
Brakes
......................................................................................................
...
26
9.6.1
Rim brake system......................................
27
9.6.2
mechanic disc brake .................................................
29
9.7 Transmisión................................................
................................................
30
9.7.1
Rear derailleur checking............................................................
31
9.8 Lights
and Reflectors
..........................................................................
...
34
10. BATTERY AND CHARGER
..............................................................................
35
10.1
The charger
............................................................................................
35
11. THE SYSTEM
.......
...............................................................................
38
12. ACCES
S
ORI
E
S...........................................................................................
39
13. TECHNICAL CHARACTERISTICS
.....................
.........................................
40
14. ADJUSTMENTS CHART
.......................................................................
41
15. MAINTENANCE CHART
..................................................................................
42
16. S
OLUTION CHART
........................................................................
43
17. GUARANTEE
...............................................................................................
45
18. FREQUENT QUESTIONS
...............................
..............................................
46
19. ELECTRIC S
C
HEME
...................................................................
47
20. SPARE PARTS
......................................................................................
48
21. CLIE
NT FORM
....................................................................................
49
22. CONTACT AND DISTRIBUTORS
.................................................................
49

6
1. E-48 PARTS
1
LCD DISPLAY
11
SEAT POST CLOSE
2
SEAT
12
FORK
3
STEM
13
BATTERY
4
HANDLEBAR
14
ENGINE
5
REAR CARRIER
15
SHIFTING
6
FRAME
16
CONTROLLER CAGE
7
SEAT POST
17
PEDAL SENSORY
8
FRONT LIGHT
18
PEDALS
9
REAR LIGHT
19
FRONT BRAKE
10
REAR BRAKE
2. UNDERSTANDING ICONS
The following icons are used throughout this manual. They will help you to understand it
quicker and serve to point out important items.
Go to another point Advise
Caution Maintenance

7
3. GENERAL NORMS
•Please read this manual carefully before riding the Monty E-48.
•Ensure that the bike works correctly before riding.
•It is recommended not to change any of the E-48’s components and not to add
any device which may interfere with them.
•Safety equipment must be used.
4. VEHICLE ASSEMBLING
The vehicle assembling shall be done in a light, level and clean place with some basic
mechanic knowledge,. or to get in touch with the official distributor or with Monty in
order to solve any problem.
•E-48 components:
oE-48 principal assembled part
oFront wheel
oFront fenders
oPedals
oFront light
oOwn manual
oContact keys
oCharger
•Required tools:
oAllen
oSpanner
oScrewdriver
oNylon hammer
•Assembling instructions
1. Take out all the components from the box and make sure to be all
of them and remove the protector cartons from the E-48.
2. Place the front wheel to the bike
3. Fit the front fenders to the wheels
4. Assemble the stem to the stem
5. Fit the pedals to the cranks
6. Verification before the first use of the E-48
See section:
MEC
HANIM
AND MAINTENANCE
for a right assembling.
•Battery Charge
1. La battery must be charged on the whole before the first riding.
See section:
BAT
T
ER
Y AND CHARGE
for a right charge.

8
5. USER’S GUIDE
DESCRIPTION
The E-48 is an electric bicycle with assisting pedal. A bicycle provided with an engine to
help you. This helping engine is part of a system formed by the rear wheel, battery,
controller and sensors, which performance is to very according to some conditions.
The E-48 is provided with a control display placed on the handlebar to regulate the
assisting help. The battery is charged by a charger connected to the electric system.
The E-48 has a great autonomy which can ride to places where a conventional bicycle
would be difficult to get along.
TYPE OF USE FOR WHICH THIS BIKE HAS BEEN DESIGNED
The Monty electric bicycles and their components are being designed as for normal
bicycle use along the standard routes in good state and in good conditions. Incorrect
usage other than the above or cross-county riding may lead to premature wear and tear,
loose joints and/ or component breakage, thereby causing possible falls and/or injuries
to the user. Ride only along the allowed routes set by the local rules.
This vehicle is not recommended to children
u
nder the age of 14 years old
.
This vehicle is not recommended to people weighing more than 100 kg.

9
5.1 HOW THE E-48 WORKS
Steps to follow:
1º Connect the electric system:
Make sure the charger to be off. Turn the contact battery key to the position “(I)” (Figure
1) next push the button (1) handlebar power display (Figure 2). The handlebar
LVD display is to light the screen and is to verify the size of the programmed wheel. In
the screen, in a circulating way, the battery charge level, distance and speed are to be
indicated. The E-48 is ready to perform.

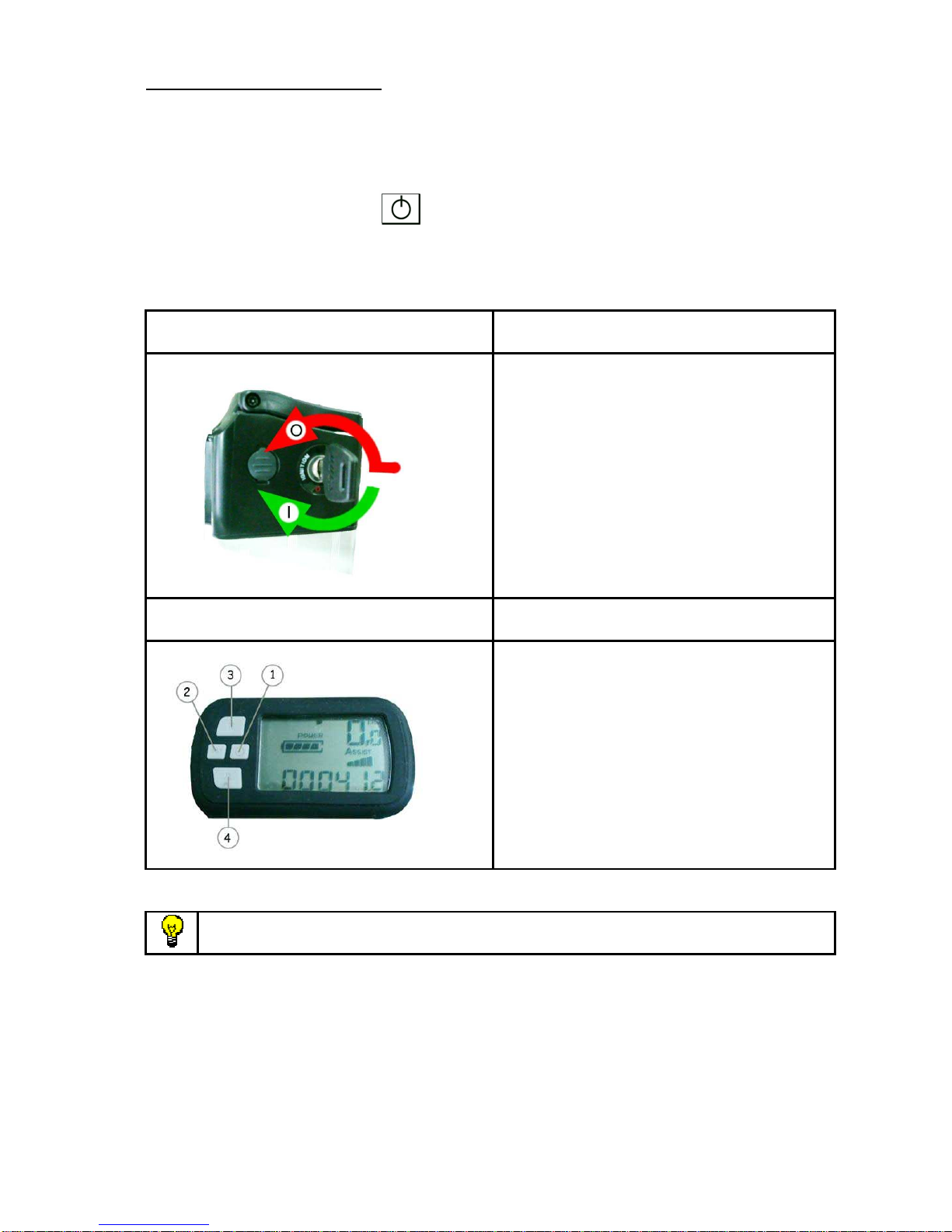

Figure 1. (Battery key) INFORMATION
To stop the vehicle: Turn the
battery key to counter clockwise,
pushing, at the same time, the key
towards inside to take the key out.
To start: Turn the battery key to the
clockwise
Figure 2. ( screen) INFORMATION
The LCD display has 4 buttons to be
used as:
1- Power: To start or to stop
2- Set: selection of functions
3- Up-arrow:
To get up the
selection
4- Down-arrow:
To get the
selection down
Verify the programmed
w
heel size
to
correspon
d
to the
assembled
one
.
A
wrong information can alter the speed and distance ones.
2º To initiate the riding of the vehicle
To begin is necessary to pedal forwards and the engine is to start automatically. The
engine is to go on while the pedals are turning as well. The PAR control system serves
so that the engine power were proportional depending on the power applied to the
pedals. (More power on the pedals = more power in the engine), (less power on the
pedals = less power in the engine).

10
Re
mind to tak
e out the bicycle rest before
getting on
the E
-
48
.
3º How to stop or decrease the speed
The assisting engine and the mechanical transmission are to be interrupted without
pedalling and the brake levers shall be clamped to stop the E-48 and the assisting
engine as well.
4º To stop the vehicle
Once the route has been finished, the electric system must be stopped. First, the
display must be off by pushing the power button . Once the screen is in White, the
battery must be disconnected with the contact key.
The battery charge level can also be verified direc
t
ly by pressing the
button placed in the superior face of the battery.
ASSISTING WAYS:
The E-48 is provided with a LCD display on the handlebar where all the information is
recorded and serves also as a control panel to select the way more required to one
necessities.
With the display on position ON, the light display can be changed directly through the
UP and DOWN arrows.
There are 6 proportional assisting levels to the pedalling and 1 manual assisting way
(auto).
The proportional assisting levels works approximately as follow:
level "1" : 35%-50%
level "2" : 50%-60%
level "3" : 60%-70%
level "4" : 70%-80%
level "5" : 75%-90%
leve "6" : 85%-100%
(Engine power ratio)
The AUTO assisting way works with the power vary manual.
See section:
LCD
DISPLAY FUNCTIONS
Important
:
The bra
kes
, for better safety, can stop the engine working
if
they are pressed
Important
:
Check the section
: VERIFICATIONS AND SAFETY before using
the vehicle

11
5.2 LCD DISPLAY FUNCTIONS
Functions:
•Actual speed
•Total distance
•Partial distance
•Time
•Power level
•Battery level
•Assisting instructions
•Break-down
•Screen light
•Wheel size selector
Figure 3
1. The button (1) is the one to get on or to get out
Press the button to show the km, actual speed, assisting way, battery level and
the power level on the screen.
Press the button again to get the system off.
2. The assisting way can be varied by the arrows. from the way
to the first proportional one , to the second, etc. and vice versa.
3. The button (2) has three functions.
1. The display light works pushing the button while riding. The light goes off
automatically at 5 seconds. When the light icon is in position intermittent,
the light intensity can be varied by the UP and DOWN arrows in 5 levels.
2. If the button (2) is pressed two times the icon is let in
intermittent position and the partial distance is shown. To get the indicator
partial to Zero, press the DOWN arrow when it is shown in this indicator.
3. To select the wheel size the button must be pressed, continuously
during 10 seconds. Then, the icon is let in intermittent position in the
superior left side. Now, the size can be varied with the arrows. Once, it
has been selected, press again the button to confirm.
4. The icon means that there is something wrong in the electric system. The
intermittent code number is to inform where the problem proceeds. Remember
this number for any technical asking. Some problems can be solved by only
starting again the system or stopping and initiating the display and battery
simultaneously.
5.

12
In case to initiate again the system, wait some seconds to get it cold
Code “02” indicates that the controller has got off by a strong intensity. If this
code persists once the system has been initiated again, some part of the internal
system or the controller may have been damaged.
Code “03” Indicates that some of the three cables have not worked for nearly 2
seconds. If the problem persists once the system has been initiated , this means
some of the 3 connections are broken or loose.
Code “04” Indicates the voltage to be under of the limits .
Code “05” Indicates the problem coming from the brakes.
This state must disappear if the brake can be unblocked. Check the brake
levers and the cable as well.
Code“06” Indicates that there is something wrong on the pedalling sensor.
Code “07” Indicates a problem in the accelerator. It can be solved by initiating
the system or the speed.
Code “09” Indicates that a protection has been activated by a strong tension (
>53.5 V). The system is to stop.
Code “08” Indicates an internal controller item has been damaged.
Figura 4
The LCD display shows the
information distributor in the
following areas:
1- Engine stem
2- Actual speed
3- Battery level
4- The assisting way
5- Distance and travelling time
6- Light icons, break-down
7- Km icons and special functions
6. VERIFICATIONS
Verification before using the vehicle for the first time:
The E-48 has been verified at the factory before being delivered , however, before using
the vehicle for the first time, the following below parts should be checked:

13
• Correct position of the front and rear brakes: levers, V-brake, disc and cables.
• Correct tight of the wheels nuts.
• Correct pressure of the tires.
• Correct wheels alignment.
• Correct pedals fitting ( they shall be fitted strongly ).
• Correct tight of the quick-release clamps
The E-48 does not need any initial lubrication and it is prepared to travel the first km
without any type of maintenance. Afterwards , the standard one
The E-48 and its components must be checked before using the vehicle. Remember
that in the case that a problem is detected that you can not fix, please contact with the
authorized distributor
Make
as normal
the following checking
before riding the E
-
48
.
Verifications before riding the E-48:
• WHEELS
•HANDLEBAR AND STEM
•HEADSET AND FORK
•SEAT & SEAT POST
•BRAKES
•TRANSMITION
•BATTERY AND CHARGER
It is very important the brakes to work properly for one security and for
the others.
The brakes system must be verified before any route and the
E-48 should not be used if a problem is detected.
See section:
MEC
HANICS AND MAINTENACE
to solve the above
mentioned problems.
7. ADVISES
• Ride with care.
See section. SAFETY.
•Use the right gear
•Not to exceed of the limit weight. No passenger is allowed on the E-48.
•Plan your route according to the autonomy of the vehicle.
•A programmer by the charger plug is to help in the charger task.
•Protect the E-48 against thieves. Use a lock for more security.
•Do not get on the E-48 with the rest displayed, this item is designed only to
support the E-48 weight.
•Keep the E-48 clean for a better performance of the vehicle.

14
•Do not watch the E-48 with any pressure water system. Avoid water entering
into the bearings.
Efficient pedalling :
Get used to the right gear:
The short gears (1,2,3) are for starting and on the slopes/ pending.
The long gears (4,5,6,7) are for a quick ride and on the even routes.
8. SAFETY
Important norms
•Respect the traffic lights
•Respect the traffic signs
•It is recommended to use helmet for one safety
•Keep on the one’s right side and pay special attention when motorized vehicles
are present.
Safety elements (Protection, visibility, circulation)
Use a bicycle homologated helmet, right clothing with reflecting parts and not too much
loose which could get hooked up to any part of the vehicle. Gloves and sport shoes
also increase comfort and safety
Local drive rules
Be aware of all the local drive bicycle rules.
Most countries have specific laws pertaining to bicycles and cycling. Contact local
cycling clubs or the relevant Department of Transportation (or equivalent) for specific
information regarding these laws. ( Check the Town House web site)
Attention while riding
One must be aware of any incident which may happen while riding such as, how avoid
the potholes, the grids of the drains or edges which could help the wheels to skid. To
avoid any obstacle, it should be in a transversal way with an angle of 90º, and if one it
is not sure , get off of the vehicle.
Riding with poor luminosity
Be prudent on riding with poor light. The E-48 is provided with a light and reflector set.
Keep them on. Use the front and rear light at any time required. It is convenient to bring
striking and reflecting clothing, specially during the night .
Take care with wet conditions
The rain reduce the visibility and the grip as well. Ride with the low gears on the turns,
on the zebra pass or sleepy areas in rain and wet conditions. Avoid riding on rainy days,
days with heavy snowfall or through flooded areas..
Take care overtaking cars
If a car comes on your way without indicating it or if someone opens the parked car door
while you are overtaking the car, a serious problem could happen. Use the bell to make
you noticed at any time required..

15
Be cautious before a long route
Remember to bring a kit for repairing a flat tyre, such as a tube, the required tools and
a pump.
It is advisable to bring a tool for everything and a first-aid kit, in case of a long route.
Use the brakes with precaution
Keep a moderate distance with the other vehicles and other objects. Calculate the brake
capacity with the distance.
To stop the vehicle grip both levers at the same time.
The excessive use of the front wheel can provoke a skid on the front wheel, even the
rear wheel may lost contact with the ground, making lost the control of the user and
consequently a fall.
Note
:
As with any other activity, the use of this vehicle implies certain
risks. To get the E-48, such risk must be assumed by the user. In no
case the dealer or manufacturer are to be liable.
Avoid making unsafe actions while using the E-48
Many cyclist accidents could have been avoided if the common sense had been
applied.
- The hands always on the handlebar: any small imperfection of the road can provoke a
vibration or a sudden turn on the front wheel.
- Not to ride with object hanging from the handlebar or from any part of the frame, they
could touch the spokes or provoke a sudden handlebar turn, causing the vehicle lost
control.
- Do not ride under the alcohol effects or under any medicament which can reduce the
capacity of riding. The E-48 requires a good coordination of movements and the user
shall be always with precaution of anything happening round him.
- Never carry any additional passenger. The E-48 is designed to be ridden by one sole
person. Resides, it is advisable not to increase the limit weight,.
- Never ride with earphones as they reduce the ability to hear other vehicles.
- Never hold oneself on another vehicle while riding.
Important
:
G
et the seat springs covered in case of fitting a kid
seat
in the
rear.
ATENT
I
O
N
:
As any mechanical device, the E
-
48 is to wear down with
different efforts. The different materials and components used may react
differently to this daily decline.
If the lasting life of a given component
has been exceeded, it may suddenly break, injuring the user. The cracks,
scratches or discoloration in the areas subject to intense use indicate
that the component has exceeded its useful life and must therefore be
replaced.
Caution
:
I
n case of changing the cranks or tires, the distance between
t
he
wheel and the toes ( feet ) on turning may be reduced, thus putting at risk
the cyclist’s safety.

16
Attention
:
In case of changing the cranks, pedals, tires, fork etc.,
the
angle inclination can be reduced, thus putting at risk the cyclist’s safety
9. MECHANICS AND MAINTENANCE
Many of the specific adjustments and general maintenance detailed in this manual can
be done with Standard tools, which one may have at home. Nevertheless, we
recommend to be carried out by a Monty official dealer who, in addition to the necessary
expertise, will also have the tools needed for each item.
9.1 SEAT AND SEAT POST
The height and position of the seat must be according to the right position of the user. A
wrong position can provoke physical problems to the user. The seat must well be fitted
to the seat post and the seat post to the frame well aligned.
9.1.1 SEAT POSITION ADJUSTMENT
•The seat can be fitted in three parameters.
1. Seat height
2. Seat Inclination
3. Seat rear position
1. The seat’s height is the most important to be comfortable and be able to pedal
safely and efficiently. This adjustment is based on the length of the cyclists leg.
There are numerous specialized methods to choose the height depending on the length
from the groin area to the base of the foot. It is recommend a simple way as follow:
With the seat in a horizontal
position, sit on the bike, ideally, it
could be someone else holding the
bike steady or use a nearby wall for
support.
Figure 5
With one of your heels, press down
on either pedal, stretching the leg
as much as possible. This is the
correct height. (Figure 5)
When riding, the leg should not be
stretched out to the maximum when
the pedal is in the lowest position.

17
The seat adjustment is very personal
.
To regulate the height, the seat post
quick release must be open, later, the
right height must be selected and
close the quick release properly. The
seat post height must be proportional
to the rider’s height
See section: “ How to adjust the quick
release"

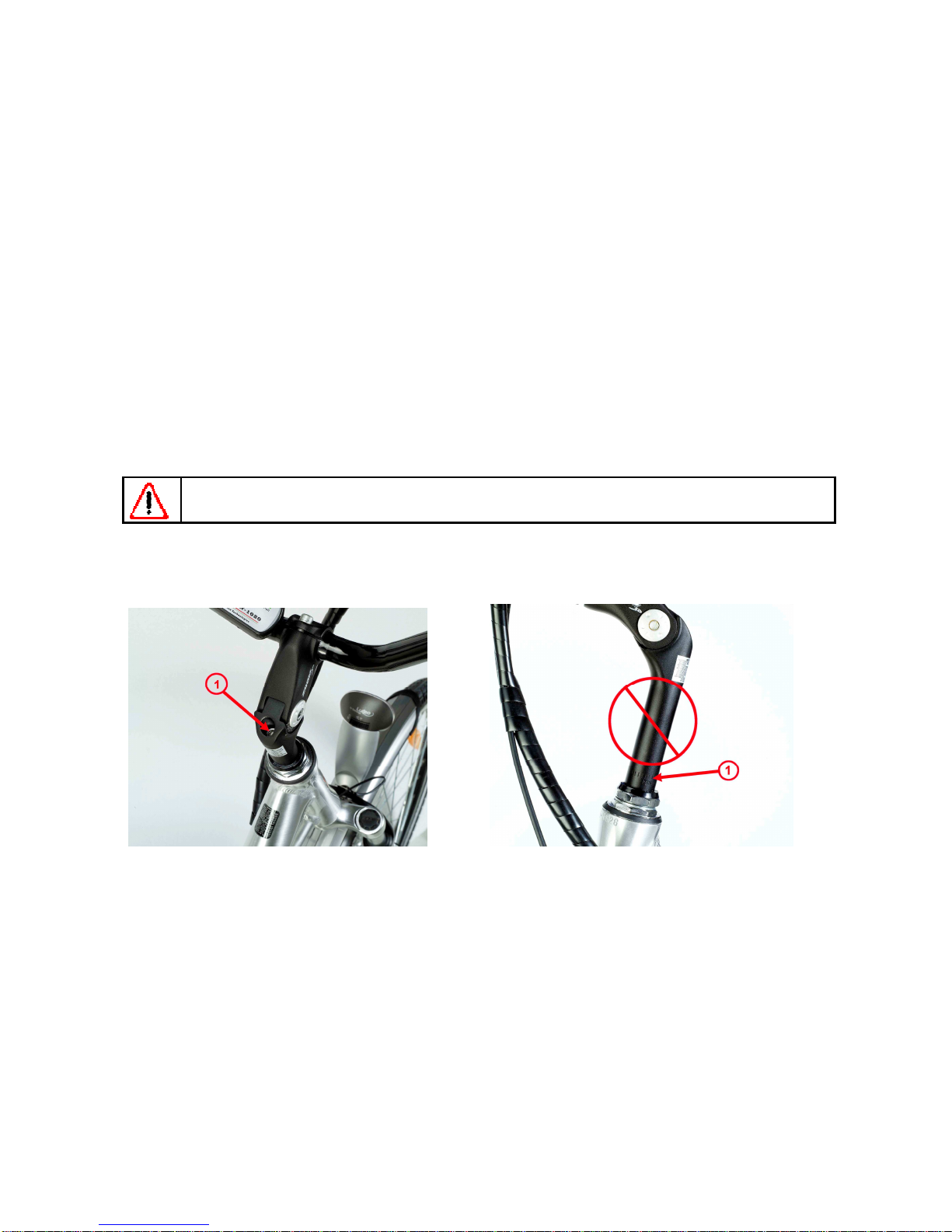

Never extend the seat post
beyond the indicated line on the
tube, as shown in point 1. See
(Figure 6).
Figura 6
2. Seat inclination. This adjustment is the most delicate and personal towards the user.
Generally, it is horizontal or with the tip slanted slightly downwards. Try different
positions until finding the most comfortable.
This adjustment is made by loosing the screw (1) (allen 6 mm) underneath the seat,
set the required inclination thigh the screw. The recommended torque value is (20-25
Newton). See (Figure 7).
3. Seat rear position: This seat adjustment implies moving the seat forwards or
backwards with respect to the seat post. Generally, the seat is centred to the stem
Placing the seat further back generally implies having to bend forward more to reach the
handlebar and excessive strain on the quadriceps muscle group.
To adjust this position, open the same bolt (1) (allen 6 mm) used to get the right
inclination (Figure7).
It is reco
mm
e
nded to set at
the same time: The
inclination and the rear
position.
Figure

18
9.1.2 HOW TO ADJUST THE QUICK RELEASE
Quick releases clamp systems do not need tools, they are frequently used for seat
stems, axles and folding systems.
The quick releases consists of two principal parts which must be adjusted
a) The blocking lever which applies the force and.
b) The nut to adjust the lever’s strength.
For the proper and safe clamp adjustment, follow the following steps:
1. Turn the lever to the open position ( “open” is engraved on the lever ). See Figure 8
Figure 8 Figure 9
2. Choose the desired height while respecting the maximum indicated (Figure 6).
3. Turn the lever to close ( “Close is engraved on the lever”). (Figure 8)
4. If the lever is easily set to the “Close” position (less than 50 N (Newton ), this means
that it is not tight enough, in this case, open again the lever to the “OPEN” (Figure 9)
and tight the quick release again clockwise until noticing is well tight
5. Turn the lever to the “close” position. Once fastened in the right position (“Close” is
engraved on the lever) Figure 8
6. If the force required to turn the lever were excessive (more than 200 N (Newton)
repeat the previous step, turning the bold counter-clockwise. Do this as many times as
necessary until safe
The quick release must be positioned in a way that it does not interfere
with other components and easy to be handled
In case of doubts or if you can not set the adjustment, take E-48 to an authorized dealer or
contact us
9.2 HANDLEBAR AND STEM
The handlebar and stem must be fitted correctly at the suitable position of the user and
well tightened. .

19
Check once a month to ensure that the stem is aligned with the front wheel. Also check
the joint between the stem and handlebar, trying to move the latter with respect to the
front wheel. Check as well no cables to be stretched or pinched when moving the
handlebar. Verify all the screws and bolts to be tight.
There are two kinds of stems
•CONVENTIONAL STEM is the one to be inserted into the fork tube and the height
can be regulated. The headset is provided with threads.
•A-HEAD stem is the one to be fitted, externally, to the fork tube and not possibility
to regulate the height. The headset is provided without threads
9.2.1 CONVENTIONAL STEM
Adjustment of the handlebar height:
A. Remove the rubber cap and loose the screw. Figure 1 in (Figure 10) counter-
clockwise (Allen 6mm).
B. Move the handlebar sideways to unblock it and adjust to the designed height
Caution
:
Never raise the stem above the line on the stem as indicated in
point (1). See (Figure 11).
Figure 10 Figure 11
C. Tighten the screw (1) clockwise until completely set. The recommended torque
value for the stem: 20-30Nm. ( Newton )
Adjustment of the alignment:
A. To set the handlebar perpendicular to the front wheel, use the same system like
the height adjustment one.
Move the handlebar sideways to unblock the handlebar and fit it to the required
height
Adjustment of the handlebar inclination:
A. Loosen the screws (3) counter-clockwise as seen in (Figure 12). (Allen 6 mm.)

20
B. Chose the required inclination suitable to ones necessities. And verify the
handlebar to be centred to the stem.
C. Tighten the screws (3) clockwise . The recommended torque value is: 15Nm. (
Newton )
Figure 12
Adjustment of the stem inclination:
A. Loosen the stem screw (2) counter-clockwise, indicated in the (Figure 12).
(allen 6 mm.)
B. Chose the inclination required. Take note of the indicated position since the
handlebar inclination can be effected.
C. Tighten the screw (2) clockwise.It is recommended torque value :17-20Nm. (
Newton )
Check the handlebar and stem for wear or stress signs. If you find any scratches, dents,
warping, discoloration or cracks, remove the affected piece immediately.
If you doubt whether or not the handlebar is safe to use, do not use the E-48. Take it to an
authorized dealer
9.2.2 A-HEAD STEM
Adjustment of the handlebar height:
This kind of stem can not be regulated.
Adjustment of the handlebar inclination:
A. Loose the screws alternately counter clockwise (A) the ones which fix the
handlebar to the stem (Figure 13). (Allen 6 mm.)
B. Choose the required inclination suitable to ones necessities. Verify the
handlebar to be centred to the stem.
C. Tight the screws (A) clockwise. The recommended torque value of the
handlebar : 15Nm.
