moon Meteor-X Auto Pro Instruction Manual

Power button
Double click
Double click
Mode1
Mode3
Mode2
DAY FLASH
(DOUBLE BLAST)
FL 1
FL 2
SOS
*The light will shut off after 3 seconds
when you have selected the mode in
automatic standby status.
Normal Working Status
Steady blue
Automatic Working Status
Steady Green
Normal Working Status
Steady blue
Automatic Standby Status
Flashing Green
Well-lit environment situation
Dark environment situation
1. Turn on the light.
2. Press and hold the power button about 3 seconds to toggle
between automatic status and normal status.
3. Select the mode you want to use by pressing the power button.
HOW TO MOUNT THE HEADLIGHT
HOW TO MOUNT THE HEADLIGHT TO HELMET
INSTALL
click
1. Install the bracket onto handlebar by wrapping rubber strap
around post/bar and stretching strap around hook to secure.
2. Slide headlight forward onto bracket until it clicks into place.
3. Press down release lever to remove.
4. The bracket fits all round bars and AERO style bars.
WRAPPING
RELEASE
PRESS
INSTALL
click
RELEASE PRESS
1. Remove the belt from one side of the helmet mount.
2. Place the helmet mount into the suitable location on helmet.
3. Wrap belt around helmet and attach the end of the belt to itself tightly.
4. Insert the headlight into the helmet mount until it clicks into place.
5. Press down release lever to remove.
LIGHT SENSITIVE AUTO ON/OFF OPERATION
To adjust the vertical beam angle when mounted on the helmet,
loosen the screw knob and rotate the light up or down to your
preferred angle, then tighten the screw knob to secure the light in
place.
BELT
SCREW
KNOB
RELEASE
LEVER
PRESS
1. Connect the remote switch by using the usb port.
2. Put one end of the belt go through the cycle handlebar.
3. Align to the controller button and pass through.
4. Please pull the Velcro ends tightly.
REMOTE SWITCH INSTALLATION
2. Press and hold the power button about 1 second to switch off.
(With mode memory, the light will resume previous mode upon next
usage.)
!
USER GUIDELINE
Thank you for choosing MOON headlight!
*For using this product safely and conveniently and keeping it
well-preserved, please read this manual carefully before using.
Please save this manual for future reference.
*Due to the improvement of the product, the product you bought
may not be exactly in accordance with the introduction of this
manual. We apologize for that.
LIGHT OPERATION
1. Double click the power button to toggle between the steady and
flashing modes.(With mode memory, the light will resume previous
mode upon next usage.)
Never use the SOS sign unless there is a real emergency or danger
occuring. The SOS signal is visible for several miles. The battery
can support up to several hours of SOS signal usage.
!Remember switch off the light when you do not use it.
®
*1 pc CREE XM-L2 (U2) high brightness LED
*CNC Aluminium heat sink light cap
*Light sensitive auto ON/OFF
*Mode memory function
*Quick release rechargeable lithium ion battery (3.7V 1400 mAh)
*7 modes: Mode1 / Mode2 / Mode3 / FL1 / FL2 /
DAY FLASH (DOUBLE BLAST) / SOS
*Quick release universal bracket RB-25
(fits all round bars and AERO style bars)
*Low battery, charging and fully charged indicator
*Automatic fully charged cut-off system
*High precision optical lens
*Side visibility
*Water resistant (IPX 4)
SPECIFICATION
CONTENTS INCLUDED
Contents:

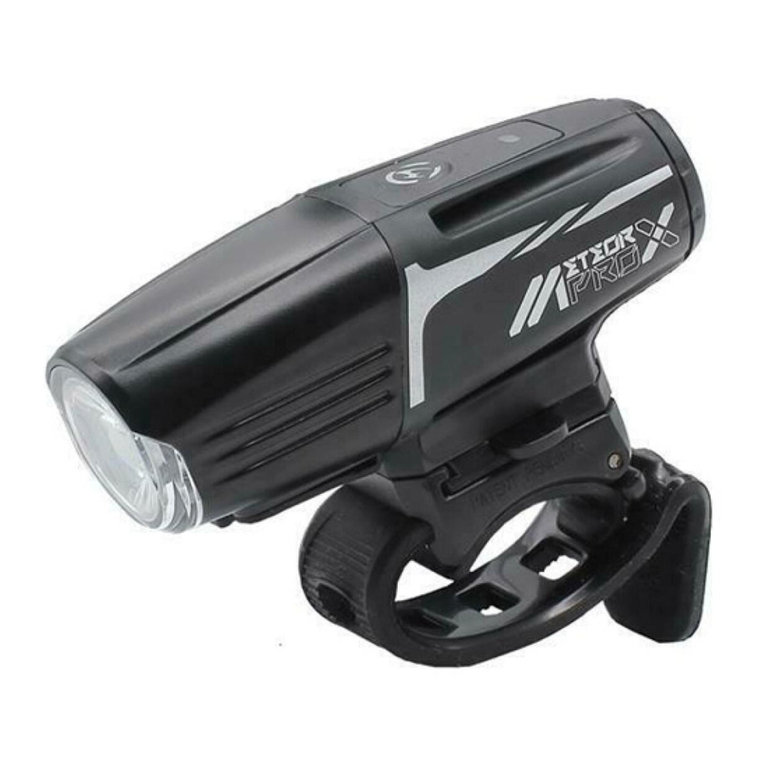

*METEOR-X AUTO PRO
*RB-25 (Universal handlebar bracket)
*USB-WP (Water resistant USB cable)
*LX-BAT-1400 (Lithium ion battery 1400 mAh)
Optional accessories:
*XP-USB (Wall charger)
*RB-26 (Handlebar bracket)
*RB-16 (Helmet bracket)
*USB-RM-350 (USB remote control 350 mmL)
Light sensor
Power button / Indicators
Automatic status
* Standby - flashing green
* Working - steady green
Normal status
* Working - steady blue
Hold for 3 seconds to toggle between
automatic status and normal status.
Hold for 3 seconds to toggle between
automatic status and normal status.
AUTO
OFF
(30 seconds delay)
AUTO
ON
4. Press the power button about 1 second to switch off.
Low battery status
* Steady red

* The time of recharging depends on which method (wall charger or computer) is being used.
Charging indicator
* Flashing Blue - charging
* Steady Blue - charged
!
*Do not charge over 5V the battery will result in damage.
*Light sensor mode must be off before charging.
*Keep away from flammable objects while charging as this may lead
to fire or battery explosion.
*Do not smoke while charging as the battery may release hydrogen
gas. Always charge your battery in a well-ventilated space.
*Never connect or disconnect the plug or cord with wet hands whilst
charging. Do not connect or disconnect the plug or cord when they
are wet, it may lead to electric shock.
HOW TO CLEAN AND CARE THE LIGHT
CAUTION: When riding at night, please follow the guidelines below:
*Carrying a flash light is recommended.
*Use caution when handing, the light may get hot.
*Unplug the battery and headlight if not in use.
*Unplug connector by the plug, never by the cable.
*Do not dismantle the headlight and battery case.
*Provide sufficient airflow to the headlight for cooling during use.
*Do not control any part of the system under water.
*Do not look directly at light.
*Do not leave the light on and unattended.
*Keep headlight and battery away from fire and combustible materials.
*Do not store head unit when hot or straightway after use.
*Unplug the light, charger and cable once the battery is fully charged.
*This light is for bicycle use only.
!
MOON warrants to the original purchaser of this product that the
product is free from defects in material and workmanship for a
period of one year. This warranty does not apply to damage due to
heat, physical damage resulting from abuse, neglect, improper
repair, improper fit, or alterations of the fixture. This warranty is in
lieu of all other agreements and warranties, general or specific,
express or implied and no representative or person is authorized to
assume liability on behalf of MOON in connection with the sale and
use of this product.
MOON reserves the right to request the return of any product
submitted for warranty consideration. All customers should contact
the local dealer or regional distributor for warranty service.
To make a claim, first call local dealer or regional distributor. Some
issues may be resolved upon the initial call. If return of the product
is necessary, please refer to the following instructions:
*We recommend that items be sent by a traceable method (such as
FedEx or UPS). MOON is not responsible for lost or misdirected
packages.
*Please include your full contact information (name, address, phone
number, and email [if applicable]), and a description of the issue.
*Address items to: local dealer or regional distributor
What is not covered: MOON Lights are covered by a ONE YEAR
LIMITED WARRANTY from the date of purchase. This covers the
lights and cables only. It does not cover the battery or battery
internals.
Batteries are covered by 120 days warranty.
For more information please contact us at [email protected].
http://www.moon-sport.com
*The specifications and design are subject to change without notice.
1. Problem: The light is not on
Solution: Check if the battery still has power
Check if the power button is pressed hard
Check if the battery is installed correctly
Check if the USB remote control is properly plugin
2. Problem: The light turns off over rough terrain
Solution: Check if the battery is fully inserted.
BEAM ADJUSTMENT
To adjust the horizontal beam, spin the headlight left to right for your
best side to side beam angle. To adjust the vertical beam angle,
loosen the mounting and rotate the light up and down to your best
vertical beam angle, then tighten the mounting.
The beam is widely dispersed, besides its high brightness. To
prevent from blinding the oncoming vehicles on the public roads,
you’d better adjust the angle downward.
!
1. Find the charging place under the head part of the light.
2. Lift the rubber cover and you’ll see the charging port.
3. If using USB cable, connect it to your computer USB port.
4. If using wall charger, connect it to the wall outlet.( 100 to 240
volts)
5. Charge time may depend on computer or wall charger.
6. When the battery is fully charged, please unplug the USB cable
or wall charger. Then replace the rubber cover.
7. It is normal that the battery may get high temperatures during
charging (up to 104°F/40°C), as the chemical in battery is in
reaction. If the battery is not drained completely before charging, it
may also get warm.
8. Several factors can influence the battery’s durability: type of cell
strain, the maintenance routine, the temperature and number of
charges etc.
Normally speaking, the higher the battery capacity, the longer the
burn time.
9. The battery capacity may become ineffective about 80% of its
value after 300-500 charge/discharge cycles. The battery may have
3 years life span under good care.
10. The battery voltage and capacity decrease apparently at low
temperatures, especially near or below ice point. The capacity
decreases 5%-10% at freezing (burn time decreases 50%). At
-20°C,the capacity decreases 30% (burn time decreases 70%). The
battery performance will return normal when the temperate gets up
to 70°F/20°C.
The battery will lose around 1% of its capacity per day when you
store the battery at normal room temperature. Battery temperate
should never exceed 104°F/40°C, it will lose about 5% of its
capacity per day.
11. If you do not use the battery for a long time, be sure to fully
recharge every 3 months. Please store the battery in a cool and
dry place.
SIMPLE PROBLEMS ANALYSIS AND SOLUTION
WA-MOON-METEOR-X-PRO-1612
RUN TIME
CHARGE BATTERY OPERATION
*Make sure to clean the dust and dirt on the light with soft damp
cloth after every ride.
*Water resistant is for rain water only. Do not submerge the battery
or the whole light into water when cleaning.
The over heat protection device can ensure the bicycle light in a
good running temperature condition, so that to protect the LEDs
without burning case.
When the bicycle light is running and without adequate air flow, this
protection device will automatically start to dim the light to standard
brightness mode, it can reduce the heat of the light and ensure the
LEDs won't get damage due to over heat.
Once the air flow condition of the light is improved, the running
temperature of the light will go down, then the over heat protection
device will cut, the brightness of the bicycle light will get back to the
beginning of the selected mode.
OVER HEAT PROTECTION
HOW TO INSTALL AND RELEASE THE BATTERY
INSTALL
RELEASE
ALIGN
Lock
Open
Light body point
ALIGN
Battery installation
1. Align the “point O” to the light body point. Install the battery cover into
the light body.
2. Turn right to close the battery cover until the “point L” align the light
body point.
Battery release
1. Turn left to open the battery and the battery will pop out slightly.
2. Pull the battery out from the light body.
*Attention: To maintain smooth battery installation / release, use
bicycle friendly grease to lubricate the battery cover opening and battery
o-ring.
USB port
Double click
Mode Lumens Weight
85 g 2.5 hrs
Run Time Recharge
Time
FL1
SOS
FL2
Mode1
Mode2
Mode2
CAUTION
Emax (LUX) Distance (M)
10M
3470
830
36
0.3 M
0.6 M
1 M
2 M
18 M
3 M
450
LUMENS
METEOR-X AUTO PRO
38 lux
Side light
Attention: If you do not use the battery for a long time, be sure to
fully recharge every 3 months. Please store the battery in a cool and
dry place. Recharge battery after each long usage.
Rubber cover
Light sensor
Power button / Indicators
Hold for 3 seconds to toggle between automatic status and normal status.
84°
TOTAL ANGLE
17°
SPOT ANGLE
DAY FLASH
(DOUBLE BLAST)
100
100
300
450
150
250
700
20:00
24:00
18:00
1:30
5:00
3:00
45:00
