MOOVYOO MIRACLE V396 User manual

MOOVYOO
TAPIS ROULANT
MIRACLE V396
Read all instructions carefully before assembly
and using this product. Retain this owner’s
manual for future reference:
!

1
1. Plug the power cord of the treadmill directly into a dedicated grounded circuit.
This product must be grounded well. If it has breakdown, grounding provides a path of least resistance for
electric current to reduce the risk of electric shock.
2. Position the treadmill on a clear, level enough surface with a 2m*1m area. Do not place the treadmill on
thick carpet as it may interfere with proper ventilation. Also, do not place the treadmill near water or
outdoors.
3. Position treadmill so that the wall plug is visible and accessible.
4. NEVER start the treadmill while you are standing on the walking belt. After turning the power on and
adjusting the speed control, there may be a pause before the walking belt begins to move, ALWAYS stand
on the foot rails on the sides of the frame until the belt is moving.
5. Wear appropriate clothing when exercising on the treadmill. Do not wear long, loose fitting clothing that
could become caught in the treadmill.Always wear running or aerobic shoes with rubber soles.
6. Always unplug the power cord before removing the treadmill motor cover.
7. Keep small children away from the treadmill during operation.
8. Always hold the handrails when initially walking or running on the treadmill, until you are comfortable with
the use of the treadmill.
IMPORTANT SAFETY PRECAUTIONS

2
9. Always attach the safety pull pin rope to your clothing when using the treadmill. If the treadmill should
suddenly increase in speed due to an electronics failure or the speed being inadvertently increased, the
treadmill will come to a sudden stop when the pull pin is disengaged from the console.
10. When the treadmill is not being used, the power cord should be unplugged and the safety pull pin
should be removed.
11. Before starting any exercise program, consult with your physician or health professional. He or she can
help to establish the exercise frequency, intensity (target heart zone) and time appropriate to your particular
age and physical condition. If you have any pain or tightness in your chest, an irregular heartbeat,
shortness of breath, feel faint or have any discomfort while you exercise, STOP IMMEDIATELY! Consult
your physician before continuing.
12. If you observe any damage or wear on the mains plug or on any section of the mains lead then please
have these replaced immediately by a qualified electrician – do not attempt to change or repair these
yourself.
13. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly
qualified persons in order to avoid a hazard.
14. Put your feet on the side rail before using the treadmill, and always attach the safety pull pin
rope to your clothing. Hold the handle bar before the running belt moving well ( feel the running
speed by your single foot before using it). To avoid loss balance, please slow down the speed to the
lowest or take off the safety. And hold the handle bar to jump to the side rail when emergency or the
safety key is not attached.
IMPORTANT SAFETY PRECAUTIONS

3
Caution: Read the assembly instruction carefully, and follow the instruction while
assembling.
When you open the carton, you will find the below spare parts
Spare parts list:
NO. DESCRIPTION SPEC QTY NO DESCRIPTION SPEC QTY
1 Main frame 1
2 computer 1
3 Left upright 1 4 Right upright 1
18 Upright cover L 1 19 Upright cover R 1
50 Left bottom cover 1
51
Right bottom cover 1
68 Socket head wrench S=13、14、15 1
71
6# Allen wrench 6mm 1
81 screw ST4.2*13 8
91
screw ST4.2*12 6
93 bolt M10*25 8
94
Lock washer 10 8
97 Lock washer 8 4
98
bolt M8*52 4
121 5# Allen wrench 5mm 1
Assembly tools
Socket head/Allen wrench: 5mm 1pcs 6mm 1pcs
Screw driver :S=13、
、、
、14、
、、
、15 1pcs
ASSEMBLY INSTRUCTIONS

4
Notice: Do not turn power on before assembly is done.

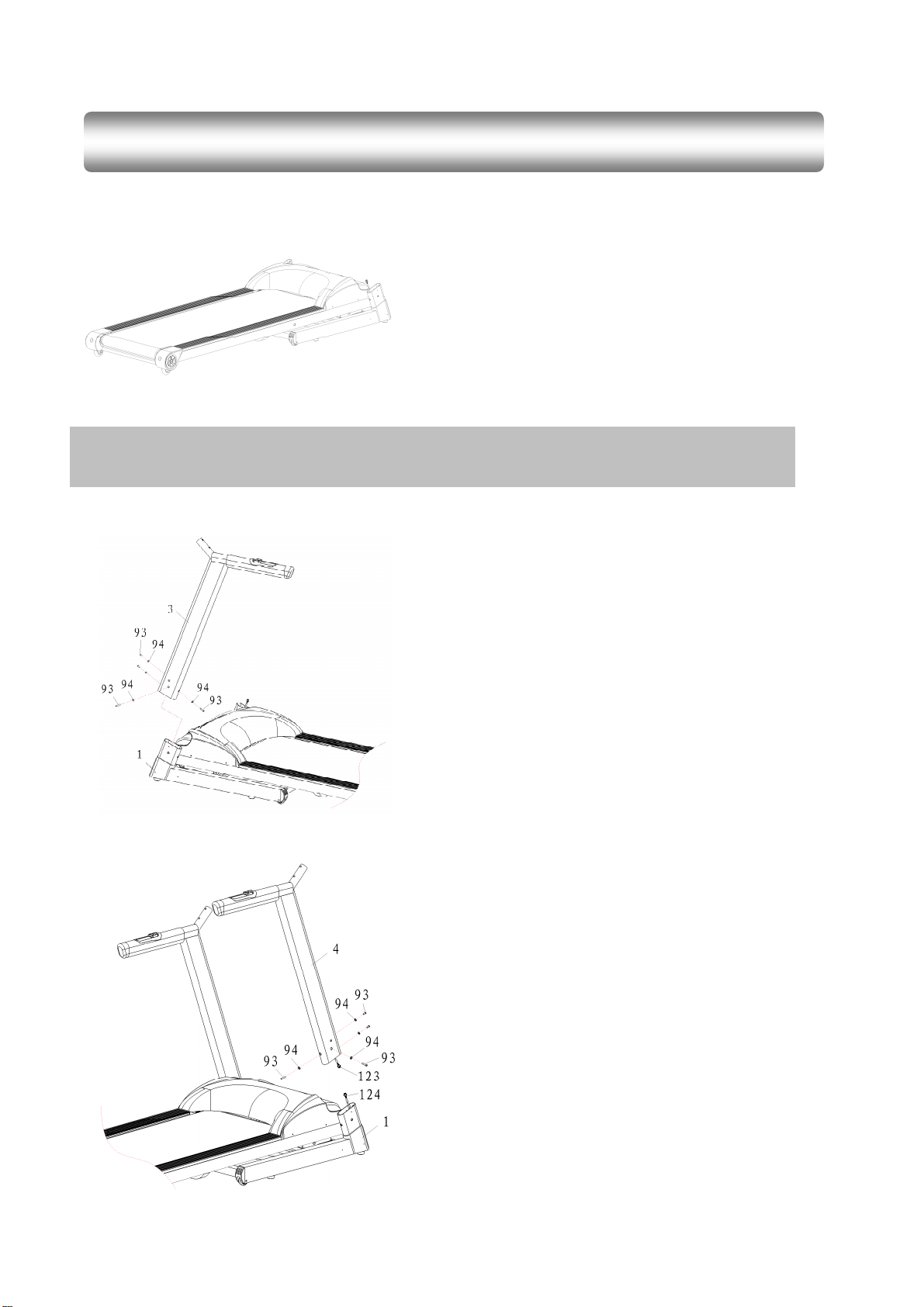

Step 1：
Step 2:
Step 3:
Open the carton，get out the above
spare parts，put the MAIN FRAME on
the ground.
Insert the left upright (3) into the
main frame and use 6# Allen
wrench (71), Bolt M1 *25(93)
and lock washer(94) to lock left
upright onto the main frame
Connect the middle wire(123) in
the upright(4) to the lower
wire(124) in the main frame(1).
Then insert the right upright (4)
into the main frame and use 6#
Allen wrench (71), Bolt
M1 *25(93) and lock washer(94)
to lock right upright onto the main
frame
Attention: Before assemble the back cover, make sure all the above procedures finished strictly and all the
bolts locked tightly
ASSEMBLY STEPS

5
Step 4：
Step 5：
Step 6：
Step 7:
Connect the computer up wire
(122) to the middle wire (123a) in
the right upright(4). Then use the
5# Allen wrench (121), bolt M8*52
（98）and lock washer (97) to lock
the computer onto the upright
(3)(4)
Use screw driver and screw
ST4.2*12(91) to lock the right back
cover(51) onto the main frame (1)
Use screw driver and screw
ST4.2*12(91) to lock the left back
cover(5 ) onto the main frame (1)
Use screw driver and screw
ST4.2*13(81) to lock the upright
(18、19) onto the computer (2)
Caution: make sure all the steps be finished strictly and then you can turn
Caution: make sure all the steps be finished strictly and then you can turn Caution: make sure all the steps be finished strictly and then you can turn
Caution: make sure all the steps be finished strictly and then you can turn
on the power. Read the operation guide below carefully before using
on the power. Read the operation guide below carefully before using on the power. Read the operation guide below carefully before using
on the power. Read the operation guide below carefully before using

6
Pulling up:
Pulling down:
FOLDING INSTRUCTION
1、Hold the place A, and pull up the
main frame as the arrow showing
till you hear the sound from pedal
hook
2. Hold place A, and trample the
pedal hook (place B), then the main
frame will decline automatically

7
TECHNICAL PARAMETER
BUILT UP
SIZE(mm) 1990*920*1350 POWER AS ORDER REQUIRE
FOLDABLE
SIZE(mm) 960*920*1770 MAX OUTPUT POWER AS ORDER REQUIRE
RUNNING
BOARD(mm) 1520*510 INPUT CURRENT
AS ORDER REQUIRE
NET WEIGHT 116KG SPEED RANGE 1.0-20KM/h
INCLINE LEVELS 20 SECTIONS MAX USE’S
WEIGHT 125KG
ONE LCD
DISPLAY
WINDOW
SPEED TIME DISTANCE CALORIES PULSE INCLINE
GROUND GUIDE
This product must be grounded. If it should malfunction or breakdown, grounding provides
a path of least resistance for electric current to reduce the risk of electric shock. This
product is equipped with a cord having an equipment-grounding conductor and a
grounding plug. The plug must be plugged into an appropriate outlet that is properly
installed and grounded in accordance with all local codes and ordinances.
DANGER – Improper connection of the equipment-grounding conductor can result in
a risk of electric shock. Check with a qualified electrician or serviceman if you are in doubt
as to whether the product is properly grounded. Do not modify the plug provided with the
product – if it will not fit the outlet, have a proper outlet installed by a qualified electrician.

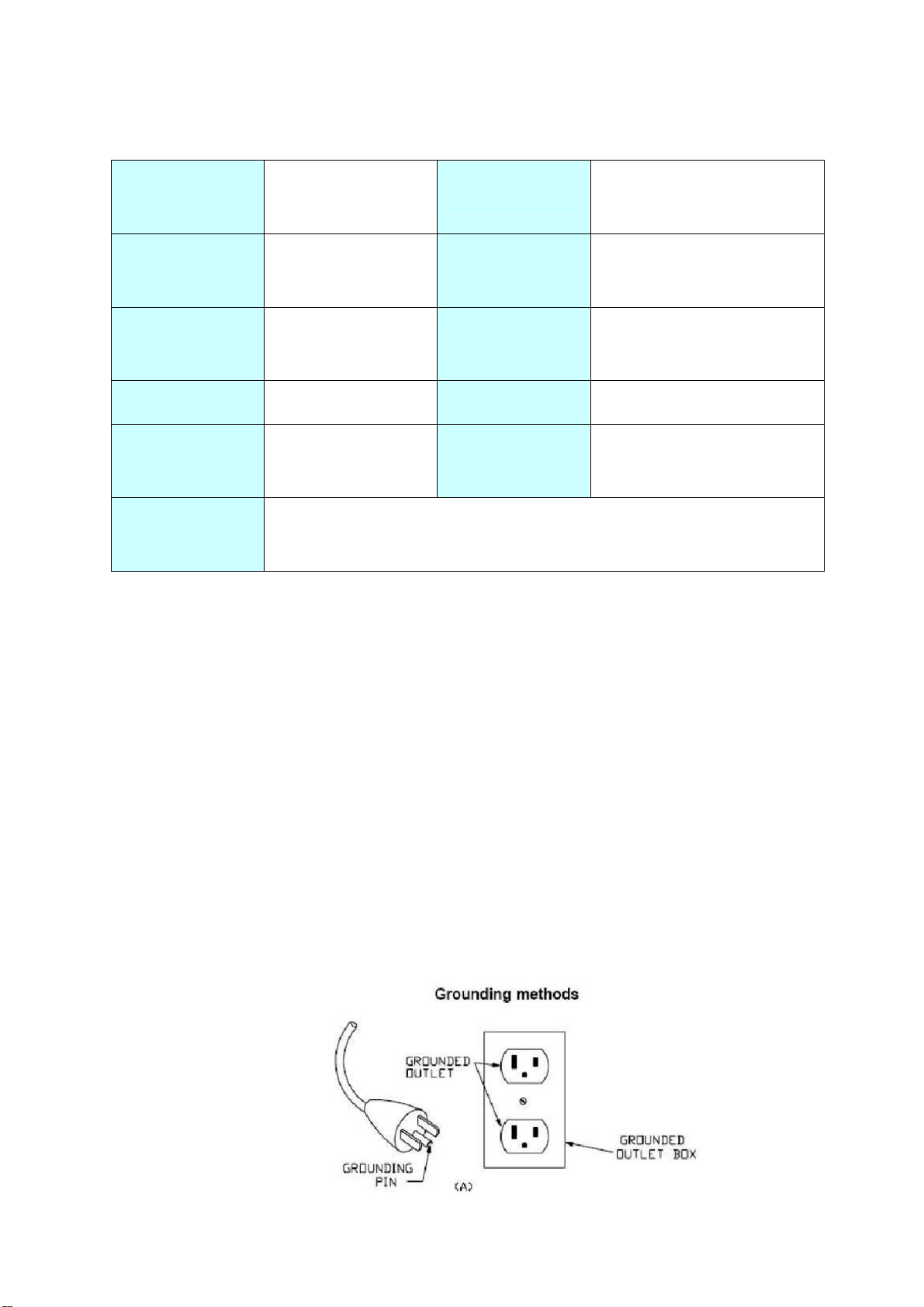

This product is for use on a nominal 220-volt circuit and has a grounding plug that
looks like the plug illustrated in sketch A in following figure. Make that the product is
connected to an outlet having the same configuration as the plug. No adapter should be
used with this product .

8
WINDOW DISPLAY:
1. This product is with touch-screen operation way, the operation interface is very convenient for the
user to do the function operation.
2. Turn on the power, attach the safety key onto the keypress board to enter the system into the
stand-by status.
3. The system is internally with prre-set Media Playing Function and externally with SD card, USB
connector and MP3 connectors.
4. In case of emergency, pull up the safety key and the the treadmill will stop immediately.
CAUTION
○When doing operation, please not touch the screen by sharp articles, such as pencil,
finger nail or press the screen too firmly. If so, it will break the treadmill or damage
the touch-screen.
OPERATION GUIDE

9
1, “SPEED” window: Speed range: 1.0-20KM/H;
2.“TIME”Window: Show running time. Turn data per 5 seconds, and relevant direction light will light .Display
the exercise time positive direction clock from 0：00-99：59，To 99：59 spill over from 0：00 to reset，count
down from the setting time to 0：00，When It to 0：00, then the actual exercise time from the positive
direction to start to count down.
3.“INCL” Window: Show incline .The default show is incline, the range: 1-20.
4.“PULSE” Window: Show pulse. When touching the handle pulse slice with both hands, it will show the
pulse data in the window, the range is 50-200 per hypo/min. (The data is just for reference, do not use as
the medical data)
5. “DIST” window: Show the running distance , count from 0 to 999, to 999 will spill over to clear 0; it will
count down from setting data to 0, then the machine will stop smoothly and show ‘End’, enter the beginning
state after 5 seconds.
6. “CAL” window: Display runner calories. When show calories, count from 0 to 999, to 999 will spill over to
clear 0; when calories count down, it will count down from setting data to 0, then the machine will stop
smoothly and show ‘End’, enter the beginning state after 5 seconds.
BUTTON FUNCTION:
1. Music Playing Button: Press this button to enter into the music playing window. The system
accepts audio file format as MP3、WMA、WAV、PLAC、APE, and ect.
2. Video Playing Button: Press this button to enter into the video playing window. The system accepts
video format as 480P，720P，1080, and also accepts video file format as RM、RMVB、AVI、WMV、MPEG、
3GP、DAT、MP4、DTA、M2TS and so on.
Attention:
(1). Some special file is not able to be played ( the audio format is non-standard, the video format is
non-standard or the size of the file is too big).
(2). When playing the high definition video, the response will be slower while touching the screen
key-press.
3. Photo Playing Button: Press this button to enter into the photo playing window. The system accepts
picture format as JPG、BMP、PNG and so on. (Attention: When playing the photos, the response speed will
be different according to the different resolution of the photos. The higher the resolution is, the slower the
display speed will be).

10
4. Program Manual Button: Press this button to enter into the pre-set program window. There are 15
pre-set programs P1-P15, 3 user’s manual programs U1-U3, 3 heart rate control programs HRC1-HRC3
and 3 count down mode MODE1-MODE3 (MODE1: Time count-down mode, MODE2: Distance
count-down mode, Calorie count- down mode MODE3).
5. Start Button: Press START button，the system will start to count down from 3 seconds and
the counting data of the second will be displayed on the computer. After counting-down is finished, the
treadmill will start by the speed of 1KM/H.
Running Status Display Window
6. “SPEED+”,“SPEED-” Speed Button: After starting the treadmill, pressing “SPEED” button can adjust the
speed and the adjustment range is 0.1km per time. When pressing “SPEED” button for more than 0.5
seconds, the speed will be continuously increased or decreased.
7. “INCLINE+”,“INCLINE-” Incline Button：After starting the treadmill, pressing “INCLINE” button can adjust
the level of incline and the adjustment range is 1 section per time. When pressing “INCLINE” button for
more than 0.5 seconds, the incline level will be continuously increased or decreased. This system is with
the “SPEED+”,“SPEED-”, “INCLINE+”, “INCLINE-”touch-screen key-press, and also with
“SPEED+”,“SPEED-”, “INCLINE+”,
“INCLINE-” key-press on the handle bars.)
8. Incline, Speed Quick Access Button: Press this button to enter into the Incline & Speed quick
access display window to choose the incline (1、3、5、7、9、11、13、15%) and speed (1、3、5、7、9、
11、13、15KM/H) as the below diagram:

11
9. STOP Button: While running the treadmill, press this button at any to stop the treadmill and
return all the data back to 0.
10. Go Back Button: Press this button to go back the previous display interface.
11. Display window switch button: This button has the following 2 functions:
a, Press this button till you hear the sound “Bi” to stop the treadmill immediately when using the treadmill.
b, Press this button till you hear the sound “Bi” and then keep pressing it for 3 seconds to close the
display window. With the display window closed, press this button till you hear the sound “BI” and then keep
pressing it for 3 seconds to open the display window again.
PROGRAM OPERATION INSTRUCTION:
Program Display Window
Press the Program Manual Button at the first display window to enter the program display window
shown as above picture. Then you can choose the pre-set program P1-P15, 3 user’s manual program
U1-U3, 3 heart rate control program HRC1-HRC3 and 3 count-down mode MODE1-MODE3 (MODE1:
Time count-down mode, MODE2: Distance count-down mode, MODE3: Calories count-down mode).

12
1. COUNT-DOWN PROGRAM OPERATION INSTRUCTION:
(1).”MODE1”: Press this button to enter the Time count-down mode, and the “TIME” window will display
15:00 and glitter. Press “+”’ “-“ to set the running time. The range is 5:00 --- 99:00.
(2).”MODE2” Press this button to enter the Distance count-down mode, and the “DISTANCE” window will
display “1.0” and glitter. Press “+”’ “-“ to set the distance. The range is 1.0 --- 99.9.
(3).”MODE3” Press this button to enter the calories count-down mode, and the “CAL” window will display
“20” and glitter. Press “+”’ “-“ to set the calories. The range is 20 --- 999.
(4).Choose one of the 3 count-down mode and then press the “START” button to start after 3 seconds.
Press ”INCLINE+”, ”INCLINE -”, ”SPEED+”, ”SPEED -” to adjust the incline and speed you want. Press
“STOP” button to stop the treadmill.
2. PROGRAM CHART:
Each program is to divide the setting exercise time into 16 equal sections, and each time section has both
the preset speed and incline level.
PROGRAM CHART
Each exercise time=the setting time/16TIME
PROGRAM 1
2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
SPEED 1 3 3 7 7 5 5 5 7 7 5 5 5 5 3 2
P1
INCLINE 0 2 6 6 8 8 6 6 4 4 4 6 6 2 2 0
SPEED 2 3 3 6 5 5 8 5 5 6 8 8 8 5 4 3
P2
INCLINE 0 3 9 9 9 2 2 8 8 4 1 1 4 4 4 0
SPEED 2 3 5 5 7 7 8 5 5 5 3 3 8 8 4 3
P3
INCLINE 0 2 3 4 5 5 7 7 4 4 4 4 6 3 2 0
SPEED 2 2 3 5 5 5 8 8 8 8 5 5 5 3 2 2
P4
INCLINE 0 3 6 6 6 9 9 9 9 9 9 6 6 6 2 0
SPEED 3 4 5 6 7 8 9 10 10 10 9 8 7 5 4 3
P5
INCLINE 0 2 4 4 8 8 6 6 6 6 8 7 6 5 1 0
SPEED 3 4 5 5 6 6 7 7 7 9 9 10 10 11 5 3
P6
INCLINE 0 8 8 8 8 8 7 7 7 7 7 5 5 3 3 0
SPEED 3 4 9 4 11 4 10 4 9 4 8 4 11 5 3 2
P7
INCLINE 0 1 4 4 4 6 6 6 8 8 8 10 10 10 6 0
SPEED 3 5 8 3 5 7 9 3 5 7 10 3 5 7 11 5
P8
INCLINE 0 3 8 8 3 3 7 7 3 3 6 6 3 3 5 0
SPEED 3 7 9 4 7 10 4 7 11 5 7 12 4 7 12 6
P9
INCLINE 0 6 6 3 7 7 3 8 8 3 9 9 3 3 7 0
SPEED 3 5 6 6 6 9 10 6 6 9 10 6 6 6 11 3
P10
INCLINE 0 7 7 7 5 5 5 8 8 8 8 8 8 4 4 0
SPEED 4 5 7 9 10 11 9 6 8 9 10 10 11 9 6 5
P11
INCLINE 0 6 6 6 3 3 3 7 7 4 4 4 4 6 6 0
SPEED 4 6 10 10 7 10 10 10 7 7 10 10 10 10 6 5
P12
INCLINE 0 8 8 6 9 9 5 5 8 8 8 4 4 4 4 0
SPEED 1 2 3 4 5 6 7 8 9 10 12 10 8 6 4 2
P13
INCLINE 0 1 2 3 4 5 6 8 7 6 5 4 3 2 1 0

13
SPEED 2 4 6 8 10 12 12 11 12 11 10 9 8 7 5 3
P14
INCLINE 0 3 9 10 9 2 2 8 8 4 1 1 4 5 4 0
SPEED 2 3 5 5 7 12 8 5 9 5 3 3 8 6 4 3
P15
INCLINE 0 2 3 4 5 5 7 7 4 4 8 4 6 3 2 0
(1).The system is with 15 pre-set programs P1 – P15. On the program interface, you
can choose the program as you like. When you see “TIME” glittering, press “+” & ” -” over the preset
time 15:00 to set up the time that you need, then press “START” to start the treadmill. After that, the
inferface to go back to the first display window and you can see the chosen program data shown on the
top left corner. For example, if Progam 1 is shown on the top left corner, it means that the system will
be running with Program 1 operation status. The preset program is divided into 16 sections, and each
exercise time=the setting time/16. When the system enters into the next section, it will make 3
“Bi-Bi-Bi” sound, the speed and the incline level will change according to the preset data. During the
same section course, you can press “INCLINE+”,
”INCLINE-”, “SPEED+”, “SPEED-” to change the incline level and the speed. When the system goes
into the next section, it will recover to the preset data of the speed and the incline.When the program is
completely operated, the system will make 3 “Bi-Bi-Bi” sound.
(2). When the program is finished, the treadmill will stop and enter into STAND BY status after 5
seconds.
3. USER PROGRAM OPERATION INSTRUCTION:
USER1, USER2, USER3: Besides the 15 preset programs, you can also set up another 3 user’s
programs as your need: USER1, USER2, USER3.
(1). User’s program setting:
After entering into the program display window, choose the program USER 1, USER2 or USER3 and then
the “TIME” will glitter. Press “Tab” to change the “TIME”, “SPEED” & “INCLINE” setting, press “+”, “-“ to
adjust the “TIME”, “SPEED” & “TIME” data, and press “START” dicectly after finishing the setting. The
preset time of the system is 15:00.After the treadmill starts to work, the window will enter into the first
display window, and the display of “USER1, USER2 or USER3 means that the system is working under the
User’s PROGRAM.
(2). The USER setting data can be saved when you use the treadmill next time.
4. HRC PROGRAM OPERATION INSTRUCTION (OPTION):
(1).Under the STANDBY state, Press program manual keypress “ ” to enter into the program
choosing window which is with 3 HRC programs. When using it, just press HRC1, HRC2 or HRC3 to
choose the one you like:
“HRC1” program: the highest speed is 8.0km/h; age: 30; default pulse: 124/minute;
“HRC2” program: the highest speed is 9.0km/h; age: 30; default pulse: 143/minute;
“HRC3” program: the highest speed is 10.0km/h; age :30; default pulse:162 /minute;
(2).After you choose the HRC program, press “+”, “-“ to adjust the “Age”, then press “TAB” to save and
enter into the “Pulse” set-up. When it is finished, press “TAB” again to enter into the “Time” set-up. The
time range is: 10:00 – 99:00 and the preset Time is : 15:00. (After press “TAB”, the system will save the
parameter that you set automatically. And the Age and Pulse range are shown as the attached table.)
(3).After finishing “Time” set-up, press “START” to start the treadmill. The display window will enter into

14
the main operation display window, and HRC1, HRC2, or HRC3 will be shown on the left of the window
which means that the system is working under the HRC program.
(4).Under the HRC program, you can press “INCLINE+”, “INCLINE –“, “SPEED+”, “SPEED –” button to
change the speed and incline level, but the system will still do adjustment of the speed and incline level
automatically to meet with your target heart rate.
(5).The first one minute after the exercise is the warm-up phase, in which the system won’t change the
speed and incline level automatically, so the change can only be done manually. After one minute, the
system will increase the speed automatically with 0.5KM/ML every time according your current pulse.
when the speed reaches the highest speed of the HRC program, if it still cannot reach your target pulse,
the system will increase the incline level ( 1 section each time) to increase the exercise level in order to
reach the target pulse. When it comes to the target pulse, the speed and incline level will keep the
same level and won’t change.
Attention: The HRC program must use chest belt to test your heart rate. Make sure that the
chest belt must be attached closely to the chest and the skin.
HRC PROGRAM CHART
Age HRC1-Target zone (L-H) Age HRC2- Target zone (L-H) Age HRC3- Target zone (L-H)
Lowest Default Highest Lowest Default Highest Lowest Default Highest
15 128 133 138 15 149 154 159 15 169 174 179
16 128 133 138 16 148 153 158 16 168 173 178
17 127 132 137 17 147 152 157 17 168 173 178
18 126 131 136 18 147 152 157 18 167 172 177
19 126 131 136 19 146 151 156 19 166 171 176
20 125 130 135 20 145 150 155 20 165 170 175
21 124 129 134 21 144 149 154 21 164 169 174
22 124 129 134 22 144 149 154 22 163 168 173
23 123 128 133 23 143 148 153 23 162 167 172
24 122 127 132 24 142 147 152 24 162 167 172
25 122 127 132 25 141 146 151 25 161 166 171
26 121 126 131 26 141 146 151 26 160 165 170
27 120 125 130 27 140 145 150 27 159 164 169
28 120 125 130 28 139 144 149 28 158 163 168
29 119 124 129 29 138 143 148 29 157 162 167
30 119 124 129 30 138 143 148 30 157 162 167
31 118 123 128 31 137 142 147 31 156 161 166
32 117 122 127 32 136 141 146 32 155 160 165
33 117 122 127 33 135 140 145 33 154 159 164
34 116 121 126 34 135 140 145 34 153 158 163
35 115 120 125 35 134 139 144 35 152 157 162
36 115 120 125 36 133 138 143 36 151 156 161
37 114 119 124 37 132 137 142 37 151 156 161
38 113 118 123 38 132 137 142 38 150 155 160
39 113 118 123 39 131 136 141 39 149 154 159

15
40 112 117 122 40 130 135 140 40 148 153 158
41 111 116 121 41 129 134 139 41 147 152 157
42 111 116 121 42 129 134 139 42 146 151 156
43 110 115 120 43 128 133 138 43 145 150 155
44 109 114 119 44 127 132 137 44 145 150 155
45 109 114 119 45 126 131 136 45 144 149 154
46 108 113 118 46 126 131 136 46 143 148 153
47 107 112 117 47 125 130 135 47 142 147 152
48 107 112 117 48 124 129 134 48 141 146 151
49 106 111 116 49 123 128 133 49 140 145 150
50 106 111 116 50 123 128 133 50 140 145 150
51 105 110 115 51 122 127 132 51 139 144 149
52 104 109 114 52 121 126 131 52 138 143 148
53 104 109 114 53 120 125 130 53 137 142 147
54 103 108 113 54 120 125 130 54 136 141 146
55 102 107 112 55 119 124 129 55 135 140 145
56 102 107 112 56 118 123 128 56 134 139 144
57 101 106 111 57 117 122 127 57 134 139 144
58 100 105 110 58 117 122 127 58 133 138 143
59 100 105 110 59 116 121 126 59 132 137 142
60 99 104 109 60 115 120 125 60 131 136 141
61 98 103 108 61 114 119 124 61 130 135 140
62 98 103 108 62 114 119 124 62 129 134 139
63 97 102 107 63 113 118 123 63 128 133 138
64 96 101 106 64 112 117 122 64 128 133 138
65 96 101 106 65 111 116 121 65 127 132 137
66 95 100 105 66 111 116 121 66 126 131 136
67 94 99 104 67 110 115 120 67 125 130 135
68 94 99 104 68 109 114 119 68 124 129 134
69 93 98 103 69 108 113 118 69 123 128 133
70 93 98 103 70 108 113 118 70 123 128 133
71 92 97 102 71 107 112 117 71 122 127 132
72 91 96 101 72 106 111 116 72 121 126 131
73 91 96 101 73 105 110 115 73 120 125 130
74 90 95 100 74 105 110 115 74 119 124 129
75 89 94 99 75 104 109 114 75 118 123 128
76 89 94 99 76 103 108 113 76 117 122 127
77 88 93 98 77 102 107 112 77 117 122 127
78 87 92 97 78 102 107 112 78 116 121 126
79 87 92 97 79 101 106 111 79 115 120 125
80 86 91 96 80 100 105 110 80 114 119 124

16
PROGRAM RANGE:
PROGRAM BEGIN SET UP RANGE DISPLAY RANGE
TIME(MIN:SECOND) 0:00 15:00 5:00-99:00 0:00－99:59
INCLINE(%) 0 0 0-20 0-20
SPEED(K/h) 1.0 1.0 1.0-20 1.0-20
DISTANCE(K) 0 1.0 1.0-99.9 0.00－99.9
PULSE(hypo/min) P N/A N/A 50-200
CALORIE(THERM) 0 20 20-999 0－999
MEDIA OPERATION INSTRUCTION:
1, Music Playing Operation:
Music Playing Display Window
The system offers 3 storage options:Internal Saver, External SD Card Saver and External USB Saver. You
can touch the SAVER symbol to choose the SAVER that you want, and the
SAVER Symbol will shine when you chose it. : Previous, : Play/Pause, : Next. When you want to
play the music that you choose, just double click the file name.
Press this keypress to stop
the treadmill at any time
BACK
Keypress
(Return to
previous
menu)Volume Adjustment
(Touch directly)
Music File Name
Internal Saver
External SD Card Saver
External USB Saver

17
Video Playing Display Window
Video operation is the same as the music operation. Press the playing symbol after you chose the
Video file that you want to play, and then enter into the Video Window shown as below:
: Previous, : Next, : Pause, : Play
Picture Browse Window
:Picture Left Movement, :Picture Right Movement, : Playing, :Stop
When the picture is playing, the system will display each picture with every 2 seconds.
Full Screen Playing
Keypress
The color of the file will
change into red color
after it is chosen.

18
Attention:
1. Some special Music & Video files are not able to be played, such as non-standard Audio
and Video formats, or the size of the file is too big.
2. When playing the picture, the playing reaction speed will be different according to the
resolution of the picture. The higher the resolution is, the slower the reaction speed will be.
3. USB & SD Card Storage should be with good quality, otherwise it will occur playing
standstill or sudden exit.
4. When playing the file, just double click the file name.
SAFETY LOCK FUNCTION:
Pull out the safety pulling rope, then the treadmill will stop immediately. All the windows display“―――”，the
buzzer will make 3 sound “Bi-Bi-Bi”, and the treadmill become stopped.Attach the magnet end of the safety
pulling rope to the computer, the treadmill will be at the beginning of running.
MP3 FUNCTION:
When Mp3 is connected, the computer is able to play music. The volume is controlled on the Mp3. Please
pay attention adjust the volume properly for having better timbre and protecting the inner voice-frequency
circuit.
TURN OFF:
Turn off the power: You can turn off the power to stop the treadmill, so that the treadmill won’t be damaged
at any time.
CAUTION:
1. We recommend that you maintain a slow speed at the beginning of a session and hold on to the
handrails until you become comfortable and familiar with the treadmill.
2. Attach the magnet end of the safety pulling rope to the computer and also attach the clip of the safety
pulling rope to your clothing.
3. To end your workout safely, press the STOP button or pull out the safety pulling rope, then the treadmill
will stop immediately.
TROUBLE SHOOTING GUIDE
1. No display on the console after the power is started:
The probable reason is that the wire from the console to the bottom control board is not connected well
or the transformer is burnt out. Take off the upright frame tubes and check every single connection part
of the wires from the console to the bottom control board and make sure that all the wires are
connected well. If the problem is caused by the defective wires or the defective transformer, please do
the replacement by the new wires or transformer.

19
2. E01—Communication failure:
The probable reason is that the communication from the console to the bottom control board is stuck.
Check every single connection part of the wires from the console to the bottom control board and
make sure that all the wires are connected well. If the problem is caused by the defective wires, do the
replacement by the new wires.
3. E02—Burst clash protection:
Check if the voltage is lower than 50% of the normal voltage and do the testing again by the correct
voltage. Check if the control board has strange smell, if it is, please use a new control board to do the
replacement. Check if the motor wires are connected well, and re-connect the motor wires well.
4. E03—No sensor signal:
The probable reason is that the speed sensor signal has not been received during 10 minutes, check if
the sensor signal light of the bottom control board is flashing, if not, please use the new part to do the
replacement. Check if the sensor plug is connected well or if the magnetic sensor is broken,
re-connect the sensor plug or change the magnetic sensor with the new one.
5. E04—Incline leaning failure:
Check if the VR wire of the incline motor is connected well, re-connect the VR wire plug. Check if the
AC wire of the incline motor is connected well, connect the AC wire of the incline motor with the correct
position of the control board. Check if the motor connection wires are broken, if yes, do the change by
the new wires or the new incline motor. Press the button of the bottom control board to re-work after all
the checkings are done well.
6. E05—Current overload protection:
The probable reason is that the user’s weight is over limit loading and causes too much current, so the
unit starts self-protection system. If a certain part of the treadmill is stuck, it may also cause the
problems that the motor can not rotate, the loading is over the limit and the current is too much. Adjust
the treadmill well and restart the unit power. In addition, check if the motor has the overloading current
sound or the burning smell, if yes, change the motor by the new one. Check if the control board has
the burning smell, if yes, change the control board by the new one. Check if the voltage is normal or
too low, do re-testing by the correct voltage.
7. If the motor doesn’t rotate after pressing the START button, check if the motor wires are broken, the
fuses of the bottom control board are damaged or come off, the motor wires are connected well, and
the IGBT of the bottom control board is burnt. Check if all the motor wires are connected well, the
fuses of the control board are okay, if not, re-assemble it or change the part with the new one. Check if
the motor is getting loose, and connect the motor wires well. Use the Multimeter to test if the IGBT of
the bottom control board is burnt out, change either the IGBT or the whole bottom control board.
