Morgan MAC-COOL T1 User manual

U ER MANUAL
Tower
Air Cooler
MAC-COOL T1
E-mail: [e-mail]
www.morgan.my
Market Expansion
Services by
www.dksh.com.my
facebook.com/morganappliances

3
INTRODUCTION TO EVAPORATIVE AIR COOLING
• An air cooler works on the principle of evaporative cooling where water is used to cool the
air during the evaporation of water.
• Warm and dry air is channelled through an evaporative honeycomb cooling media, and
where water is moved with the help of a water pump.
• The flowing water extracts the heat from the warm air and starts to evaporate leaving
behind cool, fresh and moistened air which is then directed via a fan into the room.
• The evaporative air cooler works best when placed near an open window / air current to
ensure a constant circulation of fresh air.
• The recommended relative humidity for optimum operation is 60% or lower.
• It is not recommended to operate this appliance in enclosed or sealed spaces.
• During operation, the appliance must be kept level and there must be water in the tank.
• Doors and windows should be open to allow free air flow. The appliance can also be used
to humidify dry environments (during cool weather).
• This appliance is not an air conditioner as it does not use a compressor or refrigerant. It
should not be expected to cool as effectively as a refrigerated air conditioner.
• NOTE: The Honeycomb cooling media will release an odour during first use, which should
dissipate within a week of continuous use.
Thank you for purchasing a quality MORGAN appliance. We trust that you will have a
pleasant experience with your new product. To guarantee safety and best efficiency,
please read this manual carefully and keep a copy for future reference.
2
C O N T E N T S
3
4
5
6
7
9
9
11
INTR DUCTI N T EVAP RATIVE AIR C LING
IMP RTANT SAFEGUARDS
PARTS IDENTIFICATI N
BEF RE FIRST USE
PERATING INSTRUCTI NS
REM TE C NTR L
CARE & CLEANING
SPECIFICATI NS
Water
Pump
Honeycomb
Cooling Media
Evaporative Air Cooling Mechanism
Warmand
DryAir
Coldand
HumidAir

4
IMPORTANT SAFEGUARDS
5

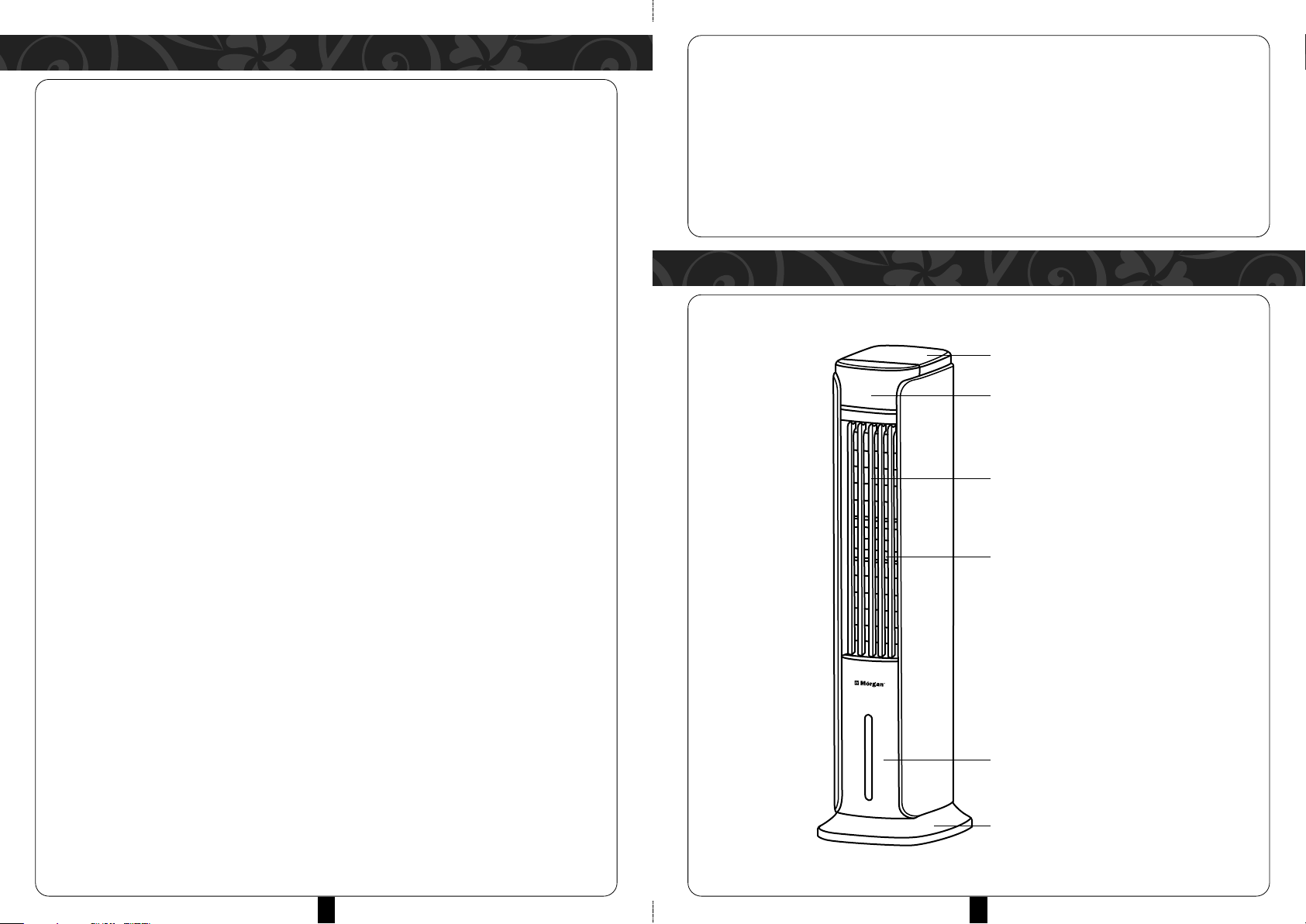

PARTS IDENTIFICATION
Head Cover
Display Panel
Vertical Swing
Louvers Air Outlet
Water Tank
Base
When using electric appliances, basic safety precautions should always be adhered
to, including the following:
• Read all instructions carefully and retain them for future reference.
• Before connecting to the power supply, ensure that the unit is earthed and its voltage
corresponds to the voltage indicated on the power supply rating label.
• This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless they
have been given supervision or instruction concerning use of the appliance by a person
responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• Read all instructions in this manual before using the product.
• Use the appliance only on a flat surface.
• Never try to open or repair this device yourself. It would run a risk of electric shock.
• If the power cord is damaged, it must be replaced by the manufacturer, after-sales service
or similar qualified personnel in order to avoid any danger.
• Do not handle the product for any reason after the appliance malfunctions. Send the
device to an authorized technical service for review, adjustment or repair.
• This device is not intended for use by persons (including children) whose physical,
sensory or mental abilities are reduced, or lack experience or knowledge, unless they
have had supervision or instructions concerning the use of the device. by a person
responsible for their safety.
• Children should be supervised to ensure that they do not play with the device.
• Never touch the power cord, power plug, or other components or operate the buttons with
wet hands to avoid the risk of electric shock.
• Power off the appliance when not in use, disconnect from the power supply and discard
all water inside the tank.
• Ensure the water level inside the water tank does not exceed the MAXIMUM level at any
time. Also, do not allow water level to fall below the MINIMUM level when in Cold Mode.
• After adding water to the tank, do not tilt or handle the appliance forcibly to avoid water
spills.
• Use a damp cloth to clean the appliance. Do not use any detergents to clean or rinse with
water.
• Water left inside the tank for long durations can release foul odours. It is recommended to
replace the water frequently up to the MAXIMUM level.
• Do not place the appliance directly under a power supply outlet.
• Do not use the appliance outdoors, in or near a bath, shower or swimming pool.
• To ensure optimal air flow, do not place the appliance near the wall or curtains.
• Do not insert objects into air vents and outlets to prevent damage.
• Do not use the device near explosive and combustible gases.
• Store the appliance in a dry place out of direct sunlight when not in use or not exposed to
rain to prevent the risk of electric shock.
• Important: Improper installation, repair, maintenance or modification performed by
unauthorized person(s) may result in injuries / damage to property and will automatically
void the appliance’s validity.
• The warranty will also not be valid if the product is used for commercial and non-domestic
purposes or is used improperly, not following the instructions throughout this manual.

OPERATING INSTRUCTIONS
7
1. pen the protective net on the back of the appliance.
2.Ensure the Honeycomb Filter is installed properly close to
the back screen of the machine, and not skewed up and
down or left or right.
3.After inspection, reinstall the Honeycomb Filter and
protective net in place.
4. pen the water tank lock on the back of the product,
detach about one half of the water tank to ensure the water
pump is locked into the water tank slot.
5.Add clean, cold water and ensure water does not exceed
the MAXIMUM water level.
6.For best cooling effect, place ice cubes into the water tank.
NOTE: Do not place ice cubes excessively into the water
tank to avoid overflowing after melting.
SLIDING WHEEL ASSEMBL
1.Place the appliance on a flat surface and turn it over.
2.Insert wheels in the holes and press down firmly.
6
BEFORE FIRST USE
Honeycomb
Filter
Protective Net
Water Tank
1.Select a suitable location to place the appliance, taking into account the Safety
Instructions mentioned above.
2.Connect the power plug into an appropriate power supply.
ON/OFF BUTTON
• Press this key once, and the machine will operate at speed 1 (normal speed).
• The display panel will show “01”, and the corresponding indicator will illuminate.
• Press this key again to switch to standby operation.
SPEED BUTTON
• When the display panel show "01", press this button repeatedly to alternate the fan speed
in the order of 2 - 3 - 1, for changing the wind mode.
• The display panel will show the order of 02 - 03 - 01.
MODE BUTTON
• In operation standby, the normal wind mode indicator is on.
• Press this key repeatedly to alternate the wind mode in the order of “NATURAL WIND –
SLEEPING WIND – N RMAL WIND”.
• The display panel and the corresponding indicator light will illuminate.
• NORMAL WIND: the machine supplies air stably according to the preset wind speed.
• NATURAL WIND: the machine simulates natural wind according to the preset mode. The
maximum wind speed is dependant to the wind speed setting and divided into natural wind
with 3 speed settings.
• SLEEPING WIND: The machine simulates air supply according to the preset mode, and
generally divided into three speed settings.
SCREEN OFF BUTTON
• In standby operation, press this key once to enter the screen-off mode, all indicator lights
will go out, and the machine will work normally.
• Press this key again to terminate the screen-off mode, and all indicator lights will return to
the normal working state.
Screen off Swing Timer Mode Cool Speed On/Off

REMOTE CONTROL
CARE & CLEANING
98
OPERATING INSTRUCTIONS
TIMER BUTTON
cheduled power-on function:
• In standby mode, press the TIMER button once and the TIMER indicator light will
illuminate and flash. The display panel will display 00.
• Press this button repeatedly to increase preset time by 1 hour up to a maximum of 12
hours (00 denotes cancelling timer) and the display panel will switch cyclically in the order
of “00 - 01......12-00”. After timer is set, the display panel will flash for 5 seconds and show
the speed setting.
• After setting the scheduled power-on timer, you can set the scheduled power-on status for
“Speed”, “Screen off”, “Cool” and “Swing”.
• Press the "Mode n/ ff" button to cancel the scheduled power-on function.
cheduled power-off function :
• In operation, press the TIMER button once the TIMER indicator light will illuminate and
flash. The display panel will display 00.
• Press this button repeatedly to increase preset time by 1 hour up to a maximum of 12
hours. After selected wait for 3 second and the timer off function is on. (00 denotes
cancelling timer)
SWING BUTTON
• In operation standby, press the SWING button once to swing the vertical swing louvers
and the SWING indicator will illuminate.
• Press this key repeatedly to swing the vertical swing louvers between “ST P – SWING –
ST P”.
COOL BUTTON
• IMPORTANT: The cool function cannot be operated without water in the tank.
• Press the C L button to turn on the Humidifying/Cooling function, which cools the air.
• Press the button again to turn it off. The cool symbol will flash when the water tank
requires water or is empty. The cool function cannot operate without water inside the tank.
• When the C L function is turned FF, the appliance will function as a normal fan and
the water will not cycle to cool the air.
• Insert 2 x AAA batteries (not supplied). There are 7 buttons on the remote control with the
same function as the control panel.
• Point the remote control at the appliance to operate. The effective distance is up to 6
meters.
• Store the remote control when not in use and remove the batteries.
IMPORTANT:
• Do not mix old batteries with new ones.
• Please remove the batteries if the remote is not in use for long periods.
• Dispose of batteries responsibly at your local hazardous waste collection site or recycling
facility.
CLEANING THE UNIT:
WARNING: Disconnect power plug from the power supply before proceeding with
cleaning.
It is recommended to replace the water on a daily basis to help keep the
Honeycomb Filter and tank clean and free from odours.
CLEANING THE REAR AIR FILTER PROTECTIVE CREEN
• Turn off the power supply and disconnect the appliance.
• Hold the handle at the top on the air filter protective screen at the rear of the unit and
carefully pull away from the machine.
• Remove the Honeycomb Filter. Clean the filter protective screen with neutral detergent
and a soft cloth. Rinse it thoroughly with clear, clean water and leave to dry.
CLEANING THE HONEYCOMB FILTER
• Clean the Honeycomb Filter carefully with neutral detergent and soft brush. Then rinse
thoroughly with clean water.
• After cleaning re-install the Honeycomb filter into the rear of the unit and re-insert the air
filter protective screen carefully back into position.
IMPORTANT: The Honeycomb Filter must be installed correctly in order to avoid leaking.

1110
CARE & CLEANING
Model MAC-COOL T1
Rated Voltage / Frequency 220-240V~ 50-60Hz
Rated Wattage 85W
Water Tank Capacity 6L
ENVIRONMENT-FRIENDL DISPOSAL
•Meaning of crossed – out wheeled dustbin:
•Do not dispose of electrical appliances as unsorted municipal waste, use separate
collection facilities.
•Contact your local government for information regarding the collection systems available.
• If electrical appliances are disposed of in landfills or dumps, hazardous substances can leak into
the groundwater and get into the food chain, damaging your health and well-being.
• When replacing old appliances with new ones, the retailer is legally obligated to take back your
old appliance for disposals at least free of charge.
CLEANING THE WATER TANK
Precaution：
• When you don’t use the product. Please clean the water tank and dry it before keep in
store.
• Please unplug the power plug when adding water and cleaning.
• Transportation may cause displacement of the water pump. Before use, please confirm
whether the water pump is fixed in place. Wrong placement of water pump may cause
abnormal water filling of the product.
Water adding method：
• Turn the lock of the water tank to the horizontal state.
• Draw out half of the water tank. (NOTE 1: do not draw out
too much water tank to prevent the water pipe falling off)
(NOTE 2: add water not exceeding the maximum water
level)
• After confirming that the water pipe is K, push the water
tank into place. (NOTE: the water pipe shall not be bent to
avoid no water supply)
Water tank cleaning method：
• Cut the cable tie that secures the water pump. (For the first time only)
• Remove the water pump according to figure 2 below. After remove the water pump, the
water tank can take out for cleaning.
• After cleaning, restore back the water tank and the water pump will be installed back in
place.
Cleaning the EXTERIOR
• Clean carefully with neutral detergent and soft cloth.
• IMPORTANT: Turn off and disconnect the power plug from the power supply when
cleaning the appliance.
• Do not wet the surface of the control panel
SPECIFICATIONS
Water Tank
Water Tank Lock
A
After cutting and removing the cable tie, loosen the button
in the direction of the arrow and take out the water pump
Button
figure 2
figure 1
