Morgan MAC-COOL7 User manual

SER MAN AL
MAC-COOL7
E-mail: [e-mail]
www.morgan.my
Market Expansion
Services by
www.dksh.com.my
facebook.com/morganappliances
Air Coo er

3
IMPORTANT SAFEGUARDS
When using electric appliances, basic safety precautions should always be followed
including the following:
1. Read all instructions carefully and retain them for future reference.
2. Before connecting the air cooler to the power supply, ensure that the voltage of the
appliance corresponds to the voltage indicated on the power supply rating label at the
bottom of the appliance.
3. Always disconnect appliance from the power supply when not in use or before cleaning.
4. Always attach the power cord to the appliance BEFORE connecting it to the power
supply. To disconnect, switch off appliance first before detaching the power plug from
the power supply.
5. Close supervision is necessary when any appliance is used by or near children.
6. This air cooler is suitable for indoor use only, and not for other applications.
7. For best performance, operate the machine on a stable surface.
8. Do not operate the appliance with wet hands to avoid the risk of electric shocks.
9. Do not operate appliance with damaged power cord or power plug or after the appliance
malfunctions or has been damaged in any manner. In such a situation, it is
recommended to return the appliance to your nearest Authorized Service Centre for
examination, repair, or adjustment.
10. Switch off the appliance and detach the power plug from the power supply when not
in use.
11. Do not insert any foreign objects into the air inlet and outlet of the unit. Keep air inlet and
outlet free from obstructions. Do not use the appliance near explosive and combustible
gas.
12. This appliance is for household use only. Do not use outdoors.
13. During operation, always ensure that the water tank level does OT exceed the MAX
level. Similarly, water tank level should not fall below the MI level when humidifying.
14. Do not tilt or move the appliance after filling water into the water tank to avoid accidental
spillage.
15. Do not topple or overturn the appliance. In the event of such an accident, disconnect
from the power supply immediately and have it sent for service or repair to avoid internal
electrical malfunction.
16. Do not place objects on the appliance and do not cover air vents to prevent the
appliance from overheating.
17. Do not make air outlets and inlets near the wall or curtain.
Thank you for purchasing a quality MORGAN appliance. We trust that you will have a
pleasant experience with your new product. To guarantee safety and best efficiency,
please read this manual carefully and keep a copy for future reference.
FOR HO SEHOLD SE ONLY
2
C O N T E N T S
3
4
5
6
6
7
IMPORTA T SAFEGUARDS
SPECIFICATIO S
PARTS IDE TIFICATIO
PRODUCTS FEATURES
OPERATI G I STRUCTIO S
CARE & CLEA I G

4
IMPORTANT SAFEGUARDS
5
PARTS IDENTIFICATION
18. Do not strike or forcibly shake the appliance during operation as this may cause it to
cease operation automatically. If this happens, restart the appliance to resume
operation.
19. Do not place the appliance below a power supply socket .
20. Do not operate the appliance in or near water sources, such as bath, a shower or a
swimming pool.
21. Do not operate the appliance in a dirty, dusty or polluted environment.
22. This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning use of the appliance by a
person responsible for their safely.
23. Children should be supervised to ensure that they do not play with the appliance.
1. Water Tray Top Cover
2. Upper Water Tray
3. Control Panel
4. Outlet of Air Flow
5. Power Cord
6. Air Filter Protective Screen
7. Honeycomb Filter
8. Water Inlet
9. Drainage Hole
10. Caster
PRINCIPLES OF COOLING
• Water is drawn from the water tank by pump to the top before dropping into a Honeycomb
Cooling filter.
• Water inside the Honeycomb Cooling filter will transform into water vapour and air cooled.
• A cool wind will be released when air is delivered by the air cooler.
1
2
4
5
3
7
6
6
10
9
8
7
SPECIFICATIONS
MODEL NO. MAC-COOL7
RATED VOLTAGE 220-240V~
FREQ ENCY 50-60Hz
RATED WATTAGE 90W
WATER TANK CAPACITY 35L

OPERATING INSTRUCTIONS
CARE AND CLEANING
7
Note: Ensure appliance is disconnected from power supply before detaching the
Air Filter Protective Screen.
CLEANING THE AIR FILTER PROTECTIVE SCREEN
• Power off the appliance and disconnect from power supply. Detach the Air Filter
Protective Screen and clean using a neutral detergent and brush and then rinse with
clean water. Allow to dry before assembly.
Attention: the Air Filter Protective Screen must be installed before operating.
CLEANING THE WATER TANK
• Power off the appliance and disconnect from power supply. Remove the drainage plug
and allow water to discharge.
CLEANING THE EXTERIOR
• Use a clean soft cloth with neutral detergent.
WARNING: Power off appliance before cleaning the e terior as there may be high
pressure inside the body.
HINTS ON DISPOSAL
According to the European waste regulation 2012/19/EU this symbol on the
this product or on its packaging indicates that household waste. Instead it
should be taken to the appropriate collection point for the recycling of
electrical and electronic equipment. By ensuring this product is disposed of
correctly,you will help prevent potential negative consequences for the
environment and health,which could otherwise be caused by inappropriate waste handling
of this product.
For more detailed information about recycling of this product,please contact your local
council or your household waste disposal service.
• 3-way adjustable fan speed and side-to-side fan oscillation.
• Cooling via air evaporating by temperature reduction.
• Wide angle automatic swing & manual swing to fix wind direction up and down.
BREEZE
• After power on, the initial mode is normally by default; press this key to activate the
breeze mode, the BREEZE LED indicator will be illuminated, press again to return to
normal mode.
SWING
• Press this button once to horizontally swing the vertical louvers. The SWI G LED will be
illuminated. Press again to fix air direction. To direct vertical airflow, adjust the horizontal
louvers manually
6
PRODUCT FEATURES

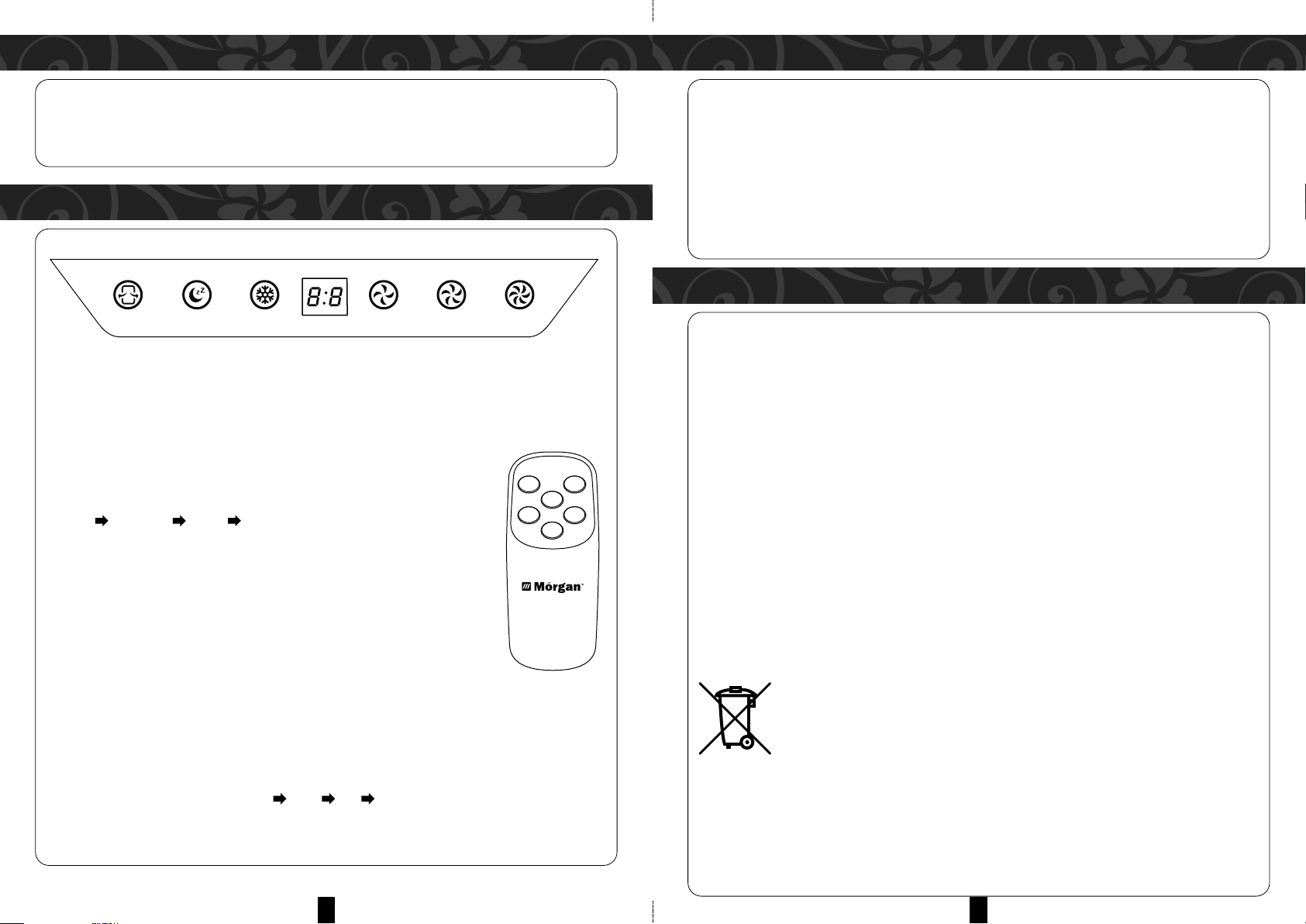

OPERATING INSTRUCTIONS
POWER:
• In standby mode, the room temperature will display on the LED panel. Press the POWER
key to turn on the device, and the Low speed LED indicator will be illuminated on the LED
panel. The initial speed of the device is Low, and press the POWER key again to shut it
down.
SPEED:
• Press this button continuously to adjust fan speeds, such as
LOW MEDIUM HIGH LOW, in this process, the SPEED LED
indicator also changes accordingly.
COOLING:
• In power on state, press this key to switch on the cooling function and
the COOLI G LED will be illuminated on the LED panel, press this
key again to turn it off.
Notice: Do not switch the cooling function when the water tank
is empty. If the water tank is empty the cooling indicator
symbol will start blinking and buzzer hints about 10 seconds and the pumps will
cut off automatically.
TIMER:
• After power on, the timer is not turned on by default, and TIMER LED is not displayed.
• Press timer key to set timer: 1.0H 2.0h ..... 12h increased at 1 hours
• Intervals, in this process, the TIMER LED indicator also changes accordingly. When it is
set to 12 hours, press this button again to cancel.
BREEZE SPEED
TIMER SWING
POWER
COOLING
