MORLEY-IAS DX CONNEXION User manual

product
manual
DocumentNo.996-203-000-2,Revision02
March2011
www.acornfiresecurity.com
www.acornfiresecurity.com

996-203-000-2, Rev. 02
Morley-IAS
Contents
1 Introduction .................................................................................................................1
1.1 Notice............................................................................................................... 1
1.2 Models ............................................................................................................. 1
1.3 Warnings and Cautions ................................................................................... 3
1.4 National Approvals........................................................................................... 3
1.5 EN54 Information............................................................................................. 4
2 Unpacking ................................................................................................................... 6
3 Installation ................................................................................................................... 7
3.1 Identification of Parts ....................................................................................... 7
3.1.1 Small Enclosure........................................................................................ 7
3.1.2 Medium Enclosure.................................................................................... 7
3.2 Installing the Enclosure (Surface Mount)......................................................... 8
3.2.1 Position of Knockouts ............................................................................... 8
3.3 Installing the Enclosure (Bezel Mount Option)................................................. 9
3.3.1 Wall Apertures .......................................................................................... 9
3.3.2 Installing the Complete Assembly........................................................... 10
3.4 External Connections..................................................................................... 11
3.4.1 Introduction............................................................................................. 11
3.4.2 Wiring Installation ................................................................................... 11
3.4.2.1 Inspection and Testing......................................................................... 11
3.4.3 Mains Power Input.................................................................................. 11
3.4.3.1 Mains Cable Glands ............................................................................12
3.4.4 Battery Installation .................................................................................. 12
3.4.4.1 Wiring/ terminal Block Arrangement .................................................... 13
3.4.4.2 Small Enclosure Arrangement ............................................................. 13
3.4.4.3 Medium Enclosure Arrangement ......................................................... 14
3.4.4.4 Battery Operation ................................................................................ 14
3.4.5 Detection Loops...................................................................................... 15
3.4.5.1 General Information............................................................................. 15
3.4.5.2 Cable Requirements............................................................................ 15
3.4.5.3 Loop Wiring Installation ....................................................................... 16
3.4.5.4 Unused Loops ..................................................................................... 17
3.4.6 Sounder Circuits ..................................................................................... 18
3.4.7 Auxiliary Relay Outputs........................................................................... 19
3.4.8 Auxiliary Supply Outputs......................................................................... 19
3.4.9 Digital Inputs........................................................................................... 20
3.4.10 RS485 Peripheral Link.......................................................................... 20
3.4.10.1 Daisy Chain Style Installation ............................................................ 21
3.4.10.2 Cable Screen - Earth Connections .................................................... 21
3.4.11 Recommended Cable Routing.............................................................. 22
3.5 Key Switch Option ..................................................................................... 23
3.5.1 Fitting Instructions .................................................................................. 23
3.5.1.1 Recommended Procedure for Separation/Re-assembly of Keyswitch
.................................................................................................................... 23
3.6 Slide-in Labels........................................................................................... 24
4 Controls & Indications ............................................................................................... 25
4.1 User Control Levels ....................................................................................... 25
i
www.acornfiresecurity.com
www.acornfiresecurity.com

996-203-000-2, Rev. 02
Morley-IAS
4.1.1 Access Level Definition........................................................................... 25
4.1.2 Passcodes .............................................................................................. 26
4.1.3 List of Device Abbreviations ................................................................... 26
5 Programming ....................................................................................................... 27
5.1 Introduction ....................................................................................................27
5.1.1 Site Configuration Changes.................................................................... 27
5.1.2 Updating Software .................................................................................. 27
5.1.3 Text Entry................................................................................................ 28
5.1.3.1 Alphanumeric Keypad..........................................................................28
5.1.3.2 Display Format ....................................................................................28
5.2 Fastrack Panel Configuration ........................................................................30
5.3 Programming Manually.................................................................................. 32
5.3.1 Selecting the Commission Option .......................................................... 32
5.3.2 Recommended Step-by-Step Programming Guide ................................ 33
5.3.3 Overview of the Menu Structure .............................................................33
5.3.4 General Options ..................................................................................... 34
5.3.5 Loop........................................................................................................ 35
5.3.5.1 Edit Devices .................................................................................... 36
5.3.5.1.1 Edit Device Location Text ............................................................. 36
5.3.5.1.2 Edit Zone Assignment .................................................................. 37
5.3.5.1.3 Edit Group Disable Assignment....................................................37
5.3.5.1.4 Input Actions................................................................................. 37
5.3.5.1.5 Output Controls ............................................................................ 39
5.3.5.2 Learn Devices ................................................................................. 40
5.3.6 Local Inputs ............................................................................................ 41
5.3.6.1 Input Action .....................................................................................42
5.3.6.2 Zone Number .................................................................................. 43
5.3.6.3 Disablement Group ......................................................................... 43
5.3.7 Local Outputs .........................................................................................43
5.3.7.1 Pattern Assignment .........................................................................44
5.3.7.2 Can Pulse........................................................................................ 44
5.3.7.3 Respond to Evacuate ...................................................................... 45
5.3.7.4 Respond to Silence .........................................................................45
5.3.8 Zone Text................................................................................................46
5.3.9 Output Pattern Logic............................................................................... 46
5.3.9.1 Output Patterns ............................................................................... 46
5.3.9.1.1 Zone Qualifiers.............................................................................48
5.3.9.1.2 Delays .......................................................................................... 48
5.3.9.2 Panel State Inputs ...........................................................................49
5.3.10 Detection Modes................................................................................... 51
5.3.10.1 Delayed (Stage 1/ Stage 2) Mode ................................................52
5.3.10.2 Verification Mode........................................................................... 53
5.3.10.3 Sensitivity Mode ............................................................................55
5.3.10.4 Night Threshold Levels.................................................................. 56
5.3.11 7-Day Timers ........................................................................................66
5.3.12 Panel ....................................................................................................60
5.3.12.1 LCD Contrast................................................................................. 60
5.3.12.3 Clock Offset - Drift Compensation.................................................60
5.3.12.2 Wipe Memory ................................................................................ 61
ii
www.acornfiresecurity.com
www.acornfiresecurity.com

996-203-000-2, Rev. 02
Morley-IAS
5.4 Programming Using the PC Configuration Tool ............................................. 62
5.4.1 Retrieving Configuration Data.................................................................62
5.4.2 Sending Configuration Data ................................................................... 62
Appendix 1 Specification .......................................................................................... A1-1
Appendix 2 Battery Calculations .............................................................................. A2-1
Appendix 3 Maintenance.......................................................................................... A3-1
Appendix 4 Replacement Parts................................................................................ A4-1
Appendix 5 How to Flash Upgrade the Panel .......................................................... A5-1
Appendix 6 Event Text Explained............................................................................. A6-1
Appendix 7 Peer-to-Peer Network Configuration ..................................................... A7-1
Table of Figures

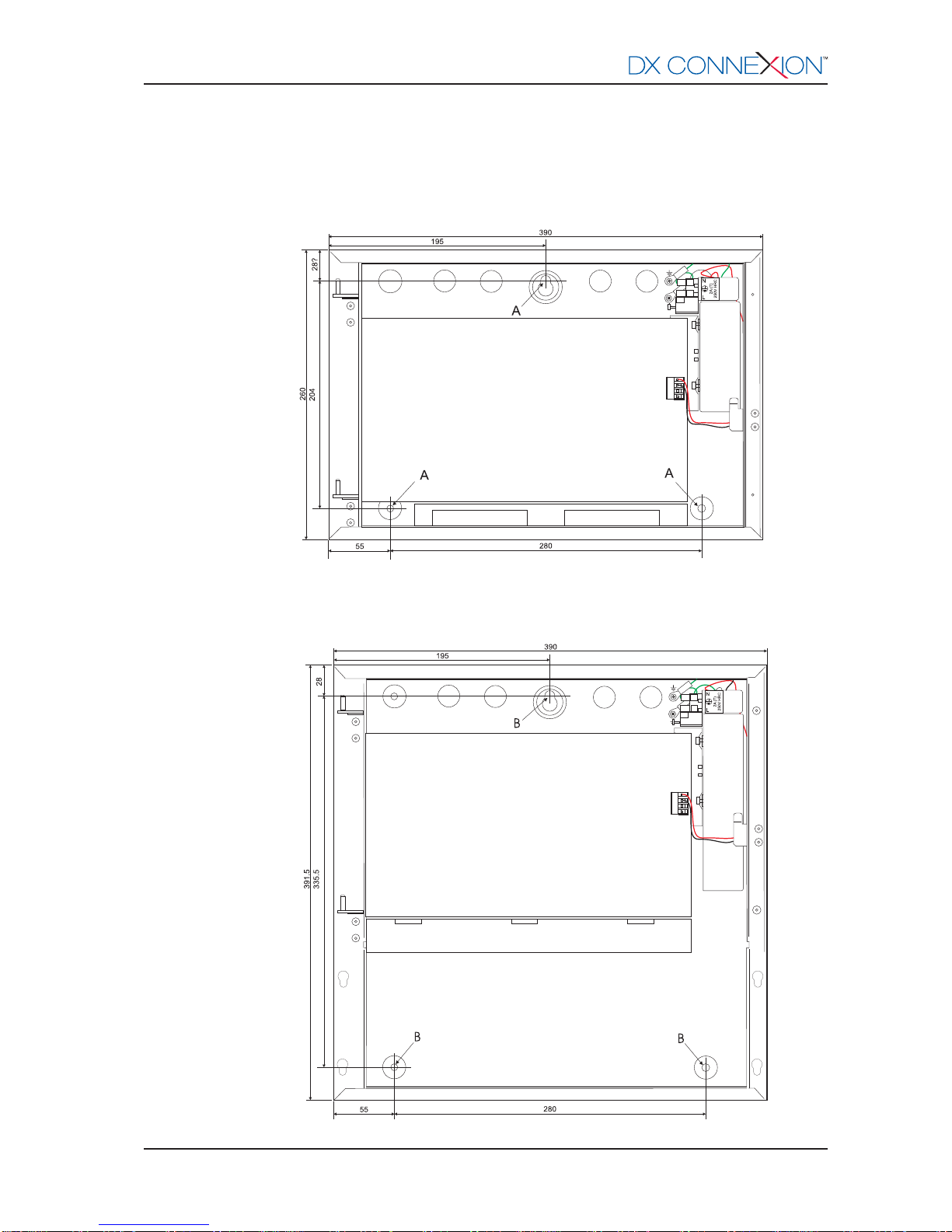

Figure 1 - Dimensions & Fixing Points - Small Enclosure .............................................. 7
Figure 2 - Dimensions & Fixing Points - Medium Enclosure .......................................... 7
Figure 3 - Position of Knockouts .................................................................................... 8

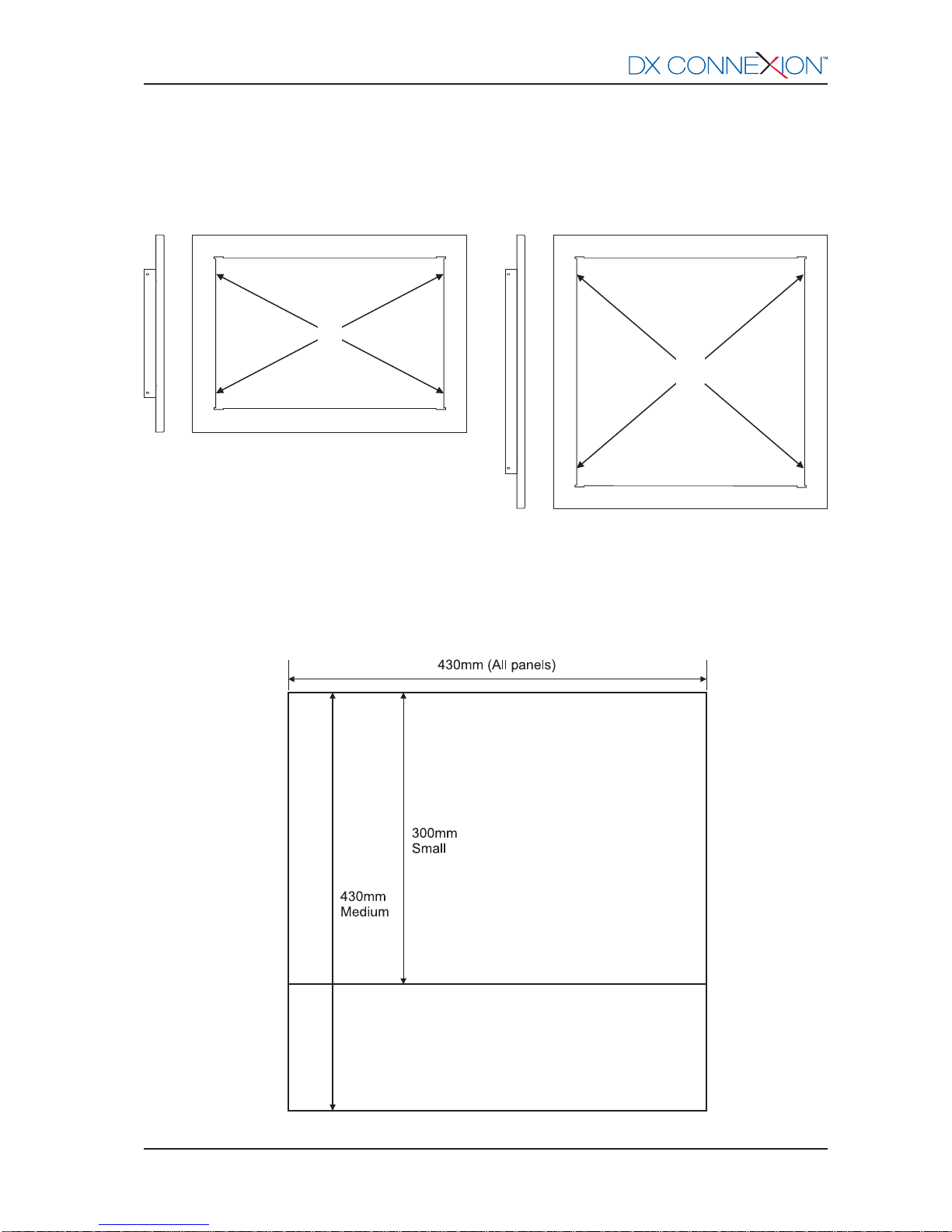

Figure 4 - Small & Medium Bezel Assemblies................................................................ 9
Figure 5 - Recommended Aperture Sizes ...................................................................... 9
Figure 6 - Mains Input Arrangement - All Panels.......................................................... 12
Figure 7 - Battery Wiring/ Terminal Block Details ......................................................... 13
Figure 8 - Small Enclosure 7Ah Battery Installation .....................................................13
Figure 9 - Medium Enclosure 7Ah Battery Installation ................................................. 14
Figure 10 - Medium Enclosure 12Ah Battery Installation ............................................. 14
Figure 11 - Medium Enclosure 17Ah Battery Installation.............................................. 14
Figure 12 - SLC Connections....................................................................................... 16
Figure 13 - Loop Wiring with Isolators.......................................................................... 17
Figure 14 - Loop Wiring - Unused Loops ..................................................................... 17
Figure 15 - Sounder Circuit Connections ..................................................................... 18
Figure 16 - Sounder Wiring .......................................................................................... 18
Figure 17 - Relay Circuit Connections.......................................................................... 19
Figure 18 - Auxiliary Supply Circuit Connections.......................................................... 19
Figure 19 - Digital Input Circuit Connections................................................................ 20
Figure 20 - Monitored Circuit Input............................................................................... 20
Figure 21 - Typical RS485 - ‘Daisy Chain’ Wiring......................................................... 21
Figure 22 - RS485 Screen - Earth Arrangement .......................................................... 21
Figure 23 - DXc1 - Recommended Cable Routing....................................................... 22
Figure 24 - DXc2/4 - Recommended Cable Routing.................................................... 22
Figure 25 - Keyswitch Location - Front View ................................................................22
Figure 26 - Keyswitch Location - Rear View................................................................ 23
Figure 27 - Keyswitch - Separated Assembly............................................................... 23
Figure 28 - Slide-in Label Locations............................................................................. 24
Figure 29 - Typical Controls & Indications.................................................................... 25
Figure 30 - Location of Jumper Link J1 and PC Tool Connector.................................. 27
Figure 31 - Position of PC Tool Cable Connector......................................................... 62
Figure 32 - Location of Display PCB and Zone LED PCB........................................ A4-2
Figure 33 - Location of PC Tool Connector and Flash Programmer Link................. A5-1
iii
www.acornfiresecurity.com
www.acornfiresecurity.com

996-203-000-2, Rev. 02
Morley-IAS
Table of Tables
Table 1 - Packing Contents List...................................................................................... 6
Table 2 - Maximum Loop Lengths ................................................................................ 16
Table 3 - List of Compatible Peripheral Devices........................................................... 20
Table 4 - Device Type Abbreviations ............................................................................ 26
Table 5 - Menu Structure Overview .............................................................................. 33
Table 6 - General Options ............................................................................................ 35
Table 7 - Input Parameter Options ............................................................................... 38
Table 8 - Output Parameter Options ............................................................................ 40
Table 9 - Input Actions - On-board Inputs..................................................................... 42
Table 10 - Zone Pattern Qualifiers ............................................................................... 48
Table 11 - Panel State Conditions ................................................................................ 50
Table 12 - Detection Modes .........................................................................................51
Table 13 - Functional Specifications................................................................ A1-1, A1-2
Table 14 - Power Supply and Charger Specifications .............................................. A1-3
iv
www.acornfiresecurity.com
www.acornfiresecurity.com

1
Morley-IAS
996-203-000-2, Rev. 02
1 Introduction
1.1 Notice
- The material and instructions covered in this manual have been carefully checked for accuracy and
are presumed to be correct. However, the manufacturer assumes no responsibility for inaccuracies
and reserves the right to modify and revise this document without notice.
- The DXc1, DXc2 and DXc4 Fire Alarm Control Panels are 1, 2 and 4 loop panels for use with the
range of compatible analogue addressable devices from the appropriate detector manufacturer.
Refer to the Product Market Variations Manual (996-220-00X-X) for more details.
1.2 Models
- TheDXConnexionSeries of FireAlarmControlPanels,asshown below, areavailable in twoenclosure
sizes: the small enclosure for 1 loop and the medium enclosure for 2 or 4 loops. Each panel is
capable of supporting up to 80 fire detection zones. If the panel is on a network the range of network
zones is 80, so the number of zones supported by any panel would be reduced.
For use with software
version 1.02, or later.
- These instructions cover the installation, maintenance and programming
of the DX Connexion Series of Fire Alarm Control Panels. Refer to the
UserManual(P/N 996-202-00X-X) fordetailson how to operatethesystem.

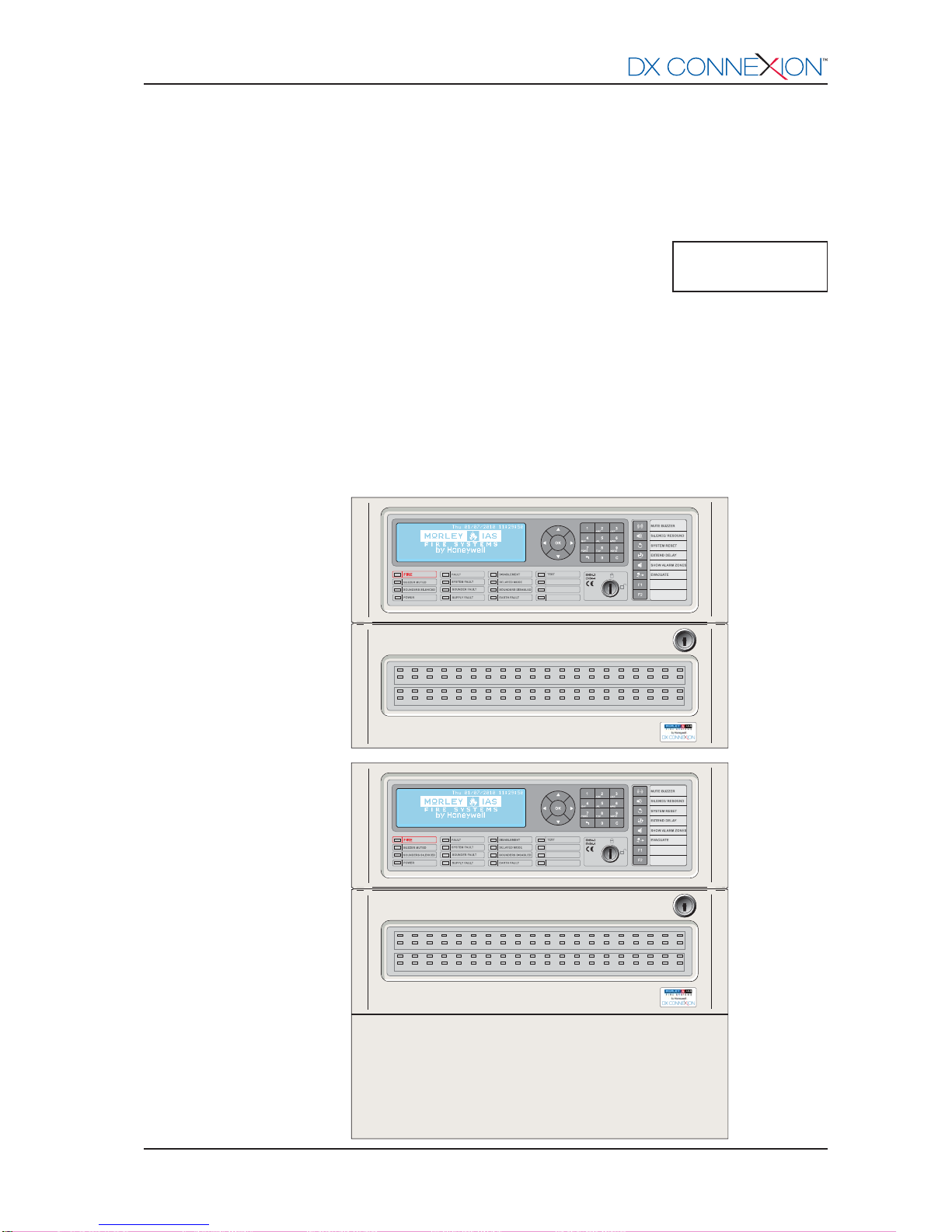

DXc1: 1 Loop Panel
DXc2/4: 2/4 Loop Panel
www.acornfiresecurity.com
www.acornfiresecurity.com

2
Morley-IAS
996-203-000-2, Rev. 02
- Installer Fit Options:
- 40 or 80 Fire Zone LEDs
- A front panel keyswitch, P/N 795-098, can be installed in all model variants. This can be used for:
a) Level 2 User Access Control
b) Class Change
c) Bomb Alert
1.3 Warnings and Cautions
These instructions contain procedures to follow in order to avoid injury and damage to
equipment. It is assumed that the user of this manual has been suitably trained and is
familiar with the relevant regulations.
Electro-static Sensitive Devices.
Take suitable ESD precautions when removing or installing printed circuit boards.
This panel is CE Marked to show that it conforms to the requirements of the following
European Community Directives:
The EMC Directive 2004/108/EEC, by the application of the following EMC Standards:
••
••
•EN 61000-6-3: Electromagnetic Compatibility (EMC) Generic emission standard for
Residential, Commercial and Light industrial environments
••
••
•EN 50130-4: EMC Product family standard: Immunity requirements for components
of fire, intruder and social alarm systems.
Low Voltage Directive 2006/95/EEC, by the application of the safety standard:
••
••
•EN 60950-1: Safety of information technology equipment.
TheConstructionProductsDirective 89/106/EEC, by the application of thefollowingstandards:
••
••
•EN 54-2: 1998, (Amd. 1 & 2): Fire detection and fire alarm systems - Control and
indicating equipment.
•EN 54-4: 1998, (Amd. 1 & 2): Fire detection and fire alarm systems - Power supply
equipment.
- The DX Connexion Series range of panels has many features
that,if used inappropriately, may contravenethe requirements
of EN54. Where such a possibility may arise, a suitable
warning is given with brief details of the EN54 requirement
and the relevant section to which it pertains. A typical EN54
non-compliance warning is illustrated.
EN54-2 13.7
Maximum of 512
sensors / manual call
points per panel.
EN54
!
CAUTION: A Lithium Battery is used for Clock Retention.
RISK OF EXPLOSION IF THE BATTERY IS REPLACED BY AN INCORRECT TYPE.
Dispose of used batteries responsibly and in accordance with any local regulations.
See Appendix 4 Replacement of Components, Section 1.1 for further details.
www.acornfiresecurity.com
www.acornfiresecurity.com

3
Morley-IAS
996-203-000-2, Rev. 02
1.4 National Approvals
- This equipment must be installed and operated in accordance with these instructions and the
appropriate national, regional and local regulations specific to the country and location of the
installation. Consult with the appropriateAuthority Having Jurisdiction (AHJ) for confirmation of the
requirements.
- This equipment must be installed in accordance with these instructions and the appropriate national,
regional and local wiring regulations.
All equipment is to be installed in accordance with the appropriate standards for the country and
area of installation.
1.5 EN54 Information
- This Fire Alarm Control Panel complies with the requirements of EN54-2/4. In addition
tothe basic requirementsof EN54,the panel conforms tothe following optionalfunctions.
EN54
3
Option EN54-2 Clause
Indication:
Alarm counter 7.13
Fault signals from points 8.3
Controls:
Delays to outputs 7.11.1
Manual or automatic switching of delays to outputs 7.11.2
Dependency on more than one alarm signal: Type C 7.12.3
Disablement of each address point 9.5
Test condition 10
Outputs:
Outputs to fire alarm device(s) 7.8
EN54
3
- The power supplies for the Connexion Series of panels comply with the following
clauses of EN54-4.
DXc1/2/4 Power Supply Functions EN54-4 Clause
Derive power supply from main power source 5.1
Derive power supply from a standby battery source 5.2
Charge and monitor the standby battery source 5.3
Detect & signal power supply faults 5.4
www.acornfiresecurity.com
www.acornfiresecurity.com

4
Morley-IAS
996-203-000-2, Rev. 02
EN54
3
- In addition to the functions required by EN54-2, the panel supports a number of
ancillary functions that are not required by EN54. These are outlined below:
Ancillary Function Manual Section
Auxiliary supply output 3.4.7
Peripheral loop output & supported devices 3.4.10
Auxiliary relay outputs 3.4.7, 5.2.7
Class Change Input 3.4.9, 5.2.6.1
Volt-free-contact output options 3.4.6
Self-learn configuration 5.3.5.2
Sensitivity Mode 5.3.10.3
Control Matrix:
Output Modes (Patterns) 5.3.7
Input type filtering 5.3.5.1.4, 5.3.10
Output type filtering 5.3.5.1.5, 5.3.10
Time-of-day filtering 5.3.10.4 & User Manual
Networking Appendix 7
Auto disable/enablement 5.3.11
Sensor LED blinking mode 5.3.4
Text editing 5.3.5.1.1
Output silence options 5.3.7.4
Automatic test selection 5.3.4
Sounder pulsing periods 5.3.5.1.5
Group Disable 5.3.5.1.3 & User Manual
RS232 PC Interface 5.1.2, 5.4 & Appendix 5
Clock - Drift Compensation 5.3.12.2
Diagnostic Mode 5.3.4
www.acornfiresecurity.com
www.acornfiresecurity.com

6
Morley-IAS
996-203-000-2, Rev. 02
2 Unpacking
- The Dx Connexion Series of Fire Alarm Control Panels are simple to install, program and commis-
sion if the recommended procedures described in this manual are followed.
- Before installing the Connexion Series FireAlarm Control Panels, first ensure that all the equipment
has been received. The packing box should contain the following items.
Item Component Part Number Quantity
1 DXConnexion Series FireAlarm Control Panel As ordered 1
2 ProductManual 996-203-00n-X** 1
3ProductMarketVariations Manual 996-220-00n-X** 1
4 UserManual 996-202-00n-X** 1
5 User Guide * 996-214-00n-X** 1
6 Battery Cables Kit 1—- 1
7 EOL Resistor (6.8kΩ½ W) —- 4
1Battery leads are provided for all models with push-on terminals suitable for 7Ah and 12Ah batteries.
Battery leads are also provided for the DXc4 Series panels with ring terminals suitable for 17Ah
batteries.
*Frame and mount the supplied User Guide, on the wall, adjacent to the Panel.
** Different language variants of the manual are identified by the ‘-00n-’ part number descriptor.
Note: The EOL resistors supplied are standard resistors. If EOL resistor assemblies with 150 mm
flying leads are required, please order these separately under part number 170-073-682.
Table 1 - Packing Contents List
www.acornfiresecurity.com
www.acornfiresecurity.com

7
Morley-IAS
996-203-000-2, Rev. 02
3 Installation
3.1 Identification of Parts
3.1.1 Small Enclosure
- The small enclosure is used for the DXc1 Series panels.
3.1.2 Medium Enclosure
- The medium enclosure is used for the DXc2 and DXc4 Series panels.
Figure 1 - Dimensions & Fixing Points - Small Enclosure
Figure 2 - Dimensions & Fixing Points - Medium Enclosure
www.acornfiresecurity.com
www.acornfiresecurity.com

8
Morley-IAS
996-203-000-2, Rev. 02
3.2 Installing the Enclosure (Surface Mount)
- Using the supplied key open the main door to access the enclosure interior.
- Disconnect the ribbon cable to the Display PCB at the Base PCB (this cable cannot be disconnected
at the Display PCB).
- Remove the front cover as follows: with the door at an angle to the enclosure of between 30° and
40°, carefully lift it clear of the two hinge pins - DO NOT force it. If the door does not move up easily,
the angle is too small or too large, so adjust the angle in either direction until the door lifts easily.
- If the medium enclosure is to be installed remove the lower cover by moving upwards and pull away.
This cannot be removed with the main cover in situ.
- The Base card or PSU do not need to be removed from the enclosure if the provided knockouts are
to be used. If additional access holes are to be made it is recommended that the Base PCB and PSU
are removed to avoid inadvertant damage or contamination.
- Remove the necessary knockouts for the installation cabling.
- Mount the enclosure in the desired location using all three mounting holes A (small enclosure) or B
(medium enclosure).
- Use a drill bit diameter 7.0 mm and a suitable 40 mm long expansion plug. Fix the panel to the wall
with No. 10 screws length 1½” or M5 screws length 40 mm.
- Install the external wiring into the enclosure using the appropriate glands/ conduit fittings.
- Sufficient knockouts are provided at the top of the enclosure. Refer to wiring sections for recommended
positions.
- If you punch out other holes, be sure that they do not interfere with any component mounting positions.
- Use a brush to clean any dust and swarf from inside the enclosure before re-fitting the main door.
To avoid distortion of the back box when preparing knockouts, place the appropriate back
box face on a supporting surface (e.g. work bench).
3.2.1 Position of Knockouts
- 20mm knockouts are provided on the top and bottom faces of the enclosures as shown below:
DXc1 Panel DXc2/4 Panels
Figure 3 - Position of Knockouts
www.acornfiresecurity.com
www.acornfiresecurity.com

9
Morley-IAS
996-203-000-2, Rev. 02
3.3 Installing the Enclosure (Bezel Mount Option)
- The bezel option is supplied as a separate item.
- The diagram below shows the typical bezel assembly. This arrangement is the same for all bezel options.
- The panel and bezel must be assembled together before fixing into the wall aperture.
- The bezel is fixed to the panel using four screws in positions (A).
3.3.1 Wall Apertures
- Make a recess in the wall large enough for the bezel and enclosure back box to be inserted easily
and without unnecessary force. Allow sufficient space for cable entry into the back box. See diagram
below for for recommended aperture sizes for the small and medium DXc panel variants.
Small enclosure bezel
Medium enclosure bezel
Figure 4 - Small & Medium Bezel Assemblies
A
Figure 5 - RecommendedAperture Sizes
A
www.acornfiresecurity.com
www.acornfiresecurity.com

10
Morley-IAS
996-203-000-2, Rev. 02
3.3.2 Installing the Complete Assembly
- Offer the complete assembly to the recess to check for correct depth and clearance. Repeat this
process until the correct depth and clearance have been achieved.
- Support the bezel / back box assembly in the desired position in the recess and mark the three fixing
points in the panel (refer to surface mounting installation instructions for positions). Remove the
assembly from the recess.
- Drill the supporting wall as described in the surface mounting instructions.
- Remove the required knockouts and install all cable glands as required.
- Orientate the bezel / back box assembly correctly, offer it to the recess, then feed the cables through
the glands and take up any excess slack. Secure the assembly in position using appropriate-sized
screws as described in the surface mount installation. To avoid distorting the back box, do not over-
tighten the screws.
www.acornfiresecurity.com
www.acornfiresecurity.com

11
Morley-IAS
996-203-000-2, Rev. 02
3.4 External Connections
3.4.1 Introduction
BEFORE INSTALLATION: Refer to Ratings label located on the bracket above the PSU.
- Except for the AC mains input, all external field wiring connections are made using two-part connectors.
- SLC loop wiring is terminated along the top edge of the Base PCB for the DXc1 and DXc2 panel
variants. For the DXc4 panel variant, the additional SLC wiring is terminated, using two-part
connectors, on a 2-loop expander PCB.
- Other external field wiring is terminated either on the Base PCB or optional plug-in PCBs (RS232,
RS485 functions, etc.).
3.4.2 Wiring Installation
- The wiring installation should conform to the national, regional or local standards applicable for the
specific installation.
3.4.2.1 Inspection and Testing
- Inspection and Testing should conform to any national, regional or local standards applicable for the
specific installation.
- Refer to the Product Market Variations Manual for details of local standards requirements that apply to
the inspection and testing of installation wiring.
All installation wiring MUST be checked PRIOR to termination in the panel.
The following checks are recommended:
- Check the continuity of all cable runs (including cable screens).
- Check the impedance of all signal cable runs. Ensure that, in alarm mode, any voltage drops
induced do not compromise device operation or compatibility. Ensure that cable impedance
does not exceed any specific requirements detailed in the remainder of this document.
- Check the isolation between all cores and between cores and screen/earth. Minimum
isolation of 2MOhms is required.
- Check that the screen of all signal cables is not grounded to earth elsewhere in the
building and that it is installed in accordance with recommendations – refer to relevant
wiring installation sections in this document for more information.
- Check that signal cables are not run in cable trays, or the like, alongside power cables for
this and other equipment.
3.4.3 Mains Power Input
- The DX Connexion Series Fire Alarm Control Panel receives power from a single-phase, 230V,
50Hz, mains supply. The mains input terminal block is located on the PSU-mounting bracket and in
the same way for all DX Connexion Series variants.
- The incoming power feed cable Ground or Earth (Green/Yellow) wire should be connected to the
mains terminal block earth connection – middle terminal.
- Connect the neutral (Blue) wire to the top terminal and connect the Phase or Live (Brown) wire to the
bottom terminal. The mains terminal block contains an integral fuse to provide the required over-
current protection. Rating of the fuse is quoted on the label (located on the front of the PSU-mounting
metal bracket - see Figure 6) and in Appendix 1 Specifications of this document – only replace
with the same type or direct equivalent.
www.acornfiresecurity.com
www.acornfiresecurity.com

12
Morley-IAS
996-203-000-2, Rev. 02
Open and lock out the main circuit
breaker before connecting any wiring.
Do not power the system until the
installation is complete.
Maintain separation between the 230V
and the low voltage wiring. Do not route
in the same trunking and keep apart in
the enclosure.
The panel shall be supplied with single-phase, AC mains power via a readily acces-
sible, third-party-supplied, disconnect device (‘isolation’ switch) to facilitate servic-
ing and be provided with suitable earth fault protection incorporated in the building
installation wiring. The minimum cross-sectional area of the mains cable should be
0.75mm and the supply should be fused with a 5A HRC anti-surge fuse.
3.4.3.1 Mains Cable Glands
The cable gland and cord anchorage bushing used to route the mains cable through
the 20mm knockout MUST have a minimum flame-retardant rating of 94HB.
- Examples of typical glands/ bushings are given in the Product Market Variations Manual.
3.4.4 Battery Installation
- Refer to the Appendix 2 Standby Battery Calculations for the size of the batteries required for a
particular installation.
Do not make the final battery connections until the installation is complete.
CAUTION: RISK OF EXPLOSION – If battery is replaced by incorrect type.
Battery Lead Connections are not power limited.
Before installation:
New Batteries may require ‘top charging’ prior to being put into service. Refer to
battery manufacturer information for confirmation of this requirement. For further
information and for a list of recommended batteries, refer to Appendix 4, Section 1.3.
Ensure the thermistor is affixed to the sidewall of one of the batteries, using a suit-
able silicon sealant.
Figure 6 - Mains Input Arrangement - All Panels
- A readily-accessible disconnect device must be incorporated external to the fire alarm control
equipment. This device must disconnect both poles (L and N) simultaneously. The device should
conform to the requirements specified in EN60950-1, or an equivalent local standard.
www.acornfiresecurity.com
www.acornfiresecurity.com

13
Morley-IAS
996-203-000-2, Rev. 02
3.4.4.1 Wiring/ Terminal Block Arrangement
- The wiring / terminal block arrangement is identical
for all models.
- Included in the packing is a battery cable kit. Use
the cable included in this kit to connect the negative
terminal of battery No.1 to the positive terminal of
battery No.2.
- Connect the red wire from +ve terminal of Base
PCB connector TB17 on the right-hand edge of the
Base PCB to the positive terminal of battery No.1.
- Connect the black wire from -ve terminal of Base
PCB connector TB17 on the right-hand edge of the
Base PCB to the negative terminal of battery No.2.
- The standby batteries should be located in the back box as shown in the diagrams below.
Figure 7 - Battery Wiring/ Terminal Block Details
3.4.4.2 Small Enclosure Arrangement
- The diagram opposite shows the position for the
7Ah batteries in the DXc1 Series panel.
- For battery sizes greater than 7Ah, use the medium
enclosure models DXc2 or DXc4.
- Alternatively, the batteries should be installed in a
separate enclosure suitable for Fire Protection Use,
such as Battery Box 797-025-001, with wiring
connected to the panel through conduit.
Figure 8 - Small Enclosure 7Ah Battery
Installation
When the batteries are connected the panel performs a battery wiring integrity test. If
this test fails BATTERY WIRING FAULT is displayed on the LCD. Check for poor battery
wiring connections and remedy. If the batteries require charging the test is suspended
for a period of up to 12 hours and re-applied. If the batteries have not reached the
required minimum voltage the warning is displayed to indicate that the batteries may
need replacing.
www.acornfiresecurity.com
www.acornfiresecurity.com

14
Morley-IAS
996-203-000-2, Rev. 02
3.4.4.3 Medium Enclosure Arrangement
- The diagram opposite shows the position for the
7Ah batteries in the medium-sized enclosure.
- Place the batteries with wiring terminals uppermost
and push to the rear of the enclosure.
- The diagrams below show the position for the 12Ah
and 17Ah batteries in the medium-sized enclosure.
Figure 9 - Medium Enclosure 7Ah Battery
Installation
Figure 10- Medium Enclosure 12Ah Battery
Installation Figure 11 - Medium Enclosure 17Ah Battery
Installation
3.4.4.4 Battery Operation
- The main microprocessor of the panel periodical checks the state of the AC Mains, battery and
charger circuit. The panel will automatically switch over to the standby battery source when the AC
Mains fails.
- When the panel is operating from AC Mains, the panel checks the output of the charger and whether
the battery is present. To do this, it momentarily turns off the charger output and checks the battery
voltage (battery missing if <15.0V). In a fire alarm condition, the charger is turned off to provide
additional current to the outputs.
- When the panel is operating from the battery standby source, the panel will indicate when the
battery is low (<21.5V) and will automatically switch off the standby power to prevent irreversible
damage (deep discharge) to the batteries (<20.0V).
www.acornfiresecurity.com
www.acornfiresecurity.com

15
Morley-IAS
996-203-000-2, Rev. 02
3.4.5 Detection Loops
3.4.5.1 General Information
- The control panel supports analogue detectors with a data transmission system. It provides power
andcommunicates with theinitiating devices overa two-wire circuit.Allsignallingloopscommunicate
with the panel using a proprietary protocol. In some market regions the selection of protocol
manufacturer is not available. Refer to the Product Market Variations Manual for details.
- The number of detection loops provided on each of the panels is as follows:
Model No. of Loops Enclosure Size
DXc1 1 Small
DXc2 2 Medium
DXc4 4 Medium
EN54-2: 13.7
Maximum of 512
sensors/ MCPs
per panel.
EN54
!
- It is possible for up to 800 addressable input points to be
connected to the DXc4 Series panel.
- To comply with EN54-2 requirements, a maximum of 512
sensors/ MCP’s (input points) only should be connected to
the control panel across all analogue detection loops. This
limitincludesanyconventional detectors/ call pointsconnected
to the system via zone monitors.
- Thepanelconforms with therequirementsof EN54-2 forMCP
alarm input response time.
The detection circuit should be separated from other cable runs to minimize the risk
of external interference. Under extremely noisy conditions, twisted pair wire is
recommended to further reduce interference.
The Detection Loop Circuits are supervised and power limited.
3.4.5.2 Cable Requirements
- Shielded cable must be used for all detection (SLC) circuits. It is important that the shield is always
terminated to a good earth connection at both ends of the loop – earthing connection points are provided
in the enclosure for this purpose. The shield should never be connected to any other earth point in the
building. Refer to Appendix 1 Specifications for guidance on recommended fire-rated cables.
- The core size, length of wiring run and detection circuit loading will produce a voltage drop along the
length of the cable. To determine if the loop driver can fully support the planned loop configuration,
use the detector manufacturers’ calculations for voltage and capacitance.
ALWAYS check that conductors of appropriate diameter are used so that the voltage
at the detectors is within the detector manufacturer’s specification.
The maximum permitted impedance for the SLC Loop is 40 ohms. This must be
reduced if loop powered sounders are installed.
- The following table lists the maximum recommended cable loop lengths for each detection loop
using the indicated cable conductor sizes. Wiring to external devices should follow the appropriate
manufacturer’s instructions.
EN54-2: 7.1.3
Maximum of 10
secs to respond
to MCP alarms.
EN54
3
www.acornfiresecurity.com
www.acornfiresecurity.com

16
Morley-IAS
996-203-000-2, Rev. 02
Table 2 - Maximum Loop Lengths
- Cable runs in excess of 2km (6400’) are not recommended. Otherwise, cable capacitance (Max.
0.5μF per loop) and inductance may start to interfere with data transmission. Refer to the
manufacturers’ quoted figures for maximum cable capacitance.
3.4.5.3 Loop Wiring Installation
·- The SLC (detector) circuits should be installed as loops with or without isolator modules. The wiring
details are as described below.
EN54-2: 12.5.2
Maximum of 32
sensors/ MCPs
between isolators.
EN54
!
For best results and system integrity:
The detection loop circuit should be wired as a loop with
short circuit isolators. This will allow the system to still
function, even if a section of the cable becomes short
circuited. It is recommended that short circuit isolators
be fitted to the detection loop to prevent an external short
circuit from removing more than 32 addressable points
from the system.
- The detection loop connections are made
on terminal blocks at the top of the base
card. The diagrams opposite show the
location of the terminal blocks and typical
wiring connections.
- The DXc1 variant has only one connector
available – i.e. Loop 1. The DXc2 and DXc4
have four connectors available – only Loops
1 and 2 are used on the DXc2.
- Form the loop by taking wires from the
positive and negative terminals, at one side
of the connector on the base card – see
opposite.
- Proceed with installing wiring, around the
loop, connecting all devices – see below.
- Return the wiring to the positive and
negative terminals at the other side of the
connector on the base card.
- Ensure that all devices connected to the
loop are correctly oriented for positive and
negative connections.
- Refer to the detector manufacturers’ data
sheet supplied with the signalling device.
Figure 12 - SLC Connections
Maximum Loop Length
MICC 18 AWG 16 AWG 14 AWG
1.5mm
2 km 1 km 1.5 km 2 km
