Morphy Richards 40692 User manual

SSeemmii--eelleeccttrroonniicciirroonn
steam/spray/shot
Please read and keep these instructions
RN40692 MUK Rev 2
For replacement parts, help with using your Morphy Richards product,
problems and lots more, contact us by phone or through our website.
UUKKHHeellpplliinnee::0088444488771100995533
RReeppllaacceemmeennttPPaarrttss::0088444488773300771199
IIrreellaannddHHeellpplliinnee::11880000440099111199
GGeettttiinnggtthheebbeessttffrroommyyoouurrnneewwiirroonn........
Safety first
Caution must be used when handling this appliance as it
does get very hot. Always switch off the unit and allow to
cool before cleaning or storing.
Self-clean
Your iron will give the best ironing results and will last longer
if you clean the soleplate once a month, see ‘Maintenance’
on pages 6 & 7.
40692 rev2 20/6/08 14:32 Page 1

22
IMPORTANT
SAFETY
INSTRUCTIONS
The use of any electrical
appliance requires the
following common sense
safety rules.
Primarily there is danger of
injury or death and secondly
the danger of damage to the
appliance. These are
indicated in the text by the
following two conventions:
WARNING: Danger to the
person!
IMPORTANT: Damage to the
appliance!
In addition, we offer the
following safety advice.
Location
• Do not use outdoors or near
water.
• The iron must be used and
rested on a stable surface.
Children
• Close supervision is
necessary when any
appliance is used near
children.
• Children do not understand
the dangers associated with
operating electrical
appliances.
• Children should be
supervised to ensure that
they do not play with the
appliance.
Personal safety
•WARNING: Burns can
occur from touching hot
metal parts, hot water or
steam. Use caution when
you turn a steam iron
upside down, there may be
hot water in the water
tank.
•WARNING: To protect
against the risk of electric
shock, do not put the
appliance in water or in
any other liquid.
• Do not use the vertical steam
feature on clothes that are
being worn.
• Do not leave the iron
unattended whilst plugged in
or on an ironing board. Never
allow the mains lead to over
hang the work surface.
• The socket should always be
off before plugging or
unplugging from the socket.
Never yank the cord to
disconnect from the socket,
instead, grasp the plug and
pull to disconnect.
• Do not allow the cord to
touch hot surfaces. Let the
iron cool completely before
putting away. Loop the cord
loosely around the iron
before storing.
• The iron must not be left
unattended while it is
connected to the supply
mains.
• When placing the iron on it’s
heel, ensure that the surface
on which the heel is placed
is stable.
Other safety
considerations
• Use the iron only for it’s
intended use.
• Always disconnect the iron
from the electrical socket
when filling with water or
emptying, and when not in
use.
• This appliance is not
intended for use by persons
(including children) with
reduced physical, sensory or
mental capabilities, or lack of
experience or knowledge,
unless they have been given
supervision or instruction
concerning use of the
appliance by a person
responsible for their safety.
• Do not operate the iron with
a damaged cord, or if the
iron has been dropped or
damaged and if there are
visible signs of damage, or if
it is leaking. To avoid the risk
of electric shock, do not
disassemble the iron, but
telephone Morphy Richards
for advice. Incorrect
reassembly can cause a risk
of electric shock when the
iron is used.
Special
instructions
• If your iron does not work,
check the following points:
Has the temperature control
been set to the required
temperature? Is the plug in
it’s socket? Is the plug itself
or the socket faulty? (Check
by plugging in another
appliance).
•WARNING: When not in
use, your iron should
never be placed flat and
left on an ironing board.
• To prevent damage to the
textile being ironed, follow
the temperature guide
carefully. (Test the inside of
the hem of the garment).
• When ironing is complete,
remove the plug from the
socket, empty any remaining
water from the tank, and
allow to cool before storage.
• If you drop or severely knock
your iron, this could cause
internal damage even if the
outside appears alright. Have
it checked by a qualified
electrician.
• It is recommended that you
use up one beaker of water
by operating your iron’s
steam and shot of steam
functions before ironing any
clothes as some dripping
may occur while your iron’s
steam system is activated.
UUKKHHeellpplliinnee0088444488771100995533RReeppllaacceemmeennttPPaarrttss0088444488773300771199IIrreellaannddHHeellpplliinnee11880000440099111199
40692 rev2 20/6/08 14:32 Page 2

ELECTRICAL
REQUIREMENTS
Check that the voltage on the
rating plate of your appliance
corresponds with your house
electricity supply which must be
A.C. (Alternating Current).
If the socket outlets in your home
are not suitable for the plug
supplied with this appliance, the
plug should be removed and the
appropriate one fitted.
WARNING: The plug removed
from the mains lead, if severed,
must be destroyed, as a plug
with a bared flexible cord is
hazardous if engaged into a live
socket outlet.
Should the fuse in the 13 amp plug
require changing, a 13 amp
BS1362 fuse must be fitted.
WARNING: This appliance must
be earthed.
Heat setting markings on the adjustable control dial of all Morphy Richards irons match those of
the International Textile Care Labelling Code.
Symbol
(120°C Max) Cool (160°C Max) Warm (210°C Max) Hot
Control knob
positions
Do not iron
at all
Fabric Nylon, Acetates
e.g. Acrilan
Courtelle, Orlon
Triacetates, e.g.
Tricel/Polyester
Wool, Polyester
mixtures e.g.
Polyester/Cotton
Cotton, Linen
Rayon, Rayon
mixtures,
e.g. Rayon/Linen
Ironing Iron on wrong side
if moisture required
use damp cloth
(Not Acetate)
Fabrics requiring this
setting usually require
steam pressing for heavy
cotton, denim etc.
With water in tank Dry and spray Steam/spray/shot of steam
Without water in tank Dry ironing
INSTRUCTIONS FOR USE
33
Temperature guide
Self clean
40692 rev2 20/6/08 14:32 Page 3

44
COMPONENTS
OF YOUR IRON
⁄⁄Shot of steam button
¤¤Spray button
‹‹Variable steam switch
››Filling hole with cap
fifiSpray nozzle
flflSoleplate
‡‡Self-clean button
··Temperature console
‚‚Water tank (illuminated on
some models)
„„Life long anti-scale lens
(certain models only)
‰‰Auto shut-off indicator
ÂÂTemperature selection
button
ÊÊFilling beaker
BEFORE USE
Sort out the items to be
ironed according to the
type of fabric. This will
minimise the frequency of
temperature adjustment for
different garments.
Note: The steam facility
should only be used on
garments which are
suitable for ironing at the
3 dot and MAX setting.
Textiles and clothes are
supposed to carry ironing
instructions. If they don’t,
you should follow the
fabric guide on page 3, but
be sure to test the
temperature by ironing the
hem of the garment or
similar area first.
If you adjust the
temperature selection
button ÂÂdown from a hot
setting to a cooler setting,
wait until the iron
temperature has stabilised
before you continue
ironing.
Delicate fabrics such as
silk, wool, velour, etc, are
best ironed with an ironing
cloth to prevent shine
marks.
FILLING AA
1Make sure that the iron is
not plugged in, then set
the steam selector switch
‹‹to the ‘0’ position
before filling the iron with
water.
2Lift up the filler cap ››and
pour water through the
hole into the water tank ‚‚,
using the beaker provided
ÊÊAA.
350ml of water fills the
tank. After filling, replace
the fill cap. In hard water
areas, the use of distilled
or demineralised water is
recommended.
WARNING: Never use
battery topping up fluid
or water containing any
substances like starch,
or sugar, or defrosted
water from a refrigerator.
3Always pour out the
remaining water after use.
WARNING: When filling
your iron with tap water,
always use the beaker
provided. Never fill
directly under the tap.
fl·‡ ‚
‰
400
350
300
A
‹
¤
⁄
›
fi
Ê
„
Â
UUKKHHeellpplliinnee0088444488771100995533RReeppllaacceemmeennttPPaarrttss0088444488773300771199IIrreellaannddHHeellpplliinnee11880000440099111199
40692 rev2 20/6/08 14:32 Page 4

55

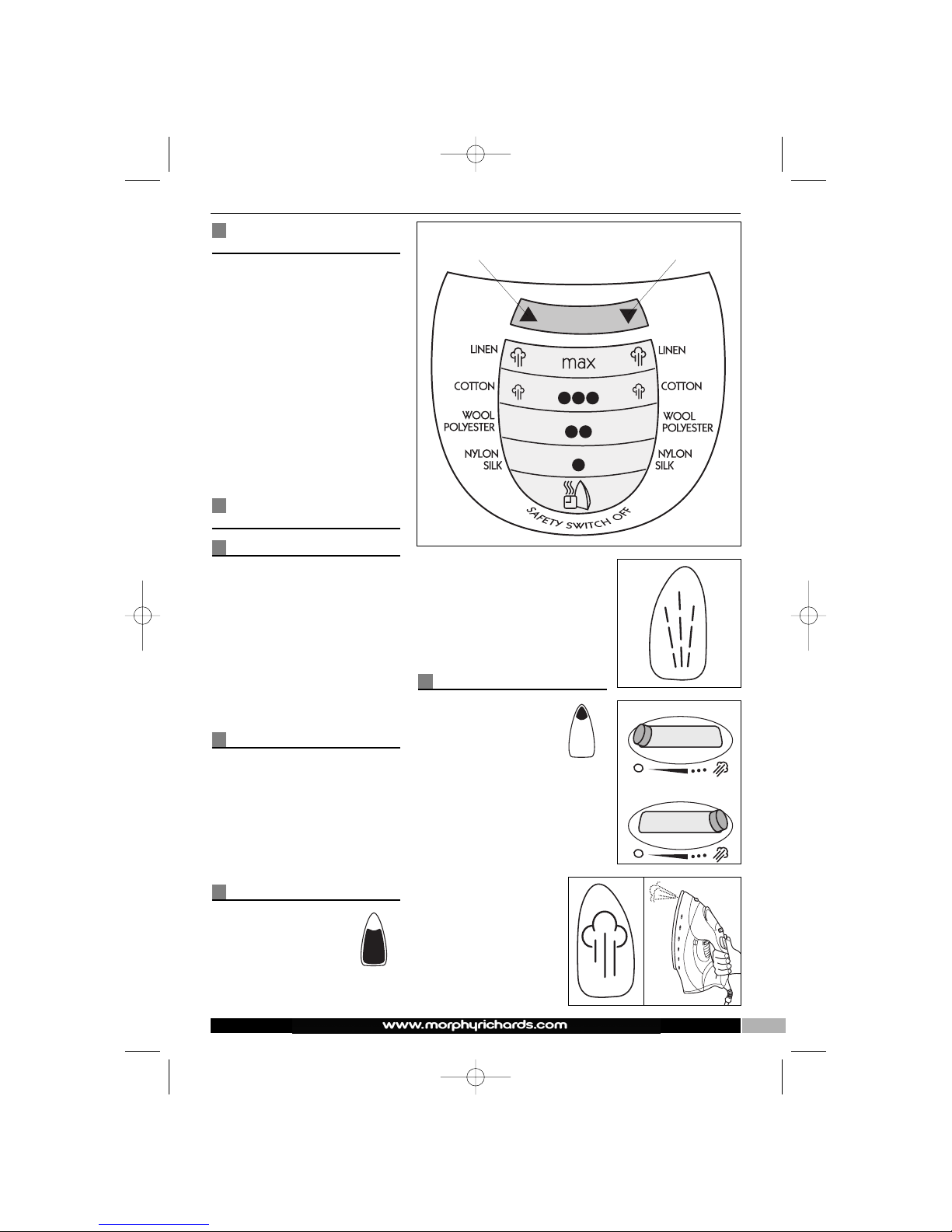

Temperature
control BB
• Default setting + 3 dot (cotton).
• To increase the temperature,
press the arrow !.
• To decrease the temperature,
press the arrow ".
• The temperature console ··will
flash to indicate that the iron
has not yet reached the correct
temperature.
• Once the correct temperature
has been reached, the light will
stop flashing and there will be
one ‘beep’ to signal that the iron
is now ready for use.
FEATURES OF YOUR
IRON
Dry ironing
You can use your iron as a dry
iron only. Make sure the variable
steam control ‹‹is set to the ‘0’
symbol.
Any temperature setting may be
used depending on the
garment. The spray feature may
be used, providing there is water
in the tank (see filling section).
You do not need to put any
water in the tank when dry
ironing only.
Spray CC
Press the spray button ¤¤and
aim the spray of water at
stubborn creases.You can do
this whilst dry ironing, providing
there is water in the tank. When
using the water spray, it may be
necessary to push the button a
few times to get the spray pump
primed.
Variable steam DD
Fill the iron with water,
as described in ‘Filling’
on page 4, and insert
the plug into the
electrical socket.
The steam output can be varied
from low to high by moving the
variable steam control DD.
The steam facility should only
be used on garments which are
suitable for ironing at the 3 dot
and MAX setting.
Shot of steam EE
Press the shot of steam
button ⁄⁄to obtain a
burst of extra steam for
ironing out creases in
heavy material such as
denim etc.
The shot of steam can be used
whilst dry ironing, providing
there is water in the tank, and
the temperature control is set
within the steam range.
Do not use the shot of
steam at temperatures
below the steam range
shown on the control
dial.
Note: For optimum
steam quality, do not
operate the shot more
than three times in
succession.
BBIncrease
temperature
Decrease
temperature
CC
Steam off
‘MAX’ steam
DD
55
EE
40692 rev2 20/6/08 14:32 Page 5

66
Vertical steam FF
Hold the iron in a vertical
position between 1cm and 2cm
away from the item FF. Press the
shot of steam button ⁄⁄, this will
create vertical steam. This
feature is especially useful for
removing creases from hanging
clothes, curtains, wall hangings,
etc.
Note; For optimum steam
quality, do not operate the shot
more than three times in
succession.
No drip system
Your iron is fitted with a no drip
system which is designed to
prevent water escaping from the
soleplate when the iron is too
cold.
During use, the no drip system
may emit a loud click,
particularly during heat-up or
whilst cooling down. This is
perfectly normal and indicates
that the system is functioning
correctly.
Auto shut-off
Your iron is fitted with the auto
shut-off function, it will
automatically shut down after a
set period. The ‘safety switch
off’ LED will flash on the
function panel.
If the iron is left unattended in
the horizontal position, it will
shut down after 1 minute.
If it is left in the vertical position,
it will shut down after 8 minutes.
To reactivate the iron, gently
shake it and wait for the iron to
heat-up as normal.
Life long anti-scale
system
The life long anti-scale system
reduces scale deposits and
helps prolong the life of the iron.
MAINTENANCE
Self cleaning GG
Your iron has a built in cleaning
system designed to keep the
water valve, steam chamber and
steam vents clear of lint and
loose mineral deposits.
1Half fill the iron with water.
2Place the iron on it’s heel.
3Connect to a mains supply
outlet.
4Set the temperature control to
‘MAX’. See ‘Temperature
control’ on page 5.
5The indicator LED will flash until
the required temperature is
reached.
6The indicator LED remains ‘on’
when the selected temperature
is attained.
7Disconnect the iron from the
mains supply outlet.
8Hold the iron horizontally over a
sink.
9Press and hold down the
Self-clean button ‡‡GG.
10 Steam and boiling hot water will
drain from the holes in the
soleplate, washing away the
scale and minerals that have
built up inside the Steam
Chamber.
11 Gently move the iron back and
forth until the water tank is
empty.
12 When cleaning is complete,
release the Self-clean button ‡‡.
13 Rest your steam iron back on
it’s heel and allow to fully cool
down.
14 Wipe the soleplate with a cold,
damp cloth.
After this cleaning operation,
empty out any remaining water.
GG
FF
‡
UUKKHHeellpplliinnee0088444488771100995533RReeppllaacceemmeennttPPaarrttss0088444488773300771199IIrreellaannddHHeellpplliinnee11880000440099111199
40692 rev2 20/6/08 14:32 Page 6

77
WARNING: Keep hands and
body away from the hot
water.
WARNING: Do not attempt to
descale the soleplate with
descaling products.
To clean a stainless
steel soleplate
To keep the soleplate of your
iron clean and free of limescale,
we recommend that you use
one of the gentle chrome, silver
or stainless steel cleaners that
are generally available. Always
follow the manufacturer’s
instructions. To clean off melted
man-made fibres, set the iron at
the 3 dot position and pass it
over a clean piece of cotton
which will draw the deposit off
the surface.
To clean a coated
soleplate (certain models)
In the unlikely event of any man-
made fibre fusing to the
soleplate, set the iron at the 3
dot position and pass it over a
clean piece of cotton which will
draw the deposit off the surface.
Do not use scouring powder or
solution as this could cause
damage to the coating.
To clean the exterior
Allow the iron to cool and wipe
over with a damp cloth and mild
detergent, then wipe with a dry
cloth.

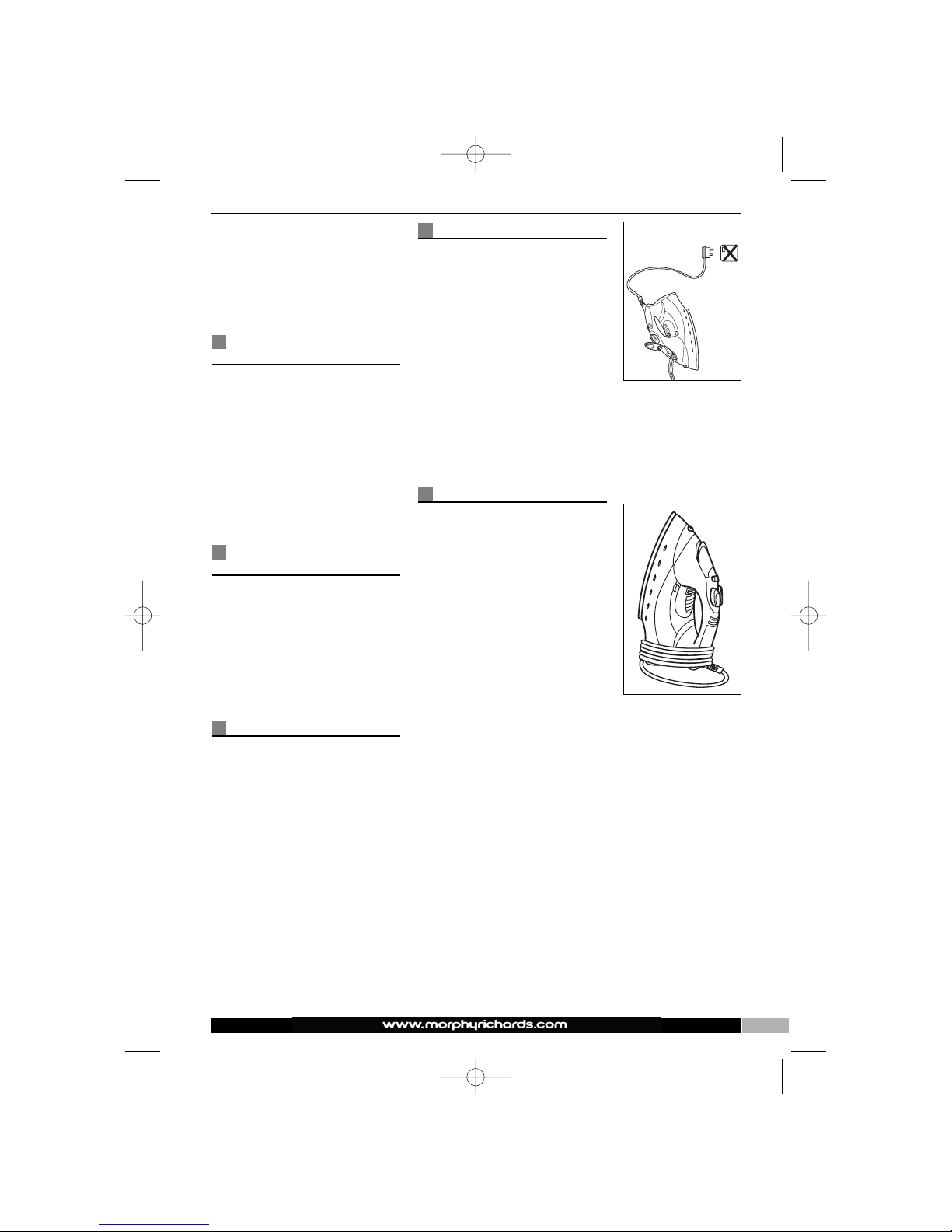

Emptying and storing
When you have finished ironing,
unplug your iron. Ensure that the
variable steam control is set at
the ‘0’ position, lift up the fill cap
and empty any remaining water
out of the filling hole. Do not
store in the box, but in an
upright position, so that any
drops of water remaining cannot
leak out and discolour the
soleplate HH.
Important: The flex can be
damaged if wound too tightly
around the iron after use. Make
a loose loop with the flex and
wrap it around the iron. The iron
must be cool before winding the
flex and storing on it’s heel II.
Helpline
If you have any difficulty with
your appliance, do not hesitate
to call us.
We are more likely to be able to
help than the store from where
you bought it.
Please have the following
information ready to enable our
staff to deal with your query
quickly.
• Name of the product.
• Model number as shown on the
underside of the appliance.
• Serial number as shown on
underside of the appliance.
UK Helpline 0844 871 0953
Replacement Parts 0844 873 0719
Ireland Helpline 1800 409 119
HH
II
40692 rev2 20/6/08 14:32 Page 7

Morphy Richards products are intended for household use only.
Morphy Richards has a policy of continuous improvement in product quality and
design. The company, therefore reserves the right to change the specification of
it’s models at any time.
The After Sales Division
Morphy Richards Ltd
Mexborough, SouthYorkshire,
England, S64 8AJ
Helpline (office hours)
UK 0844 871 0953
Spare Parts 0844 873 0719
Republic of Ireland 1800 409 119
RN40692 MUK Rev 2 06/08
For details of other products in the Morphy Richards range, please see our website . . .
YOUR TWO YEAR
GUARANTEE
It is important to retain the retailer’s
receipt as proof of purchase. Staple
your receipt to this back cover for
future reference.
Please quote the following
information if the product develops a
fault. These numbers can be found
on the base of the product.
Model no.
Serial no.
All Morphy Richards products are
individually tested before leaving the
factory. In the unlikely event of any
appliance proving to be faulty within
28 days of purchase, it should be
returned to the place of purchase for
it to be replaced.
If the fault develops after 28 days
and within 24 months of original
purchase, you should contact the
Helpline number quoting Model
number and Serial number on the
product, or write to Morphy Richards
at the address shown. You may be
asked to return a copy of proof of
purchase.
Subject to the exclusions set out
below (see Exclusions), the faulty
appliance will then be repaired or
replaced and dispatched usually
within 7 working days of receipt.
If for any reason this item is replaced
during the 2 year guarantee period,
the guarantee on the new item will
be calculated from original purchase
date. Therefore, it is vital to retain
your original till receipt or invoice to
indicate the date of initial purchase.
To qualify for the 2 year guarantee,
the appliance must have been used
according to the manufacturer’s
instructions. For example, kettles
should have been regularly descaled.
EXCLUSIONS
Morphy Richards shall not be liable
to replace or repair the goods under
the terms of the guarantee where:
1The fault has been caused or is
attributable to accidental use,
misuse, negligent use or used
contrary to the manufacturer’s
recommendations, or where the fault
has been caused by power surges or
damage caused in transit.
2The appliance has been used on a
voltage supply other than that
stamped on the products.
3Repairs have been attempted by
persons other than our service staff
(or authorised dealer).
4The appliance has been used for hire
purposes or non domestic use.
5The appliance is second-hand.
6Morphy Richards are not liable to
carry out any type of servicing work,
under the guarantee.
7Plastic filters for all Morphy Richards
kettles and coffee makers are not
covered by the guarantee.
• This guarantee does not confer any
rights other than those expressly set
out above and does not cover any
claims for consequential loss or
damage. This guarantee is offered as
an additional benefit and does not
affect your statutory rights as a
consumer.
• This guarantee is valid in the UK and
Ireland only.
88
For electrical products sold
within the European
Community. At the end of the
electrical products useful life,
it should not be disposed of
with household waste.
Please recycle where facilities
exist. Check with your Local
Authority or retailer for
recycling advice in your
country.
40692 rev2 20/6/08 14:32 Page 8
