Morphy Richards BAGLESS CYLINDER VACUUM CLEANER - REV 2 User manual

Bagless cylinder vacuum cleaner
Please read and keep these instructions
VC73271 MUK Rev 2
For replacement parts, help with using your Goblin product, problems
and lots more, contact us by phone or through our website.
UUKKHHeellpplliinnee::0088444488771100994499
RReeppllaacceemmeennttPPaarrttss::0088444488773300771155
IIrreellaannddHHeellpplliinnee::11880000440099111199
Getting the best from your new cleaner...
If your cleaner is not picking up as well as it should, please check
Dust canister
It is important to regularly empty the canister, even if it does not appear full.
Filters
IIttiissiimmppoorrttaanntttthhaatttthheedduussttccaanniisstteerrpplleeaatteedd//mmeesshhffiilltteerriissttaappppeeddaanndd
bbrruusshheeddcclleeaannoovveerraadduussttbbiinneeaacchhttiimmeetthheedduussttccaanniisstteerriisseemmppttiieedd,,tthhiiss
aalllloowwssaaiirrtthhrroouugghhtthheeaapppplliiaannccee..WWaasshhtthheeccaanniisstteerrffiilltteerrssrreegguullaarrllyyiinn
lluukkee--wwaarrmmwwaatteerraannddaalllloowwttooaaiirrddrryybbeeffoorreerree--ffiittttiinngg..
Blockages
Check nozzles, tubes and hose and dust canister connector for blockages
or partial blockages that may impair the performance of the cleaner.
Eco switch and air-flow control
When maximum suction is required, make sure the air-flow control is closed
and the Eco Switch is set to MAX.
wwwwww..ggoobblliinn--vvaaccuuuummss..ccoomm
73271 rev2 27/10/08 09:48 Page 1

2
IMPORTANT
SAFETY
INSTRUCTIONS
The use of any electrical
appliance requires the
following common sense
safety rules.
Primarily there is danger of
injury or death and
secondly the danger of
damage to the appliance.
Please read these
instructions before using
the cleaner.
Location
• Do not use or keep this
product outside.
• Do not store the appliance
near hot surfaces eg.
ovens or heating
appliances.
Mains lead
• Do not allow the mains
lead to become strained or
run this appliance over it.
• If the electrical cable
becomes damaged, the
cable assembly must be
replaced. Do not attempt
this task yourself, contact
the helpline number that is
found at the bottom of the
page.
Personal safety
•WARNING: Keep loose
clothing, hair, fingers
etc. away from the
turbo nozzle during
use.
•WARNING: When using
the cable rewind,
always hold the plug as
the cable will rewind
quickly.
• The plug must be removed
from the wall socket before
cleaning or maintaining the
appliance.
• Never use in the presence
of explosive liquid or
vapours.
• Never pick up inflammable
or poisonous liquids such
as petrol, copier toner or
other volatile substances.
Never pick up acids,
asbestos or asbestos dust.
• Never touch the plug or
cable with wet hands.
• Unprofessional repairs can
be dangerous for users.
• The appliance must never
be left running
unsupervised.
• This appliance is intended
for domestic use only.
Misuse or use for
commercial or any other
purpose will render the
guarantee invalid.
• Always disconnect the
appliance from the mains
supply after use or prior to
emptying, cleaning or
maintaining.
• To protect against fire,
electric shock and personal
injury, do not immerse
cord, plug or cleaner in
water or other liquid.
• This appliance is not
intended for use by
persons (including children)
with reduced physical,
sensory or mental
capabilities, or lack of
experience and knowledge,
unless they have been
given supervision or
instruction concerning the
use of the appliance by a
person responsible for their
safety.
Product safety
• Never use the appliance
without the filters being
installed.
• Never use the appliance to
vacuum hot ashes, broken
glass, sharp objects or
liquids.
• Use only Goblin spare
parts and accessories.
• Never modify the cleaner in
any way.
Children
• Children do not understand
the dangers associated
with operating electrical
appliances. Never allow
children to use this
appliance.
• Children should be
supervised to ensure that
they do not play with the
appliance, or stumble over
the power cord.
ELECTRICAL
REQUIREMENTS
Check that the voltage on
the rating plate of your
appliance corresponds with
your house electricity
supply which must be A.C.
(Alternating Current).
If the socket outlets in your
home are not suitable for
the plug supplied with this
appliance, the plug should
be removed and the
appropriate one fitted.
If you cut off the plug and
let go of the cable, it will
rewind into the machine,
therefore you must pull out
a length of cable and
secure it before cutting the
plug off and re-fitting a new
one.
WARNING: The plug
removed from the
mains lead, if severed,
must be destroyed, as
a plug with a bared
flexible cord is
hazardous if engaged
into a live socket
outlet.
Should the fuse in the 13
amp plug require changing,
a 13 amp BS1362 fuse
must be fitted.
UUKKHHeellpplliinnee0088444488771100994499RReeppllaacceemmeennttPPaarrttss0088444488773300771155IIrreellaannddHHeellpplliinnee11880000440099111199
73271 rev2 27/10/08 09:48 Page 2

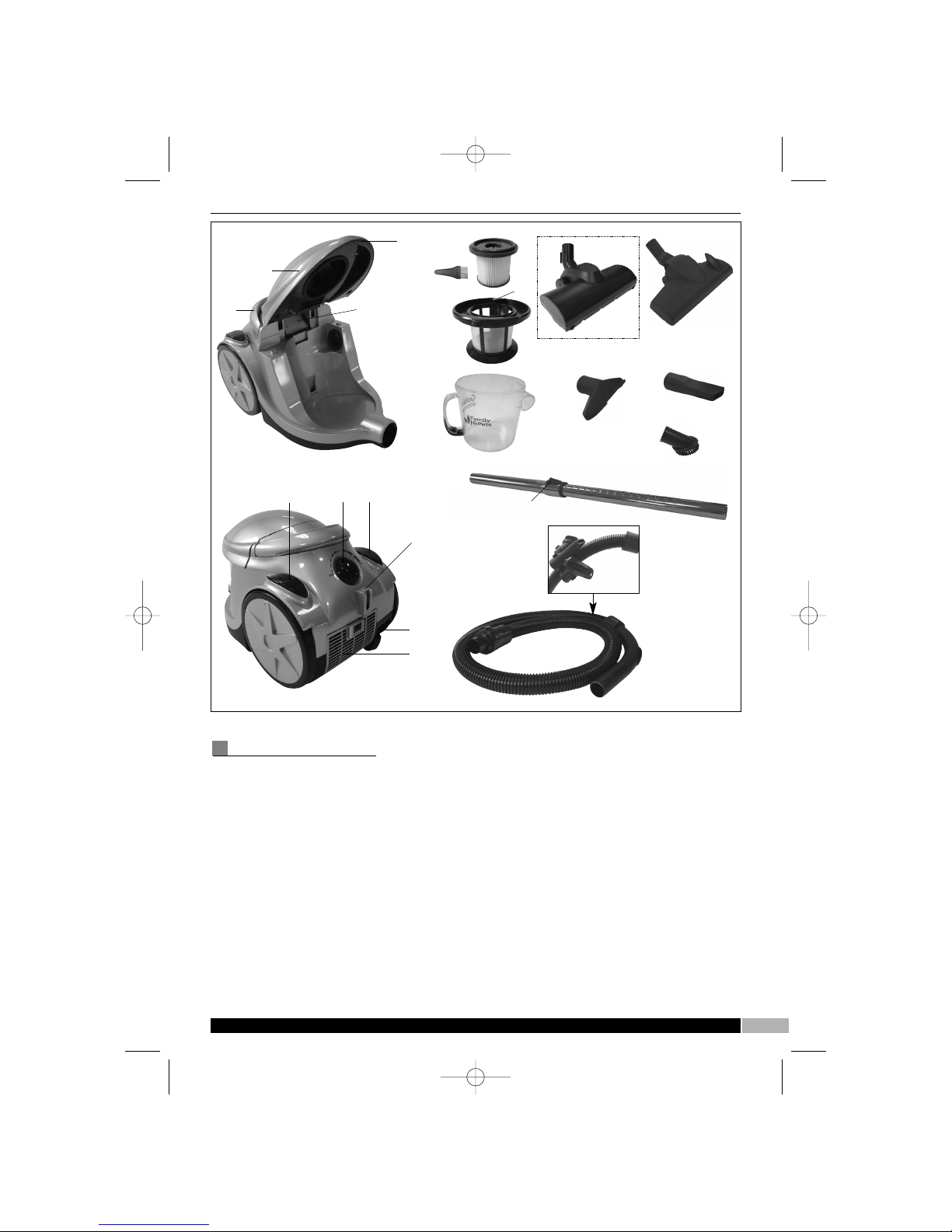

FEATURES
⁄Dust compartment lid
¤Carrying handle
‹Dust compartment lid
release catch (Note: If the
dust canister filter is not
fitted, the cover will not
close)
›Motor protection filter
fiHose inlet
flOn/off switch
‡Eco Switch
·Cable rewind switch
‚Tube standby slot
„Power cable and plug,
in storage area
‰Exhaust air filter cover
ÂPleated filter canister
ÊFilter brush
ÁFilter clip
ËMesh filter
ÈDust canister
ÍTurbo brush
(certain models only)
ÎCombination floor nozzle
ÏUpholstery nozzle
ÌCrevice tool
ÓDusting brush
ÔTelescopic metal tube
Telescopic tube slider
release button
ÒClip-on tool holder
ÚSuction hose
ÛSuction hose handle with
air flow control
fl
„
3
·
⁄
¤
‹
›
‡
‰
‚
wwwwww..ggoobblliinn--vvaaccuuuummss..ccoomm
fi
Ë
Á
È
Û
Â
Ú
Í
ÏÌ
Î
Ê
Ô
Ó

Ò
73271 rev2 27/10/08 09:48 Page 3

4
OPERATING THE
APPLIANCE
OPERATION
Suction hose A
Push the 360° rotating head on
the suction hose Úinto the
suction hose inlet fion the
vacuum cleaner.
To remove, press the buttons on
the hose and pull out.
The appropriate cleaning tool
can be attached directly to the
other end of the suction hose or
the telescopic metal tube can
be used between the suction
hose and the tool.
TOOLS AND
ACCESSORIES
Telescopic tube
Attach the telescopic tube Ôto
the handle end Ûof the hose
Ú. Extend to the required
length by pressing down the
slider release and pulling out
the tube B. Attach the required
accessory to end of the tube.
Combination floor
nozzle Î
This nozzle is suitable for
general purpose cleaning on a
wide variety of floor coverings.
Turbo brush Í
(certain models only)
This nozzle is suitable for
cleaning and rejuvenating cut
pile carpets and is ideal for
picking up stubborn dirt and pet
and human hairs.
Cleaning the turbo
nozzle
The turbo nozzle should be
regularly cleaned and any hairs
or fibres wrapped around the
brush bar removed to maintain
optimum performance.
A cover on the base allows
access to the turbine in case any
large particles become trapped.
Other
accessories
include:
•Upholstery nozzle
Ïfor sofas,
armchairs etc.
•Crevice tool Ì for
awkward places,
corners and behind
radiators etc.
•Dusting brush Ófor
pelmets, delicate
objects etc.
Tool storage C
The upholstery nozzle
Ï, and the crevice
tool Ìand dusting
brush Ó may be
stored on the hose
using the clip-on tool
holder Ò.
Standard
accessories Application
Curtains and delicate
fabrics
Textiles and upholstery
Shelves and
hard surfaces
Carpets and
other textile
floor coverings
(brushes up)
Settings for
heavy dirt and
smooth floors
(brushes down)
Ideal for pet and
human hair removal
UUKKHHeellpplliinnee0088444488771100994499RReeppllaacceemmeennttPPaarrttss0088444488773300771155IIrreellaannddHHeellpplliinnee11880000440099111199
A
B
Ï
Í
Î
Î
Ó
Ï
Ì
C
73271 rev2 27/10/08 09:48 Page 4

5
Switching on
Always pull out the supply cable
to it’s maximum length. Plug the
appliance into the mains supply.
Ensure that the Eco Switch ‡is
set to the required setting before
switching the cleaner on D.
Push the on/off switch flto
start the motor.
Controlling suction
power

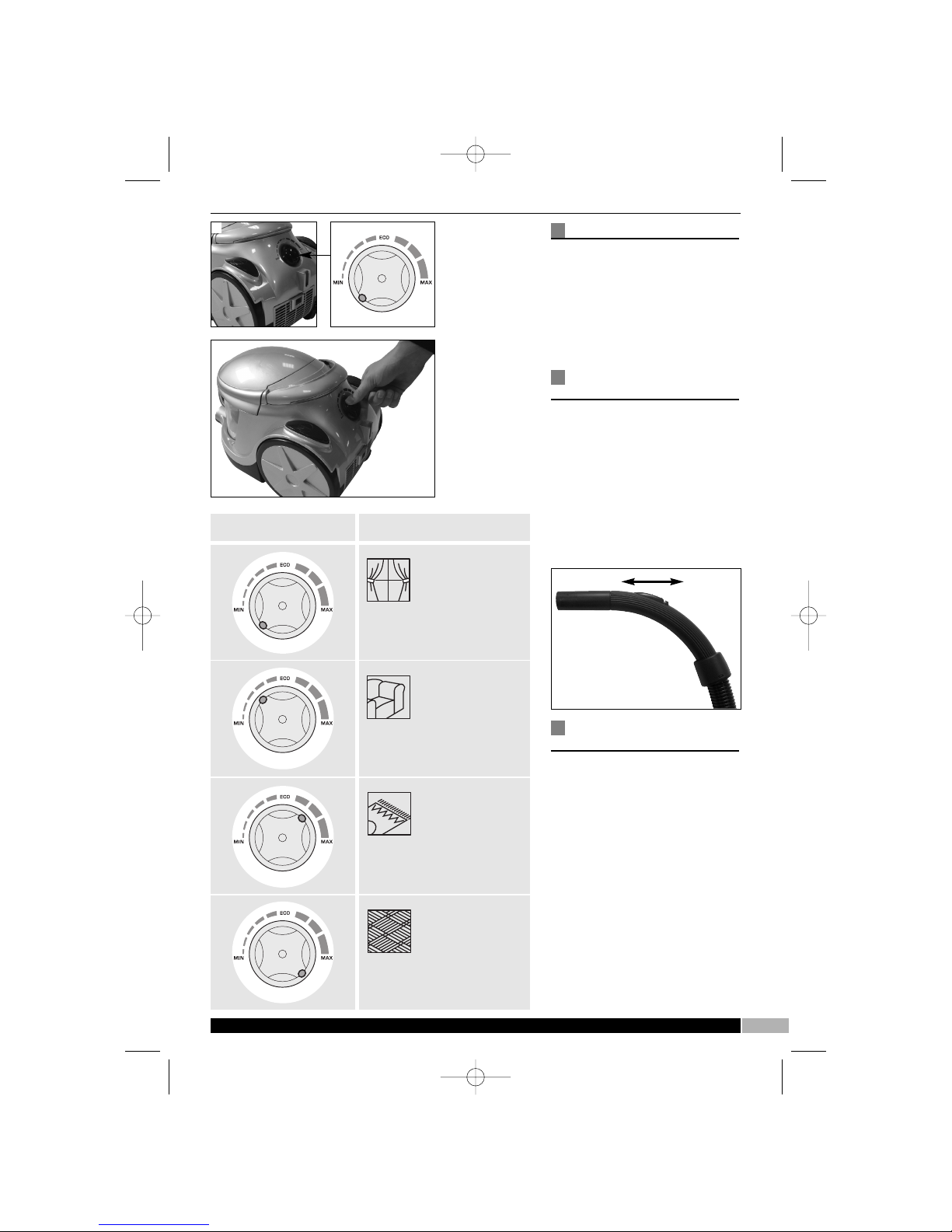

The suction power can be varied
to suit the surface being
cleaned, by using the Eco
Switch ‡ E, see table for
guideline settings.
The suction power can also be
adjusted using the fingertip
control on the handle Û F.
Closed: full suction
Open: reduced suction
Recommended
settings
Alter the power setting to suit
the surface (as shown in the
table, left).
Open Close
Eco Switch Power setting Application
Curtains and
delicate fabrics
Textiles and
upholstery
Floor coverings,
such as rugs,
economy setting
for carpets
Carpets or hard
floor coverings
wwwwww..ggoobblliinn--vvaaccuuuummss..ccoomm
F
D
E
‡
73271 rev2 27/10/08 09:48 Page 5

6
Tube parking G
During short breaks in cleaning,
the tubes can be held in an
upright, ‘standby’ position.
Rotate the floor nozzle until the
lug on the neck can be fitted
into the tube standby slot ‚ on
the rear of the appliance, whilst
you move furniture for instance.
IMPORTANT: Ensure that the
appliance is never left
unattended whilst it is switched
on.
After use, the tube and floor
nozzle may be stored in this
position, but ensure the tube is
in the compacted position.
Switching off H
Switch off the appliance.
Remove the plug from the mains
supply and rewind the power
cable using the cable rewind
switch ·.
WARNING: When using the
cable rewind, always hold
the plug as the cable will
rewind quickly.
MAINTENANCE

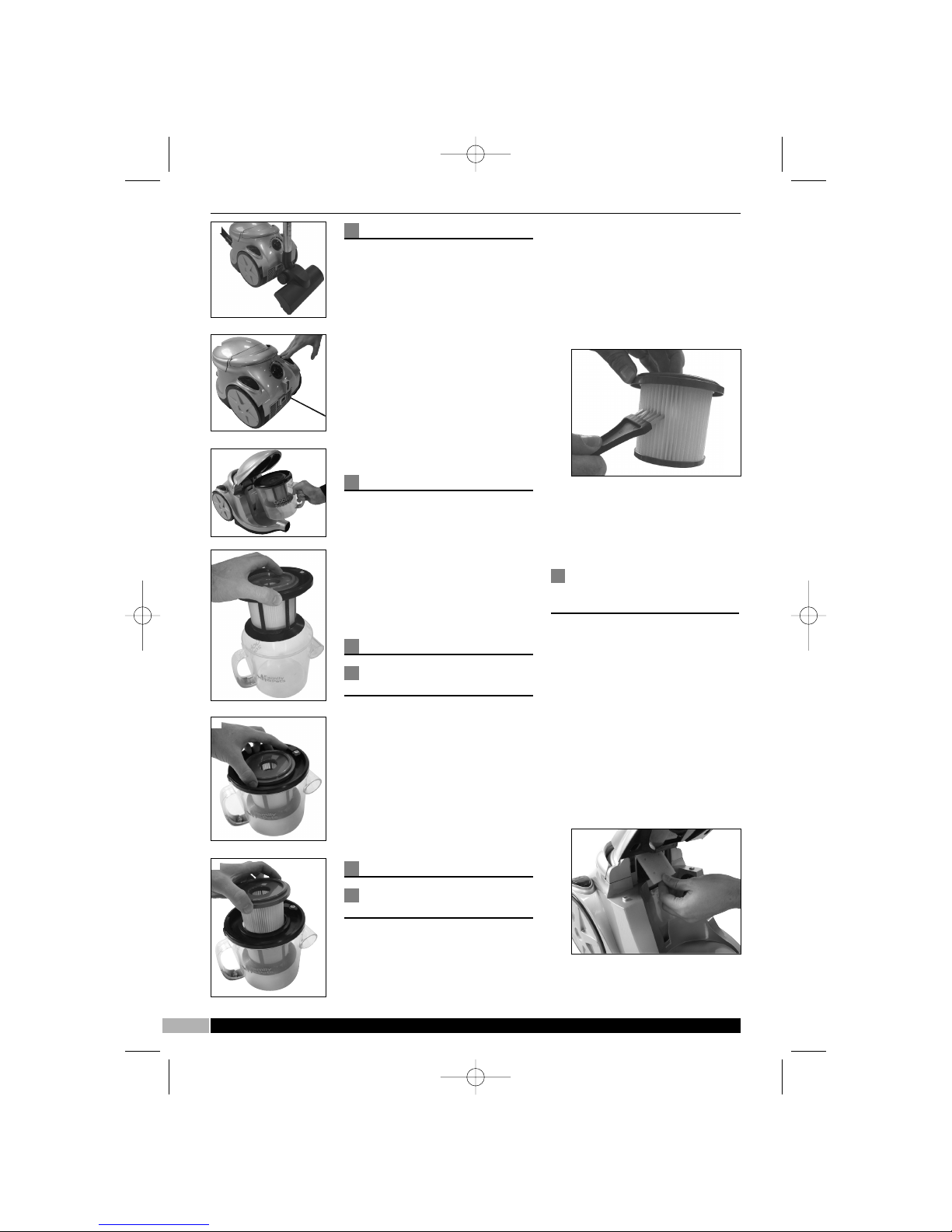

EMPTYING THE
DUST CANISTER
1Turn the cleaner off and unplug
from the mains switch.
2Pull up on the lid release clasp on
the front rim of the lid ‹ . Open
the lid and pull the canister È
away from the main body I.
3Hold the dust canister over the
dustbin. Lift out the mesh filter Ë
J and empty the dust canister
into the dustbin.
FILTERS
Cleaning the dust
canister filters
Clean the dust canister filters
every time the canister is emptied
to maintain high performance.
After emptying, brush off any fluff
that has collected on the mesh
filter.
Push aside the spring-loaded
filter clip Á K and lift out the
pleated filter  L. Tap or brush
the filter to remove dust from the
pleats.
Use the small filter brush Ê
provided to thoroughly clean the
pleats of the filter M.
Every three months, rinse the
filter in luke warm water then
leave to air-dry. The filter must
be completely dry before
re-fitting.

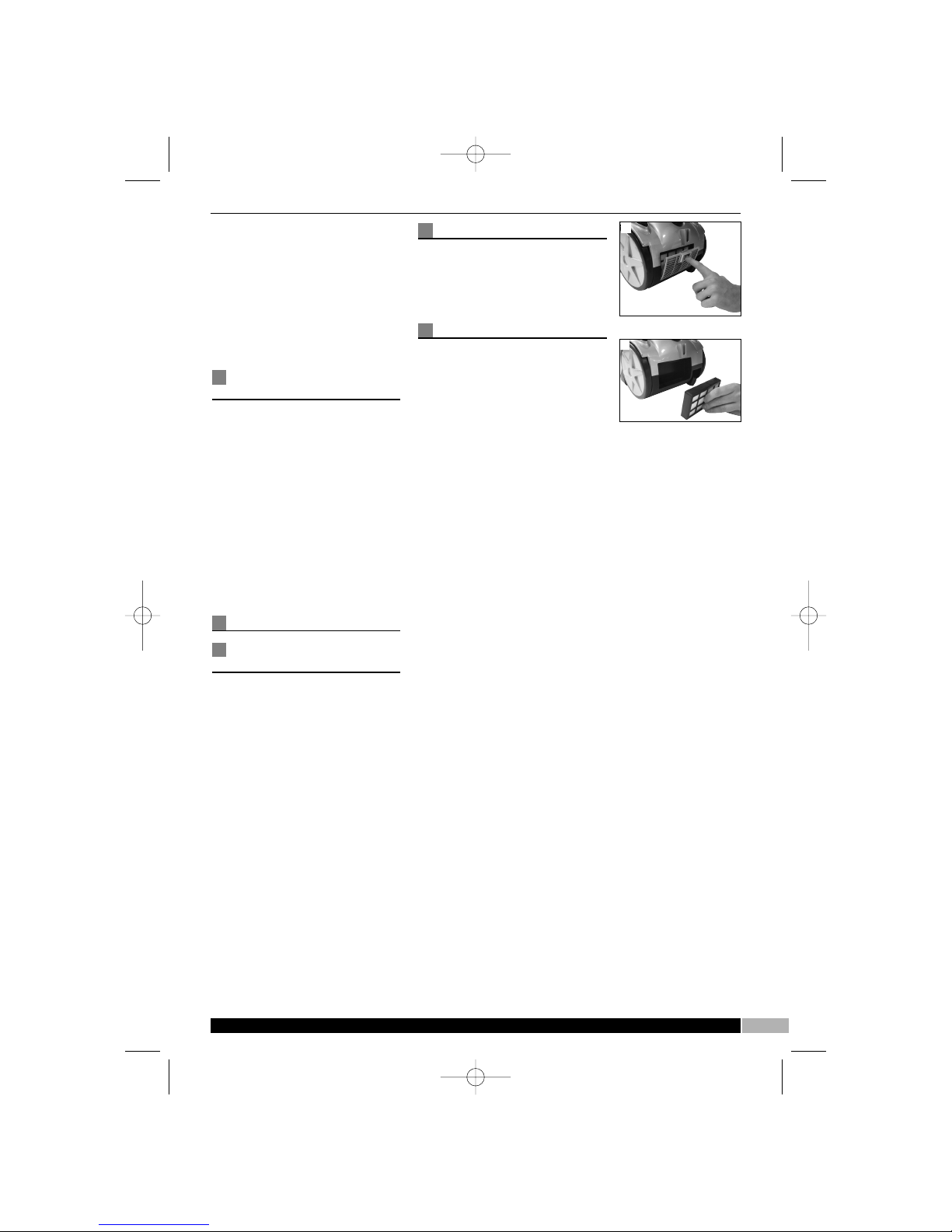

Changing/cleaning
the motor protection
filter
The motor protection filter › is
accessible from the dust
compartment only when the
dust canister has been removed
first.
IMPORTANT: Never use the
appliance without the motor
protection filter installed,
otherwise damage to the motor
may occur which would not be
covered by the guarantee.
1The filter is located under the lid
hinge. Take out the filter and
clean by shaking or by washing
N.
2To wash the filter, gently wash in
luke warm water and leave to air
dry. Do not use detergents.
J
UUKKHHeellpplliinnee0088444488771100994499RReeppllaacceemmeennttPPaarrttss0088444488773300771155IIrreellaannddHHeellpplliinnee11880000440099111199
I
H
G
K
L
N
M
73271 rev2 27/10/08 09:48 Page 6

77
Ensure the filter is fully dry
before replacing into the
machine.
3Place the filter back into
position.
IMPORTANT: Check this filter
every time the dust canister is
emptied and clean if necessary.
Changing/cleaning
the exhaust air filter
We recommend the exhaust air
filter ‰ should be cleaned every
six months.
Release the grill cover by
pressing down on the release
button, below the tube standby
slot ‚ O. Remove the filter
cover by pulling the tab P. Take
out the filter and shake clean. To
wash the filter, gently wash in
luke warm water and leave to air
dry. Do not use detergents.
Ensure the filter is fully dry
before replacing into the
machine.
HINTS AND TIPS
Cleaning and
maintenance
Unplug from the mains supply
before cleaning. The vacuum
cleaner, especially the dust
compartment and all
accessories, can be cleaned
using a damp cloth or a
non-abrasive domestic cleaner
and wiped dry.
To keep the underside of the
floor nozzle clean, vacuum it at
regular intervals using the
crevice tool.
Purchasing filters
Use only genuine replacement
filters which can be purchased
from specialist retailers or by
calling our helpline number
below.
HELPLINE
If you have any difficulty with
your appliance, do not hesitate
to call us.
We are more likely to be able to
help than the store from where
you bought it.
Please have the following
information ready to enable our
staff to deal with your query
quickly.
• Name of the product
• Model number as shown on the
underside of the appliance.
• Serial number as shown on
underside of the appliance.
UK Helpline 0844 871 0949
Replacement Parts 0844 873 0715
Ireland Helpline 1800 409 119
wwwwww..ggoobblliinn--vvaaccuuuummss..ccoomm
O
P
73271 rev2 27/10/08 09:48 Page 7

88
Goblin products are intended for household use only.
Goblin has a policy of continuous improvement in product quality and design.The
company, therefore reserves the right to change the specification of it’s models at
any time.
VC73271 MUK Rev 2 10/08
FFoorrddeettaaiillssooffootthheerrpprroodduuccttssiinntthheeGGoobblliinnrraannggee,,pplleeaasseesseeeeoouurrwweebbssiittee......
YOUR TWO YEAR
GUARANTEE
It is important to retain the
retailer’s receipt as proof of
purchase. Staple your
receipt to this back cover for
future reference.
Please quote the following
information if the product
develops a fault. These
numbers can be found on
the base of the product.
Model no.
Serial no.
All Goblin products are
individually tested before
leaving the factory. In the
unlikely event of any
appliance proving to be
faulty within 28 days of
purchase, it should be
returned to the place of
purchase for it to be
replaced.
If the fault develops after 28
days and within 24 months
of original purchase, you
should contact the Helpline
number quoting Model
number and Serial number
on the product, or write to
Goblin at the address shown.
You may be asked to return a
copy of proof of purchase.
Subject to the exclusions set
out below (see Exclusions),
the faulty appliance will then
be repaired or replaced and
dispatched usually within 7
working days of receipt.
If you suspect a fault, follow
the simple checks detailed
below before retrying the
appliance or calling the
helpline.
• Check the filters for blockages.
• Check the tools / tubes for
blockages.
• Check the plug is firmly in the
socket.
• Check the socket is working by
trying another appliance.
• Check the fuse in the plug.
If, for any reason, this item is
replaced during the 2 year
guarantee period, the
guarantee on the new item
will be calculated from
original purchase date.
Therefore, it is vital to retain
your original till receipt or
invoice to indicate the date of
initial purchase.
To qualify for the 2 year
guarantee, the appliance
must have been used
according to the instructions
supplied.
EXCLUSIONS
Goblin shall not be liable to
replace or repair the goods
under the terms of the
guarantee where:
1The fault has been caused or
is attributable to accidental
use, misuse, negligent use or
used contrary to the
manufacturer’s
recommendations or where
the fault has been caused by
power surges or damage
caused in transit.
2The appliance has been used
on a voltage supply other
than that stamped on the
products.
3Repairs have been attempted
by persons other than our
service staff (or authorised
dealer).
4The appliance has been used
for hire purposes or non
domestic use.
5The appliance is second
hand.
6Goblin are not liable to carry
out any type of servicing
work, under the guarantee.
7The guarantee excludes
consumables such as some
filters.
• This guarantee does not
confer any rights other than
those expressly set out
above and does not cover
any claims for consequential
loss or damage. This
guarantee is offered as an
additional benefit and does
not affect your statutory
rights as a consumer.
• This guarantee is valid in the
UK and Ireland only.
For electrical products sold within the
European Community. At the end of the
electrical products useful life, it should
not be disposed of with household
waste.
Please recycle where facilities exist.
Check with your Local Authority or
retailer for recycling advice in your
country.
wwwwww..ggoobblliinn--vvaaccuuuummss..ccoomm
Goblin is a registered trade mark
of Morphy Richards Ltd.
The After Sales Division
Morphy Richards Ltd
Mexborough, SouthYorkshire,
England, S64 8AJ
Helplines (office hours)
UK 0844 871 0949
Spare Parts 0844 873 0715
Republic of Ireland 1800 409 119
73271 rev2 27/10/08 09:48 Page 8
