Mothers choice SCOUT User manual

•vvv
scout
infant capsule
and base
motherschoice.com.au
follow us on
the only choice
instruction
manual
Illustrations and designs may vary.

•vvv
2
assembling the capsule pg.
Warnings ....................................... 3 - 4
Care and maintenance ......................... 5
Components list ............................ 6 - 8
Safety notice ........................................ 9
using the capsule
Installing with no base ................ 10 - 13
Installing the base ............................ 14
Installing with base ............................ 15
Removing trim ........................... 16 - 17
caring for your capsule
Notes ................................................... 18
Product registration ........................... 19
contacts
Customer service .............................. 20
contents

•vvv
3
Important safety information
General instructions:
1. You are personally responsible for the safety of your baby at all times.
2. Never place your baby on your lap when driving.
3. Do not use second-hand products where the history is unknown.
4. Replace the carrier after an accident.
5. Read this instruction manual carefully and keep it safe for future reference.
WARNING: Do not make any changes to the carrier whatsoever, as this could
affect the performance of the car seat and render it unsafe.
Infant carrier maintenance instructions
1. The cover, cushions and belt pads of the infant carrier can be removed in order
for these to be cleaned. They can be machine-washed. The plastic edge can
be cleaned with water, soap and a soft cloth.
2. If the cover needs to be replaced at any time, only use the cover provided by
original manufacturer.
3. The infant carrier must undergo regular maintenance. Do not use lubricants
or aggressive cleaning agents.
WARNING: Never place the infant carrier on elevated surface (such as a
table or chair).
WARNING: The infant carrier only can be installed in a rear-facing position in
the car.
• Never leave your baby unattended.
• Always secure your baby with the harness belt.
• Before every use, make sure the harness is not damaged or twisted.
• Make sure you can fit no more than one finger between the harness and your
baby (1cm).
• Only use the head cushion of the infant carrier when the shoulder belts are in
the lowest position.
scout
infant capsule
warnings

•vvv
4
scout
infant capsule and base
warnings
• Always check to make sure the infant carrier can be installed properly in your
car before purchasing it.
• Prevent the infant carrier becoming trapped or weighed down by luggage, seats
and/or slamming doors.
• Always cover the infant carrier when exposed to direct sunlight in the car.
Otherwise the cover, metal and plastic parts could become too hot for your
child’s skin.
• Keep all plastic packaging materials out of reach of your child to avoid the risk
of suffocation.
• The infant carrier only can be installed at the rear of the vehicle.
• Make sure to follow manufacturer’s instruction on the infant carrier base
installation with the car safety belt.

•vvv
5
scout
infant capsule and base
care and maintenance
• Alwaysstoreinacleananddryplace.
• Cleantheframebywipingwithadampcloth.
• Donotuseabrasives,bleachorstrongdetergents.
• Spotcleanfabricswithwarmwater(nohotterthan30ºC)andmildsoap.
• Ensurefabricisdrybeforestoring.
• Donotleaveindirectsunlight.
• Pleasesecurethefabricswithsafetybeltswhennotusing.
IMPORTANT:
Thetrim(fabriccover)isasafetyfeature.Neverusethechildseatwithoutit.Don’t
putyourchild’ssafetyatriskbyusingotherreplacementtrim,asthiscouldstopthe
childseatfromprotectingyourchildaswellasitshould.
WASHING INSTRUCTION:
• Thetrimisremovableandwashableat30ºC.
• Linedryonly.
• Thecradle,safetybelts,andplasticcomponentcanbespotwashedwithwarm
waterandmildsoap.
• Don’tuseabrasives,bleacherorstrongdetergents.

•vvv
6
scout
infant capsule and base
components list
1. Handle
2. Harness strap
3. Harness pads
4. Buckle
5. Harness release lever
6. Harness tightening strap
7. Canopy
8. Handle adjustment buttons
9. Belt path hook
10. Angle guide
11. Installation label

•vvv
7
scout
infant capsule and base
components list
12. Release handle
13. Central belt path hook
14. Harness adjustor slot
15. Harness strap connector
16. Iron hooks

•vvv
8
scout
infant capsule and base
components list
17. Belt path
18. Hook attachment points

•vvv
9
scout
infant capsule and base
safety notice
Safety notice:
Installthisrestraintinavehiclewithshoulder/lapbelt,andensureitisinstalledonthe
passengerseatNOTequippedwithanairbag.
Alwayskeeptherestraintrearward-facing(inoppositiontothedrivingdirection)on
therearpassengerseat.
Warning:Theinfantcarriercanonly
beinstalledattherearofthevehicle.
This capsule is applicable for group 0+ weighing 0-13 kgs, aging
from newborn to 12 months.
WARNING:
Tobeusedonlyinarearward-facingpositionuntilapproximately12
monthsor13kg.

•vvv
10
scout
infant capsule and base
installing with no base
1. Usingthecarsafetybelt.
2. Feedthelapbeltofvehiclethroughthebeltpath
hooksinfrontofchildsafetyseat(Figure 1).
NOTE:Thevehiclelapbeltsmustthreadthrough
thebelthooksonBOTHsidesofchildinfant
capsule.
3. Wrapthevehiclesashbeltaroundtheback
oftheinfantcapsuleandthreadthroughthe
centralhook.(Figure 2).
4. Clickbuckleintoplace.
Warning: Must not install infant capsule in the seat with an airbag.
Make sure the infant capsule is close against vehicle seat.
5. Adjustthechildsafetyseatuntiltheangle
indicatorisblue,andrstkeeplapbeltofvehicle
seattightandthenmakesurethediagonalbelts
ofvehicleseatrestraintheinfant
capsulermly(Figure 3).

•vvv
11
scout
infant capsule and base
installing with no base
1. Tolengthentheshoulderharnessstraps,
presstheharnessreleaseleverandpull
theshoulderstrapsatthesametime.
2. Presstheredbuttoninthebuckletorelease
theharnessshoulderstraps.
3. Laytheharnessshoulderstraps
ontheseatasshown.

12
scout
infant capsule and base
installing with no base
•vvv
12
4. Placetheshoulder
harnessstrapson
child’sshoulders
asshown.
5. Lockthebuckle
(Figure 5).
6. Checkharnessheight.Theshoulderstraps
mustbeintheslotswhicharenearestto
thechild’sshoulders,butnotlowerthanthe
child’sshoulders.
7. Pullthecentraladjustorbelttotightenthe
shoulderstraplength(Figure 7).Toloosen,
presstheharnessreleaseleverandpullthe
shoulderbeltsatthesametime(Figure 1,
page 11).

13
13
scout
infant capsule and base
installing with no base

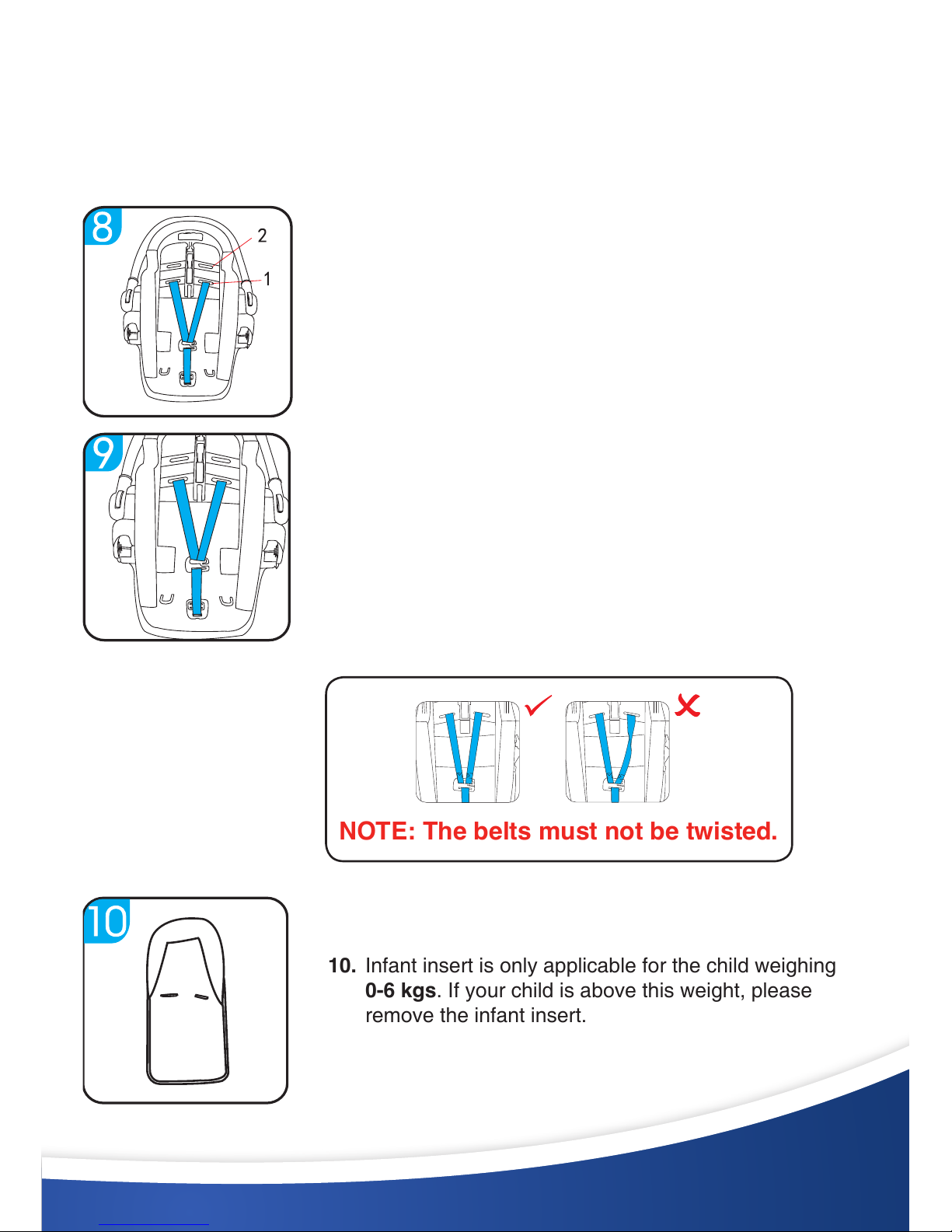

NOTE: The belts must not be twisted.
8. Pleasenote,therearetwoshoulderheights
tosuitdifferentheightsofchildren.
9. Toadjustheightofshoulderharnessstraps,take
thebeltoutoftheconnectorandadjusttoyour
desiredposition.Thenreconnectthebeltwith
connector.
10. Infantinsertisonlyapplicableforthechildweighing
0-6 kgs.Ifyourchildisabovethisweight,please
removetheinfantinsert.
•vvv
13

•vvv
14
scout
infant capsule and base
installing the base
1
2
1
3
1. Pulloutcarvehiclesafetybelt(Figure 1).
2. Feedthelapbeltofvehiclethroughthegap
infrontofthebase(Figure 2).
3. Clickbuckleintoplace(Figure 3).Makesure
youheara“click”whenlockingthebuckle.
4. Pullbelttoremoveslackforatightt.
step 1: install the base

•vvv
15
2
scout
infant capsule and base
installing/removing the capsule
3
1. Putthechildsafetyseatontothebase,ensuring
theironhooksareoverthetopofthehook
attachmentpoints.Pushdownandyouwill
heara“click”.
3. Pullthevehiclesashbeltoff
thechildsafetyseat,thenpull
thereleasehandletorelease
thechildsafetyseatfromthe
base.
step 1: install the child safety capsule
step 2: removing the child safety capsule
2. Wrapthecarvehiclesashbeltaround
thebackoftheinfantcapsuleandthread
throughthecentralbeltpathhook(Figure 2).
1

•vvv
16
scout
infant capsule and base
removing trim
1. Presstheredbuttonininfantcapsule.
2. Removetheshoulderbeltprotectorfromshoulderharnessstraps.

•vvv
17
scout
infant capsule and base
removing trim
Seat disassembling:Removetrimfromtheseatbyseparating6pressstuds.

•vvv
18
notes:

•vvv
19
to prevent loss or fading,
please attach your receipt here:
www.motherschoice.com.au/product-registration
mother’s choice tip...
Visit us online to register your new
Mother’s Choice product.
benefits of registration
• Yoursafety-allowsustocontactyouwithimportantproductnotications.
• Conrmationofownership-providesarecordincaseofproductlossortheft.
• Improved product development - helps us continue to design products
that meet your needs.
motherschoice.com.au
follow us on

•vvvv
Specifications are subject to change without notice.
Copy or reproduction without permission is prohibited.
© 2016 Dorel Australia Pty Ltd. All Rights Reserved.
www.dorel.com.au
017418 - Mother’s Choice Scout Infant Capsule and Base - 11 - 16
