SERVICE STATION MANUAL
Engine V85 E4
This manual provides the main information to carry out regular maintenance operations on your vehicle.
This manual is intended to Moto Guzzi Dealers and their qualified mechanics; several concepts have
been deliberately omitted as they are considered unnecessary. As it is not possible to include complete
mechanical notions in this manual, users should have basic mechanical knowledge or minimum
knowledge about the procedures involved when repairing vehicle. Without this knowledge, repairing or
checking the vehicle may be inefficient or even dangerous. As the vehicle repair and check procedures
are not described in detail, be extremely cautious so as not to damage components or injure individuals.
In order to optimise customer satisfaction when using our vehicles, Piaggio & C. S.p.a. commits itself
to continually improve its products and the relative documentation. The main technical modifications and
changes in repair procedures are communicated to all Moto Guzzi Sales Outlets and its International
Subsidiaries. These changes will be introduced in the subsequent editions of the manual. In case of
need or further queries on repair and check procedures, consult Moto Guzzi CUSTOMER
DEPARTMENT, which will be prepared to provide any information on the subject and any further
communications on updates and technical changes related to the vehicle.
NOTE Provides key information to make the procedure easier to understand and carry out.
CAUTION Refers to specific procedures to carry out for preventing damages to the vehicle.
WARNING Refers to specific procedures to carry out to prevent injuries to the repairer.
Personal safety Failure to completely observe these instructions will result in serious risk of personal
injury.
Safeguarding the environment Sectionsmarked withthis symbol indicate the correctuse of the vehicle
to prevent damaging the environment.
Vehicle intactness The incomplete or non-observance of these regulations leads to the risk of serious
damage to the vehicle and sometimes even the invalidity of the guarantee
INDEX OF TOPICS
CHARACTERISTICS CHAR
SPECIAL TOOLS S-TOOLS
ENGINE ENG
INDEX OF TOPICS
CHARACTERISTICS CHAR
Tightening Torques
If the following tables do not expressly indicate the tightening torque values, refer to the table with the
generic torque values indicated below.
GENERAL TIGHTENING TORQUES
M4 M5 M6 M8 M10 M12
Metric tightening torque: TE - TEFL - SHC - TBEI
- TCC - TS 3 Nm (2.21
lbf ft) 6 Nm (4.43
lbf ft) 10 Nm
(7.38 lbf ft) 25 Nm
(18.44 lbf
ft)
50 Nm
(36.88lbft) 80 Nm
(59.00lbft)
GENERAL TIGHTENING TORQUES FOR SELF TAPPING SCREWS FOR PLASTIC
2.9 mm 3.9 mm 4.2 mm 5 mm
Tightening torque 2 Nm (1.48 lb ft) 2 Nm (1.48 lb ft) 3 Nm (2.21 lbf ft) 3 Nm (2.21 lbf ft)
CAUTION
THE SCREWS WITH THREAD-LOCK SEALANT (PRE-IMPREGNATED) MUST BE REPLACED
WITH NEW SCREWS AFTER THEY HAVE BEEN LOOSENED.
BEFORE FITTING THE NEW SCREWS, CLEAN THE THREADED HOLES CAREFULLY, MAKING
SURE THAT ALL TRACES OF THE OLD THREAD-LOCK SEALANT HAVE BEEN ELIMINATED.
Engine

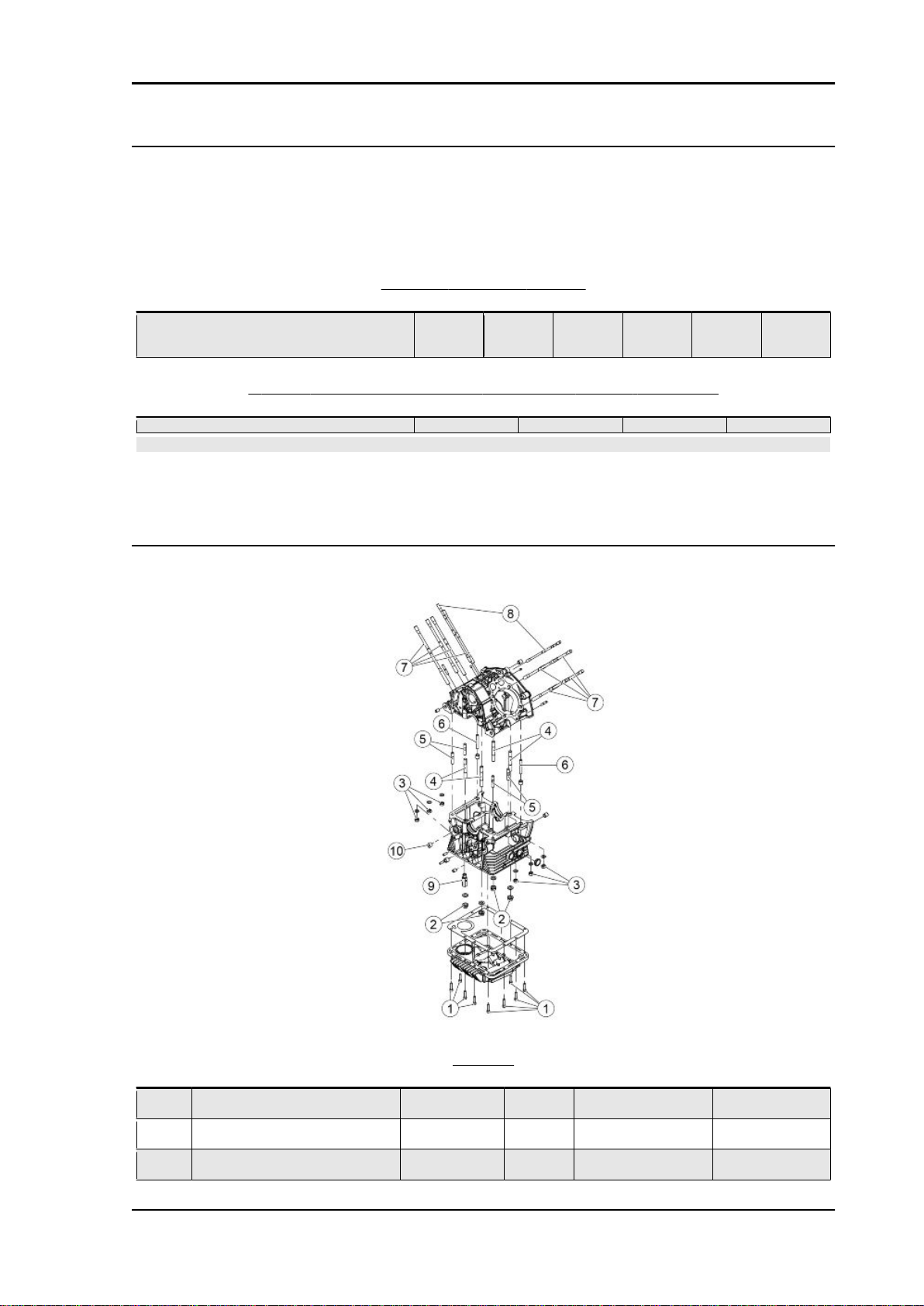

CARTERS
Pos. Description Type Quantity Torque Note
1 Oil sump SHC screws M6 2 11-13 Nm (8.11-9.59 lb
ft) -
2 Crankcase half flanged nuts (pre-
tightening) M10 4 22-27 Nm (16.23-19.91
lb ft) -
2 Crankcase half flanged nuts (final
tightening) M10 4 44-49 Nm (32.45-36.14
lb ft) -
Engine V85 E4 Characteristics
CHAR - 7
Pos. Description Type Quantity Torque Note
3 Crankcase half nuts M8 6 22-25 Nm (16.23-18.44
lb ft) -
4 Crankcase half stud bolts M10 4 22-25 Nm (16.23-18.44
lb ft) Pre-applied Loct.;
alternatively Loct.
2510
5 Crankcase half stud bolts M8 4 22-25 Nm (16.23-18.44
lb ft) Loct. 648
6 Crankcase half stud bolts M8 2 22-25 Nm (16.23-18.44
lb ft) Loct. 648
7 Long/short head stud bolts M10 8 9-11 Nm (6.64-8.11 lb
ft) Pre-applied Loct.;
alternatively Loct.
DRI-LOC 211 / 3M
SCOTCH GRIP
2510
8 Central head stud bolts M8 2 9-11 Nm (6.64-8.11 lb
ft) Pre-applied Loct.;
alternatively Loct.
DRI-LOC 211 / 3M
SCOTCH GRIP
2510
9 Oil filter joint M12 1 20-24 Nm (14.75-17.70
lb ft) -
10 Cap M14 1 15-19 Nm (11.06-14.01
lb ft) Pre-applied Loct. -
LOCTITE DRI-
SEAL 506 alterna-
tively LOCTITE
5061 - Regularly
checkthatthe capis
at the same level
with the surface

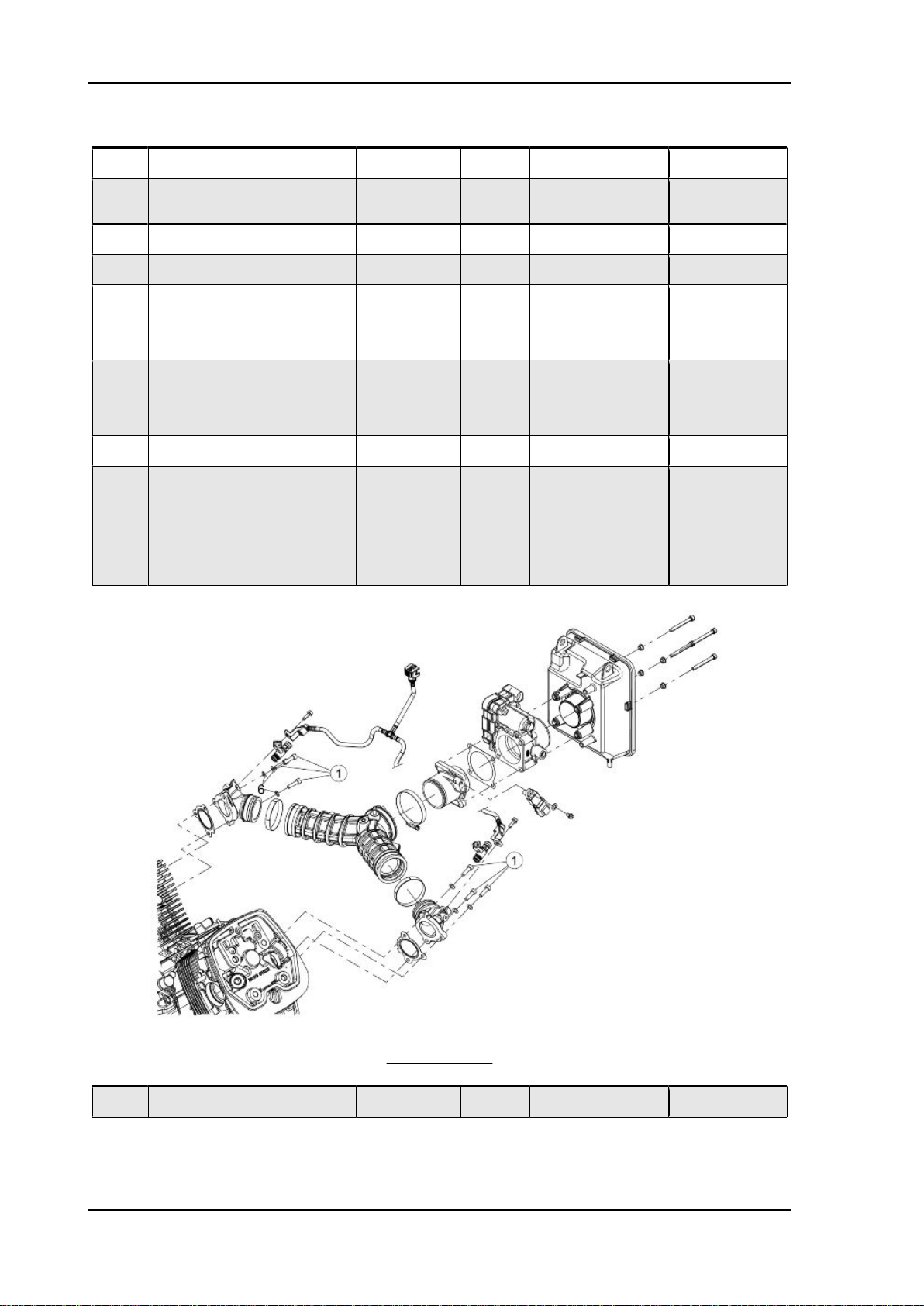

THROTTLE BODY
Pos. Description Type Quantity Torque Note
1 Intake fittings screws M6x22 6 9-11 Nm (6.64-8.11 lb
ft) -
Characteristics Engine V85 E4
CHAR - 8
HEADS COVERS
Pos. Description Type Quantity Torque Note
1Sparkplugs coverhex socketscrews M5x12 8 6-8 Nm (4.42-5.90 lb ft) -
2 Head covers screws M6 6 9-11 Nm (6.64-8.11 lb
ft) -
3 Rounded head torx screws for spark
plugs cable clamp on head covers M4 4 2.6-3.1 Nm (1.92-2.29
lb ft) -
- Spark plugs - 2 10-12 Nm (7.38-8.85 lb
ft) -
Engine V85 E4 Characteristics
CHAR - 9
HEAD - VALVES
Pos. Description Type Quantity Torque Note
1 Stud bolts for exhaust manifolds M8 4 20-24 Nm (14.75-17.70
lb ft) -
TIMING SYSTEM
Pos. Description Type Quantity Torque Note
1 Tone wheel flanged hex head screw M7x18 1 16-17 Nm (11.80-12.54
lb ft) Pre-applied Loct. -
3M SCOTCH-GRIP
2363 or PRELOK
PRECOTE 80 or
Loct. 2048
2 Timing system sprocket flanged hex
head screws M6 3 9-11 Nm (6.64-8.11 lb
ft) Pre-applied Loct.;
alternatively 3M
SCOTCH-GRIP
2353
3 Chain tensioner screw M6 1 9-11 Nm (6.64-8.11 lb
ft) -
4Camshaft retainer plate torx rounded
head screws M5x12 2 6-7 Nm (4.42-5.16 lb ft) Pre-applied Loct.;
alternatively 3M
SCOTCH-GRIP
2353
5Rocker axles forks hex head flanged
screws M5x12 4 5-6 Nm (3.69-4.42 lb ft) Loct. 243
6FlangedHHscrewsforground plates
on rocker supports M5x12 2 5-6 Nm (3.69-4.42 lb ft) Loct. 243
7 Stud bolt fixing nuts (pre-tightening) M10 8 13-16.6Nm (9.59-12.24
lb ft) Lubricate the
threads and the
supportsurfacewith
MOLYCOTE
GRAPID PLUS
SPRAY grease
7Stud bolt fixing nuts (final tightening) M10 8 87°-93° - 24-34 Nm
(17.70-25.08 lbf ft) Lubricate the
threads and the
supportsurfacewith
MOLYCOTE
GRAPID PLUS
SPRAY grease
Characteristics Engine V85 E4
CHAR - 10
Pos. Description Type Quantity Torque Note
8 Stud bolt fixing nut (pre-tightening) M8 2 9-11.5 Nm (6.64-8.48 lb
ft) Lubricate the
threads and the
supportsurfacewith
MOLYCOTE
GRAPID PLUS
SPRAY grease
8 Stud bolt fixing nut (final tightening) M8 2 88°-92° - 14-18 Nm
(10.32-13.28 lbf ft) Lubricate the
threads and the
supportsurfacewith
MOLYCOTE
GRAPID PLUS
SPRAY grease
CYLINDER - PISTON
Pos. Description Type Quantity Torque Note
1 Cylinder nut M6 2 9-11 Nm (6.64-8.11 lb
ft) Loct. 243
Engine V85 E4 Characteristics
CHAR - 11

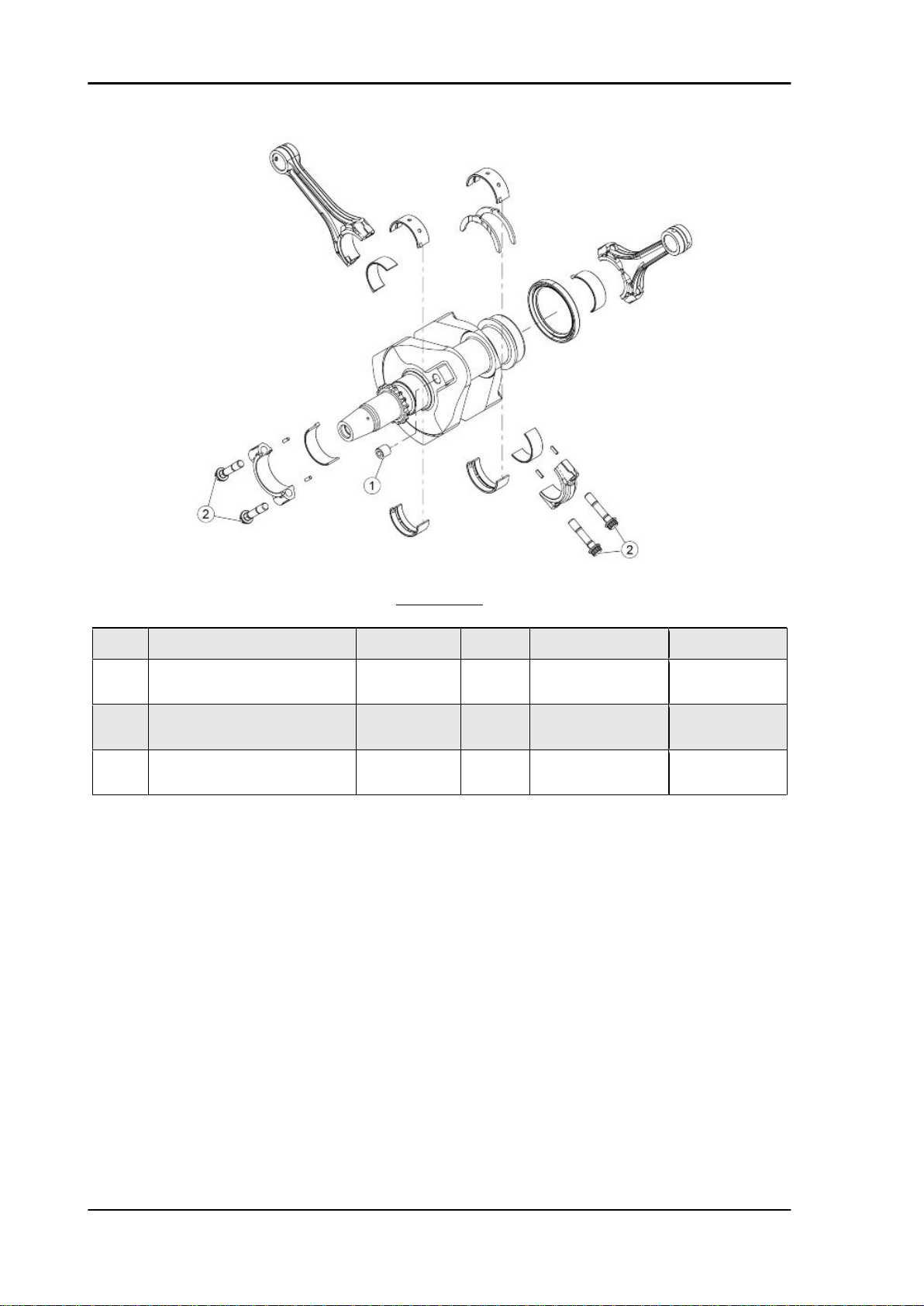

CRANKSHAFT
Pos. Description Type Quantity Torque Note
1 Crankshaft plug M12 1 15-18 Nm (11.06-13.28
lb ft) Loct. 648
2 Connecting rods screws (pre-tight-
ening 1st coupling) M8 4 10 Nm (7.37 lb ft) Lubricate the thread
and underhead with
Pankl PLB 19
2 Connecting rods screws (pre-tight-
ening 2nd coupling) M8 4 20 Nm (14.75 lbf ft) Lubricate the thread
and underhead with
Pankl PLB 19
2 Connecting rods screws (final tight-
ening) M8 4 65°+/-2° - 40-70 Nm
(29.50-51.73 lbf ft) Lubricate the thread
and underhead with
Pankl PLB 19
Characteristics Engine V85 E4
CHAR - 12

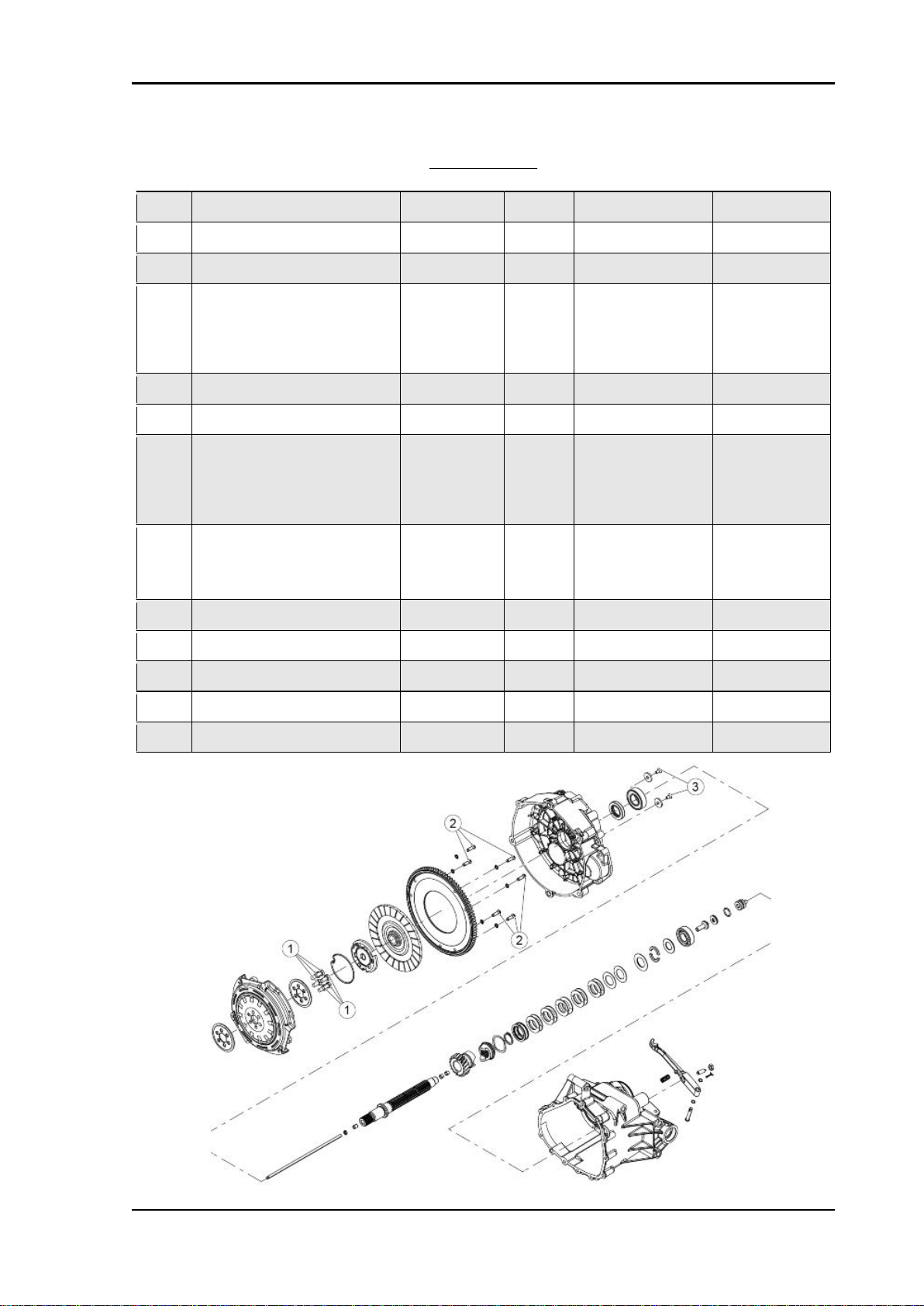

COMPLETE GEAR / SELECTOR / DESMODROMIC
Pos. Description Type Quantity Torque Note
1 Clutch housing/gearbox fastening
SHC screws M6x55 13 9-11 Nm (6.64-8.11 lb
ft) -
2 Engine / gearbox fastening SHC
screws M8x40 6 24-28 Nm (17.70-20.65
lb ft) -
3 Oil load cap M20 1 23-27 Nm (16.96-19.91
lb ft) -
4Threaded pin for ground cable screw M8x30 1 9-11 Nm (6.64-8.11 lb
ft) Loct. 243
5 Bearing stoppers countersunk hex
head screws M6x12 5 9-11 Nm (6.64-8.11 lb
ft) Pre-applied Loct.;
alternatively 3M
SCOTCH-GRIP
2353 or Loct. DRI
LOC 2045 BLU
6 Oil duct plates Torx screws M5x16 4 9-11 Nm (6.64-8.11 lb
ft) Pre-applied Loct.;
alternatively Loct.
20450 or 3M or
2353
7 Bleeder cap M10 1 18-22 Nm (13.28-16.23
lb ft) -
8 Neutral switch M8 1 9-11 Nm (6.64-8.11 lb
ft) -
Engine V85 E4 Characteristics
CHAR - 13

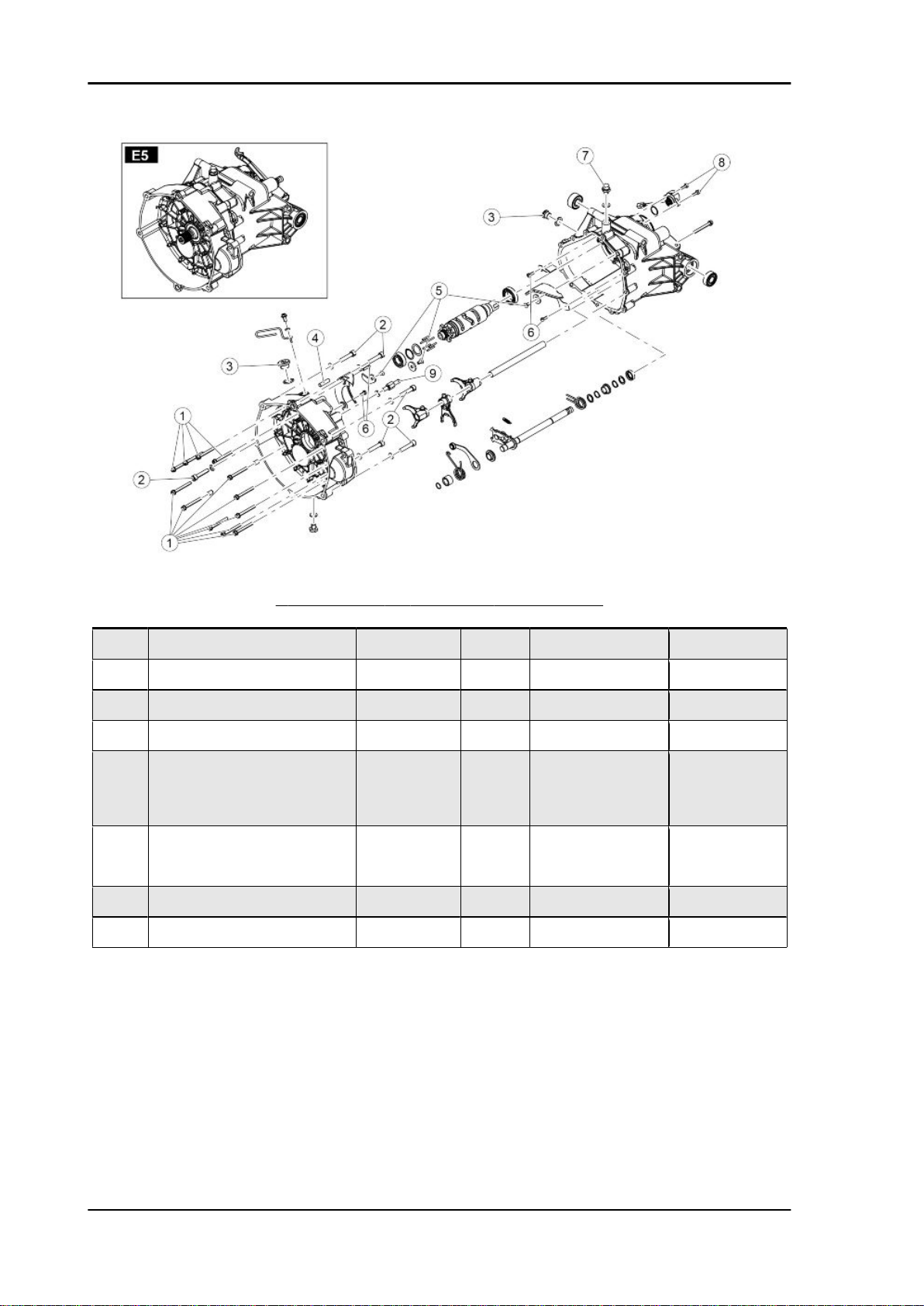

COMPLETE GEAR / SELECTOR / DESMODROMIC E5
Pos. Description Type Quantity Torque Note
1 Clutch housing/gearbox fastening
SHC screws M6x55 13 9-11 Nm (6.64-8.11 lb
ft) -
2 Engine / gearbox fastening SHC
screws M8x40 6 24-28 Nm (17.70-20.65
lb ft) -
3 Oil load cap M20 1 23-27 Nm (16.96-19.91
lb ft) -
4Threaded pin for ground cable screw M8x30 1 9-11 Nm (6.64-8.11 lb
ft) Loct. 243
5 Bearing stoppers countersunk hex
head screws M6x12 5 9-11 Nm (6.64-8.11 lb
ft) Pre-applied Loct.;
alternatively 3M
SCOTCH-GRIP
2353 or Loct. DRI
LOC 2045 BLU
6 Oil duct plates Torx screws M5x16 3 6-7 Nm (4.23-5.16 lb ft) Pre-applied Loct.;
alternatively Loct.
20450 or 3M or
2353
7 Bleeder cap M10 1 18-22 Nm (13.28-16.23
lb ft) -
8 Gear sensor fastening flanged hex
head screw M5x20 2 6-7 Nm (4.23-5.16 lb ft) -
Characteristics Engine V85 E4
CHAR - 14
GEARBOX COMPONENTS
Pos. Description Type Quantity Torque Note
1 Bearing stoppers countersunk hex
head screws M6x12 2 9-11 Nm (6.64-8.11 lb
ft) Pre-applied Loct.;
alternatively 3M
SCOTCH-GRIP
2353 or Loct. DRI
LOC 2045 BLU
Engine V85 E4 Characteristics
CHAR - 15

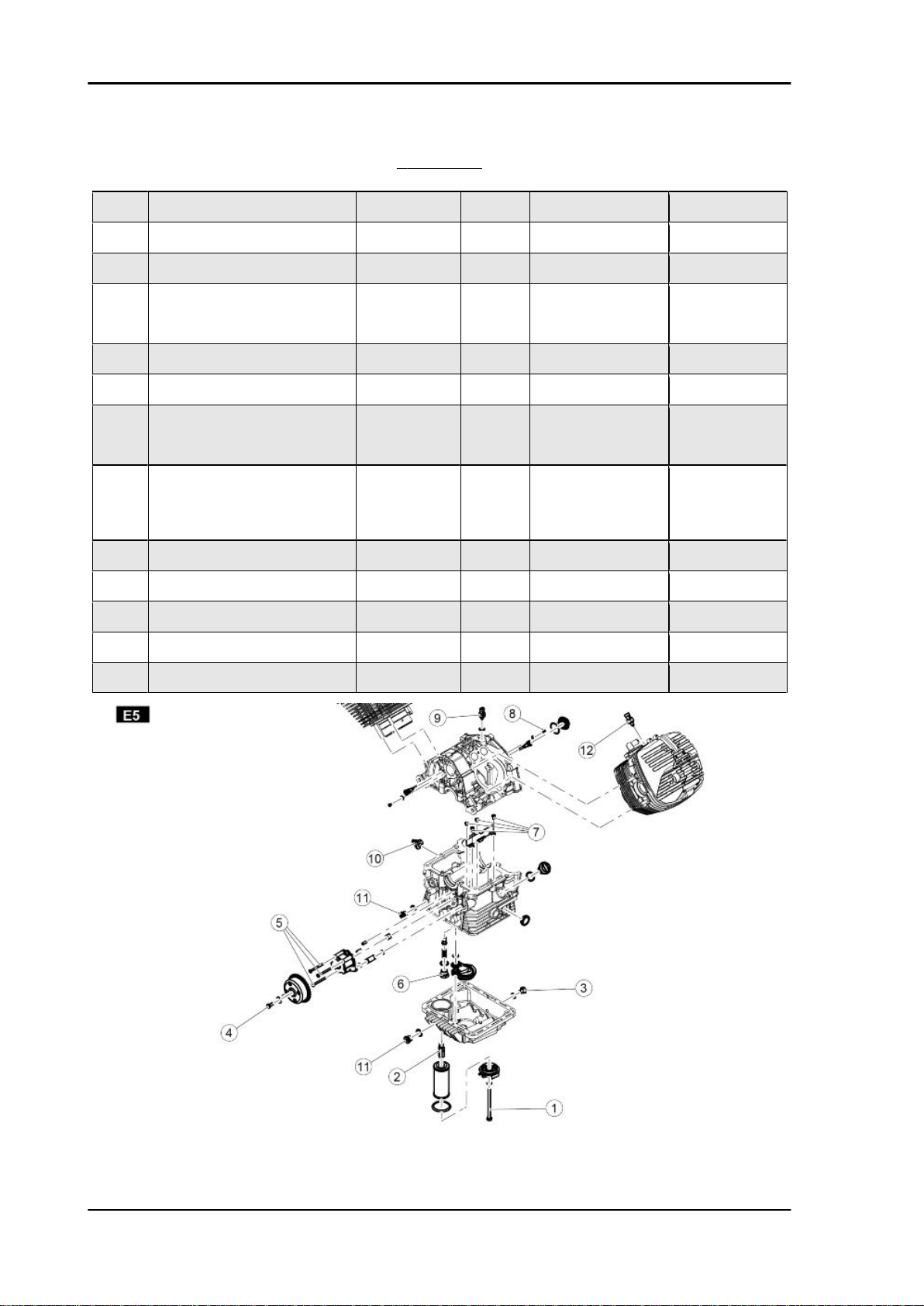

LUBRICATION
Pos. Description Type Quantity Torque Note
1 Cover and oil filter cartridge fixing
hex head screw M8x105 1 18-22 Nm (13.28-16.23
lb ft) -
2 Oil filter joint M12 1 20-24 Nm (14.75-17.70
lb ft) -
3 Oil sump drainage plug M10 1 20-24 Nm (14.75-17.70
lb ft) -
4 Oil pump gear flanged hex head
screw M7x18 1 13-14 Nm (9.59-10.32
lb ft) Pre-applied Loct.;
alternatively 3M
SCOTCH-GRIP
2353
5 Oil pump countersunk head screws M5x55 3 5-6 Nm (3.69-4.42 lb ft) 3M SCOTCH GRIP
2353
6 Oil pressure valve cap M18 1 20-25 Nm (14.75-18.44
lb ft) -
7 Oil scraper plate notched cylindrical
head screws M5x10 4 3-4 Nm (2.21-2.95 lb ft) Pre-applied Loct.;
alternatively 3M
SCOTCH-GRIP
2353
8 Cooling jet torx screw M4x12 2 2.6-3.4 Nm (1.92-2.51
lb ft) Pre-applied Loct.;
alternatively 3M
SCOTCH-GRIP
2353 or Loct. DRI
LOC 2045 BLU
9 Oil temperature sensor M10 1 18-22 Nm (13.28-16.23
lb ft) Loct. 243
10 Minimum oil pressure sensor - 1 20-24 Nm (14.75-17.70
lb ft) -
- Cable screw on the minimum oil
pressure sensor M4 1 1.5-1.8 Nm (1.11-1.33
lb ft) -
11 Caps M16 2 28-32 Nm (20.65-23.60
lb ft) -
12 Engine temperature sensor M10 1 18-22 Nm (13.28-16.23
lb ft) Loct. 243
Characteristics Engine V85 E4
CHAR - 16
E5 LUBRICATION
Pos. Description Type Quantity Torque Note
1 Cover and oil filter cartridge fixing
hex head screw M8x105 1 18-22 Nm (13.28-16.23
lb ft) -
2 Oil filter joint M12 1 20-24 Nm (14.75-17.70
lb ft) -
3 Oil sump drainage plug M10 1 20-24 Nm (14.75-17.70
lb ft) -
4 Oil pump gear flanged hex head
screw M7 1 16-17 Nm (9.59-10.32
lb ft) Pre-applied Loct.;
alternatively 3M
SCOTCH-GRIP
2353, Loctite 2045
or PRELOX PRE-
COTE 80
5 Oil pump countersunk head screws M5x55 3 5-6 Nm (3.69-4.42 lb ft) 3M SCOTCH GRIP
2353
6 Oil pressure valve cap M18 1 20-25 Nm (14.75-18.44
lb ft) -
7 Oil scraper plate notched cylindrical
head screws M5x10 4 3-4 Nm (2.21-2.95 lb ft) Pre-applied Loct.;
alternatively 3M
SCOTCH-GRIP
2353, Loctite 2045
or PRELOX PRE-
COTE 80
8 Cooling jet torx screw M4x12 2 2.8-3.4 Nm (2.07-2.51
lb ft) Pre-applied Loct.;
alternatively 3M
SCOTCH-GRIP
2353 or Loct. DRI
LOC 2045 BLU
9 Oil temperature sensor M10X1 1 18-22 Nm (13.28-16.23
lb ft)
10 Minimum oil pressure sensor - 1 20-24 Nm (14.75-17.70
lb ft) -
- Cable screw on the minimum oil
pressure sensor M4 1 1.5-1.8 Nm (1.11-1.33
lb ft) -
11 Caps M16 2 28-32 Nm (20.65-23.60
lb ft) -
12 Engine temperature sensor M10 1 18-22 Nm (13.28-16.23
lb ft)
Engine V85 E4 Characteristics
CHAR - 17
CLUTCH
Pos. Description Type Quantity Torque Note
1 Clutch-crankshaft screws M8 6 38-42 Nm (28.03-30.98
lb ft) Loct. 243
2 Starter sprocket fixing torx rounded
head screws M6x20 6 9-11 Nm (6.64-8.11 lb
ft) Pre-applied Loct.;
alternatively Loct.
DRI-LOC 2040 or
3M SCOTCH GRIP
2353
3 Bearing stopper countersunk hex
head screws M6x12 2 9-11 Nm (6.64-8.11 lb
ft) Pre-applied Loct.;
alternatively 3M
SCOTCH-GRIP
2353 or Loct. DRI
LOC 2045 BLU
FLYWHEEL COVER
Pos. Description Type Quantity Torque Note
1 Flywheel cover SHC screws M6x25 10 11-13 Nm (8.11-9.59 lb
ft) -
2 Flywheel cover SHC screws M6x20 2 11-13 Nm (8.11-9.59 lb
ft) -
Characteristics Engine V85 E4
CHAR - 18
MAGNETO FLYWHEEL / START-UP
Pos. Description Type Quantity Torque Note
1 Stator SHC screws M6x20 3 9-11 Nm (6.64-8.11 lb
ft) Loct. 243
2 Flywheel flanged hex head screw M14x30 1 114-125 Nm
(84.08-92.19 lb ft) -
3 Flanged hex head screws for cable
clamp plate on the generator's cover M5x12 1 5-6 Nm (3.69-4.42 lb ft) -
Engine V85 E4 Characteristics
CHAR - 19
SECONDARY AIR SYSTEM
Pos. Description Type Quantity Torque Note
1 Secondary air covers SHC screws M5 4 3-4 Nm (2.21-2.95 lb ft) -
Characteristics Engine V85 E4
CHAR - 20
Other manuals for V85 E4
1
Table of contents
Other MOTO GUZZI Engine manuals
Popular Engine manuals by other brands
Rossi
Rossi G Series operating instructions
Regal
Regal Century VGreen 085 user manual
Kubota
Kubota RK 70-T SERIES Operator's manual
IAME
IAME 125cc LEOPARD TaG Assembly instructions and user's manual
Baumuller
Baumuller DS 100 Commissioning and Maintenance Instructions
Hyundai Seasall
Hyundai Seasall U125S Installation & operation guide
Siemens
Siemens SIMOTICS S-1FK7 DYA Generation 2 operating instructions
MTHTrains
MTHTrains Rail King RS-1 Operator's manual
MTU
MTU MS150033/05E operating instructions
UNITED POWER EQUIPMENT
UNITED POWER EQUIPMENT UP152 Operation manual
Nodal Ninja
Nodal Ninja Fanotec MECHA user guide
Gyems
Gyems RMD-L Series manual
