MotoFino MF50QT-2 User manual

TABLE OF CONTENTS
MF50QT-2 / MF80QT-2 / MF125QT-2
www.motofino.com
Motofino USA, Inc.

TABLE OF CONTENTS
I. VARIOUS PART NAMES:---------------------------------------
-
11.L:-----------------------------------------------------------------------------
-
7
II: OPERATION DESCRIPTIONS OF SYSTEMS:----------- 3 2.R:-----------------------------------------------------------------------------
-
7
A. INSTRUMENT PANEL COMPONENTS:---------------
-
3H. UNDER SEAT STORAGE BOX: --------------------------------------
-
8
1.Speedometer: ----------------------------------------------- 3I. STEERING HANDLE LOCK:-----------------------------------------
-
9
2.Odometer:---------------------------------------------------- 31.Locking: -------------------------------------------------------------------- 9
3.Turn Signal Indicator:-------------------------------------- 32.Unlocking: ------------------------------------------------------------------
-
9
4.High Beam Indicator ---------------------------------------- 3III. HOW TO START ENGINE :--------------------------------------------- 9
5.Fuel Gage:--------------------------------------------------- 3A. STARTING ENGINE WITH
B. MAIN SWITCH:---------------------------------------- 4ELECTRIC STARTER:------------------------------------------------ 10
1.OFF:------------------------------------------------------------ 4B. STARTING ENGINE WITH KICK
2.ON:-------------------------------------------------------------- 4STARTER:---------------------------------------------------------------
-
11
3.Lock:--------------------------------------------------------- 4IV. BASIC MOTORCYCLE OPERATIONS:-----------------------------
-
12
4.Unlocking Under Seat Storage Box:---- 4A. TO START RIDING:----------------------------------------------------
-
12
C. STARTER SWITCH BUTTON:----------------- 5B. SPEED ADJUSTMENT:------------------------------------------------
-
12
D. HEADLIGHT SWITCH:----------------------------- 6C. PROPER BREAK IN AND RIDING TO
E. DIMMER SWITCH: --------------------------------- 6LENGTHEN THE LIFE OF THE MOTORCYCLE:------------
-
13
F. HORN SWITCH BUTTON:-------------------------------- 7D. DO NOT APPLY BRAKES AND
G. TURN SIGNAL SWITCH:---------------------------------
-
7MAKE SHARP TURNS:------------------------------------------------
-
14
Motofino USA, Inc.

TABLE OF CONTENTS
E. BE EXTREMELY CAUTIOUS K.BACK MIRROR INSPECTION:------------------
-
21
ON WET SURFACES:-------------------------------
-
14 VII.PERIODICAL INSPECTOION:---------------------
-
21
V.HOW TO STOP:--------------------------------------------
-
14 A.OIL AND FILTER:-----------------------------------
-
22
A. PARKING THE SCOOTER:-----------------------
-
15 1.Air cleaner replacement:-----------------------------
-
22
B. CHOOSE A FLAT PLACE:------------------------
-
15 2.Oil change and filter cleaning:----------------------
-
22
VI. INSPECTION BEFORE RIDING:-------------------- 16 3.How to change oil and clean filter:-----------------
-
22
A. GASOLINE:-------------------------------------------- 16 B. GEAR OIL CHANGE:-------------------------------
-
23
1.Check Fuel:-----------------------------------------
-
16 1.How to change gear oil:------------------------------
-
24
B. HANDLE BAR INSPECTION:--------------------
-
17 C. REPLENISHMENT OF BRAKE OIL:
C. BRAKE INSPECTION:-----------------------------
-
17 (DISK BRAKE)-----------------------------------------
-
24
1.Drum brake series:-------------------------------------
-
17 D. SPARK PLUG INSPECTION:--------------------- 25
2.Disk brake series:---------------------------------------
-
18 1.Cleaning:-----------------------------------------------
-
25
D. BRAKE LIGHT INSPECTION:-------------------
-
19 2.Adjustment --------------------------------------------
-
25
E. TURN SIGNAL LIGHT INSPECTION:---------
-
19 3.Recommended spark plug:--------------------------- 25
F.TIRE INSPECTION:----------------------------------
-
20 E.BATTERY AND ELECTROLYTE
G. SHOCK ABSORBER INSPECTION:------------
-
20 INSPECTION:----------------------------------------- 26
H.HEADLIGHT AND TAIL LIGHT F.FUSE REPLACEMENT:-----------------------------
-
26
INSPECTION:-----------------------------------------
-
20 VIII.WHEN ENGINE CAN NOT START:--------------
-
26
I.HORN INSPECTION:---------------------------------
-
20
J.INSPECT SPEEDOMETER:-------------------------
-
21
Motofino USA, Inc.

TABLE OF CONTENTS
1
I. VARIOUS PART NAMES :
AIR FILTER
BATTERY
COMPARTMENT KICK STARTER PEDAL
HELMET HOOK
HEADLIGHT
CENTER STAND
TURN SIGNAL, HORN, AND
HEADLIGHT SWITCHES
Motofino USA, Inc.

TABLE OF CONTENTS
2
KICK STAND
IGNITION SWITCH
UNDER SEAT STORAGE
BOX
MUFFLER
FRONT BRAKE
TAIL LIGHT
TURN SIGNAL LIGHT
INSTRUMENT PANEL
Motofino USA, Inc.

TABLE OF CONTENTS
that the remaining fuel is about 0.25 gallons.
Fill with gasoline as soon as possible. (91 octane or above.)
II. Operation Descriptions of Systems
A. Instrument panel components :
2. Odometer :
Typical dashboard display
1. Speedometer:
●Turn signal indicator will blink if turn signal
4. High beam indicator:
●When headlights are bright dashboard indicator will glow
●If the needle points at the red section, it indicates
3
The black number with white background
switch is in operation
●MPH and / or KPH (miles and kilometers per hour)
3. Turn signal indicator:
indicates tenth of miles.
●Total forward distance is indicated in miles
UNLEADED FUEL ONLY
5. Fuel Gage:
●Indicates the fuel volume in the fuel tank.
(ignition switch must be on)
1
2
34
5
Motofino USA, Inc.

TABLE OF CONTENTS
B. MAIN SWITCH:
HINT:
opening.
4
1.OFF:
●All systems are off.
●Remove or insert key in this position.
2.ON:
●The electric power is connected
●Starter switch is functional.
●Turning handle bars gently will facilitate unlocking also.
make sure handle bars are locked.
HINT:
●You cannot remove the key.
3.LOCK:
●The handle bars are locked.
●After locking, turn handle bars gently to
●Applying gentle pressure (up and down) to seat will facilitate
4. Unlocking under seat storage box
●Turn key far right to open position.
●You can remove the key.
Motofino USA, Inc.

TABLE OF CONTENTS
●When engine is in operation, do not press the starter button .
●After engine starts, release the starter button at once.
●Do not engage the starter for more than 4 seconds at a time.

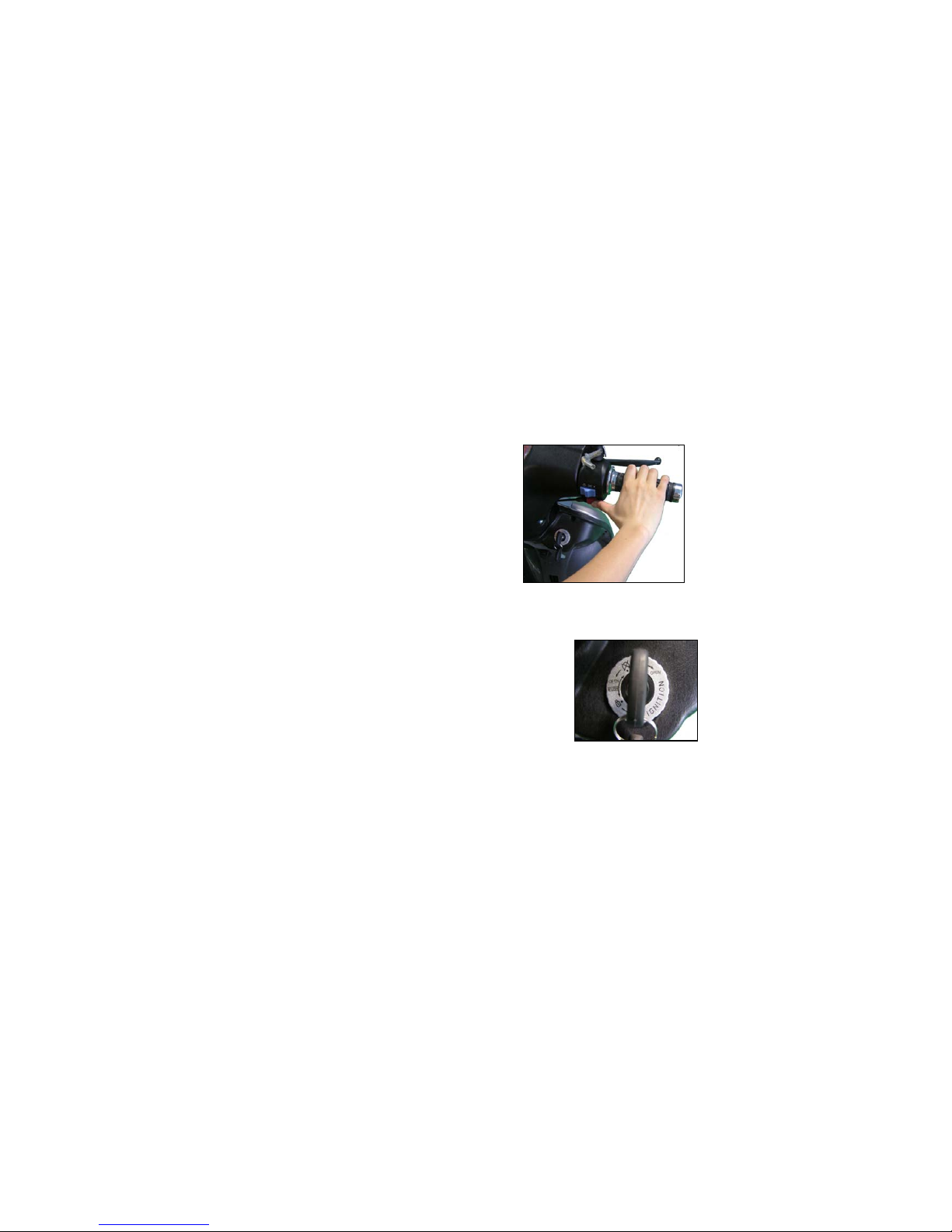

C.STARTER SWITCH BUTTON:
WARNING:
●Hold brake and press starter switch to engage electric starter.
ELECTRIC STARTER INSTRUCTIONS:
5
Doing so will damage the electric starter.
Motofino USA, Inc.

TABLE OF CONTENTS
E. DIMMER SWITCH:
2. Headlight switch has three positions to accommodate
with this switch.
1.Headlights should remain in the on position
at all times while operating your scooter.
6
D. HEADLIGHT SWITCH:
optional lighting features. Please take time to familiarize yourself
●When the high beam is on, indicator on
instrument panel will light.
Headlights and Tail Lights Switch
1. High Beam
2. Low Beam
Motofino USA, Inc.

TABLE OF CONTENTS
Signals will not cancel automatically.
1.L. ←
2.R. →
7
G. TURN SIGNAL SWITCH
*When signals are on, symbol on instrument panel will illuminate.
3. Press center (white) to cancel turn signals.
Turning switch to the right will cause right signals to illuminate.
F. HORN SWITCH BUTTON
●When key is on, pressing button will sound horn.
Turning switch to the left will cause left signals to illuminate.
Motofino USA, Inc.

TABLE OF CONTENTS
Unlocking under seat storage box
:
●Turn key (on main switch) to far right. (Open position.)
HINT:
●Applying gentle pressure (up and down) to seat will facilitate opening.
Interior of box can be very hot. DO NOT
NOTICE:
Storage box is not waterproof.
Carrying capacity should not exceed 6 pounds.
8
H. Under Seat Storage Box
CAUTION:
put flammable objects inside case.
Motofino USA, Inc.

TABLE OF CONTENTS
Park in legal parking spaces only.
1. Locking
●Turn the key clock-wise to unlock.

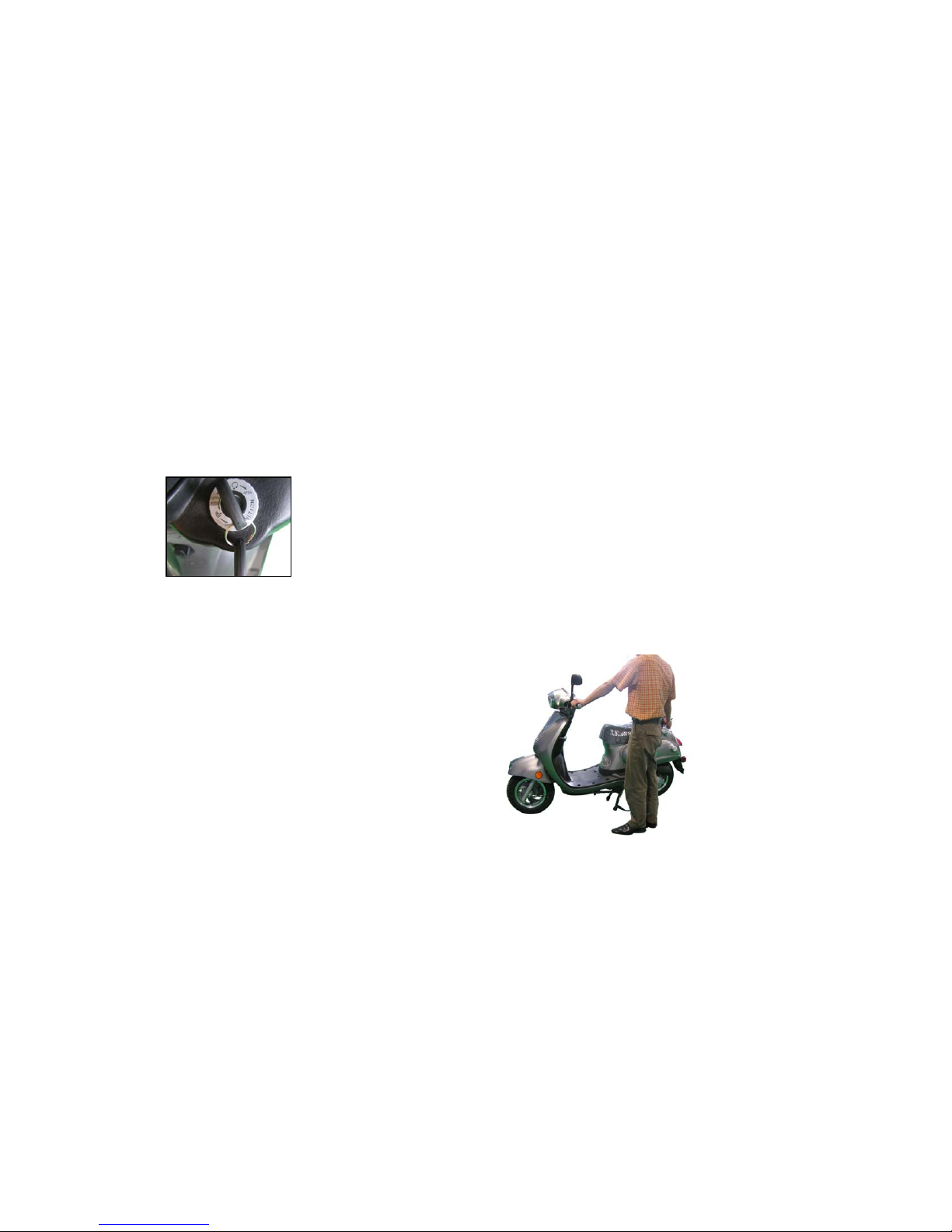

I. STEERING HANDLE LOCK:
●To prevent theft, a locking handle bar has been installed.
2. Unlocking:
●Turn handle bars to full left and turn key
9
●Turning handle bars gently will facilitate unlocking also.
NOTICE:
counter clock-wise to the lock position.
HINTS:
●After locking, turn handle bars gently to
make sure handle bars are locked.
Motofino USA, Inc.

TABLE OF CONTENTS
A. STARTING ENGINE USING
ELECTRIC STARTER:
●Turn main switch to "ON".
be difficult to start, turn throttle grip 1/8-1/4 turn and start engine again.
10
and a circle with an X and/or a line through it meaning off.
●If motorcycle has not been used for a long time it may
●Warm up engine for 2-3 minutes before operation.
III. HOW TO START ENGINE
There are two ways to start your engine.
●Hold brake and press starter switch to engage electric starter.
●Do not engage the starter for more than 4 seconds at a time.
●Do not turn throttle grip, just press starter switch button to start engine.
●After engine starts, release the starter button at once.
** Most models have a switch with a circle meaning on
Doing so will damage electric starter.
●Turn secondary emergency cut off switch to the run/on position.**
●When engine is in operation, do not press the starter button.
Motofino USA, Inc.

TABLE OF CONTENTS
REMINDER:
●After using kick starter pedal, fold it back to its
original position.
●Carbon dioxide exhaust from engine is
harmful. Vehicle is for exterior use only.
●Place scooter/motorcycle on center stand.
●Turn main switch to "ON".
be difficult to start, turn throttle grip 1/8-1/4 turn and start engine again.
11

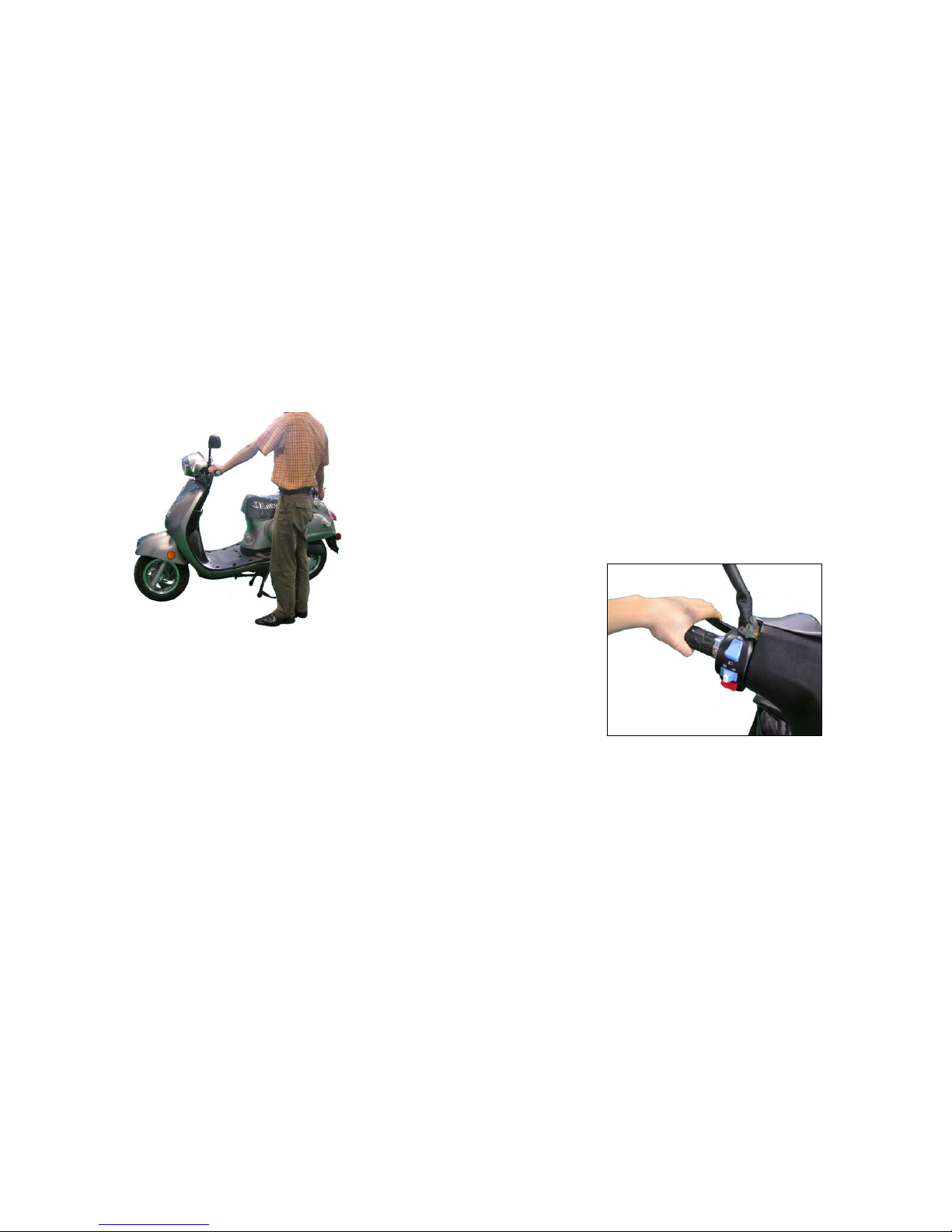

B. STARTING ENGINE WITH KICK STARTER:
●Turn secondary emergency cut off switch to the run/on position.**
●Hold brake and kick down on starter pedal.
and a circle with an X and/or a line in it meaning off.
●Warm up engine for 2-3 minutes before operation.
●If motorcycle has not been used for a long time it may
** Most models have a switch with a circle meaning on
Motofino USA, Inc.

TABLE OF CONTENTS
IV. BASIC MOTORCYCLE OPERATIONS:
B. SPEED ADJUSTMENT:
A. TO START RIDING:
●Inspect vehicle before operation.
●Turn on turn lights before moving.
●Make sure it is safe behind and ahead before moving forward.
●Speed is adjusted by turning the throttle grip.
●Speed is increased by rolling the throttle towards yourself.
●Speed is decreased by rolling the throttle away from yourself.
●Release brake levers. ●Always accelerate slowly.
●Add throttle slowly by twisting throttle grip towards you and then
motorcycle will move forward.
12
We recommend all beginners take lessons from experienced riders.
Some States have motorcycle schools.
Contact your local State Department of Vehicle and Motor safety.
Motofino USA, Inc.

TABLE OF CONTENTS
C
. PROPER BREAK IN AND RIDING WILL LENGTHEN THE
LIFE OF THE MOTORCYCLE:
WARNING:
●Release throttle before applying brakes.
●Failure to use both brakes may cause skidding.
●Hard and sudden stops cause premature brake wearing.
●Always check brakes for proper function before accelerating
to high speeds.
●During the initial 250 miles refrain from top speed.
●Do not accelerate abruptly.
●Do not operate engine at high RPM while on center stand.
●Change engine oil after the first 250 miles and every 700 miles thereafter.
●We recommend Castrol 10W-40 synthetic blend oil.
●Use unleaded 91 octane or above gasoline.
13
Motofino USA, Inc.

TABLE OF CONTENTS
D. DO NOT APPLY BRAKES AND MAKE SHARP TURNS
Turning while braking can cause falls, skidding, and
E. Be Extremely Cautious on Wet Surfaces.
●The road surface in rain is different from dry surfaces.
●Increase braking distance and reduce speeds.
●Drive Cautiously.
V. HOW TO STOP:
●Be aware of vehicles behind and in front of you.
●Never make sudden stops.
●When braking, use both brake levers.
●Increase presure evenly, as needed.
●WARNING:
●Avoid sudden, abrupt stops.
14
●Return throttle grip to idle position.
serious injury.
●Apply pressure on brake levers evenly.
FRONT BRAKE
LEVER
REAR BRAKE LEVER
Motofino USA, Inc.

TABLE OF CONTENTS

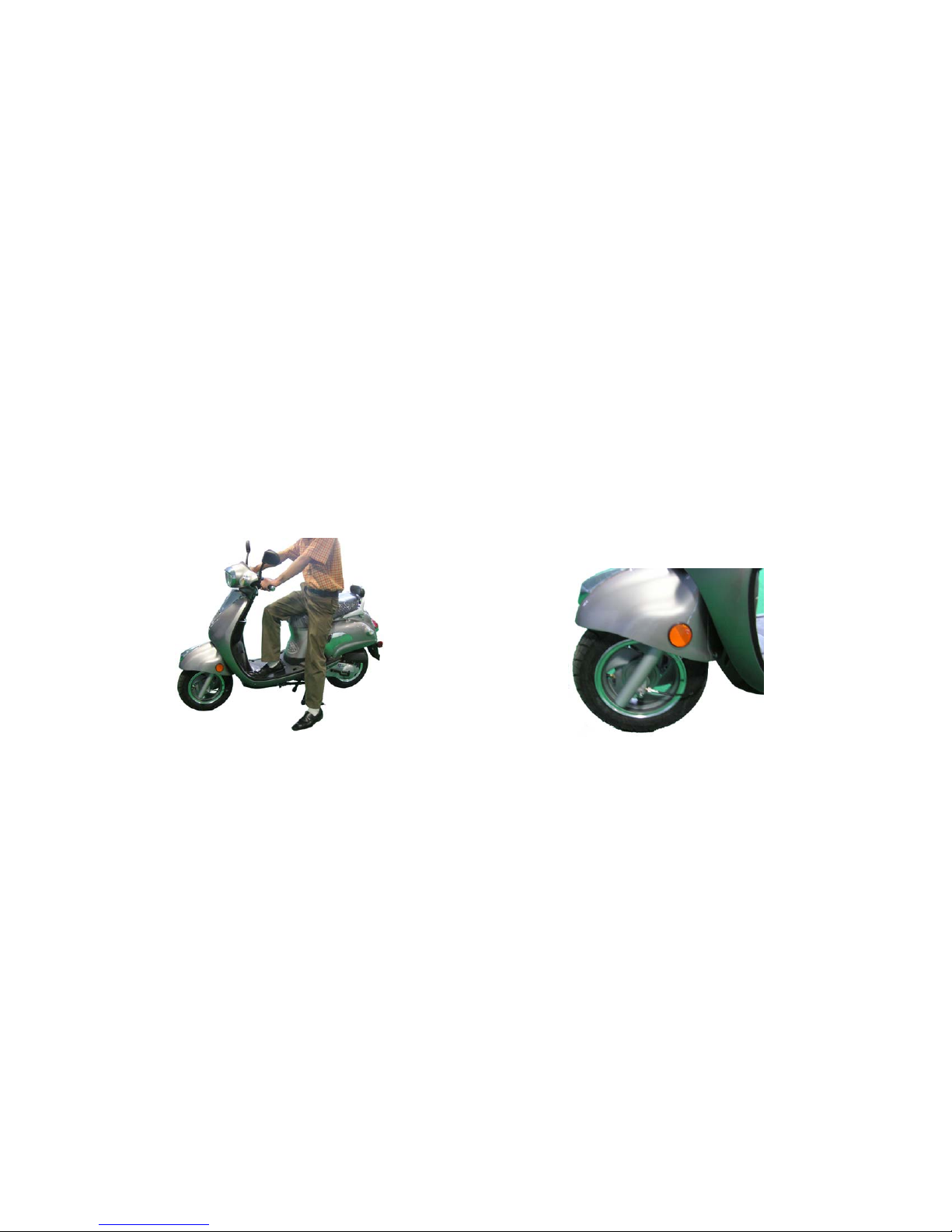

A. PARKING THE SCOTER. B. CHOOSE A FLAT PLACE:
●Turn the signal switch off. ●Choose a flat surface not blocking traffic and
●Turn main switch to "OFF". push down the center stand. Scooter will fall down
or tip over if placed on unlevel ground.
●Grasp left handle with left hand to make
scooter straight. Hold side handrail below
seat with right hand. Step down on main stand.
Push with right foot and pull back on scooter
with right hand with strength.
WARNING: ●To prevent stealing, lock the steering handle
●Turn off main switch only when vehicle is not in use. when parked and take out the keys.
●Turning off switch will turn off all lights making it difficult to see.
15
Motofino USA, Inc.

TABLE OF CONTENTS
VI. INSPECTION BEFORE RIDING:
●Always inspect before riding.
●Turn main switch to "OFF".
a pre-check up is necessary before each ride.
●Periodic Inspections every 1,000 miles by a trained professional
or Service Center is recommended. NOTICE:
NOTICE:
●Turn off engine when refilling with gasoline.
●Check oil and brake fluidbefore each operation. ●Use unleaded 91 octaine and above.

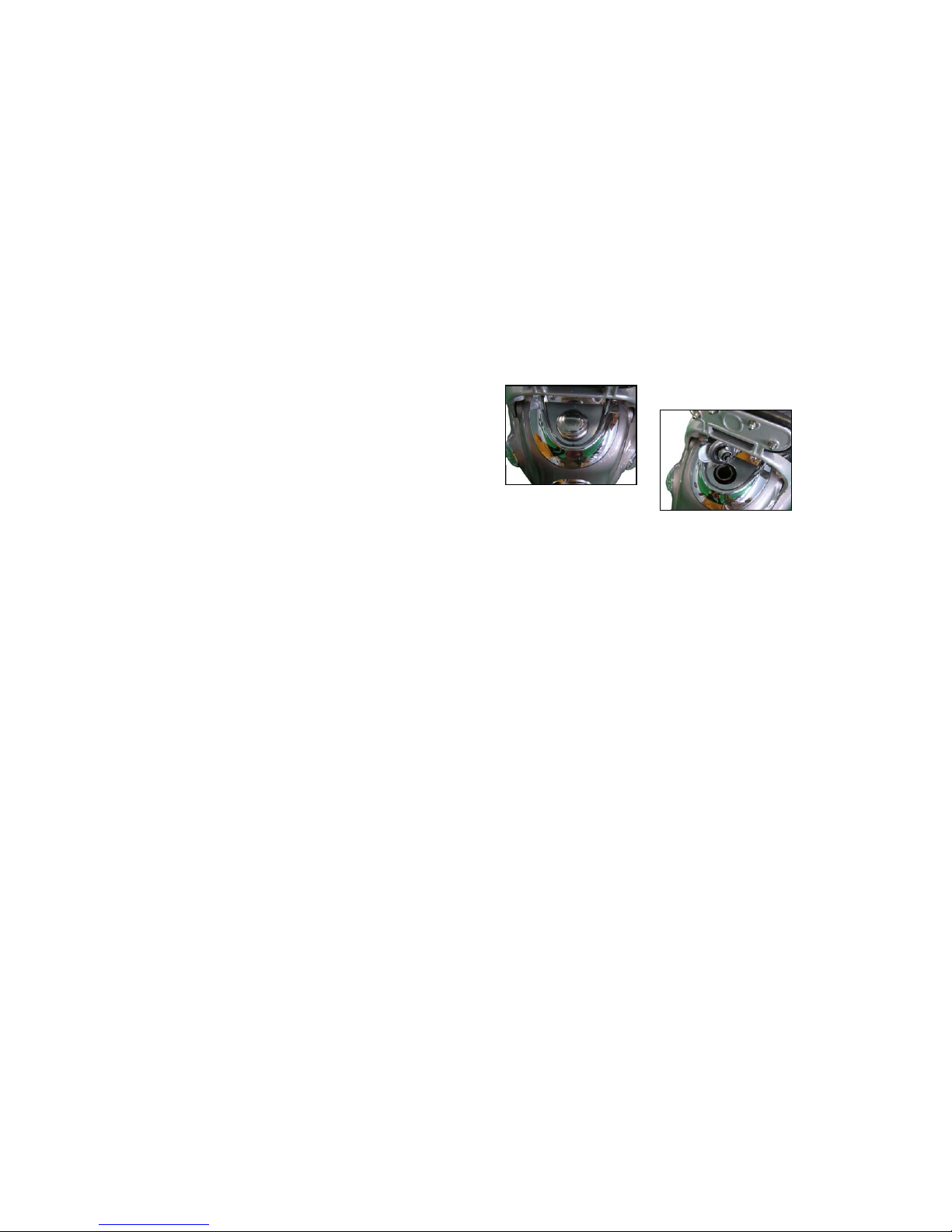

●Turn off the key from main switch and insert it
A. GASOLINE: into fuel tank cap. Turn the key clock-wise and
1.CHECK FUEL: open fuel tank cap.
●When the pointer on the gas gage is close to the red
section, the effective residual gasoline is about .25 WARNING:
gallons. ●Keep gasoline level a full inch and 1/2 from the
top of fuel tank when refilling. If gasoline
is overfilled it is easy to splash outand leak out which
can be dangerous.
16
Motofino USA, Inc.

TABLE OF CONTENTS
●The brake levers should be properly adjusted.
●Turn main switch to "OFF".
The free play* is about 1/4 inches maximum.
●Check steering functions. Check for rubbing or abnormal sounds.
B. HANDLE BAR INSPECTION: C. BRAKE INSPECTION:
1.Drum brake series:●Check steering bar. Applying pressure up and down, forward
17
●If any abnormalities, take the scooter to the distributor
or service center for inspection and repair.
*Free play means the distance between loose
and tight positions of brake levers.
Motofino USA, Inc.
