Motor Trike GLADIATOR User manual

Revision 2
GLADIATOR OWNER’S MANUAL
Motor Trike, Inc.
P.O. Box 611
22667 FM 15
Troup, Texas 75789-0611
(800) 90-TRIKE

Revision 2 Page 2 of 14
TABLE OF CONTENTS
INTRODUCTION ........................................................................................................................................ 3
SAFELY OPERATING YOUR TRIKE....................................................................................................... 3
CAPACITY LIMITS.................................................................................................................................... 4
SPECIFICATIONS....................................................................................................................................... 4
AIR SUSPENSION OPERATION............................................................................................................... 5
TRUNK OPERATION................................................................................................................................. 6
PARKING..................................................................................................................................................... 7
AVAILABLE ACCESSORIES & OPTIONS.............................................................................................. 7
RECEIVER HITCH & DRAW BAR (IF EQUIPPED)............................................................................ 8
ELECTRIC REVERSE (IF EQUIPPED)................................................................................................. 9
MAINTENANCE....................................................................................................................................... 11
WARRANTY ............................................................................................................................................. 14
THANK YOU............................................................................................................................................. 14

Revision 2 Page 3 of 14
INTRODUCTION
Congratulations on acquiring your new Motor Trike conversion. Please take the necessary time
to become familiar with your vehicle by reading this owner’s manual. The more you know and
understand about your particular unit the safer and more enjoyable your riding experience will be.
This manual is a supplement to the motorcycle owner’s manual, not a replacement for it. Follow all
procedures required and recommended by the motorcycle owner’s manual.
For more information on Motor Trike, Inc. and the products we offer please visit our website.
WWW.MOTORTRIKE.COM
SAFELY OPERATING YOUR TRIKE
Motor Trike is committed to offering safe vehicle platforms which accommodate user friendly
operation; however, it is necessary for the user to take precautions and follow safety guidelines while
operating the vehicle. In order to safely operate your trike, please carefully follow these guidelines as
well as the general guidelines for motorcycle operation which can be found in the original motorcycle
manual:
Only operate the vehicle if you have the proper licensing in your state. Most states require a
motorcycle license or a trike license to operate a three wheeled vehicle.
Always wear a helmet and appropriate safety gear while operating/riding this vehicle.
Become familiar with the vehicle’s controls before operating the vehicle, using the motorcycle’s
owner’s manual as a reference.
Follow all traffic laws while operating the vehicle.
Notice the sticker located on your unit’s fuel tank and/or trunk door inner skin: DO NOT LEAN.
STEER THROUGH TURNS. Unlike a motorcycle, a trike has to be steered through the turns.
Refer to Figure 1.
Figure 1: Vehicle Operation Warning Sticker (Gladiator Sticker Shown)

Revision 2 Page 4 of 14
Follow the maintenance schedule set forth by this owner’s manual and the original motorcycle
owner’s manual in order to ensure the vehicle functions properly. The maintenance schedule can
be found in the Maintenance/ Service section of each owner’s manual.
Do not load the trike with passengers, cargo, accessories, etc. that will result in exceeding the
recommended load capacity. This will ensure the vehicle is operating within its designed
conditions.
CAPACITY LIMITS
In order to ensure safe operating conditions for your trike, it is imperative to follow the load
limits and guidelines listed below in Table 1. These guidelines and load limits are a combination of the
motorcycle manufacturer’s recommended capacity limits, found in the original owner’s manual, and
Motor Trike’s capacity limits.
Table 1: Gladiator Capacity Limits
CAPCITY
LIMIT
DESCRIPTION
MAXIMUM TOTAL WEIGHT
CAPACITY
500 LBS
INCLUDES PASSENGERS, CARGO, ACCESSORIES, AND TRAILER
TONGUE WEIGHT
MAXIMUM TOTAL CARGO
CAPCITY
60 LBS
TOTAL CARGO CAPACITY OF THE TOURING AND TRIKE TRUNK
TOURING TRUNK CARGO
CAPACITY
20 LBS
TRIKE TRUNK CARGO CAPCITY
40 LBS
MAXIMUM TRAILER TONQUE
WEIGHT
100 LBS
MAXIMUM TRAILER WEIGHT
400 LBS
EXCLUDED FROM THE MAXIMUM TOTAL WEIGHT CAPACITY
LOAD LIMITS & GUIDELINES
YOUR TRIKE HAS BEEN DESIGNED TO CARRY ONE DRIVER AND ONE PASSENGER. DIFFERENCES IN ACCELERATION
AND BRAKING MAY BE NOTICED WHEN RIDING WITH AND WITHOUT A PASSENGER, CARGO, OR TRAILER. AS LONG AS
THESE ITEMS ARE WITHIN THE GIVEN LOAD LIMITS AND GUIDELINES, SAFE OPERATION OF THE TRIKE CAN STILL BE
ACHIEVED.
PLEASE NOTE THAT EXCEEDING THE MAXIMUM WEIGHT CAPACITY OR IMPROPERLY LOADING YOUR TRIKE CAN
SERIOUSLY IMPAIR THE TRIKE'S HANDLING, BRAKING, AND STABILITY. DISREGARDING THE LOAD LIMITS AND
GUIDELINES OUTLINED ABOVE CAN LEAD TO A CRASH, SERIOUS INJURY, OR DEATH.
SPECIFICATIONS
The specifications shown in Table 2 are taken from a base model Gladiator kit without any
additional accessories.

Revision 2 Page 5 of 14

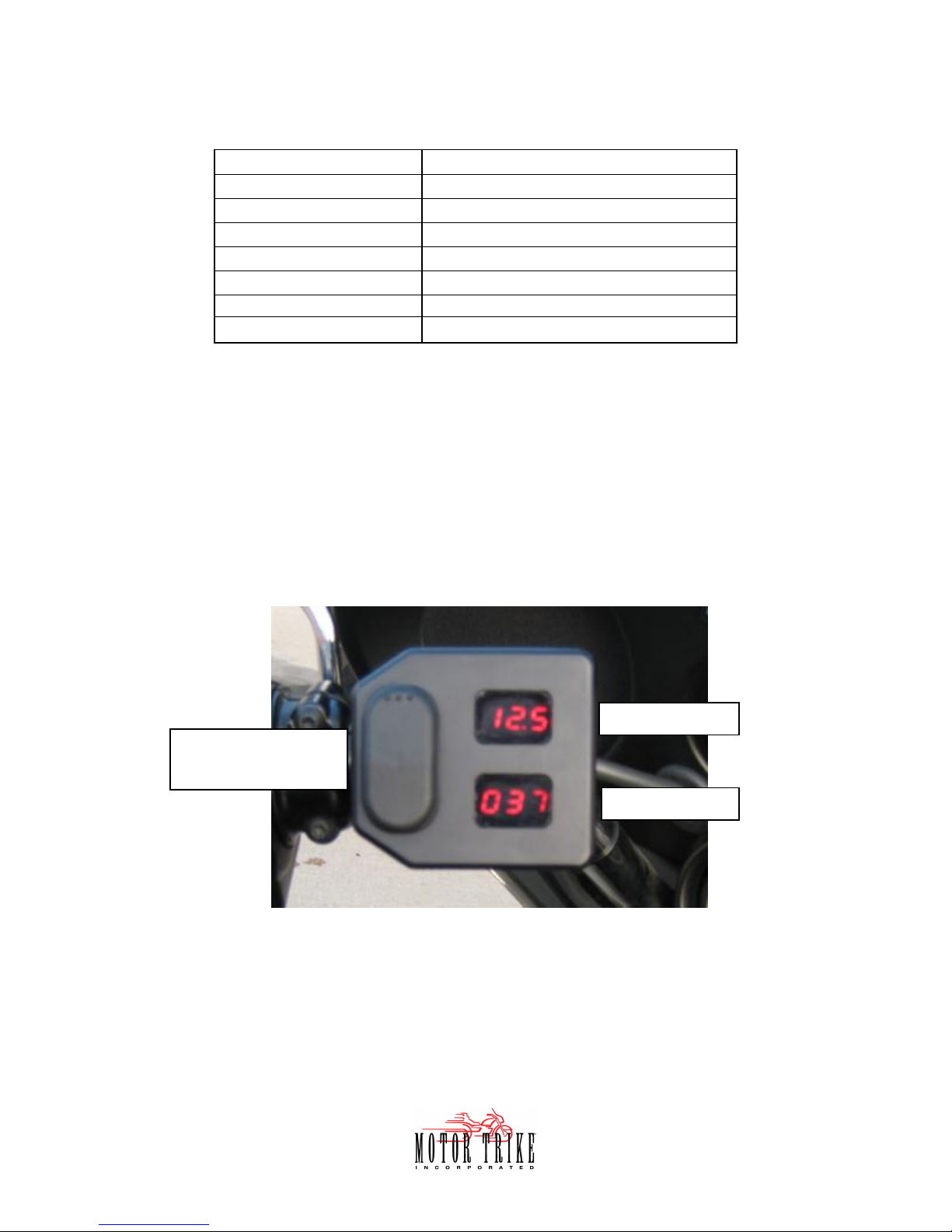

Table 2: Gladiator Specifications
OVERALL LENGTH*:
104"
WHEEL BASE*:
64"
OVERALL WIDTH:
55"
TRACK WIDTH:
43.5"
BASE WEIGHT:
1200 lbs
TIRE SIZE:
225/60/R15
WHEEL SIZE:
15" X 7" Bolt Pattern: 5 X 4.5"
MAX. LOAD CAPACITY:
500 lbs
*Measured with stock rake. 4° rake kit adds 3 inches to the overall length and wheel base
AIR SUSPENSION OPERATION
An on-board air compressor allows for on-the-fly air suspension pressure adjustment. The
pressure is adjusted using the suspension control module mounted to the handle bars. To increase air
spring pressure, press and hold the “UP” button until the desired pressure is reached. To reduce the
pressure, press the “DOWN” button. DO NOT OPERATE THE VEHICLE WITH LESS THAN 15 PSI
OR MORE THAN 100 PSI IN THE AIR SPRINGS. Figure 2 shows the suspension control module.
Figure 2: Suspension Control Module
In order to ensure proper tire wear, ground clearance, and handling characteristics please follow
the guidelines listed on the sticker found on the interior of the trunk and/or top of gas tank. These
guidelines are set in order to ensure the riders safety and comfort. The sticker is shown in Figure 3
below:
VOLTAGE (V)
PRESSURE (PSI)
SUSPENSION
CONTROL MODULE
UP
DWN

Revision 2 Page 6 of 14
Figure 3: Air Spring Pressure Sticker Trunk Location
The suspension control module also displays the voltage of the 12v system. The acceptable range
for your vehicle’s voltage is between 11V and 14V. If the displayed voltage is greater than 14 volts,
contact your local Motor Trike dealer to have the electrical system inspected on your vehicle. If the
displayed voltage is below 11V despite how much you have ridden the bike, you may have a problem
with the bikes charging system. Follow the recommended procedure for inspecting and charging the
battery found in your owner’s manual. If this does not resolve the issue, contact your local Motor Trike
dealer for assistance.
TRUNK OPERATION
The trunk door is opened by rotating the t-handles on the trunk door to unlatch the trunk door.
Refer to Figure 4.
Figure 4: Opening Trunk (Shown with Optional Chrome Nerf Bumper)
To close the trunk, place your hands on the t-handles, press the door shut, and rotate the t-handles
in the reverse direction shown in Figure 4.
Lock both t-handles with the keys provided with your trike. If you lose your keys please contact
your local Motor Trike dealer to arrange replacements.
OPEN
OPEN
T-HANDLES

Revision 2 Page 7 of 14
PARKING
When parking your trike, extra precaution needs to be taken in order to ensure the vehicle cannot
roll away which could cause vehicle damage or personal injury. Several recommended steps that will
help to ensure the trike is securely parked include:
Lock the steering lock.
Leave the transmission in gear.
Park on level ground.
Apply parking brake if equipped.
AVAILABLE ACCESSORIES & OPTIONS
Motor Trike offers an extensive line of accessories in order to further customize your trike. The
accessories can be ordered and installed through your local Motor Trike dealer or ordered directly through
Motor Trike. See Table 3 for a list of our most popular accessories and options.
Table 3: Available Accessories and Options
Visit WWW.MOTORTRIKE.COM or contact your local Motor Trike dealer for more details.
ACCESSORIES/OPTIONS
DESCRIPTION
WIDE SELECTION OF WHEELS
CUSTOMIZE YOUR TRIKE WITH NEW REAR WHEELS OR ADD
A MATCHING FRONT WHEEL.
FENDER BRAS PLAIN
PROTECT THE FRONT OF YOUR TRIKE FENDERS
FENDER BRAS EMBROIDERED
LOOK GOOD PROTECTING YOUR TRIKE FENDERS
TRUNK CARPET
GIVE YOUR TRUNK A FINISHED LOOK
EMBROIDERED TRUNK MAT
PROTECT YOUR TRUNK CARPET WITH STYLE
RAKE KIT
REDUCE STEERING EFFORT AND RIDER FATIGUE
CHROME NERF BUMPER
CUSTOMIZE YOUR TRIKE WITH A CHROME BUMPER
LIGHT BAR
CUSTOMIZE YOUR TRIKE AND BE MORE VISIBLE
CENTRAMATICS
INCREASE FRONT TIRE LIFE WITH A SMOOTH FRONT END
TROG TRAX
PROTECT YOUR FEET FROM THE ELEMENTS WITH STYLE
FOG LIGHTS FOR TROX TRAX
SEE AND BE SEEN. ADD LIGHTS TO YOUR TROG TRAX
TRAILER RECEIVER HITCH
PULL ONE OF OUR TRAILERS THAT MATCHES YOUR TRIKE
LIL'DUECE TRAILER
ADD 4 TIMES MORE STORAGE IN A SLEEK PACKAGE
ELECTRIC REVERSE
EASILY BACK YOUR TRIKE UP AND GET ON THE ROAD
TRIKE COVER
PROTECT YOUR TRIKE
MOTOR TRIKE LUGGAGE BAG
LUGGAGE THAT MATCHES YOUR TRIKE
PARKING BRAKE
KNOW YOUR TRIKE ISN'T GOING TO ROLL AWAY!
CUSTOM PAINT
GET THE LOOK YOU WANT THAT NO ONE ELSE HAS
LED TAIL LIGHT UPGRADE
UPGRADE AND CUSTOMIZE YOUR TRIKE

Revision 2 Page 8 of 14
RECEIVER HITCH & DRAW BAR (IF EQUIPPED)
Proper installation of the draw bar into the receiver hitch is critical for your safety while towing a
trailer. There is a bolt located on the bottom of the draw bar receiver tube that eliminates the draw bar
from rattling. Use a 9/16” wrench when adjusting this bolt. It is necessary to remove this bolt in order to
remove the draw bar. Warning, this bolt is not intended to retain the drawbar when towing a trailer. The
draw bar pin and safety pin must be installed. Refer to Figure 5 and Figure 6 below.
In order to properly install the draw bar:
Loosen the bolt located on the bottom of the receiver tube.
Slide the draw bar into the receiver tube.
Insert the draw bar pin through the receiver tube and the hole in the draw bar.
Clip the safety pin into the groove put into the draw bar pin.
Tighten the bolt supplied under the receiver tube against the draw bar to prevent it from rattling.
Figure 5:Draw Bar Components
DRAW BAR PIN
DRAW BAR
SAFETY PIN

Revision 2 Page 9 of 14
Figure 6: Properly Installed Draw Bar Safety Pin
ELECTRIC REVERSE (IF EQUIPPED)
If used within the recommendations below, the electric reverse will meet all of your expectations.
Before reversing, always check that the path behind the trike is clear and announce that you are backing
up to anyone nearby. Be sure to follow these guidelines will using your reverse:
The electric reverse should not be operated longer than 15 seconds at a time.
The bike should be driven several miles in between reverse uses to allow the battery to fully
charge. Use the motorcycles voltmeter as a guide.
Do not stall the reverse for more than 3 seconds. If you encounter a hill or curb that can not be
climbed, remove as much weight as possible and try again. If the reverse still does not climb the
hill, you may be asking it do something beyond its capability. Do not make further repeated
attempts.
Always operate the reverse while sitting on the driver’s seat with both feet on the floor boards
and both hands on the handlebars.
Extended use and limited charging can and will lead to electric reverse and battery damage. Motor
Trike is not responsible for damage that is caused by exceeding the recommended duration or frequency
of use.
The electric reverse will not perform well if the motorcycles battery is in poor condition or if the
battery doesn’t have a sufficient charge.
PROPERLY
INSTALLED DRAW
BAR WITH SAFETY
CLIP
ANTI-RATTLE BOLT
RECIEVER
TUBE
DRAW BAR

Revision 2 Page 10 of 14
HOW TO USE THE ELECTRIC REVERSE:
1. Turn the ignition on and start the bike. Never use the reverse when the bike is not running.
2. Put the bike in neutral.
3. Turn the activation switch on and look for the red indicator light on the switch to illuminate. See
switch location in Figure 7. NOTE: With the activation switch on and the neutral light on, the
function of your horn button and start button has been changed to operate the reverse.
Figure 7: Activation Switch Location. View of Right Side of Bike
4. Press and hold the horn button. The horn should not sound.
5. Check that there is a clear path behind you. And announce that you are backing up to anyone
nearby.
6. Press the start button to back up. Warning: Always check that the bike is in neutral, the activation
switch is illuminated, and press and hold the horn button before pressing the start button. If the
horn sounds, do not press the start button. This could cause damage to your motorcycles starting
system.
7. Disable the reverse by switching the activation switch off. The function of your horn and start
buttons are returned to normal. The red indicator light on the activation switch should be off.
Repeated use without charging time, stalling the reverse for too long or other abuse will cause the
integrated circuit breaker(s) to trip. They are located under the seat and must be manually reset for the
reverse to function again. Warning: The breakers will not protect the reverse against all forms of abuse.
Be sure to follow the guidelines outlined in this manual. If the breakers flip, the reverse is being used far
and above its intended use. Repeated operation of this nature will void the warranty for the electric
reverse system. See Figure 8 for instructions on resetting the breaker(s). If you have style A there are two
breakers. If you have style B there is only one breaker.
ACTIVATION
SWITCH

Revision 2 Page 11 of 14
Figure 8: Resetting the Reverse Breaker(s)
MAINTENANCE
If your vehicle requires professional services, Motor Trike has an extensive dealer network with
specially trained technicians capable of servicing or repairing your vehicle. To locate the authorized
Motor Trike dealer nearest you, go to the Motor Trike web site (WWW.MOTORTRIKE.COM) and
access the Dealer Locater link. To help ensure your vehicle is serviced at the proper intervals, we have
included a maintenance schedule found below in Table 4.
STYLE A
STYLE B

Revision 2 Page 12 of 14
Table 4: Maintenance Schedule
FREQUENCY (Miles)
COMPONENT
DAILY
3,000
6,000
12,000
100,000
Tire Pressure
X
Wheels and Tires
X
Air Suspension Pressure
X
Lighting
X
Belt Tension
X
Brake Fluid
X
Brake Rotors/ Pads
X
CV Boots
X
Suspension Alignment
X
Electric Reverse
X
X: Inspect, Adjust, Lubricate/Replace if necessary
R: Replace
L: Lubricate using recommended lubricant
WHEELS AND TIRES
Having properly inflated tires is essential to a comfortable and safe ride. The tire pressures on
your unit should be checked before each use, this includes both the front and rear tires. Motor Trike
recommends 24 PSI (166 KPa) for the rear tires. Follow the front tire air pressure recommendations
provided by the motorcycle manufacturer. Improper tire inflation can result in a drastic change in
handling characteristics including but not limited to head shake, vibration, increased body roll, and a stiff
ride. Improper tire inflation can also lead to a tire blow out. Check your tire pressure before you go on
every ride.
Improper tire and wheel balancing can result in vibrations at any speeds. To prolong the life of
your tires, it is suggested to have the tires and wheels balanced every 12,000 miles. Tire maintenance and
replacement are vital to your vehicle’s performance. If you are experiencing uneven or improper tire
wear, the alignment needs to be checked at your local Motor Trike dealer. To ensure safety, performance,
and reliability, Motor Trike does NOT recommend changing the tire or wheel sizes. The rear lug nuts
should be torqued to 85 ft-lbs every 3,000 miles.
AIR SUSPENSION PRESSURE
Be sure to check that your suspension air pressure is within the recommended range before and
during every ride.

Revision 2 Page 13 of 14
LIGHTING
Check that all lights are working properly before you ride your trike. This includes the brake
lights, head lights, turn signals, and marker lights.
BELT TENSION
Belt tension should be checked every 3,000 miles. The belt tension should be set to the factory
specifications provided in the motorcycle owner’s manual.
DIFFERENTIAL GREASE
The differential lubrication is maintenance free. It does not require replacement at any interval.
CV BOOTS
The CV boots should be cleaned and checked at 6,000 mile intervals. Clean the CV boots by
wiping them down with a rag; do not use any chemicals. Thoroughly inspect the boots for cracks, tears,
or holes which could allow contaminants to damage the CV joints. If you do encounter any damage to the
CV boots, contact your local Motor Trike dealer and have it replaced as soon as possible. Prolonged use
of the vehicle with a damaged CV boot will cause damage to the CV joint and surrounding components.
SUSPENSION ALIGNMENT
In order to increase the life of the tires and to ensure proper ride and handling characteristics, the
rear suspension alignment should be checked every 12,000 miles by an authorized Motor Trike dealer. If
you notice that the tires are wearing prematurely or in an unusual fashion, have the alignment checked
before the 12,000 mile increment.
ELECTRICAL
The trike kit wire harness, which powers and controls all of the electrical items on the trike kit, is
connected to the battery under the seat. If you experience an electrical problem with any of the trike
electrical systems check the in-line 15 amp fuse located on the wire running to the battery. DO NOT
REPLACE THE FUSE WITH ONE OF HIGHER VALUE. If you replace the fuse and it blows again
please contact your local Motor Trike dealer.
ELECTRIC REVERSE
Grease the teeth on the reverse motor gear every time you change your motorcycle’s engine oil.
The reverse motor is located at the rear of the vehicle under the trunk floor. Use an automotive
wheel bearing grease.
Check the battery connections every time you change your motorcycle’s engine oil.

Revision 2 Page 14 of 14
Check that all reverse wiring is properly secured every time you change your motorcycle’s engine
oil. Warning: All large red cables have a constant 12 volts.
Follow the battery maintenance plan recommended by the manufacturer of your battery.
WARRANTY
Your Motor Trike, Inc. trike kit carries a 3 year/ 60,000 mile warranty. The start date of warranty
coverage will be determined by the date on the warranty card that is turned in by the customer or dealer
upon purchasing the unit.
If equipped, the electric reverse is covered by a 1 year warranty.
Any modification or changes to the Motor Trike kit, failure to follow the guidelines noted above
and/or improper maintenance will void all warranties. Misuse, abuse, accidents, unreasonable use, or
Acts of God will not be covered under warranty. Normal wear items are not covered under warranty.
THANK YOU
Thank you for purchasing our trike conversion. We hope you have many safe, comfortable riding
miles on our product. We invite you, in your travels, to stop by our manufacturing plant in Troup, Texas,
for a tour and to meet the people who designed and manufactured your Motor Trike. We believe you will
be impressed by what you witness and the people you will meet.
Again, thank you for your business and we look forward to meeting you in the future.
