Motorline professional MD100 Operation and installation manual

v3.0
REV. 11/2019
MD100
MD100
EN
INSTALLER AND USER’S MANUAL

1A 1B
1B
4A
4B
6A
7B
6B
5A
6B
7A
7A
7B
ENEN
00. CONTENT
INDEX
TECHNICAL CHARACTERISTICS
PRECAUTIONS TO HAVE
COMPONENT CONNECTIONS
MODE OF OPERATION CHANNEL  AND CHANNEL  RELAY
CONTACT RELAY MODE
FREQUENCY ADJUSTMENT
LED INDICATOR
SENSITIVITY
AUTOMATIC INCREASE IN SENSITIVITY
. SAFETY INSTRUCTIONS
. MAGNETIC DETECTOR
. PRE INSTALLATION
. CONNECTION SCHEME
. PROGRAMMING
. INDICATORS
. INSTALLATION
ATTENTION:
01. SAFETY INSTRUCTIONS
This product is certified in accordance with European
Community (EC) safety standards.
This product complies with Directive 2011/65/EU of the
European Parliament and of the Council, of 8 June 2011, on
the restriction of the use of certain hazardous substances in
electrical and electronic equipment.
(Applicable in countries with recycling systems).
This marking on the product or literature indicates that the
product and electronic accessories (eg. Charger, USB cable,
electronic material, controls, etc.) should not be disposed
of as other household waste at the end of its useful life. To
avoid possible harm to the environment or human health
resulting from the uncontrolled disposal of waste, separate
these items from other types of waste and recycle them
responsibly to promote the sustainable reuse of material
resources. Home users should contact the dealer where they
purchased this product or the National Environment Agency
for details on where and how they can take these items
for environmentally safe recycling. Business users should
contact their vendor and check the terms and conditions
of the purchase agreement. This product and its electronic
accessories should not be mixed with other commercial
waste.
This marking indicates that the product and electronic
accessories (eg. charger, USB cable, electronic material,
controls, etc.) are susceptible to electric shock by direct or
indirect contact with electricity. Be cautious when handling
theproductandobserveallsafetyproceduresinthismanual.

2A EN
GENERAL WARNINGS
•This manual contains very important safety and usage information.
very important. Read all instructions carefully before beginning the
installation/usage procedures and keep this manual in a safe place
that it can be consulted whenever necessary.
•This product is intended for use only as described in this manual. Any
other enforcement or operation that is not mentioned is expressly
prohibited, as it may damage the product and put people at risk causing
serious injuries.
•This manual is intended firstly for specialized technicians, and does not
invalidate the user’s responsibility to read the “User Norms” section in
order to ensure the correct functioning of the product.
•The installation and repair of this product may be done by qualified
and specialized technicians, to assure every procedure are carried
out in accordance with applicable rules and norms. Nonprofessional
and inexperienced users are expressly prohibited of taking any action,
unless explicitly requested by specialized technicians to do so.
•Installations must be frequently inspected for unbalance and the
wear signals of the cables, springs, hinges, wheels, supports and other
mechanical assembly parts.
•Donotuse the productifitisnecessary repairoradjustmentisrequired.
•When performing maintenance, cleaning and replacement of parts, the
product must be disconnected from power supply. Also including any
operation that requires opening the product cover.
•The use,cleaning and maintenance ofthisproduct maybe carried out by
any persons aged eight years old and over and persons whose physical,
sensorial or mental capacities are lower, or by persons without any
knowledge of the product, provided that these are supervision and
instructions given by persons with experienced in terms of usage
of the product in a safe manner and who understands the risks and
dangers involved.
•Children shouldn’t play with the product or opening devices to avoid
the motorized door or gate from being triggered involuntarily.
WARNINGS FOR TECHNICIANS
•Before beginning the installation procedures, make sure that you have
all the devices and materials necessary to complete the installation of
the product.
•You should note your Protection Index (IP) and operating temperature
to ensure that is suitable for the installation site.
•Provide the manual of the product to the user and let them know how
to handle it in an emergency.
•If the automatism is installed on a gate with a pedestrian door, a door
locking mechanism must be installed while the gate is in motion.
•Do not install the product “upside down” or supported by elements do
not support its weight. If necessary, add brackets at strategic points to
ensure the safety of the automatism.
•Do not install the product in explosive site.
•Safety devices must protect the possible crushing, cutting, transport
and danger areas of the motorized door or gate.
•Verify that the elements to be automated (gates, door, windows,
blinds, etc.) are in perfect function, aligned and level. Also verify if the
necessary mechanical stops are in the appropriate places.
•The central must be installed on a safe place of any fluid (rain, moisture,
etc.), dust and pests.
•You must route the various electrical cables through protective tubes,
to protect them against mechanical exertions, essentially on the power
supply cable. Please note that all the cables must enter the central
from the bottom.
•If the automatism is to be installed at a height of more than 2,5m from
the ground or other level of access, the minimum safety and health
requirements for the use of work equipment workers at the work of
Directive 2009/104/CE of European Parliament and of the Council of 16
September 2009.
01. SAFETY INSTRUCTIONS

3A EN
•Attach the permanent label for the manual release as close as possible
to the release mechanism.
•Disconnect means, such as a switch or circuit breaker on the electrical
panel, must be provided on the product’s fixed power supply leads in
accordance with the installation rules.
•If the product to be installed requires power supply of 230Vac or
110Vac, ensure that connection is to an electrical panel with ground
connection.
•The product is only powered by low voltage satefy with central (only
at 24V motors)
WARNINGS FOR USERS
•Keep this manual in a safe place to be consulted whenever necessary.
•If the product has contact with fluids without being prepared, it must
immediately disconnect from the power supply to avoid short circuits,
and consult a specialized technician.
•Ensure that technician has provided you the product manual and
informed you how to handle the product in an emergency.
•Ifthesystemrequiresanyrepairormodification,unlocktheautomatism,
turn off the power and do not use it until all safety conditions have
been met.
•In the event of tripping of circuits breakers of fuse failure, locate
the malfunction and solve it before resetting the circuit breaker or
replacing the fuse. If the malfunction is not repairable by consult this
manual, contact a technician.
•Keep the operation area of the motorized gate free while the gate in in
motion, and do not create strength to the gate movement.
•Do not perform any operation on mechanical elements or hinges if the
product is in motion.
RESPONSABILITY
•Supplier disclaims any liability if:
•Product failure or deformation result from improper installation
use or maintenance!
•Safety norms are not followed in the installation, use and
maintenance of the product.
•Instructions in this manual are not followed.
•Damaged is caused by unauthorized modifications
•In these cases, the warranty is voided.
01. SAFETY INSTRUCTIONS
SYMBOLS LEGEND:
• Important safety
notices
• Useful information
• Programming
information
• Potentiometer
information
• Connectors
information
• Buttons
information

4A 4B
45
78
78
ENEN
. MAGNETIC DETECTOR . PRE INSTALLATION
TECHNICAL CHARACTERISTICS PRECAUTIONS TO HAVE
MD is a vehicle magnetic detector that detects the presence of large metal objects (cars, trucks,
wagons) even when the vehicle is not moving.
• The circuit and power cable must be isolated copper wire with a minimum cross section of .mm.
• The power cable must be twisted at least twenty turns per meter.
• The circuit must be square or rectangular with a minimum distance of one meter between the two
opposite sides.
• There are usually three turns of wire in the circuit.
• To avoid detector malfunction due to interference, the circuits must be at least 2 meters apart and
operating at different frequencies.
MD
• Power Supply Vac /Hz
• Reading distance -m
• Sensitivity  degrees selectable
• Presence mode Limited Presence / Permanent Presence
• Indicator Power indicator: Red LED
Status indicator: Green LED.
• Internal protection Transformer isolation, voltage regulation tube, volta-
ge dependent resistance.
• Working temperature -°C  °C
• Frequency  or  Mhz
• Output  ouput A Vac
The dimensions of MD are the following:
Wire splicing is not advised. In any case, any splices should be welded and waterproofed
to prevent detector malfunction. Power cables subject to electrical interference must be
shielded cable grounded at the detector.
Please pay attention to the supply voltage of the equipment.
Any wrong connection will damage the product.
Large circuits with a circumference of more than 10 meters should have two turns, while those
with a circumference of less than 6 meters should have four turns. In the case of two circuits
next to each other, to avoid interference, it is recommended to install one circuit with three
turns and another with four turns.

5A
2m-3m
1m
2m
2
3
4
1
3
1
2
4
1°
2°
3°
∅4mm
30-50mm
EN
. INSTALLATION
To avoid electromagnetic interference, pull the loop wires from
the power wires.
DRILL THE FLOOR
Punch the floor using a suitable tool.
(see detail A).
Then make 45 ° incisions to prevent damage to the wire.
PUT THE WIRE
Run 3 turns of wire in the floor circuit (see detail B).
Twist the wire segment that forms the power cable.
Fill the crack with epoxy resin or bitumen.
INSERT MD
Loosen the connector and insert a suitable plate.
Retighten the connector.
Attach the MD100 to the plate and remove the cover.
MAKE CONNECTIONS
Connect the cables according to the wiring diagram on the next page.
Insert the cover.
DETAIL BDETAIL A
epoxy

6A 6B
ENEN

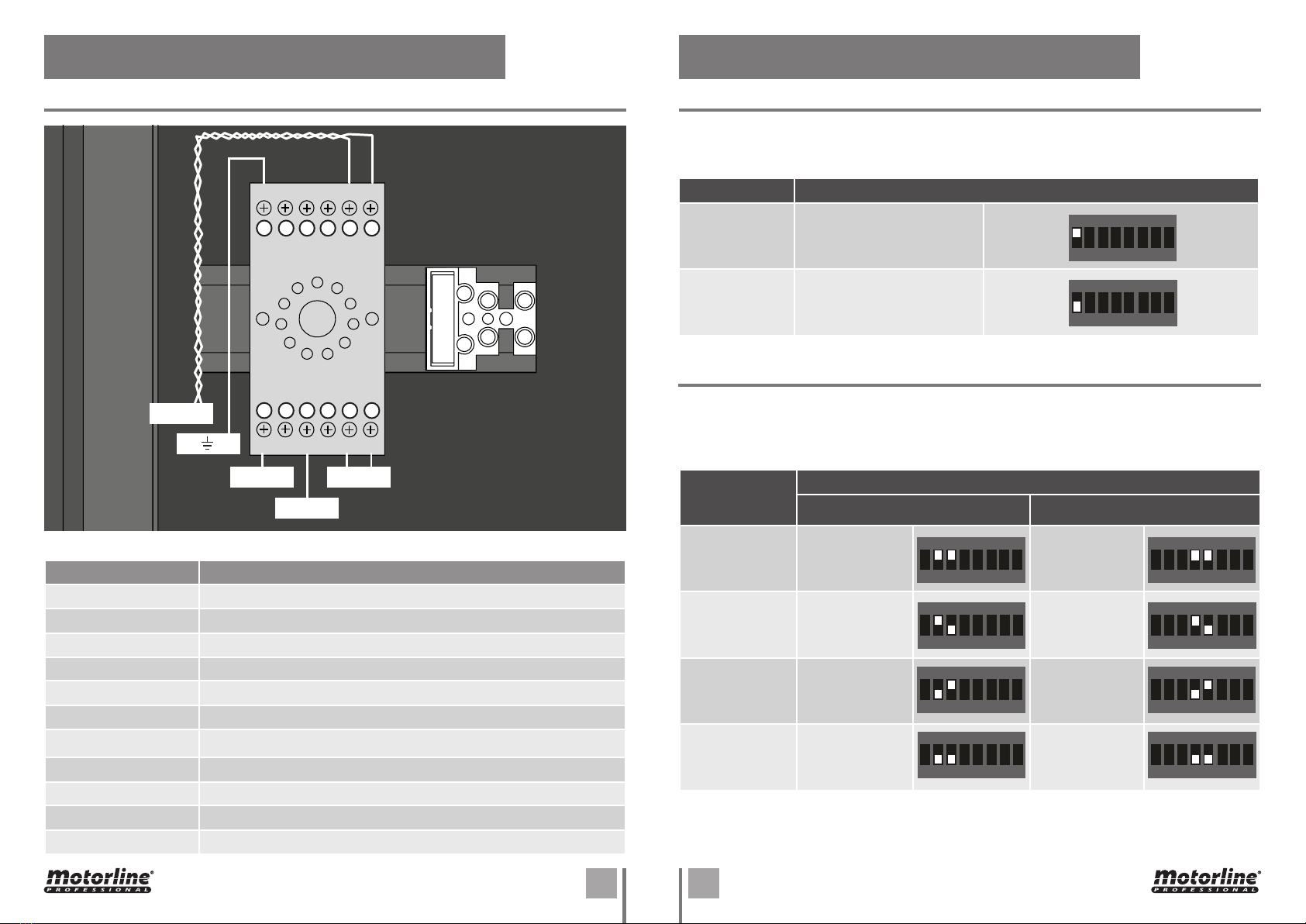

. CONNECTION SCHEME . PROGRAMMING
COMPONENT CONNECTIONS FREQUENCY ADJUSTMENT
SENSITIVITY
Frequency Dip switch 
Low ON
High OFF
Degree of
sensitivity
(low-high)
Dip switch , , , 
Channel  (Dip switch , ) Channel  (Dip switch , )
Dip-switch : ON
Dip-switch : ON Dip-switch : ON Dip-switch : ON
2Dip-switch : ON
Dip-switch : OFF Dip-switch : ON Dip-switch : OFF
3Dip-switch : OFF
Dip-switch : ON Dip-switch : OFF Dip-switch : ON
4Dip-switch : OFF
Dip-switch : OFF Dip-switch : OFF Dip-switch : OFF
Channel  frequency adjustment can be achieved by Dip switch   on the front panel.
This depends on the geometric shape, size and number of turns of the loop.
Channel  sensitivity adjustment is done using dip switch   and  . Dip switch   and   regulate
channel  sensitivity. Several factors influence sensitivity: loop length, number of turns of the loop, lead
wire length and presence of metals under the loop.
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
Loop 1
Output NO CH1
Output NO CH1
230V AC
9
10
8
10
7
11
5
6
3
1
4
2
Numbers Description
 Input V (PHASE)
 Input V (NEUTRAL)
 Loop 
 Loop 
 Loop 
 Loop 
 Ouput NO CH
8 Ouput NO CH
 Ground connection input
 Ouput NO CH
 Ouput NO CH

7A 7B
ENEN
Status Channel  relay Channel  relay
NO NO
. PROGRAMMING
LED INDICATOR
AUTOMATIC INCREASE IN SENSITIVITY
. INDICATORS
Automatic sensitivity increase causes the sensitivity level to be maximum. This level is maintained as
long as the car is present on the loop. When the vehicle leaves the loop and no longer detects, the
sensitivity level returns to the preselected level.
ASB Dip switch 
Disable OFF
Enable ON
MODE OF OPERATION CHANNEL  AND CHANNEL  RELAY
CONTACT RELAY MODE
Modo de
operação relé do
canal  e  Dip switch  e 
Presença
Permanente Dip-switch : ON
Dip-switch : ON
Presença
Limitada Dip-switch : ON
Dip-switch : OFF
Channel  and 
relay operation
mode Dip switch  e 
Permanent
Presence Dip-switch : ON
Dip-switch : ON
Limited
Presence Dip-switch : ON
Dip-switch : OFF
When a car enters channel  or channel , the channel  and  relay sends a presence signal and the
presence time can be selected with dip switch   and  .
Status Channel  Green Channel  Green Red
Power Supply Channel  and  LEDs light up simultaneously after which
the Sensitivity indication begins. Light - V Off - Without V
Sensitivity
indicator Channel  and  LEDs in sequence (ignition frequency  Hz), sensitivity  number of illuminations. Light
Preparation for
data collection Channel  and  LEDs light up simultaneously for  sec- onds and then go out. Light
Indicator for loop
binding failures
Short circuit or frequency  KHz, the LED
corresponding to the channel flashes (frequency  Hz).
Operating frequency  Khz, the LED corresponding to
the channel lights up.
Light
Beginning of
detection Off Light
Presence of
vehicle at the turn
of channel 1 Light Off Light
No vehicle in both Off Off Light
Presence of
vehicle at the turn
of channel 2 Off Light Light
Presence of
vehicle on both Light Light Light
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
