User’s Guide
Digital Video Baby Monitor
Models: MBP621, MBP621-2, MBP621-3, MBP621-4
The features described in this User’s Guide are subject to modifications without prior notice.

Welcome...
to your new Motorola Digital Video Baby Monitor!
Thank you for purchasing the Digital Video Baby Monitor. Now you can view
and hear your baby sleeping in another room or you can monitor your older
children in their play room.
Please retain your original dated sales receipt for your records. For
warranty service of your Motorola product, you will need to provide a copy
of your dated sales receipt to confirm warranty status. Registration is not
required for warranty coverage.
For product-related questions, please call:
This User's Guide provides you with all the information you need to get the
most from your product.
Before you use the digital video baby monitor, we recommend that you
insert and fully charge the battery in the parent unit, so that it continues to
work if you disconnect it from the electrical outlet to carry it to another
location. Please read the Safety Instructions on page 7 before you install
the units.
Got everything?
• 1 x Parent unit
• 1 x Baby unit (camera)
• 1 x Rechargeable Ni-MH battery pack for the Parent unit
• 1 x Battery door for Parent unit
• 1 x Belt clip/stand for Parent unit
• 1 x Power adapter for Parent unit
• 1 x Power adapter for Baby unit
In packs with multi baby units, you will find one or more additional baby
units with power adapters.
US and Canada 1-888-331-3383
Email: [email protected]

Overview of the Parent Unit
1. LCD display
2. Battery level indicator
On when the parent unit battery is being
charged.
Flashes when the parent unit battery is
low and needs charging.
Off when the parent unit battery is fully
charged, or when the battery is not
installed.
3. Power/Link indicator
On when the parent unit is powered on.
Off when the parent unit battery is fully
charged.
Flashes when pairing, or when searching
for a baby unit.
4. Microphone
5. Control key panel
UP / VOLUME +
Press to increase speaker volume.
While in a menu, press to scroll up.
While viewing a zoomed image, press
and hold to move the image upward.
DOWN / VOLUME -
Press to decrease speaker volume.
While in a menu, press to scroll down.
While viewing a zoomed image, press
and hold to move the image downward.
LEFT/- <
While in a menu, press to choose the
option on the left.
While viewing a zoomed image, press to
zoom out; or press and hold to move the
image leftward.
RIGHT/+ >
While in a menu, press to choose the
option on the right.
While viewing a zoomed image, press to
zoom in; or press and hold to move the
image rightward.
Power ON/OFF button
Press and hold to power on or off.
Press to turn the screen on or off.
MENU/SELECT
Press to enter the menu.
While in a menu, press to choose an
option, or save a setting.
TALK T
Press and hold to talk to the baby unit.
6. Speaker
7. Belt clip/stand
8. Battery compartment cover
9. Power jack
1
23
4
5
6
7
8
9

Parent Unit display icons
Connection status
- displays when strong signal strength is detected between the baby
unit and the parent unit.
- , or displays when moderate signal strength is detected
between the baby unit and the parent unit.
- displays when the link between the baby unit and the parent unit is
lost.
- displays when the parent unit is searching for a baby unit.
Current view status
- Displays the number of the baby unit that is being viewed.
Zoom
- Displays when the camera on the baby unit is zoomed in.
Volume off
- Displays when the volume is turned off.
Sound activation
- You can turn Sound activation function ON or OFF.
To check on your baby whenever there is sound in the baby’s room,
please turn it ON.
- Displays when sound activation is ON.
When the baby unit detects a sound in the baby's room, the video
image of the baby will be displayed on the parent unit.
61oFCurrent temperature
- Displays the current room temperature of the selected baby unit.
Battery status
-scrolls when the battery is charging.
-displays when the battery is fully charged.
-displays when the battery is low and needs charging.
-displays when you do not have a battery installed but operates using
AC power, or the battery has been installed incorrectly.
Camera selection
- You can select the baby unit you want to view, or view all baby units in
Scan Mode.
Brightness
- You can change the brightness of the screen.
Sensitivity
- You can change the sound sensitivity level of the baby unit. The higher
the sound sensitivity level, the more sensitive the baby unit is in
detecting sounds and transmitting them to the parent unit.
Pairing
- The system comes with baby unit(s) already paired with the parent unit.
You can add or replace baby units.

Overview of the Baby Unit
1
2
3
4
5
6
7
8
9
10
Important guidelines for installing your digital video baby monitor
• To use your baby unit and parent unit together, you must be able to establish
a radio link between them, and the range will be affected by environmental
conditions.
• Any large metal object, like a refrigerator, a mirror, a filing cabinet, a metallic
door or reinforced concrete, between the baby unit and parent unit may
block the radio signal.
• The signal strength may also be reduced by other solid structures, like walls,
or by radio or electrical equipment, such as TVs, computers, cordless or
mobile phones, fluorescent lights or dimmer switches.
• If the signal is poor, try moving the parent unit and/or the baby unit to
different positions in the rooms.
1. Camera lens
2. Infrared lights
4 x infra-red LEDs for night vision
illumination.
3. Power/Link indicator
On steadily when the baby unit is
powered on and linked to the parent
unit.
Flashes when the baby unit is not
linked to a parent unit; or the pairing
process is in progress; or the parent
unit is not viewing this baby unit.
4. Microphone
5. Control key panel
PAIR
Press and hold to pair with the parent
unit.
Power ON/OFF button
Press and hold to power the baby unit
on or off.
6. Stand
Tilt to adjust camera angle.
7. Power jack
8. Base
9. Speaker
10. Temperature sensor

6Table of contents
Table of contents
1. Safety Instructions..................................................................................... 7
2. Getting Started........................................................................................ 10
2.1 Baby unit power supply............................................................................. 10
2.2 Parent unit battery installation and power supply.................................... 11
2.3 Belt clip/stand on parent unit.................................................................... 12
3. Using Your Digital Video Baby Monitor..................................................13
3.1 Power on or off the baby unit ................................................................... 13
3.2 Power on or off the parent unit................................................................. 13
3.3 Turn on or off the parent unit screen........................................................ 13
3.4 Adjust speaker volume of the parent unit ................................................ 13
3.5 Adjust LCD brightness of the parent unit................................................. 14
3.6 Adjust sound sensitivity of the baby unit .................................................. 14
3.7 Turn sound activation on or off ................................................................. 14
3.8 Set temperature unit ................................................................................. 14
3.9 Select camera............................................................................................ 15
3.10 Zoom ......................................................................................................... 15
3.11 Pairing and replacing baby unit(s)............................................................ 15
3.12 Talk to the baby unit.................................................................................. 16
3.13 Reset settings to default............................................................................ 16
4. Disposal of the Device (Environment)....................................................17
5. Cleaning .................................................................................................. 18
6. Troubleshooting ...................................................................................... 19
7. General Information ................................................................................ 21
8. Technical Specifications ......................................................................... 26

Safety Instructions 7
ENGLISH
1. Safety Instructions
WARNING:
Strangulation Hazard. Children have
STRANGLED in cords. Keep this cord out
of the reach of children (more than 3ft
(1m) away). Never use extension cords
with AC Adapters. Only use the AC
Adapters provided.

8Safety Instructions
WARNING
This Digital Video Baby Monitor is compliant with all relevant standards
regarding electromagnetic fields and is, when handled as described in the
User's Guide, safe to use. Therefore, always read the instructions in this User's
Guide carefully before using the device.
• Adult assembly is required. Keep small parts away from children when
assembling.
• This product is not a toy. Do not allow children to play with it.
• This Digital Video Baby Monitor is not a substitute for responsible adult
supervision.
• Keep this user's guide for future reference.
• Keep the cords out of reach of children.
• Do not cover the Digital Video Baby Monitor with a towel or blanket.
• Test this monitor and all its functions so that you are familiar with it prior to
actual use.
• Do not use the Digital Video Baby Monitor in damp areas or close to water.
• Do not install the Digital Video Baby Monitor in extreme cold or heat, direct
sunlight, or close to a heat source.
• Only use the chargers and power adapters provided. Do not use other
chargers or power adapters as this may damage the device and battery pack.
• Only insert a battery pack of the same type.
• Do not touch the plug contacts with sharp or metal objects.
• Connect the power adapters to easily accessible electrical outlets.
CAMERA SET UP & USE:
• Determine a location for the Baby Unit that will provide the best view
of your baby in his/her crib.
• Place the Baby Unit on a flat surface, such as a dresser, bureau or
shelf, or mount the Unit on a wall securely using the keyhole slots
under the stand.
• NEVER place the Baby Unit or cords within the crib.

Safety Instructions 9
ENGLISH
CAUTION
There is a risk of explosion if the battery is replaced by an incorrect type.
Dispose of used batteries according to the instructions.
Use only rechargeable battery pack with rating: 2.4V 750mAh

10 Getting Started
2. Getting Started

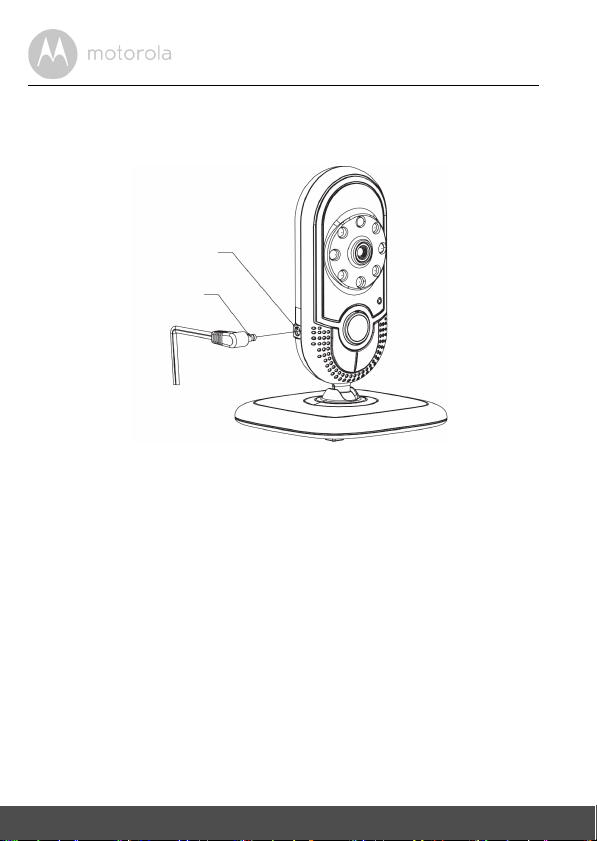

2.1 Baby unit power supply
1. Insert the DC plug of the power adapter with the smaller DC plug into the
DC jack on the side of the baby unit.
2. Connect the other end of the power adapter to a suitable electrical outlet.
NOTE
Only use the provided power adapter.
DC JACK
DC PLUG

Getting Started 11
ENGLISH
2.2 Parent unit battery installation and power supply
A rechargeable battery pack is supplied and should be fitted, so that the parent
unit can be carried to another location without losing the link and picture from
the baby unit(s). Charge the parent unit before using it for the first time or when
the parent unit indicates that battery is low. We recommend that the unit be
charged for 15 hours prior to first use.
1. Remove the belt clip/stand if it is attached to the parent unit.
2. Slide off the battery compartment cover.
3. Insert the plug of the rechargeable battery pack into the jack inside the
battery compartment, and fit the battery pack into the compartment.
4. Slide the battery compartment cover back until it clicks into place, and re-
attach the belt clip/stand (refer to section 2.3).
5. Insert the DC plug of the power adapter with the bigger DC plug into the
DC jack on the side of the parent unit.
6. Connect the other end of the power adapter to a suitable electrical outlet.
7. The battery level indicator comes on.
NOTE
Only use the provided power adapter and battery pack.
We recommend that you install and fully charge the battery in the parent unit,
so that it continues to work if you disconnect it from the electrical outlet to carry
it to another location.
Battery JACK
Battery PLUG
DC PLUG
DC JACK

12 Getting Started
2.3 Belt clip/stand on parent unit
1. The belt clip/stand attaches to the back of the parent unit and clips into the
locking slots on each side.
NOTE
It will only fit one way, as indicated by UP and the arrows on the inner side of the
clip.
2. The unit comes with the accessory fitted in the belt clip position.
3. You can convert it into the desktop position by simply pulling the back part of
the clip out slightly and then rotating it by half a turn, as shown above.
Belt clip position Desktop position

Using Your Digital Video Baby Monitor 13
ENGLISH
3. Using Your Digital Video Baby Monitor
Please read these instructions carefully, and be aware that this digital video baby
monitor is only intended as an aid. It is not a substitute for responsible and proper
adult supervision.
3.1 Power on or off the baby unit
• Press and hold to power on the baby unit. The Power/Link indicator turns
on.
• Press and hold again to power off the baby unit. The Power/Link indicator
turns off.
3.2 Power on or off the parent unit
• Press and hold to power on the parent unit. The Power/Link indicator and
the LCD screen turn on.
• Press and hold again to power off the parent unit. The Power/Link
indicator and the LCD screen turn off.
NOTE
If you place the parent and baby units too close together, you may hear a high
pitched noise. This is not a fault. The units are designed to be operated at some
distance apart, e.g. in separate rooms, so move the units further apart.
If the Power/Link indicator flashes on the baby unit or parent unit, they are not
linked to each other. Make sure that both units are powered on, and reduce the
distance between the units, but not closer than 3 feet.
3.3 Turn on or off the parent unit screen
You can turn off the parent unit screen without powering off the parent unit.
When the screen is turned off, you can still hear sound from the baby unit.
• Press on the parent unit to turn off the screen at any time.
3.4 Adjust speaker volume of the parent unit
You can adjust the speaker volume from Volume 1 to Volume 5, or turn it off.
• Press or on the parent unit when it is not in use.
When the speaker volume is set to off, the screen displays .

14 Using Your Digital Video Baby Monitor
3.5 Adjust LCD brightness of the parent unit
You can adjust the brightness of the parent unit screen from Level 1 to Level 5.
The LCD brightness is preset to Level 3.
1. Press when the parent unit is not in use.
2. Press -or +to scroll to .
3. Press <or >to adjust brightness.
4. Press to confirm your selection.
3.6 Adjust sound sensitivity of the baby unit
You can set the sound sensitivity level(Level 1 to Level 5) of the baby unit(s) from
the parent unit. The higher the sound sensitivity level, the more sensitive the
baby unit is in detecting sounds and transmitting them to the parent unit.
1. Press when the parent unit is not in use.
2. Press -or +to scroll to .
3. Press <or >to adjust the sensitivity level.
4. Press to confirm your selection.
3.7 Turn sound activation on or off
When the parent unit screen is turned off manually, you can set the screen to
turn on automatically whenever sounds are detected from the baby unit(s). After
20 seconds, when no sounds are detected from the baby unit(s), the parent unit
screen will turn off automatically.
1. Press when the parent unit is not in use.
2. Press -or +to scroll to .
3. Press <or >to select to turn on, or to turn off sound activation.
4. Press to confirm your selection.
You will hear a beep when the screen turns on or off due to sound activation.
3.8 Set temperature unit
You can set the temperature unit of the baby unit.
1. Press when the parent unit is not in use.
2. Press -or +to scroll to .
3. Press <or >to select oCor oF.
4. Press to confirm your selection.

Using Your Digital Video Baby Monitor 15
ENGLISH
3.9 Select camera
You can select the baby unit you want to view, or view all baby units in Scan
Mode.
If you select Scan Mode, the screen switches to display another baby unit
automatically after some time. The switching is made in a loop: to .
1. Press when the parent unit is not in use.
2. Press -or +to scroll to .
3. Press <or >to select the baby unit you want to view (1, 2, 3 or 4) or Scan
Mode ( ).
4. Press to confirm your selection.
3.10 Zoom
You can zoom in or out when viewing an image from the baby unit.
1. Press >to zoom in.
2. Press and hold +, -, <or >to move the zoomed image upward,
downward, leftward or rightward correspondingly.
3. Press <to zoom out.
3.11 Pairing and replacing baby unit(s)
The system comes with baby unit(s) already paired with the parent unit.
You can pair a maximum of four baby units to your parent unit. Each new baby
unit must be paired to the parent unit before use.
To pair and replace a baby unit:
1. Press when the parent unit is not in use.
2. Press -or +to scroll to .
3. Press <or > to choose a desired baby unit slot, then press . The screen
displays .
NOTE
If you choose an occupied baby unit slot, the new baby unit will replace the
existing baby unit.
4. Power on the new baby unit, and then immediately press and hold until
the Power/Link indicator flashes.

16 Using Your Digital Video Baby Monitor
When pairing is successful, the screen displays , followed by the image from
the newly paired baby unit.
NOTE
If pairing fails, the screen displays . Try the pairing process again. Only one
baby unit can be paired at a time.
3.12 Talk to the baby unit
You can use the TALK function of the parent unit to talk to and comfort your
baby.
To talk to the baby unit:
1. Press and hold Twhen viewing a baby unit.
2. Speak towards the microphone on the parent unit.
Your voice is broadcast to the baby unit.
3.13 Reset settings to default
1. Press and hold when the parent unit is not in use. At the same time, press
three times consecutively.
2. Release , and then press again immediately.
All settings will be reset to default.

Disposal of the Device (Environment) 17
ENGLISH
4. Disposal of the Device (Environment)
At the end of the product lifecycle, you should not dispose of
this product with normal household waste. Take this product to
a collection point for the recycling of electrical and electronic
equipment. The symbol on the product, user's guide and/or
box indicates this.
Some of the product materials can be re-used if you take them
to a recycling point. By reusing some parts or raw materials from used products
you make an important contribution to the protection of the environment.
Please contact your local authorities in case you need more information on the
collection points in your area.
Dispose of the battery pack in an environmentally-friendly manner according to
your local regulations.

18 Cleaning
5. Cleaning
Clean your Digital Video Baby Monitor with a slightly damp cloth or with an anti-
static cloth. Never use cleaning agents or abrasive solvents.
Cleaning and care
• Do not clean any part of the Digital Video Baby Monitor with thinners or other
solvents and chemicals - this may cause permanent damage to the product
which is not covered by the warranty.
• Keep your Digital Video Baby Monitor away from hot, humid areas or strong
sunlight, and do not let it get wet.
• Every effort has been made to ensure high standards of reliability of your
Digital Video Baby Monitor. However, if something does go wrong, please
do not try to repair it yourself - contact Customer Service for assistance.
IMPORTANT
Always power off and disconnect the power adapter before cleaning your
digital video baby monitor.

Troubleshooting 19
ENGLISH
6. Troubleshooting
Power Indicator on the parent unit does not come on
• Check whether the parent unit is powered on.
• Check whether the supplied battery pack is correctly installed and that they
are not drained.
• Recharge the parent unit by connecting it to the electrical outlet.
Power/Link Indicator on the baby unit flashes
• The baby unit may be not paired to the parent unit. Refer to section 3.11 to
pair the baby unit.
• The parent unit and the baby unit may be out of range with each other.
Reduce the distance between the units, but not closer than 3 feet.
• The baby unit may be powered off. Press and hold to power on the baby
unit.
Battery/Charging Indicator or on the parent unit screen
flashes
• Battery pack in the parent unit is running low. Connect the parent unit to the
electrical outlet with the supplied power adapter for recharging.
The parent unit beeps
• The parent unit may have lost connection with the baby unit. Reduce the
distance between the parent unit and the baby unit, but not closer than
3 feet.
• The baby unit may be powered off. Press and hold to power on the baby
unit.
• Battery pack in the parent unit is running low. Connect the parent unit to the
electrical outlet with the supplied power adapter for recharging.

20 Troubleshooting
Cannot view the video image of the object from the parent
unit
• The LCD brightness may be set too low. Try to increase the brightness level.
Refer to section 3.5 for details.
• The parent unit and the baby unit may be out of range with each other.
Reduce the distance between the units, but not closer than 3 feet.
• Battery pack in the parent unit may be drained. Connect the parent unit to
the electrical outlet with the supplied power adapter for recharging.
Cannot hear sound or baby cry from the parent unit
• The volume level in the parent unit may be set too low, increase the volume
level of the parent unit. Refer to section 3.4 for volume level settings.
• The parent unit and the baby unit may be out of range with each other.
Reduce the distance between the units, but not closer than 3 feet.
The digital video baby monitor system produces a high-
pitched noise
• The parent unit and the baby unit are too close to each other. Make sure that
the parent unit and baby unit are at least 3 feet away from each other.
• The speaker volume of the parent unit may be set too high. Decrease the
volume of the parent unit. Refer to section 3.4 for volume level settings.
Battery pack in the parent unit is running low quickly
• The LCD brightness may be set too high. Try to decrease the brightness
level. Refer to section 3.5 for details.
• The volume level of the parent unit may be set too high, which consumes
power. Decrease the volume level of the parent unit. Refer to section 3.4 for
volume level settings.
