Motorola MBP140 User manual

User’s Guide
Digital Audio Baby Monitor
Models: MBP140, MBP140-2
The features described in this User’s Guide are subject to modifications without prior notice.

Welcome...
to your new Motorola Digital Audio Baby Monitor!
Thank you for purchasing the MBP140/MBP140-2. Now you can monitor
the sound of your baby from another room.
Please retain your original dated sales receipt for your records.
For warranty service of your Motorola product, you will need to provide a
copy of your dated sales receipt to confirm warranty status. Registration is
not required for warranty coverage.
For product-related questions, please call:
This User’s Guide provides you with all the information you need to get the
most from your product.
Before you use the baby monitor, we recommend you insert and fully
charge the battery in the parent unit, so that it continues to work if you
disconnect it from the mains power to carry it to another location. Please
read the Safety Instructions on page 6 before you install the units.
Got everything?
• 1 x Parent unit with battery door
• 1 x Baby unit
• 1 x Charger Cradle with adaptor
• 1 x AAAx2 Ni-MH battery pack
• 1 x Lanyard
• 1 x Quick Start Guide
In packs with dual parent units, you will find an additional parent unit with
charger cradle, power adaptor and rechargeable NiMH battery pack.
[phone] in Europe
Email: [e-mail]
On the Web: www.motorolahome.com/help

Overview of the Baby Unit
1. Nightlight Output
- On when the nightlight is
turned on.
- Off when the nightlight is
turned off.
2. Speaker
- To hear from Parent Unit when
Talk is pressed.
3. Power indicator
- On when the baby unit is
turned on.
- Off when the baby unit is
turned off.
4. Control key panel
Nightlight ON/OFF button
- Press to turn on/off the
nightlight.
Power ON/OFF button
- Press and hold to turn the baby
unit on or off.
Volume /
- Press to adjust the speaker
volume.
5. Microphone
6. Power adaptor
1
2
3
4
5
6

Overview of the Parent Unit
1
2
3
4
5
6
7
8
9
1. Power ON/OFF button
- Press and hold to turn the parent
unit on or off.
2. Volume
- Press to decrease the speaker
volume.
3. Power/link indicator
- On in green when the parent
unit is powered on and linked to
the baby unit.
- On in orange when the parent
unit battery is charging while
linked to the baby unit.
- Alternates in orange and red
when the parent unit battery is
charging while not linked to the
baby unit.
- Alternates in orange and green
when the battery is low while
linked to the baby unit.
- Flashes in orange when the
battery is low while not linked to
the baby unit.
- Off when the parent unit is
powered off.
4. Microphone
- Transmits sound to the baby unit
speaker when Talk is pressed.
5. Volume
- Press to increase the speaker
volume.
6. Talk
- Press and hold to talk and
comfort the baby.
7. Speaker
8. Belt clip
9. Battery compartment cover

Important guidelines for installing your Baby Monitor
• To use your baby unit and parent unit together, you must be able to establish a radio link
between them, and the range will be affected by environmental conditions.
• Any large metal object, like a refrigerator, a mirror, a filing cabinet, metallic doors or
reinforced concrete, between the baby and parent unit may block the radio signal.
• The signal strength may also be reduced by other solid structures, like walls, or by radio or
electrical equipment, such as TVs, computers, cordless or mobile phones, fluorescent
lights or dimmer switches.
• Use of other wireless products, such as wireless networks, Bluetooth™ systems or
microwave ovens may cause interference with this product, so keep the baby monitor
away from these types of products, or turn them off if they appear to be causing
interference.
• If the signal is poor, try moving the parent and/or the baby unit to different positions in the
rooms.
• It is recommended to place the baby unit about 1.5m from the Cot to ensure sound can
be received and heard.
• It is essential to ensure sufficient clear space around the baby unit.

6Table of contents
Table of contents
1. Safety Instructions..................................................................................... 7
2. Getting Started.......................................................................................... 9
2.1 Connecting baby unit to power ................................................................. 9
2.2 Installing battery and connecting parent unit to power ............................ 9
2.3 Installation of Lanyard ............................................................................... 10
3. Using Your Baby Monitor ........................................................................ 12
3.1 Power on or off the baby unit ................................................................... 12
3.2 Power on or off the parent unit................................................................. 12
3.3 Set nightlight ............................................................................................. 12
3.4 Adjust the speaker volume for parent unit ............................................... 12
3.5 Adjust the speaker volume for baby unit.................................................. 13
3.6 Talk back to the baby unit......................................................................... 13
4. Disposal of The Device (environment) ................................................... 14
5. Cleaning .................................................................................................. 15
6. Troubleshooting ...................................................................................... 16
7. General Information ................................................................................ 17

Safety Instructions 7
ENGLISH
1. Safety Instructions
Presence of important operating and maintenance (servicing) instructions in
the literature accompanying the appliance.
This Baby Monitor is compliant with all relevant standards regarding
electromagnetic fields and is, when handled as described in the User’s Guide,
safe to use. Therefore, always read the instructions in this User’s Guide carefully
before using the device.
• Use mains power sockets that are near the equipment and easily accessible.
• Determine a location for the baby monitor that will provide the best audio
reception of your baby in his cot.
• NEVER place the baby monitor within the cot.
• Adult assembly is required. Keep small parts away from children when
assembling.
• This product is not a toy. Do not allow children to play with it.
• This baby monitor is not a substitute for responsible adult supervision.
• Keep this User’s Guide for future reference.
• Do not cover the baby monitor with a towel or blanket.
• Test this monitor and all its functions so that you are familiar with it prior to
actual use.
• Do not use the baby monitor near water.
• Do not install the baby monitor near a heat source.
Presence of un-insulated dangerous voltage within the product's
enclosure that may be of sufficient magnitude to constitute a
risk of electric shock to persons.
WARNING:

8Safety Instructions
CAUTION
In order to reduce the risk of fire or electrical shock, do not expose the device to
water or humidity. Never disassemble the device. Opening the casing is
dangerous and will invalidate the warranty.
The electrical plug is used to disconnect the device and it should remain readily
operable during use. In order to disconnect the apparatus from power
completely, the socket plug should be disconnected from the electrical socket
completely.
You chance the risk of explosion if battery is replaced by an incorrect type.
Dispose of used batteries according to their instructions. Use only the provided
rechargeable battery pack.

Getting Started 9
ENGLISH
2. Getting Started
2.1 Connecting baby unit to power
A. Choose a suitable location with easy access to a mains power socket.
B. Plug the baby unit into the power socket in your baby’s room. Ensure
sufficient clearance is given for it to detect sound and place it not more
than 1.5m away from the baby's cot.
2.2 Installing battery and connecting parent unit to power
A rechargeable battery pack is supplied and should be fitted, so that the parent
unit can be moved without losing the link from the baby unit(s). Charge the
parent unit before you use it for the first time or when the parent unit indicates
that the battery is low.
A. Slide off the battery compartment cover.
B. Insert the plug of the battery pack into the jack inside the battery
compartment, and fit the battery pack into the compartment.
Mains power socketPlug
BLACK
RED

10 Getting Started
C. Slide the battery compartment cover back until it securely clicks into place.
D. Place the parent unit onto the charger. Connect the power adaptor of the
charger to a suitable power socket.
NOTE
Only use the provided battery pack.
2.3 Installation of Lanyard
A lanyard is supplied as an additional wearable option for the parent unit other
than the belt clip. Follow the steps below for installing the lanyard:
A. Open the battery door of the parent unit.
B. Hook the string loops of the lanyard over the plastic catches inside the
battery compartment as shown in the diagram.

Getting Started 11
ENGLISH
C. Make sure the 2 string loops sit properly over the 2 plastic catches.
D. Close the battery door.
E. Open/Close the Lanyard Lock.
• Pull with force to open the lock.
• Push to close the lock.

12 Using Your Baby Monitor
3. Using Your Baby Monitor
Please read these instructions carefully, and be aware that this baby monitor is
only intended as an aid. It is not a substitute for responsible, correct parental
supervision.
3.1 Power on or off the baby unit
• Press and hold to turn on the baby unit. The Power indicator turns on.
• Press and hold again to turn off the baby unit. The Power indicator light
turns off.
3.2 Power on or off the parent unit
• Press and hold to turn on the parent unit. The Power/link indicator turns on.
• Press and hold again to turn off the parent unit. The Power/link indicator
turns off.
NOTE
Do not place the parent and baby units too close together or you may hear a
high pitched noise. This is audio feedback, not a defect in the unit. The units are
designed to be operated at some distance apart, e.g. in separate rooms.
3.3 Set nightlight
The nightlight feature is for giving the room a soft glow so the baby can be
observed without disrupting it with bright lights.
• When the nightlight is off, press on the baby unit to turn it on.
• When the nightlight is on, press on the baby unit to turn it off.
3.4 Adjust the speaker volume for parent unit
You can adjust the speaker volume from Volume 1 to Volume 5.
• Press or on the parent unit when it is not in use.
NOTE
If no sound is detected from the baby unit for about 15 seconds, the speaker on
the parent unit will go into standby mode and turn off. Any sound will
immediately turn it back on.

Using Your Baby Monitor 13
ENGLISH
3.5 Adjust the speaker volume for baby unit
You can adjust the speaker volume from Volume 1 to Volume 5, to increase or
decrease the sound heard by the baby from a parent unit when its Talk button
is pressed.
• Press or on the baby unit.
3.6 Talk back to the baby unit
• Press and hold the Talk button on the parent unit to be able to talk back to
your baby.

14 Disposal of The Device (environment)

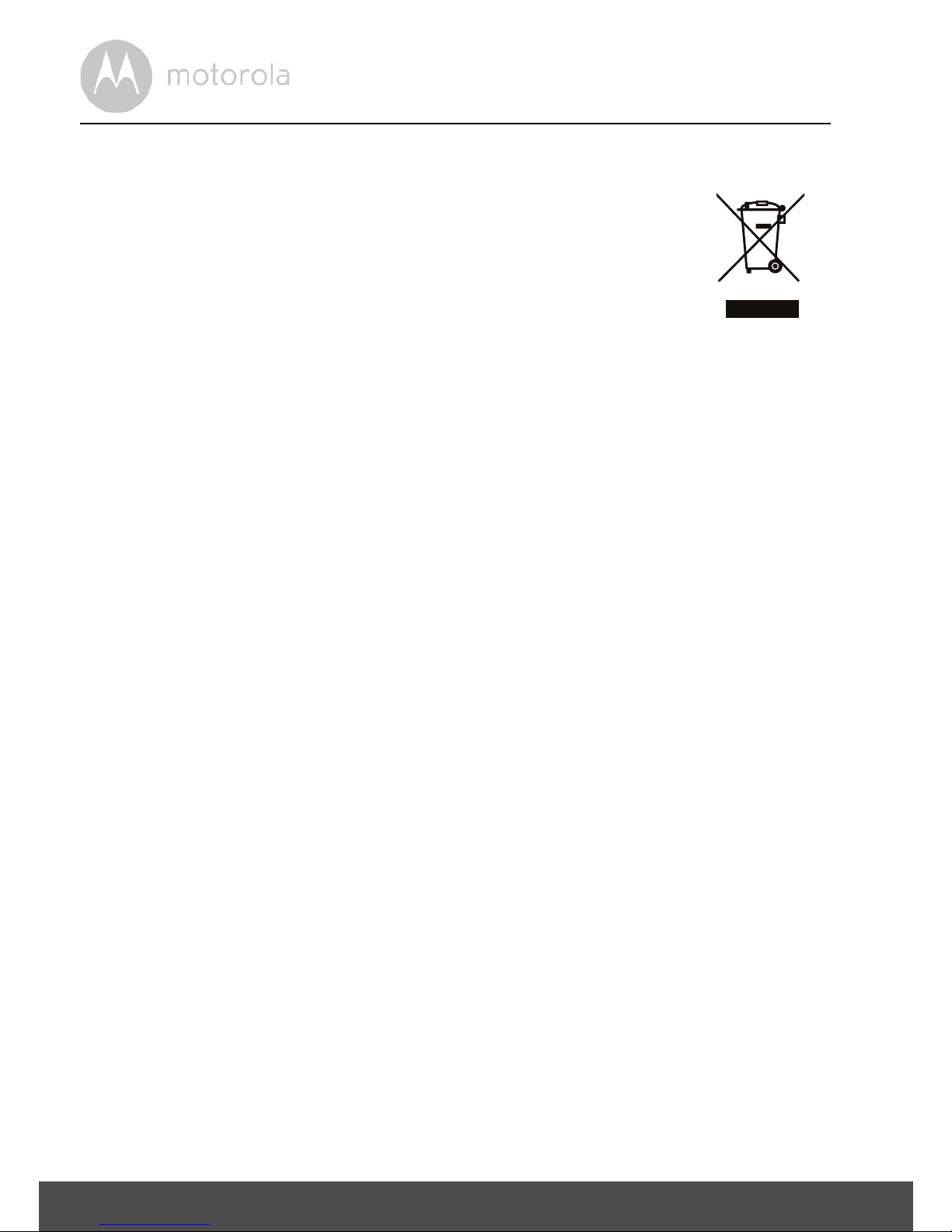

4. Disposal of The Device (environment)
At the end of the product lifecycle, you should not dispose of
this product with normal household waste. Take this product to
a collection point for the recycling of electrical and electronic
equipment. The symbol on the product, User’s Guide and/or
box indicates this.
Some of the product materials can be re-used if you take them to a recycling
point. By reusing some parts or raw materials from used products you make an
important contribution to the protection of the environment.
Please contact your local authorities in case you need more information on the
collection points in your area.
Dispose of the battery pack in an environmentally-friendly manner according to
your local regulations.

Cleaning 15
ENGLISH
5. Cleaning
Clean your Baby Monitor with a slightly damp cloth or with an anti-static cloth.
Never use cleaning agents or abrasive solvents.
Cleaning and care
• Do not clean any part of the Baby Monitor with thinners or other solvents and
chemicals – this may cause permanent damage to the product which is not
covered by the warranty.
• Keep your Baby Monitor away from hot, humid areas or strong sunlight, and
do not let it get wet.
• Every effort has been made to ensure high standards of reliability for your
Baby Monitor. However, if something does go wrong, please do not try to
repair it yourself – contact Customer Service for assistance.
IMPORTANT
Always switch off and disconnect the power adaptor before cleaning your baby
monitor.

16 Troubleshooting
6. Troubleshooting
Power/link Indicator on the parent unit does not come on
• The baby unit may be switched off. Press the button to switch on the baby unit.
• Check whether the supplied battery pack is correctly installed and that it is
not drained.
• Recharge the parent unit by placing it in a charger cradle connected to the
mains.
Power Indicator on the baby unit flashes
• The baby unit may be switched off. Press the button to switch on the baby unit.
• The parent unit and the baby unit may be out of range with each other.
Reduce the distance between the units, but not closer than 1.5m.
The parent unit beeps
• The parent unit may have lost connection with the monitoring baby unit.
Reduce the distance between the parent unit and the baby unit, but not
closer than 1.5m.
• The baby unit may be switched off. Press the button to switch on the baby unit.
• Battery pack in parent unit is running low. Place the parent unit in a charger
cradle connected to mains power for recharging.
Cannot hear sound or baby cry from the parent unit
• The volume level in the parent unit may be set too low. Increase the volume
level of the parent unit. Refer to section 3.4 for volume level settings
• The parent unit and the monitoring baby unit may be out of range with each
other. Reduce the distance between the units, but not closer than 1.5m.
The baby monitor system produces a high-pitched noise
• The parent unit and the baby unit are too close to each other. Make sure the
parent unit and baby unit are at least 1.5m away from each other.
• The speaker volume of the parent unit maybe set too high. Decrease the
volume of the parent unit.
Battery pack in the parent unit is running low quickly
• The volume level of the parent unit may be set too high which consumes
power. Decrease the volume level of the parent unit. Refer to section 3.4 for
volume level settings.

General Information 17
ENGLISH
7. General Information
lf your product is not working properly....
1. Read this User's Guide.
2. Contact Customer Service at
To order a replacement battery pack for parent unit, contact customer service.
Consumer Products and Accessories Limited Warranty
("Warranty")
Thank you for purchasing this Motorola branded product manufactured under
license by Binatone Electronics International LTD ("BINATONE")
What Does this Warranty Cover?
Subject to the exclusions contained below, BINATONE warrants that this
Motorola branded product ("Product") or certified accessory ("Accessory") sold
for use with this product that it manufactured to be free from defects in materials
and workmanship under normal consumer usage for the period outlined below.
This Warranty is your exclusive warranty and is not transferable.
THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY
HAVE OTHER RIGHTS THAT VARY BY STATE, PROVINCE OR COUNTRY. FOR
CONSUMERS WHO ARE COVERED BY CONSUMER PROTECTION LAWS OR
REGULATIONS IN THEIR COUNTRY OF PURCHASE OR, IF DIFFERENT, THEIR
COUNTRY OF RESIDENCE, THE BENEFITS CONFERRED BY THIS LIMITED
WARRANTY ARE IN ADDITION TO ALL RIGHTS AND REMEDIES CONVEYED
BY SUCH CONSUMER PROTECTION LAWS AND REGULATIONS. FOR A FULL
UNDERSTANDING OF YOUR RIGHTS YOU SHOULD CONSULT THE LAWS OF
YOUR COUNTRY, PROVINCE OR STATE.
[phone] in Europe
Email: [email protected]
On the Web: www.motorolahome.com/help

18 General Information
Who is covered?
This Warranty extends only to the first consumer purchaser, and is not
transferable.
What will BINATONE do?
BINATONE or its authorised distributor at its option and within a commercially
reasonable time, will at no charge repair or replace any Products or Accessories
that do not conform to this Warranty. We may use functionally equivalent
reconditioned/ refurbished/ pre-owned or new Products, Accessories or parts.
What Other Limitations Are There?
ANY IMPLIED WARRANTIES, INCLUDING WITHOUT LIMITATION THE
IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE, SHALL BE LIMITED TO THE DURATION OF THIS
LIMITED WARRANTY, OTHERWISE THE REPAIR OR REPLACEMENT
PROVIDED UNDER THIS EXPRESS LIMITED WARRANTY IS THE EXCLUSIVE
REMEDY OF THE CONSUMER, AND IS PROVIDED IN LIEU OF ALL OTHER
WARRANTIES, EXPRESS OR IMPLIED. IN NO EVENT SHALL MOTOROLA OR
BINATONE BE LIABLE, WHETHER IN CONTRACT OR TORT (INCLUDING
NEGLIGENCE) FOR DAMAGES IN EXCESS OF THE PURCHASE PRICE OF
THE PRODUCT OR ACCESSORY, OR FOR ANY INDIRECT, INCIDENTAL,
SPECIAL OR CONSEQUENTIAL DAMAGES OF ANY KIND, OR LOSS OF
REVENUE OR PROFITS, LOSS OF BUSINESS, LOSS OF INFORMATION OR
OTHER FINANCIAL LOSS ARISING OUT OF OR IN CONNECTION WITH THE
ABILITY OR INABILITY TO USE THE PRODUCTS OR ACCESSORIES TO THE
FULL EXTENT THESE DAMAGES MAY BE DISCLAIMED BY LAW.
Some jurisdictions do not allow the limitation or exclusion of incidental or
consequential damages, or limitation on the length of an implied warranty, so
the above limitations or exclusions may not apply to you. This Warranty gives
you specific legal rights, and you may also have other rights that vary from one
jurisdiction to another.

General Information 19
ENGLISH
Exclusions
Normal Wear and Tear. Periodic maintenance, repair and replacement of parts
due to normal wear and tear are excluded from coverage.
Batteries. Only batteries whose fully charged capacity falls below 80% of their
rated capacity and batteries that leak are covered by this Warranty.
Abuse & Misuse. Defects or damage that result from: (a) improper operation,
storage, misuse or abuse, accident or neglect, such as physical damage (cracks,
scratches, etc.) to the surface of the product resulting from misuse; (b) contact
with liquid, water, rain, extreme humidity or heavy perspiration, sand, dirt or the
like, extreme heat, or food; (c) use of the Products or Accessories for
commercial purposes or subjecting the Product or Accessory to abnormal
usage or conditions; or (d) other acts which are not the fault of MOTOROLA or
BINATONE., are excluded from coverage.
Use of Non-Motorola branded Products and Accessories. Defects or damage
that result from the use of Non-Motorola branded or certified Products or
Accessories or other peripheral equipment are excluded from coverage.
Unauthorised Service or Modification. Defects or damages resulting from
service, testing, adjustment, installation, maintenance, alteration, or
modification in any way by someone other than MOTOROLA, BINATONE or its
authorised service centres, are excluded from coverage.
Products Covered Length of Coverage
Consumer Products Two (2) years from the date of the
products original purchase by the first
consumer purchaser of the product.
Consumer Accessories Ninety (90) days from the date of the
accessories original purchase by the first
consumer purchaser of the product.
Consumer Products and Accessories
that are Repaired or Replaced
The balance of the original warranty or
for Ninety (90) days from the date
returned to the consumer, whichever is
longer.

20 General Information
Altered Products. Products or Accessories with (a) serial numbers or date tags
that have been removed, altered or obliterated; (b) broken seals or seals that
show evidence of tampering; (c) mismatched board serial numbers; or (d)
nonconforming or non-Motorola branded housings, or parts, are excluded from
coverage.
Communication Services. Defects, damages, or the failure of Products or
Accessories due to any communication service or signal you may subscribe to
or use with the Products or Accessories is excluded from coverage.
How to Obtain Warranty Service or Other Information?
To obtain service or information, please call:
You will receive instructions on how to ship the Products or Accessories at your
expense and risk, to a BINATONE Authorised Repair Centre.
To obtain service, you must include: (a) the Product or Accessory; (b) the original
proof of purchase (receipt) which includes the date, place and seller of the
Product; (c) if a warranty card was included in your box, a completed warranty
card showing the serial number of the Product; (d) a written description of the
problem; and, most importantly; (e) your address and telephone number.
These terms and conditions constitute the complete warranty agreement
between you and BINATONE regarding the Products or Accessories purchased
by you, and supersede any prior agreement or representations, including
representations made in any literature publications or promotional materials
issued by BINATONE or representations made by any agent employee or staff
of BINATONE, that may have been made in connection with the said purchase.
[phone] in Europe
Email: [email protected]
On the Web: www.motorolahome.com/help
